Cecilware 20-1PE Installation Manual
ARCTIC ECONOMY SERIESARCTIC ECONOMY SERIESARCTIC ECONOMY SERIESARCTIC ECONOMY SERIES
20/1PE-20/2PE-20/3PE-20/4PE
NS04A
ENGLISH
ENGLISH
ESPAÑOL
OPERATOR’S MANUAL
MANUAL DE INSTRUCCIONES
ARCTIC ECONOMY SERIES
1 TECHNICAL CHARACTERISTICS
20/1PE 20/2PE 20/3PE 20/4PE
Transparent removable bowls n 1 2 3 4
Capacity of each bowl,
approx.
Dimensions:
width inches 7.125 14.5 21.25 28.5
depth inches 18.5 18.5 18.5 18.5
height 5.4Gal
Net weight, approx. 5.4Gal
Gross weight, approx. 5.4Gal
Adjustable thermostats n 1 2 3 4
Hermetic compressor
Air-cooled condenser
Overload protector
Noise level lower than 70 dB (A)
standard
optional
3.17Gal
3.17Gal
3.17Gal
Gal 5.4
3.17
inches 26.52426.52426.52426.5
Lbs 48.54470.56092.5
Lbs 55
48.58061.75
5.4
3.17
5.4
3.17
79.5
102
88.25
3.17
121.25
130
108
IMPORTANT
Read electrical ratings written on the data plate of the
individual units; the data plate is adhered on the dispensing side panel of the unit, just behind the drip tray (the
right side drip tray in multiple bowl models). The serial
number of the unit (preceded by the symbol #) is adhered
just below the right bowl. Data plate specifications will
always supersede the information in this manual.
Specifications are subject to change without notice.
5.4
2 Inspect the uncrated unit for any possible damage. If
damage is found, call the delivering carrier immediately to file a
claim.
3 Install the unit on a counter top that will support the combined weight of dispenser and product bearing in mind what is
stated in the preceding point 1 IMPORTANT warning.
4 A minimum of 15 cm (6”) of free air space all around the unit
should be allowed to guarantee adequate ventilation.
5 Ensure that the legs are screwed tightly into the base of the
24
machine.
Replace the standard legs originally installed with the 100 mm
97
(4”) legs whenever they are provided with the unit.
6 Before plugging the unit in, check if the volta ge is the same
as that indicated on the data plate. Plug the unit into a grounded, protected single phase electrical supply according to the
applicable electrical codes and the specifications of your
machine. When the unit has no plug, install a proper grou nded
plug, in compliance with electrical codes in force in your area,
suitable to at least 10 Amp 250 Volt (220-230 Volts 50-60 Hz
areas) and 20 Amp 250 Volt (100-115 Volts 50-60 H z areas)
applications. Should you prefer to connect th e unit directly to
the mains, connect the supply cord to a 2-pole wall breaker,
whose contact opening is at least 0.125”. Do not use extension
cords.
ATTENTION
Failure to provide proper electrical ground according to
applicable electrical codes could result in serious shock
hazard.
2 INTRODUCTION
Please read all sections of this manual thoroughly to familiarize
yourself with all aspects of the unit.
Like all mechanical products, this machine will require cleaning
and maintenance. Besides, dispenser working can be
compromised by operator’s mistakes during disassembly and
cleaning. It is strongly recommended that personnel responsible
for the equipment’s daily operations, disassembly, cleaning,
sanitizing and assembly, go through these procedures in order
to be properly trained and to make sure that no
misunderstandings exist.
3 INSTALLATION
1 Remove the corrugate container and packing materials and
keep them for possible future use.
IMPORTANT
When handling the machine never grasp it by the bowls.
The manufacturer refuses all responsibilities for possible
damages which may occur through incorrect handling.
7 The unit doesn’t come presanitized from the factory. Before
serving products, the dispenser must be disassembled, cleaned and sanitized according to this handbook instructions
(chapter 5.3 CLEANING AND SANITAZING PROCEDURES).
IMPORTANT
Install the dispenser so that the plug is easily a ccessible.
4 TO OPERATE SAFELY
1 Do not operate the dispenser without reading this opera-
tor’s manual.
2 Do not operate the dispenser unless it is properly groun-
ded.
3 Do not use extension cords to connect the dispenser.
4 Do not operate the dispenser unless all panels are restrai-
ned with screws.
5 Do not obstruct air intake and discharge openings: 15 cm
(6”) minimum air space all around the dispenser.
6 Do not put objects or fingers in panels louvers and faucet
outlet.
7 Do not remove bowls, augers and panels for cleaning or
routine maintenance unless the dispenser is disconnected from
2
its power source.
5. 3 CLEANING AND SANITIZING
PROCEDURES
ATTENTION
In case of damages, the power cord must be replaced by
qualified personnel only in order to prevent any shock
hazard.
5 OPERATING PROCEDURES
1 Clean and sanitize the unit according to the instructions in
this manual. See chapter 5.3 CLEANING AND SANITIZING
PROCEDURES.
2 Fill the bowls with product to the maximum level mark. Do
not overfill.
The exact quantity of product (expressed as liters and gallons)
is shown by marks on the bowl.
3 In case of products to be dilute d with water, potable water,
pour water into bowl first, then add correct quantity of product.
In case of natural particulates, it is advisable to strain them, in
order to prevent pulps from obstructing the faucet outlet.
4 Install the covers and check that they are correctly placed
over the bowls.
5 Set the control switches as shown in chapter
5.1 DESCRIPTION OF CONTROLS.
6 The dispenser must always run with the covers installed to
prevent a possible contamination of the product.
7 Always leave the dispenser on, as the refrigeration stops
automatically when the beverage reaches the dispensing temperature. The mixing devices will continue to turn.
8 To maintain a high standard of flavour, keep refrigeration
and mixing devices on during the night when beverage is in the
bowl.
Cleaning and sanitizing of the dispenser are recommended to
guarantee the conservation of the best product taste and the
highest unit efficiency. This section is a procedural guideline
only and is subject to the requirements of the local Health
Authorities.
Prior to the disassembly and cleaning, the machine must be
emptied of product.
5. 3. 1 DISASSEMBLY
ATTENTION
Before any disassembly and/or cleaning pro cedure m ake
sure that the dispenser is disconnected from its power
source by unplugging it or switching off the 2-pole wall
breaker.
1 Remove cover from the bowl.
2 Remove the empty bowl by lifting first its front side (faucet
side) up and off bowl gasket (see figure 1).
IMPORTANT
Operate the dispenser with food products only.
5. 1 DESCRIPTION OF CONTROLS
The dispenser is equipped with a power switch only. W hen it is
set to position I, the power is turned on both to mixing devices
and to refregeration.
5. 2 OPERATION HELPFUL HINTS
1 The length of time for cooling down the product is governed
by many variables, such as ambient temperature and beverage
initial temperature.
2 To shorten product cooling down time and increase productivity, it is advisable to pre-chill the product to be used in the
dispenser.
3 To shorten product cooling down time and increase productivity, the bowl should be refilled after the product level drops
lower than half and at the start of each day.
4 The dispenser must be able to emit heat.
In case it seems excessive, check that no heating source is
close to the unit and air flow through the slotted panels is not
obstructed by wall or boxes. Allow at least 15 cm (6”) of free
clearance all around the dispenser.
In any case if the product in the bowls is cold the unit is running
properly.
5 How to reset beverage temperature:to reset beverage temperature please refer to a technician.
The proper temperature is preset at the factory.

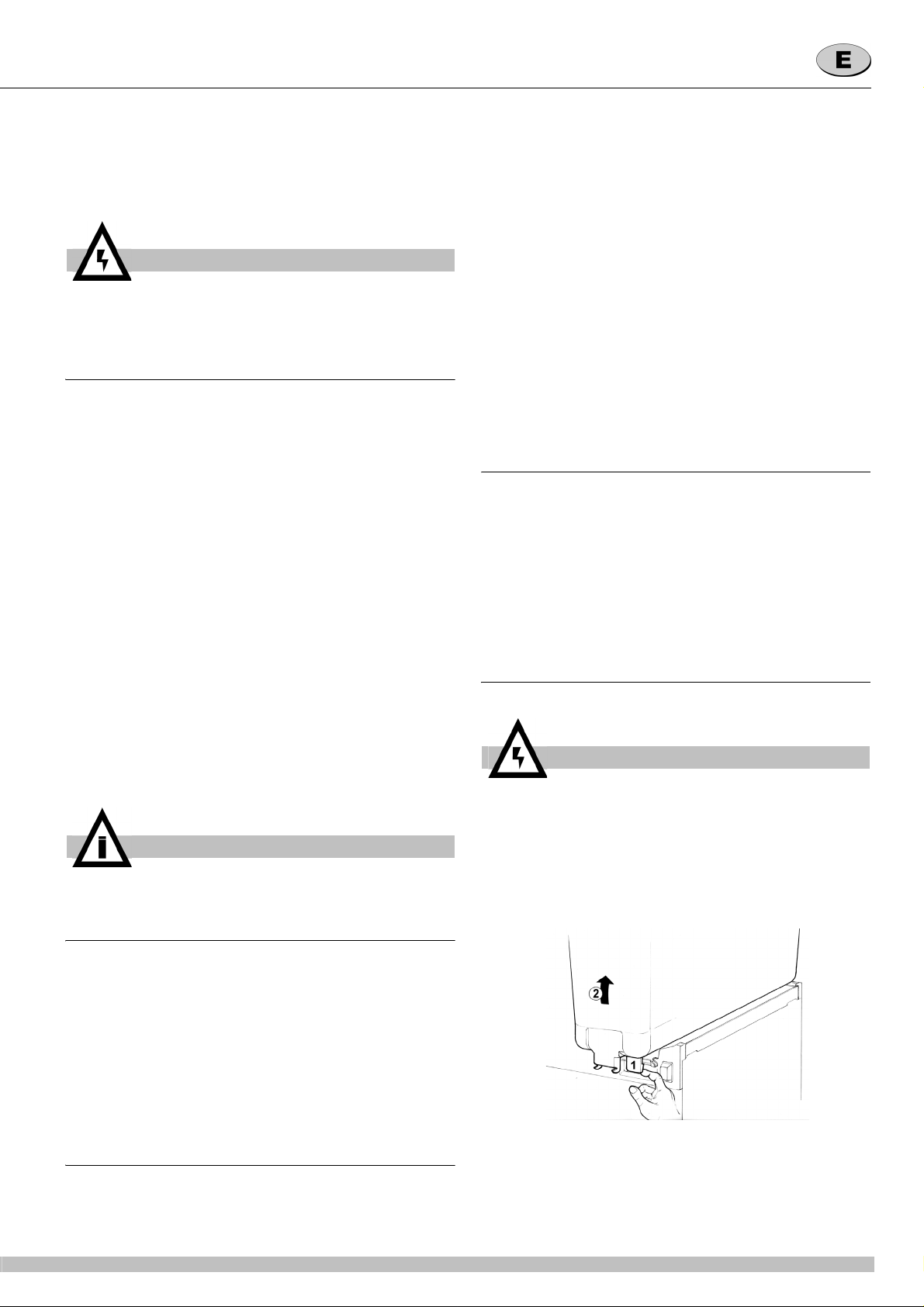

figure 1
3 Remove the bowl gasket.
4 Remove the pump impeller from its location.
5 Gravity faucet: extract the piston and then remove the
dispensing handle (see figure 2).
figure 2
6 Slide drip tray out and empty it.
3
ARCTIC ECONOMY SERIES
5. 3. 2 CLEANING
IMPORTANT
Do not attempt to wash any machine components in a
dishwasher.
ATTENTION
Before any disassembly and/or cleaning procedure make
sure that the dispenser is disconnected from its power
source.
1 Prepare at least two gallons of a mild cleaning solution of
warm (45-60 °C 120-140 °F) potable water and dishwashing
detergent. Do not use abrasive detergent.
Important: if present, follow label directions, as too strong a
solution can cause parts damage, while too mild a solution will
not provide adequate cleaning.
IMPORTANT
5. 3. 4 ASSEMBLY
1 Slide the drip tray into place.
2 Gravity faucet: install the faucet handle and the piston with
its gasket (see figure 3).
figure 3
3 Fit the bowl gasket to the evaporator. Note: the largest brim
of the gasket must face against the drip plate (see figure 4).
In order to prevent any damages to the dispenser use
only a detergent suitable with plastic parts.
2 Using a brush, suitable for the purpose, thoroughly clean all
disassembled parts in the cleaning solution.
ATTENTION
When cleaning the machine, do not allow excessive
amounts of water around the electrically oper ated components of the unit. Electrical shock or damage to the
machine may result.
3 Do not immerse the lighted top covers in liquid. Wash them
apart with the cleaning solution. Carefully clean their undersides.
4 In the same manner clean the evaporator cylinder(s) using
a soft bristle brush.
5 Rinse all cleaned parts with cool clean water.
5. 3. 3 SANITIZING
Sanitizing should be performed immediately prior to
starting the machine. Do not allow the unit to sit for
extended periods of time after sanitization.
1 Wash hands with a suitable antibacterial soap.
2 Prepare at least two gallons of a warm (45-60 °C 120-
140 °F) sanitizing solution (100 PPM available chlorine concentration or 1 spoon of sodium hypoclorite diluted with two litres of
water) according to your local Health Codes and manufacturer’s specifications.
3 Place the parts in the sanitizing solution for five minutes.
4 Do not immerse the lighted top covers in liquid. Carefully
wash their undersides with the sanitizing solution.
5 Place the sanitized parts on a clean dry surface to air dry.
6 Wipe clean all exterior surfaces of the unit. Do not use abra-
sive cleaner.
figure 4
4 Place bowl on the unit. Wet the gasket for ease of insertion.
Please take care that the hook on the backside of the bowl be
inserted properly in its seat on the upper drip plate. (see figu re
5).
figure 5
5 Use fresh product to chase any remaining sanitizer from the
bowl(s). Drain this solution. Do not rinse out the machine.
5. 4 IN-PLACE SANITIZATION
The In-Place Sanitization prior to starting the machine may
be performed, if needed, only as further precaution, in
addition to the Disassembled Parts Sanitization described
before, but never in lieu of it.
1 Prepare two gallons of a warm (45-60°C, 120-140 °F) sani-
4
tizing solution (100 PPM available chlorine concentration or 1
spoon of sodium hypoclorite diluted with two litres of water)
according to your local Health Codes and manufacturer’s specifications.
2 Pour the solution into the bowl(s).
3 Using a brush suitable for the purpose, wipe the solution on
all surfaces protruding above the solution-level and on the
underside of the top cover(s).
4 Install the top cover(s) and operate the un it. Allow the solution to agitate for about two minutes. Drain the solution out of
the bowl(s).
5 Use fresh product to chase any remaining sanitizer from the
bowl(s). Drain this solution. Do not rinse out the machine.
6 ROUTINE MAINTENANCE
Daily: inspect the machine for signs of product leaks past seals
and gaskets. If proper assembly does not stop leaks around
seals or gaskets, check for improper lubrication, worn or
damaged parts. Replace parts as needed with original spare
parts from the supplier.
6. 1 MAINTENANCE (TO BE CARRIED OUT BY
QUALIFIED SERVICE PERSONNEL ONLY)
Monthly
ser, using compressed air.
To clean these internal parts, unplug the unit or switch off the 2pole wall breaker, then remove front panel (dispensing side).
Condenser fins are very sharp. Use extreme caution when cleaning.
: clean all internal components, primarily the conden-
5
Loading...
