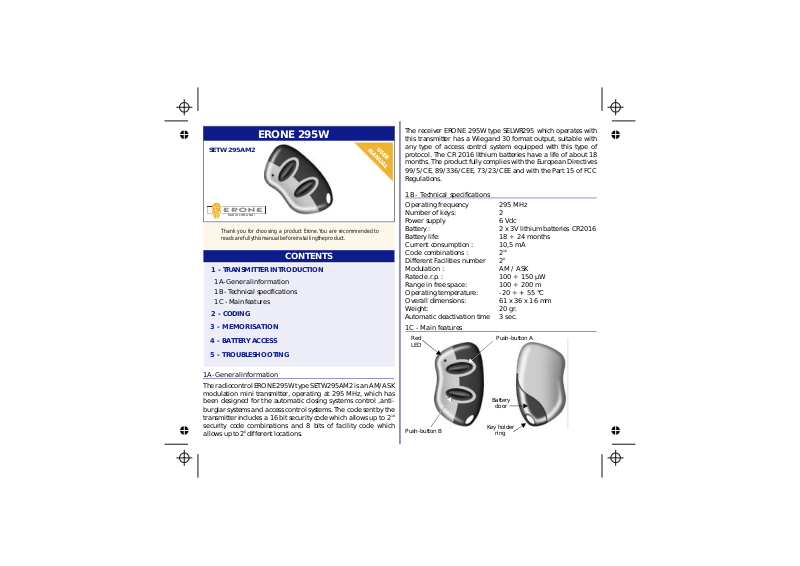

ERONE295W
SETW295AM2
RADIOCOMANDI
ThankyouforchoosingaproductErone.Youarerecommendedto
readcarefullythismanualbeforeinstallingtheproduct.
CONTENTS
1-TRANSMITTERINTRODUCTION
1A-Generalinformation
1B-Technicalspecifications
1C-Mainfeatures
2-CODING
3-MEMORISATION
4-BATTERYACCESS
5-TROUBLESHOOTING
1A-Generalinformation
TheradiocontrolERONE295WtypeSETW295AM2isanAM/ASK
modulationminitransmitter,operatingat295MHz,whichhas
beendesignedfortheautomaticclosingsystemscontrol,antiburglarsystemsandaccesscontrolsystems.Thecodesentbythe
transmitterincludesa16bitsecuritycodewhichallowsupto2
securitycodecombinationsand8bitsoffacilitycodewhich
allowsupto2differentlocations.
8
ThereceiverERONE295WtypeSELWR295whichoperateswith
thistransmitterhasaWiegand30formatoutput,suitablewith
anytypeofaccesscontrolsystemequippedwiththistypeof
protocol.TheCR2016lithiumbatterieshavealifeofabout18
months. TheproductfullycomplieswiththeEuropeanDirectives
99/5/CE,89/336/CEE,73/23/CEEandwiththePart15ofFCC
Regulations.
1B-Technicalspecifications
Operatingfrequency295MHz
Numberofkeys:2
Powersupply6Vdc
Battery:2x3VlithiumbatteriesCR2016
Batterylife:1824months
Currentconsumption:10,5mA
Codecombinations:2
DifferentFacilitiesnumber2
÷
16
8
Modulation:AM/ASK
Ratede.r.p.:100150µW
Rangeinfreespace:100200m
÷
÷
Operatingtemperature:-20÷+55°C
Overalldimensions:61x36x16mm
Weight:20gr.
Automaticdeactivationtime3sec.
1C-Mainfeatures
16
Push-buttonB
Red
LED
Push-buttonA
Battery
door
Keyholder
ring
2-CODING
Eachtransmitterismanufacturedandsoldwithadifferent
univocalserialnumberset-in-factory.
3-MEMORISATION
Thetransmittersecuritycodehastobestoredontothereceiveror
thereceiversmemoryavailable.Yourowninstallerorresellerwill
performthisoperationduringtheinstallationorwillgiveyouthe
necessariesinstructionsduringtheselling.
4-BATTERYACCESS
Toaccessthebatteryturnclockwisethe
batterydoor.
Placethe2lithiumCR2016batteries
insertingapartofthemunderthedoor
andtakingcaretopushthemjustonthe
internalringplane.
NOTE:Thedisposaloftheunloadedbatteries
musthaveeffectedmakinguseofthespecial
containers.
5-TROUBLESHOOTING
FAULT SOLUTION
Theradioemissionisn’tverifiable
ThetransmitterledisOFF.
Theradioemissionisn’tverifiable
ThetransmitterledisON.
Therangeisreduced
Replacethetransmitter
batteries
Checkthereceiversupply.
Replacethetransmitter
batteries
ERONE-Type:SETW295AM2
FCCID:PWJW295
ThisdevicecomplieswithFCCRules
Operationissubjecttothefollowingtwoconditions:
(1)Thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptinterferencereceived,including
interferencethatmaycauseundesiredoperation.
AnychangesormodificationtoELPROINNOTEKequipmentnot
expresslyapprovedbyELPROINNOTEKcouldvoidtheuser'sauthority
tooperatetheequipment.
Distributor
TheguaranteeperiodofallEroneproductsis24months,beginningfrom
themanufacturerdate.Duringthisperiod,iftheproductdoesnotwork
correctly,duetoadefectivecomponent,theproductwillberepairedor
substitutedatthediscretionoftheproducer.Theguaranteedoesnot
covertheplasticcontainerintegrity.After-saleserviceissuppliedatthe
producer'sfactory.
ERONEisatrademarkbyELPROINNOTEKS.r.l.
ViaPiave,23-I-31020S.PietrodiFeletto(TV)-ITALY
Tel.:+39/0438/450879-Fax.:+39/0438/457126
Toll-freenumber:800.53.46.46
E-Mail:info@erone.com-Web:www.erone.com
Part.15ofthe
Notice
GUARANTEE
IS-TMWERUK1Rev.1del13.09.2001
