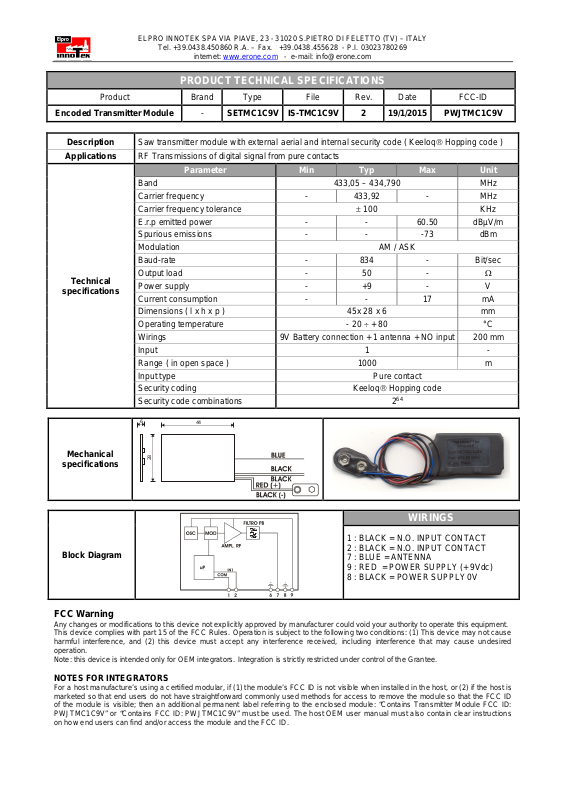

CDVI WIRELESS S P A TMC1C9V Users Manual

ELPRO INNOTEK SPA VIA PIAVE, 23 - 31020 S.PIETRO DI FELETTO (TV) – ITALY

6

Tel. [phone] R.A. – Fax. [phone] - P.I. 03023780269

internet: www.erone.com - e-mail: [e-mail]

PRODUCT TECHNICAL SPECIFICATIONS

Product Brand Type File Rev. Date FCC-ID

Encoded Transmitter Module - SETMC1C9V IS-TMC1C9V

2 19/1/2015 PWJTMC1C9V

Description Saw transmitter module with external aerial and internal security code ( Keeloq Hopping code )

Applications RF Transmissions of digital signal from pure contacts

Parameter Min Typ Max Unit

Band 433,05 – 434,790 MHz
Carrier frequency - 433,92 - MHz
Carrier frequency tolerance

 100
E.r.p emitted power - - 60.50 dBµV/m
Spurious emissions - - -73 dBm
Modulation AM / ASK
Baud-rate - 834 - Bit/sec
Output load - 50 -

Technical

specifications

Power supply - +9 - V
Current consumption - - 17 mA
Dimensions ( l x h x p ) 45x 28 x 6 mm
Operating temperature - 20  + 80 °C
Wirings 9V Battery connection + 1 antenna + NO input 200 mm
Input 1 ­Range ( in open space ) 1000 m
Input type Pure contact
Security coding Keeloq Hopping code
Security code combinations 264

44

KHz



Mechanical

specifications

28

WIRINGS

1 : BLACK = N.O. INPUT CONTACT

Block Diagram

FCC Warning

Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
Note: this device is intended only for OEM integrators. Integration is strictly restricted under control of the Grantee.

NOTES FOR INTEGRATORS

For a host manufacture’s using a certified modular, if (1) the module’s FCC ID is not visible when installed in the host, or (2) if the host is
marketed so that end users do not have straightforward commonly used methods for access to remove the module so that the FCC ID
of the module is visible; then an additional permanent label referring to the enclosed module: “Contains Transmitter Module FCC ID:
PWJTMC1C9V” or “Contains FCC ID: PWJTMC1C9V” must be used. The host OEM user manual must also contain clear instructions
on how end users can find and/or access the module and the FCC ID.

2 : BLACK = N.O. INPUT CONTACT
7 : BLUE = ANTENNA
9 : RED = POWER SUPPLY (+ 9Vdc)
8 : BLACK = POWER SUPPLY 0V
