P O W E R E L E C T R O N I C S D I V I S I O N

Single Output

A-Series, UWR Models

High-Reliability, 2" x 2"

For full details go to

www.cd4power.com/rohs

Features

• Low cost! Highly reliable!

• Proven SMT-on-pcb construction

• Qual tested; HALT tested; EMC tested

• Designed to meet UL/ EN60950,

BASIC insulation (D48A models)

• mark available (48VIN models)

• Output voltages: 3.3/5/5.2/12/15 Volts

• Ultra-wide input voltage ranges:

4.7-7.5V, 9-36V or 18-75V

• Small packages, 2" x 2" x 0.45"

• Industry-standard pinouts

• Fully isolated, 1500Vdc guaranteed

• Guaranteed efficiencies to 84%

• –40 to +100°C operating temperature

• Modifications and customs for OEM’s

14-20 Watt, DC/DC Converters

DATEL's new A-Series switching DC/DC converters are designed to meet
the demanding long-term-reliability and low-cost requirements of modern telecom,
datacom, computer/networking and industrial-electronics applications. These highly­efficient, rugged devices combine straightforward circuit topologies, new components,
proven SMT-on-pcb construction methods, and highly repeatable automatic-assembly
techniques. The flexibility of the designs and their assembly methods readily permit
minor modifications to optimize performance for specific applications.

The single-output, 14-20 Watt Models of the A-Series deliver both high power
densities and impressive MTBF’s. Their superior durability is substantiated by a
rigorous in-house qualification program including HALT (Highly Accelerated Life Test
ing), which is designed to detect any potential electrical, mechanical, or process
weaknesses.

Packaged in standard, 2" x 2" x 0.45", shielded metal cases with non-conductive
coatings, these fully isolated (1500Vdc minimum) DC/DC’s offer excellent line/load
regulation, full I/O protection, thermal shutdown, and industry-standard pinouts.

Output voltages include 3.3, 5, 5.2, 12 or 15 Volts. Input voltage ranges are
DATEL's traditional ultra-wide 9-36V and 18-75V, as well as 4.7-7.5V. Each device
provides remote on/off control and V

OUT trim capability. All A-Series UWR models are

fully EMI characterized and UL1950, CSA 950 and IEC 950 safety approved.

A-Series DC/DC’s are extremely reliable, easy-to-use, cost-effective power con
verters. Use them to improve the reliability of existing equipment or to develop
new systems that exceed design objectives.

-

-

www.cd4power.comwww.cd4power.com

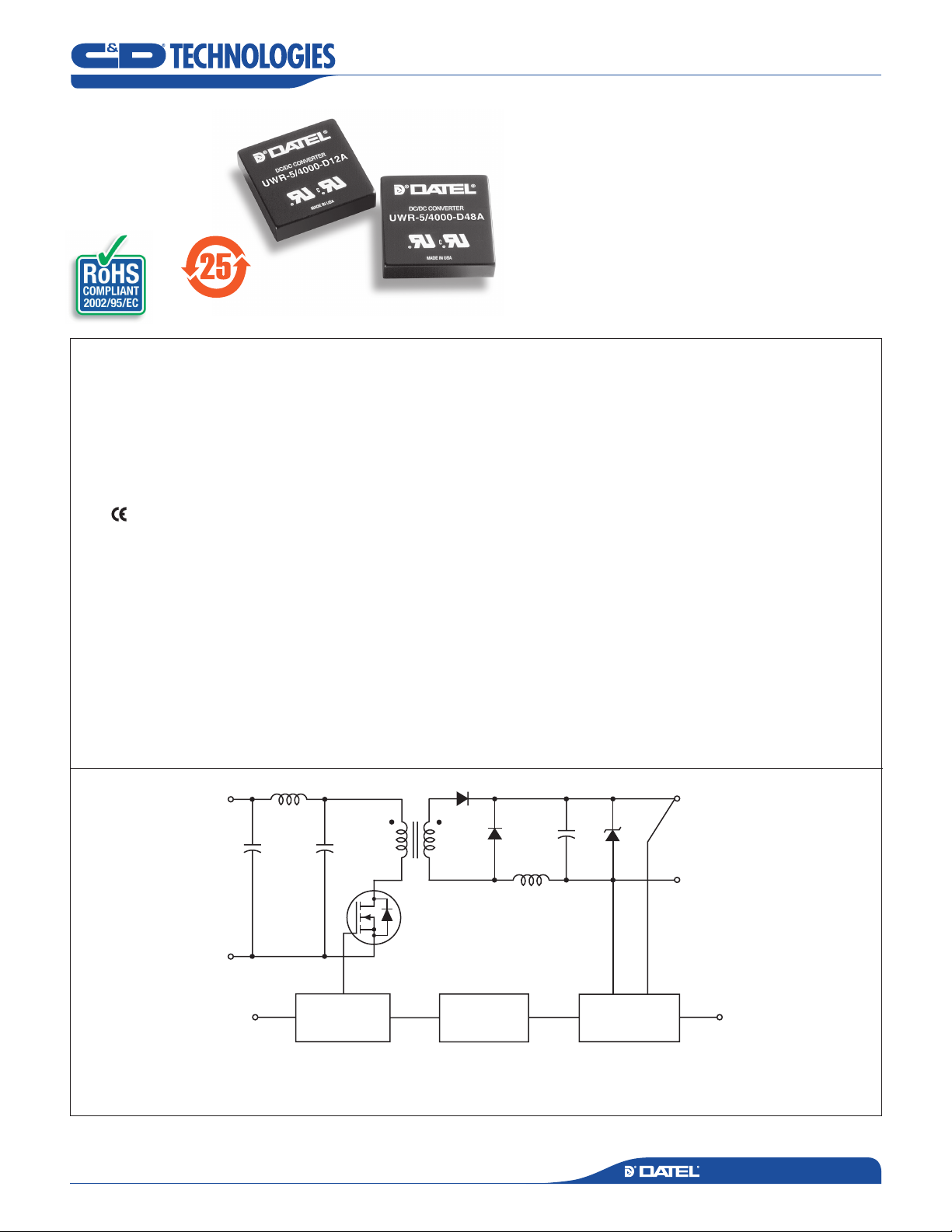

Figure 1. Simplified Schematic

Typical topology is shown

D C / D C C O N V E R T E R S

MDC_UWR14-20W_A01 Page 1 of 6

UWR Models

BOTTOM VIEW

1.80

0

(45.72

)

0.10

(2.54)

2.00

(50.80

)

8

5

6

7

0.40

(10.16

)

0.200
(5

.08)

0.40

0

(10.16

)

0.10

0

(2

.54)

1

2

4

METAL CASE

INSULATED BA

S

E

0.040 ±0.002 DIA.
(1.016 ±0.051

)

2.00

(50.80

)

0.20 MI

N

(5

.08)

0.45

(11.43

)

1.200

(30.48

)

3 EQ. SP. @

0.400 (10.16

)

DIMENSIONS ARE IN INCHES (MM)

Output Power (Watts)

Ambient Temperature (°C)

20

18

16

14

12

10

8

6

4

2

0

UWR-3.3/4250-D5A F
UWR-3.3/4850-D12A

A

UWR-3.3/4850-D48A

A

UWR-5/3000-D5A

E

UWR-5/4000-D12A

C

UWR-5/4000-D48A

B

UWR-5/4000-D48E

G

UWR-5.2/3000-D5A

D

UWR-12/1250-D5A

E

UWR-12/1650-D12A

C

UWR-12/1650-D48A

B

UWR-15/1000-D5A

E

UWR-15/1300-D12A

C

UWR-15/1300-D48A

B

–40 0 40 45 50 55 60 65 70 75 80 85 90 95 100

A

AA

BB, G

C

F

E

D

D, E, F

B

BB

G

P O W E R E L E C T R O N I C S D I V I S I O N

Performance Specifications and Ordering Guide

VOUT

(Volts)

UWR-3.3/4250-D5A 3.3 4250 50 100 ±1.0% ±1.0% 5 4.7-7.5 80/3720 76% 77% C4, P6

UWR-3.3/4850-D12A 3.3 4850 50 75 ±0.5% ±1.0% 24 9-36 35/852 77% 79% C4, P6

UWR-3.3/4850-D48A 3.3 4850 50 100 ±1.0% ±1.0% 48 18-75 15/419 79% 80% C4, P6

UWR-5/3000-D5A 5 3000 50 100 ±1.0% ±1.0% 5 4.7-7.5 80/3800 78% 79% C4, P6

UWR-5/4000-D12A 5 4000 50 100 ±0.3% ±0.5% 24 9-36 15/1020 81% 82% C4, P6

UWR-5/4000-D48A 5 4000 50 100 ±0.3% ±0.5% 48 18-75 15/496 82% 84% C4, P6

UWR-5/4000-D48E ➄ 5 4000 50 100 ±0.3% ±0.5% 48 36-72 15/484 84% 86% C4, P6

UWR-5.2/3000-D5A 5.2 3000 50 100 ±1.0% ±1.0% 5 4.7-7.5 80/3900 79% 80% C4, P6

UWR-12/1250-D5A 12 1250 75 120 ±1.0% ±1.0% 5 4.7-7.5 80/3660 80% 82% C4, P6

UWR-12/1650-D12A 12 1650 50 100 ±0.3% ±0.5% 24 9-36 15/1000 79.5% 82.5% C4, P6

UWR-12/1650-D48A 12 1650 75 100 ±0.3% ±0.5% 48 18-75 15/491 84% 85% C4, P6

UWR-15/1000-D5A 15 1000 75 150 ±1.0% ±1.0% 5 4.7-7.5 80/3660 80% 82% C4, P6

UWR-15/1300-D12A 15 1300 50 100 ±0.3% ±0.5% 24 9-36 20/967 84% 85% C4, P6

UWR-15/1300-D48A 15 1300 75 100 ±0.3% ±0.5% 48 18-75 10/484 84% 86% C4, P6

➀ Typical at TA = +25°C under nominal line voltage and full-load conditions unless otherwise noted.
➁ Ripple/Noise (R/N) measured over a 20MHz bandwidth.
➂ 10% to 100% load.

IOUT

(mA)

A-Series, Single Output, High Reliability, 2" x 2", 14-20 Watt, DC/DC Converters

➀

Output

R/N (mVp-p) ➁

Typ.

Max.

Regulation (Max.)

Line

Load ➂

➃ Nominal line voltage, no-load/full-load conditions.

➄ See Technical Notes for an explanation of trading off input voltage ranges for higher full-power

operating temperature.
➅ These are not complete part numbers. Please see the Part Number Structure.

VIN Nom.

(Volts)

Input

Range
(Volts)Root Model ➅

IIN ➃

(mA)

Efficiency

Min.

Typ.

Package

(Case,

Pinout)

P A R T N U M B E R S T R U C T U R E

/

5U WR 4000 D12 A-

-

Output Configuration:
U = Unipolar

Wide Range Input

Input Voltage Range:

Nominal Output Voltage:

3.3, 5, 12 or 15 Volts

Maximum Output Current

in mA

D5 = 4.7-7.5 Volts (5V nominal)
D12 = 9-36 Volts (24V nominal)
D48 = 18-75/36-72 Volts (48V nominal)

* Contact C&D Technologies (Datel)

for availability.

T E M P E R A T U R E D E R A T I N G

1. UWR-3.3/4850-D48A (18-75V input, curve A) and UWR-3.3/4850-D12A (9-36V input, curve A)
will derate curve AA if used over the limited input ranges of 20-60V or 10-30V, respectively.

2. "D48A" models (18-75V input ranges) that derate along curve B will derate along curve BB
if used over the more limited input range of 24-60V.

www.cd4power.comwww.cd4power.com

-

A-Series

High Reliability

C

RoHS-6 compliant*

M E C H A N I C A L S P E C I F I C A T I O N S

I/O Connections

Pin Function P6

1 +Input

2 –Input

3 No Pin

4 On/Off Control

5 No Pin

6 +Output

7 Common

8 Trim

Case C4

Notes:

For "D5A" and "D12A" models,
the case is connected to
pin 2 (–VIN).

For "D48A" and "D48E" models, the case
is connected to pin 1 (+VIN).

D C / D C C O N V E R T E R S

MDC_UWR14-20W_A01 Page 2 of 6
