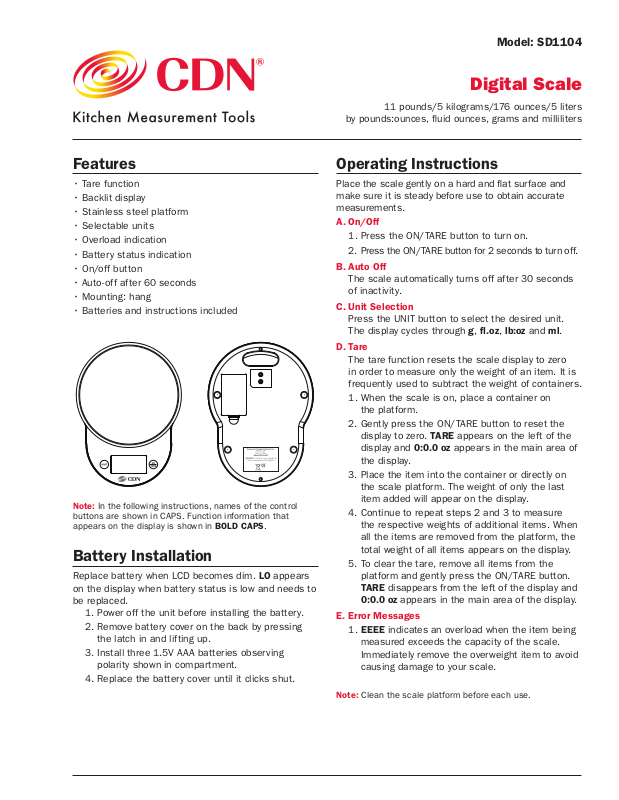

CDN SD1104 Quick Start Manual
Model: SD1104
Digital Scale
11 pounds/5 kilograms/176 ounces/5 liters
by pounds:ounces, uid ounces, grams and milliliters
Features
• Tare function
• Backlit display
• Stainless steel platform
• Selectable units
• Overload indication
• Battery status indication
• On/off button
• Auto-off after 60 seconds
• Mounting: hang
• Batteries and instructions included
Note: In the following instructions, names of the control
buttons are shown in CAPS. Function information that
appears on the display is shown in BOLD CAPS.
Battery Installation
Replace battery when LCD becomes dim. LO appears
on the display when battery status is low and needs to
be replaced.
1. Power off the unit before installing the battery.
2. Remove battery cover on the back by pressing
the latch in and lifting up.
3. Install three 1.5V AAA batteries observing
polarity shown in compartment.
4. Replace the battery cover until it clicks shut.
Operating Instructions
Place the scale gently on a hard and at surface and
make sure it is steady before use to obtain accurate
measurements.
A. On/Off
1. Press the ON/TARE button to turn on.
2. Press the ON/TARE button for 2 seconds to turn off.
B. Auto Off
The scale automatically turns off after 30 seconds
of inactivity.
C. Unit Selection
Press the UNIT button to select the desired unit.
The display cycles through g, .oz, lb:oz and ml.
D. Tare
The tare function resets the scale display to zero
in order to measure only the weight of an item. It is
frequently used to subtract the weight of containers.
1. When the scale is on, place a container on
the platform.
2. Gently press the ON/TARE button to reset the
display to zero. TARE appears on the left of the
display and 0:0.0 oz appears in the main area of
the display.
3. Place the item into the container or directly on
the scale platform. The weight of only the last
item added will appear on the display.
4. Continue to repeat steps 2 and 3 to measure
the respective weights of additional items. When
all the items are removed from the platform, the
total weight of all items appears on the display.
5. To clear the tare, remove all items from the
platform and gently press the ON/TARE button.
TAR E disappears from the left of the display and
0:0.0 oz appears in the main area of the display.
E. Error Messages
1. EEEE indicates an overload when the item being
measured exceeds the capacity of the scale.
Immediately remove the overweight item to avoid
causing damage to your scale.
Note: Clean the scale platform before each use.
Usage Guidelines
Specications
• Scales are precision instruments and must be
handled with extreme care.
• Battery technology works best at room temperature.
• Place the scale gently on a hard and at surface and
make sure it is steady before use.
• The maximum capacity of the scale is 11 lb/5 kg,
which is the capacity before using the tare function.
• Do not place overweight items on the scale.
• Store the scale in a position that keeps it free from
any load bearing weight. Storing the scale with
pressure on the load cells can distort the weight
measurements over time.
Care of Your Product
• Do not submerge any par t of the scale in water.
• Wipe clean with a damp cloth.
• Store the scale at room temperature between
32 to 104°F/0 to 40°C.
Precautions
• Keep the scale and/or battery away from children.
• Do not clean the scale with abrasive or corrosive
compounds, which may scratch the surface and
corrode the electronic circuits.
• Do not subject the scale to excessive force, shock,
dust, temperature or humidity, which may result in
malfunction, shorter electronic life span, damaged
battery and/or distorted parts.
• Do not tamper with the scale’s internal components.
Doing so will invalidate the warranty and may cause
unnecessary battery damage and/or distorted parts.
• Do not subject the scale to excessive exposure to
direct sunlight.
• The unit is not waterproof — do not immerse it in
any liquid, which will result in faulty measurements.
• To avoid deformation, do not place the unit in
extreme temperatures.
• Always read the users manual thoroughly
before operating.
Measurement Range 5000 g /176 oz/11 lbs/5000 ml
Unit of Measure g/.oz/lb:oz/ml
Resolution 1 g, 0.1 oz, 1lb: 0.1 oz, 1 ml
Operating Range 32°F~104°F/0°C~40°C/≤90% RH
Accuracy 0.4% ± 1d
Power Supply 3 1.5V AAA IEC LR03 Alkaline (WERCSmart)
Dimensions 6.0 W x 8.125 H x 1.0 D (inches)/
15.2 W x 20.6 H x 2.6 D (cm)
Weight 10.8 oz / 308 g (including battery)
The information in this document has been reviewed
and is believed to be accurate. However, neither the
manufacturer nor its afliates assume any responsibility
for inaccuracies, errors or omissions that may be
contained herein. In no event will the manufacturer or its
afliates be liable for direct, indirect, special, incidental
or consequential damages arisen by using this product
or resulting from any defect/omission in this document,
even if advised of the possibility of such damages.
The manufacturer and its afliates reser ve the right to
make improvements or changes to this document and the
products and services described at any time, without notice
or obligation.
1-Year Limited Warranty: Any instrument that
proves to be defective in material or workmanship
(excluding batteries) within one year of original
purchase will be repaired or replaced without
charge upon receipt of the unit prepaid at:
CDN, PO Box 10947, Portland, OR 97296-0947
USA. This warranty does not cover damage in
shipment or failure caused by failure to adhere
to the accompanying instructions, inadequate
maintenance, normal wear and tear, tampering,
accident, misuse, unauthorized modication,
obvious carelessness or abuse. CDN shall not
be liable for any consequential or incidental
damages whatsoever.
For mor e detailed
information o n our
produ cts, pl ease visit
CDNkitchen.com.
CE Note: This device could be sensitive to electrostatic
discharge. If electrostatic discharge or malfunctioning
occurs, please re-install the battery to reset this unit.
© 10-2016 Co mponent D esign Northwe st, Inc. Made in Chi na CD99 99313en - 10/16 L-DES IGN 614.525.1472
