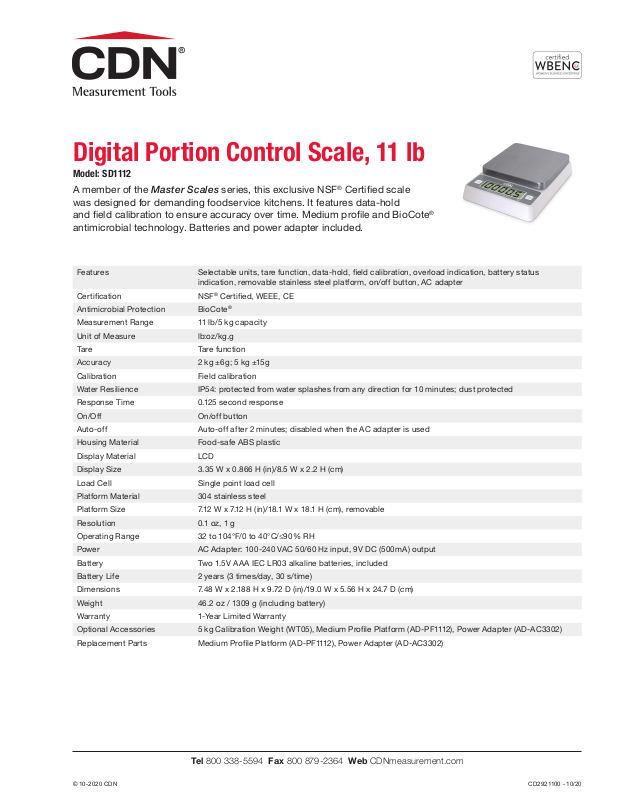

Digital Portion Control Scale, 11 lb

Mo de l: SD1112

A member of the Master Scales series, this exclusive NSF® Certied scale was designed for demanding foodservice kitchens. It features data-hold and eld calibration to ensure accuracy over time. Medium prole and BioCote® antimicrobial technology. Batteries and power adapter included.

Features Selectable units, tare function, data-hold, eld calibration, overload indication, battery status

indication, removable stainless steel platform, on/off button, AC adapter

Certication NSF

Antimicrobial Protection BioCote

Measurement Range 11 lb/5 kg capacity

Unit of Measure lb:oz/kg.g

Tar e Tare function

Accuracy 2 kg ±6g; 5 kg ±15g

Calibration Field calibration

Water Resilience IP54: protected from water splashes from any direction for 10 minutes; dust protected

Response Time 0.125 second response

On/Off On/off button

Auto-off Auto-of f after 2 minutes; disabled when the AC adapter is used

Housing Material Food-safe ABS plastic

Display Material LCD

Display Size 3.35 W x 0.866 H (in)/8.5 W x 2.2 H (cm)

Load Cell Single point load cell

Platform Material 304 stainless steel

Platform Size 7.12 W x 7.12 H (in)/18.1 W x 18.1 H (cm), removable

Resolution 0.1 oz, 1 g

Operating Range 32 to 104°F/0 to 40°C/≤90% RH

Power AC Adapter: 100-240 VAC 50/60 Hz input, 9V DC (500mA) output

Battery Two 1.5V AA A IEC LR03 alkaline batteries, included

Battery Life 2 years (3 times/day, 30 s/time)

Dimensions 7.48 W x 2.188 H x 9.72 D (in)/19.0 W x 5.56 H x 24.7 D (cm)

Weight 46.2 oz / 1309 g (including battery)

Warranty 1-Year Limited Warranty

Optional Accessories 5 kg Calibration Weight (WT05), Medium Prole Platform (AD-PF1112), Power Adapter (AD-AC3302)

Replacement Parts Medium Prole Platform (AD-PF1112), Power Adapter (AD-AC3302)

Certied, WEEE, CE
