C-Data FD1204S, FD1208S, FD8000-L116, FD1216S Configuration Manual

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)

Tel: [phone] Fax:[phone]
Website: www.cdatatec.com

EPON OLT Products User Manual

FD1204S/FD1208S/FD1216S/FD8000-L116

---Configration Guide

Version：V1.2

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)

Tel: [phone] Fax:[phone]
Website: www.cdatatec.com

© Statement

Copyright © 2017 Shenzhen C-Data Technology Co., Ltd. All Rights Reserved. No part
of this manual may be reproduced or transmitted in any form or by any means

without the prior written consent.

The information in this document may be update at any time due to product
versions upgrade or any other reasons. Unless otherwise agreed, this manual
is for reference only. All statements, information and recommendations in this
manual do not constitute the warranty of any kind, express or implied. Plea
se contact your suppliers to get the latest version of this document.

About This Manual

This manual is applicable to C-Data FD1204S、FD1208S、FD1216S、FD8000-L116 EPO
N OLT products quickly installation configuration guide, Is the user to quickly
and easily manage EPON OLT equipment should read the information before.
guidelines.

The related documents for EPON OLT device are:

《FD1204S/FD1208S/FD1216S/FD8000-L116 User Manual-Device Installation User Ma
nual》
《FD1204S/FD1208S/FD1216S/FD8000-L116 User Manual- CLI Operation User Manua
l》
《FD1204S/FD1208S/FD1216S/FD8000-L116 User Manual- Configuration Guide》

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)

Tel: [phone] Fax:[phone]
Website: www.cdatatec.com

Content

1 Instruction .............................................................................................................................. 1

Document Scope ............................................................................................................... 1

Revision History ................................................................................................................. 1

Proper Noun ...................................................................................................................... 1

Note ................................................................................................................................... 2

2 OLT Login Manage .................................................................................................................. 2

2.1 OLT Login Manage Explanation ................................................................................... 2

2.2 OLT Login By Console................................................................................................... 2

2.3 OLT Login By Telnet...................................................................................................... 3

3 OLT Upgrade ........................................................................................................................... 4

4 OLT WEB Management........................................................................................................... 6

5 Configure Service In OLT Discrete Mode（Non-Template） ................................................. 7

5.1 FTTH Service Topology ................................................................................................ 7

5.2 Data Plan ..................................................................................................................... 8

5.3 Config Guide ................................................................................................................ 8

5.4 Configure OLT Service .................................................................................................. 9

5.4.1 Configure OLT Global Vlan ................................................................................ 9

5.4.2 Configure OLT GE Port Service Vlan ................................................................. 9

5.4.3 Configure OLT PON Port Service Vlan ............................................................. 11

5.4.4 Configure OLT Multicast Service ..................................................................... 12

5.5 Check ONU Register Status. ...................................................................................... 12

5.6 Configure Bridge ONU(SFU) Service .......................................................................... 12

5.6.1 Configure Bridge Onu(SFU) Internet Service .................................................. 12

5.6.2 Configure Bridge Onu(SFU) Multicast Service ................................................ 13

5.7 Configure Gateway ONU（HGU）Service ................................................................ 14

5.7.1 Configure Gateway ONU（HGU）Internet Service--RTK Solution ................ 14

5.7.2 Configure Gateway ONU（HGU）Multicast Service--RTK Solution .............. 15

5.7.3 Configure Gateway ONU（HGU）Internet Service--Broadcom Solution ...... 16

5.7.4 Configure Gateway ONU（HGU）Multicast Service--Broadcom Solution .... 20

5.7.5 Configure Gateway ONU（HGU）VOIP Service--Broadcom Solution ........... 22

6 Configure Service In OLT Profile Mode ................................................................................. 26

6.1 Data Plan ................................................................................................................... 26

6.2 Configure Process ...................................................................................................... 27

6.3 Configure OLT Service ................................................................................................ 27

6.3.1 Configfure OLT Globle Vlan ............................................................................ 27

6.3.2 Configure OLT GE Port Service Vlan ............................................................... 27

6.3.3 Configure OLT PON Port Service Vlan ............................................................. 28

6.3.4 Configure OLT Multicast Service ..................................................................... 29

6.4 Create ONU Profile .................................................................................................... 29

6.4.1 Create ONU DBA Profile ................................................................................. 29

6.4.2 Create ONU Lineprofile .................................................................................. 30

6.4.3 Create ONU Srvprofile .................................................................................... 30

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)

Tel: [phone] Fax:[phone]
Website: www.cdatatec.com

6.5 Add ONU Manually.................................................................................................... 30

6.6 Check ONU Registration Status ................................................................................. 31

6.7 Configure Bridge ONU（SFU）Service ..................................................................... 31

6.7.1 Configure Bridge ONU(SFU) Internet Service ................................................. 31

6.7.2 Configure Bridge ONU(SFU) IPTV Service ....................................................... 32

6.8 Gateway ONU（HGU）Service Configure Introduction ........................................... 33

7 Configure OLT QinQ Service ................................................................................................. 33

7.1 Data Plan ................................................................................................................... 33

7.2 Configure Processes .................................................................................................. 33

7.3 Configure OLT ............................................................................................................ 34

8 Common Command Description .......................................................................................... 34

Concluding Remarks ............................................................................................................... 35

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)

Tel: [phone] Fax:[phone]
Website: www.cdatatec.com

1

1 Instruction

Document Scope

Reading Object

Product

Products Software

Version

C-DATA Employees,
FTTX
Operation&Maintenanc
e Engineer,
C-DATA Customer’s
Technical Engineer

Cdata EPON OLT（FD1204S/FD1208S
/FD1216S/FD8000-L116）

V1.3.X

Compiling Department

C-Data Product Management Center
Technical Support Department

Document
Version

V1.2

Revision History

Date

Version

Description

Author

2017-12-7

V1.1

OLT version switch to V1.2.X, cli
command line have been
changed.,update config guide fully

Technical Support
Department

2018-3-4

V1.2

1.OLT version switch to V1.3.X, cli
command line have been
changed,update config guide fully

2.Add FD8000-L116 config instruction

Technical Support
Department

Proper Noun

Acronym

Full name

Instructions

EPON

Gigabit-Capable Passive Optical
Network

Gigabit-Capable Passive Optical Network

OLT

Optical Line Terminal

Optical Line Terminal

ONU

Optical Network Terminal

Optical Network Terminal

OMCI

ONU Management and Control
Interface

GPON OLT&ONU Management and
Control Interface(protocol)

OAM

Operation Administration and

EPON OLT&ONU Operation Administration

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)

Tel: [phone] Fax:[phone]
Website: www.cdatatec.com

2

Maintenance

and Maintenance Protocol

DBA

Dynamic Bandwidth Allocation

Dynamic Bandwidth Allocation

VLAN

Virtual Local Area Network

Virtual Local Area Network

VoIP

Voice over IP

Voice over IP

WLAN

Wireless Local Area Networks

Wireless Local Area Networks

FTTH

Fiber To The Home

Fiber To The Home

FTTB

Fiber To The Building

Fiber To The Building

Note

 The command line described in the document is case sensitive in OLT.
 If we meet a command that cannot be inputed or is prompted for error,we can input “?” to

see the latter command format.

 Input incomplete commands can be completed by pressing the “Tab” key.
 FD1204S、FD1208S、FD1216S are Pizza-Box OLT，only have one card，so,if we want to enter

PON mode,need input interface epon 0/0

 FD8000-L116 is Plug-in card OLT,has four PON card,so the comamnd for entering PON mode

is OLT(config)# interface epon 0/<SlotID> ,SlotID is Slot Number,range is 1-4，for example,the
command for entering slot 1 is OLT(config)# interface epon 0/1

2 OLT Login Manage

2.1 OLT Login Manage Explanation

FD1204S、FD1208S、FD1216S support CLI,EMS and WEB management;CLI manege type divided
into telnet remote manage and console local manage, please check #2.2 and #2.3 chapter to see
concrete operations;please check EMS user manual to see EMS manage way;please check #4 to
see WEB manage way.

2.2 OLT Login By Console

First,find console port on OLT front surface,which is a RJ45 port.if want to login OLT by Console
port,we need do prepare as follows:

 Need RJ-45-to-DB-9 serial line
 Connect PC to OLT concole port,find COM number in “computer management”
 Software for logining OLT by console port(Putty,SecureCRT)

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)

Tel: [phone] Fax:[phone]
Website: www.cdatatec.com

3

 parameter for console login software

Baud Rate:9600

Parity Check:None

Databit:8

Stopbit:1

Flow Control:None

Login OLT by console login software,then input username:root,password:admin

[OLT console connection diagram]

[OLT console connection device]

Port on Computer

Required Cable

Port on OLT

Serial Port

RJ-45 to DB-9 Console Cable

RJ-45 Console Port
USB Type-A Port

 USB to RS-232 compatible serial port adapter ( Adapter may

require a software driver )

 RJ-45 to DB-9 Console Cable

2.3 OLT Login By Telnet

There are two way to telnet,one is outband management,another is inband management.

1. Outband management(connect OLT MGMT port)

set PC ip as 192.168.1.X(except 192.168.1.100),PC connect to OLT MGMT port, login the OLT with

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)

Tel: [phone] Fax:[phone]
Website: www.cdatatec.com

4

OLT default manage IP (default IP : 192.168.1.100). then input username and password,default
login username is root,password is admin.

Use command as follow can modify the outband management IP:

OLT> enable
OLT# config

OLT(config)# interface mgmt

OLT(config-interface-mgmt)# ip address 192.168.5.100 24

OLT(config-interface-mgmt)# exit

2. Inband management(connect OLT ge port)

First we login olt via console port or mgmt port, and add a vlanif for inband management,
assigned an IP address to this vlan,add the ge port to the vlan,ge port vlan mode can be access or
trunk,which depend on your network environment,then pc connect to OLT ge port（ge1-ge8）
and telnet to the OLT.

The way to set inband mangement ip as follows：

OLT> enable
OLT# config
OLT(config)# vlan 100
OLT(config)# interface ge
OLT(interface-ge)# vlan access 5 100 ----configure ge 5 as inband management port
OLT(interface-ge)# exit
OLT(config)# interface vlanif 100
OLT(interface-vlanif-100)# ip address 192.168.2.100 255.255.255.0
OLT(interface-vlanif-100)# exit

3 OLT Upgrade

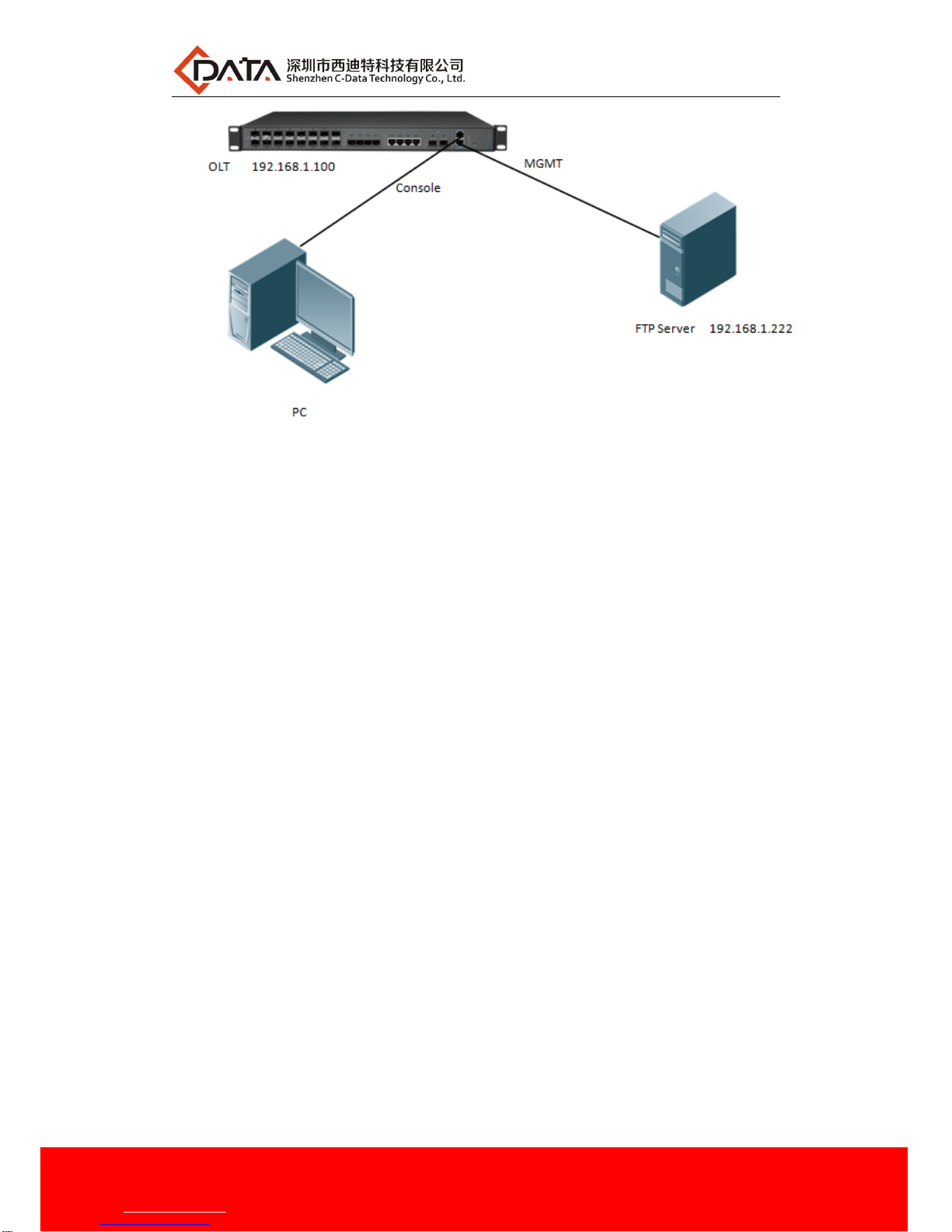

1.Set up OLT update topology:

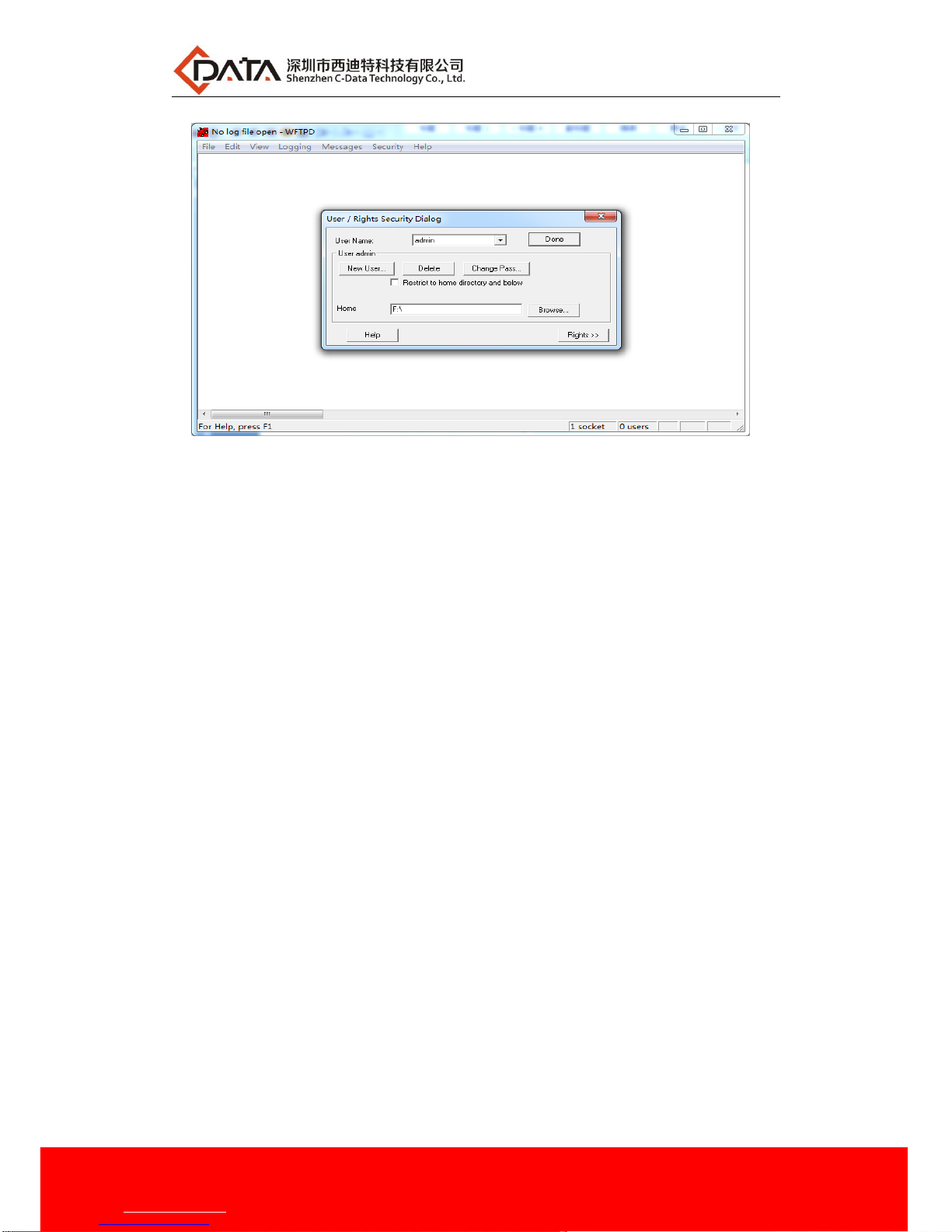

Use a PC as FTP server(run wftpd32.exe or Wftpd.exe in this pc),and connect to OLT mgmt port
or ge port to transmit firmware.

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)

Tel: [phone] Fax:[phone]
Website: www.cdatatec.com

5

2.Test network connectivity

a.Connnect PC to OLT console port,used for updating OLT in boot mode.

b.Connect pc to OLT MGMT port or ge port,configure PC ip and OLT ip(inband ip or outband ip)

are in same segment.

c.PC can ping OLT manegemnet IP,if pc can ping OLT manegemnet ip,means OLT can connect to

FTP server.

d.Close PC firewall,prevent firewall intercept FTP software.

3. FTP server configuration

a.Open FTP software,configure FTP username and password,such as:admin/admin

b.Set up a directory of OLT updade files for the FTP server, such as the way for setting up the

wftp32. Exe software：

---Security -> User/Rights Security Dialog -> User Name —input admin

---Change Password —input admin

---Home Directory —set directory of OLT upgrade files

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)

Tel: [phone] Fax:[phone]
Website: www.cdatatec.com

6

4.OLT update command

FD1216S、FD1208S、FD1204S、FD8000-L116 OLT need update two file,one is FW file,another

is Kernel file;if the boot file is too old,we need update boot file in OLT boot mode,boot upgrade

way will be provided separately.OLT the common upgrade method please see below:

a.Enter config view,input command as follows to update OLT kernel file(file name include

Kernel )

OLT(config)# load packetfile ftp 192.168.1.222 admin admin FD1216S_Kernel_X000_171114
_1833.img

Broadcast message from root:
Upgrade is in process.

File [FD1216S_Kernel_X000_171114_1833.img] download .......... OK

File [FD1216S_Kernel_X000_171114_1833.img] upgrade .......... OK

b.Input command as follows to update OLT FW file(file name include FW )：

OLT(config)# load packetfile ftp 192.168.5.234 admin admin FD1216S_FW_V1.3.1_X000_171
114_1841.img

Broadcast message from root:
Upgrade is in process.

File [FD1216S_FW_V1.3.1_X000_171114_1841.img] download .......... OK

File [FD1216S_FW_V1.3.1_X000_171114_1841.img] upgrade .......... OK

5.After update OLT,we need reboot OLT(Note:only reboot OLT,OLT can use new version)

OLT(config)# reboot

Please check whether data has saved, the unsaved data will lose if reboot system. Are you sure
to reboot system? (y/n)[n]:y

4 OLT WEB Management

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)

Tel: [phone] Fax:[phone]
Website: www.cdatatec.com

7

1.First, update the WEB firmware via the #3 OLT upgrade way,(firmware name include Web word

,such as FD1216S_Web_V1.0.1_X000_171114_1841.img)

OLT(config)# load packetfile ftp 192.168.1.222 admin admin FD1216S_Web_V1.0.1_X000_17
1114_1841.img

2.PC connect to OLT mgmt port or inband management port,make sure PC can ping OLT inband
management ip or outband management ip

3.Open PC browser input OLT management ip,then we can see web login interface,web login
username and password is admin/admin：

5 Configure Service In OLT Discrete Mode（Non-Template）

This section mainly introduct FD1204S、FD1208S、FD1216S、FD8000-L116 internet service,
voice service and multicast service in discrete mode in FTTH environment.Mainly introduce the
bridge ONU(SFU and Home Gateway ONU (HGU),The following will introduce the service
configuration way for OLT and ONU according to two types ONU.

5.1 FTTH Service Topology

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)

Tel: [phone] Fax:[phone]
Website: www.cdatatec.com

8

5.2 Data Plan

Main Data Plan List

Configuration Item

Data

VLAN Data

VLAN 100：Internet Service
VLAN 200：IPTV Service
VLAN 300：VOIP Service

OLT Port Setting

Ge5：VLAN 100 access mode
Ge6：VLAN 200 access mode
Ge7：VLAN 300 access mode
PON1：VLAN 100, VLAN 200, VLAN 300 trunk mode

ONU Register ID

Bridge ONU ID：1
Gateway ONU ID：2

Bridge ONU Port config

LAN 1：VLAN 100
LAN 2：VLAN 200
LAN3: VLAN 300 ---connect to VOIP phone

Gateway ONU Port config

Internet WAN：VLAN 100
IGMP WAN：VLAN 200
VOIC WAN：VLAN 300

5.3 Config Guide
