CDA WF610BL Installation, Use And Maintenance Manual

WF610BL
Freestanding
Dishwasher

Installation, Use and Maintenance

Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY

T : 01949 862 012 F : 01949 862 003 E : [e-mail] W : www.cda.eu

www.cda.eu

Important

The CDA Group Ltd cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note
that CDA reserve the right to invalidate the guarantee supplied with
this product following incorrect installation or misuse of the appliance.

This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have had
supervision or instructions on how to use the appliance by someone
who is responsible for their safety.

.

Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.

Appliance information:

Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.

Appliance Model

Serial Number

This appliance has been designed for domestic use only. Commercial
use will invalidate the guarantee.

2

CE Declarations of Conformity:

This appliance has been designed, constructed and marketed in
compliance with safety requirements of EEC Directives 2004/108/EC,
2006/95/EC, IEC436/DIN44990 & EN 50242.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must be taken to a special
local authority waste collection centre or to a dealer providing
appliance recycling services.

Disposing of a household appliance separately avoids possible
negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both energy
and resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out
wheeled dustbin.

Important

• Read the instructions prior to installation and use of the appliance.

• Do not lean or climb on the open dishwasher door to prevent

damage.

• Close the dishwasher door after use to prevent accidents.

• Use only detergents, salt and rinse aid specifically designed for

dishwashers.

• Do not put solvents in the dishwasher detergent compartment to

prevent risk of explosion.

3

• Only put dishwasher safe items into the dishwasher. If in doubt,

check with the manufacturer of the items.

• Take care when loading the dishwasher to observe the

recommendations for best loading practice, and also to ensure that
sharp objects such as knives are placed blade down to prevent
accidents.

• Do not open the dishwasher door when a programme is running.

If it is necessary to do so, then open it only slightly to allow the
dishwasher to pause the programme and prevent any water spilling
out. Remember that the water in the dishwasher can be very hot
when the programme is running.

• When the dishwasher is not in use, we recommend that you turn o

the water supply at the supply tap and disconnect the main supply.

• If you are leaving the dishwasher for an extended period you

should leave the door slightly open to prevent the formation of
unpleasant smells.

• The plastic housing on the water inlet pipe contains an electrically

operated valve. The wires that connect to this valve are inside the
inlet hose. Do not cut through the inlet hose, and do not put the
plastic housing in water.

• Children could get locked inside the appliance. Therefore when

disposing of an old appliance, cut o the plug and set aside, and
damage the door lock so that the door can no longer be closed.

• When correctly installed, your product meets all safety requirements

laid down for this type of product. However, special care should be
taken around the rear or the underneath of the appliance as these
areas are not designed or intended to be touched and may contain
sharp or rough edges that could cause injury.

4

Recommendations

• To reduce energy and water consumption, remove all dirt residues

from the dishes prior to loading the dishwasher.

• Only run the dishwasher when fully loaded.

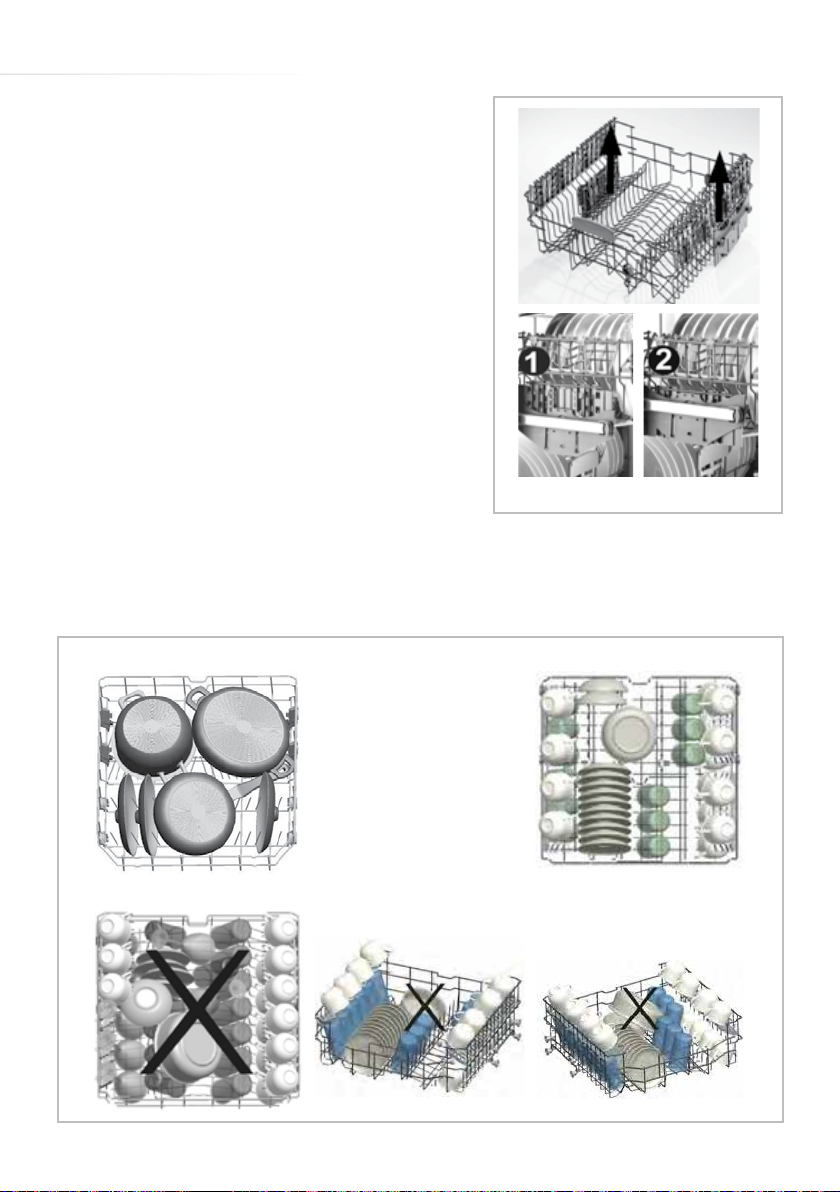

• Place hollow items (bowls, glasses and pans) face down in the basket.

• Do not put dishes or cutlery with tobacco ash, wax, lubricating grease

or paint residues in the dishwasher.

Before First Use

• Set the water softener level as required by the water hardness in the

area.

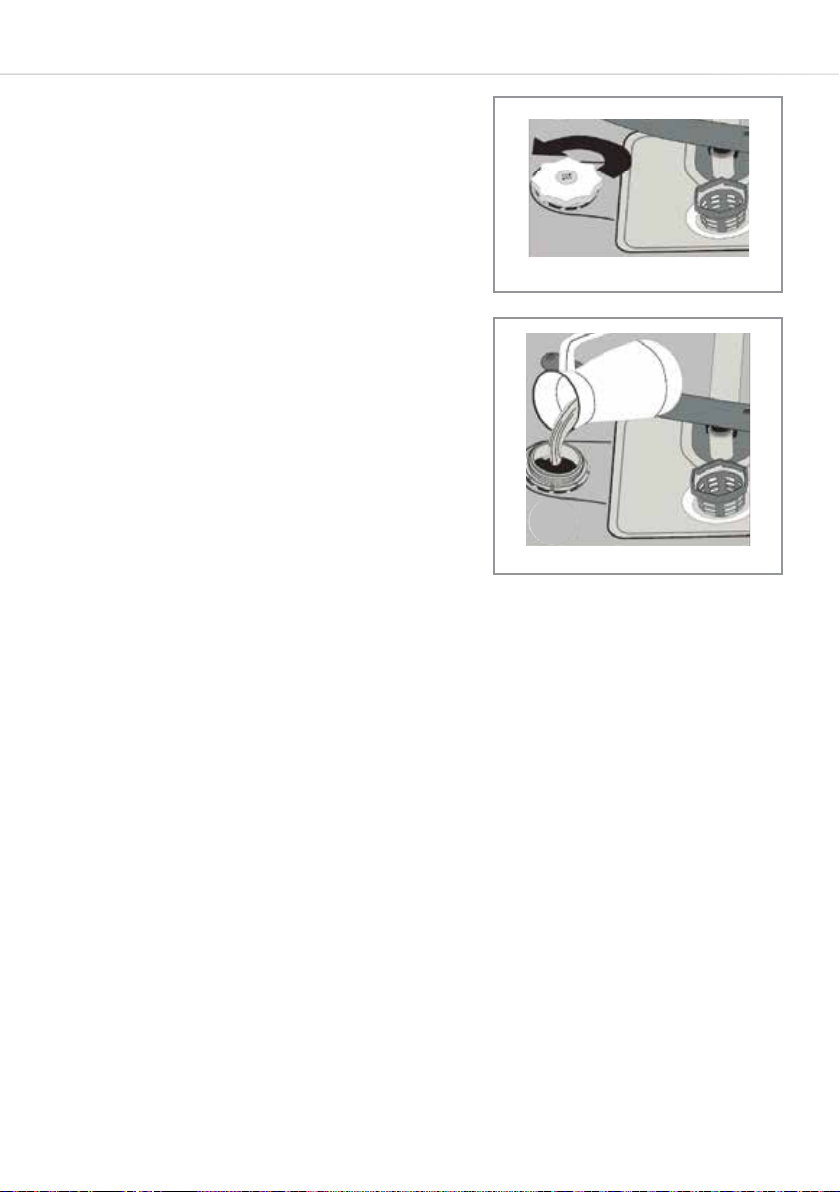

• Add 2kg of salt into the salt compartment and then fill with water to

the top of the salt compartment.

• Remove all the packaging materials from the interior of the dishwasher.

• Fill the rinse aid compartment.

• Run a hot programme without any dishes in the dishwasher.

5

Control Panel

1 2 3 4 5 6 7 8

wf610

Power button (1)

• To switch the dishwasher on or o, press the power button (1).

When you switch on the dishwasher, the end of programme light will
illuminate, and two dashes will appear on the display.

Programme display (2)

The programme display shows the selected programme and the
remaining time to run. If there is a fault on the dishwasher, the fault
code will show on the display.

Programme selection button (3)

• To select a programme, press the programme selection button (3).

The dishwasher will store in its memory the last programme used.

Delay timer button (4)

The dishwasher is equipped with a variable timer of up to 19 hours
duration, at hourly intervals.

• To set the delay timer, press the delay timer button (4). This will

switch the timer on for one hour.

• To change the delay duration, press the delay timer button again

until the required delay duration is shown on the display, alternating
with the selected programme and the programme duration.

6

• To cancel the delay timer, press the delay timer button again until

“0h” shows on the display.

3 in 1 function button (5)

The dishwasher is equipped with a tablet function that automatically
adjusts the amount of rinse aid and dishwasher salt used during a
programme.

• To use this function, press the button after selecting the programme,

before you close the door.

Prewash button (6)

The dishwasher is equipped with a prewash function that
automatically adds a prewash to the selected programme. The
prewash function improves the wash performance of the programme,
but also can change the temperature and duration of the programme.

• To use this function, press the button after selecting the programme,

before you close the door.
The prewash is also an independent programme (8) which can be
used to rinse the contents of the dishwasher, for example if the
dishwasher is not yet full and a complete programme is not yet
required.

• To do so, select the programme as described below.

Half-load button (7) and indicator lights

The dishwasher is equipped with a half-load function that allows for
either the upper or lower basket to be washed independently, or for
both baskets to be washed if they contain only a small number of
dishes.

7

• To use this function, press the half-load button (7) until the indicator

light shows next to the required section of the dishwasher, either

upper, lower or both lights (if both baskets are to be washed

together).

Salt and rinse aid warning lights (8)

When the dishwasher salt or rinse aid begins to run out, the warning
light will illuminate to advise that it needs refilling.

End of programme light (8)

When the programme is complete, the dishwasher will emit five beeps
and the end of programme indicator light will illuminate.

Please note: You should ensure that there are no dishes in the
upper basket when running a lower basket half-load programme,
and none in the lower basket when running an upper basket half­load programme.

If you have selected any extra function (3 in 1, prewash or half­load) for a programme, this function will automatically be selected
the next time the dishwasher is used. To cancel the selection of
any extra function, press the specific extra function button (5, 6 or

7) until the indicator light for that function goes out.

Starting a programme

• Press the Power button (the end of programme light will be switched

on).

• Press the Programme Selection button until the required

programme is shown on the display.

8

• If required, set the delay timer by pressing the Delay Timer button

• Once a programme is selected, the end of programme light will

switch o.

• When you close the dishwasher door, the programme will start

automatically.

Please note: The dishwasher stores the most recently used
programme in its memory. To change the programme, simply
press the Programme Selection button.

At the end of a programme

If possible, do not open the dishwasher door once the programme
has started.
At the end of a programme, the dishwasher will beep five times, and
the end of Programme Indicator light will switch on.

Changing a programme

It is possible to change the programme if necessary once the
programme has started.

• First open the door slightly to reduce the risk of water spillage.

• Press the programme selection button until the required programme

is shown on the display.

• Then close the door. The dishwasher will begin the new

programme from the point at which the old programme stopped.

Cancelling a programme

It is possible to cancel the programme once is has started.

• First open the door slightly to reduce the risk of water spillage.

9

• Press and hold in the Programme Selection button for three

seconds until the end of programme indicator flashes and a “1”

shows on the display.

• Then close the door.

The dishwasher will run a drain cycle which will take approximately 30
seconds. Once this is complete, the dishwasher will beep five times
and the end of programme light will switch on.

Switching the dishwasher o

• Once the dishwasher beeps five times and the end of programme

light switches on, the dishwasher can be switched o by pressing

the Power button.

• Then turn o the water tap and remove the plug from the power

socket.

Please note: the dishwasher will automatically continue on the
programme it has started after the door is opened and closed. or
after the event of a power cut.

Interior lighting

The interior light in this appliance may be switched between two
operating modes:-

• Economy mode - When the door is opened the light comes then

automatically switches o after four minutes, or when the door is

shut, whichever comes first.

10

• Normal mode - The interior light comes on when the door is opened

and stays on until the door is shut again. This will stay on however

long the door stays open, as long as the power supply is connected

to the machine.

To change from economy mode to normal mode

• Open the dishwasher door and switch the main on/o switch to the

“on” position (if not already switched on).

• Press the “3 in 1” button and the “Prewash” button at the

same time and hold down for three seconds, .

• The display will show “IL0” for 2 seconds to confirm the setting.

To change from normal mode to economy mode

• Open the dishwasher door and switch the main on/o switch to the

“on” position (if not already switched on).

• Press the “3 in 1” button and the “Prewash” button at

the same time and hold down for three seconds.

• The display will show “IL1” for 2 seconds and the interior light

flashes o and on to confirm the setting.

Note: The machine is set to the economy mode when it leaves the
factory.

11
