VW80 Fully Integrated
Intelligent Dishwasher
Manual for Installation, Use and Maintenance
Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu
Contents
1. Description of the controls________________________________ 16
2. Troubleshooting _______________________________________25
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use
of your dishwasher.
The individual sections are laid out to provide you with a step-by-step
guide to all your appliance's functions; the texts are easy to understand
and are complete with detailed illustrations.
This user-friendly manual will provide answers to all your questions
about use of the dishwasher.
For any other information about use and maintenance of the dishwasher,
read the enclosed manual carefully.
USER INSTRUCTIONS: useful information is provided for the use of the
washing programs and all the dishwasher's functions.
Contents
1. Safety and operating instructions __________________________28
2. Installation and hook-up _________________________________31
3. Operating instructions ___________________________________ 35
4. Cleaning and maintenance _______________________________47
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use
of your dishwasher.
The individual sections are laid out to provide you with a step-by-step
guide to all your appliance's functions; the texts are easy to understand
and are complete with detailed illustrations.
Following the cleaning instructions provided here will keep your
dishwasher's performance at peak levels in the long term.
This user-friendly manual will provide answers to all your questions
about use of the dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the qualified
technician who must carry out the installation, hook-up and testing of
the appliance.
USER INSTRUCTIONS: useful advice is provided for the use of baskets,
spray arms, containers and filters.
Safety instructions
1. Safety and operating instructions
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST
ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE
USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS
CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A
QUALIFIED TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN
FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC USE, AND
COMPLIES WITH THE EEC DIRECTIVES 73/23, 89/336 (INCLUDING 92/31
AND 93/68) CURRENTLY IN FORCE, INCLUDING THE PREVENTION AND
ELIMINATION OF RADIO FREQUENCY INTERFERENCE.
THE APPLIANCE IS DESIGNED FOR THE FOLLOWING PURPOSE: WASHING
AND DRYING OF DISHES; ANY OTHER USE SHALL BE CONSIDERED
IMPROPER. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
USES OTHER THAN THOSE DESCRIBED ABOVE.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER
AND MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE
DOOR. THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST
NEVER BE REMOVED.
DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED
WITHIN THE HOME. SEPARATE THE VARIOUS MATERIALS WHICH MAKE
UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE
COLLECTION CENTRE.
THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN
ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO
PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE
APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.
IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR,
ENSURE THAT THE OPENINGS ON ITS UNDERSIDE ARE NOT
OBSTRUCTED.
ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID
WASTING ELECTRICITY.
OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE
MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET,
AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR
CHILDREN (LOCKS, DOORS, ETC.).
28
Safety instructions
THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE
2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
(WEEE). BY ENSURING THIS PRODUCT IS DISPOSED OF CORRECTLY,
YOU WILL HELP PREVENT POTENTIAL NEGATIVE CONSEQUENCES FOR
THE ENVIRONMENT AND HUMAN HEALTH, WHICH COULD OTHERWISE BE
CAUSED BY INAPPROPRIATE WASTE HANDLING OF THIS PRODUCT.
THE SYMBOL
ACCOMPANYING THE PRODUCT, INDICATES THAT THIS APPLIANCE MAY
NOT BE TREATED AS HOUSEHOLD WASTE. INSTEAD IT SHALL BE
HANDED OVER TO THE APPLICABLE COLLECTION POINT FOR THE
RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT.
DISPOSAL MUST BE CARRIED OUT IN ACCORDANCE WITH LOCAL
ENVIRONMENTAL REGULATIONS FOR WASTE DISPOSAL. FOR MORE
DETAILED INFORMATION ABOUT TREATMENT, RECOVERY AND
RECYCLING OF THIS PRODUCT, PLEASE CONTACT YOUR LOCAL CITY
OFFICE, YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP
WHERE YOU PURCHASED THE PRODUCT.
IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE
ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP.
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING
TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER.
THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE
WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OR BY A
QUALIFIED TECHNICIAN.
THIS DISHWASHER MUST BE USED BY ADULTS.
USE BY PERSONS WITH REDUCED MENTAL AND/OR PHYSICAL
CAPABILITIES IS ONLY PERMITTED UNDER THE SUPERVISION OF A
PERSON RESPONSIBLE FOR THEIR SAFETY.
KEEP CHILDREN AWAY FROM DETERGENTS AND PACKAGING MATERIALS
(PLASTIC BAGS, POLYSTYRENE, ETC.), AND NEVER ALLOW THEM TO
APPROACH OR PLAY WITH THE DISHWASHER, SINCE IT MIGHT CONTAIN
DETERGENT RESIDUES CAPABLE OF CAUSING PERMANENT DAMAGE TO
THE EYES, MOUTH AND THROAT, AND EVEN LEADING TO SUFFOCATION.
ON THE PRODUCT, OR ON THE DOCUMENTS
DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE
WHICH MAY CAUSE AN EXPLOSION.
DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.
LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY
CAUSE THE APPLIANCE TO OVERTURN, PUTING PEOPLE AT RISK.
NEVER LEAVE THE DISHWASHER DOOR OPEN; PEOPLE MIGHT TRIP
OVER IT.
29
Safety instructions
DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE
THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM
AND BEFORE THE DRYING CYCLE.
KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED
IN THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE
TOP BASKET. TAKE CARE NOT TO CUT YOURSELF AND ENSURE THAT
THEY DO NOT PROJECT FROM THE BASKET.
AQUASTOP MODELS
THE AQUASTOP DEVICE PREVENTS FLOODING IN THE EVENT OF A
WATER LEAK. WHEN THE AQUASTOP DEVICE IS TRIPPED, CALL IN A
QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT.
IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A
SOLENOID VALVE INSIDE THE WATER INTAKE HOSE. DO NOT CUT THE
HOSE AND DO NOT ALLOW THE SOLENOID VALVE TO DROP INTO
WATER. IN THE EVENT OF DAMAGE TO THE WATER INTAKE HOSE,
DISCONNECT THE APPLIANCE FROM THE ELECTRICAL POWER SUPPLY
AND FROM THE WATER SUPPLY.
IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK
TEST OF THE APPLIANCE FOLLOWING THE INSTRUCTIONS BELOW. IF
THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT
FROM THE ELECTRICAL POWER SUPPLY AND CALL THE NEAREST
TECHNICAL SERVICE CENTRE. DO NOT ATTEMPT TO REPAIR THE
APPLIANCE.
THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE
REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL
EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED
EXCLUSIVELY BY A TRAINED AND AUTHORISED TECHNICIAN: REPAIRS
CARRIED OUT BY UNAUTHORISED PERSONS WILL INVALIDATE THE
WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.
The manufacturer declines all responsibility for damage to persons or property
resulting from failure to observe the above precautions, from tampering with
even a single component of the appliance, or from the use of non original
spare parts.
30
Installation instructions
2. Installation and hook-up
Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation. The back or
sides of the dishwasher may be placed up against walls or other
furniture units. If the dishwasher is installed near a heat source, fit the
special insulating panel to prevent overheating and malfunction of the
appliance. To ensure stability, install integrated or built-under
dishwashers only under continuous worktops, and screw them to the
adjacent units. To facilitate the installation procedure, the intake and
drain hoses can be positioned in any direction; make sure that the hoses
are not kinked, crushed or pulled too tightly. Make sure to tighten the
locking ring-nut once the pipes have been placed in the direction
required. A hole at least 8 cm in diameter is required to allow the power
supply cable and pipes to pass.
Level the appliance on the floor using its adjustable feet. This operation
is essential for ensuring correct operation of the dishwasher.
Building-in a dishwasher underneath a ceramic hob is absolutely
forbidden.
A dishwasher can be built-in underneath a conventional hob provided
there is no break in the kitchen worktop, and the dishwasher and hob
are installed and secured correctly, so that no hazards are
generated.
For free-standing models only
- Installing a hob on top of a free-standing dishwasher is absolutely
forbidden.
- If the appliance is not built-in and is therefore accessible on one
side, the door hinge area must be covered for safety reasons (injury
hazard). The covering fixtures are available as an accessory from
specialist dealers or the After-Sales Service.
- To build in the dishwasher, the special kit must be purchased from
authorised dealers or the After-Sales Service.
Some models are equipped with only one adjustable foot at the rear,
which can be adjusted by turning the screw on the lower front part of the
appliance.
Installation instructions
2.1 Water supply connection
Preventing the risk of clogging or damage: if the water pipe is new or
has not been used for a long time, before connecting to the water supply
check that the water is clear and free of impurities, to prevent damage to
the appliance. The dishwasher must always be connected to the water
system with new hoses; old or used hoses must never be reused.
CONNECTING TO THE WATER SUPPLY
Connect the intake hose to a cold water supply with ¾”
gas thread, inserting the filter A supplied with the
dishwasher.
place with your hands and then complete by
tightening about ¼ of a turn with pliers.
In dishwashers equipped with the ACQUASTOP
device, the filters is already fitted inside the threaded
ring.
Take care to screw the hose firmly into
The dishwasher can also be connected to a hot water supply
exceeding 60°C
washing time by approximately 20 minutes, but slightly reduces its
effectiveness. Make the connection to the domestic hot water supply using
the same procedure described for connecting to the cold water supply.
DRAIN CONNECTION
Insert the dishwasher’s drain hose
into a drain pipe having a diameter
of at least
place it inside the kitchen sink
using the plastic support provided,
taking care not to crush or
excessively bend the hose. It is
important to prevent the hose from
coming loose and falling. For this
purpose, the plastic support is
equipped with a hole for tying it to
the wall or water tap.
The free end should be positioned at a height of between
cm
, and should never be submerged in water. If a horizontal drain
extension hose is used (for a maximum of 3 m) the drain hose can be
placed at a maximum height of
. Supplying the appliance with hot water cuts down the
4 cm
, or alternatively,
30 and 100
85 cm
from the ground.
not
Installation instructions
2.2 Electrical connection and precautions
CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH
THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON
THE INNER EDGE OF THE DOOR.
THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET
OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN
FORCE.
THE PLUG MUST BE ACCESSIBLE AFTER INSTALLATION.
NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY
LEAD.
IN THE EVENT OF DAMAGE TO THE SUPPLY CORD
BY THE MANUFACTURER OR AN AUTHORIZED TECHNICAL SERVICE
CENTRE.
, HAVE IT REPLACED
DO NOT USE ADAPTORS OR SHUNT CONNECTIONS
THE POSSIBILITY OF OVERHEATING OR BURNING.
IN ORDER TO AVOID
IF THE APPLIANCE IS PROVIDED WITH A PLUGLESS SUPPLY CORD:
IT IS NECESSARY TO INSTALL IN THE FIXED WIRING AN ALL-POLE
DISCONNECTION DEVICE HAVING A GAP BETWEEN CONTACTS OF AT
3.5MM
LEAST
TO BE EASY TO REACH.
THE CONNECTION TO THE MAINS MUST BE CARRIED OUT BY A
QUALIFIED TECHNICIAN
BELOW AND THE REGULATIONS IN FORCE.
. AFTER INSTALLATION THE DISCONNECTION DEVICE HAS
IN ACCORDANCE TO THE SCHEME SHOWN
L
= brown
N
= blue
= yellow-green
In the event of damage to the supply cord, have it replaced by the
manufacturer or an Authorized Technical Service Centre in order to
avoid any risk.
Installation instructions
WHEN CLEANING AND MAINTAINING THE APPLIANCE:
BEFORE CARRYING OUT ANY WORK, ALWAYS UNPLUG THE APPLIANCE
FROM THE ELECTRICAL SUPPLY OR SWITCH OFF THE ALL-POLE
DISCONNECTION DEVICE.
FOR GREAT BRITAIN ONLY:
THIS APPLIANCE MUST BE EARTHED.
Fuse replacement
If the mains lead of this appliance is fitted
with a
change a fuse in this type of plug use an
A.S.T.A.
and proceed as follows:
1.
2.
3.
BS 1363A 13amp
approved fuse to
Remove the fuse cover A and fuse B.
Fit replacement 13A fuse into fuse
cover.
Refit both into plug.
fused plug, to
BS 1362
type
The fuse cover must be refitted when changing a fuse and if the fuse
cover is lost the plug must not be used until a correct replacement is
fitted.
Correct replacement are identified by the colour insert or the colour
embossed in words on the base of the plug.
Replacement fuse covers are available from your local electrical store.
User instructions
3. Operating instructions
Once the dishwasher has been correctly installed, prepare for use as
follows:
•
Adjust the water softening system;
•
Add the regenerating salt;
•
Add the rinse aid and detergent.
3.1 Using the water softening system
The amount of scale contained in the
water (water hardness index) can cause
whitish staining on the dry dishes, which
tend to become dull over time. The
dishwasher is equipped with an automatic
softening system which uses a special
regenerating salt to reduce the hardness
of the water.

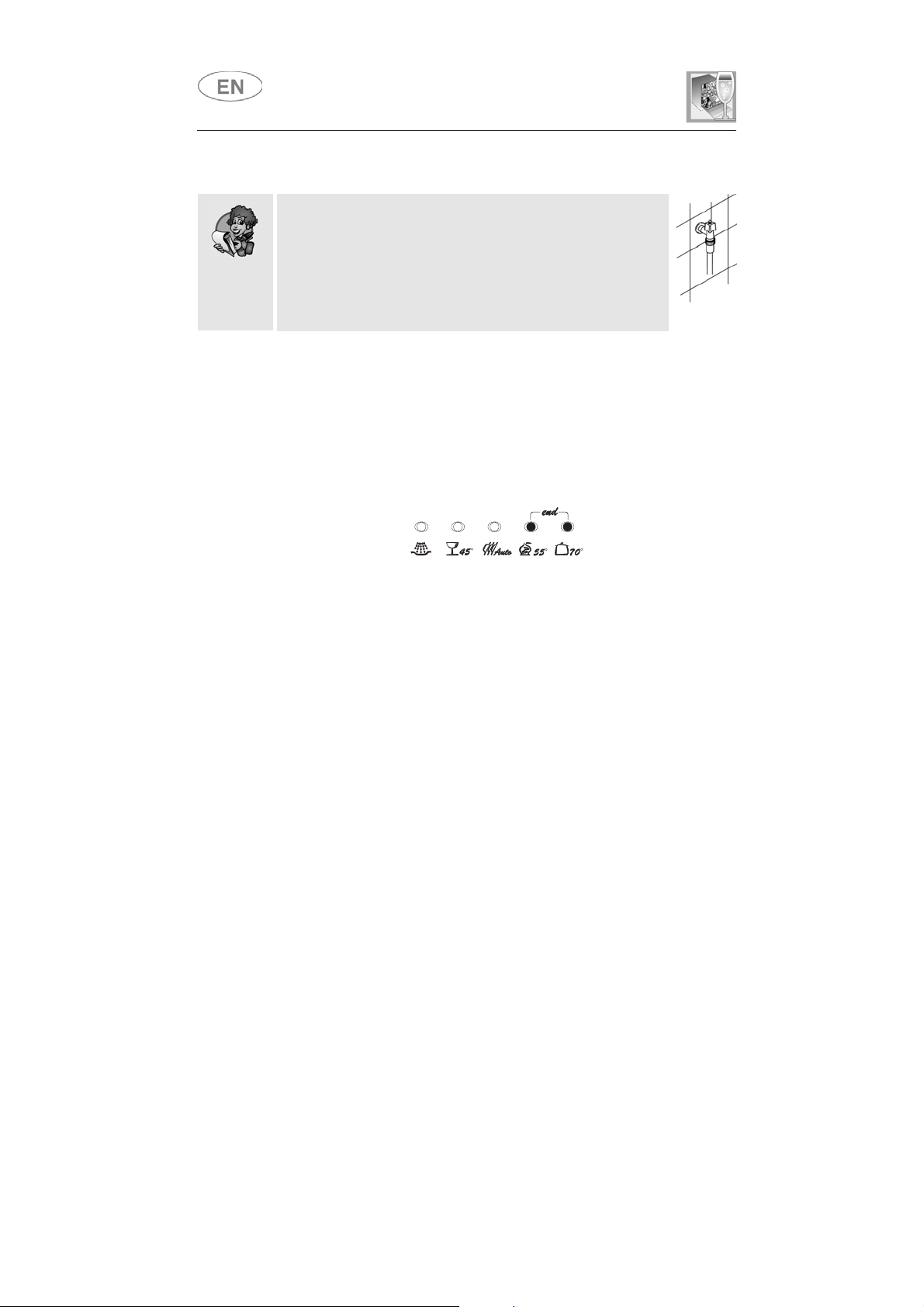

The dishwasher is factory set for water
hardness level 3(average hardness
41-60°dF –24-31°dH
When using water of medium hardness, the regenerating salt container
should be refilled after approximately
container can hold approximately
are equipped with an optical no-salt indicator. In these models, the cap
of the salt container contains a green float which descends as the salt
concentration in the water drops. When the green float can no longer be
seen through the transparent cap, the container must be topped up with
regenerating salt. The container is situated at the bottom of the
dishwasher. After removing the lower basket, unscrew the salt container
cap by turning it anticlockwise and pour in the salt using the funnel
supplied with the dishwasher. Before replacing the cap, remove any salt
residues from around the opening.
).
20 washing cycles
1.7 Kg
of salt in grains. Some models
SALT
. The salt
• When using the dishwasher for the first time, in addition to the salt it
is also necessary to add one litre of water to the container.
• Each time the salt container is refilled, make sure that the cap is
securely closed. The mixture of water and detergent must never
penetrate the salt container, as this would compromise the operation
of the regeneration system. In the event of this occurring, the
warranty will be invalidated.
•
Only use regenerating salt specially formulated for domestic
dishwashers. If using salt tablets, do not fill the container
completely.
User instructions
•
Do not use table salt as it contains insoluble substances which,
over time, may damage the water softening system.
• When necessary, refill the regenerating salt container before
starting the washing program. In this way, the excess saline
solution will be immediately removed by the water; the prolonged
presence of salt water inside the tank may lead to corrosion.
Be careful not to confuse the salt and detergent packages; adding
detergent to the salt container will damage the water softening system.
3.2 Using the rinse aid and detergent dispensers
The detergent and rinse aid
dispensers are situated on the inner
part of the door: the
dispenser
rinse aid dispenser
is on the left, and the
detergent
is on the right.
With the exception of the SOAK program, before every washing cycle it
is necessary to add the required amount of detergent to the detergent
dispenser. The rinse aid, on the other hand, should only be added as
required.
User instructions
ADDING THE RINSE AID
The rinse aid helps the dishes dry faster and
prevents the formation of scale deposits and
staining; it is automatically added to the water
during the final rinse cycle, from the container
situated on the inner side of the door.
To add rinse aid:
•
Open the door.
•
Rotate the container cap anticlockwise by ¼ of a turn and remove it.
•
Add the rinse aid until the container is full (approximately 140 cc).
The optical level indicator on the side of the cap should be
completely obscured. Refill the rinse aid when the optical level
indicator becomes clear again, or when the rinse aid warning light
illuminates.
•
Replace the cover and turn it in a clockwise direction.
•
Use a cloth to remove any spillage of rinse aid which might lead to
the formation of excess foam.
ADJUSTING THE RINSE AID DISPENSER SETTING
The dishwasher is factory set for medium water hardness. However it
possible to change the setting by turning the dispenser’s selector to the
desired position: the amount of rinse aid dispensed is proportional to the
selector position.
•
To adjust the rinse aid setting, rotate the dispenser cap through a
quarter turn in an anticlockwise direction and remove it.
•
Then use a screwdriver to rotate the rinse aid selector to the desired
position.
•
Replace the cap, turning it clockwise.
• The amount of rinse aid must be increased if the washed dishes
appear dull or feature circular stains.
• If, on the other hand, the dishes are sticky or have white streaks, it
is necessary to reduce the rinse aid setting.
User instructions
ADDING THE DETERGENT
To open the detergent dispenser cap, lightly press
the button P. Add the detergent and close the cap
carefully. During the washing cycle, the dispenser will
be opened automatically.
• When a program with hot prewash is selected (see program table),
extra detergent must be placed in the cavity G/H (depending on
models).
• Use only detergents specially formulated for dishwashers. For
optimal washing results it is important to use a good quality
detergent.
• The detergent packs must be sealed and stored in a dry place to
prevent the formation of lumps which may negatively affect washing
results. Once opened the detergent packs should not be kept for too
long, otherwise the detergent loses its effectiveness.
• Do not use detergents formulated for washing dishes by hand,
because they produce a great deal of foam and may negatively
affect the operation of the dishwasher.
• Add the correct amount of detergent. An insufficient amount of
detergent will result in a partial removal of dirt from the dishes,
whereas an excessive amount is wasteful and does not improve the
washing results.
• The market offers liquid and powder detergents with differing
chemical compositions, which may contain phosphates, or be
phosphate-free but contain natural enzymes.
- Detergents containing phosphates are more effective against
grease and starch at temperatures above 60°C.
- Enzyme detergents, on the other hand, are also effective at lower
temperatures (from 40 to 55°C) and are more easily
biodegradable. With enzyme detergents it is possible to obtain at
low temperatures comparable results to those which can only be
achieved at 65°C using traditional detergents.
For the safeguarding of the environment we recommend the use of
phosphate- and chlorine free detergents.
User instructions
•
"3/1" Products
If you wish to use detergents which already contain salt and rinse
aid, check whether your dishwasher is fitted with the "3/1 option
button" on the "Controls description" page and then refer to the
section which explains how to use this function.
If the button is not provided, we recommend the use of conventional
products (separate detergent, salt and rinse aid), because with
conventional washing cycles "3/1" products might create problems
such as a white deposit, poor drying results and residues left on
dishes.
The introduction of detergent into the rinse aid dispenser, even in
liquid form, will damage the dishwasher.
3.3 General warnings and recommendations
Before using the dishwasher for the first time, it is advisable to read the
following recommendations concerning dish types to be washed and
their loading.
There are generally no constraints on the washing of domestic dishes,
but in certain cases it is necessary to take their characteristics into
account.
Before loading the dishes into the baskets it is necessary to:
• remove coarse food remains: e.g. bones, fish-bones, etc. which
may clog the filter or damage the wash pump.
• soak any pots or pans with burnt-on food remains on the bottom to
facilitate removal, then load them into the LOWER BASKET.
Use the "½ load wash" option (if available) for washing small amounts
of dishes; it saves water and electricity.
When using this function, only load the basket selected for the ½
load wash; the other basket must remain empty.
There is no need to pre-wash the dishes under running water before
loading them into the baskets since this only wastes water.

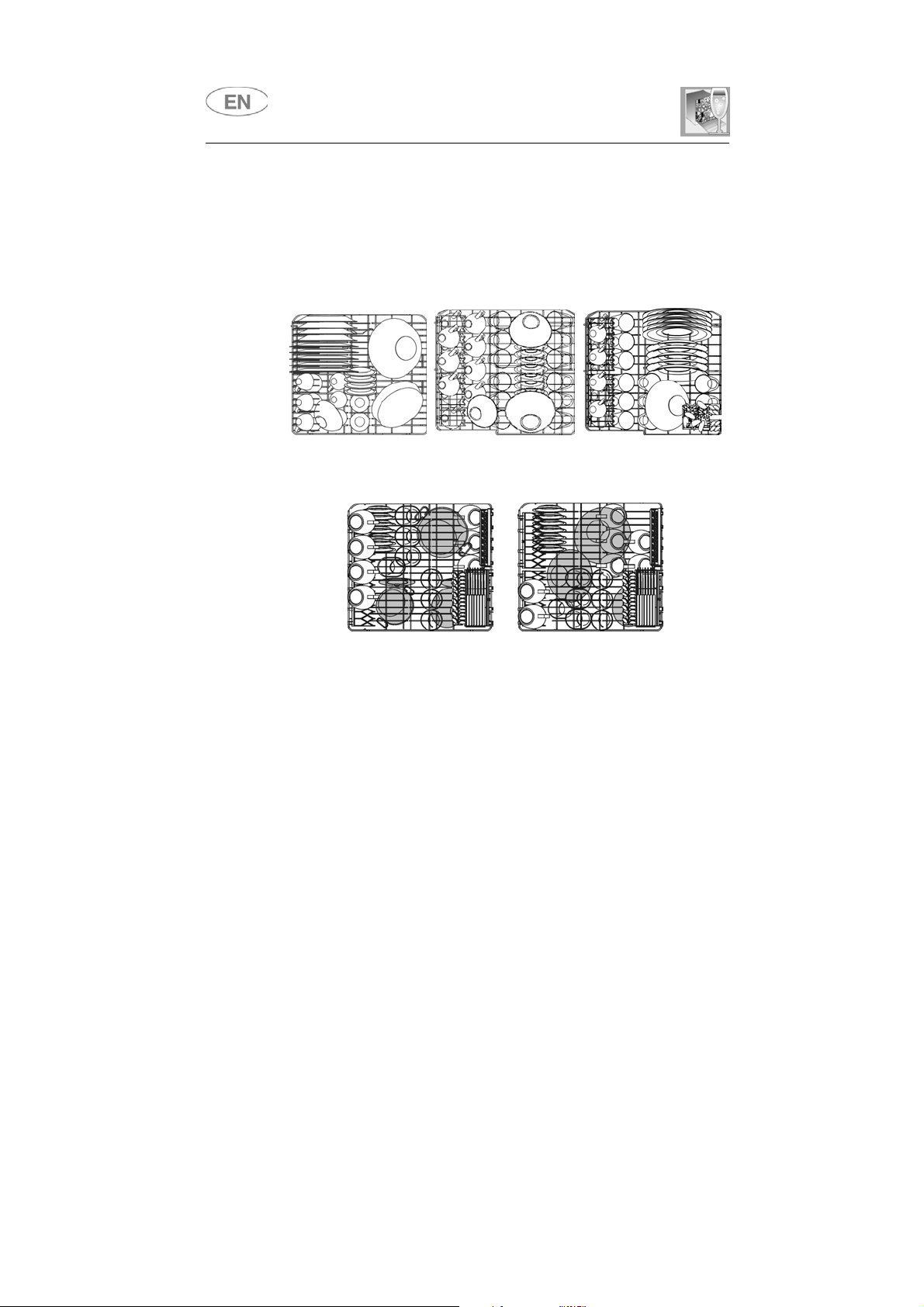

Correct loading of the dishes helps ensure optimal washing
results.
39
User instructions
WARNING!
• Make sure that the dishes are securely in place so that they cannot
tip over or obstruct the rotation of the spray arms during the
washing cycle.
• Do not place very small objects in the baskets as these could fall
and obstruct the spray arms or the wash pump.
• Containers such as cups, bowls, glasses and pots should always
be loaded with the opening facing downwards and with any cavities
at an angle, to allow the water to drain out.
• Do not stack dishes or place them in such a way that they cover
one other.
• Do not place glasses too close together because they may knock
against each other and break, or there might be staining at the
point where they touch.
MAKE SURE that the items being washed are dishwasher-safe.
Items which are not dishwasher-safe:
•
Wooden dishes, pots or pans: these may be damaged by the
high washing temperatures.
•
Handcrafted items: these are rarely suitable for washing in a
dishwasher. The relatively high water temperatures and the
detergents used may damage them.
•
Plastic dishes: heat resistant plastic dishes must be washed in the
upper basket.
•
Dishes and objects in copper, tin, zinc or brass: these tend to
stain.
•
Aluminium dishes: items made from anodised aluminium may
lose their colour.
•
Silverware: silver items may stain.
•
Glass and crystal: in general, glass and crystal objects can be
washed in the dishwasher. However, certain types of glass and
crystal may become dull and lose their clearness after many
washings. Therefore, for these items we recommend using the
least aggressive program available.
•
Decorated items: the decorated objects available on the market
are generally able to withstand washing in the dishwasher,
although the colours may fade after a great many washes. If in
doubt as to the fastness of the colours, it is advisable to wash just a
few items at a time for approximately one month.
40
User instructions
3.4 Using the baskets
The dishwasher has a capacity of
dishes.
EN 50242 STANDARD LOADS FOR CERTIFICATION BODIES
LOWER BASKET UPPER BASKET
12 place-settings
, including serving
UPPER BASKET
(models with cutlery racks)
The upper basket must be set in the low position.
41
User instructions

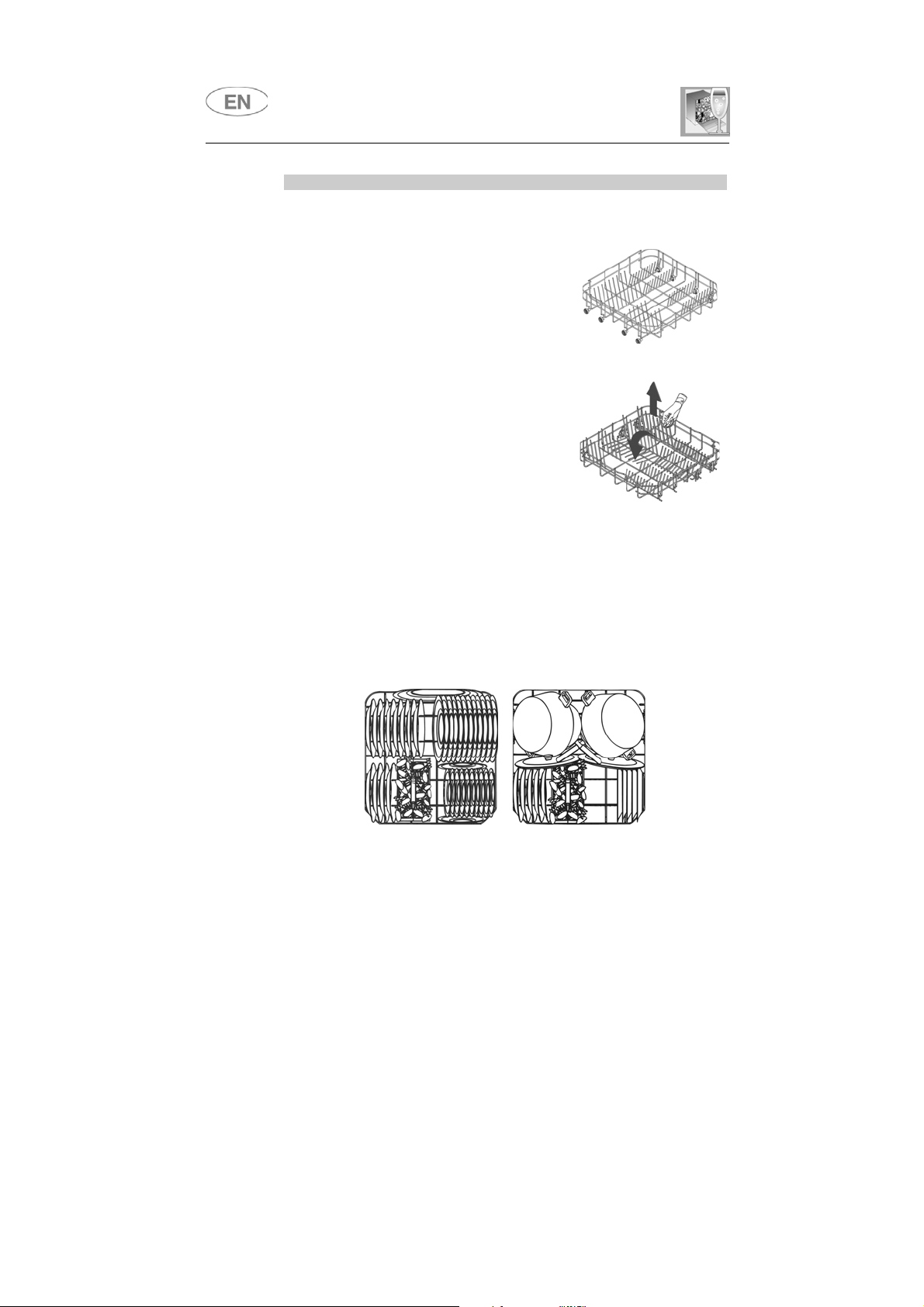

LOWER BASKET
The lower basket receives the full force of the lower spray arm, and
should therefore be used for the “toughest” items with a heavier degree
of soiling.
All types and combinations of loads are
permitted, provided that the dishes, pots and
pans are arranged with all the soiled surfaces
exposed to the water jets coming from the
bottom.
With fixed supports
To make the most of the space inside the
basket when loading large items, certain
models are equipped with tip-up supports for
plates in 2 or 4 sections.
With tip-up supports
42
LOADING THE LOWER BASKET
Carefully load flat plates, soup plates, dessert and serving dishes,
positioning them vertically. Pots, pans and their covers must be loaded
upside down. When loading soup plates and dessert bowls, be sure to
leave a gap between them.
Loading examples:
½ LOAD
(certain models only)
User instructions
CUTLERY BASKET
The basket has removable top grids into which items of cutlery can be
inserted to keep them properly spaced and allow water to pass between
them effectively. The cutlery supports and central lid are in the bag of
accessories. The central lid is intended to act only as a cover: do not
place the cutlery in it:
The cutlery should be arranged in an orderly manner
inside the basket, with the handles pointing
downwards. Take care during loading to avoid injury
from the knife blades. The basket is suitable for all
types of cutlery, except those long enough to
interfere with the upper spray arm. Ladles, wooden
spoons and cooking knives can be placed in the
upper basket,
do not protrude from the basket.
UPPER BASKET
It is recommended to load the upper basket with small- or medium-sized
items such as glasses, small plates, tea or coffee cups, shallow bowls
and light objects made from heat resistant plastic. If the upper basket is
used in the lowermost position, it can also be loaded with serving dishes,
provided they are only slightly soiled.
To make full use of the space available, the
top basket has two plastic grids that can be
lifted to make room for tall glasses such as
stem glasses.
making sure that the knife blades
The top basket is fitted (on the left)
with two plastic racks which can be
raised to make room for tall glasses,
such as stem glasses.
On the right there are two cutlery
racks designed to take knives and
teaspoons; when not in use, they can
be left vertical, attached to the basket.
To use the space designed for
teaspoons, remove the insert as
shown in the illustrations.
models with cutlery racks
43
User instructions
LOADING THE UPPER BASKET
Load plates facing forward; cups, bowls etc. must always be facing
downwards. The left-hand side of the basket can be loaded with two
layers of cups and glasses. The centre can be filled with plates and sideplates, fitted upright into the supports provided.
Loading examples:
½ LOAD
(certain models only)
44
(models with cutlery racks)
½ LOAD
User instructions
ADJUSTING THE UPPER BASKET
Version A:
according to the user’s needs and according to the height of the dishes
in the lower basket. Proceed as follows.
•
pull out the right-hand basket guide
•
remove the stop, first releasing it as shown in the diagram
•
push the guide to free the wheels
•
fit the upper or lower pair of wheels into the guide, depending on the
•
return the stop to its original position
Version B:
•
pull out the basket to its limit position and pull the right side
•
To return to the original position, pull out the upper basket again and
the upper basket can be adjusted in
;
;
setting required
;
.
upwards. At this point it is possible to load larger sized plates into
the lower basket.
press the release lever.
two positions
;
,
45
User instructions
Version C:
both sides. The rack must be level on both sides.
To raise the basket lift it, pulling on the front edge
second catch depending on the height required. To lower it, pull the
release lever
This is also possible with the basket loaded, but in this case when
lowering the basket it should be held steady with one hand to avoid
knocking the dishes.
the top basket can be set in
(2)
.
three different positions
(1)
, to the first or
on
46
User instructions
4. Cleaning and maintenance
Before carrying out any work, always disconnect the appliance
from the electrical power supply.
4.1 General warnings and recommendations
Avoid the use of acidic or abrasive detergents.
Clean the outer surfaces and door-lining of the dishwasher regularly
using a soft cloth moistened with water or with a normal detergent
suitable for painted surfaces. Clean the door gaskets with a damp
sponge. Periodically (once or twice a year) it is advisable to clean the
tank and gaskets, using a soft cloth and water to remove any deposits.
CLEANING THE WATER INTAKE FILTER
The water intake filter Alocated at the outlet of the water supply tap
needs to be cleaned periodically.
After having closed the water supply tap, unscrew the end of the water
intake hose, remove the filter Aand clean it delicately under running
water. Reassemble filter Ain its seat and carefully screw the water
intake hose back into position.
CLEANING THE SPRAY ARMS
The spray arms can be easily removed for periodic cleaning of the
nozzles, to prevent possible clogging. Wash them under running water
and carefully replace them in their seats,
movement is in no way impeded
•
To remove the
upper
spray arm, unscrew locking ring R.
.
checking that their rotary
• To remove the lower spray arm, simply lift it up, pulling by the
central part.
User instructions
CLEANING THE FILTER UNIT
x It is advisable to periodically inspect the centre filter C and, if
necessary, to clean it. To remove the filter, grip the tabs, turn them
anticlockwise and lift upwards;
x push the centre filter D from the underside to remove it from the
micro-filter:
x separate the two parts which make up the plastic filter by pressing
the body of the filter in the zone shown by the arrows;
x remove the centre filter by lifting it upwards.
GENERAL WARNINGS AND RECOMMENDATIONS FOR CORRECT
MAINTENANCE:
x The filters should be cleaned under running water using a stiff
brush.
x When removing the filter, take care that there are no food residues
on it. If any residues fall into the washing pit they might block
hydraulic components, or foul the spray arm nozzles.
x It is essential to thoroughly clean the filters according to the
above instructions: the dishwasher cannot function if the filters are
clogged.
x Carefully replace the filters in their seats, to avoid damaging the
wash pump.
48
PROLONGED DISUSE:
x Run the soak program twice in succession.
x Unplug the power cord from the socket.
x Leave the door slightly open, in order to prevent the formation of
unpleasant odours inside the washing tank.
x Fill the rinse aid dispenser.
x Shut off the water supply tap.
User instructions
BEFORE STARTING THE DISHWASHER AFTER PROLONGED
DISUSE:
• Check that there are no deposits of sludge or rust inside the water
pipe: if there are, allow the water to run from the water supply tap for
a few minutes.
•
Plug the power cord back into the socket.
•
Reconnect the water intake hose and open the tap again.
TROUBLESHOOTING MINOR PROBLEMS
In some cases it is possible to remedy minor problems by referring to the
following instructions:
If the program fails to start, check that:
• the dishwasher is connected to the electrical power supply;
• there is no power failure;
• the water tap is open;
• the dishwasher door is properly closed.
If water remains inside the dishwasher, check that:
• the drain hose is not kinked;
• the drain siphon is not obstructed;
• the dishwasher filters are not clogged.
If the dishes are not being cleaned properly, check that:
• the correct amount of detergent has been added;
• there is regenerating salt inside the special container;
• the dishes are being loaded correctly;
• the selected program is suitable for the dish types and their degree
of soiling;
• all the filters are clean and positioned correctly;
• the spray arm nozzles are not obstructed;
• there is no object obstructing the rotation of the spray arms.
49
User instructions
If the dishes fail to dry or remain dull, check that:
• there is rinse aid inside the special container;
• the rinse aid dispenser setting is correct;
• the detergent used is of good quality and has not lost its
effectiveness (for example, through incorrect storage, with the box
left open).
If the dishes show signs of streaking, staining, etc., check that:
• the rinse aid dispenser setting is not too high.
If there are visible traces of rust inside the tank:
• the tank is made of steel, and therefore any rust marks are due to
external elements (fragments of rust from the water pipes, pots,
cutlery, etc.). Special products are commercially available to remove
such marks;
• check that the amount of detergent being used is correct. Certain
detergents can be more corrosive than others.
• check that the cap of the salt container is securely closed, and that
the water softening setting is correct.
If after following the above troubleshooting instructions the problem
persists, call the nearest After-Sales Centre.
WARNING: any operations performed on the appliance by
unauthorised persons are not covered by the warranty and shall be
paid for by the user.
TECHNICAL DATA
Width
Depth measured flush with the
outer edge of the control panel
Height
Capacity
Water supply pressure
Electrical characteristics
50
597 ÷ 599 mm
Free standing: 600 mm
Semi-integrated: 570 mm - Fully integrated: 550mm
Free standing from 850 mm to 870 mm
Semi-integrated and fully integrated: from 820 mm to 870 mm
12 Standard place settings
min. 0,05 - max. 0,9 MPa (min. 0.5 – max. 9 bar)
See rating plate
User instructions
1. Description of the controls
1.1 Upper panel
All the dishwasher controls are grouped on the upper panel. Switch-on,
programming, switch-off etc. procedures are only possible when the door
is open.
2
345
107698
11
13
12 1
ON/OFF BUTTON
1
Pressing this button energises the appliance.
SELECTED PROGRAM INDICATOR LIGHTS
2
Illumination of this light denotes the program selected and the
occurrence of a fault (troubleshooting).
PROGRAM SELECTION BUTTON
3
By pressing this button in sequence it is possible to select the desired
program.
SALT WARNING LIGHT
4
Illumination of this light signals that salt container is empty.
RINSE AID WARNING LIGHT
5
Illumination of this light signals that rinse aid dispenser is empty.
(certain models only)
(certain models only)
EXTRA PROGRAM BUTTON
6
This button gives access to the one of the five extra programs (see
table).
EXTRA PROGRAM LIGHT
7
Illuminates to indicate that one of the five extra programs (see table) is
going to be executed.
User instructions
"3/1" OPTION BUTTON
8
Press this button to activate the option for use of 3/1 products.
"3/1" OPTION LIGHT
9
Illuminates to indicate that the function is activated.
HALF LOAD BUTTON
10
Press this button to activate the half load wash option.
HALF LOAD LIGHT
11
One of the two buttons illuminates to indicate that the half load wash
option in the top or bottom basket has been selected.
PROGRAM DELAY BUTTON
12
Press this button to delay the start of the program by up to 9 hours.
INFORMATION DISPLAY
13
(on some models only)
(on some models only)
(on some models only)
(on some models only)
(on some models only)
(on some models only)
User instructions
SETTING THE WASHING PROGRAM AND SWITCHING ON
To select the most suitable program for the dishes to be washed refer to
the table below, which indicates the most appropriate program according
to dish type and degree of soiling.
PROGRAMME
NUMBER & SYMBOL
1
2
3
4
2
345
107698
11
13
12 1
After using the table to identify the most appropriate washing program:
• press the
ON/OFF
INDICATOR LIGHT (2)
• keep pressing the
PROGRAM SELECTION
button
to illuminate;
(1)
and wait for the
button
PROGRAM
(3)
until the
indicator light corresponding to the desired program illuminates;
• close the door; after about 2" the program will start. While it is in
progress, the relative
LIGHT
will flash (indicating that the program is
being executed).
CONSUMPTION
WATER
LITRES (1)
POWER
KWh (2)
RINSE
DELICATE
AUTO 60-70
BIO
LOAD CROCKERY
AND CUTLERY
Pans and dishes
for rinsing
and drying
Dishes with
normal dirt
Normally soiled
dishes, including
dried-on residue
Dishes with
normal dirt
PROGRAM
PROGRESS
Cold rinse
Rinse at68°C
Dry
Cold prewash
Wash at 45°C
Cold rinse
Rinse at68°C
Dry
Cold prewash
Wash at 50°C
Wash at 65°C
Cold rinse
Rinse at 70°C
Dry
Cold prewash
Wash at 55°C
Cold rinse
Rinse at68°C
Dry
DURATION
MINUTES
(2)
45' 9 0,9
75' 16 1,15
(**) (**) (**)
180' 15 1,10
User instructions
PROGRAMME
NUMBER & SYMBOL
5
6
7
8
9
10
run the soak program with half loads.
Only
SUPER
SOAK
QUICK
AUTO 40-50
ECO
(*) EN 50242
INTENSIVE
To execute programs
LOAD CROCKERY
AND CUTLERY
Very dirty pans
and dishes, even
with dried-on dirt
Pans and dishes
Wash immediately
Wash immediately
after use for dishes
with normal dirt
Normally soiled
pans and dishes,
dried-on residue
6,7,8,9,10
PROGRAM
PROGRESS
Prewash at45°C
Wash at 70°C
2 cold rinses
Rinse at 70°C
Dry
awaiting a
further dish
Dishes with
light dish
after use for
dishes with
normal dirt
including
Cold prewash
Wash at38°C
Cold rinse
Rinse at 58°C
Cold prewash
Wash at 40°C
Wash at 55°C
Cold rinse
Rinse at 70°C
Dry
Wash at 50°C
Cold rinse
Rinse at 66°C
Dry
Wash at 70°C
2 cold rinses
Rinse at 70°C
Dry
users must first press the
DURATION
MINUTES
(2)
110’ 20 1,70
16' 6
45' 13 0,85
(**) (**)
180'
95' 17
extra programs button (6)
CONSUMPTION
WATER
LITRES (1)
14 1,05
(*) Reference program as per EN 50242 standard.
(**) When the "
AUTO 40-50
" or "
AUTO 60-70
" program is selected, the dishwasher
recognises the type of dirt and automatically adjusts the washing parameters as
appropriate.
(–) Not present.
(1) Average power consumption with the softener set on
level 2
.
(2) The cycle duration and power consumption may vary according to the water and
room temperatures, and the type and amount of dishes.
POWER
KWh (2)
_
(**)
1,50
.
The washing cycle will not take place if the dishwasher door is left open or
not properly closed.
User instructions
1.2 Washing programs
Before starting a washing program make sure that:
• The water supply tap is
• The
• The baskets have been
• The spray arms are able to
• The dishwasher door is
CANCELLING THE CURRENT PROGRAM
• To cancel the currently selected program, open the door and hold
correct amount of detergent
dispenser
obstruction.
down the
until the
simultaneously (the word "end" is displayed on the window).
.
PROGRAM SELECTION (3)
indicator lights
open.
has been added to the
correctly loaded.
rotate freely
securely closed
for programs 4 and 5 illuminate
and without
.
button for a few seconds
• Close the door.
• After approximately 1 minute the dishwasher will advance to the end
of cycle.
CHANGING THE PROGRAM
To change the program in progress, simply open the door and select a
new program. When the door is closed the dishwasher will automatically
select the new program.
User instructions
SELECTING HALF LOAD WASH
(on some models only)
This function is ideal for small loads and saves water and electricity. It is
controlled by the
1) press the button
HALF LOAD (10)
once
to select washing in the
button, with two alternatives:
top basket
(the
relative light comes on);
2) press the button
basket
(the relative light comes on);
3) press the button
a second time
a third time
to select washing in the
to return to the normal
bottom
full load
washing mode (washing in both baskets, both lights off).
When washing in the
divided
so that
2
only half is used.
345
bottom basket
only,
the cutlery basket can be
107698
11
13
12 1
EXTRA PROGRAMS
Button
(6)
gives access to
five extra programs
in addition to the ones
which can be selected directly using the program selector button.
This button must be pressed (the light comes on)
after
selection of the
"main" program (1, 2, 3, 4 or 5).
This function
is retained in the memory
, so the button has to be
pressed again (the light goes out) if the user wishes to execute one of
the 5 main programs at the next cycle.
User instructions
"3/1" OPTION BUTTON (on some models only)
(available in all programs except the soak program)
By pressing the button
the relative light comes on. This option has been studied for the use of
dishwashing powder or tablets with integrated substances in place of
regenerating salt or rinse-aid known on the market as “3 in 1” or “triple
action” products; in this case the dishwasher will use the product in an
optimal way avoiding salt and rinse-aid consumption, which could
already be found in the dishwasher.
Note:
When selecting the "
rinse-aid lights remain on, if their containers are empty.
DELAYING THE PROGRAM (on some models only)
PROGRAM DELAY
The
the program by up to
operated at the time of day of your choice. Press the button several
times in succession and the display will show the delay with which the
appliance will start, beginning from
(8)
you activate the "
3/1
" button, it is normal that the salt and
(12)
button
9 hours.
This means that the dishwasher can be
can be pressed to delay the start of
9 hours
3/1
" option, confirmed when
.
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
• Always try to run the dishwasher
• Do not wash the dishes in running water.
• Use the washing program that is
load.
• Do not carry out any preliminary rinsing.
• If available, connect the dishwasher to a hot water supply up to 60°C.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:
•
separate
to aggressive detergents and high temperatures;
•
do not pour
the more delicate items from dishes that are more resistant
the detergent directly on the dishes.
fully loaded
most appropriate
.
for each type of
User instructions
2
345
107698
11
13
12 1

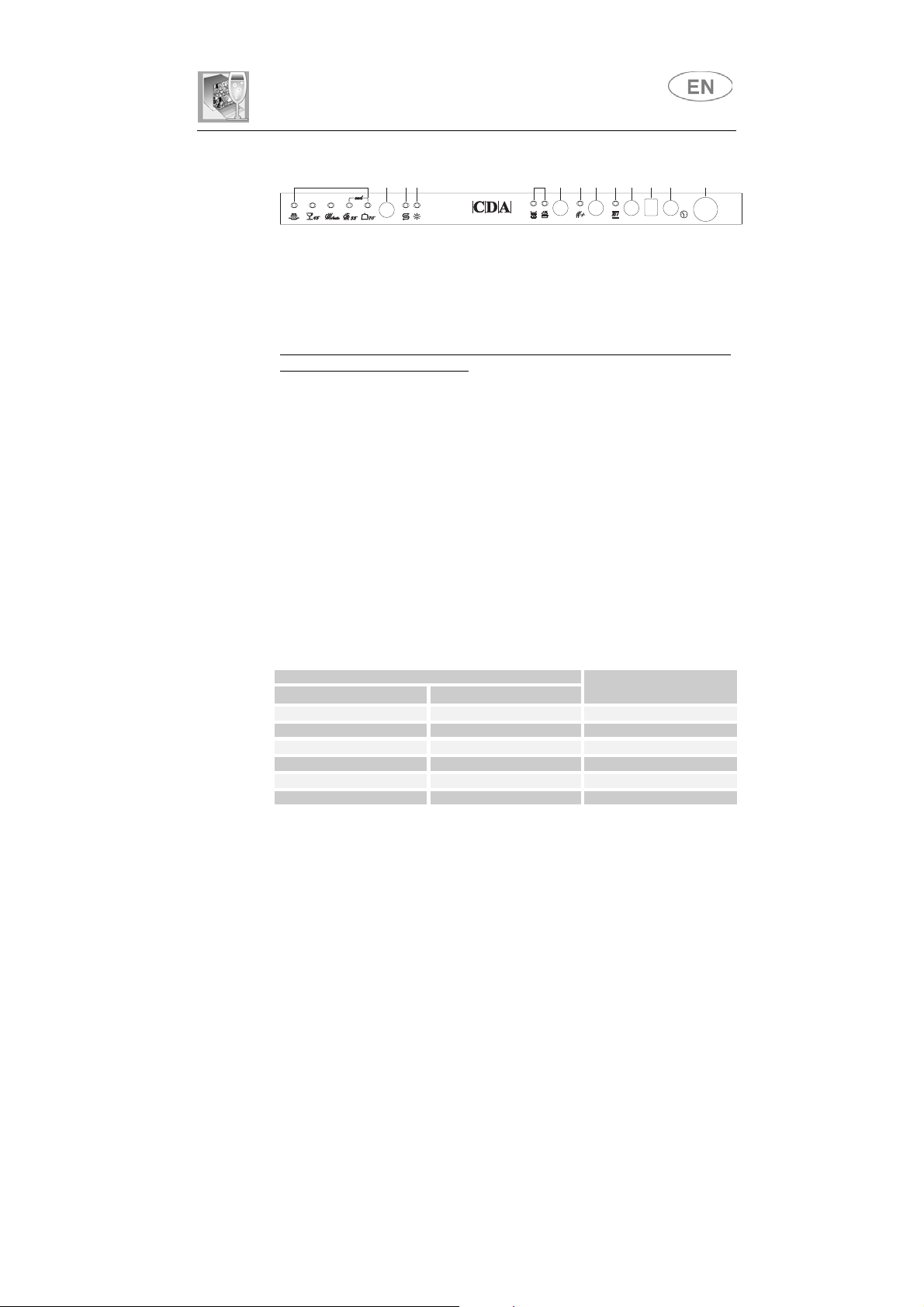

ADJUSTING THE WATER SOFTENING SYSTEM
N.B.:
for the setting below to be possible, a washing program other than
the soak program must be set.
Press the
PROGRAM DELAY
button
(12)
and keep it pressed until the
preset value appears followed by a full stop (normally 3.).
Release the button then press it again in succession to display the value
required, referring to the table.
The 6 setting levels available will appear in this order:
3.,4.,5.,0.,1.,2.
.
When the value required appears on the display, release the button;
5 seconds
after
the system automatically returns to setting of the
program delay, and the setting will be made with the chosen value.
N.B.:
the display shows the water hardness setting and the program
delay. The dot (.) after the number indicates that the water hardness
setting is being displayed. If the dot (.) does not appear, the program
delay is being displayed.
WATER HARDNESS TABLE
WATER HARDNESS
German Degrees (°dH) French Degrees (°dF)
0 - 5 0 - 9 0.
6 - 11 10 - 19 1.
12 - 21 20 - 36 2.
22 - 33 37 - 59 3.
34 - 45 60 - 79 4.
46 - 53 80 - 107 5.
SETTING
Contact your local water board for information on the hardness of your
water supply.
User instructions
If the door has to be opened while washing is in progress, the program
will be interrupted. The relative light will keep flashing and a beeper will
signal that the cycle has not been completed. You must wait about
before closing the door to restart the program. When the door is
minute
closed the program will continue from where it was interrupted. This
operation should
only be carried out if strictly necessary
might cause problems in execution of the program.
END OF CYCLE
At the end of the program the beeper sounds briefly and the
programs 4 and 5flash (the word "end" is displayed on the window).
, because it
lights
of
1
13
ON/OFF
12 1
To switch off the dishwasher, open the door and press the
(1)
button
.
2
345
107698
11
REMOVING THE DISHES
At the end of the washing program, wait at least
20 minutes
before
removing the dishes, to allow them to cool down. To prevent any water
droplets on the upper basket from falling on the dishes in the lower
basket, it is
advisable
to unload the lower basket first, and then the
upper basket.
E1
E2
E3
E4
E5
E6
User instructions
2. Troubleshooting
The dishwasher is capable of signalling a number of faults through the
simultaneous illumination of several indicator lights, with the following
meanings:
FAULT DESCRIPTION
Acquastop failure
The anti-flooding system has been activated (for the
relevant models only). The system is tripped in case
of water leaks. Contact the after-sales service.
Safety level
The system which limits the water level inside the
dishwasher has been tripped. Interrupt the program
and switch off the dishwasher. Switch the dishwasher
back on, program it again and start the washing
cycle. If the problem persists, contact the after-sales
service.
Water heating malfunction
The water is not heated or the heating parameters
are not correct. Repeat the washing program; if the
problem persists, contact the after-sales service.
Water temperature monitoring malfunction
Interrupt the program and switch off the dishwasher.
Switch the dishwasher back on, program it again and
start the washing cycle. If the problem persists,
contact the after-sales service.
Water intake malfunction
The appliance does not take in water or does not do
so correctly. Check that the water connections are
correct, the water intake tap is turned on and the filter
is not fouled. If the problem persists, contact the
after-sales service.
Water pump-out malfunction
The appliance does not pump out the water or does
not do so correctly. Check that the drain hose is not
kinked or crushed and that the siphon and filter are
not fouled. If the problem persists, contact the aftersales service.
E7
E8
E9
User instructions
FAULT DESCRIPTION
Turbine flow-regulator malfunction
(for the relevant models only)
The appliance is not able to "measure" the amount of
water loaded accurately. Interrupt the program and
switch off the dishwasher. Switch the dishwasher
back on, program it again and start the washing
cycle. If the problem persists, contact the after-sales
service.
Alternate washing system malfunction
Interrupt the program and switch off the dishwasher.
Switch the dishwasher back on, program it again and
start the washing cycle. If the problem persists,
contact the after-sales service.
Water intake system malfunction
Contact the after-sales service.
Light off Light on Light flashing
If an alarm occurs the appliance interrupts the program in progress and
signals a fault.
Alarms
•
immediately.
TheE5,E6 alarms interrupts the running program once the cause is
•
resolved, it will bring bach the execution of the program.
The alarm E7 is visualized at the end of the cycle that comes, however,
•
brought to the end since the operation of the dishwasher is not harmed.
To “reset” an alarm is necessary:
Open and close the door, or turn off and on the machine. At this point is
•
possible to program the dishwasher again.
E1, E2, E3, E4, E8
andE9 interrupt the current program
If the malfunction persists, contact your authorised Service Centre.
Loading...
