CDA VK902 Installation, Use And Maintenance Manual
Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu
www.cda.eu
VK902 Compact
Combination
Microwave Oven
Installation, Use and Maintenance
2
Contents
• Important product and safety information - p3
• Before first usage instructions - p6
• Control panel layout - p7
• Using your appliance - p8
• Setting the clock - p9
• Setting the minute minder - p9
• Functions - p9
• Semi-automatic cooking - p12
• Automatic cooking - p13
• Safety key lock - p14
• Internal lighting - p15
• Operating time limiter - p15
• Care and maintenance - p16
• Cleaning - p18

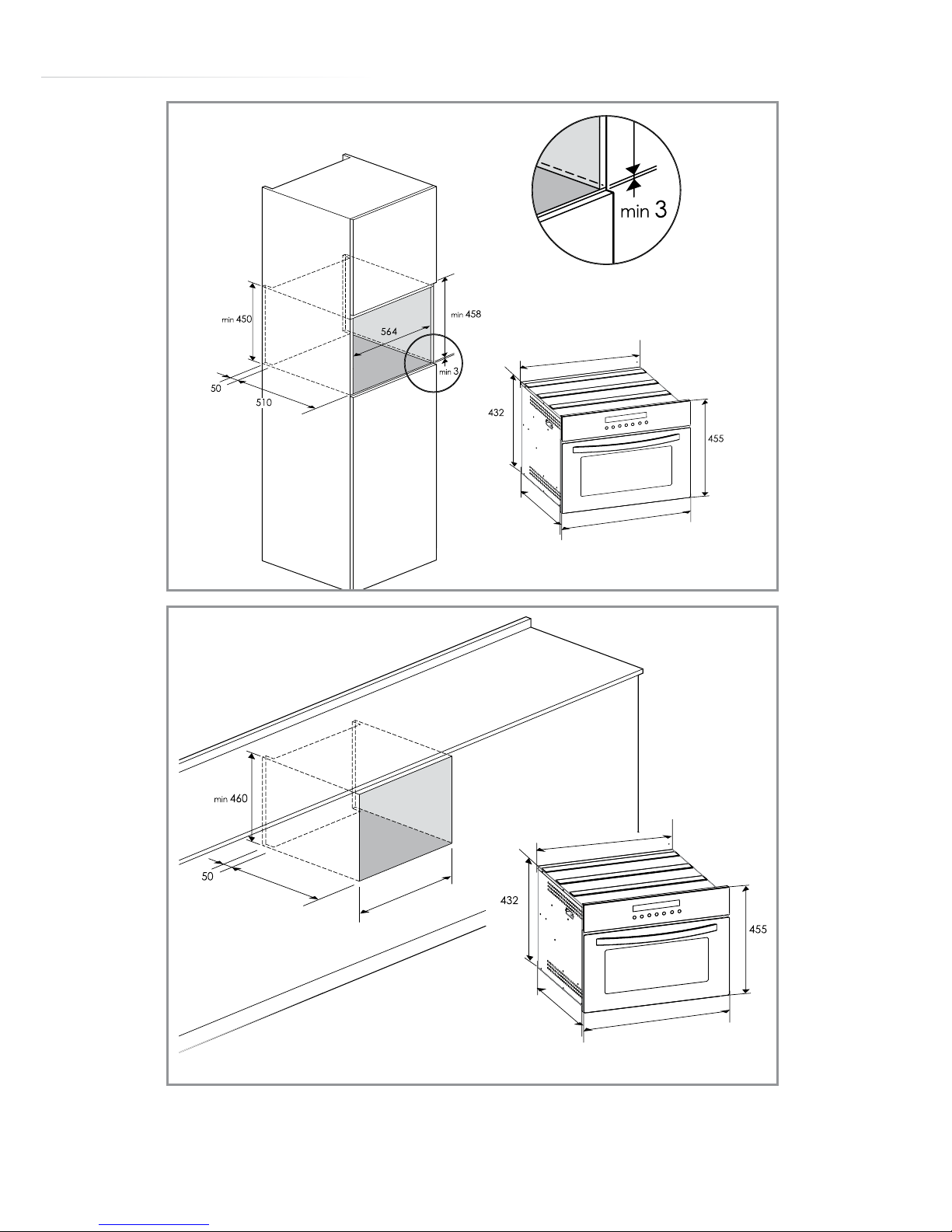

• Installation - p20

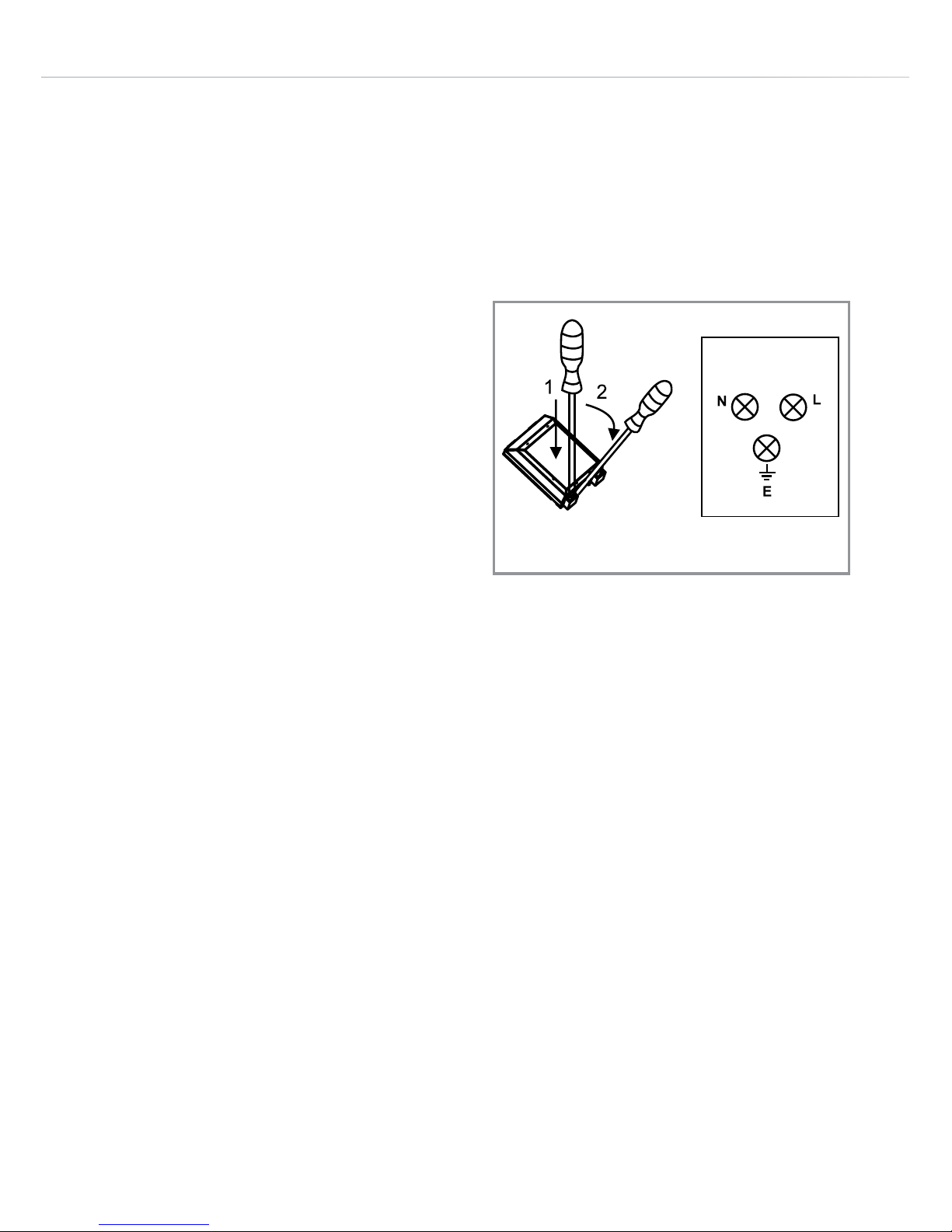

• Mains electricity connection - p22
3
Important
This appliance must only be used for the purpose for which it is
intended, i.e. domestic cooking. Any other use could be dangerous
and may lead to premature failure of the appliance.
The CDA Group Ltd cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note
that CDA reserve the right to invalidate the guarantee supplied with
this product following incorrect installation or misuse of the appliance.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
User information:
• Ovens become hot during and immediately after use.
• The oven door can become very hot during operation.
• After use, please ensure that the oven is switched ‘O’.
• Keep children away from the appliance when in use, and
immediately after use.
• Keep the oven door closed whilst grilling.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
4
EU Declarations of Conformity:
This oven has been designed, constructed and marketed in
compliance with safety requirements of EU Directive 2014/35/EU (LVD)
and requirements of EU Directive 2014/30/EU (EMC).
Parts intended to come into contact with food conform to 1935/2004/
EC.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU.
At the end of its working life, the product must not be disposed
of as urban waste. It must be taken to a special local authority
dierentiated waste collection centre or to a dealer providing this
service.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving from
inappropriate disposal and enables the constituent materials to be
recovered to obtain significant savings in energy and resources. As a
reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.
5
Important
• Read the user instructions carefully before using the
oven for the first time.
• Follow the instructions for first use of the oven.
• Clean the oven regularly.
• Remove spills as soon as they occur.
• Always use oven gloves when removing shelves and
trays from the oven.
• Do not allow children near the oven when in use.
• Do not allow fat or oils to build up on the oven shelves,
grill pan or oven base.
• Do not place any cooking utensils or plates directly on
the oven base.
• Always grill with the oven door closed.
• Do not grill food containing fat without using the grill pan
grid.
• Do not cover the pans, grids or the oven walls with
aluminium foil.
• Do not use the oven tray for roasting.
• Do not perform maintenance or cleaning of the oven
without first switching o the electricity supply. If the
oven has recently been used, allow to cool.
• Do not place hot enamel parts in water. Leave them to
cool first.
• Do not allow vinegar, coee, milk, saltwater, lemon or
tomato juice to remain in contact with enamel parts.
• Do not use abrasive cleaners or powders that will scratch
the surface of the enamel or stainless steel.
6
• Do not attempt to repair the internal workings of your
oven.
• Do not cover the oven floor with aluminium foil.
Before first use
First use
Before using the oven for the first time we recommend that, with
the power supply o, you clean the oven with soapy water. Once
done, rinse carefully, remove all accessories from the appliance and
then heat on the below programme at maximum temperature for the
specified time. A slightly unpleasant smell may be produced, caused
by grease remaining on the oven element from the production
process.
30 minutes full grill with rear element and fan
Please note:
This oven has been fitted with a cooling fan to achieve maximum
eciency and to maintain low surface temperatures. The cooling fan
will switch on automatically when the oven switches on. It is normal
for the cooling fan to run for an hour or more after use, depending on
the duration, temperature and type of cooking programme used.
• The oven light remains on for every cooking function.
• Do not switch o the oven if you have set a programme for
semi-automatic or automatic cooking as this will cancel the
programme.
• We recommend preheating the grill for 5 minutes before each use.
7
Control panel
A: On/O sensor F: Function selection sensor
B: Function down sensor G: Clock/Timer sensor
C: Function up sensor H: Safety key lock sensor
D: Oven light sensor I: Confirm/Pause sensor
E: Temperature/microwave power selection sensor
Fig. 1
A B C D E F G H I
Prompt area Function display
Time displayTemperature display
Safety key lock
Time
Oven light
Timer
Cooking time
End of
cooking time
Fig. 2
8
Using the touch controls
The touch controls should be used with the flat of your finger, rather
than the fingertip.
Switching the appliance on and o
To switch the appliance on
Touch and hold the ‘On/O’ sensor
for approximately 3 seconds
and until the appliance beeps. The steam function indicator on the
display will illuminate as well as the temperature display.
To switch the appliance o
Touch and hold the “On/O” sensor
for approximately 3 seconds
and until the oven beeps. All displays except for the time display
should extinguish.

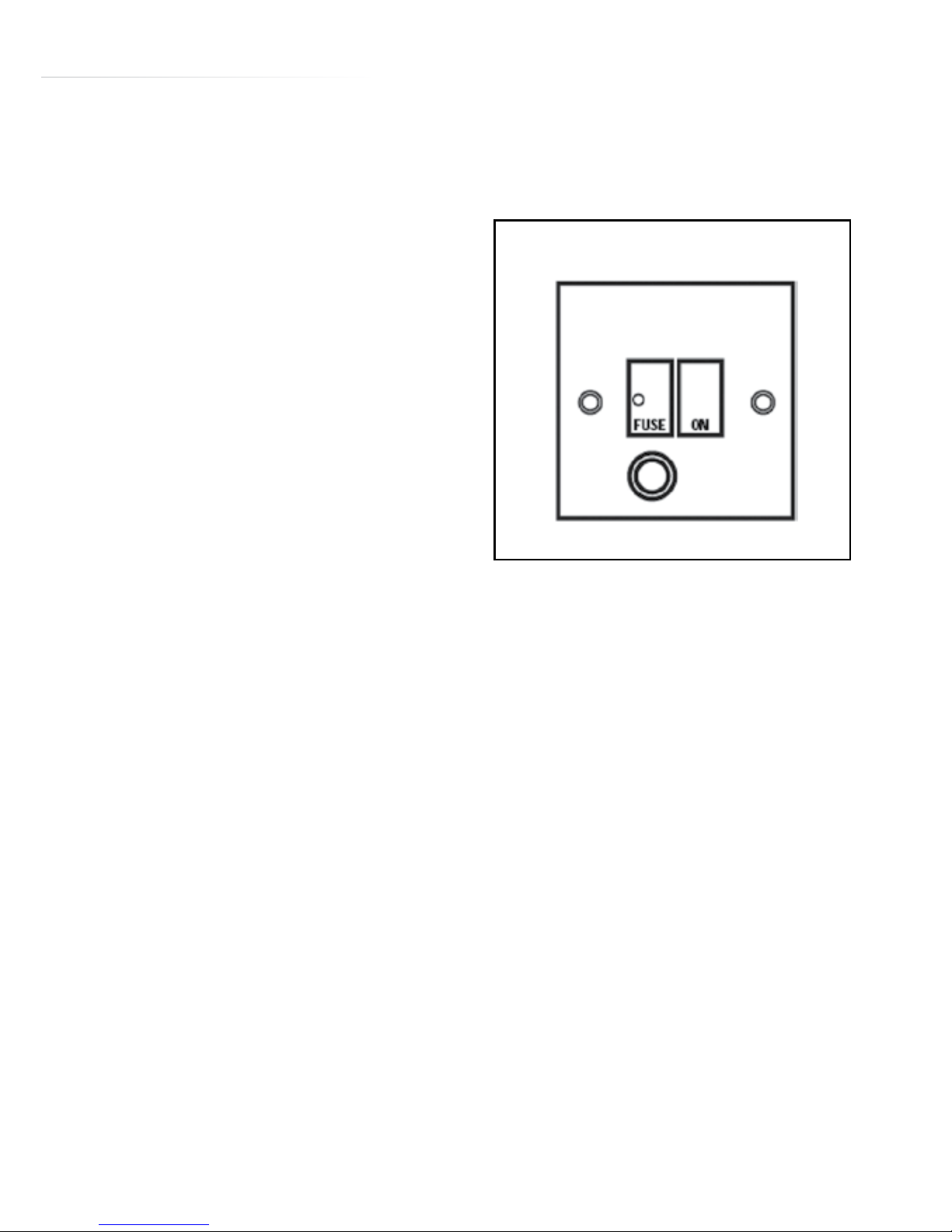

Please note: To switch the appliance o completely, i.e. before
cleaning it, you will need to switch it o at the mains isolation switch.
Fig. 3
