CDA VC801 Installation, Use And Maintenance Manual

Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY

T : 01949 862 012 F : 01949 862 003 E : [e-mail] W : www.cda.eu

www.cda.eu

VC801 Built-In
Coee Machine

Installation, Use and Maintenance

2

Safety Instructions

The appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.

Children should be supervised to ensure that they do not play with
the appliance.

Cleaning and user maintenance shall not be made by children without
supervision.

Never immerse the appliance in water.
This is a household appliance only. It is not intended to be used in:

• Sta kitchen areas in shops, oces and other working
environments;

• Farm houses;

• By clients in hotels, motels and other residential type environments;

• Bed and breakfast type environments.

If the plug or power cable is damaged, it must be replaced by
customer services only to avoid all risk.

For European Markets Only:

This appliance can be used by children aged from 8 years and above
if they have been given supervision or instruction concerning use
of the appliance in a safe way and if they understand the hazard

3

involved. Cleaning and user maintenance shall not be made by
children unless they are older than 8 and supervised. Keep the
appliance and its cord out of the reach of children aged less than 8
years.

Appliances can be used by persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.

Children shall not play with the appliance.

When not in use and before cleaning, always unplug the appliance.

Surfaces marked with this symbol become hot during use
(the symbol is present in certain models only).

Important Notes:

This appliance is designed solely to produce coee and steam. Other
types of use are not permitted and may prove dangerous. The CDA
Group Ltd will not be held liable for any damage caused by incorrect
use of the appliance.

• Read the user instructions carefully before using the appliance for
the first time.

• To protect against fire, electrical shock and injury to persons, do not
immerse cord or plugs in water or other liquid.

• The use of accessory attachments not recommended by The CDA
Group Ltd may result in fire, electric shock or injury.

4

• Never touch the appliance with damp hands.

• Never touch the plug with damp hands.

• Make sure the socket used is freely accessible at all times, enabling
the appliance to be unplugged when necessary.

• Unplug directly from the plug only. Never pull the power cable as
you could damage it.

• To disconnect the appliance completely, place the main switch (A23)
on the side of the appliance in the “0” position.

• If the appliance is faulty, do not attempt to repair; turn it o using
the main switch (A23), unplug from the mains socket and contact
Customer Services.

• Keep all packaging (plastic bags, polystyrene foam) away from
children.

• This appliance produces hot water; steam may form while it is in
operation. Avoid contact with splashes of hot water or hot steam.

Use knobs and handles.

• Do not grab the coee maker when it is out of the cabinet.

• Do not rest vessels containing liquids, inflammable or corrosive
materials on top of the appliance. Place accessories required to
make coee safely aside (the measure for coee may be placed in
the special holder).

• Do not rest large objects which could obstruct movement or
unstable objects on the appliance.

• Do not use the appliance when extracted. Make sure the appliance
is inactive before extracting it. The only exception is adjusting
the coee mill which must be done with the machine out (see the
section “Adjusting the Coee Mill”).

5

• This coee machine is not designed for use with caramelised

coee beans: Use of such beans will invalidate the guarantee.

Note: This appliance has a cooling fan. This may switch on when

coee, steam or hot water is delivered. After several minutes the fan
switches o automatically.
Do not manually switch the coee machine o or disconnect the
power supply while the fan is still running.

6

Important

The CDA Group Ltd cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note
that CDA reserve the right to invalidate the guarantee supplied with
this product following incorrect installation or misuse of the appliance.

Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.

Appliance information:

Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.

Appliance Model

Serial Number

CE Declarations of Conformity:

This oven has been designed, constructed and marketed in
compliance with safety requirements of EEC Directive 2006/95/EEC
(Low voltage) and requirements of EMC Directive 2004/108/EEC.

This appliance has been manufactured to the strictest standards and
complies with all applicable legislation, including Electrical safety (LVD)
and Electromagnetic interference compatibility (EMC). Parts intended
to come into contact with food conform to EEC/89/109.4.

7

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed
of as urban waste. It must be taken to a special local authority
dierentiated waste collection centre or to a dealer providing this
service.

Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving from
inappropriate disposal and enables the constituent materials to be
recovered to obtain significant savings in energy and resources. As a
reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.

8

Description

Note: Throughout this manual references in brackets refer to the

legend in this section.

Description of the Coee Machine

A

A1A2

A3

A4 A5

A12

A13A18

A20

A14

A17

A16

A15

A19

A21

A22

A23

A24

A10

A8A7 A6

A11

A9

A25

Fig. A

9

Legend for Fig.A

A1 Cup tray
A2 Service door
A3 Coee guide
A4 Waste coee container
A5 Brewing unit
A6 Cup tray lights
A7 ON/Stand-By button
A8 Control panel
A9 IEC connector
A10 Cappuccino maker (removable)
A11 Cappuccino maker nozzle
A12 Water tank
A13 Coee spout (adjustable height)
A14 Drip tray
A15 Bean container lid
A16 Bean container
A17 Grinding adjustment knob
A18 Pre-ground coee funnel door
A19 Measure
A20 Compartment for measure
A21 Pre-ground coee funnel
A22 Power cable
A23 Main switch
A24 Tray

10

Description of the control panel

Note: Only the buttons available for use with the currently selected

function will be lit on the touch screen.
A light touch is enough to activate the buttons.

B1 Display
B2 Activate or deactivate the settings menu
B3 Switch the light (A6 on Fig.1) on and o
B4 Select the coee strength
B5 Select the size of coee (espresso, small cup, medium cup,

large cup, mug)
B6 Exit the selected mode
B7 Scroll forwards through the menu to display options available
B8 Scroll backwards through the menu to display options available
B9 Confirm the selected function
B10 Dispense a single cup of coee
B11 Dispense 2 cups of coee
B12 Operate the steam dispenser
B13 Operate the hot water dispenser

B1

B2 B3 B4 B5 B10 B11 B12 B13

B6 B7 B8 B9

Fig.B

11

Using the Appliance for the First Time

Notes:

Coee has been used to factory test the appliance and it is therefore
completely normal for there to be traces of coee in the mill.
Connect the appliance to the mains supply.

Switch the appliance on using the ON/Standby

button (A7).

To Set the Required Language:

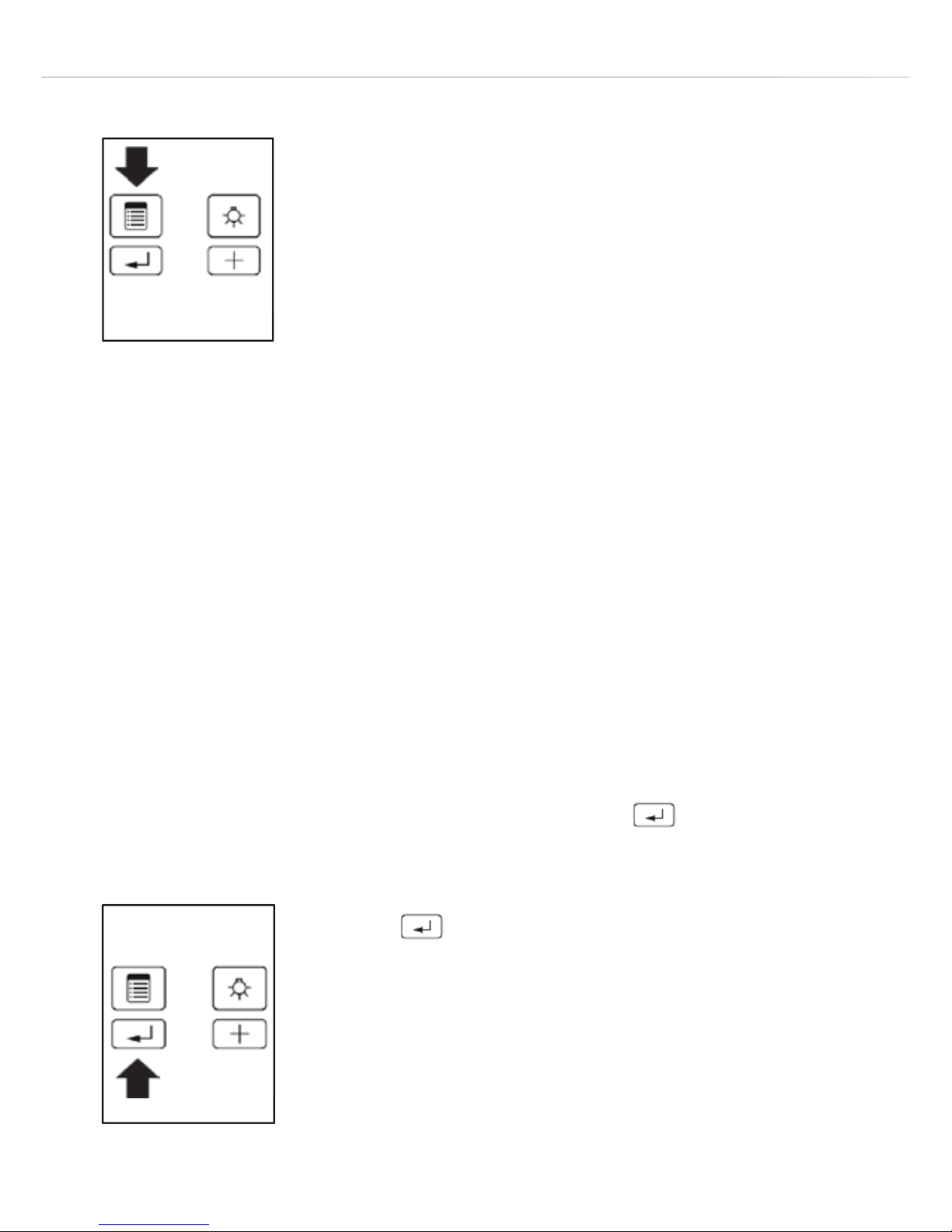

Press the Settings Menu button (B2).

Use the “+” & “-“ buttons (B7 and B8) to choose

the required language (fig. 2).

1

2

12

To select English language:

When the message “PRESS OK TO CHOOSE

ENGLISH” is displayed, press the “ok” button (B9)
(fig. 3) for 3 seconds until “ENGLISH INSTALLED” is
displayed.

Options for alternative languages are displayed in

the menu in those specific languages.

Approximately 5 seconds after first switching on

the coee machine, it displays the message “FILL
TANK”.

Extract the water tank (fig. 4), rinse and fill with fresh

water, without exceeding the MAX line.

Replace and push it in as far as it will go.

Note: When the message “FILL TANK” is displayed

the coee machine will lock and not respond to any
buttons. The machine automatically unlocks when
the tank is filled and replaced in position.

Place a cup under the cappuccino maker (fig. 5).

The appliance displays: “HOT WATER PRESS OK”.

Press the “ok” button (B9) (fig. 3) and after a few seconds a little
water comes out of the cappuccino nozzle and a little rinsing water is
ejected from the coee nozzles.

3

13

The machine then displays “TURNING OFF...

PLEASE WAIT” and switches o.

Extract the appliance by pulling it out using the

handles (fig. 6).

Open the lid and fill the container with coee

beans, then close the lid and push the appliance
back into place.

The coee maker is now ready for normal use.

Notes:

When using the appliance for the first time, you need to make 4-5
cups of coee and 4-5 cappuccinos before the appliance gives
satisfactory results.

Important: Never introduce pre-ground coee, freeze dried coee,
caramelised beans or anything else which could damage the
appliance into the bean container.

Important: Always switch o using the ON/Standby button (A7)
before either switching o the ON/OFF switch (A23) or disconnecting
the electrical power supply. This allows it to perform a SELF­DIAGNOSIS cycle and rinse the coee spouts prior to switching o.
To turn it on again, press the ON/Standby button (A7) (fig. 1).

14

Adjust the water hardness setting as soon as possible after
installation, see instructions in the “Setting Water Hardness” section
(page 35).

Turning On and Heating Up

Each time the appliance is turned on, it performs an automatic preheat
and rinse cycle which cannot be interrupted. The appliance is ready
for use only after completion of this cycle.

Danger of Scalding: During rinsing, a little hot water flows from the
coee spouts.

To turn the appliance on, press the ON/OFF/Stand-By button (A7) (fig.

1), the message “HEATING UP... PLEASE WAIT” is displayed.

When heating is complete, the message changes to “RINSING” and
hot water is rinsed through the coee spouts.

The message “MEDIUM CUP NORMAL TASTE” is displayed when the
coee machine has reached normal operating temperature.

If no button is pressed within approx. 2 minutes, the time is displayed,
if set (see the “Setting The Clock” section). If the time has not been
set, the appliance displays the last functions set.

When any button is pressed, “MEDIUM CUP NORMAL TASTE” is
displayed and the appliance is ready to make coee again.

15

Making Coee Using Whole Coee
Beans

The appliance is preset to make coee with “normal” strength. You
can also choose coee with an “extra-mild”, “mild”, “strong” or “extra­strong” flavour. There is also a pre-ground coee option.

To choose the required Strength, press the coee

strength button (B4) (fig. 7) several times to scroll
through the options.

The current coee strength setting is displayed.

Place 1 cup under the spouts to make 1 coee (fig. 8), or 2 cups for 2
coees (fig. 9).

Lower the spouts as near as possible to the cup(s) for a creamier
coee (fig. 10).

7

16

The appliance is preset to make coees of varying sizes. You can
choose between “espresso”, “small cup”, “medium cup”, “large cup” or
“mug”.

Press the cup size button (B5) (fig. 11) several times

to scroll through the options.

The current cup size setting is displayed.

Press the single cup button (B10) (fig.12) if you want

to make a single coee or the double cup button
(B11) (fig.13) if you want to make 2 coees.

The appliance now grinds the beans and starts

delivering the coee into the cup.

Once the set amount of coee has been delivered,

the machine stops delivery automatically and
expels the exhausted waste coee into the waste
coee container.

After a few seconds, the appliance is ready for use

again.

11

12

13

17

To turn the appliance o, press the ON/Stand-By button (A7) (fig. 1).
Before switching o, the appliance performs an automatic rinse cycle
(Take care to avoid scalds).

Note 1: If the coee is delivered a drop at a time or not at all, see the
“Adjusting the Coee Mill” section.

Note 2: If the coee is delivered too fast and the cream is not
satisfactory, see the “Adjusting the Coee Mill” section.

Note 3: Tips for a hotter coee:
Proceed as described in the section “Changing And Setting Menu
Parameters”, “Rinse” function.

Unless preheated, do not use excessively thick cups as they will
absorb too much heat.

Preheat the cups by rinsing them with hot water.

Note 4: Coee delivery can be interrupted at any moment by re­pressing the previously selected button, which remains lit during the
operation.

Note 5: When the appliance displays “FILL TANK”, fill the tank with
water or the appliance will not deliver coee (It is normal for there to
be a little water left in the tank).

Note 6: After about 14 single (or 7 double) coees, the appliance
displays “EMPTY WASTE COFFEE CONTAINER”.
