CDA HN9626FR Installation, Use And Maintenance Manual
Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu
www.cda.eu

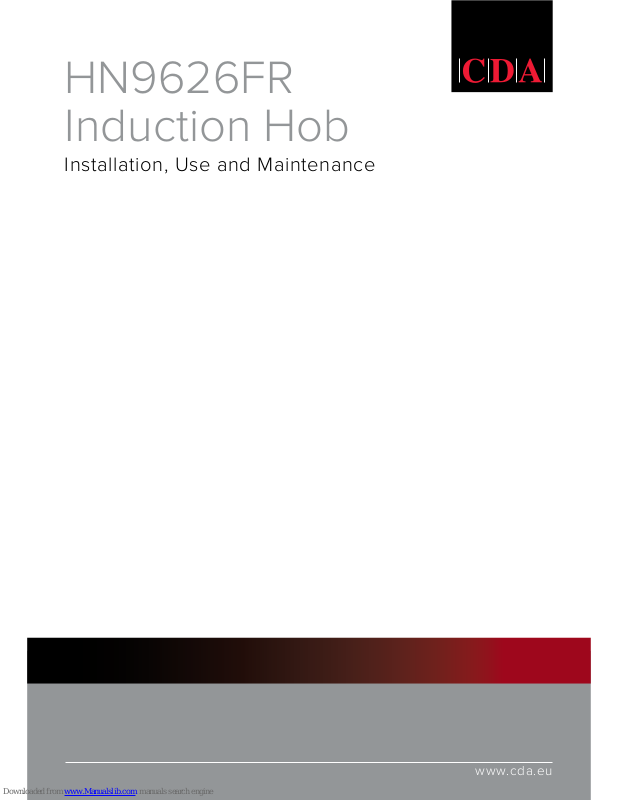

HN9626FR
Induction Hob
Installation, Use and Maintenance
2
Important
The CDA Group Ltd cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note
that CDA reserve the right to invalidate the guarantee supplied with
this product following incorrect installation or misuse of the appliance
or use in a commercial environment.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have had
supervision or instructions on how to use the appliance by someone
who is responsible for their safety.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
EU Declarations of Conformity
This appliance has been manufactured to the strictest standards and
complies with all applicable legislation, including Electrical safety
(LVD) 2014/35/EU and Electromagnetic interference compatibility
3
(EMC) 2014/30/EU. Parts intended to come into contact with food
conform to 1935/2004/EC.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU.
At the end of its working life, the product must be taken to a special
local authority waste collection centre or to a dealer providing
appliance recycling services.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both energy
and resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out
wheeled dustbin.
Please note:
• Ceramic glass becomes hot and remain hot during and immediately
after use. Do not touch the hob until it has been allowed to cool.
• Keep children away from the appliance when in use.
• Never use the hob top for storage.
• Pan handles should never stand out beyond the edge of the
worktop. This will help to avoid children reaching them.
• Do not lean over the hob when it is in use.
• Follow the cleaning instructions carefully.
• Ensure the base of the saucepan is clean and dry before placing it
on the hob.
• Avoid hard shocks from cookware – the vitroceramic glass surface
is highly resistant but not unbreakable.
4
• Do not place hot lids flat on the hob top. A “suction” eect could
cause damage to the hob.
• Do not drag cookware across the hob top: in the long term, this
could cause damage to the hob.
• Do not store cleaning or flammable products in the unit below the
hob.
• Always use appropriate cookware.
• Do not cook unopened tins of food directly on the hob.
• Never put cooking foil or plastic materials on the ceramic surface
when the hob is hot. These materials could melt and cause
damage to the hob.
• This hob (Class 3) has been designed for use only as a cooking
appliance. Any other use should be considered incorrect and
therefore dangerous.
Important
• Do not use the hob if the glass surface is cracked or damaged to
prevent the risk of electric shock. Disconnect it from the power
supply.
• Ensure that the power cable of a connected electrical appliance
near the hob is not in contact with the cooking zones.
Please note: When connecting the hob to the power and switching
it on for the first time the cooking zone displays may show the
letter " ". This is not a fault and the letter " " should disappear after
approximately one hour.
5
FOR THOSE WITH HEART PACEMAKERS OR ACTIVE IMPLANTS:
The function of this hob conforms to current electromagnetic
interference standards and thus is in total compliance with legal
requirements (2014/30/EU).
To avoid interference between your hob and a pacemaker, your
pacemaker must be designed and programmed in compliance with
the regulations that apply to it. As such, CDA guarantee only that our
product is compliant.
With regard to the compliance of the pacemaker or any potential
incompatibility, you should obtain information from the manufacturer or
your attending physician.
6
Cooking on Induction
The principle of induction cooking is based on magnetic eect.
When you put your cookware on an induction zone and switch it on,
the electronic boards in the hob produce induced currents in the
base of the cookware and instantly raise its temperature. This heat is
then transferred to the food inside the cookware.

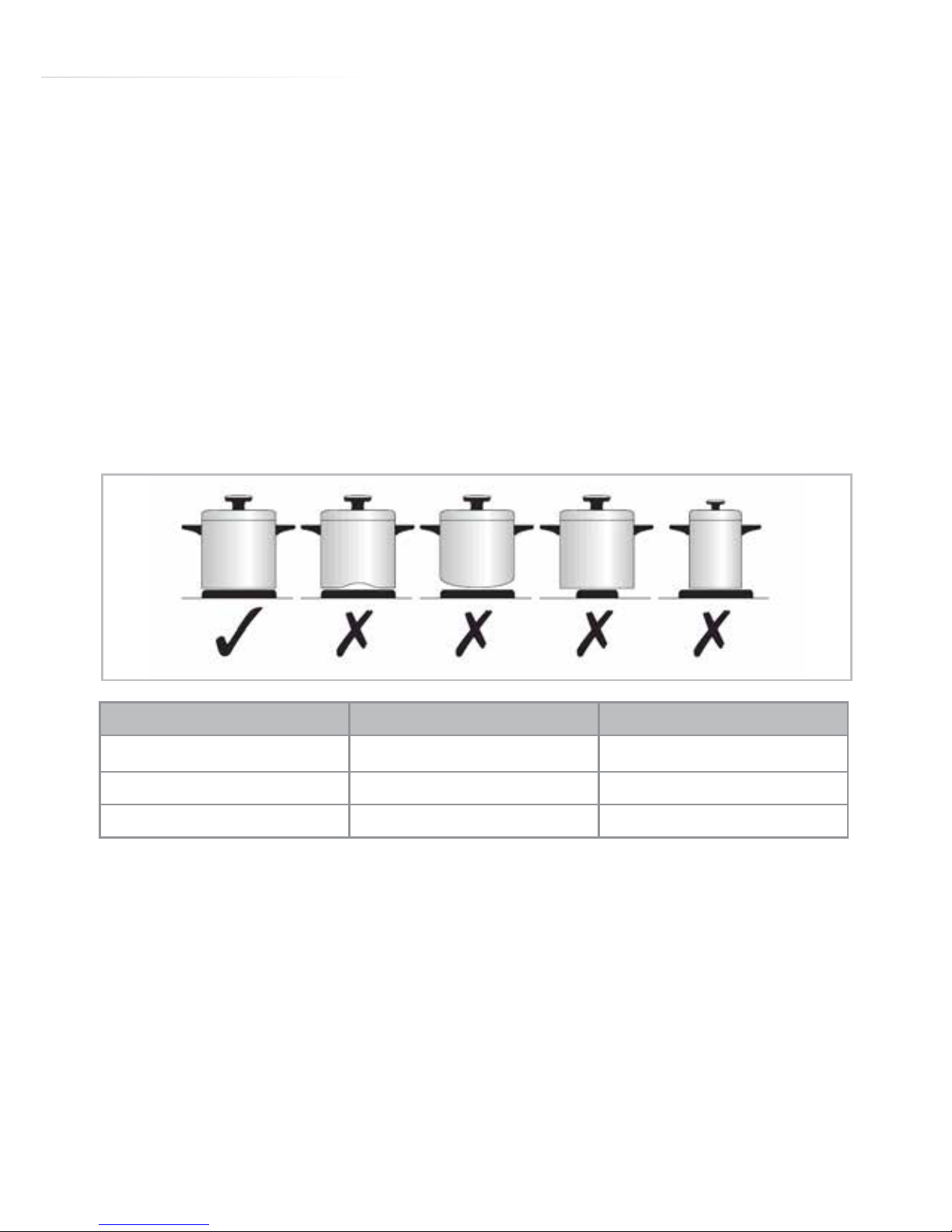

The best cookware to use with induction cooking has thick flat bases,
as the heat will be better distributed meaning cooking is more even.
Most cookware is compatible with induction cooking.
There are three ways to check the suitability of your cookware:
1. Using a magnet to see if the base of the pan is magnetic: if the
magnet sticks, then the cookware is compatible.
2. Place the pan on one of the cooking zones and switch the
zone on. If the display continues to show the selected power
level then the cookware is compatible. If the display shows “ ”,
the cookware cannot be used on an induction hob.
3. Check the instructions or packaging of the pans for the
symbols indicating suitability for use with induction.
7
Using your hob
Zones:
1. 2.3kW/3.0kW Ø220 mm 3. 1.2kW/1.4kW Ø 180 mm
2. 1.2kW/1.4kW Ø180 mm 4. 2.3kW/3.0kW Ø 220 mm
Control panel:
1. On/o sensor with LED 5. Cooking zone displays

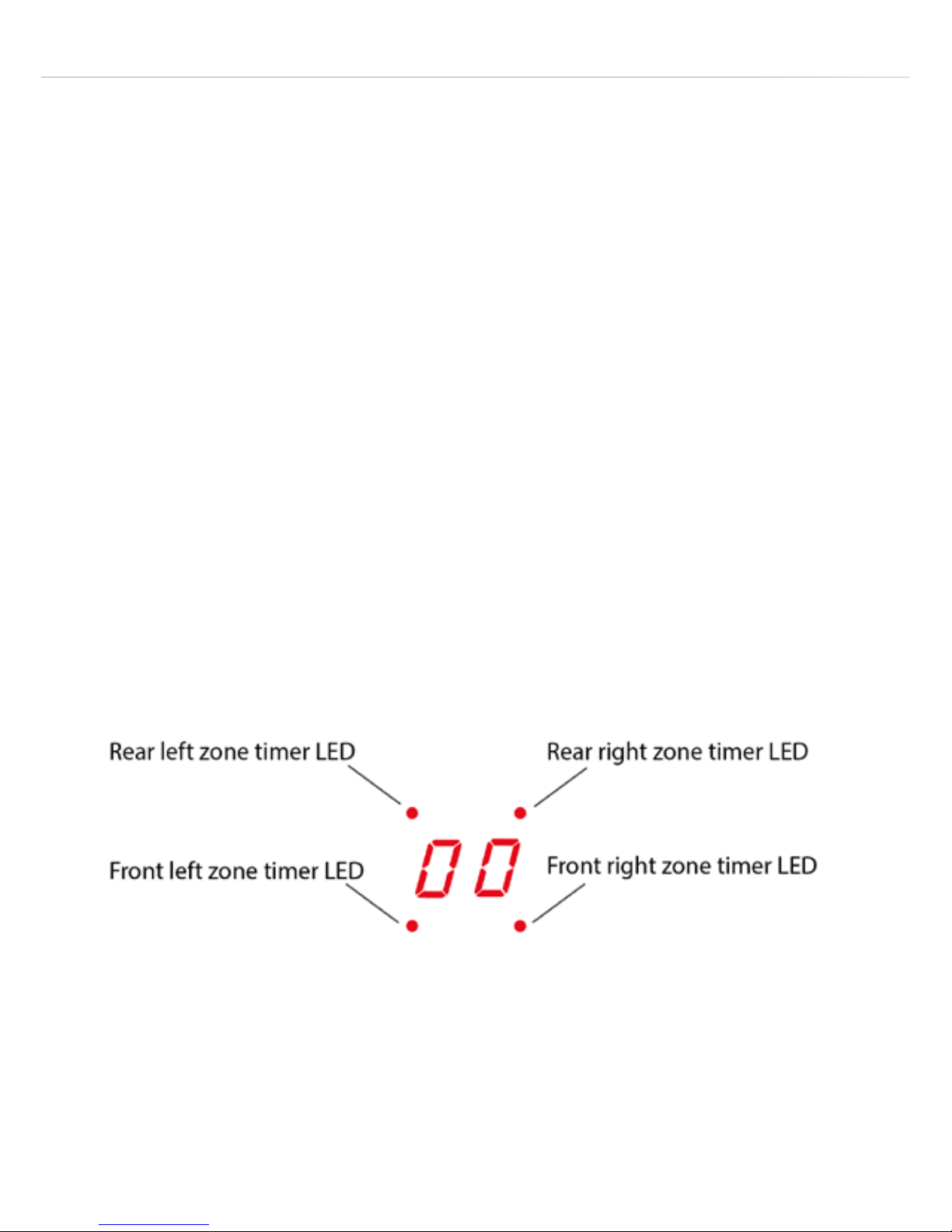

2. Power level slider 6. Timed zone indicator LEDs
3. Booster function sensor 7. Timer sensor
4. Pause function sensor
fig. 2
fig. 1
1
2 3
4
1
2
3
4
7
5
6 6
5
8
Using Your Hob
To switch the hob on
• To switch the power on, touch and hold the "On/o sensor" (1)
for approximately two seconds. The hob will beep, all four cooking
zone displays will show “0” and the timer display will show "CL".
Please note: If a power level is not set within twenty seconds, the hob
will switch o automatically.
A solidly lit decimal point will appear next to a cooking zone
indicator's power level when control/adjustment is available.
To activate a zone and set a power level
• Simply touch the desired zone's display (5) and then set the desired
power level using the heat setting slider sensor (2). The standard
power levels range from 1 (minimum) to 9 (maximum). The hob will
then begin heating providing that the correct cookware is being
used.
Please note: This hob also has a "Keep warm" function. The "Keep
warm" function is available between "0" and "1" heat settings and is
shown on a cooking zone display as " ". More info on the "Keep
warm" function is on page 15.
To deactivate a zone
• Touch the relevant zone's display (5) to activate zone control. You
can then use the heat setting slider sensor (2) to return the heat
setting to 0. The cooking zone display will display a "0" to confirm
that the zone is now inactive.
9
• If switching o multiple zones, the above steps need to be taken
for each zone. When all the zones are at "0", the hob will switch o
automatically after approximately twenty seconds.
• Alternatively, to switch o the hob immediately, touch and hold the
"On/o sensor" (1) for approximately two seconds.
Please note: Any zones that are still hot to the touch will display an
" " provided the mains power supply is not interrupted.
Booster
The hob is equipped with a booster function on all zones, allowing a
higher power level than the maximum for approximately five minutes
on the larger zones and one and a half hours on the smaller zones.
To activate the booster on a zone
• Touch the desired zone's display (5) and then touch the booster
function sensor (3). "P" will show in the cooking zone indicator to
show that the booster is on.
• The booster function automatically deactivates after a certain time
(page 11). The cooking zone will continue to operate at its nominal
power at this point. The booster can be reactivated after this time
provided the hob's internal components have not overheated.
To deactivate the booster on a zone
• To cancel the booster at any time, touch the desired zone's
display (5) and then touch the booster function sensor or use the
heat setting slider sensor (2) to return the heat setting to 0.
10
Please note: If the appliance's electronic circuits or induction coils
overheat whilst the booster function is in operation then the function
will be automatically deactivated and the zone will continue to
operate at its nominal power. The booster function will be available
again once the internal components have been cooled suciently.
It is normal for a high pitched whirring noise to begin whilst the
booster function is in use. This is the cooling fan inside the hob
keeping the internal components as cool as possible.
If a pot is removed from the cooking zone whilst the booster function
is in use, the five minute countdown continues.
The booster function cannot be used on all zones at once. If a large
zone is boosted, and then the smaller zone next to it boosted, then
the larger zone will be lowered to heat setting 9. If a small zone is
boosted, and then the larger zone next to it boosted, then the smaller
zone will be lowered to heat setting 7.
Operating time limiter
In addition to the booster deactivation timer, each zone has an
operating time limiter to increase overall eciency and to prevent
the hob from being left on indefinitely. If a zone's heat setting is
not changed for a specific duration then the associated zone is
automatically switched o and residual heat indicator activated.
Zones can still be used as normal in accordance with the operating
instructions. The operating time limiter is set according to the last
selected heat setting. The maximum operating times for each setting
can be found on page 11.
