EVX110
Extractor

Installation, use and maintenance

2

Contents:

3 Important
5 Important information
6 Using your extractor
8 Care and maintenance
9 Removing the grease filters

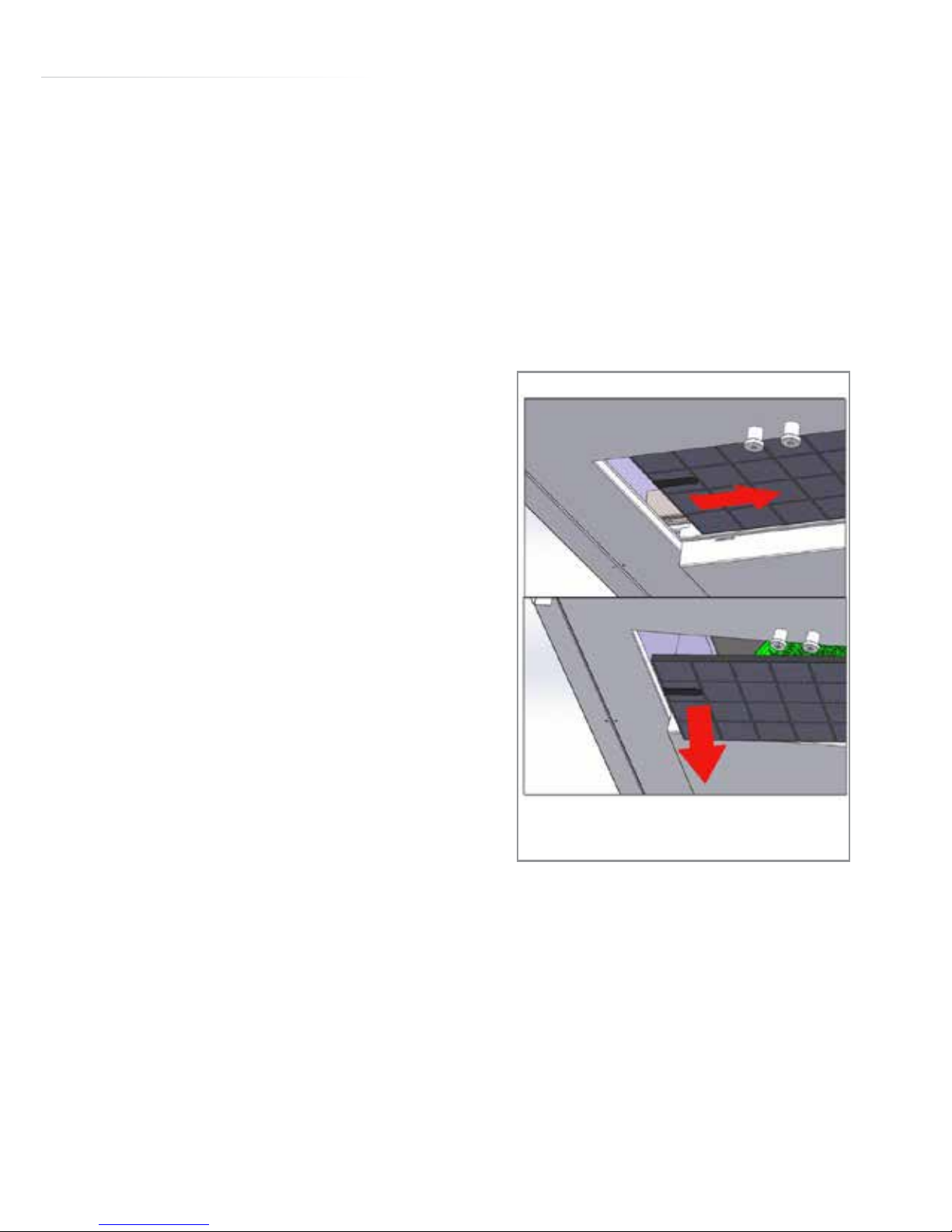

9 Changing/fitting the charcoal filter(s)
10 - 17 Installation

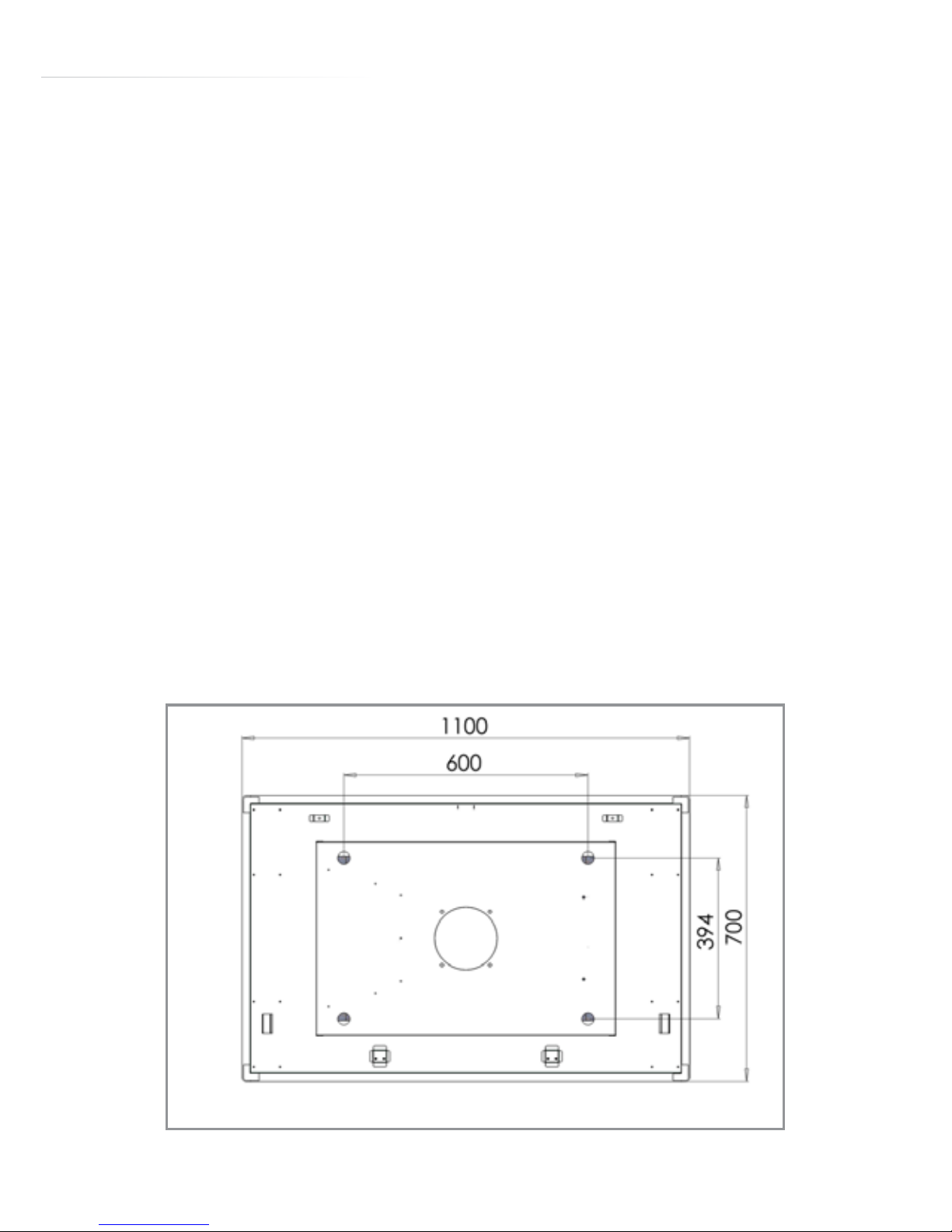

10 Installation preparation - height

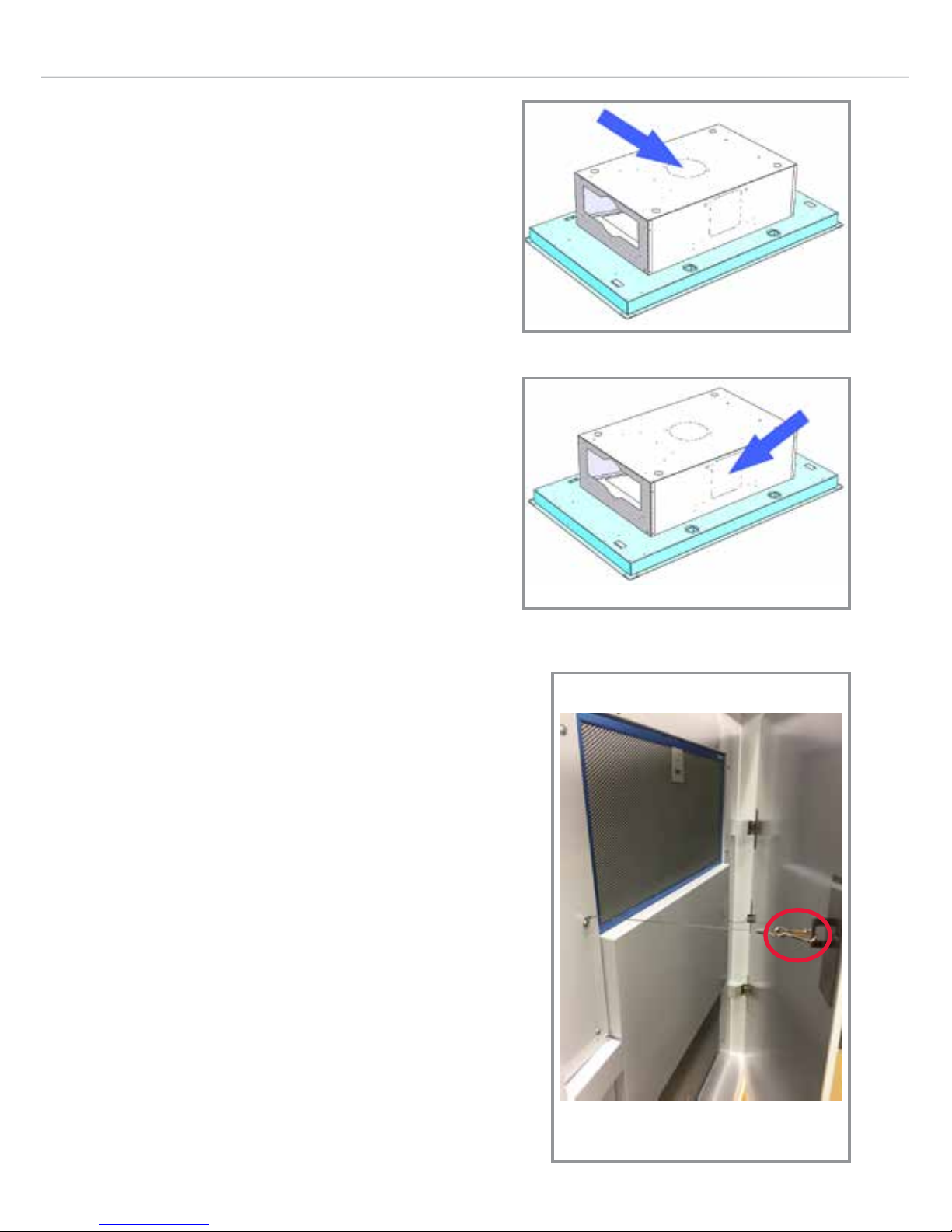

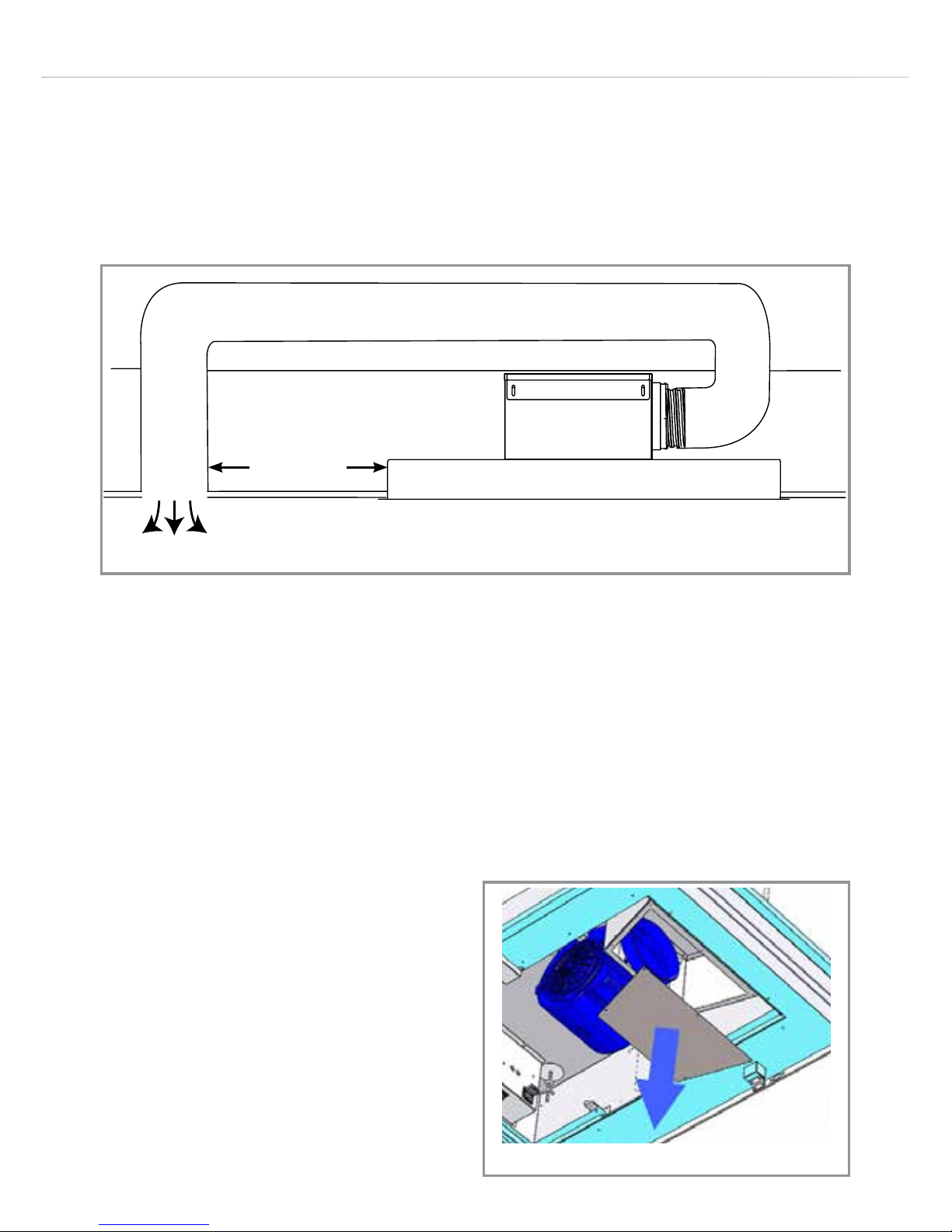

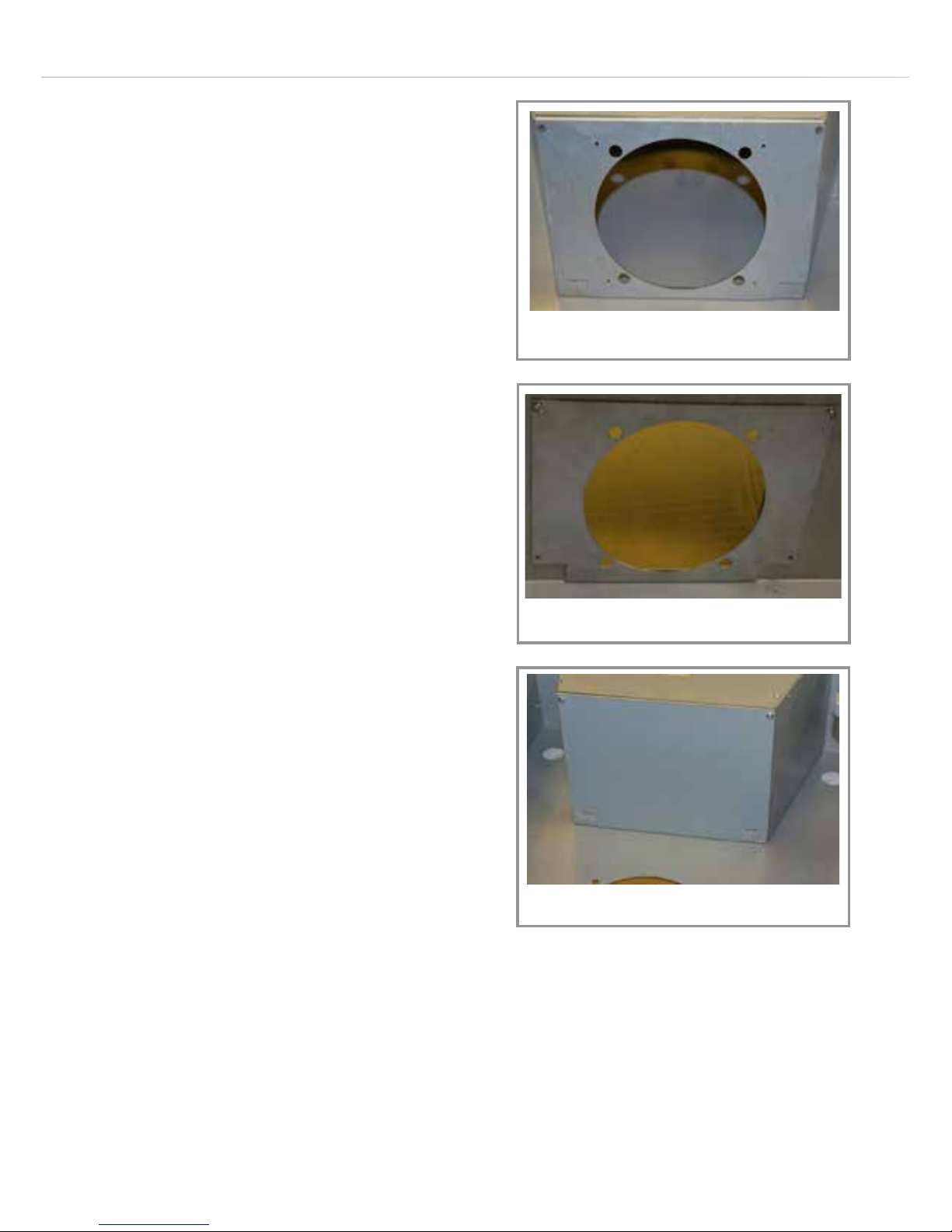

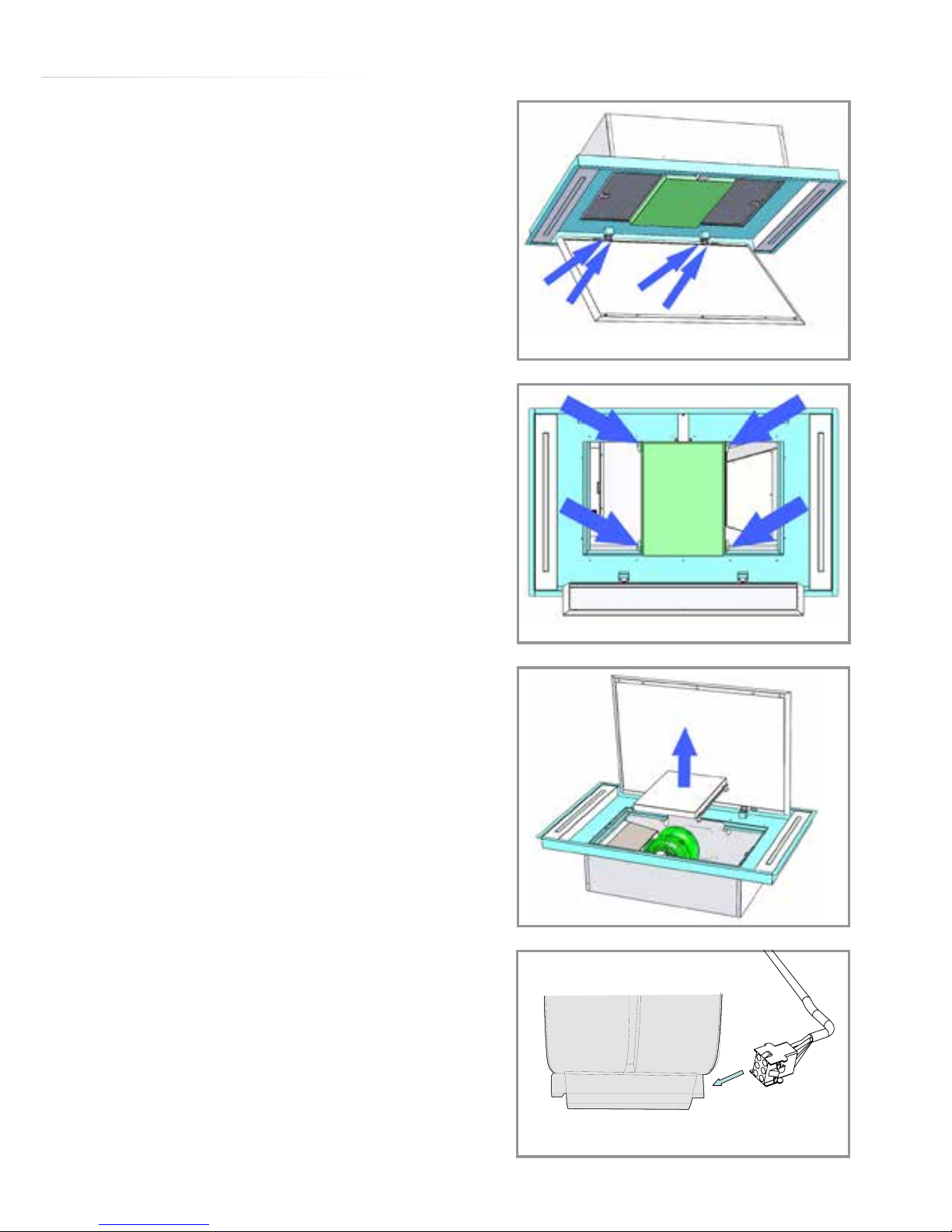

12 Changing the motor position
15 Ducting
16 Ducting for recirculation mode

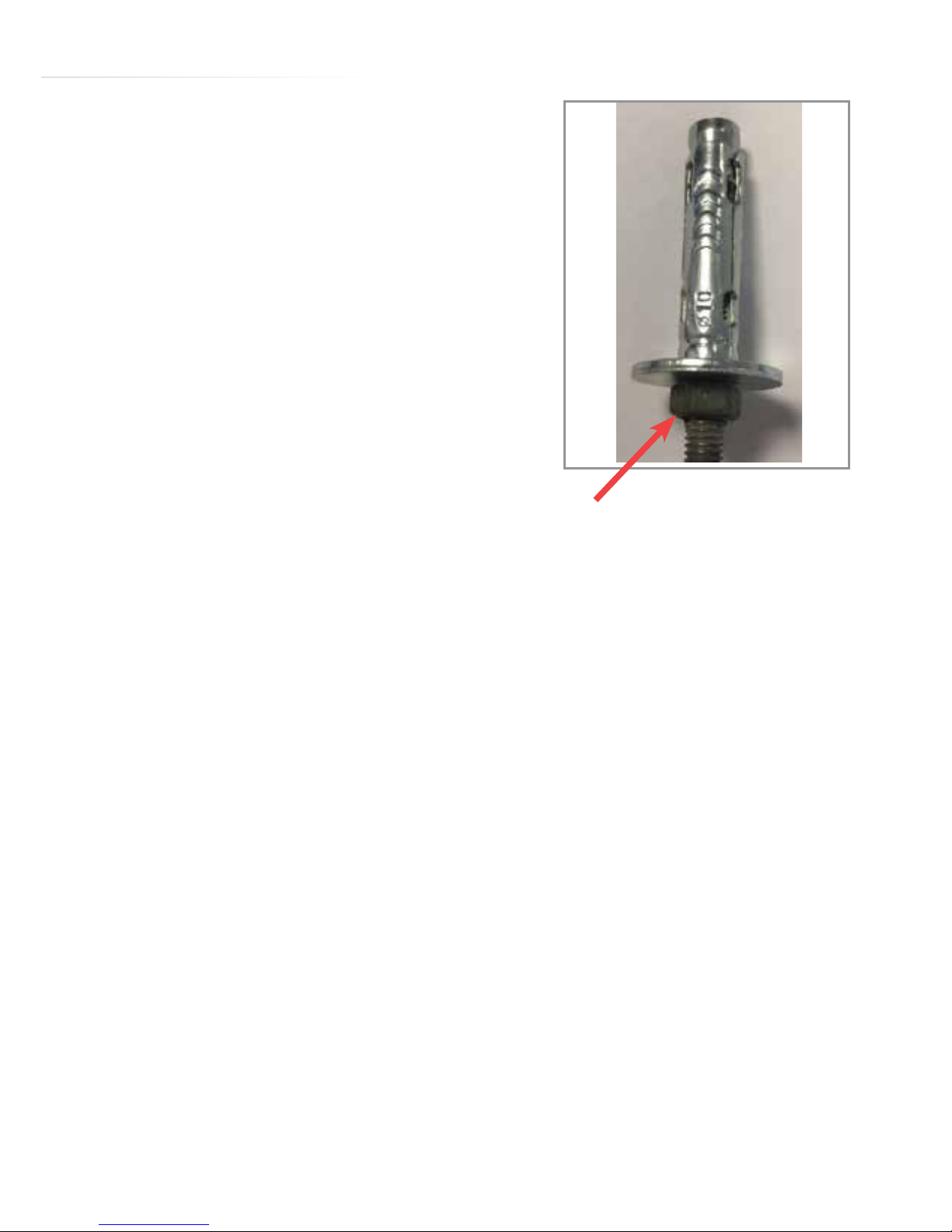

17 Mounting the extractor

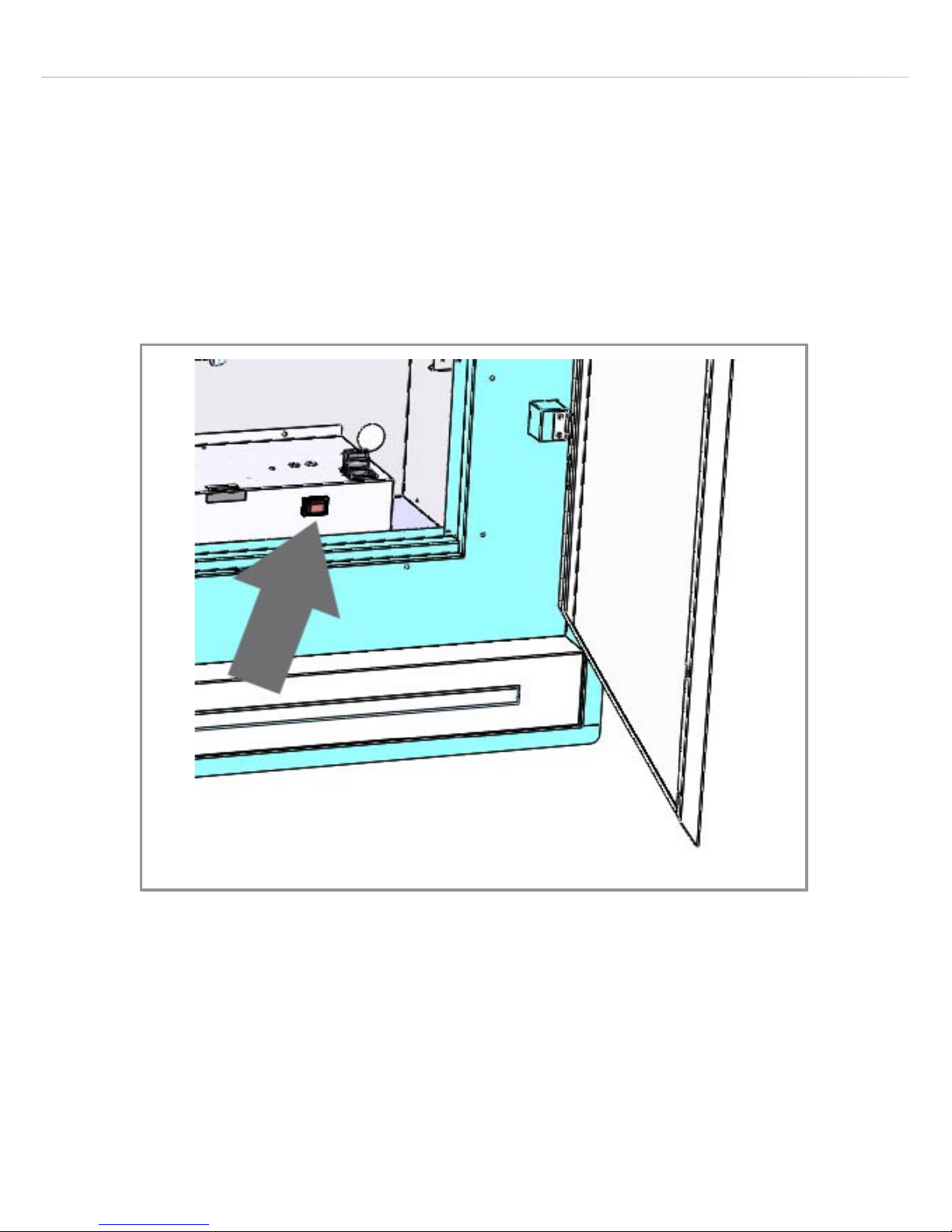

18 Mains electricity connection
19 Electrical information
20 Troubleshooting
23 Energy Eciency Information

3

Important

The CDA Group Ltd cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note that
CDA reserve the right to invalidate the guarantee supplied with this
product following incorrect installation or misuse of the appliance or
use in a commercial environment.

This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have had
supervision or instructions on how to use the appliance by someone
who is responsible for their safety.

Under no circumstances, except for instructions laid out in this manual,
should any external covers be removed for servicing or maintenance
except by suitably qualified personnel.

Appliance information:

Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.

Appliance Model

Serial Number

4

EU Declarations of Conformity:

This appliance has been manufactured to the strictest standards and
complies with all applicable legislation, including Gas safety, Electrical
safety (LVD) and Electromagnetic interference compatibility (EMC).

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.

At the end of its working life, the product must be taken to a special
local authority waste collection centre or to a dealer providing
appliance recycling services.

Disposing of a household appliance separately avoids possible
negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both energy
and resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out
wheeled dustbin.

5

IMPORTANT:

• Under no circumstances should the extractor be

connected to any gas ventilation system, flue system or
hot air ducting system.

• Do not vent the extractor into an attic or loft space.

• Only house the extractor in rooms with adequate

ventilation. Remember that the extractor is powerful and
whatever air is extracted needs to be replaced.

• Do not tile the extractor in. It should be removable for

service or maintenance.

• Do not use silicone sealant to secure the hood to the wall.

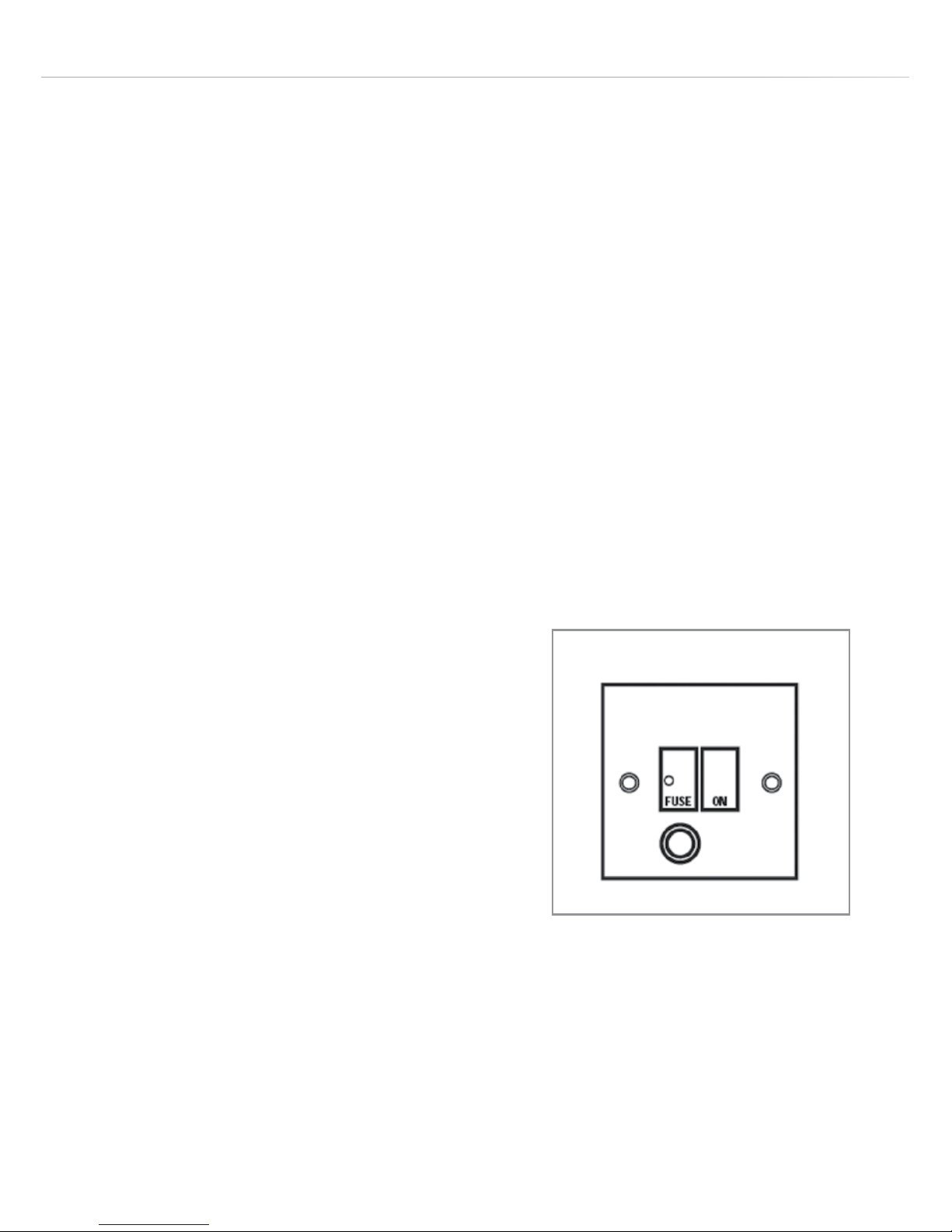

• You must be able to isolate the extractor from the mains

electrical supply after installation.

• This extractor has been designed to be used in a room

with a volume of less than 36m.

• Steam cleaners must not be used when cleaning this

appliance.

• The performance of your extractor will vary depending

on a number of factors. These include: type of extraction,
length of ducting, room volume, ventilation available and
cleanliness of the filters.

• The extractor, when extracting air, could generate a

negative pressure in the room which can’t exceed 0.04
mbar. Ensure that there are air intakes allowing a constant
flow of fresh air within the room in which the extractor is
installed. Ventilation for gas fuelled appliances must be as
per regulations in force.

6

Using your extractor

For best performance, you should switch on the extractor 15 minutes
before starting to cook and leave it to run for approximately 15
minutes after the end of cooking (you can use the timer function for
this).

1 - Speed increase button
2 - On/o button
3 - Timer button
4 - Speed decrease button
5 - Light button

To switch on the extractor and set the speed level

- Press button 2 on the remote. The appliance will switch on at speed

level 1.

- To increase the speed level touch button 1. The LED indicator on the

extractor body will change colour with each speed.

- To reduce the speed level touch button 4. Please note that you

cannot lower the speed below speed level 2 using the remote. To
return to speed 1 you must switch the extractor o and on again.

- To switch the extractor o, touch button 2.

Intensive function

The extractor is equipped with an intensive function which runs for

1

2

4

5 3

Fig. 1

7

approximately six minutes before returning to speed 3. This is not a
fault. See page 21 for more information.

- To activate the intensive function increase the speed using the

remote control until the LED indicator on the extractor turns red.

- To cancel the intensive function, press button 4 to change/lower the

speed level or press button 2 to switch the extractor o.

Extractor lights

- To switch the lights on and o, press button 5 on the remote control.

- The lights on this extractor are dimmable between 20% and 100%

intensity. To adjust the lights, first switch them on as above. Press
and hold button 5 for a maximum of approximately 5 seconds or until
the desired intensity is achieved. After approximately 5 seconds the
lights will be at 20% intensity.

Please note that the lights will be at 100% intensity each time you
switch them on.

Timer

The extractor is equipped with a timer that allows the extractor to run
for 10 minutes before switching o automatically.

- To activate the timer, set the desired speed and press button 3. The

LED indicator on the extractor body will flash to confirm the timer is
active.

- To cancel the timer, press button 3 on the remote control.

Please note that the timer can be activated when the intensive
function is on, but the intensive function will still switch to speed 3
after 6 minutes. Speed 3 will switch o after the remaining 4 minutes.

8

Care and maintenance

IMPORTANT: DO NOT PERFORM MAINTENANCE OR ATTEMPT
TO CLEAN THE EXTRACTOR WITHOUT FIRST SWITCHING OFF
THE ELECTRICITY SUPPLY. ALWAYS WEAR ADEQUATE PPE
(PERSONAL PROTECTIVE EQUIPMENT) FOR THE TASK AT HAND.

Cleaning

You should use a non-abrasive cleaner. Any abrasive cleaner
(including Cif) will scratch the surface and could erase the control
panel markings.

You can clean your extractor eectively by simply using a dilute
solution of water and mild detergent and drying to a shine with a
clean cloth.

IMPORTANT:
Always protect surfaces immediately beneath the extractor (such
as a hob) with clean, dry towels or similar cushioning items before
carrying out any cleaning or maintenance in case of falling parts/
items.

Cleaning the grease filters

The grease filters should be kept clean to minimise the risk of fire.

At least once a month you should remove and clean the grease
filter with hot soapy water. You can also wash the grease filters in a
dishwasher, ensuring that you place them in an upright position to
prevent damage from other items in the dishwasher. After rinsing and
drying, replace the filters. Please note that washing the filters in a
