EVPC9 Extractor
Manual for Installation, Use and Maintenance
Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu
Important
The manufacturer cannot be held responsible for injuries or losses caused by incorrect use or installation of this product.
Please note that the manufacturer reserves the right to invalidate the guarantee supplied with this product following
incorrect installation or misuse of the appliance or use in a commercial environment.
This appliance is not designed to be used by people (including children) with reduced physical, sensorial or mental
capacity, or who lack experience or knowledge about it, unless they have had supervision or instructions on how to use
the appliance by someone who is responsible for their safety.
Under no circumstances should any external covers be removed for servicing or maintenance except by suitably qualied
personnel.
Appliance information:
Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a
fault with your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
CE Declarations of Conformity:
This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Gas
safety, Electrical safety (LVD) and Electromagnetic interference compatibility (EMC).
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC
DIRECTIVE 2002/96/EC.
At the end of its working life, the product must be taken to a special local authority waste collection centre or to a
dealer providing appliance recycling services. Disposing of a household appliance separately avoids possible negative
consequences for the environment and health. It also enables the constituent materials to be recovered, saving both
energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked
with a crossed-out wheeled dustbin.
Please note:
• Under no circumstances should the extractor be connected to any gas ventilation system, ue system or hot air
ducting system.
• Do not vent the extractor into an attic or loft space.
• Only house the extractor in rooms with adequate ventilation. Remember that the extractor is powerful and
whatever air is extracted needs to be replaced.
• Do not tile the extractor in. It should be removable for service or maintenance.
• Do not use silicone sealant to secure the hood to the wall.

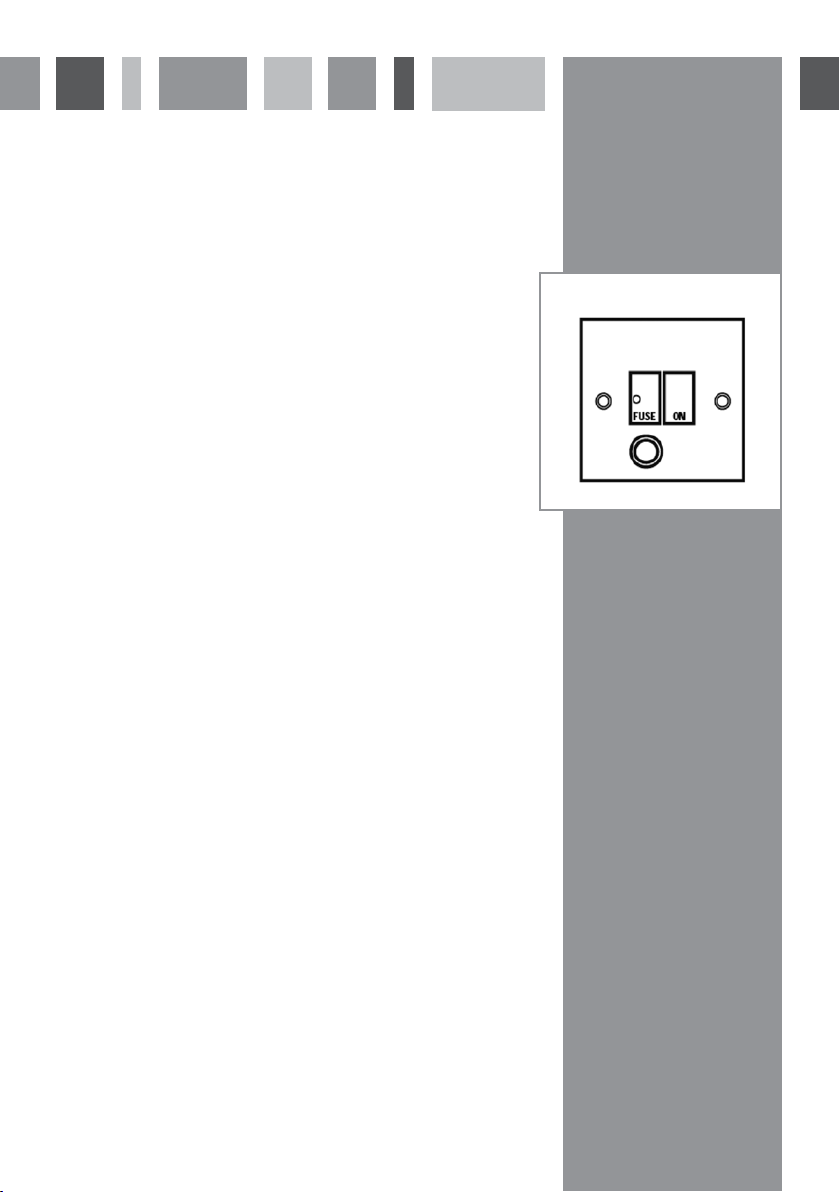

• You must be able to isolate the extractor from the mains electrical supply after installation.
• Steam cleaners must not be used when cleaning this appliance.
• The performance of your extractor will vary depending on a number of factors. These include: type of extraction,
length of ducting, room volume, ventilation available and cleanliness of the lters.
1
Using your Extractor
For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run for
approximately 15 minutes after the end of cooking.
Control Panel
A - Light key
B - Decrease speed key
C - Display
D - Increase speed key
E - Timer key
Fig. 1
To switch the extractor light on and o
• Touch key A.
To switch on the extractor
• Touch either key B or D. The appliance will switch on at the rst speed.
• To increase the speed touch key D.
• To switch the extractor o, touch and hold key B for two seconds when the extractor is working at higher speeds, or
touch key B at speed one.
The intensive function
• The extractor is equipped with an intensive function which runs for ten minutes before returning to the previous
selected speed. To activate the intensive function, touch key D at speed three. The display will blink whilst the
intensive function is on.
The timer
• The extractor is equipped with a timer that allows the extractor to run for 15 minutes before switching o
automatically.
• To activate the timer, touch key E. The display will ash a decimal point when the timer is on.
Please note
The timer cannot be activated when the intensive function is on.
The clean air function
• The extractor is equipped with a clean air function that switches on the motor for ten minutes every hour at
speed one.
• To activate the clean air function, touch key E for two seconds when the appliance is o. To return to normal
function, touch either key B or D. To switch o the clean air function, touch key E. The display C will light up
in sections whilst the motor is running, and will show the letter C during the fty minutes when the motor is
not running.
A
B
C
D
E
2
Care and Maintenance
IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING OF THE
EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY.
Cleaning
You should use a nonabrasive cleaner. Any abrasive cleaner (including Cif) will
scratch the surface and could erase the control panel markings.
You can clean your extractor eectively by simply using a dilute solution of water
and mild detergent and drying to a shine with a clean cloth.
Cleaning the grease lter
The grease lters should be kept clean to minimise the risk of re.
When the display ashes alternating the speed selected with the letter A, or at
least once a month, you should remove and clean the grease lters with hot soapy
water. You can also wash the grease lters in a dishwasher, ensuring that you place
it in an upright position to prevent damage from other items in the dishwasher.
After rinsing and drying, replace the lters. After the grease lters has been
replaced, the electronic memory must be reset by touching key A for
approximately ve seconds, until the letter A stops ashing.
To remove the grease lters follow the steps below:
1. Pull open the handle on the grease lter as shown in g 2. It will release
at the handle side.
2. Then lower the grease lter to remove it completely.
To replace the grease lters, repeat the steps in reverse.
Please note:
Cleaning the grease lter in the dishwasher may lead to discolouration. This is
normal and does not constitute a fault with the appliance.
Changing the charcoal lter (re-circulating only)
When the display ashes alternating the speed selected with the letter F, the
charcoal lters must be replaced. After the charcoal lter has been replaced, the
electronic memory must be reset by touching key A for approximately ve
seconds, until the letter F stops ashing.
Fig. 2
Fig. 3
To attach a new charcoal lter, rst remove the grease lters as described above.
Then oer up the charcoal lter to body of the extractor as
shown in gure 3. Repeat with the
other charcoal lter. Then replace the grease lters.
3
