Page 1
EVP6/61/9/91/10/12 Extractors
Manual for Installation, Use and Maintenance
Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
1
T : 01949 862 012 F : 01949 862 003 E : [email protected] W : www.cda.eu
Page 2
Important
The manufacturer cannot be held responsible for injuries or losses caused by incorrect use or installation of this product.
Please note that the manufacturer reserves the right to invalidate the guarantee supplied with this product following incorrect
installation or misuse of the appliance or use in a commercial environment.
This appliance is not designed to be used by people (including children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have had supervision or instructions on how to use the appliance by
someone who is responsible for their safety.
Under no circumstances should any external covers be removed for servicing or maintenance except by suitably qualied
personnel.
Appliance information:
Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
CE Declarations of Conformity:
This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Gas safety,
Electrical safety (LVD) and Electromagnetic interference compatibility (EMC).
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE
2002/96/EC.
At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer
providing appliance recycling services. Disposing of a household appliance separately avoids possible negative consequences for
the environment and health. It also enables the constituent materials to be recovered, saving both energy and resources. As a
reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled
dustbin.
Please note:
• Under no circumstances should the extractor be connected to any gas ventilation system, ue system or hot air
ducting system.
• Do not vent the extractor into an attic or loft space.
• Only house the extractor in rooms with adequate ventilation. Remember that the extractor is powerful and whatever air is
extracted needs to be replaced.
• Do not tile the extractor in. It should be removable for service or maintenance.
• Do not use silicone sealant to secure the hood to the wall.
• You must be able to isolate the extractor from the mains electrical supply after installation.
• Steam cleaners must not be used when cleaning this appliance.
• The performance of your extractor will vary depending on a number of factors. These include: type of extraction, length of
ducting, room volume, ventilation available and cleanliness of the lters.
2
Page 3
Using your Extractor
For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run for approximately
15 minutes after the end of cooking.
Control Panel
A - Light key
B - Decrease speed key
C - Display
D - Increase speed key
E - Timer key
Fig. 1
To switch the extractor light on and o
• Touch key A.
To switch on the extractor
• Touch either key B or D. The appliance will switch on at the rst speed.
• To increase the speed touch key D.
• To switch the extractor o, touch and hold key B for two seconds when the extractor is working at higher speeds, or touch
key B at speed one.
The intensive function
• The extractor is equipped with an intensive function which runs for ten minutes before returning to the previous selected
speed. To activate the intensive function, touch key D at speed three. The display will blink whilst the
intensive function is on.
The timer
• The extractor is equipped with a timer that allows the extractor to run for 15 minutes before switching o automatically.
• To activate the timer, touch key E. The display will ash a decimal point when the timer is on.
Please note
The timer cannot be activated when the intensive function is on.
The clean air function
• The extractor is equipped with a clean air function that switches on the motor for ten minutes every hour at speed one.
• To activate the clean air function, touch key E for two seconds when the appliance is o. To return to normal function, touch
either key B or D. To switch o the clean air function, touch key E. The display C will light up in sections whilst the motor is
running, and will show the letter C during the fty minutes when the motor is not running.
A
B
C
D
E
3
Page 4
Care and Maintenance
IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING
OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE
ELECTRICITY SUPPLY.
Cleaning
You should use a nonabrasive cleaner. Any abrasive cleaner (including Cif )
will scratch the surface and could erase the control panel markings.
You can clean your extractor eectively by simply using a dilute solution of
water and mild detergent and drying to a shine with a clean cloth.
Cleaning the grease lter
The grease lters should be kept clean to minimise the risk of re.
When the display ashes alternating the speed selected with the letter A,
or at least once a month, you should remove and clean the grease lters
with hot soapy water. You can also wash the grease lters in a dishwasher,
ensuring that you place it in an upright position to prevent damage from
other items in the dishwasher. After rinsing and drying, replace the lters.
After the grease lters has been replaced, the electronic memory must be
reset by touching key A for
approximately ve seconds, until the letter A stops ashing.
To remove the grease lters follow the steps below:
1. Open the stainless steel cover panels by pulling them downward
from the centre. They will hinge to the sides.
2. Pull open the handle on the grease lter as shown in g 2. It will
release at the handle side.
3. Then lower the grease lter to remove it completely.
Fig. 2
Fig. 3
To replace the grease lters, repeat the steps in reverse.
Please note:
Cleaning the grease lter in the dishwasher may lead to discolouration. This
is normal and does not constitute a fault with the appliance.
Changing the charcoal lter (re-circulating only)
When the display ashes alternating the speed selected with the letter F, the
charcoal lters must be replaced. After the charcoal lter has been replaced,
the electronic memory must be reset by touching key A for approximately
ve seconds, until the letter F stops ashing.
To attach a new charcoal lter, rst open the cover panels and the lters as
described above. Then oer up the charcoal lter to the side of the motor as
shown in gure 3 and turn it clockwise until it locks into place. Repeat with
the other charcoal lter on the other side of the motor. Then replace the
grease lters and cover panels.
4
Page 5
Changing the Light
DO NOT CHANGE THE LIGHT BULB IMMEDIATELY AFTER USE AS
THE BULB WILL BE HOT. ALLOW IT TO COOL BEFORE REMOVING IT.

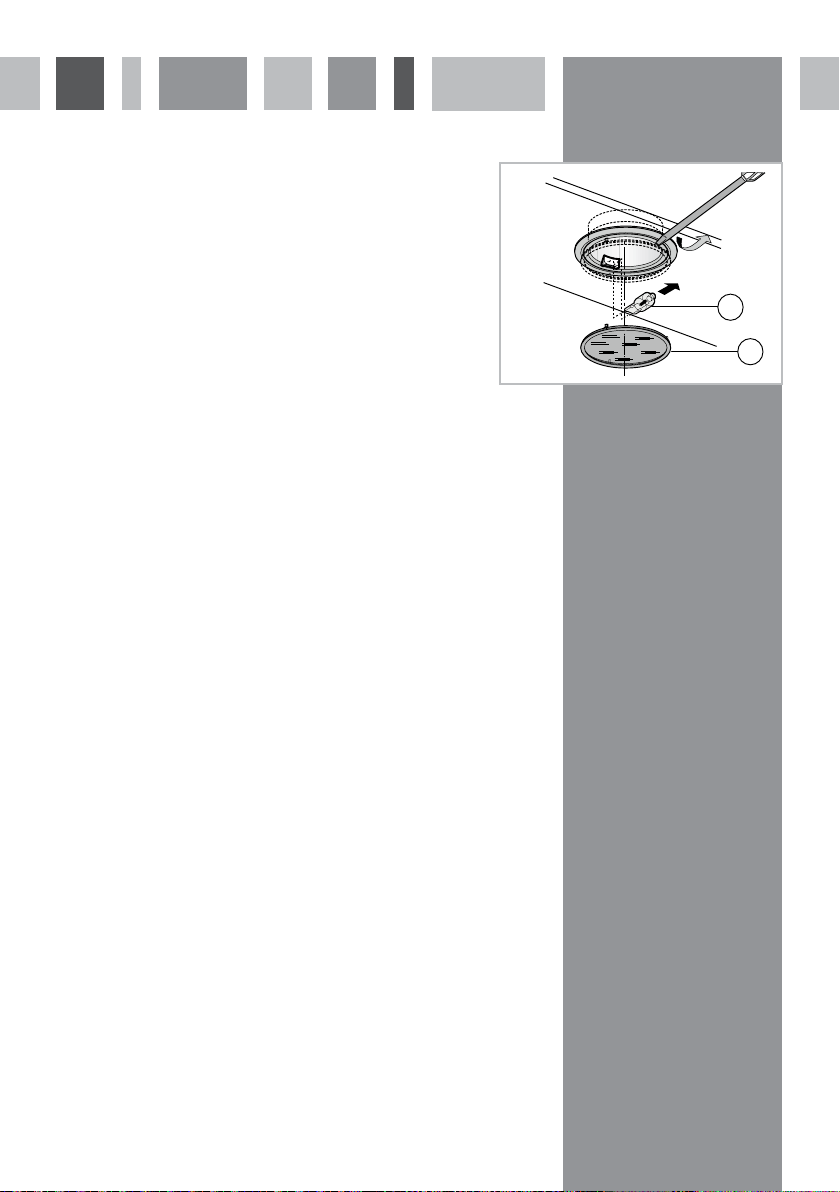

Unscrew the light bulb cover, please see gure 4. Unscrew the light bulb and
replace with a 12V 20W halogen light bulb. Finally, replace the light
bulb cover.
Do not touch bulbs or adjacent areas during or straight after prolonged use
of the lights.
The light is designed for use during cooking and not for general room
illumination. Extended use of the light can reduce the life span of the bulb.
Bulb replacement is not covered by the guarantee.
Only use bulbs recommended for your extractor. Do not t bulbs of a higher
power rating.
Bulbs of a lower power rating may be adequate for use, generally last longer
and use less energy.
C
D
Fig. 4
5
Page 6
Mains Electricity Connection
THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY
A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE
SWITCHED FUSED SPUR OUTLET AND PROTECTED BY A 3A FUSE.
We recommend that the appliance is connected by a qualied electrician,
who is a member of the N.I.C.E.I.C. and who will comply with the I.E.E. and
local regulations.
The wires in the mains lead of this appliance are coloured in accordance with
the following code:
BLUE = NEUTRAL, BROWN = LIVE.
As the colours of the wires in the mains lead for the appliance may not
correspond with the coloured markings identifying the terminals connecting
to the fused spur, proceed as follows:
• The wire which is coloured blue must be connected to the terminal
marked N (Neutral), or coloured black.
• The wire which is coloured brown must be connected to the terminal
marked L (Live), or coloured red.
NOTE: USE A 3A FUSE
Assembly and electrical connection should be carried out by competent
personnel.
When installing this product we recommend you seek the help of another
individual.
IMPORTANT: THIS APPLIANCE IS A CLASS II APPLIANCE (DOUBLE
INSULATED) AND IS NOT INTENDED TO BE EARTHED. DO NOT FIT
AN EARTH LEAD TO THIS EXTRACTOR.
Do not mount the isolation switch behind the chimney section. It is a
requirement that you must be able to isolate the extractor from the mains
electrical supply after installation.
This appliance is intended to be connected to the mains electrical supply by
means of an isolation switch and fused spur and is intended to be protected
by a 3A fuse. The use of a 13A fuse can cause damage to the internal wiring
in the event of a fault, and may also invalidate the warranty.

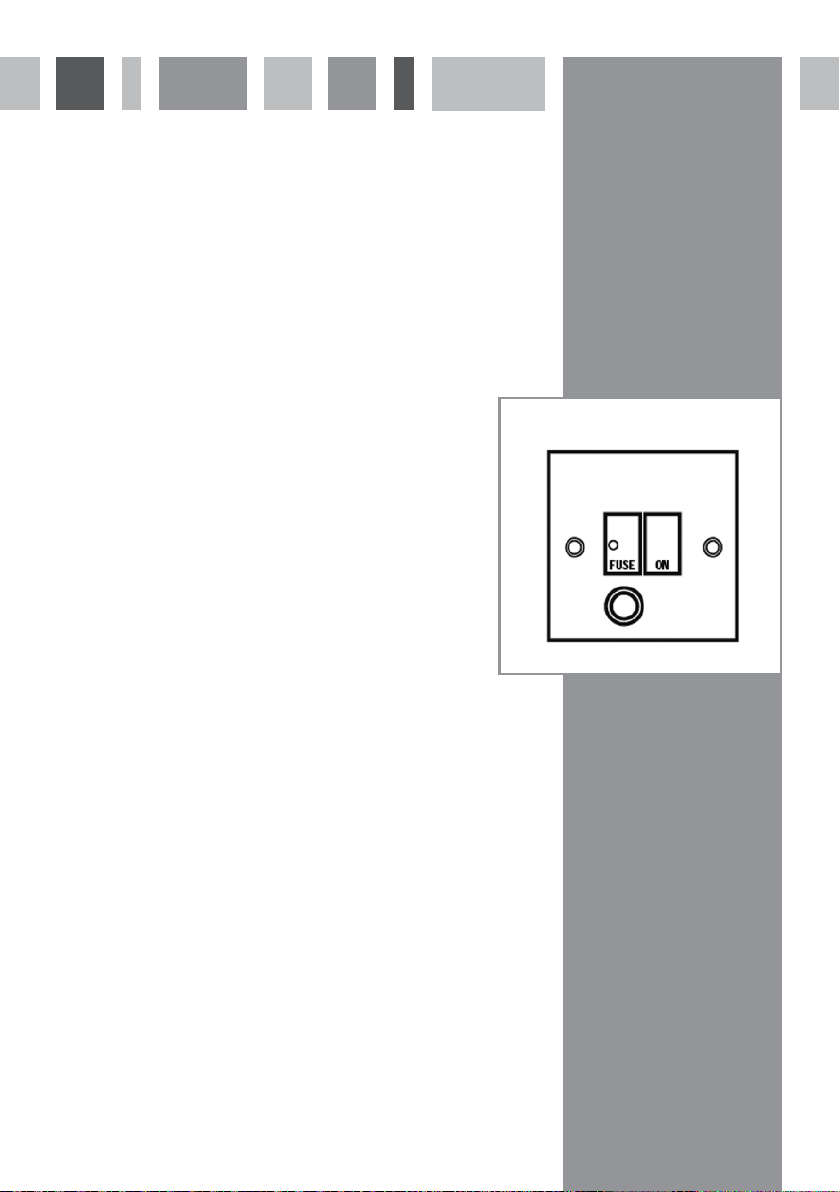

DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
USE A 3 AMP FUSE
6
Page 7
Electrical Information
Mains electrical voltage: 230 – 240Vac, 50Hz
Total rated power consumption:
290W
Troubleshooting
If your extractor is not working:
1. Check that the mains supply has not been switched o.
2. Check that the fuse in the spur has not blown.
7
Page 8

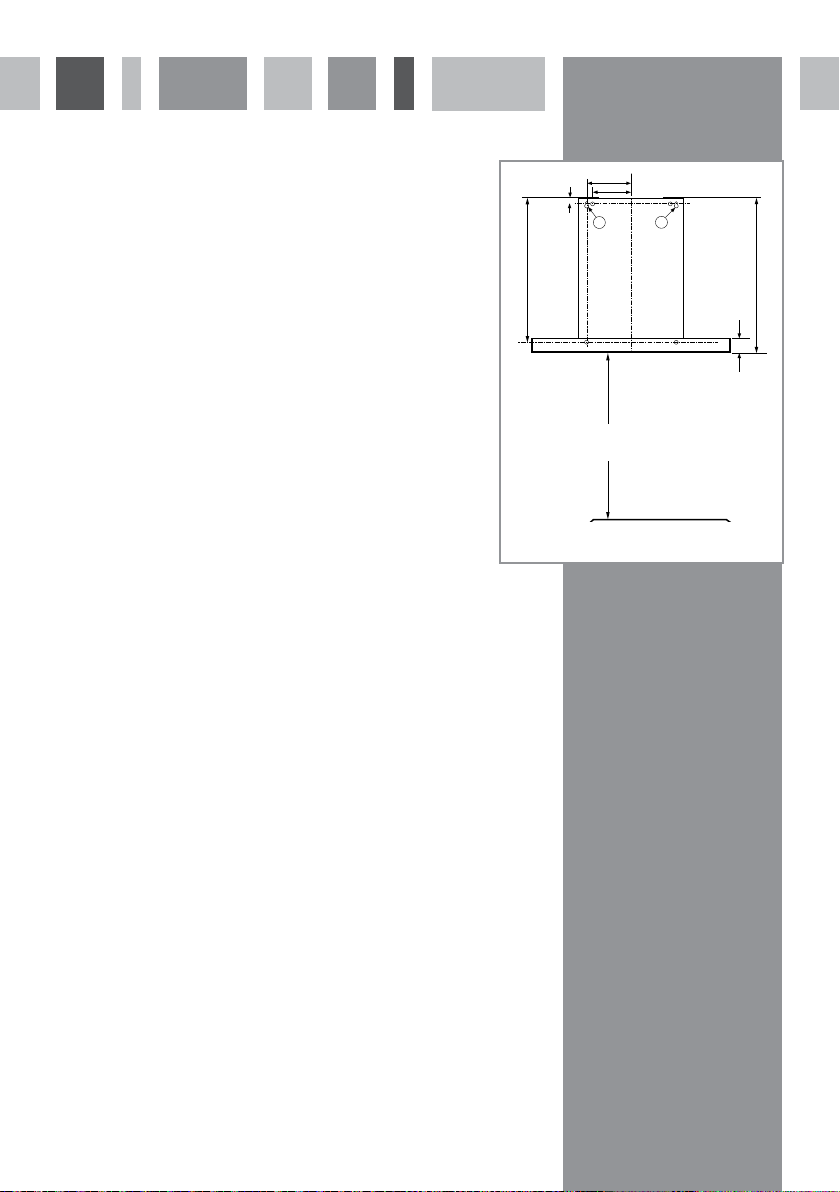

Mounting your Extractor
When the extractor is to be installed above an electric hob, the minimum
distance between the hob and extractor must exceed 600mm (650mm is
recommended).
When the extractor is to be installed above a gas hob, the minimum
distance between the hob and extractor must exceed 700mm (750mm is
recommended).
If the instructions provided with your gas hob state that the required
distance between the hob and extractor must be greater than 700mm,
then that is the distance that should be observed; this is a legal requirement
and may lead to your hob being disconnected from the gas supply and the
installation being reported to RIDDOR (The height should be measured
from the top of the burners).
IN THE ABSENCE OF ANY INSTRUCTIONS SUPPLIED WITH THE
GAS HOB, THE MINIMUM DISTANCE BETWEEN THE HOB AND
EXTRACTOR MUST BE AT LEAST 760mm.
The width of any hob must not be greater than the width of the extractor
installed above it. Fig. 5.
Ducting and Ventilation
For best performance and lowest noise output, we recommend the use of
125mm or 150mm ducting. You can also use 100mm ducting but this will
reduce performance.
7
A
271
Gas: 750mm recommended.
Gas: 750mm recommended.
Electric: 650mm recommended.
Electric: 650mm recommended.
Fig. 5
117.5
101.5
A
318
57
8
Page 9

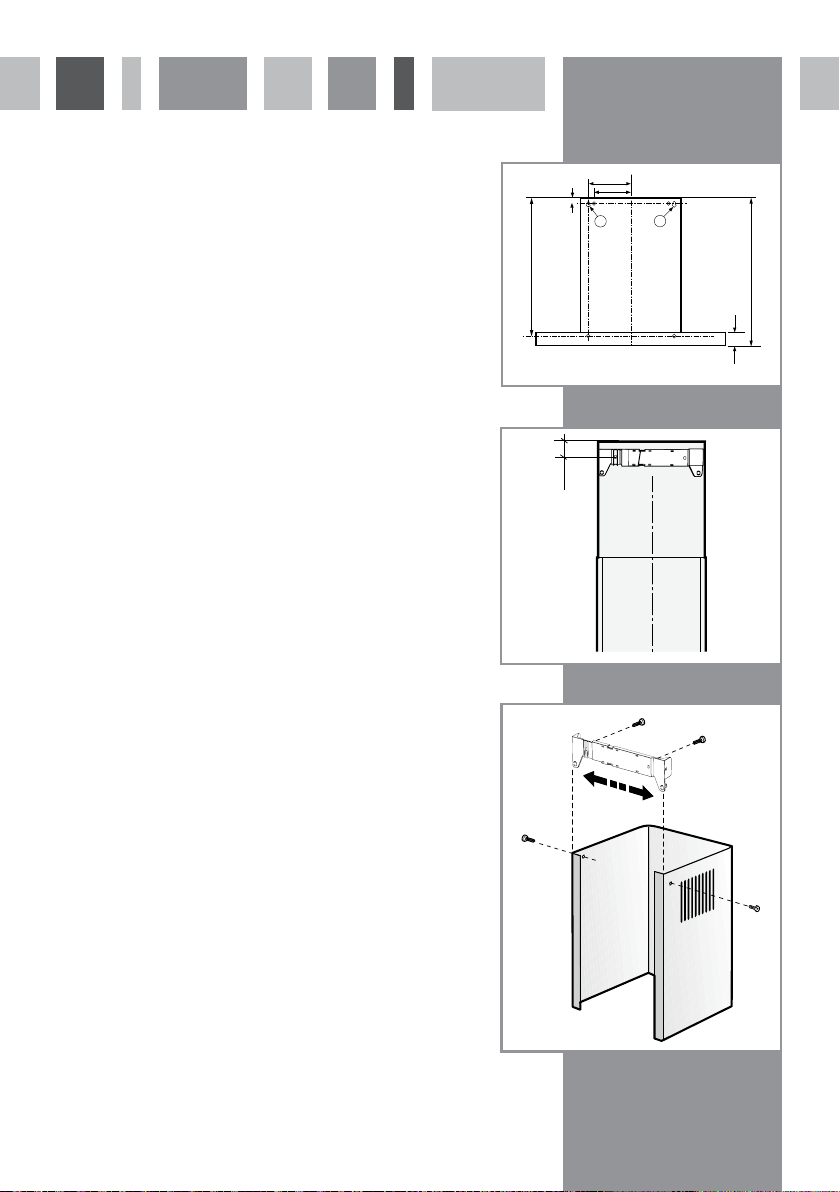

Installation
The extractor is mounted to the wall using 6 plugs and xing
screws, see gure 6.
1. Mark the wall with the positions of the xing holes at
the required height. The height of the hood holes should
take into account the minimum height specied in the
instructions.
2. Fit 6 wall plugs appropriate for the wall type into the
drilled holes and x two screws to the wall at positions ‘A’
and leave approximately 5mm protruding.
3. Hang the hood and secure screws ‘A’. Fix the hood in
position using 4 screws through the remaining mounting
holes shown.
Mounting the Chimney Section
1. Adjust the width of the mounting bracket to suit the
chimney size of your extractor and mark 2 points on the
wall, 20mm down from the ceiling for the xings (g 7).
Fig. 6
117.5
101.5
7
A
271
A
318
57
20
2. Drill and insert 2 plugs suitable for use with the wall type
into the holes and x the bracket with 2 screws.
3. Fit the chimney section and secure to the mounting
bracket with the supplied screws (g 8).
Fig. 7
Fig. 8
9
Page 10
10
Page 11
Fiche
Attribute Symbol Units
Model Identification evp61/91 evp101/121
Annual Energy Consumption AEC
Hood
105.1 122.3 kWh
Time increase factor f 1.4 1.4
Fluid Dynamic Efficiency FDE
Energy Efficiency Index EEI
Measured airflow at Best Efficiency
Q
BEP
Hood
Hood
16.1 (D) 17.6 (D)
89.2 (D) 87.4 (D)
347.6 454.1
Point
Measured Pressure at Best Efficiency
P
BEP
243.5 261.0 Pa
Point
Maximum airflow Q
Measured electric power at Best
MAX
W
BEP
503.0 650.0
146.3 186.7 W
Efficiency Point
Nominal lighting power WL 40.0 40.0 W
Average illumination of the lighting
E
Middle
200.0 200.0 Lux
system on the cooking surface
Measured power consumption in
P
S
1.0 1.0 W
standby
Measured power consumption off
P
O
NA NA W
mode
Sound power level L
WA
Grease Filter Efficiency GFE
Lamp efficiency LE
Hood
Hood
62.0 69.0 dBA
73 (D) 74 (D) %
5 (F) 5 (F) %
Value
3
/h
m
3
/h
m
11
Page 12
To contact our Customer Care Department, or for Service,
please contact us on the details below.
Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
12
T : 01949 862 012 F : 01949 862 003 E : [email protected] W : www.cda.eu
Loading...
