CDA EVCK4 User Manual

EVCK4 Cylinder Extractors

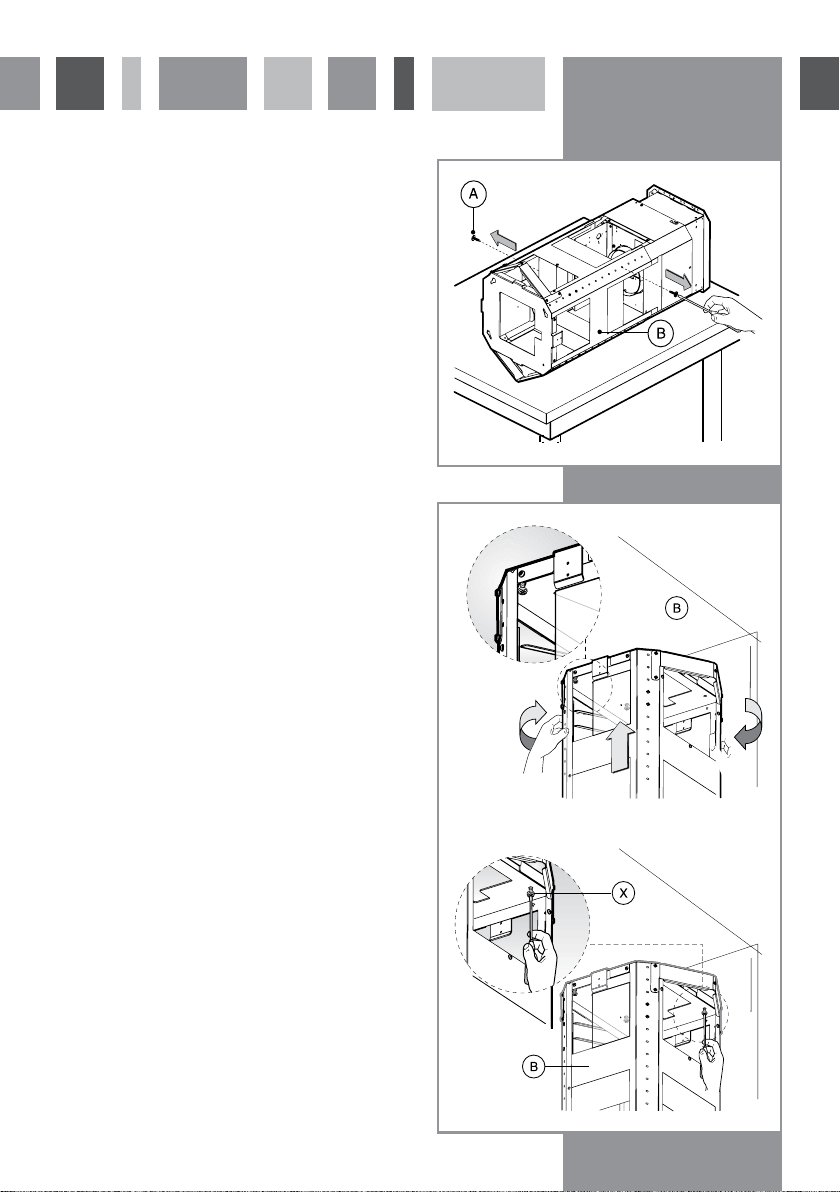

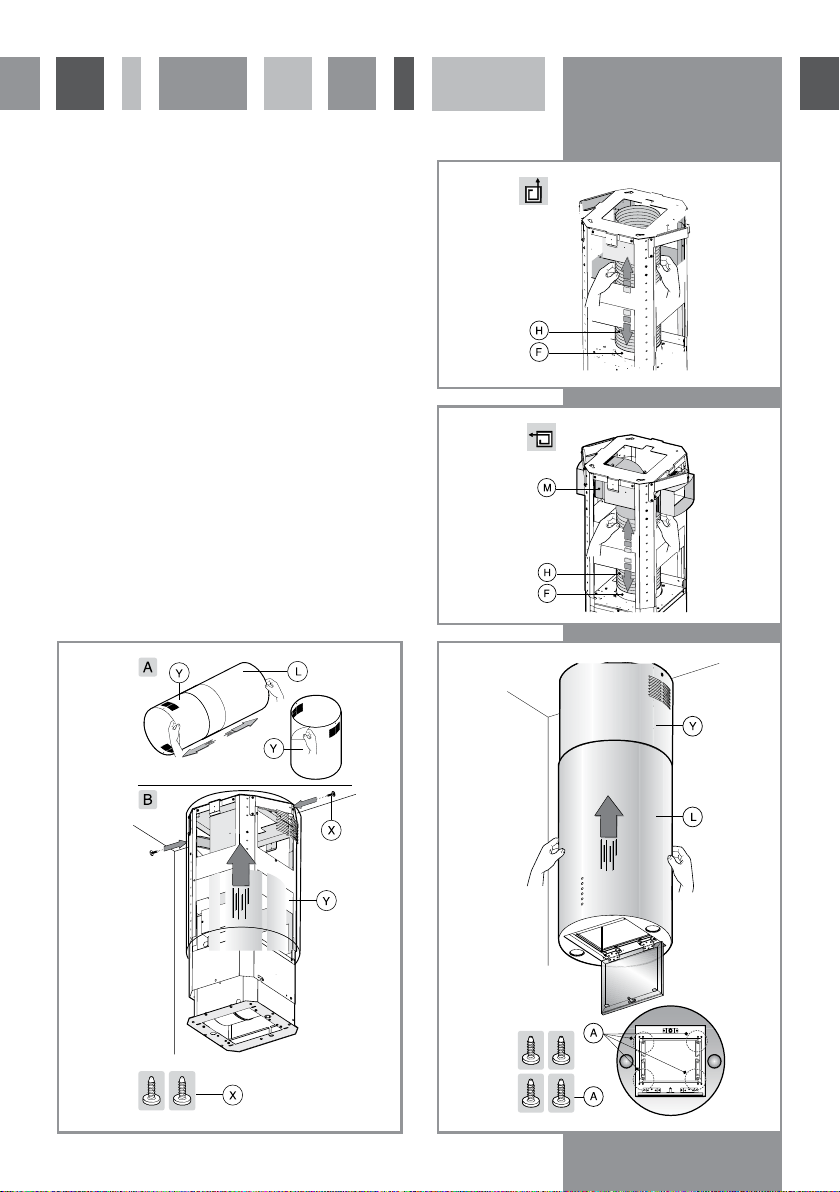

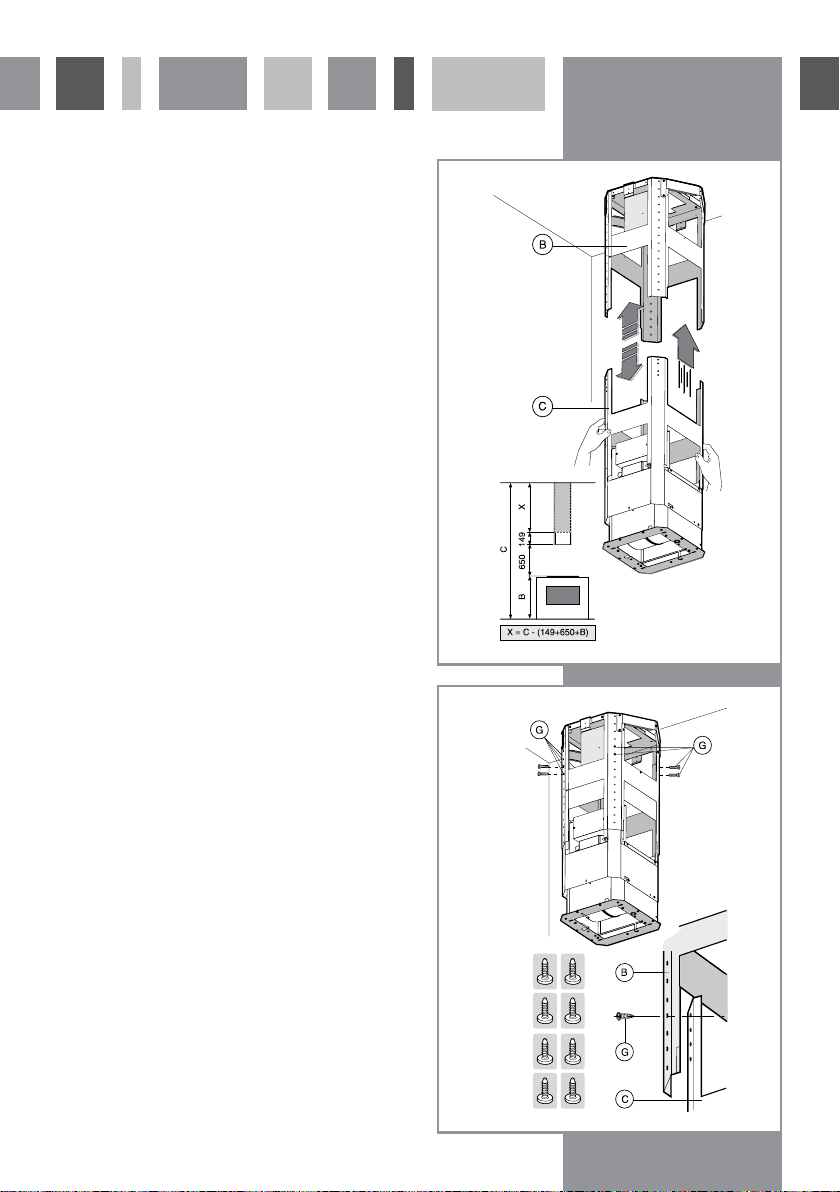

Manual for Installation, Use and Maintenance

Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY

T : 01949 862 012 F : 01949 862 003 E : [e-mail] W : www.cda.eu

Important

The manufacturer cannot be held responsible for injuries or losses caused by incorrect use or installation of this product.
Please note that the manufacturer reserves the right to invalidate the guarantee supplied with this product following
incorrect installation or misuse of the appliance or use in a commercial environment.

This appliance is not designed to be used by people (including children) with reduced physical, sensorial or mental
capacity, or who lack experience or knowledge about it, unless they have had supervision or instructions on how to use
the appliance by someone who is responsible for their safety.

Under no circumstances should any external covers be removed for servicing or maintenance except by suitably qualified
personnel.

Appliance information:

Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a
fault with your appliance and to register your appliance for guarantee purposes.

Appliance Model

Serial Number

CE Declarations of Conformity:

This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Gas
safety, Electrical safety (LVD) and Electromagnetic interference compatibility (EMC).

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC
DIRECTIVE 2002/96/EC.

At the end of its working life, the product must be taken to a special local authority waste collection centre or to a
dealer providing appliance recycling services. Disposing of a household appliance separately avoids possible negative
consequences for the environment and health. It also enables the constituent materials to be recovered, saving both
energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked
with a crossed-out wheeled dustbin.

Please note:

• Under no circumstances should the extractor be connected to any gas ventilation system, flue system or hot air

ducting system.

• Do not vent the extractor into an attic or loft space.

• Only house the extractor in rooms with adequate ventilation. Remember that the extractor is powerful and

whatever air is extracted needs to be replaced.

• Do not tile the extractor in. It should be removable for service or maintenance.

• Do not use silicone sealant to secure the hood to the wall.

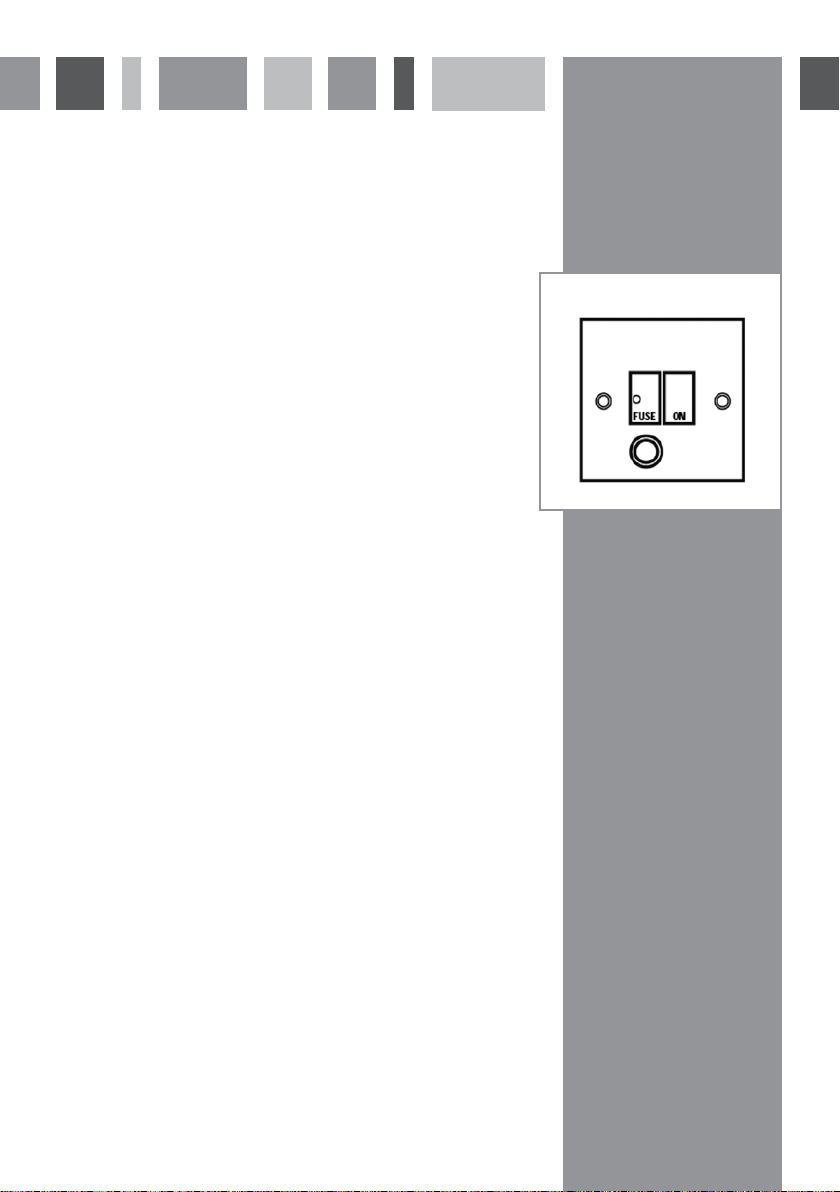

• You must be able to isolate the extractor from the mains electrical supply after installation.

• Steam cleaners must not be used when cleaning this appliance.

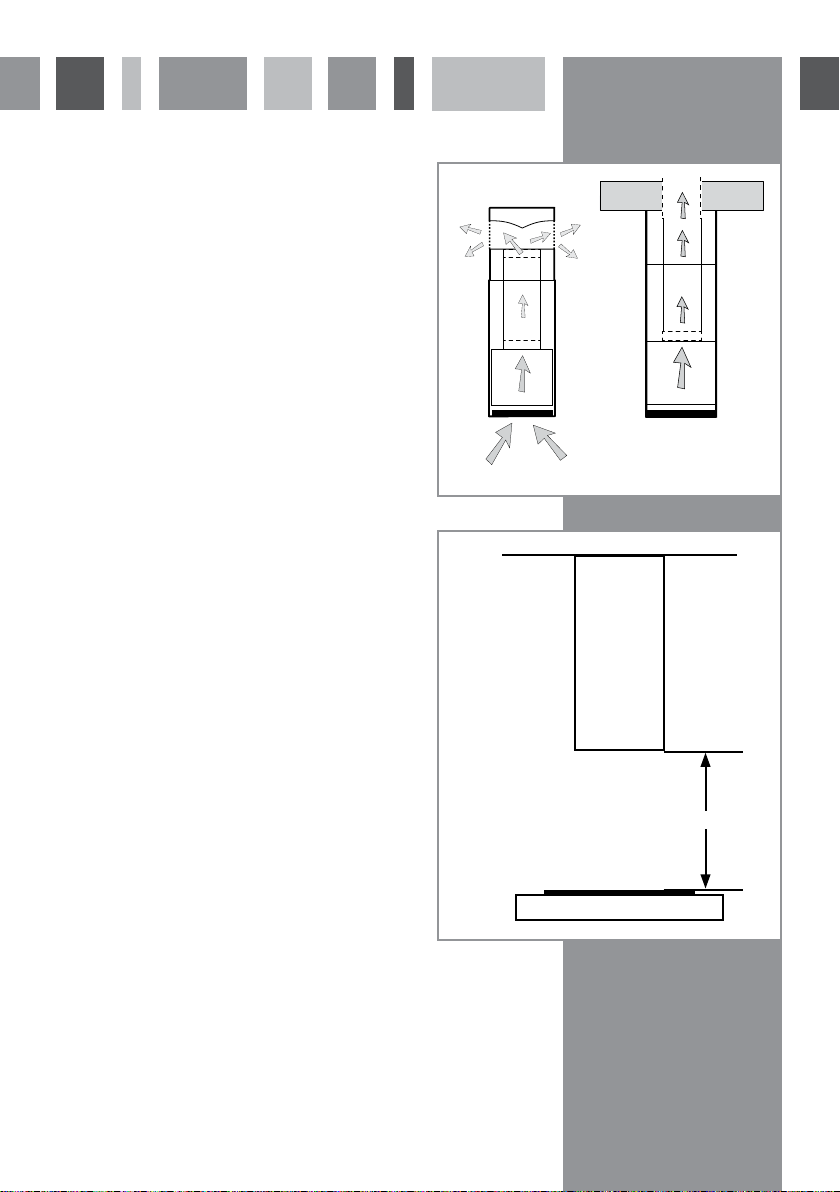

• The performance of your extractor will vary depending on a number of factors. These include: type of extraction,

length of ducting, room volume, ventilation available and cleanliness of the filters.

1

Using your Extractor

For best performance, you should switch on the extractor 15 minutes before
starting to cook and leave it to run for approximately 15 minutes after the end
of cooking.

Control Panel

A – Light button
B, C, D – Speed level buttons
E – Power off button
F – Timer button

To switch the extractor light on or off

• Press button A.

To switch on the extractor or to change the speed at any time when the
extractor is running

• Press button B, C or D for the first, second or third speed level as required.

To switch the extractor off

• Press button E.

The intensive function

• The extractor is equipped with an intensive function which runs for ten

minutes before returning to the previous selected speed. To activate the
intensive function, press and hold button B for two seconds B. Button E will
flash whilst the intensive function is on. To cancel the intensive function, press
button E again.

The timer

• The extractor is equipped with a timer that allows the extractor to run for 15

minutes before switching off automatically.

• To activate the timer, touch button F.

Fig. 1

Please note

The timer cannot be activated when the intensive function is on.

The clean air function

• The extractor is equipped with a clean air function that switches on the motor

for ten minutes every hour at speed one.

• To activate the clean air function, press and hold button F for two seconds

when the appliance is off. To return to normal function, press the
button B, C or D for the speed required. To switch off the extractor, press
button E. Buttons C and F will flash whilst the motor is running, and button F
will be lit during the fifty minutes when the motor is not running.

2

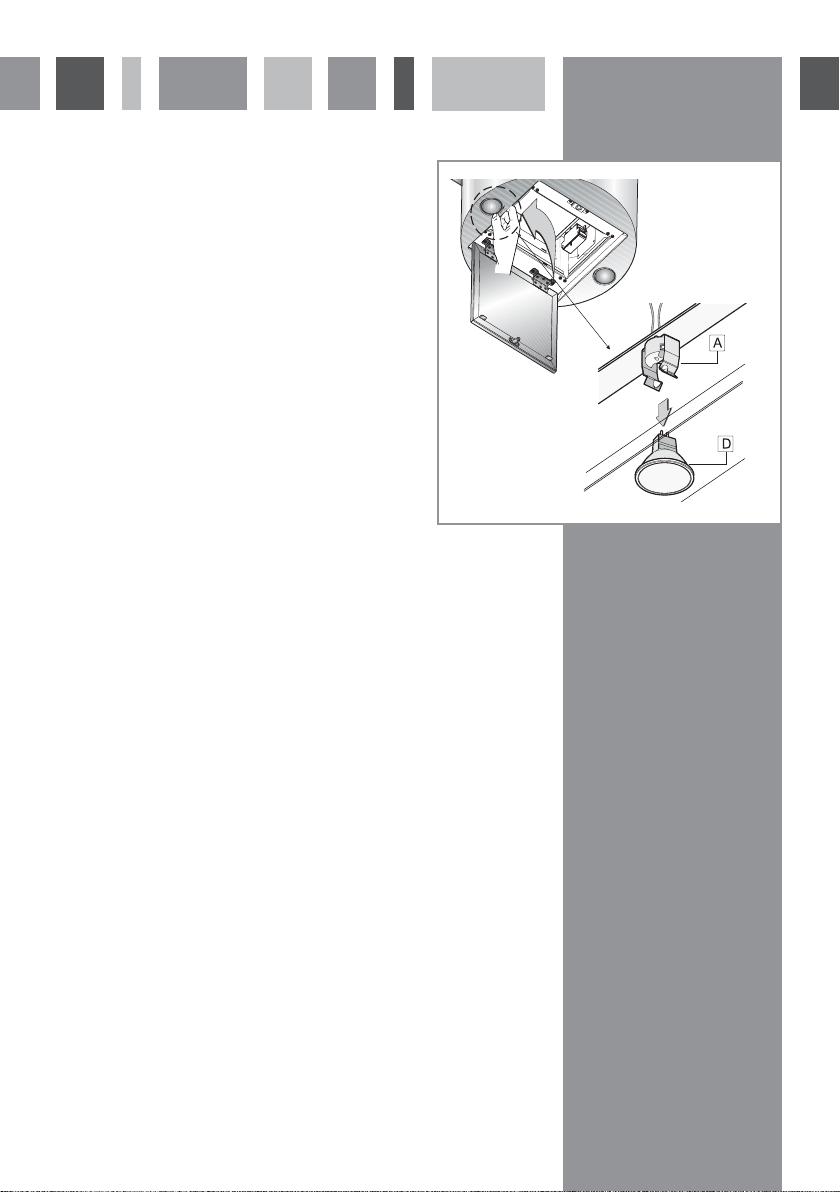

Care and Maintenance

IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING OF THE

EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY.

Cleaning

You should use a nonabrasive cleaner. Any abrasive cleaner (including Cif) will

scratch the surface and could erase the control panel markings.

You can clean your extractor effectively by simply using a dilute solution of water

and mild detergent and drying to a shine with a clean cloth.

Cleaning the grease filter

The grease filter should be kept clean to minimise the risk of fire.

When button A flashes every two seconds , or at least once a month you should

remove and clean the grease filter with hot soapy water. You can also wash the

grease filter in a dishwasher, ensuring that you place it in an upright position to

prevent damage from other items in the dishwasher. After rinsing and drying,

replace the filter. After the grease filter has been replaced, the electronic memory

must be reset by pressing button A for approximately five seconds, until it

stops flashing.

To remove the grease filter follow the steps below:

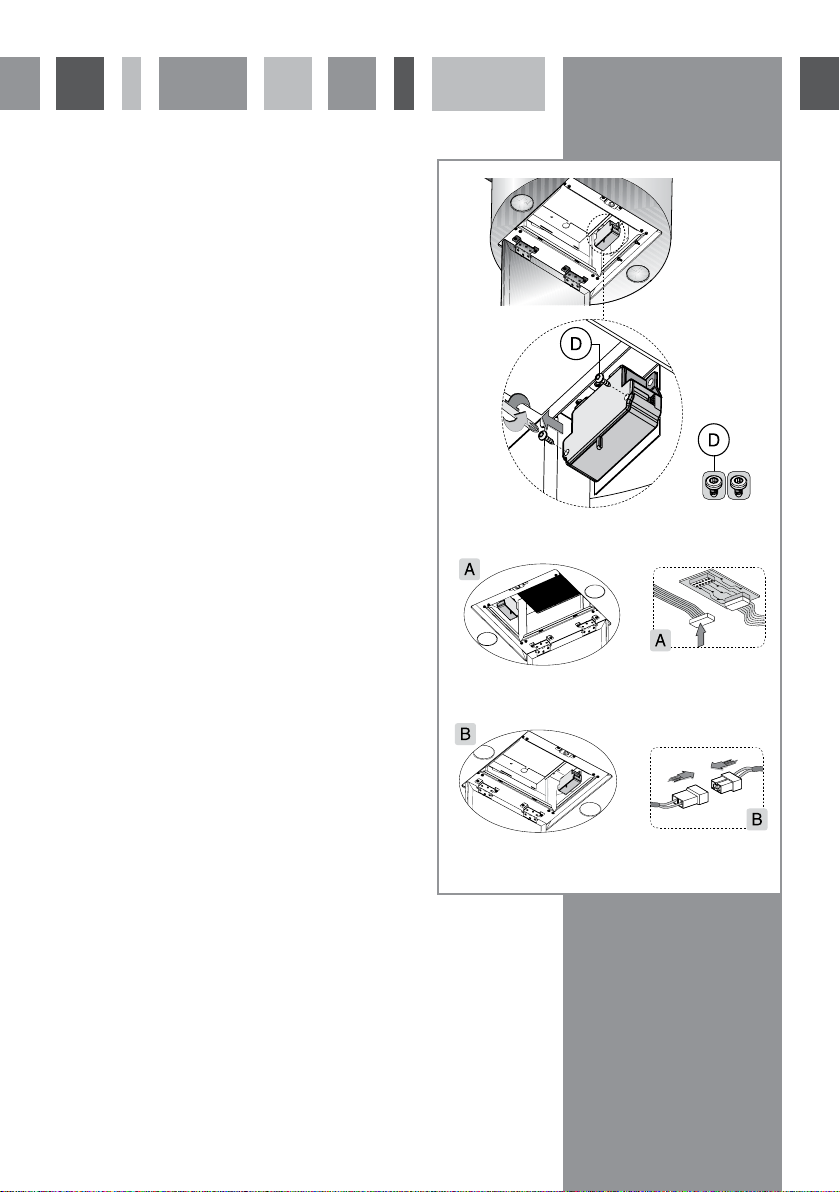

1. Push the cover panel to open the base of the extractor, as shown in fig 2.

2. Pull open the handle on the grease filter as shown in fig. 3. It will release

at the handle side. Then lower the grease filter to remove it completely.

To replace the grease filter, repeat the steps in reverse.

Please note:

Cleaning the grease filter in the dishwasher may lead to discolouration. This is

normal and does not constitute a fault with the appliance.

Changing the charcoal filter (re-circulating only)

When button A flashes every half second, the charcoal filters must be replaced.

After the charcoal filter has been replaced, the electronic memory must be reset

by pressing button A for approximately five seconds, until it stops flashing.

To attach a new charcoal filter, first open the body of the extractor and remove the

grease filter as shown in figure s 2 and 3. Then offer up the charcoal filter into the

frame as shown in figure 4 until it locks into place. Repeat with the other charcoal

filter, then close the body of the extractor..

Fig. 2

Fig. 3

Fig. 4

3
