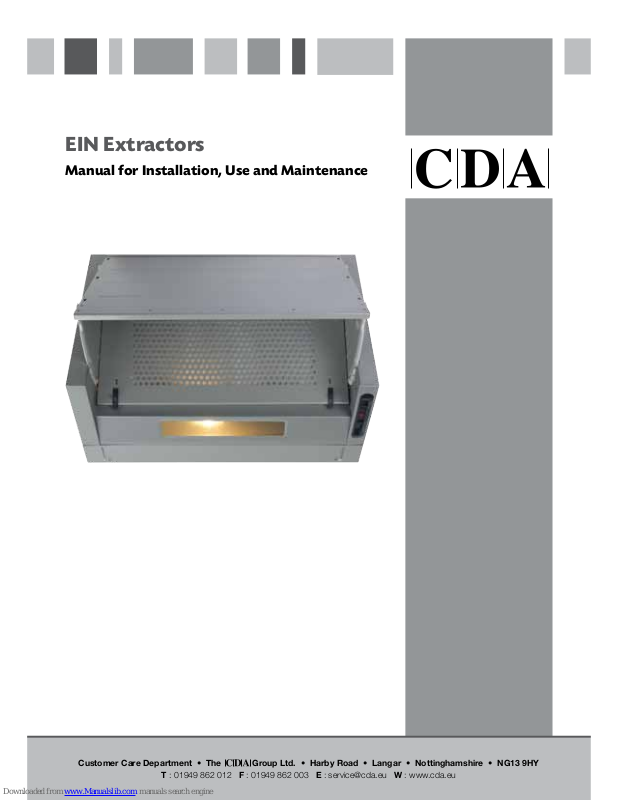

EIN Extractors

Manual for Installation, Use and Maintenance

2

Important

The manufacturer cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please
note that the manufacturer reserves the right to invalidate the guarantee supplied with this product following incorrect installation
or misuse of the appliance or use in a commercial environment.

This appliance is not designed to be used by people (including children) with reduced physical, sensorial or mental capacity, or who
lack experience or knowledge about it, unless they have had supervision or instructions on how to use the appliance by someone
who is responsible for their safety.

Under no circumstances should any external covers be removed for servicing or maintenance except by suitably qualified personnel.

Appliance information:

Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.

Appliance Model

Serial Number

CE Declarations of Conformity:

This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Gas safety,
Electrical safety (LVD) and Electromagnetic interference compatibility (EMC).

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE
2002/96/EC.

At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing
appliance recycling services.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both energy and resources. As a reminder of the need to dispose of
household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Please note:

• Under no circumstances should the extractor be connected to any gas ventilation system, flue system or hot air

ducting system.

• Do not vent the extractor into an attic or loft space.

• Only house the extractor in rooms with adequate ventilation. Remember that the extractor is powerful and

whatever air is extracted needs to be replaced.

• Do not tile the extractor in. It should be removable for service or maintenance.

• Do not use silicone sealant to secure the hood to the wall.

• You must be able to isolate the extractor from the mains electrical supply after installation.

• This extractor has been designed to be used in a room with a volume of less than 36 m

3

.

• Steam cleaners must not be used when cleaning this appliance.

• The performance of your extractor will vary depending on a number of factors. These include: type of extraction,

length of ducting, room volume, ventilation available and cleanliness of the filters.

3

Using your Extractor

For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run for approximately
15 minutes after the end of cooking.

Control Panel

A – Light switch
B – Power indicator light
C – Power switch

To switch the extractor light on or off

• Slide the light switch to position A1 for off, or A2 for on.

To switch on the extractor, or change the motor speed

• Slide the power switch to the position required dependent on the speed you require.

To switch the extractor off

• Slide the power switch to position C1 for off.

Fig. 1

C2 C4

A B C

A1 C1A2 C3

4

Care and Maintenance

IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING OF THE EXTRACTOR WITHOUT FIRST

SWITCHING OFF THE ELECTRICITY SUPPLY.

Cleaning

You should use a nonabrasive cleaner. Any abrasive cleaner (including Cif) will scratch the surface and could erase the

control panel markings.

You can clean your extractor effectively by simply using a dilute solution of water and mild detergent and drying to a

shine with a clean cloth, for example the CDA E-Cloth.

Cleaning the grease filter

The grease filter should be kept clean to minimise the risk of fire.

At least once a month you should remove and clean the grease filter with hot soapy water.

To remove the grease filter, follow the steps below:

1. Remove the cover panel by pushing the fixing clips up and then lifting the panel forwards.

2. Remove the filter retaining wires from the cover panel.

3. Remove the grease filter and wash by hand in a lukewarm solution of water and mild detergent. Once clean squeeze the

grease filter but DO NOT wring it out. Clean the filter holder using a dilute solution of water and mild detergent or with a

damp cloth. Allow the grease filter to dry completely before reassembling the extractor.

4. Replace the grease filter in the cover panel and reattach the filter retaining wires.

5. Replace the cover panel by inserting the lugs on the upper side in the extractor, and then refasten the fixing clips on the

lower side.

Changing the charcoal filter (re-circulating only)

To ensure best performance of your extractor, you should replace the charcoal filters every four to six months,

depending on use.

Please note the charcoal filter cannot be washed.

To attach a new charcoal filter, follow the steps below:

1. Remove the cover panel as described above.

2. Place the charcoal filter on the centre of the motor support, and once firmly located turn the charcoal filter clock

wise 90ºC until the charcoal filter locks into position.

3. Replace the cover panel.
