CDA DC730 User Manual

Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY

T : 01949 862 012 F : 01949 862 003 E : [e-mail] W : www.cda.eu

DC730.. - Built Under Double Ovens

Manual for Installation, Use and Maintenance

2

Important

This appliance is designed and manufactured solely for the cooking of domestic (household) food and
is not suitable for any non domestic application and therefore should not be used in a commercial
environment.

The appliance guarantee will be void if the appliance is used within a non domestic environment i.e. a semi
commercial, commercial or communal environment.

The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation
of this product. Please note that CDA reserve the right to invalidate the guarantee supplied with this
product following incorrect installation or misuse of the appliance.

Appliance Information:

Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in
the event of a fault with your appliance and to register your appliance for guarantee purposes.

Appliance Model

Serial Number

Declaration of CE Conformity

This double oven has been designed, constructed and marketed in compliance with:

- Safety requirements of EU Directive “Low Voltage” 2006/95/EC;

- Protection requirements of EU Directive “EMC” 2004/108/EC;

- Requirements of EU Directive 93/68/EEC.

Important Information for Correct Disposal of the Product in Accordance with
EC Directive 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban
waste. It must be taken to a special local authority differentiated waste
collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative
consequences for the environment and health deriving from inappropriate
disposal and enables the constituent materials to be recovered to obtain
significant savings in energy and resources. As a reminder of the need to
dispose of household appliances separately, the product is marked with a
crossed-out wheeled dustbin.

3

Before Using for the First Time

– Read the instructions carefully before installing and using the appliance.
– After unpacking the appliance, check that it is not damaged. In case of doubt, do not use the appliance

and contact your supplier or a qualified engineer.

– Remove all the packing materials (i.e. plastic bags, polystyrene foam, etc.) and do not leave it around within

easy reach of children, as these may cause serious injuries. The packaging materials are recyclable.

– Do not attempt to modify the technical characteristics of the appliance, as it may become dangerous

to use.

– The appliance should be installed and all the electrical connections made by a qualified engineer in

compliance with local regulations in force and following the manufacturer's instructions.

Important Precautions and Recommendations
for Use of Electrical Appliances

Use of any electrical appliance implies the necessity to follow a series of fundamental rules. In particular:
– never touch the appliance with wet hands or feet;
– do not operate the appliance barefooted;
– do not allow children or disabled people to use the appliance without your supervision.

The manufacturer cannot be held responsible for any damages caused by improper, incorrect or
unreasonable use of the appliance.

Using the Double Oven for the First Time

You are advised to carry out the following operations:
– Assemble the interior of the top and the lower ovens as described under the heading “Cleaning and

maintenance”

– Switch the empty ovens ON at maximum temperature for about two hours to eliminate traces of grease

and smell from the components.

– Let the ovens cool down, switch off the electrical supply, then clean the inside of the ovens with a cloth

soaked in water and neutral detergent and dry thoroughly.

4

Important Safeguards and Recommendations

– Do not carry out any cleaning or maintenance without first disconnecting the appliance from the

electrical supply.
– During and after use of the double oven, certain parts will become very hot. Do not touch hot parts.
– After use always ensure that the control knobs are in the OFF position ( - ).
– Household appliances are not intended to be played with by children.
– Keep children away from the oven during use.
– Children, or persons with a disability which limits their ability to use the appliance, should have a

responsible person to instruct them in its use. The instructor should be satisfied that they can use the

appliance without danger to themselves or their surroundings.
– WARNING
When correctly installed, your product meets all safety requirements laid down for this type of product

category. However special care should be taken around the rear or the underneath of the appliance
as these areas are not designed or intended to be touched and may contain sharp or rough edges, that

may cause injury.
– Fire Risk! Do not store inflammable materials inside the ovens.
– Always use oven gloves when removing the shelves and food trays from the oven whilst hot.
– Clean the ovens regularly and do not allow fat or oils to build up in the oven base or trays. Remove

spillages as soon as they occur.

– Do not line the oven walls with aluminium foil. Do not place baking trays or the drip tray on the base

of the oven chambers.

– Always stand back from the double oven when opening the oven doors to allow steam and hot air to

escape before removing the food.

– Do not hang towels, dishcloths or other items on the double oven or its handles – as this could be a

fire hazard.

– Make sure that electrical cords connecting other appliances in the proximity cannot become entrapped

in the oven doors.

– Before disposing of an unwanted appliance, it is recommended that it is made inoperative and that all

potentially hazardous parts are made harmless.

– Important: This appliance has been designed for domestic use only. The appliance is NOT suitable for

use within a semi-commercial, commercial or communal environment.

– Safe food handling: leave food in the oven for as short a time as possible before and after cooking.

This is to avoid contamination by organisms which may cause food poisoning. Take particular care
during warmer weather.

– Do not operate your appliance by means of an external timer or separate remote-control system.

5

Control Panel

A

12 534

67

Controls Description

1. Oven temperature knob (Top oven)

2. Function selector knob (Top oven)

3. Function selector knob (Lower main oven)

4. Oven temperature knob (Lower main oven)

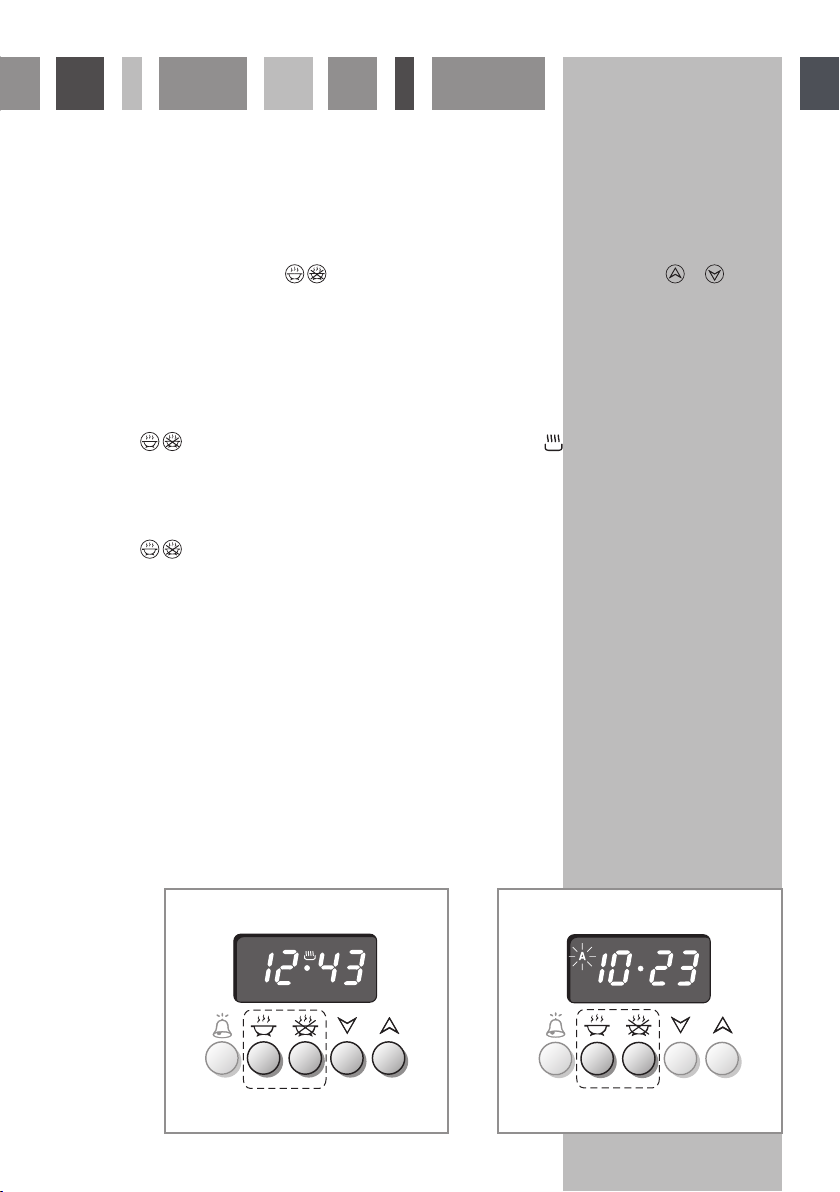

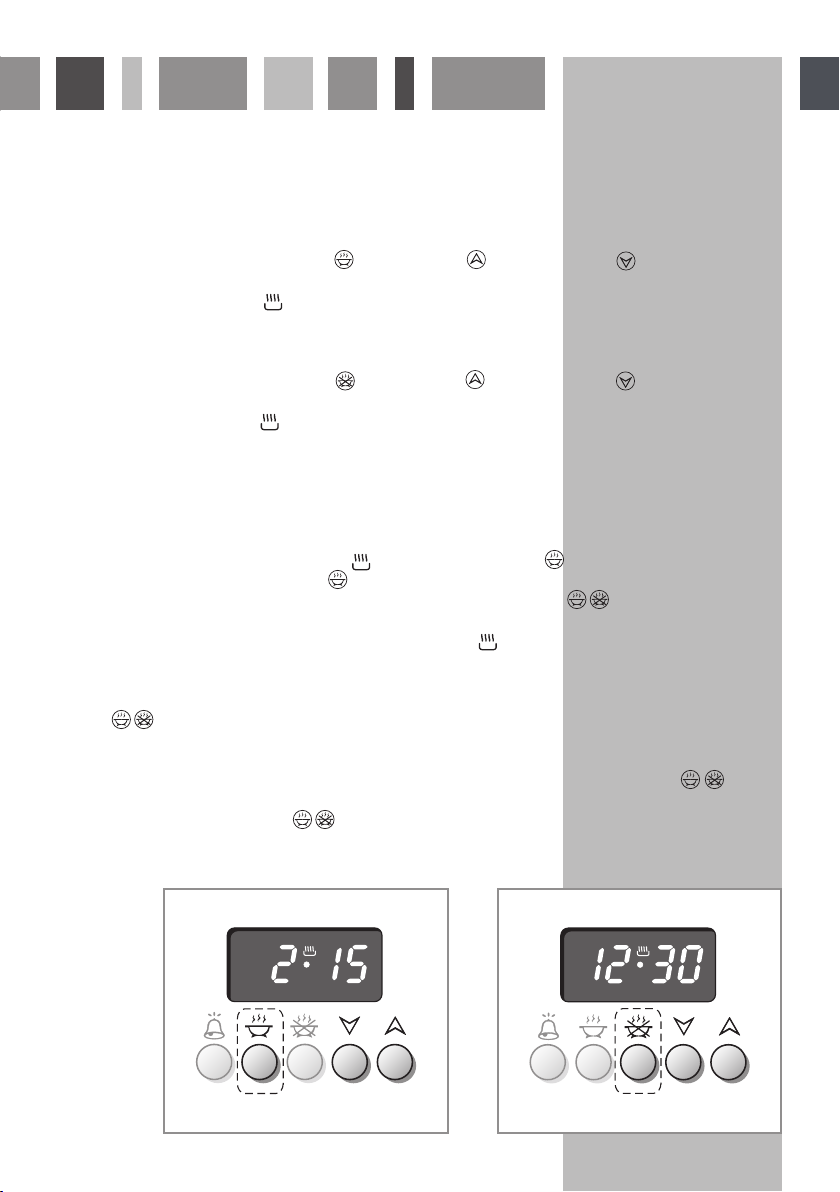

5. Digital electronic programmer (Lower main oven only)

Warning Lights:

6. Main oven temperature indicator light

7. Top oven temperature indicator light

Fig. 1

Please Note: Your appliance has been fitted with a cooling fan to achieve optimum efficiency of the
controls and to ensure lower surface temperatures are maintained.
When the top oven is operating the cooling fan motor is always ON.
When only the bottom main oven is operating the cooling fan motor switches ON/OFF depending on
temperature.
Depending on cooking temperatures and times, the cooling fan may run on even after appliance oven
has been switched off. The duration of this time is dependent on previous cooking temperature and
duration.

6

Top Natural Convection Oven

General Features

This oven features 2 different thermostatic control functions to satisfy all
cooking requirements, provided by 3 heating elements:

– Upper element, 700 W

– Lower element, 1000 W

– Grill element, 2000 W

Note:

When using for the first time, you are advised to operate the oven at maximum
temperature (thermostat knob on the maximum position) for approximately
one hour in the
order to eliminate any traces of grease from the electrical elements.

Operating Principles

Heating and cooking in the natural convection oven are obtained:

a. by Normal Convection
The heat is produced by the upper and lower heating elements.

b. by Radiation
The heat is radiated by the infra red grill element.

mode and for another 15 minutes in the mode in

How to Use the Top Oven

WARNING:
The door is hot, use the handle.

ATTENTION - MOST IMPORTANT
Pay special attention not to touch
the hot heating element inside the
oven cavity.

Fig. 2 Fig. 3

7

Thermostat Knob (Fig. 2)

This only sets the cooking temperature and does not switch the oven on.
Rotate clockwise until the required temperature is reached (from 50 °C to 250 °C).
The thermostat indicator light will illuminate when the oven is switched on and turns off when the oven
reaches the correct temperature.
The light will cycle on and off during cooking in line with the oven temperature.

Function Selector Knob (Fig. 3)

Rotate the knob clockwise to set the oven for one of the following functions:

Oven Light

By turning the function selector knob to this setting, the oven light will illuminate in the oven cavity.
The oven light will operate on all selected functions.

Traditional Convection Cooking

The upper and lower heating elements come on. The heat is dispersed by natural convection and the
temperature must be set to between 50 °C and 250 °C with the thermostat knob.
The oven must be preheated before cooking.

Recommended for:

Food that requires the same degree of cooking both inside and out, for example roasts, spare pork ribs,
meringues etc.

Traditional Grilling

The infrared grill element comes on. The heat is dispersed by radiation.

Use with the oven door closed and the thermostat knob to position 225 °C for max 15 minutes, then to
position 175 °C.

For cooking hints, see the chapter “USE OF THE GRILL”.

Recommended for:

Intense grilling, browning, cooking au gratin and toasting etc.

It is recommended that you do not grill for longer than 30 minutes at any one time.
Caution: the oven door becomes very hot during operation. Keep children well out of reach.

8

Oven Cooking

Before introducing the food, preheat the oven to the desired temperature.
For a correct preheating operation, it is advisable to remove the tray from the oven and introduce it
together with the food, when the oven has reached the desired temperature.
Check the cooking time and turn off the oven 5 minutes before the theoretical time to recuperate the
stored heat.

Use of the Grill

– Preheat the oven for about 5 minutes with the door closed.
– Introduce the food to be cooked, positioning the rack as close to the grill as possible.
– The dripping pan should be placed under the rack to catch the cooking juices and fats.

Grilling with the oven door closed.

It is recommended that you do not grill for longer than 30 minutes at anyone time.

Attention: the oven door becomes very hot during operation.

Keep children away.

The external parts of the oven become hot during operation.

Keep children well out of reach.

9

Lower Main Fan Oven

General Features

The heating and cooking in electrical hot air ovens take place by forced
convection.

The element which make this process take place is:

– Circular element 1900 W

Note:

Upon first use, it is advisable to operate the oven at the maximum temperature
(thermostat knob on the maximum position) for 60 minutes in the position

to eliminate possible traces of grease on the heating element.

Operating Principles

Heating and cooking in the fan oven are obtained in the following ways:

a. by Ventilation
The food is defrosted by using the fan only function without heat.

b. by Forced Convection
A fan sucks in the air contained in the oven, which circulates it through the

circular heating element and then forced back into the oven by the fan.
Before the hot air is sucked back again by the fan to repeat the described
cycle, it envelops the food in the oven, provoking a complete and rapid
cooking. It is possible to cook several dishes simultaneously.

10

How to Use the Lower Oven

WARNING:
The door is hot, use the handle.

ATTENTION - MOST IMPORTANT
Pay special attention not to touch the hot
heating element inside the oven cavity.

Thermostat Knob (Fig. 5)

This only sets the cooking temperature and
does not switch the oven on.
Rotate clockwise until the required temperature
is reached (from 50 °C to 250 °C).
The thermostat indicator light will illuminate when the oven is switched on and turns off when the oven
reaches the correct temperature.
The light will cycle on and off during cooking in line with the oven temperature.

Function Selector Knob (Fig. 4)

Rotate the knob clockwise to set the oven for one of the following functions:

Fig. 4 Fig. 5

Oven Light and Defrost

By turning the function selector knob to this setting, the oven light and the oven fan come on. The oven
light will operate on all selected functions.
Defrost: To be used with the thermostat knob in the “ ” OFF position because the other positions have
no effect. The defrosting is done by simple ventilation without heat.

Recommended for:

To rapidly defrost frozen foods; 1 kilogram requires about one hour.
The defrosting times vary according to the quantity and type of foods to be defrosted.

Hot Air Cooking

The circular element and fan come on. The heat is dispersed by forced convection and the temperature
can be regulated to between 50 °C and 250 °C via the thermostat knob. The oven does not require
preheating.

Recommended for:

Food which has to be well-cooked outside and soft or rosy inside, for example lasagne, lamb, roast beef,
whole fish etc.

11

Lower Oven Cooking Advice

Cooking with Forced Air

Fan cooking is more economical and quicker than cooking in a conventional oven. The moving hot air
surrounds the food and penetrates it more quickly than in a conventional oven.

The oven can be filled with different dishes all requiring the same cooking temperature. Subtract 10
minutes per hour for every dish requiring a cooking time of more than 1 hour and reduce the heat by 10­20°C; the hotter the oven, the more the temperature can be reduced.

Generally, there is no need to pre-heat the oven, but it is advisable to pre-heat for about 5 minutes to ensure
the best results; use the indicator light as a guide, it goes out when the set temperature is reached.

Fan cooking is ideal for gelatine based dishes and softening ice cream - a microwave oven is much too
strong for these dishes. Cooking yeast based dishes is also speeded up this way. If the oven door has been
opened, the oven quickly regains its temperature once the door is closed.

Sterilization

Sterilization of foods to be conserved, in full and hermetically sealed jars, is done in the following way:
a. Set the switch to position .
b. Set the thermostat knob to position 175 °C and preheat the oven.
c. Fill the dripping pan with hot water.
d. Set the jars onto the dripping pan making sure they do not touch each other and the door and set the

thermostat knob to position 125 °C.

When sterilization has begun, that is, when the contents of the jars start to bubble, turn off the oven and
let cool.

Regeneration

Set the switch to position and the thermostat knob to position 150 °C.
Bread becomes fragrant again if wet with a few drops of water and put into the oven for about 10 minutes
at the highest temperature.

Roasting

To obtain classical roasting, it is necessary to remember:
– That it is advisable to maintain a temperature between 180 °C and 200 °C.
– That the cooking time depends on the quantity and the type of foods.

Simultaneous Cooking of Different Foods

With the function selector in position the ventilated oven allows you to cook different types of food
at the same time.
Fish, cakes and meat can be cooked together without the smells and flavours mixing.
The only precautions required are the following:
– The cooking temperatures must be as close as possible with a maximum difference of 20 - 25 °C

between the different foods.

– Different dishes must be placed in the oven at different times according to the cooking time required

for each one. This type of cooking obviously provides a considerable saving on time and energy.
