CDA CIN6 User Manual

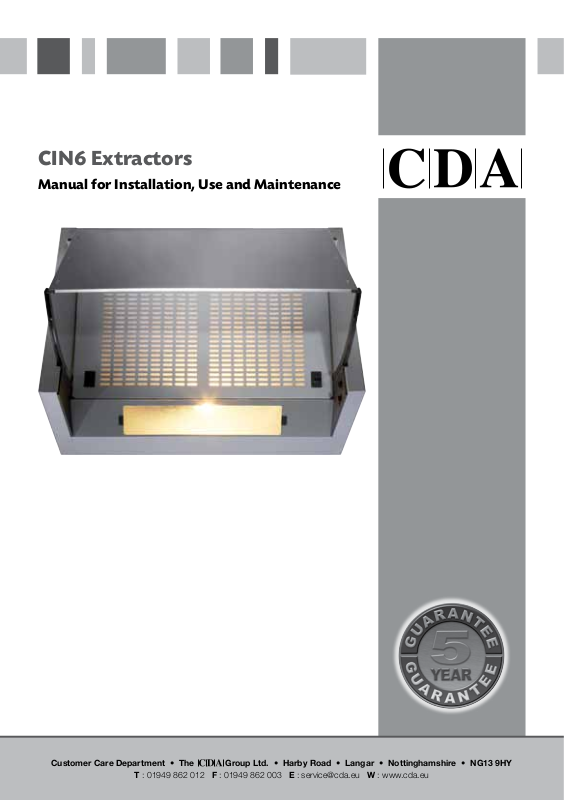

CIN6 Extractors
Manual for Installation, Use and Maintenance
Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu
Important
The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this product.
Please note that CDA reserve the right to invalidate the guarantee supplied with this product following incorrect installation
or misuse of the appliance or use in a commercial environment.
This appliance is not designed to be used by people (including children) with reduced physical, sensorial or mental capacity,
or who lack experience or knowledge about it, unless they have had supervision or instructions on how to use the appliance
by someone who is responsible for their safety.
Under no circumstances should any external covers be removed for servicing or maintenance except by suitably qualified
personnel.
Appliance information:
Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault
with your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
CE Declarations of Conformity:
This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Gas
safety, Electrical safety (LVD) and Electromagnetic interference compatibility (EMC).
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE
2002/96/EC.
At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer
providing appliance recycling services.
Disposing of a household appliance separately avoids possible negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both energy and resources. As a reminder of the need to dispose of
household appliances separately, the product is marked with a crossed-out wheeled dustbin.
Please note:
• Under no circumstances should the extractor be connected to any gas ventilation system, flue system or hot air
ducting system.
• Do not vent the extractor into an attic or loft space.
• Only house the extractor in rooms with adequate ventilation. Remember that the extractor is powerful and
whatever air is extracted needs to be replaced.
• Do not tile the extractor in. It should be removable for service or maintenance.
• Do not use silicone sealant to secure the hood to the wall.
• You must be able to isolate the extractor from the mains electrical supply after installation.
• This extractor has been designed to be used in a room with a volume of less than 36 m
• Steam cleaners must not be used when cleaning this appliance.
• The performance of your extractor will vary depending on a number of factors. These include: type of extraction,
length of ducting, room volume, ventilation available and cleanliness of the filters.
• Do not flambé under your extractor. Flames and fire can damage the extractor and this will invalidate any
warranty provided.
3
.
Using your Extractor
For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run for
approximately 15 minutes after the end of cooking.
A - Light switch
B - Power indicator light
C - Power switch
A B
A1 A2
C
Fig. 1
To switch the extractor light on or off
• Slide the light switch to position A1 for off, or A2 for on.
To switch on the extractor, or change the motor speed
• Slide the power switch to the position required dependent on the speed you require.
To switch the extractor off
• Slide the power switch to position C1 for off.
C1 C3
C2 C4
Care and Maintenance
IMPORTANT: DO NOT PERFORM MAINTENANCE OR CLEANING OF THE EXTRACTOR WITHOUT FIRST
SWITCHING OFF THE ELECTRICITY SUPPLY.
Cleaning
You should use a non-abrasive cleaner. Any abrasive cleaner (including Cif) will scratch the surface and could erase the
control panel markings.
You can clean you extractor effectively by simply using a dilute solution of water and mild detergent and drying to a shine
with a clean cloth, for example the CDA E-Cloth.
Cleaning the grease filter
The grease filter should be kept clean to minimize the risk of fire.
At least once a month you should remove and clean the grease filter with hot soapy water.
To remove the grease filter, follow the steps below:
1. Unfasten the sliding brackets on either side of the cover panel and the cover panel will hinge open.
2. Remove the filter retaining wires from the cover panel.
3. Remove the grease filter and wash by hand in a lukewarm solution of water and mild detergent. Once clean
squeeze the grease filter but DO NOT wring it out. Clean the filter holder using a dilute solution of water
and mild detergent or with a damp cloth. Allow the grease filter to dry completely before reassembling
the extractor.
4. Replace the grill panel and refasten the sliding brackets.
5. Replace the grease filter in the cover panel and reattach the filter retaining wires.
Please note:
The extractor must not be used without the grease filter in place.
Changing the charcoal filter
To ensure best performance of your extractor, you should
replace the charcoal filters every four to six months, depending
on use. Please note the charcoal filter cannot be washed. To
attach a new charcoal filter, follow the steps below.
1. Unfasten the sliding brackets on either side of the cover
panel and the cover panel will hinge open.
2. Place the charcoal filter on the centre of the motor
support, and once firmly located turn the charcoal filter
clockwise 90˚ until you hear a click which locks the
charcoal filter into position.
Replace the cover panel and refasten the sliding brackets.
c
Fig. 2
