CDA CI921 Manual For Installation, Use And Maintenance

Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY

T : 01949 862 012 F : 01949 862 003 E : [e-mail] W : www.cda.eu

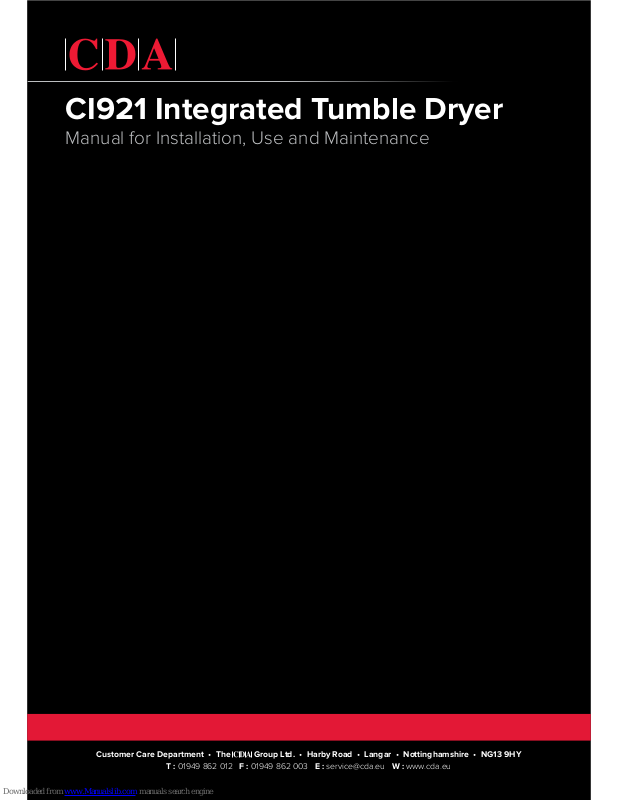

CI921 Integrated Tumble Dryer

Manual for Installation, Use and Maintenance

2

Important

This appliance must only be used for the purpose for which it is
intended, i.e. domestic use. Any other use could be dangerous and
may lead to premature failure of the appliance.

The CDA Group Ltd cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note that
CDA reserve the right to invalidate the guarantee supplied with this
product following incorrect installation or misuse of the appliance.

This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with
the appliance. Cleaning and user maintenance shall not be made by
children without supervision.

Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.

Appliance information:

Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.

Appliance Model
Serial Number

3

CE Declarations of Conformity:

This appliance has been designed, constructed and marketed in
compliance with safety requirements of EEC Directive 2006/95/EEC
(Low voltage) and requirements of EMC Directive 2004/108/EEC.

This product is manufactured to comply with the radio interference
requirements of the Council directive 82/336/EEC, 2004/108/EC.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as
urban waste. It must be taken to a special local authority dierentiated
waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving from
inappropriate disposal and enables the constituent materials to be
recovered to obtain significant savings in energy and resources. As a
reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.

4

User Information

The room must be adequately ventilated to avoid the backflow of
gases into the room from appliances burning gas or any other fuels.
This includes open fires.

It is important to clean the lint filter after each drying cycle.
Items that have been soiled with substances such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes
and wax removers should be washed in hot water with an extra
amount of detergent before being dried in the tumble dryer.
Fabric softeners, or similar products, should be used as specified by
the fabric softener instructions.

Remove all objects from pockets such as lighters and matches.
We recommend that the appliance is switched o each time after
use. It should be disconnected from the electricity supply if it is to be
unattended for long periods, ( i.e weekends or holiday etc).

Do not Overload the dryer.
Do not Dry articles singly as they tend to roll up and so

increase drying time.

Do not Dry anything other than the recommended articles be

placed in the tumble dryer. These can cause fires.

Do not Place articles which have been in contact with dry

cleaning fluid, petrol, cooking oil, fat, hair laquer or other
flammable substances in the tumble dryer.

Do not Attempt to dry dripping wet articles.
Do not Dry unwashed items in the tumble dryer.

5

Do not Dry wool or wool mixture articles unless the article is

labeled as suitable. This should avoid shrinkage.

Do not Items such as foam rubber (latex foam), shower caps,

waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.

Do not Exhaust air must not be discharged into a flue which is

used for exhausting fumes from appliances burning gas
or other fuels.

Do not Allow the vent hose (where applicable) or filter to

become blocked.

Do not Allow lint to accumulate around the tumble dryer.
Do not Use a two-way or multi-way adapter, or extension lead.

The dryer must be connected to its own individual
socket.

Do not Use the tumble dryer if you suspect that it is damaged in

anyway.

Never switch the dryer o and leave a hot load in the drum – risk
of re.

WARNING: Never stop a tumble dryer before the end of a drying
cycle unless all items are quickly removed and spread out so the
heat is dissipated.

This label positioned on the rear of your dryer, indicates

the surface is hot when in operation – avoid touching.

CAUTION
HOT SURFACE

6

Use And Controls

1. Programme selector:

Choose the final dryness of the load by selecting the desired

dryness setting (see the programme chart).

The dryer will stop automatically when the chosen dryness is

achieved.

2. Heat settings:

High – For fabrics insensitive to higher temperatures, such as

cotton.

Gentle – For temperature sensitive clothes.

3. Start button:

Press to start the drying cycle.

4. Anti-crease active light

When lit constantly, the neon indicates that the drying cycle is

completed and clothes can be removed. To reduce creasing of
clothes, anti-crease will automatically start once the drying cycle is
complete.

fig. 1

1 2 3
