CDA 3L9 User Manual
3L9 Extractors
Manual for Installation, Use and Maintenance
Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu
Important
The manufacturer cannot be held responsible for injuries or losses caused by incorrect use or installation of this product.
Please note that the manufacturer reserves the right to invalidate the guarantee supplied with this product following
incorrect installation or misuse of the appliance or use in a commercial environment.
This appliance is not designed to be used by people (including children) with reduced physical, sensorial or mental capacity,
or who lack experience or knowledge about it, unless they have had supervision or instructions on how to use the appliance
by someone who is responsible for their safety.
Under no circumstances should any external covers be removed for servicing or maintenance except by suitably qualified
personnel.
Appliance information:
Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault
with your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
CE Declarations of Conformity:
This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Gas
safety, Electrical safety (LVD) and Electromagnetic interference compatibility (EMC).
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE
2002/96/EC.
At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer
providing appliance recycling services. Disposing of a household appliance separately avoids possible negative consequences
for the environment and health. It also enables the constituent materials to be recovered, saving both energy and resources.
As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled
dustbin.
Please note:
• Under no circumstances should the extractor be connected to any gas ventilation system, flue system or hot air
ducting system.
• Do not vent the extractor into an attic or loft space.
• Only house the extractor in rooms with adequate ventilation. Remember that the extractor is powerful and
whatever air is extracted needs to be replaced.
• Do not tile the extractor in. It should be removable for service or maintenance.
• Do not use silicone sealant to secure the hood to the wall.

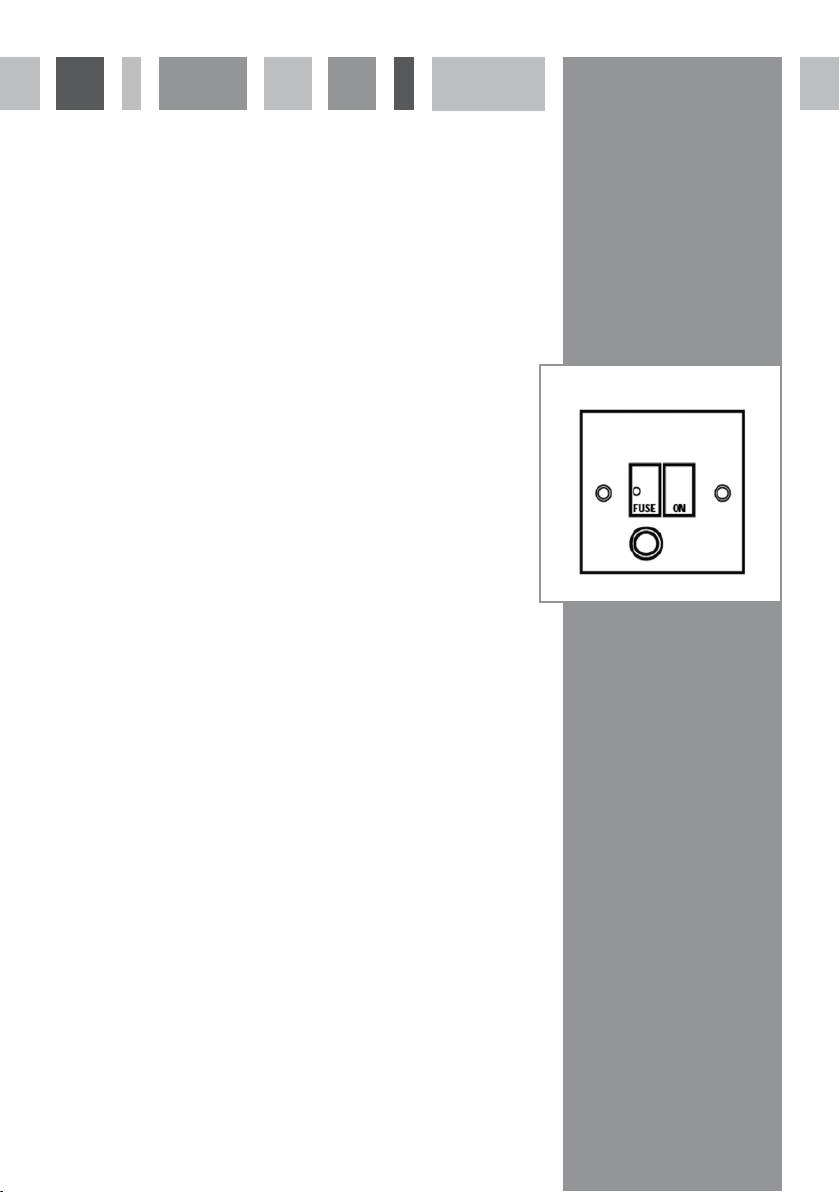

• You must be able to isolate the extractor from the mains electrical supply after installation.
• Steam cleaners must not be used when cleaning this appliance.
• The performance of your extractor will vary depending on a number of factors. These include: type of extraction,
length of ducting, room volume, ventilation available and cleanliness of the filters.
1
Using your Extractor
For best performance, you should switch on the extractor 15 minutes before starting
to cook and leave it to run for approximately 15 minutes after the end of cooking.
To switch on the extractor and set the speed level
• Touch key A. The appliance will switch on at the first speed level.
• To increase the speed level touch key B. The speed cycles through first, second
and third speed levels, and the relevant number indicator will show on the
centre of the display.
• To switch the extractor off, touch key A.
The extractor lights
• To switch the lights on touch key D. The extractor lights will cycle through
three light settings (high, medium, low, off) with each touch of the key. The
light indicator will show on the centre of the display when the lights are on.
The intensive function
• The extractor is equipped with an intensive function which runs for ten
minutes before returning to the previous selected speed level.
• To activate the intensive function, touch and hold key B at any speed level for
approximately five seconds. The 3 indicator on the centre of the display will
flash whilst the intensive function is on.
• To cancel the intensive function, touch the speed level key and the extractor
will return to the previous speed level.
The timer
• The extractor is equipped with a timer that allows the extractor to run for 15
minutes before switching off automatically.
• To activate the timer, touch key E. The timer indicator will show on the centre
of the display when the timer is on.
Please note
The timer cannot be activated when the intensive function is on.
The clean air function
• The extractor is equipped with a clean air function that switches on the motor
for ten minutes every hour at speed level one.
• To activate the clean air function, touch key A for five seconds when the
appliance is off. When the motor is running, the light indicator will flash and
the first speed indicator will light up. For the remaining 50 minutes, the light
indicator will flash.
• To cancel the clean air function, touch any key except the light key.
A
B
C
D
E
Control Panel
A – Power key
B – Speed level key
C – Light indicator
D - Light key
E – Timer key
Fig. 1
The ambient light function
• The extractor is equipped with an ambient light function that switches on the
LED lights on the side of the extractor.
• To switch the ambient light function on or off, touch and hold the timer
button for approximately five seconds
2
Using your Remote Control
Synchronising your remote with the extractor
1. Whilst the appliance is off, touch the light key on the extractor for
approximately five seconds until the indicator light begins to flash, as
shown in figure 2.
2. Turn the top section of the remote control until the indicator light on
the extractor stops flashing.
In the event of any problems, repeat the steps above.
To set the motor speed
• Turn the top section of the remote control so the indicator is at the required
speed level, as shown in figure 3.
• To select the intensive speed level, press the remote control in for two
seconds at positions one, two or three, as shown in figure 4.
To turn on the light
• Press the remote control in to switch on the light to the highest level, as
shown in figure 5.
• To cycle through the light settings (high, medium, low, off) press the remote
control in repeatedly.
To change the battery
• The battery will last for approximately 12 months, depending on usage.
• To change the battery, remove the lid from the remote control, as shown in
figure 6.
• Then remove the battery by applying pressure to the edge, as shown in
figure 7.
• Replace with a 3 Volt 5004LC / CR 2032 battery.
Fig. 2
Fig. 3
2 sec.
Fig. 4
Fig. 5
Please note:
The remote control will work up to five metres away from the extractor.
The base of the remote control is magnetic so can be attached to ferrous surfaces.
3
Fig. 6
Fig. 7
