VM-16RT Video
Multiplexer for CCTV
User’s Manual
www.cctvcamerapros.com/cctv-multiplexers
Page 2
Page 3
1 / 19
Directory
1.System Features………………………………………………2
2. Rear Panel Installation………………………………………3
3. Front Key Operation…………………………………………4
4. Function description……………………………………….. 5
4.1Button MENU / AUDIO……………………………………….5
4.2 Button AUTO/ FREEZE………………………………………5
4.3 Button ZOOM/MODE ………………………………………..5
4.4 Button VCR / ENTER………………………………………...6
4.5 Button M4-A / ▲…………………………………………….6
4.6 Button M4-B / ▼…………………………………………….7
4.7 Button M8/◄………………………………………………...7
4.8 Button M9/►……………………………………………..…7
4.9 Button 1/9 / FULL, 2/10 / FULL, 3/11 / FULL…ect………….7
4.10 PAL/NTSC System………………………………………7
4.11 PTZ Function…………………………………………….7
5. Setup Menu Operation………………………………………9
5.1 Setup Main menu…………………………………………10
5.2 System Setup Menu………………………………………10
5.3 Display Setup Menu……………………………………….12
5.4 Camera Setup Menu………………………………………13
5.5 Auto Sequence Setup Menu……………………………..14

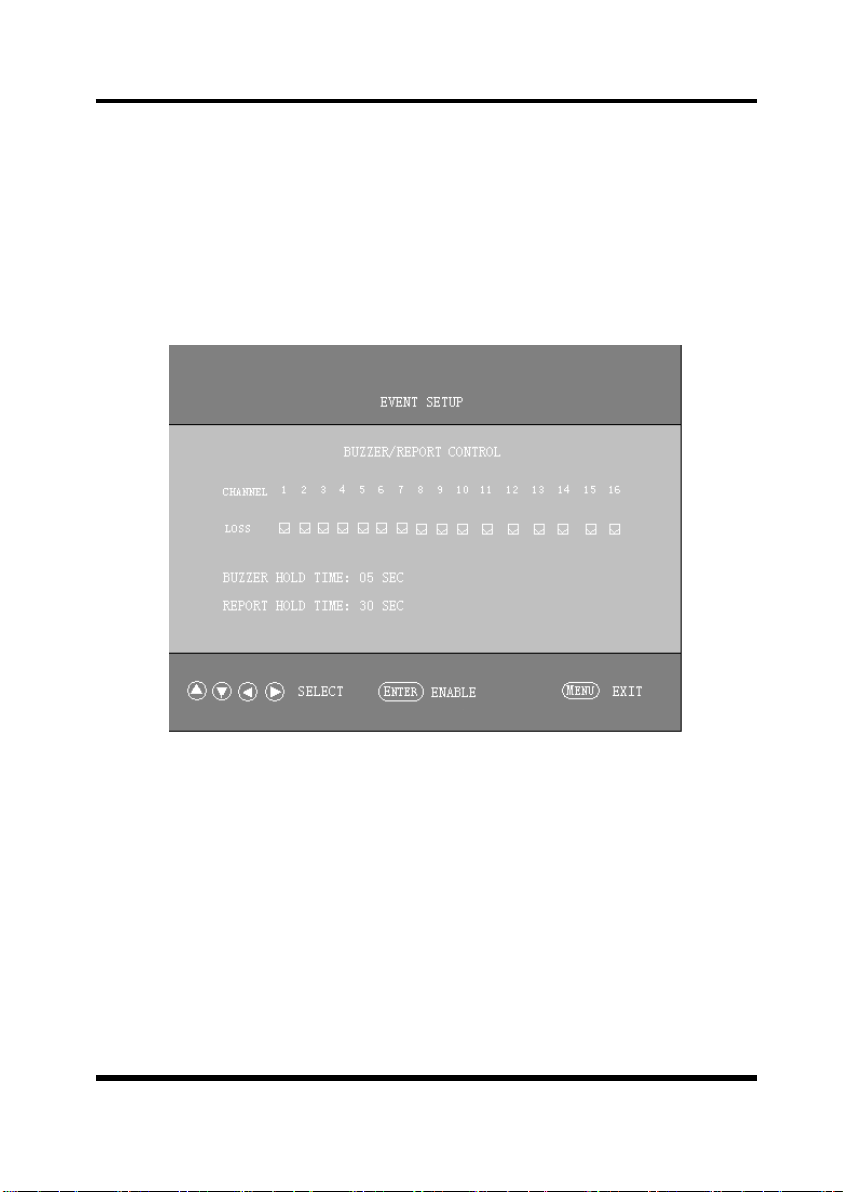

5.6 Event Setup Menu………………………………………….15
5.7 Event Report………………………………………………..16
5.8 Event List Clear Menu……………………………………..17

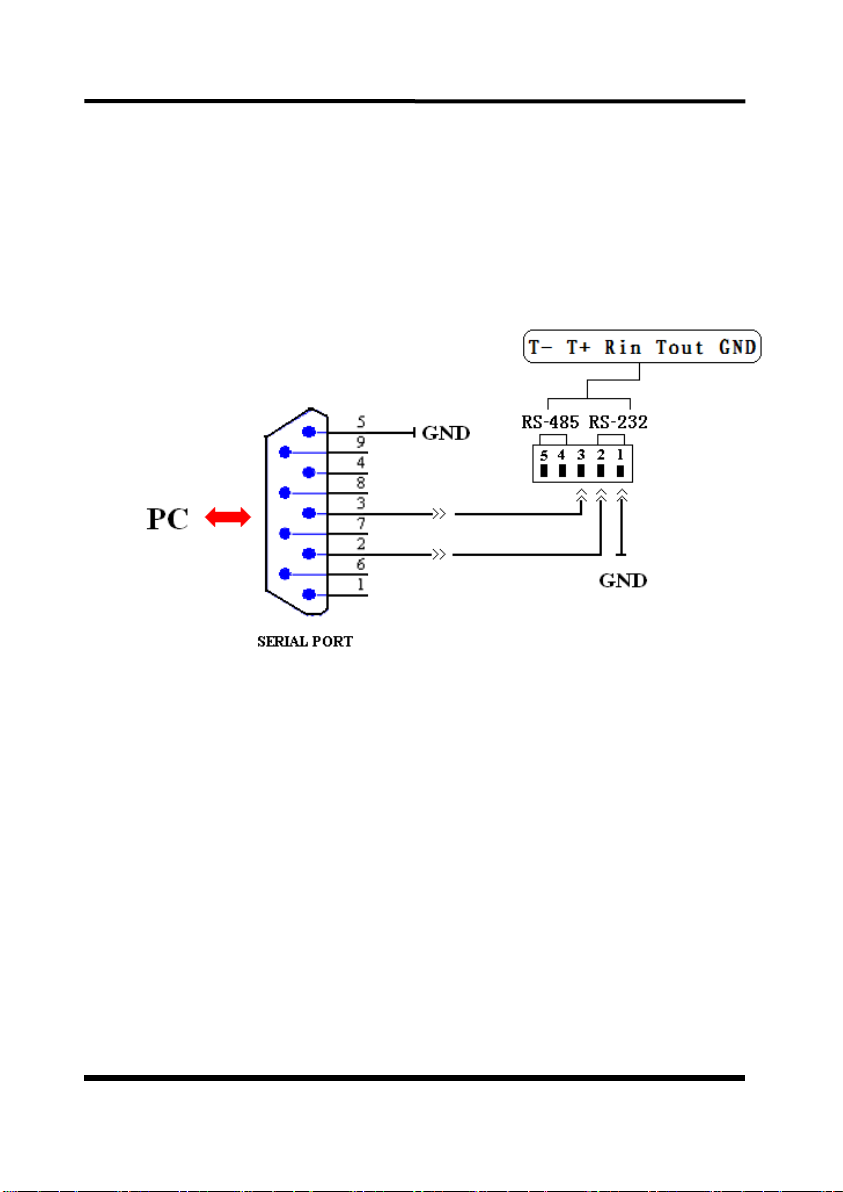

6. RS-232C and RS485 Interface………………………………18
Page 4
2 / 19
Page 5
3 / 19
1.System Features
- 4 channel audio input,1 channel audio output
- Connects up to 4/8/16 Video Camera
Adjustable Brightness, Contrast, Saturation, Hue and Sharpness
- High Resolution
720X480 60Hz for NTSC
720X576 50Hz for PAL
- Various Display Modes
4 /8/16 Split Mode
Full Screen Mode
PIP Screen Mode
Realtime 8 Split Mode
Non-realtime 16 Split Mode
Dual Split Mode
Auto Sequence Mode
- High Performance Freeze Function
Flicker Free Image Capture
- High Performance Zoom Function
Selectable Zoom Area
- Various Overlay Information
Camera Title
Real Time and Date
Loss Message
- Playback in DUAL QUAD or Full Screen Image
- Provide Various Event Input and Detection
Video Loss Detection
60 Event Report
Built-in Buzzer and Relay Output
- Remote Control by Infrared Transmitter and RS-232 connection (option)
- Camera Control by RS485 connection (option)
Page 6
4 / 19

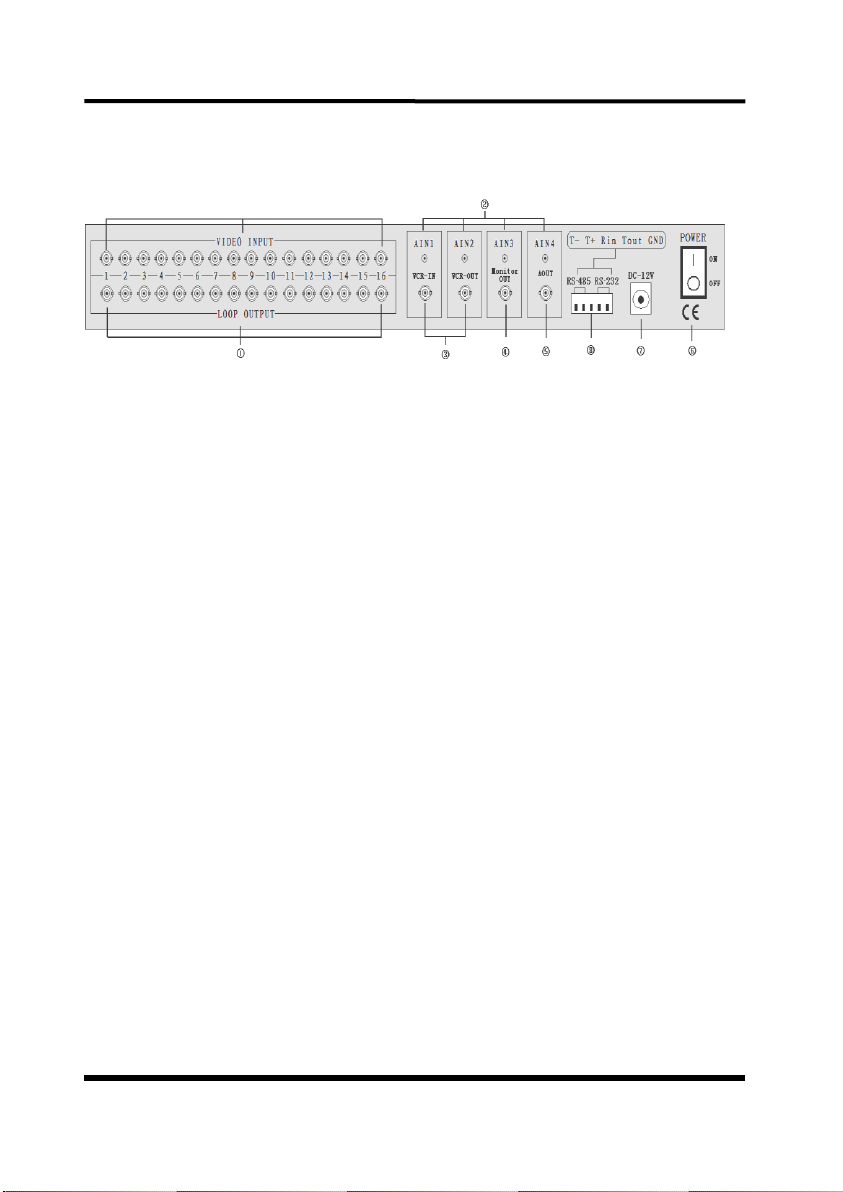

2.Rear Panel Installation
16 Split system
Camera Connection
Accept 16 loop composite video inputs from the camera.
Monitor Connection
Provide 1 composite video output for the main monitor.
VCR OUT Connection
Provide 1 composite video output for recording in the VCR.
VCR IN Connection
Accept 1 composite video input for playback from the VCR.
AUDIO IN Connection
Accept 4 composite audio inputs from the camera.
AUDIO OUT Connection
Provide 1 composite audio output for the main monitor.
RS485 / RS-232 Connection
Provide RS485 interface to control camera.
Provide RS-232 interface to be controlled by HOST.
Power Switch
1 : ON
○ : OFF
Power Jack Connection
DC 12V/1.5A, Center is positive
Page 7
5 / 19
3.Front Key Operation

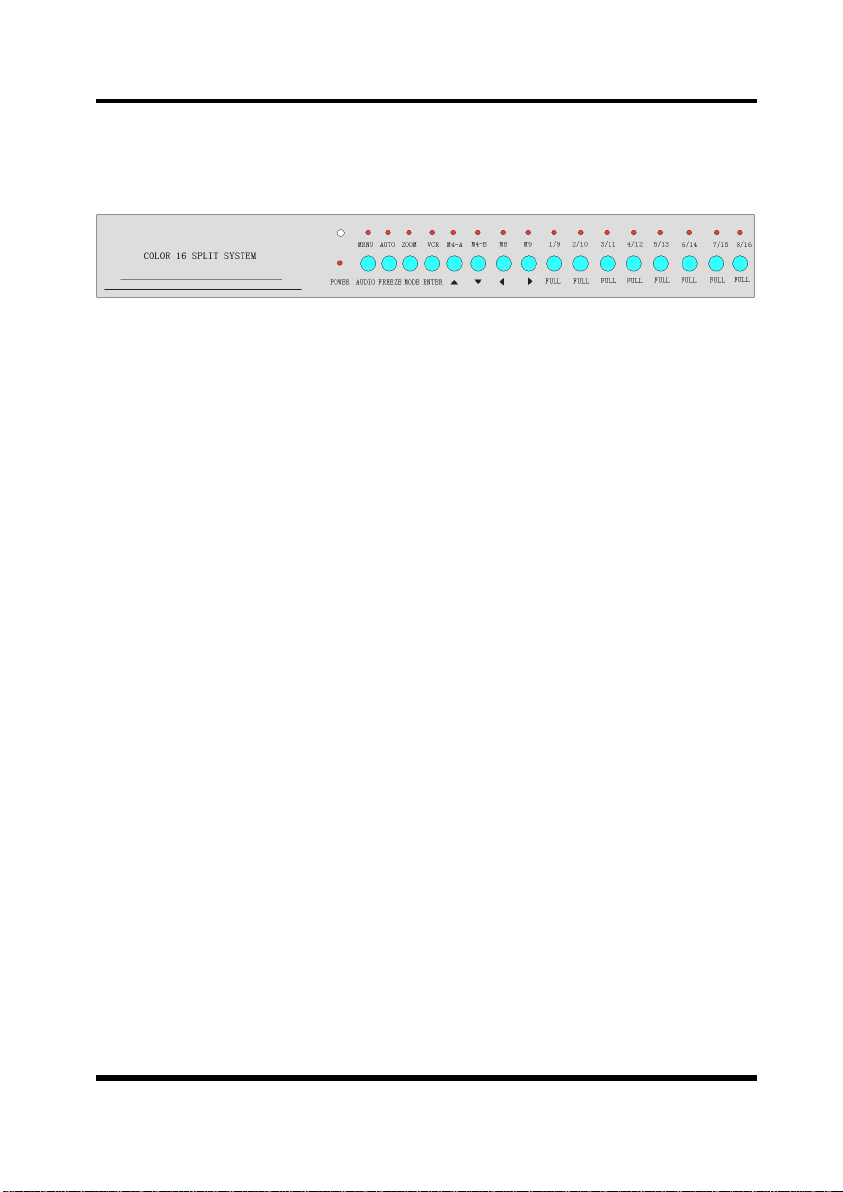

16 Split system front panel
Note: (*L) – Press key continuously more than one second to enter menu
options.
(**S) – Press key less than one second to enter menu options.
⑴ MENU (*L) : Enter or Exit main menu mode.
AUDIO (**S) : switch audio channel or turn off audio
⑵ AUTO (*L) : Auto channel switch ON/OFF
FREEZE (**S)：Press it to freeze/un-freeze display windows.
⑶ ZOOM (*L) : Enter or exit ZOOM display mode.
MODE (**S) : Enter 16 Split ,picture in picture and Dual Split mode.
⑷ VCR (*L) : Enter Playback function
ENTER (**S) : Enter menu setup
⑸ M4-A / ▲ (*L) : Enter or Exit PTZ control function
M4-A / ▲ (**S) : Master QUAD display / up direction button
⑹ M4-B / ▼(**S) : Slave QUAD display / down direction button/switch
channel for PTZ controlling
⑺ M8/◄ (**S) : 8 Split display / left direction button
⑻ M9/► (**S) : 9 Split display / right direction button
⑼ 1/9 / FULL : Channel 1 ( channel 9) display
⑽ 2/10 / FULL : Channel 2 ( channel 10) display
Page 8
6 / 19
⑾ 3/11 / FULL : Channel 3 ( channel 11) display
⑿ 4/12 / FULL : Channel 4 ( channel 12) display
⒀ 5/13 / FULL : Channel 5 ( channel 13) display
⒁ 6/14 / FULL : Channel 6 ( channel 14) display
⒂ 7/15 / FULL : Channel 7 ( channel 15) display
⒃ 8/16 / FULL : Channel 8 ( channel 16) display
4. Function description
4.1 Button MENU / AUDIO
● MENU: Press the MENU (*L) button to enter or exit menu
setup.

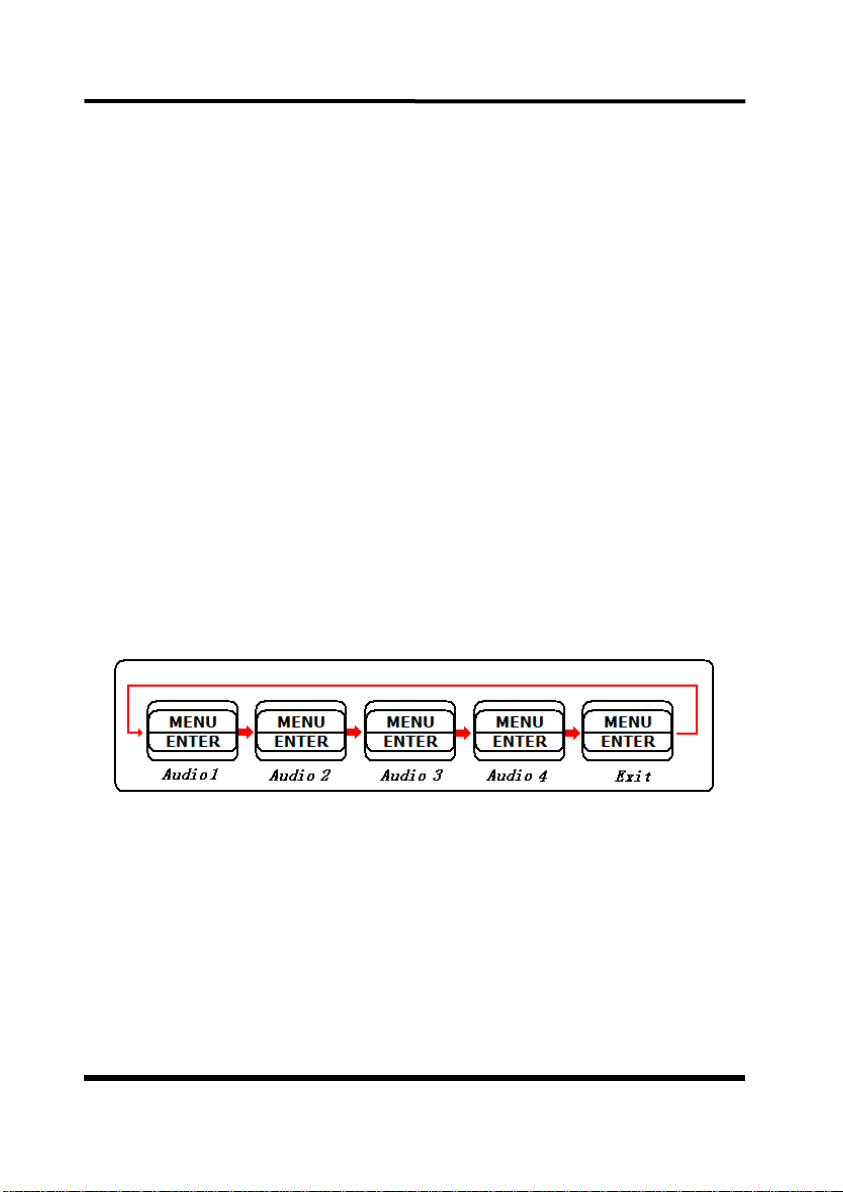

● AUDIO : Press the AUDIO (**S) button to switch audio
channel to listion in or turn off audio.
4.2 Button AUTO/ FREEZE
● Auto : Press the Auto (*L) button to sequentially display the
turned-on video channels (CH1,CH2,CH3,CH4…..CH16, 8
split and 16 split if turned ON in the Auto sequence setup
mode) in the display mode windows. The time of display
video channels can be programmed by menu setup. Press
any key exit AUTO mode.
● Freeze : Press the Freeze (**S) button will freeze/un-freeze
the display window.

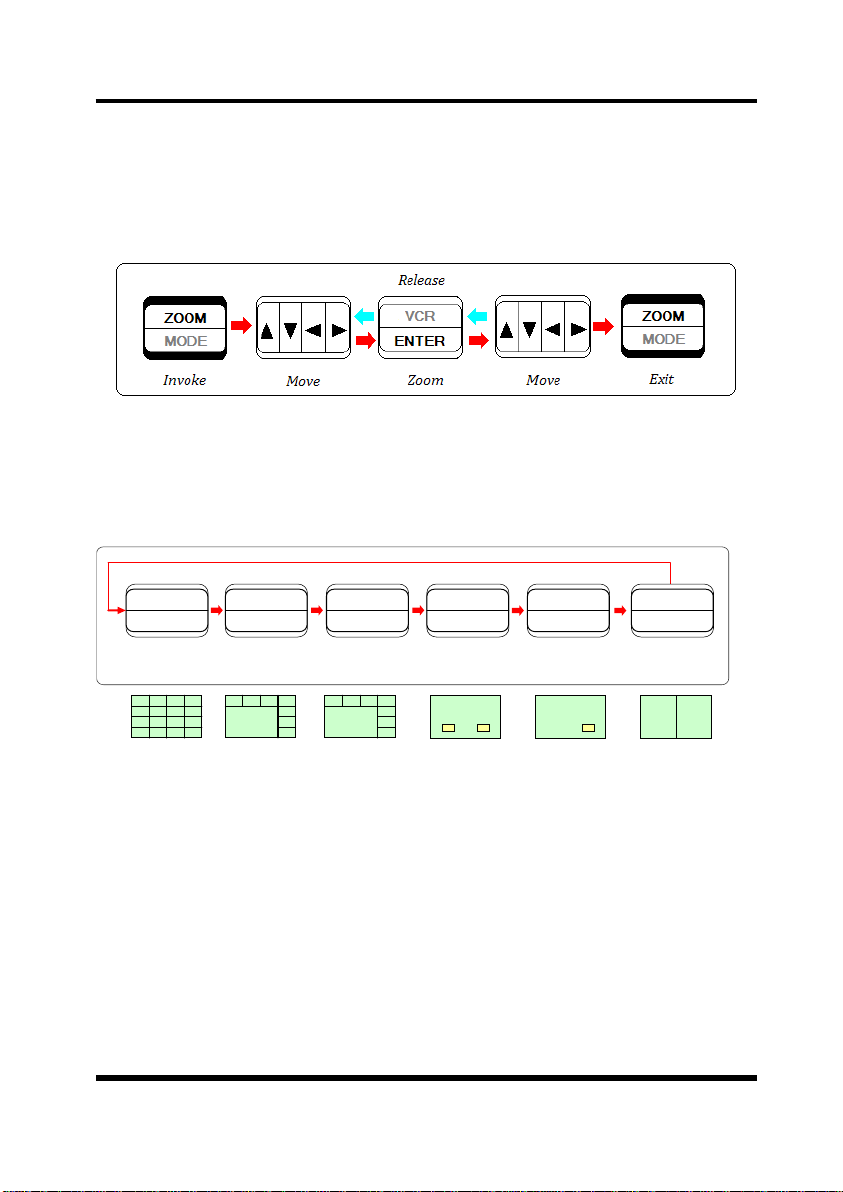

4 .3 Button ZOOM/MODE
Page 9
7 / 19
ZOOM
MODE
ZOOM
MODE
16 Split 2 PIP
ZOOM
MODE
1PIP
ZOOM
MODE
Dual Split
ZOOM
MODE
ZOOM
MODE
8 Split 8 Split
● ZOOM : Press the ZOOM (*L) button to enter 2 * ZOOM
mode. The user can use the “M4-A /▲ “, “M4-B /▼ “,
“M8/◄“, “M9/►“buttons to move the ZOOM-in frame. Press
the ZOOM (*L) button again will return to previous display
mode.
● MODE : Press the MODE (**S) to enter the MODE setup
mode. By default, the display modes are circulated as the
following sequence, Non-realtime 16 Split, realtime 8split,2
Picture-in-Picture, 1 Picture-in-Picture and Dual Split for
each MODE key .
In 8split and PIP mode, press “ENTER” key enter setup function for
select display channel and channel display area. Press up and down
(▲▼) key to select item to setup . Press left and right(◄►) key to
select which value we needed. Press “ENTER” key again to exit this
setup function.
In two screen compared mode, select any two channel to compared
screens. Press “ENTER” key enter setup function for select display
channel and circle display star area. Press up and down(▲▼) key to
select item to setup. Press left and right(◄►) key to select which
value we needed. Press “ENTER” key again to exit this setup
function.
Page 10
8 / 19
4.4 Button VCR / ENTER
● VCR : Press the VCR (*L) button to enter VCR playback
mode. The user can use 4 arrow keys and 4 channel
keys(▲,▼,◄,►，1/9，2/10，3/11,4/12) to select each channel
in the VCR mode. Press the VCR (*L) button again will return
to previous display mode.
● ENTER : In menu setup mode ,press the ENTER (**S) to
select the value.
4.5 Button M4-A / ▲
● M4-A: Press the M4-A (*L) button to enter PTZ controlling
function.Press the M4-B (*L) button again to exit PTZ
controllling function.
● M4-A: Press the M4-A (**S) button to display master QUAD.
● ▲: Press the ▲ (**S) to move cursor in menu setup.
4.6 Button M4-B / ▼
● M4-B: Press the M4-B (**S) button to switch channel for PTZ
in opening PTZ function.
● M4-A: Press the M4-A (**S) button to display slaver QUAD.
● ▼: Press the ▼ (**S) to move cursor in menu setup.
4.7 Button M8/◄
● M8: Press the M8 (**S) button to switch 8 split display.
● ◄: Press the ◄ (**S) to move cursor or adjust the value in
menu setup.
4.8 Button M9/►
● M9: Press the M9 (**S) button to switch 9 split display.
● ►: Press the ► (**S) to move cursor or adjust the value in
menu setup.
4.9 Button 1/9 / FULL, 2/10 / FULL, 3/11 / FULL…ect.
● 16 channel keys select camera to be displayed as full
screen.

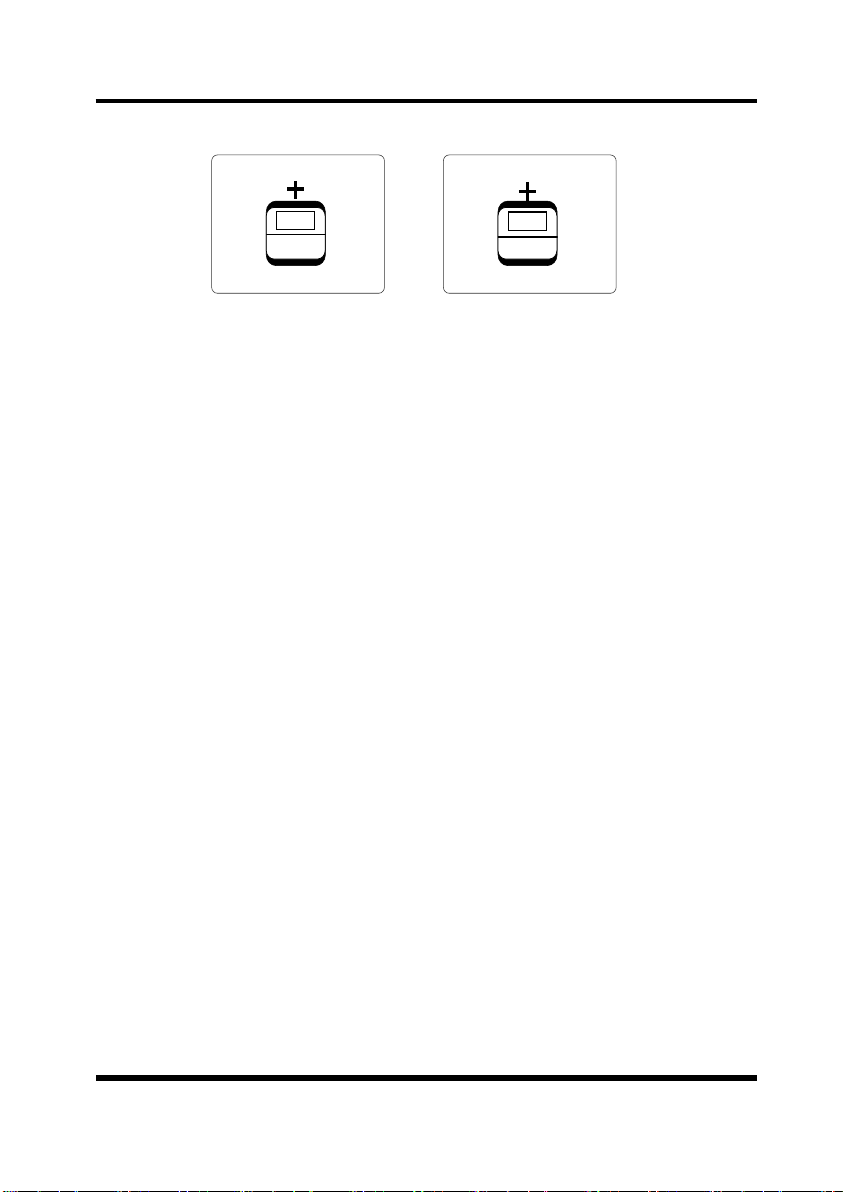

4.10 PAL/NTSC System
System can be defined as NTSC or PAL standard with the
following method. The first method is power on with pressing
7/15 or 8/16 key and the second one is to define in the setup
menu.
Page 11
9 / 19
PAL
Connect Power Cable
NTSC
Connect Power Cable
7/ 15
FULL
8 / 16
FULL

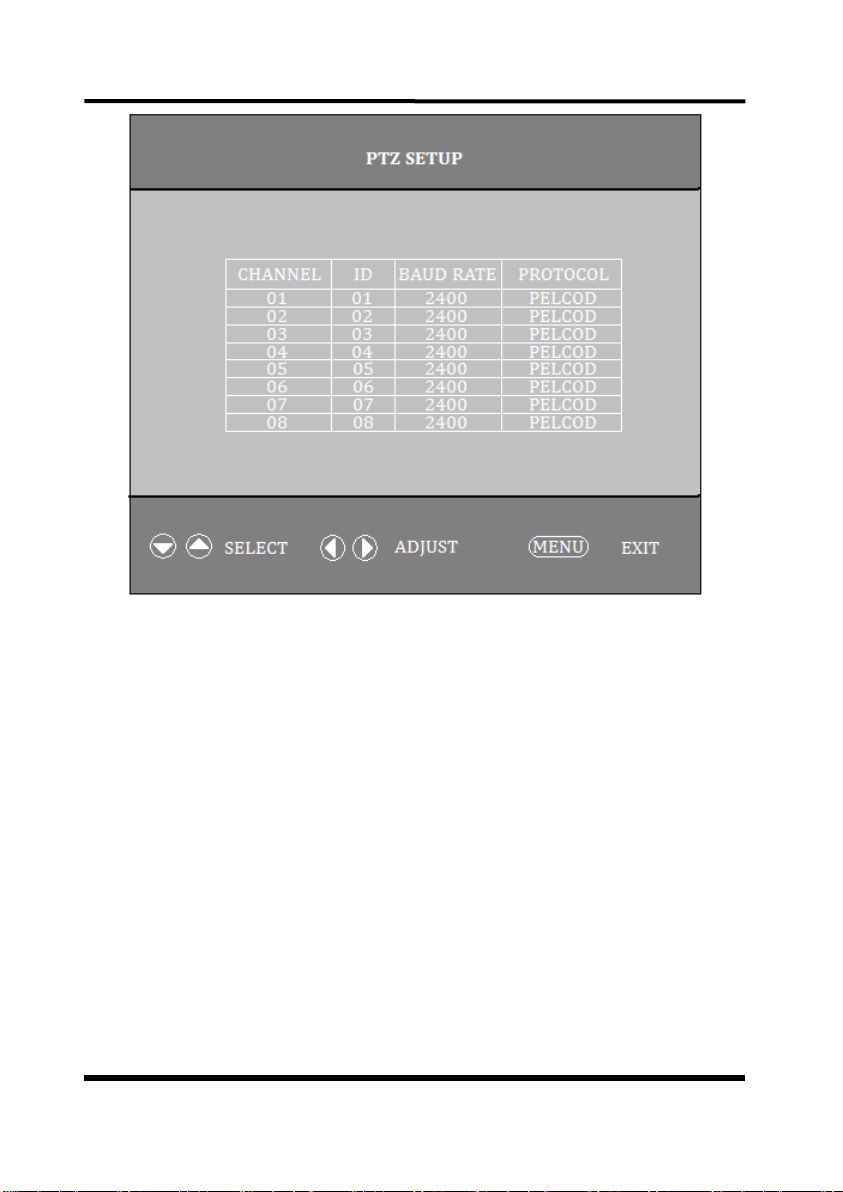

4.11 PTZ Function
⑴ Press the MENU (*L) key to enter the system establishment main
menu, choose "system setup"and enter by press the ENTER (**S)
key, "ptz setup" must establish for "yes" ,then press the ENTER
(**S) key to enter the sub-menu . Then adjust the value to
ensure the value match as the channel of ptz connected.
⑵ Press the M4-A (*L) button to enter PTZ controlling function.Press
the M4-B (*L) button again to exit PTZ controllling function.
⑶ Press the M4-B (**S) button to switch channel for PTZ controlling
when the ptz controlling is effective
⑷ The control key definition (as follows):
◄：stop； 8/16 FULL：automatic pattern
►：right； 1/9 FULL：left； (direction)
2/10 FULL：down 3/11 FULL：up；
4/12 FULL： near 5/13 FULL： far (focal distance)
6/14 FULL： big 7/15 FULL： small (aperture)
Page 12
10 / 19
Page 13
11 / 19

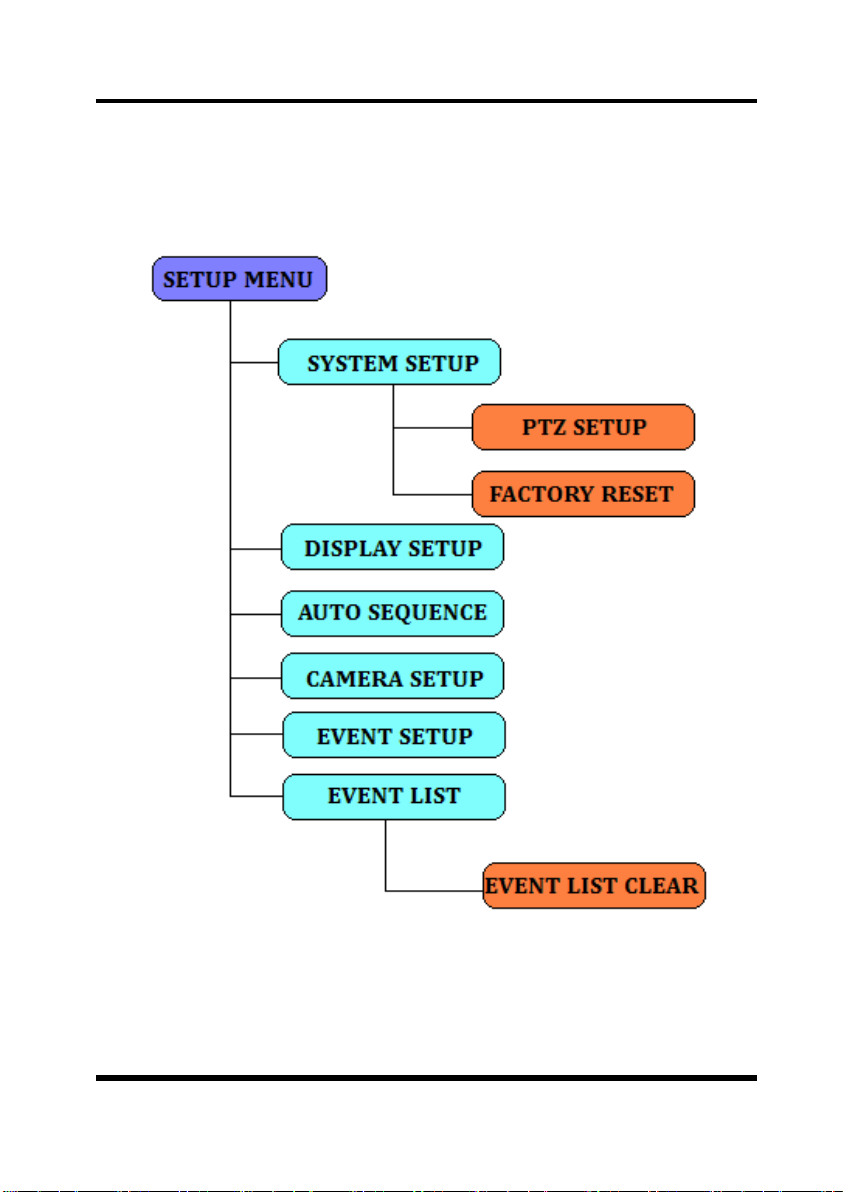

5. Setup Menu Operation
The system provides a built-in GUI setup screen. For each menu, the key
function is described in the lower region to help operation. The following
figure shows the structure of GUI menu.
Page 14
12 / 19

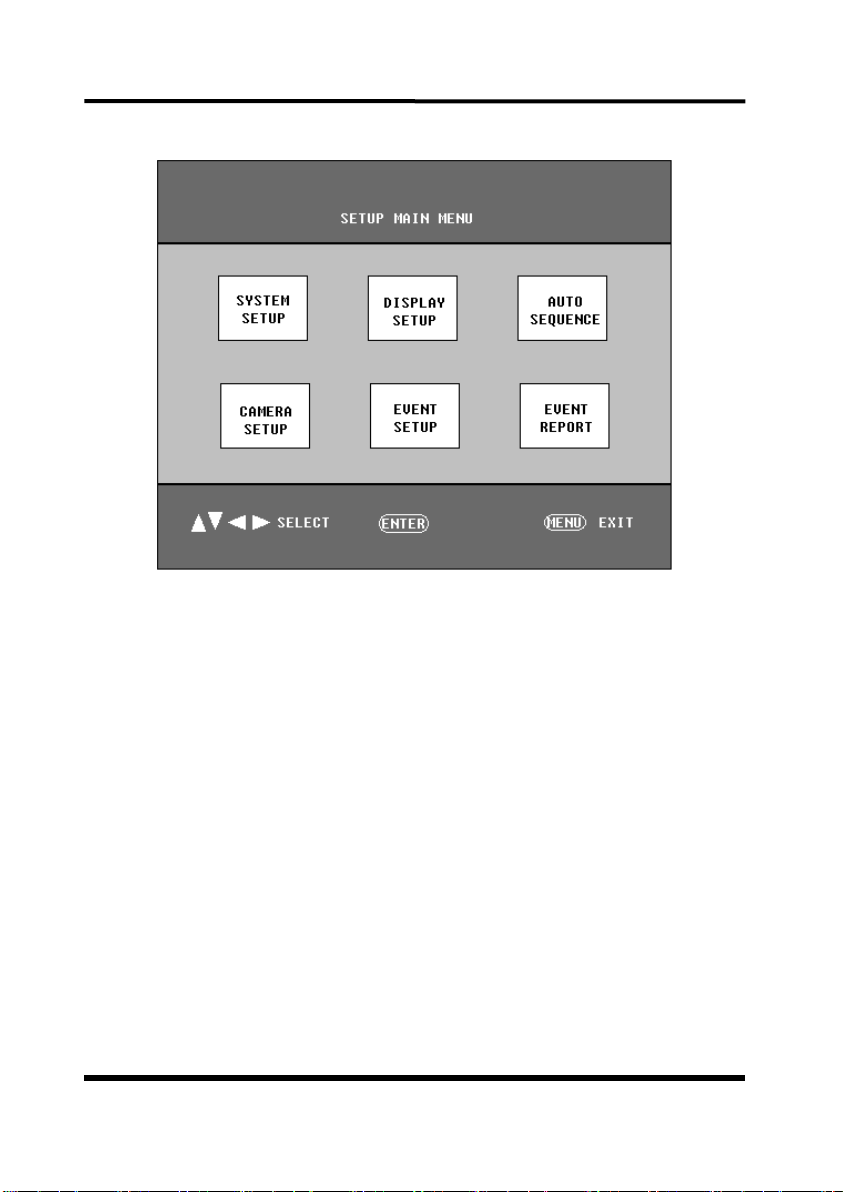

5.1 Setup Main menu:
Press MENU (*L) key to enter main menu setup.
Move cursor to the item of needed setup with ▲/▼.Press
◄/► to select the value. Press ENTER key to enter submenu.
Press MENU (**S) key to exit last menu.
Press MENU (*L) to exit main menu setup.

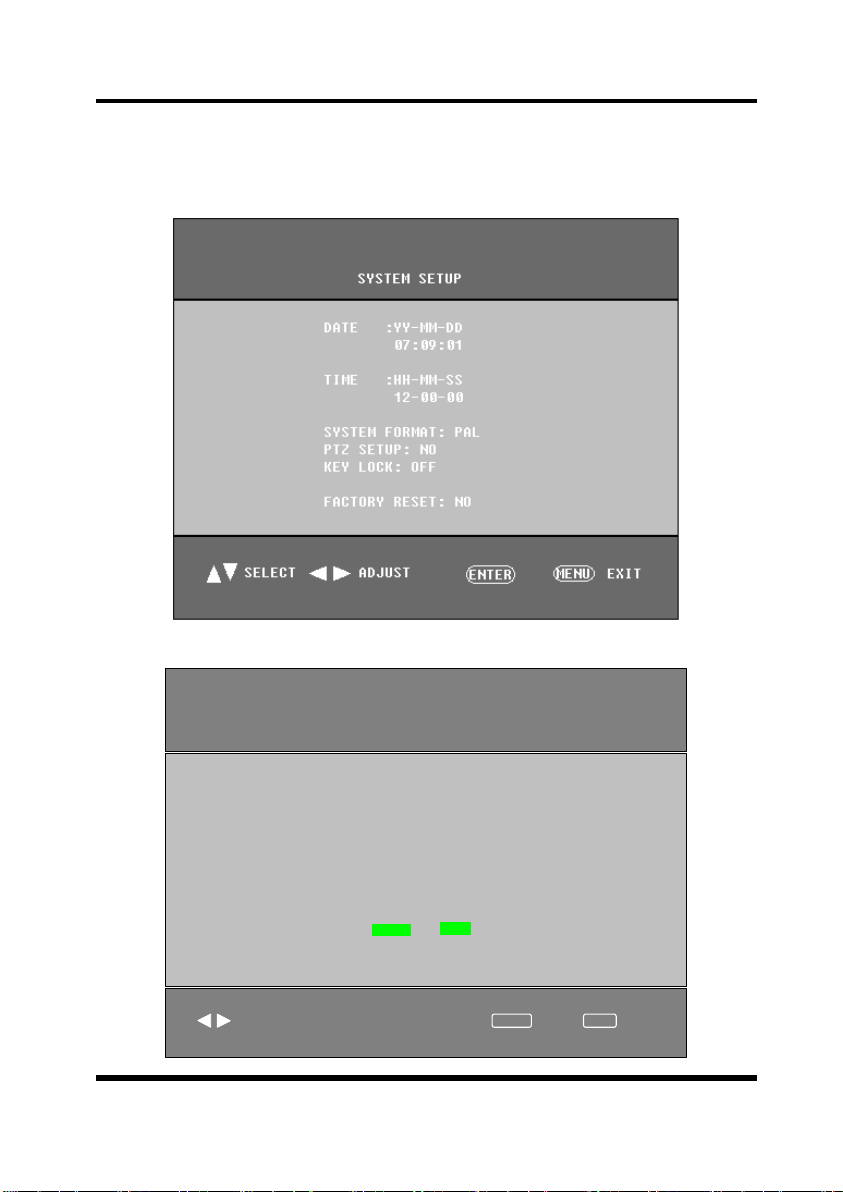

5.2 System Setup Menu
1） Press▲/▼ to select the item of setup .Press◄/► to select the value
；
2） DATA：there are three kinds of display format to data：MM-DD-
YY DD-MM-YY ，YY-MM-DD。Default：YY-MM-DD，07-07-07
3） TIME: time setup. HH：MM：SS is hour, minute and second.
Default：12：00：00.
4） SYSTEM FORMAT：PAL / NTSC. Default ：PAL；
5） PTZ SETUP：If select YES, press ENTER to enter PTZ setup.
6） KEY LOCK: key lock. If select NO, after exit menu setup mode, all
key be locked except MENU key.
Default：OFF；
Page 15
13 / 19
WARNING!
FACTORY RESET
EXITENTER MENUSELECT
THIS SYSTEM GETS TO LOSE
THE CURRENT SETTING VALUE
AND WILL BE INITIALIZED
WITH FACTORY RESET MODE.
ARE YOU SURE?
YES
NO
FACTORY RESET: comeback to factory setup. Press ◄/► to
select YES or NO. If select NO, press ENTER to enter into next dialog
box. Press ◄/► to select YES and press ENTER to comeback factory
setup. Default：NO
Factory Reset Menu
Page 16
14 / 19

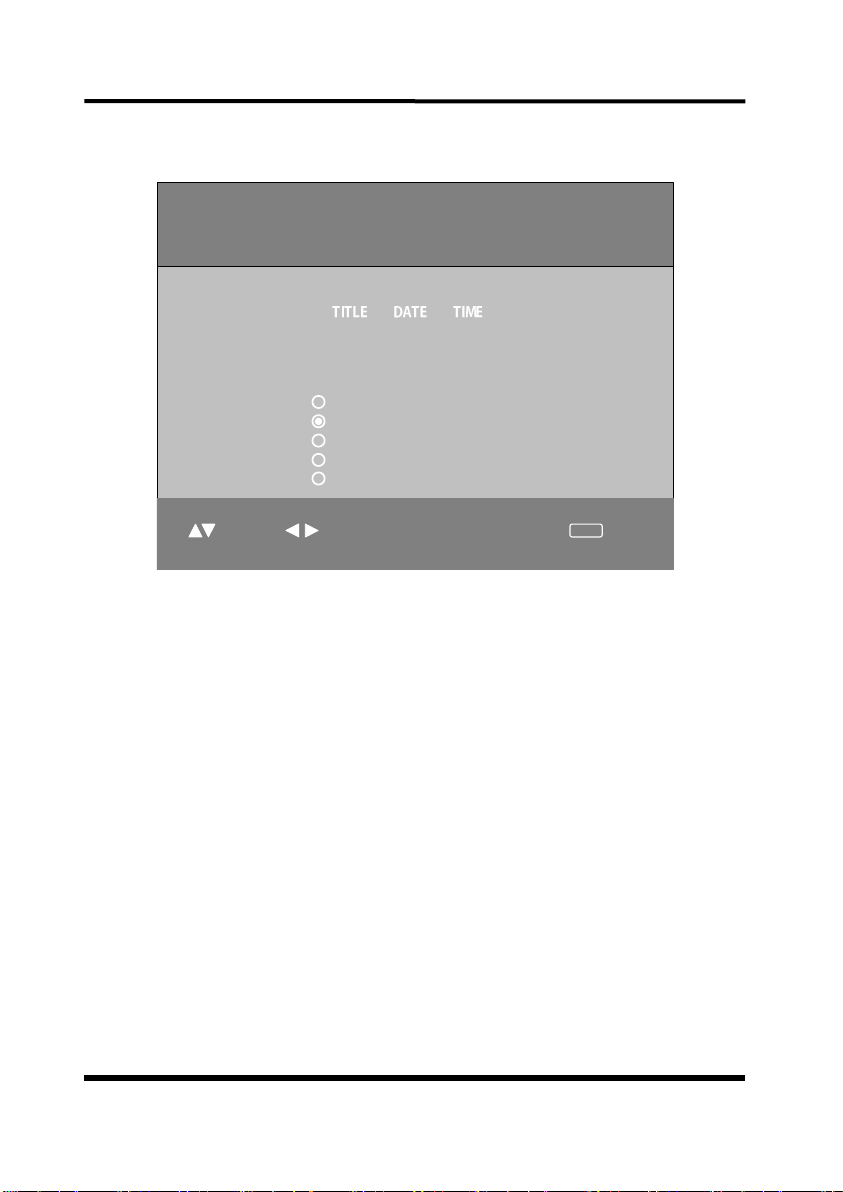

DISPLAY ON SCREEN
BORDER LINE COLOR
DISPLAY SETUP
☑ ☑ ☑
SCREEN POSITION X : 0
SELECT EXITMENUADJUST
Y : 0
BLACK
GRAY1
GRAY2
WHITE
OFF
5.3 Display Setup Menu
① DISPLAY ON SCREEN： Select YES or NO to display
camera title, data time in the screen. Press ▲/▼to move
cursor, press ENTER to change state. Display “√”
② SCREEN POSITION：Select screen display area. X
position: -10 c +10. Y position: -4 ～ +3 . Default(X：0 ，Y：
0).
③ BORDER COLOR：Border colors have black, gray, white
and selected.
Default: GRAY2.
Page 17
15 / 19
TITLE : CAMERA01
CONTRAST : 0
HUE : 0
SHARPNESS : 0
CAMERA SETUP
BRIGHTNESS : 0
MIRRORING : OFF
SATURATION : 0
CAMERA : 01
SELECT EXITMENUADJUST

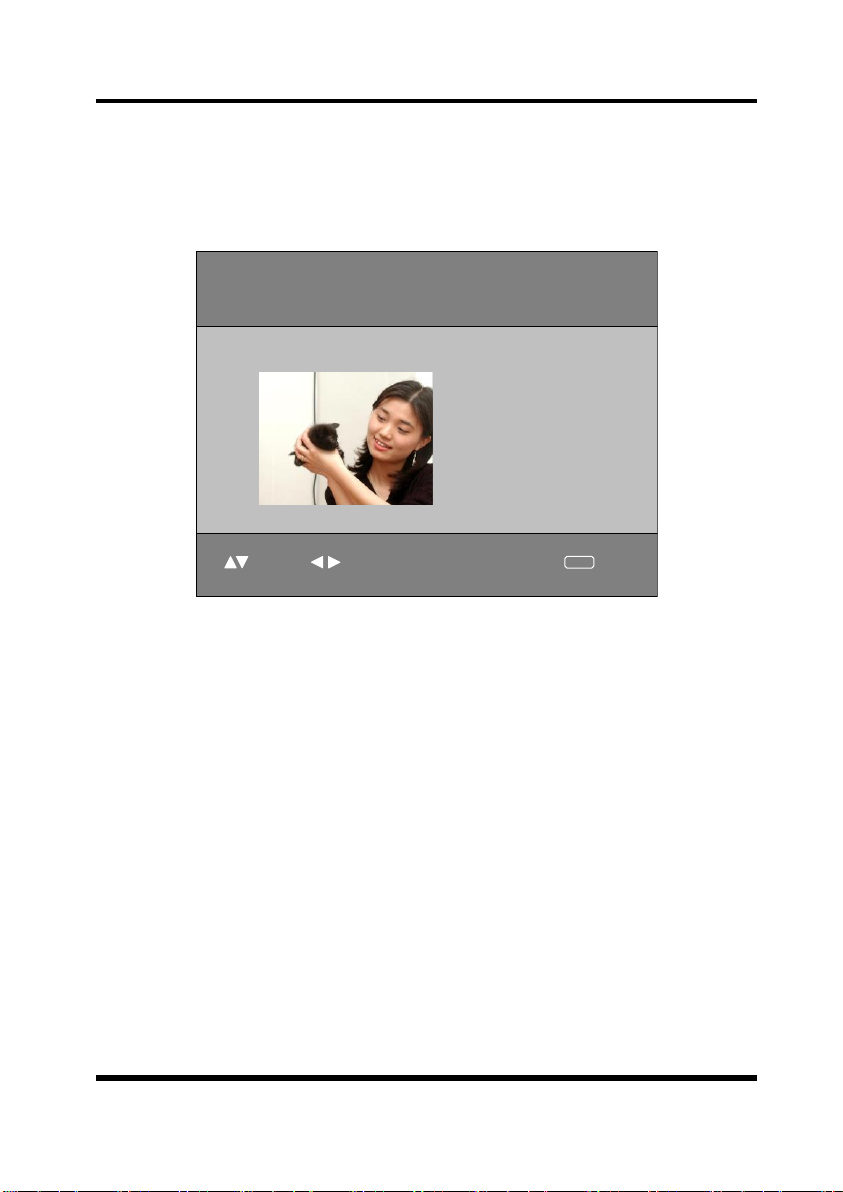

5.4 Camera Setup Menu
Setup each camera’s title / brightness /contrast / saturation / hue /
sharpness and mirroring independently.
① CAMERA：Select the camera with ◄/►.Default: ch1.
② TITLE: Channel name setup. Press ▲/▼ to move cursor to
next character and press ◄/► to change character. Default:
CAMERA1
③ BRIGHTNESS：Brightness setup. From –100 to +100 can
be selected. Press long ◄/► key, value can be continued
changed. Default: 0
④ CONTRAST：Contrast setup. From –100 to +100 can be
changed. Press long ◄/► key, value can be continued
changed. Default: 0
⑤ SATURATION：Saturation setup. From –100 to +100 can be
selected. Press long ◄/► key, value can be continued
changed. Default :0
⑥ HUE： Hue setup. From –100 to +100 can be selected.
Press long ◄/► key, value can be continued changed.
Page 18
16 / 19
PAGE A 8 : 01 SEC
CAMERA2 : 01 SEC
CAMERA4 : 01 SEC
CAMERA8 : 01 SEC
CAMERA1 : 01 SEC
CAMERA5 : 01 SEC
CAMERA3 : 01 SEC
CAMERA6 : 01 SEC
CAMERA7 : 01 SEC
AUTO SEQUENCE DWELL TIME
SELECT EXITMENUADJUST
PAGE B 8 : 01 SEC
CAMERA10 : 01 SEC
CAMERA12 : 01 SEC
CAMERA16 : 01 SEC
CAMERA9 : 01 SEC
CAMERA13 : 01 SEC
CAMERA11 : 01 SEC
CAMERA14 : 01 SEC
CAMERA15 : 01 SEC
16 CHANNEL : 01 SEC
Default :0
⑦ SHARPNESS ： Sharpness setup. From 0 to 3 can be
selected. Press long ◄/► key, value can be continued
changed. Default :0
⑧ MIRRORING ： Mirroring display camera screen. Default:
OFF
5.5 Auto Sequence Setup Menu
Setup display times of AUTO sequence to each screen. There are
skip/1sec~99sec be selected.
Default: 1sec.
Page 19
17 / 19
5.6 Event Setup Menu
Setup loss detection independently of channels.
① BUZZER/REKPORT ： Control buzzer and relay in alarm,
video loss and motion states. Press ▲/▼/◄/► to select item
o and press ENTER to change state. “√” is ON. Default:
VIDEO LOSS: NO (√).
② BUZZER HOLD TIME：OFF/1ses~99ses can be selected.
Default: 5ses.
③ REPORT HOLD TIME：Report of relay.
④ Holding time. OFF/1ses~99ses can be selected. Default:
30sec.
Page 20
18 / 19
EVENT REPORT
2
1
4
3
2
1
4
3
2
1
CH
LOSS17:56:0307-07-308
LOSS17:56:0307-07-307
LOSS16:56:0307-07-304
LOSS16:56:0307-07-303
LOSS16:56:0307-07-302
LOSS16:56:0307-07-301
LOSS18:56:0307-07-3010
LOSS18:56:0307-07-309
LOSS17:56:0307-07-306
LOSS17:56:0307-07-305
EVENTHH:MM:SSYY-MM-DDNO
1 OF 6 PAGE
SELECT EXITMENU
LIST CLEAR : NO
SELECT PAGE

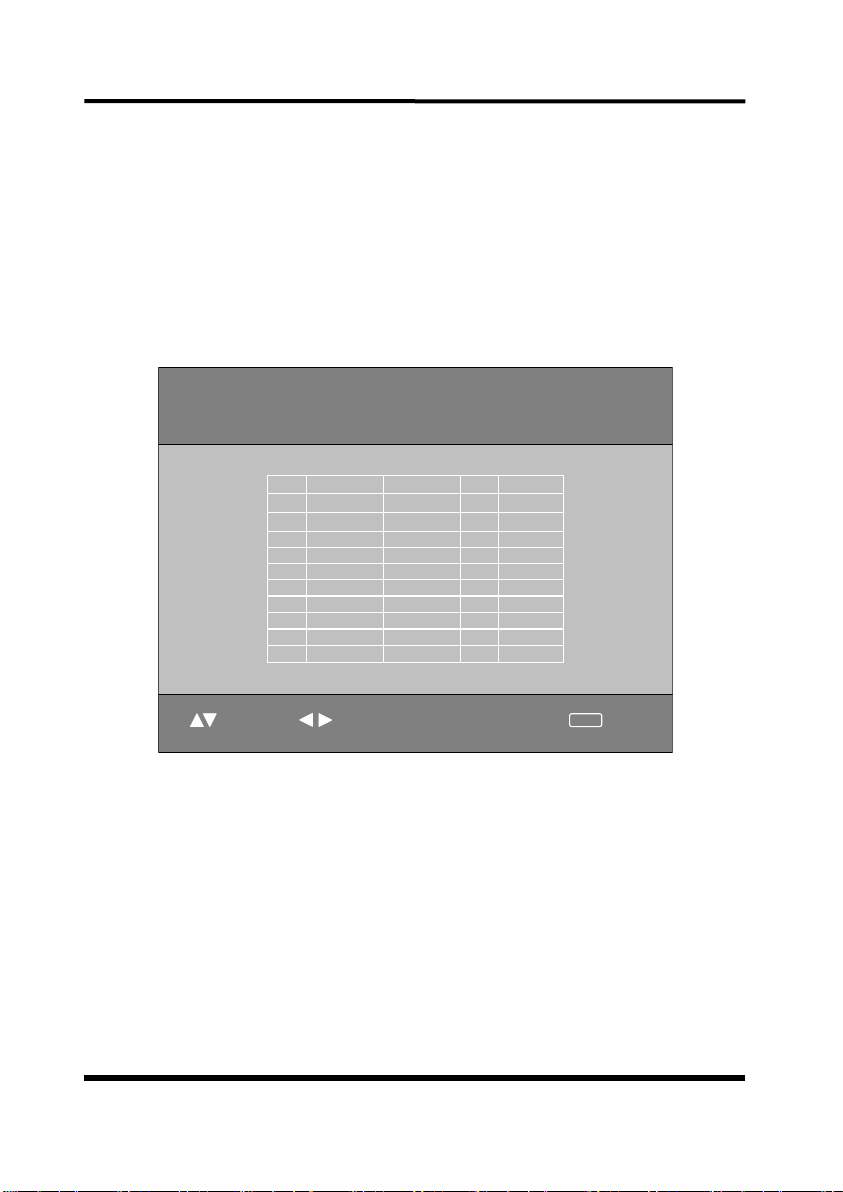

5.7 Event Report
Display every report of alarm. Event report has 6 page totally and
10 recordings per page. Press ◄/► to change pages.
LOSS: video loss.
ALARM: exterior alarm
MOTION: motion detection.
LIST CLEAR: Clear the list of reports.
Page 21
19 / 19
WA R N I NG !
LI S T C L E A R
EX I TEN T E R ME N USE L E C T
TH I S S Y S T E M G E T S T O L O S E
TH E C U R R E N T EV E N T L I S T
AN D W I L L B E I N I T I A L I Z E D
WI T H B L I N K .
ARE YOU SUR E?
YES NO
5.8 Event List Clear Menu
Page 22
20 / 19
6. RS-232C and RS485 Interface
The host providing RS-232C interface can control this system remotely.
Receiving can be worked by 9600bps.
The detail receiving protocol are explained in Receive Protocol section.
System accepts only 1 byte to get commands from host .
Connection as follow:
The Explanation of connection as follow:
① Ground must be connected into together : The 5th foot of the serial
port connect to the 1th foot of the RS485/RS232 connection .
② The 3th foot of the serial port connect to the 3th foot of the
RS485/RS232 connection .
③ The 2th foot of the serial port connect to the 2th foot of the
RS485/RS232 connection .
Page 23
21 / 19
Byte 7 6 5 4 3 2 1 0
1st 1 0
KEY
KEY
Description
KEY
Description
0
NULL
21
A Page 8 Unite
1
Channel 1
22
B Page 8 Unite
2
Channel 2
23
A Page 9 Unite
3
Channel 3
24
B Page 9 Unite
4
Channel 4
25
Non-realtime 16 Split
5
Channel 5
26
8 A Page
6
Channel 6
27
8 B Page
7
Channel 7
28
2 Picture-in-Picture
8
Channel 8
29
1 Picture-in-Picture
9
Channel 9
30
Dual Split
10
Channel 10
31
Auto Sequence
11
Channel 11
32
Playback
12
Channel 12
33
Freeze
13
Channel 13
34
Zoom
14
Channel 14
35
Menu
15
Channel 15
36 ▲ 16
Channel 16
37
▼
17
Quad A Page(1-4)
38
18
Quad A Page(5-8)
39 19
Quad B Page(1-4)
40
Enter
20
Quad B Page(5-8)
41~63
No operation
Receive Protocol
Page 24
Page 25
FREEZE 4 FREEZE 3 FREEZE 2 FREEZE 1 ZOOM CAM4/- CAM3/+
CAM2/▼ CAM1/▲
AUTO QUAD/ENTER MENU VCR POWER
Loading...
