Page 1
-=C=-=C:::::......;;..T~) LIGHTING

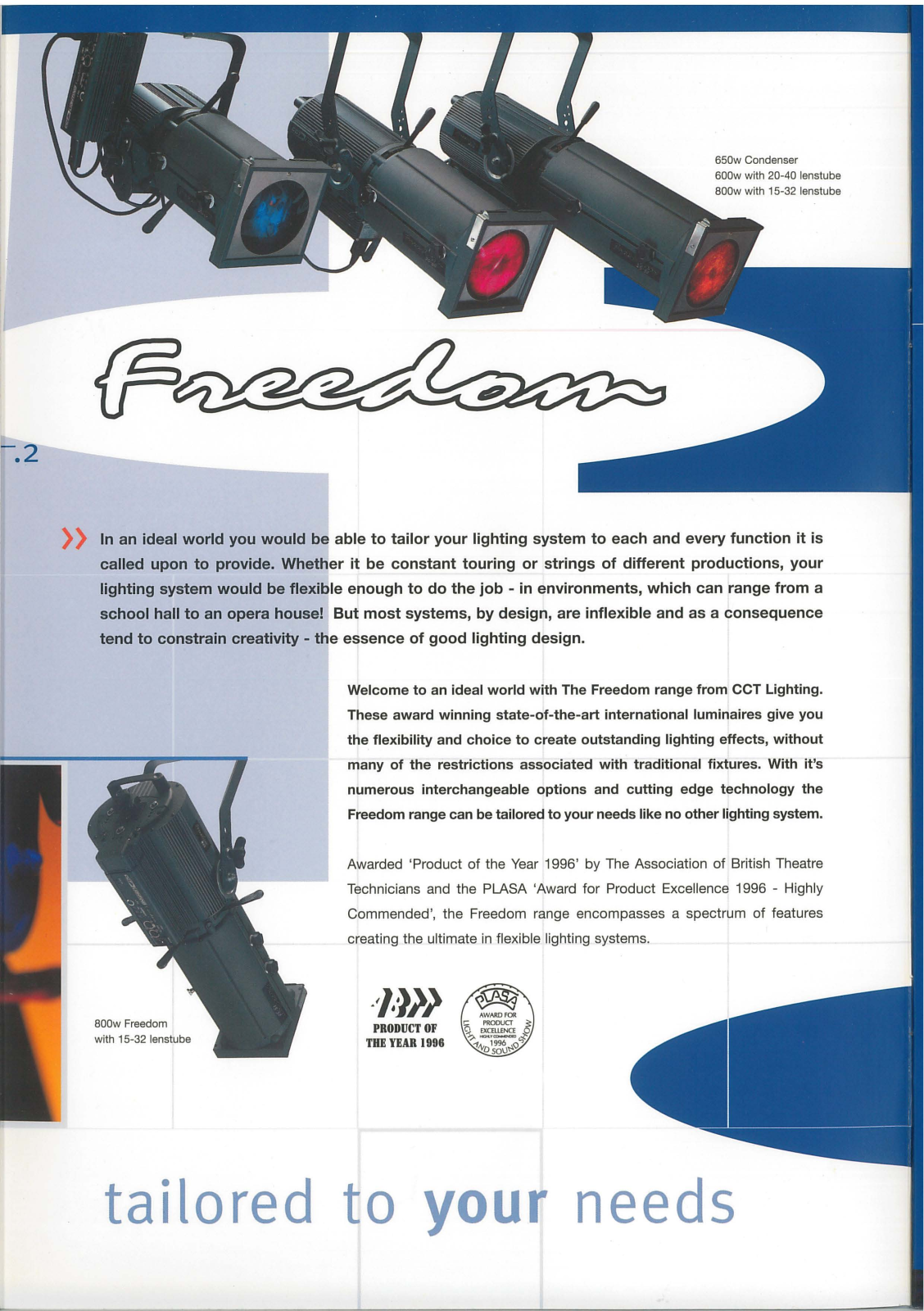

Page 2
-.2
650w Condenser
600w with 20-40 lenstube
BOOw with 15-32 lenstub e
) ) In an ideal world you would be able to tailor your lighting system to each and every function it is
called upon to provide. Whether it be constant touring or strings of different productions, your
lighting system would be flexible enough to do the job - in environments, which can range from a
school hall to an opera house! But most systems, by design, are inflexible and as a consequence
tend to constrain creativity - the essence of good lighting design.
BOOw Freedom
with 15-32 lenstube
Welcome to an ideal world with The Freedom range from CCT Lighting.
These award winning state-of-the-art international luminaires give you
the flexibility and choice to create outstanding lighting effects, without
many of the restrictions associated with traditional fixtures. With it's
numerous interchangeable options and cutting edge technology the
Freedom range can be tailored to your needs like no other lighting system.
Awarded 'Product of the Year 1996' by The Association of British Theatre
Technicians and the PLASA 'Award for Product Excellence 1996 - Highly
Commended' , the Freedom range encompasses a spectrum of features
creating the ultimate in flexible lighting systems.
·I,}))
PRODUCT OF
THE YEAR 1998
tailored to your needs
Page 3
60Dw Freedom
with 15-32 lenstube

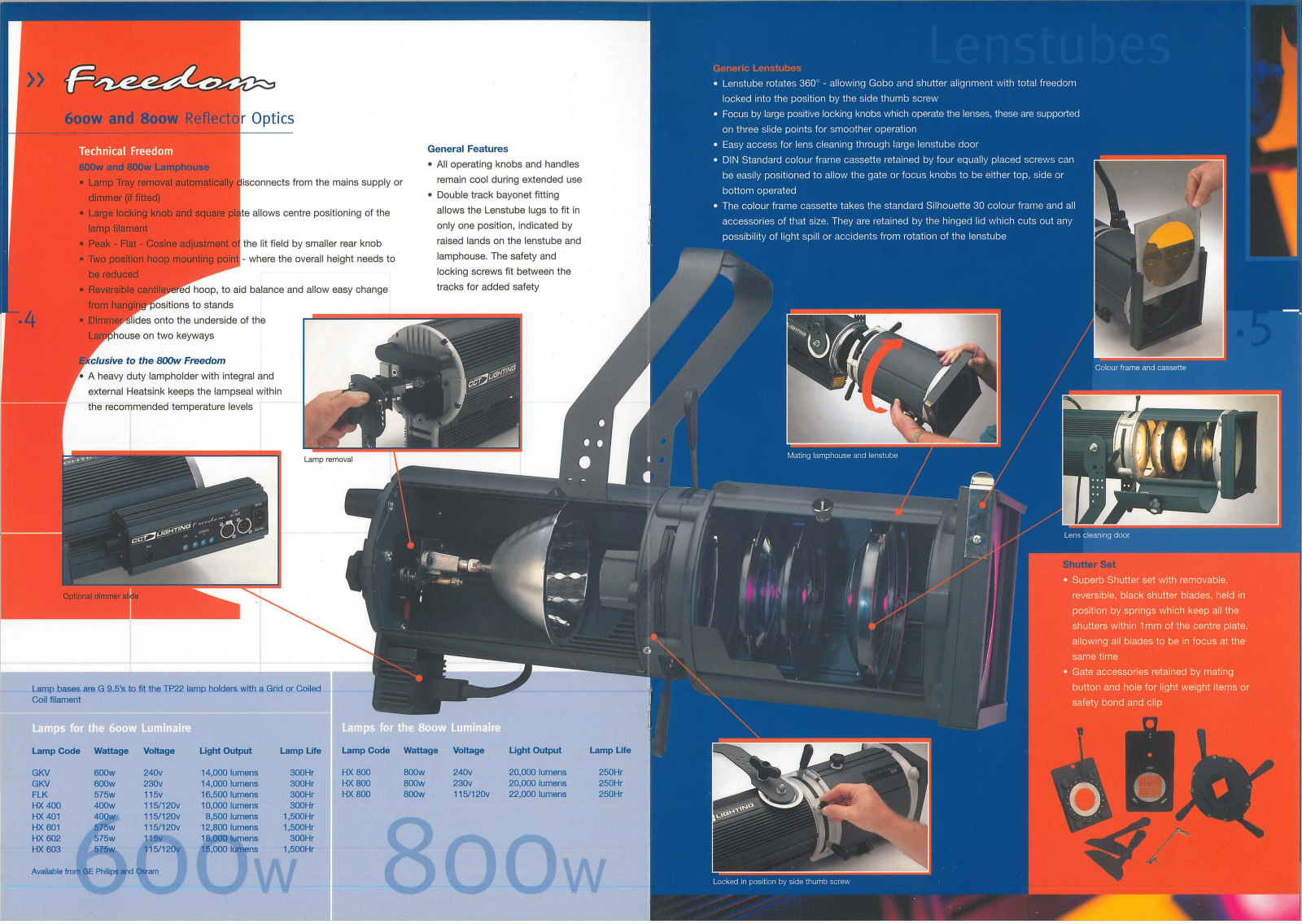

Page 4
r Optics
isconnects from the mains supply or
te allows centre positioning of the
the lit field by smaller rear knob
- where the overall height needs to
elusive to the BOOw Freedom
• A heavy duty lampholder with integral and
external Heatsink keeps the lampseal within
the recommended temperature levels
General Features
• All operating knobs and handles
remain cool during extended use
• Double track bayonet fitting
allows the Lenstube lugs to
fit in
only one position, indicated by
raised lands on the lenstube and
lamphouse. The safety and
locking screws fit between the
tracks for added safety
Lamp bases are G 9.5's to fit the TP22 lamp holders with a Grid or Coiled
Coil filament
Lamp Code
GKV 600w
GKV
Wattage Voltage Light Output Lamp Life
240v 14,000 lumens 300Hr
600w 230v 14,000 lumens 300Hr
FLK 575w 115v 16,500 lumens 300Hr
HX400 400w
HX 401
HX601 575w 115/120v 12,800 lumens 1,500Hr
HX602 575w
HX603
Available from GE Philips d Oeram
400W
576"'
115/120v 10,000 lumens 300Hr
115/120v 8,500 lumens 1,500Hr
115v
115/120v 15,000 lumens 1,500Hr
18,000 lumens 300Hr
Lamp Code
HX 800
HX800
HX 800
Wattage Voltage Light Output
800w 240v 20,000 lumens
800w 230v
800w 115/120v 22,000 lumens
20,000 lumens
Lamp Life
250Hr
250Hr
250Hr

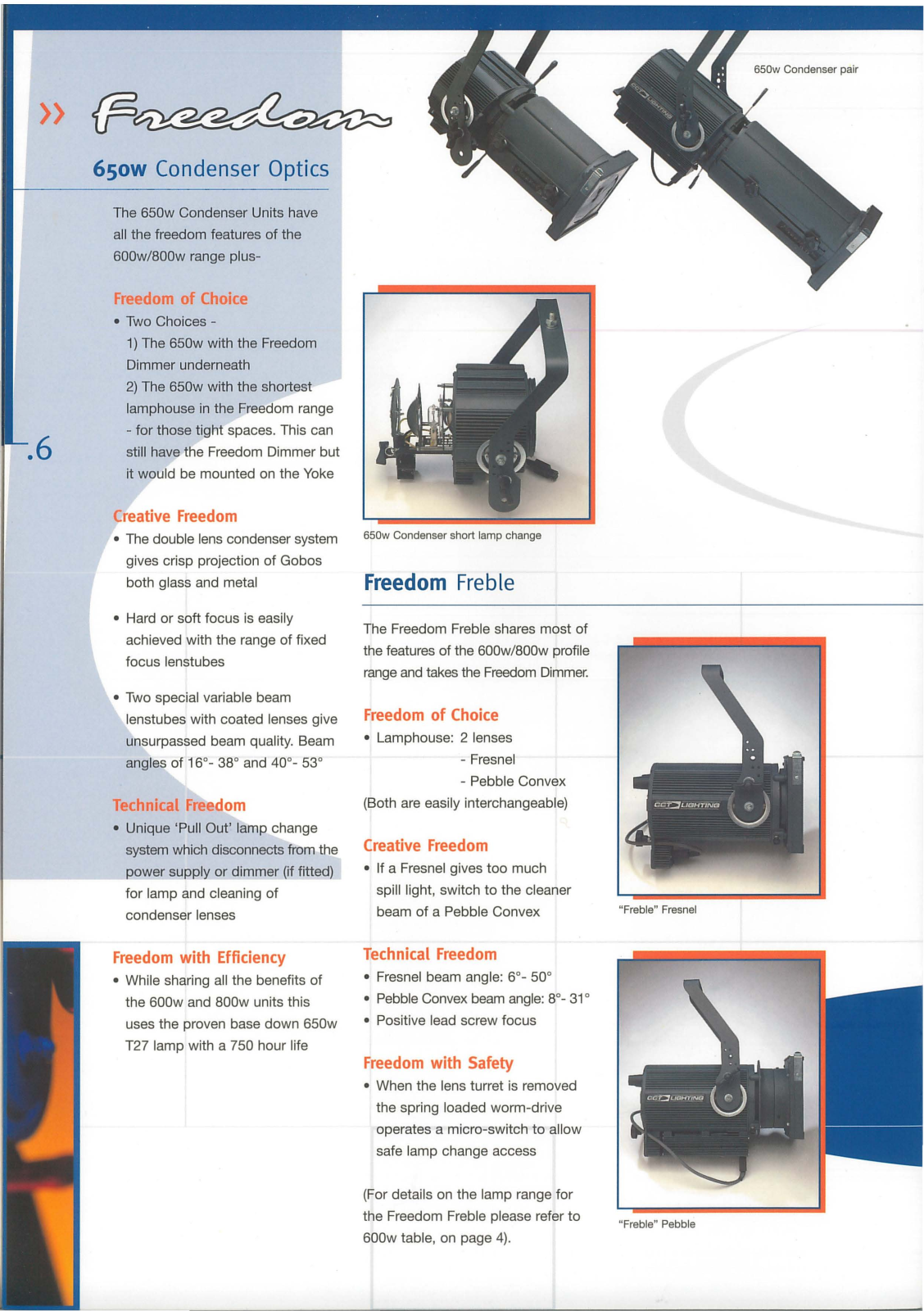

Page 5
>>
.6
65ow Condenser Optics
The 650w Condenser Units have
all the freedom features of the
600w/800w range plus-
Freedom of Choice
• Two Choices -
1) The 650w with the Freedom
Dimmer underneath
2) The 650w with the shortest
lamphouse in the Freedom range
- for those tight spaces. This can
still have the Freedom Dimmer but
it would be mounted on the Yoke
Creative Freedom
• The double lens condenser system
gives crisp projection of Gobos
both glass and metal
650w Condenser short lamp change
Freedom Freble
• Hard or soft focus is easily
achieved with the range of fixed
focus lenstubes
• Two special variable beam
lenstubes with coated lenses give
unsurpassed beam quality. Beam
angles of 16°- 38° and 40°- 53°
Technical Fre dom
• Unique 'Pull Out' lamp change
system which disconnects from the
power supply or dimmer (if fitted)
for lamp and cleaning of
condenser lenses
Freedom with Efficiency
• While sharing all the benefits of
the 600w and 800w units this
uses the proven base down 650w
T27 lamp with a 750 hour life
The Freedom Freble shares most of
the features of the 600w/800w profile
range and takes the Freedom Dimmer.
Freedom of Choice
• Lamphouse: 2 lenses
- Fresnel
- Pebble Convex
(Both are easily interchangeable)
Creative Freedom
• If a Fresnel gives too much
spill light, switch to the cleaner
beam of a Pebble Convex
Technical Freedom
• Fresnel beam angle: 6°- 50°
• Pebble Convex beam angle:
• Positive lead screw focus
8°- 31 °
Freedom with Safety
• When the lens turret is removed
the spring loaded worm-drive
operates a micro-switch to allow
safe lamp change access
"Freble" Fresnel
(For details on the lamp range for
the Freedom Freble please refer to
600w table, on page 4).
"Freble" Pebble
Page 6
Page 7
