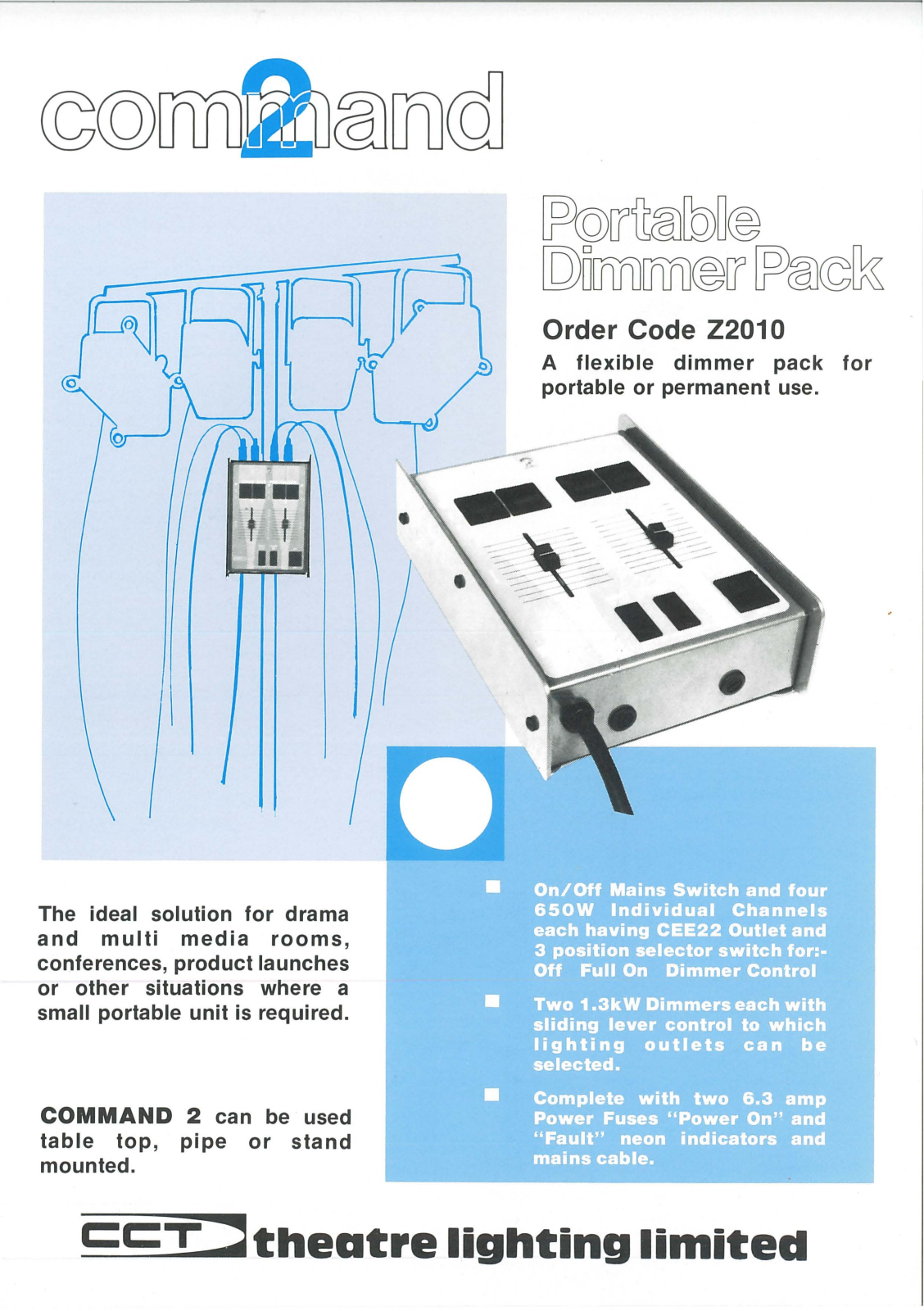

Page 1
•• •
Order Code 22010
A flexible dimmer pack for
portable or permanent use .
The ideal solution for drama
and multi media rooms,
conferences, product launches
or other situations where a
small portable unit is required.
COMMAND 2 can be used
table top, pipe or stand
mounted.
c:c:T = theatre lighting limited

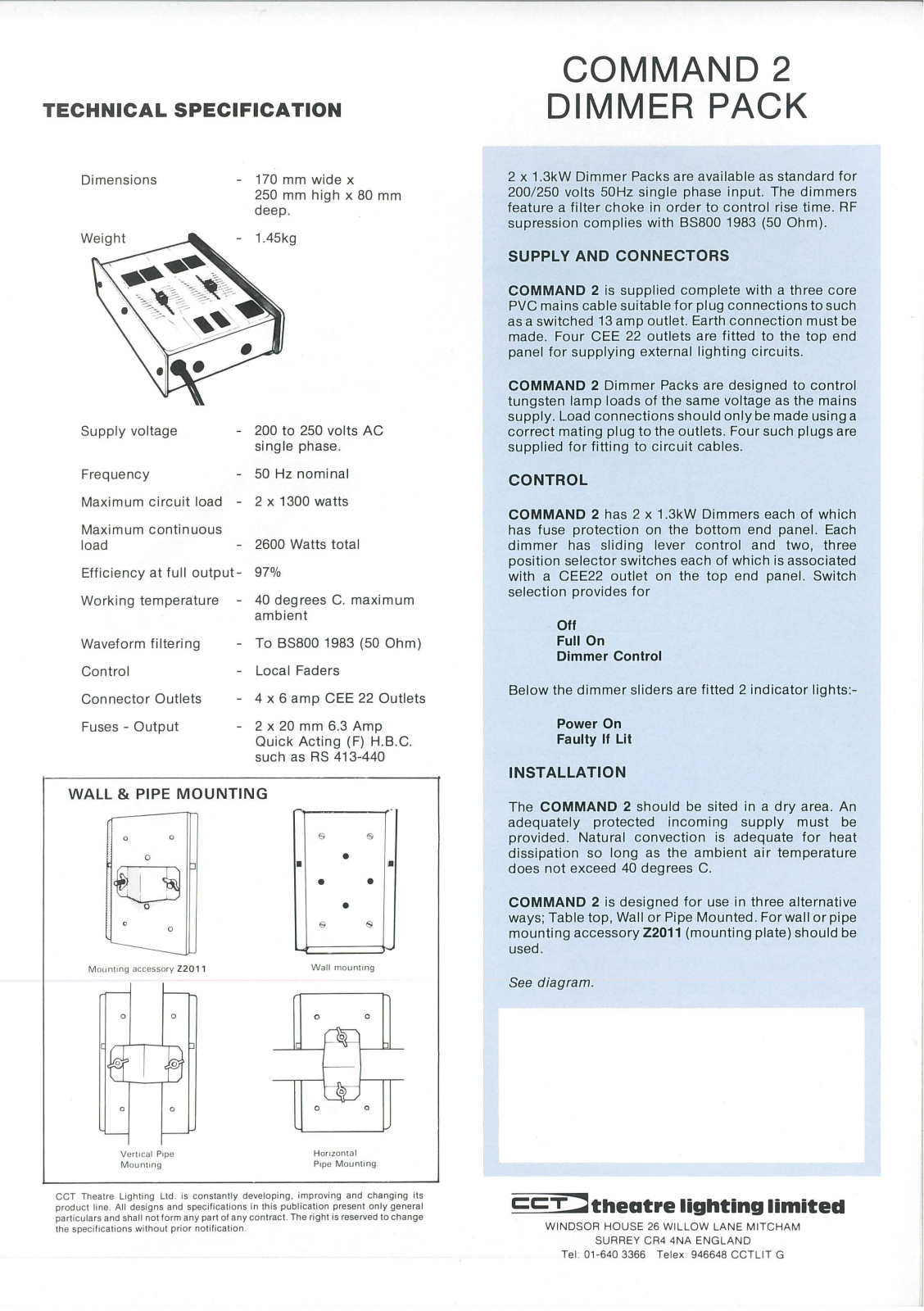

Page 2
CO MMAND 2
TECHNICAL SPEC IFICATION
Dimensions
Weight
Supply voltage
Frequency
Maximum circui t load - 2 x 1300 watts
Maximum continuous
load - 2600 Watts total
Efficiency at full output- 97%
Working temperature - 40 degrees C. maximum
Waveform filtering
Control
Connector Outlets
Fuses - Output
WALL & PIPE MOUNTING
0
0
- 170 mm wide x
250 mm high x 80 mm
deep .
- 1.45kg
- 200 to 250 volts AC
single phase.
- 50 Hz nom inal
ambient
- To 88800 1983 (50 Ohm)
- Local Faders
- 4 x 6 amp CEE 22 Outlets
- 2 x 20 mm 6.3 Am p
Quick Acting (F) H.B.C.
such as RS 413-440
s s
•
•
~
0
0
Mounting accesso ry 22011
s
Wall mounting
•
•
s
•
•
DIMME R PACK
2 x 1.3kW Dimmer Packs are available as standard fo r
200/250 volts 50Hz single phase input. The dimmers
feature a filter choke in order to control rise time . RF
supre ssion compl ies with 88800 1983 (50 Ohm) .
SUPPLY AND CONNECTORS
COMMAND 2 is supplied complete with a three core
PVC mains cable suitable for plug connections to such
as a switched 13 amp outlet. Earth connection must be
made. Four CEE 22 outlets are fitted to the top end
panel for supplying external lighting circu its.
COMMAND 2 Dimmer Packs are designed to control
tungsten lamp loads of the same voltage as the mains
supply. Load connect ions should only be made using a
correct mating plug to the out lets. Four such plugs are
supplied for fitting to circuit cables .
CONTROL
COMMAND 2 has 2 x 1.3kW Dimmers each of which
has fuse protection on the bottom end panel. Each
dimmer has sliding lever control and two, three
position selector switches each of which is associated
with a CEE22 outlet on the top end panel. Switch
selection provides for
Off
Full On
Dimmer Control
Below the dimmer sliders are fitted 2 indicator lights :-
Power On
Faulty If Lit
INSTALLATION
The COMMAND 2 should be sited in a dry area. An
adequately protected incoming supply must be
provided . Natura l convection is adequate for heat
dissipation so long as the ambient air temperature
does not exceed 40 degrees C.
COMMAND 2 is designed for use in three alternative
ways; Table top, Wall or Pipe Mounted. For wall or pipe
mounting accessory 22011 (mounting plate) should be
used.
See diagram .
0 0
0
Ve rtical Pipe
Mountin g
CCT Theatre Lighting Ltd. is co nstantly deve lo ping . improvi ng and changing its
product line. All desig ns and specifications in this publication prese nt only gen eral
particulars and shall not form any part of any contract. The right is reserved to chang e
the specifica tions withou t prior notification.
0
0
0
Horizontal
Pipe M ounting
0
0
c:c:T j theatre lighting limited
WINDSOR HOUSE 26 WILLOW LAN E MITCHAM
SURREY CR4 4NA ENGLAND
Tel. 01-640 3366 Telex· 946648 CCTLIT G
