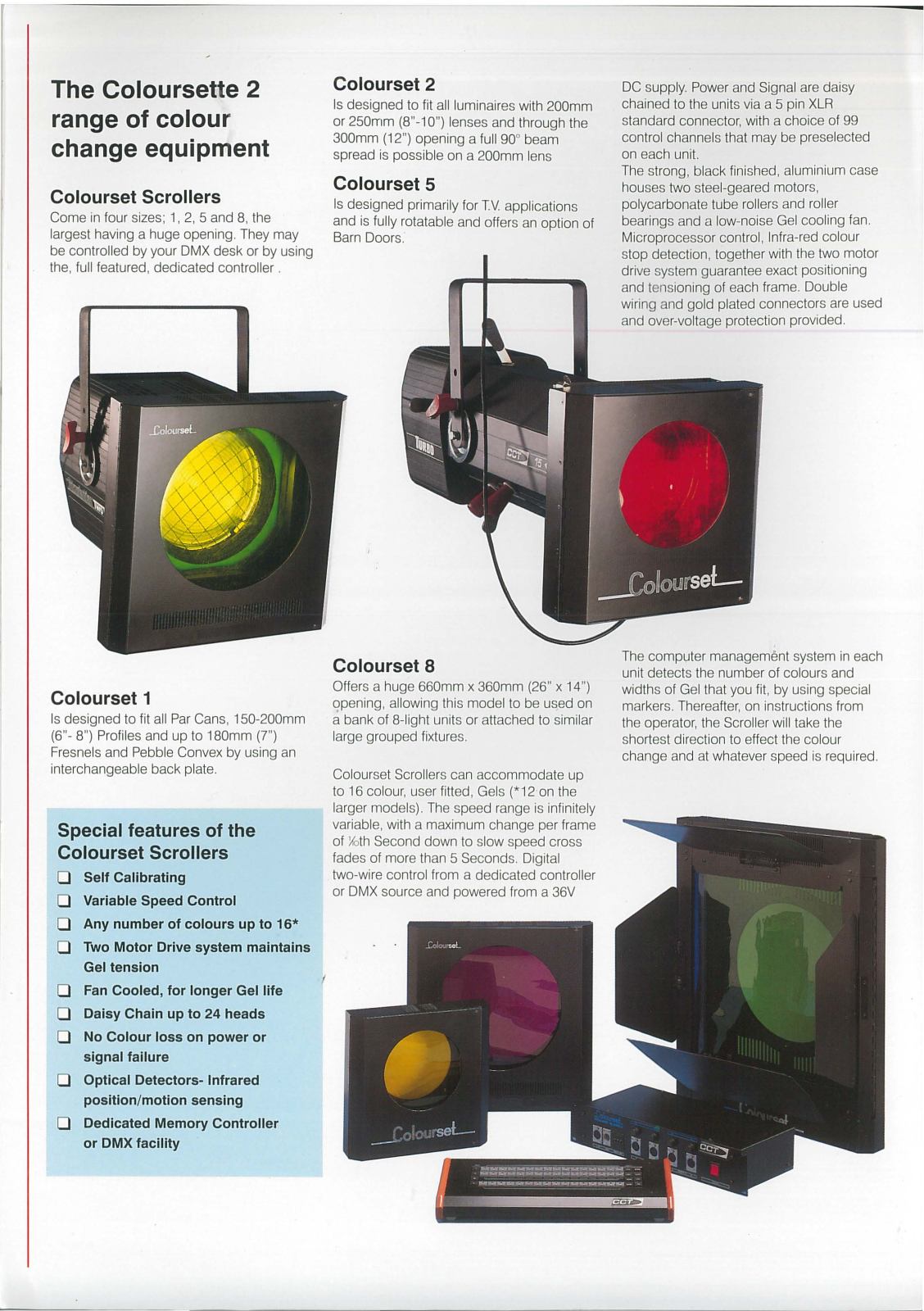

The Coloursette 2

range of colour

change equipment

Colourset Scrollers

Come in four sizes; 1, 2, 5 and 8, the
largest having a huge opening. They may
be contro lled by your OMX desk or by using

the, full featured, dedicated control ler .

Colourset 2

Is designed to fit all luminaires with 200mm
or 250mm (8"-1
300mm (12") opening a full 90° beam
spread is possible on a 200mm lens

O") lenses and through the

Colourset 5

Is designed primarily for TV applications
and is fully rotatable and offers an option of
Barn Doors.

DC supply. Power and Signal are daisy
chained to the units via a 5 pin XLR
standard connector, with a choice of 99
control channels that may be preselected

on each unit.
The strong , black finished, aluminium case
houses two steel-geared motors,
polycarbonate tube rollers and roller
bearings and a low-noise Gel cooling fan.
Microprocessor control, Infra-red colour
stop detection, together with the two motor
drive system guarantee exact positioning
and tensioning of each frame. Double
wiring and gold plated connectors are used
and over-voltage protection provided .

Colourset 1

Is designed to fit all Par Cans, 150-200mm
(6"- 8") Profiles and up to 180mm
Fresnels and Pebble Convex by using an
interchangeable back plate.

(7")

Special features of the
Colourset Scrollers

D Self Calibrating
D Variable Speed Control

D Any number of colours up to 16*

D Two Motor Drive system maintains

Gel tension

D Fan Cooled, for longer Gel life

D Daisy Chain up to 24 heads
D No Colour loss on power or

signal failure

D Optical Detectors- lnfrared

position/motion sensing

D Dedicated Memory Controller

or DMX facility

Colourset 8

Offers a huge 660mm x 360mm (26" x 14")
opening, allowing this model to be used on

a bank of 8-light units or attached to similar

large grouped fixtures.

Colourset Scrollers can accommodate up

16 colour, user fitted, Gels (*12 on the

to
larger models). The speed range is infinitely
variable, with a maximum change per frame
of lfith Second down to slow speed cross
fades of more than 5 Seconds. Digital
two-wire control from a dedicated contro ller
or OMX source and powered from a 36V

The computer management system in each

unit detects the number of colours and
widths of Gel that you fit, by using special

markers. Thereafter, on instructions from
the operator, the Scroller will take the
shortest direction to effect the colour
change and at whatever speed is required.

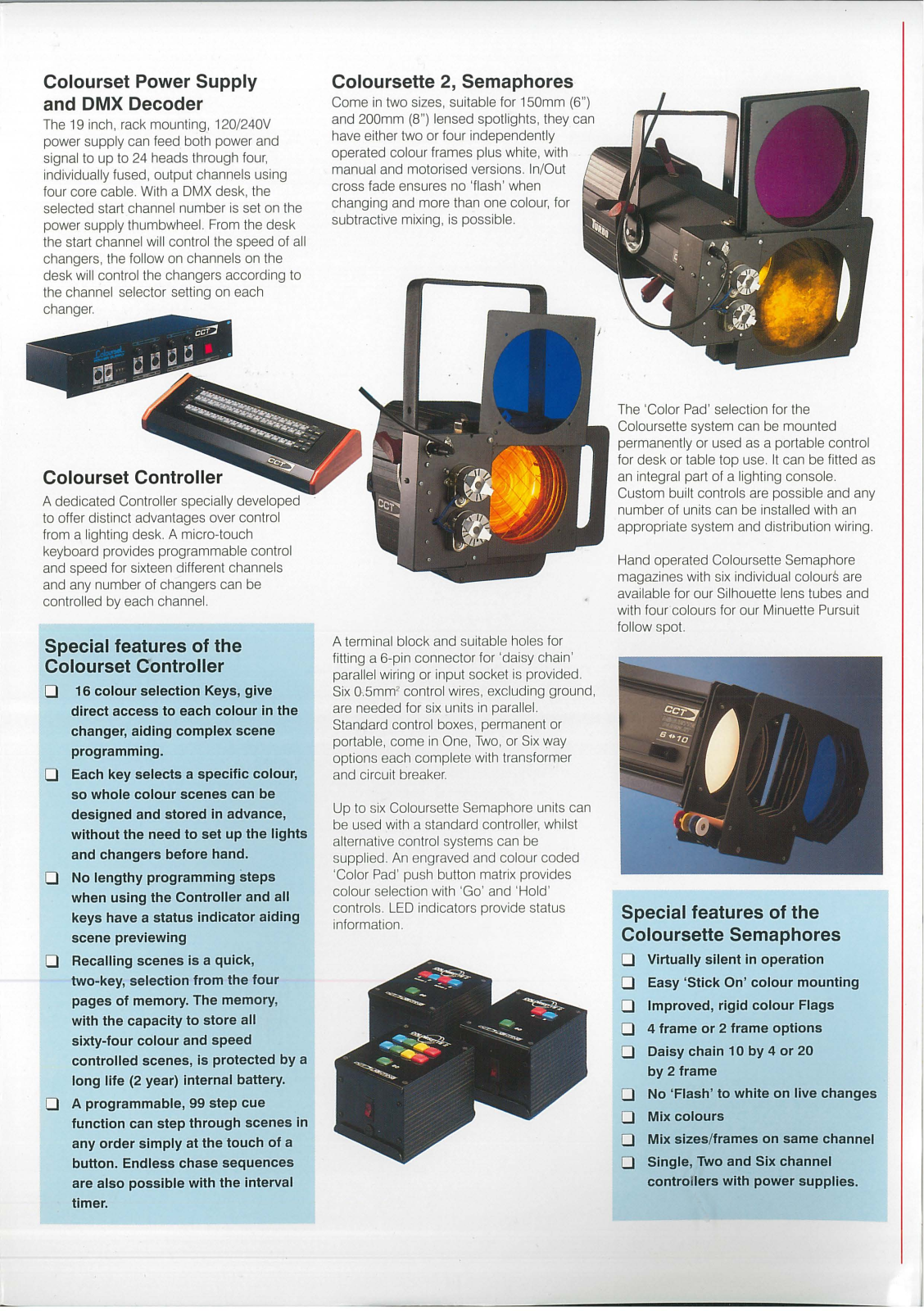

Colourset Power Supply
and DMX Decoder

The 19 inch, rack mounting, 120/240V
power supply can feed both power and
signal to up to 24 heads through four,
individually fused, output channels using
four core cable. With a OMX desk, the
selected start channel number is set on the
power supply thumbwheel. From the desk
the start channel will control the speed of all
changers, the follow on channels on the
desk will control the changers according to
the channel selector setting on each
changer.

Colourset Controller

A dedicated Controller special ly developed
to offer distinct advantages over control
from a lighting desk. A micro-touch
keyboard provides programmable control
and speed for sixteen different channels
and any number of changers can be
controlled by each channel .

Special features of the
Colourset Controller

0 16 colour selection Keys, give

direct access to each colour in the
changer, aiding complex scene
programming.

0 Each key selects a specific colour,

so whole colour scenes can be
designed and stored in advance,
without the need to set up the lights
and changers before hand.

0 No lengthy programming steps

when using the Controller and all
keys have a status indicator aiding
scene previewing

0 Recalling scenes is a quick,

two-key, selection from the four

pages of memory. The memory,
with the capacity to store all
sixty-four colour and speed
controlled scenes, is protected by a

long life (2 year) internal battery.

0 A programmable, 99 step cue

function can step through scenes in
any order simply at the touch of a

button. Endless chase sequences

are also possible with the interval
timer.

Coloursette 2, Semaphores

Come in two sizes, suitable for 150mm (6")
and 200mm (8") lensed spotlights, they can
have either two or four independently
operated colour frames plus white, with
manual and motorised versions. In/Out
cross fade ensures no 'flash' when
changing and more than one colour, for
subtractive mixing, is possible.

A terminal block and suitable holes for
fitting a 6-pin connector for 'daisy chain'

parallel wiring or input socket is provided .
Six 0.5mm
are needed for six units in parallel.
Standard contro l boxes, permanent or

portable, come in One, Two, or Six way
option s each complete with transformer
and circuit breaker.

Up to six Coloursette Semaphore units can

be used with a standard controller, whilst
alternative control systems can be
supplied. An engraved and colour coded

'Colar Pad' push button matrix provides
colour selection with 'Go' and 'Hold'
controls. LED indicators provide status

information.

2

control wires , excluding ground,

The 'Colar Pad' selection for the
Coloursette system can be mounted
permanently or used as a portable control
for desk or table top use. It can be fitted as
an integral part of a lighting console.
Custom built controls are possible and any
number of units can be installed with an
appropriate system and distribution wiring.

Hand operated Coloursette Semaphore
magazines with six individua l colours are
available for our Silhouette lens tubes and
with four colours for our Minuette Pursuit
follow spot.

Special features of the
Coloursette Semaphores

0 Virtually silent in operation
0 Easy 'Stick On' colour mounting

0 Improved, rigid colour Flags

0 4 frame or 2 frame options

0 Daisy chain 1 O by 4 or 20

by 2 frame

O No 'Flash' to white on live changes

0 Mix colours
0 Mix sizes/frames on same channel

O Single , Two and Six channel

controtlers with power supplies.

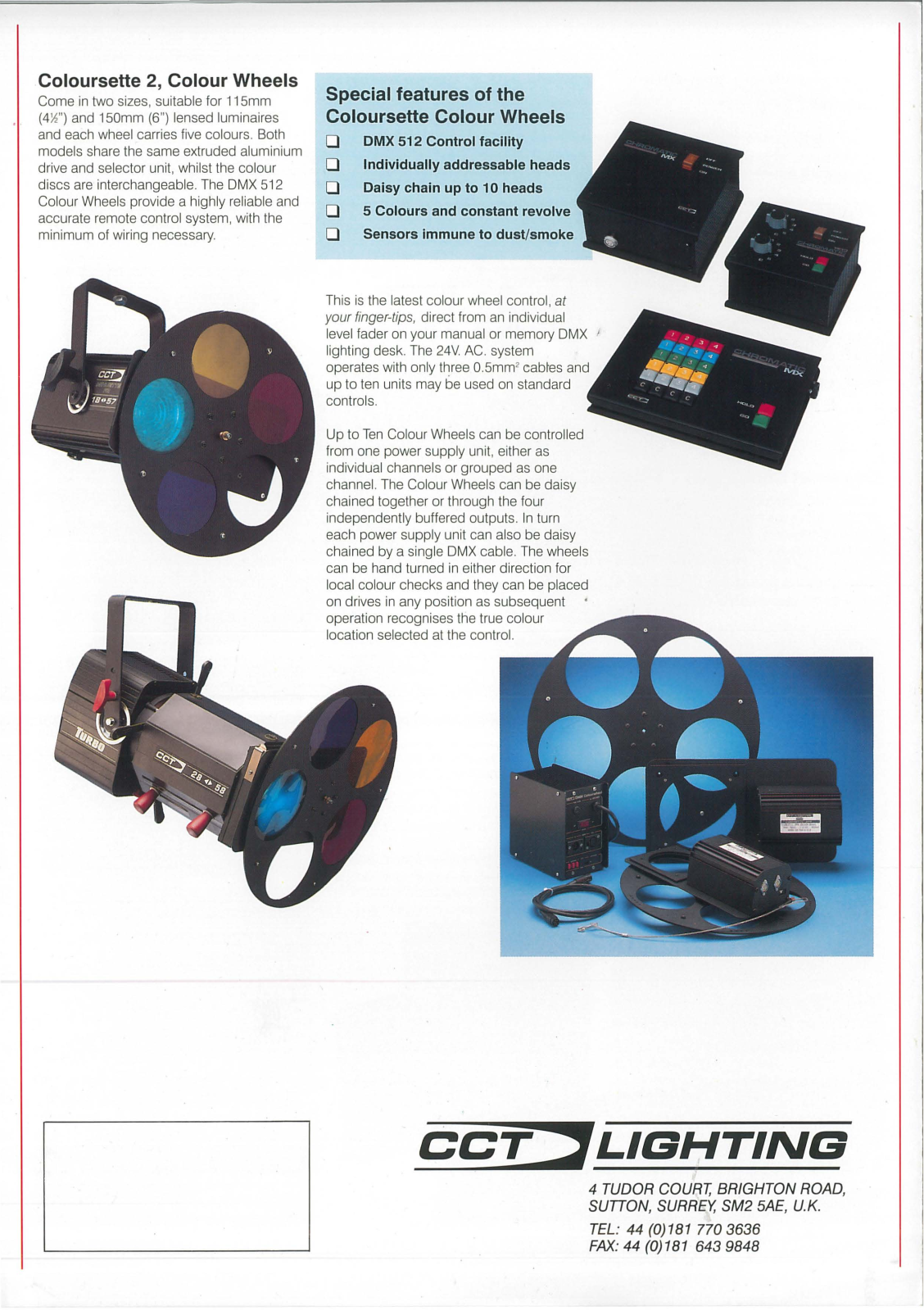

Coloursette 2, Colour Wheels

Come in two sizes, suitable for 115mm
{4~") and 150mm (6") lensed luminaires
and each wheel carries five colours . Both
models share the same extruded aluminium
drive and selector unit, whilst the colour
discs are interchangeable. The OMX 512
Colour Wheels provide a highly reliable and
accurate remote control system, with the
minimum of wiring necessary.

Special features of the
Coloursette Colour Wheels

O OMX 512 Control facility

0 Individually addressable heads

0 Daisy chain up to 10 heads

0 5 Colours and constant revolve

0 Sensors immune to dust/smoke

This is the latest colour wheel control , at

your finger-tips , direct from an individual

level fader on your manual or memory OMX
lighting desk. The 24V. AC . system
operates with only three 0.5mm
up to ten units may be used on standard
controls .

Up to Ten Colour Wheels can be controlled
from one power supply unit, either as
individual channels or grouped as one
channel. The Colour Wheels can be daisy
chained together or through the four
independently buffered outputs. In turn
each power supply unit can also be daisy
chained by a single OMX cable . The wheels
can be hand turned in either direction for
local colour checks and they can be placed
on drives in any position as subsequent
operation recognises the true colour
location selected at the control.

2

cabtes and

1
