VIDEO/AUDIO
MATRIX
(VAX-8202F)
2 In 2 Out
(VAX-8204F)
2 In 4 Out
USER MANUAL V1.0
VAX-8202F / VAX-8204F
Package Contents-
1 Smart View VAX-8202F or VAX-8204F video/audio
matrix
1 user manual
1 power adapter DC 12V 600mA
Any thing missed, please contact with your vendor.
Introduction
Through the video/audio matrix VAX-8202F, 8204F, you can
display / play different images / audio signals to 2,4 monitors /
speakers (or earphones) through 2 PC; meanwhile, optional
means for controlling monitor’s image either come from PC “A” or
PC “B” or just switching off.
Video/Audio matrix is ideal for:
Test bench facilities
Data center
Help desks
Video broadcasting:
Presentation
Stock quotes
Timetables
Educational facilities
Features
Intelligent functionality.
With 250 MHz pixel frequency.
Support VGA, SVGA, UXGA, QXGA resolutions.
Support Multi-Sync video type include RGBHV, RGsB, RGBS.
Support synchronous Include positive, negative; TTL or 1Vpp
level.
Supports the DDC, DDC2, DDC2B.
The output is compatible with standard VGA card.
Extends the video signal up to 65 meter (213 feet).
Audio Frequency Response 20Hz~20KHz.
Free select from PC
○
A
or PC ○B or switch off by means of the
front panel switch.
Can be cascaded.
Specifications
Function VAX-8202F VAX-8204F
Video Input Connector 2x HD-15 Female
Video Output Connector
2x HD-15
Female
4x HD-15
Female
Audio Input Connector 2x 3.5φ Stereo Jack
Audio Output Connector
2x 3.5φ Stereo
Jack
4x 3.5φ Stereo
Jack
Select Switch 2 4
A (Green) 2 4
Linked LEDs
B (Red) 2 4
Max. Resolution 1920x1440 @ 85 Hz
Pixel Frequency 250 MHz
Cable Distance
(Device to Monitor)
65m (213 feet) Max.
Power Adapter (Min.) DC 12V 600mA
Housing Metal
Weight 450 g 680 g
Dimensions (LxWxH) 130x75x42 mm 200x75x42 mm
-1-
Technical Specifications
Input/Output Signal
Pin # Signal
Pin # Signal
1 Red video 9 NC
2 Green video 10 Ground
3 Blue video 11 NC
4 NC 12 ID1
5 Ground 13 Horizontal sync
6 Analog ground 14 Vertical sync
7 Analog ground 15 ID3
8 Analog ground
FRONT VIEW
1. Select Switch
2. ○
A,○B
Linked
REAR VIEW
1. Input Power Jack
2. “Audio Out” Port
3. ○
A,○B
“Audio In” Port
4. “Video Out” Port
5. ○
A,○B
“Video In” Port
*There are 2/4 ports for VX-8202F / VX-8204F
-2-
Installation
1. Turn off the power switches of PC, monitors, and
speakers.
2. Use HD-15 image / 3.5φ earphone extension cable to
connect VGA interface / audio card in PC and the
“Video In“ & “Audio In“ jack of video/audio matrix.
3. Use HD-15 image / 3.5φ earphone extension cable to
connect monitor, speaker, or earphone and the “Video
Out“ & “Audio Out“ jack of video/audio matrix.
4. Connect video/audio matrix to power supply.
5. Turn on the power switches of PC, monitors, and
speakers.
6. Control front panel switch to obtain the images / audio
either come from PC
○A (Linked LED “○
A
” on) or PC ○
B
(Linked LED “○B” on) or just switching off. (Linked LED
“○
A
○B” off)
Note:
All the “Video/Audio Out” ports will connect with the
“Video/Audio In” port of ○
A
while turning on the video
matrix.
If you install the DDC monitor for the video matrix, the
rest of monitors must be the same resolution as the DDC
monitor.
Through the functionality of DDC monitor, the “Video In”
port of ○
A
will connect with the “Video Out” port 1 and
the “Video In” port of ○
B
will connect with the “video out”
port 2.
Available monitors include the VGA, SVGA, XGA,
Multisync, and exclude the CGA, EGA, Mono.

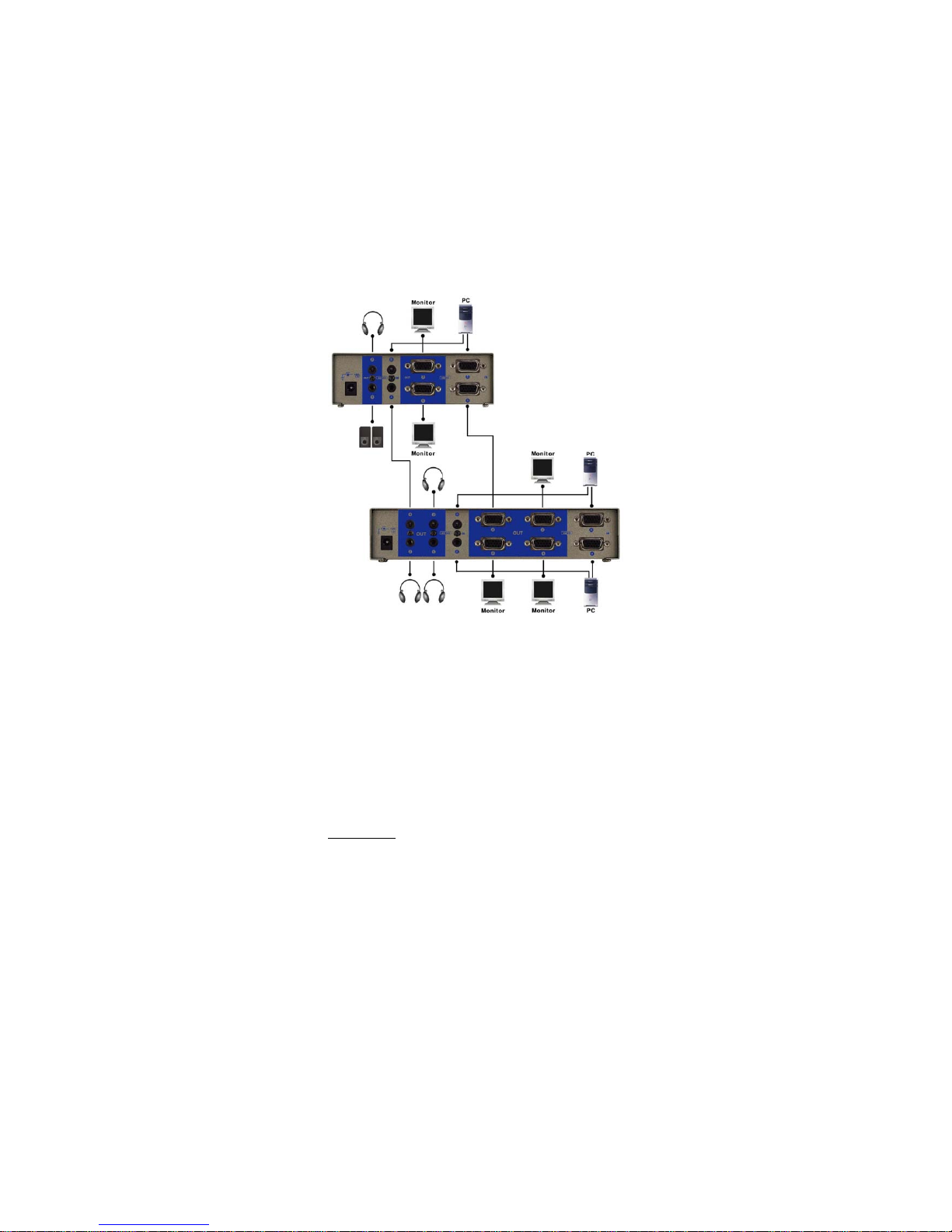

Operation for cascade:
1. The function to display / play different images / audio on
more monitors / speakers, you request to attach another
video/audio matrix or the standard video/audio splitter.
2. Connect the HD-15 male/male video extension cable
between the “Video Out” port of the former video/audio
matrix and the “Video In” port of the latter video/audio
matrix.
3. Connect the
3.5φ Stereo plug male/male audio extension
cable between the “Audio Out” port of the former
video/audio matrix and the “Audio In” port of the latter
video/audio matrix.
-3-
Note:
Even though you are allowed to cascade the video/audio
matrix with varied ports, the image might become unstable
if cascade too many tiers of video/audio matrixes.
© C&C TECHNIC TAIWAN CO., LTD. All rights reserved.
Trademarks:
All the companies, brand names, and product names
referred to this manual are the trademarks or
registered trademarks belonging to their respective
companies.
