VIDEO
CONTROLLABLE
SPLITTER
(VSS-812PF)
1 In 2 Out
(VSS-814PF)
1 In 4 Out
(VSS-818PF)
1 In 8 Out
USER MANUAL
VSS-812PF / VSS-814PF
/ VSS-818PF
Package Contents-
1 Smart View VSS-812PF or VSS-814PF or
VSS-818PF video controllable splitter
1 user manual
1 AC 7.5V 800mA power adapter
Any thing missed, please contact with your vendor.
Introduction
Through the video controllable splitter VSS-812PF, VSS-814PF,
VSS-818PF, you can use one PC to display identical image on
2,4,8 or more monitors and with the additional function to
dominate these monitors’ switches directly from the front panel.
Video controllable splitter is ideal for:
Test bench facilities
Data center
Help desks
Video broadcasting:
Presentation
Stock quotes
Timetables
Educational facilities
Features
Multi-function.
With 400 MHz pixel frequency and the Max. resolution for
2048 x 1536.
Turn on or off the monitor by means of front panel switches.
Extends the video signal up to 65 meter (213 feet).
Supports the DDC, DDC2, DDC2B. (For video out port 1)
Can be cascaded.
The output is compatible with standard VGA card.
Specifications
Function VSS-812PF VSS-814PF VSS-818PF
Video Input Connector
(HD-15 Female)
1 1 1
Video Output Connector
(HD-15 Female)
2 4 8
On/Off Switch 2 4 8
Linked LEDs (Green) 2 4 8
Max. Resolution 2048 x 1536 60 Hz
Pixel Frequency 400 MHz
Cable Distance
(Device to Monitor)
65 m (213 feet) Max.
Signal Type VGA, SVGA, XGA, Multisync
Power Adapter (Min.) AC 7.5V 800mA
Housing Metal
Weight 420 g 455 g 680 g
Dimensions (LxWxH) mm 130x75x42 200x75x42
-1-
Technical Specifications
Input/Output Signal
Pin # Signal
Pin # Signal
1 Red video 9 NC
2 Green video 10 Ground
3 Blue video 11 ID0
4 ID2 12 ID1
5 Ground 13 Horizontal sync
6 Analog ground 14 Vertical sync
7 Analog ground 15 ID3
8 Analog ground

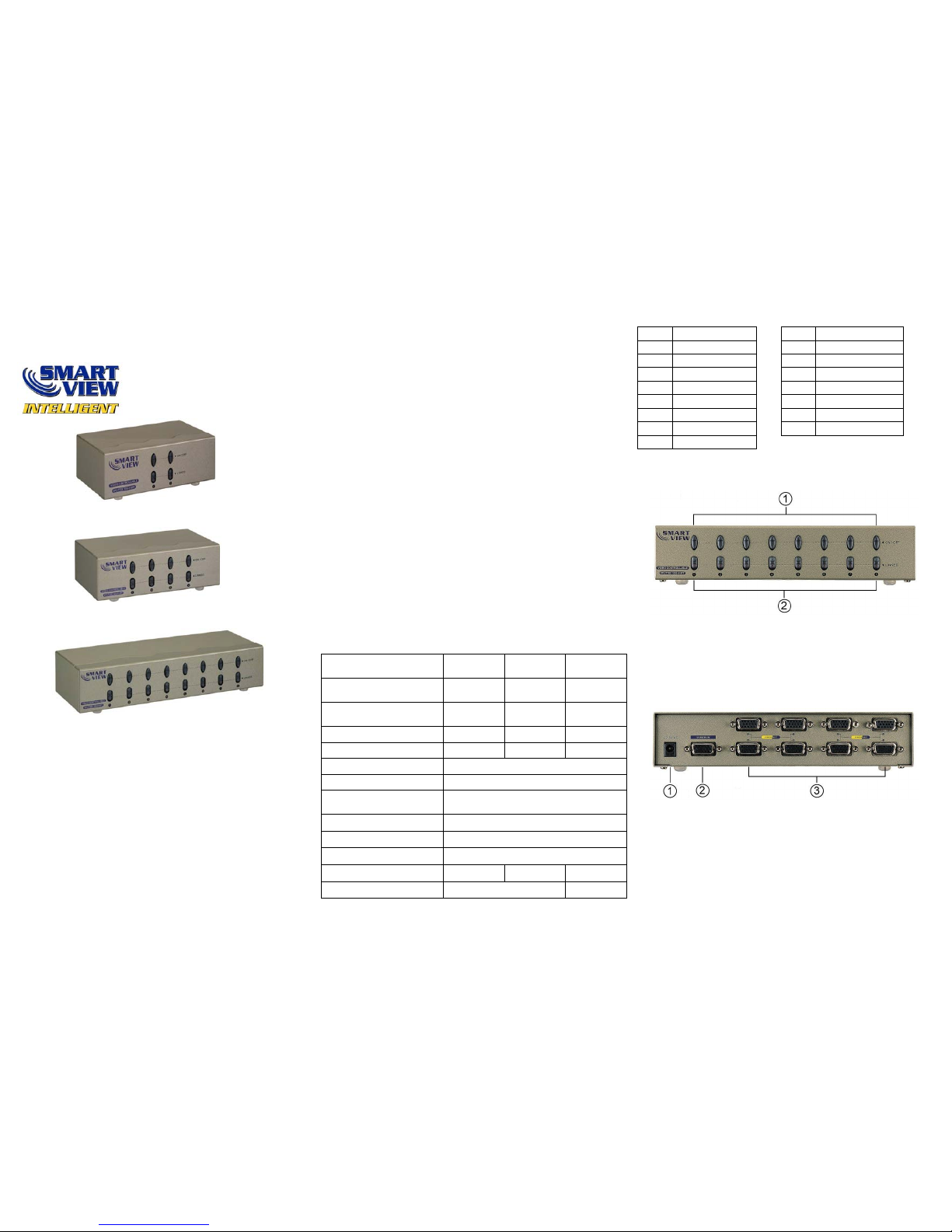

FRONT VIEW
1. On/Off Switch
2. Linked LEDs
REAR VIEW
1. Input Power Jack
2. “Video In” Port
3. “Video Out” Port
*There are 2/4/8 out ports for VSS-812PF / VSS-814PF
/ VSS-818PF.
-2-
Installation
1. Turn off the PC and monitors.
2. Connect the HD-15 video extension cable between the
PC and the “video in” port of splitter.
3. Connect the HD-15 video extension cables between the
monitors and the “video out” ports of splitter.
4. Connect the power cord and turn on the splitter.
5. Turn on the PC and monitors.
6. Alternative way to turn on or off the selected monitor by
switching on (“Linked” Led on) or off (“Linked” Led off)
directly from the front panel.
Note:
If you install the DDC m onitor for the splitter, the rest of
monitors must be the same resolution as the DDC
monitor.
Av ailable monitors include the VGA, SVGA, XGA,
Multisync, and exclude the CGA, EGA, Mono.
Operation for cascade:
1. The function to display identical image on more
monitors, you request to attach another video
controllable splitter.
2. Connect the HD-15 male/male video extension cable
between the “video out” port of the former splitter and
the “video in” port of the latter splitter.
Note:
Even though you are allowed to cascade the splitter with
varied ports, the image might become unstable if cascade
too many tiers of splitters.
-3-

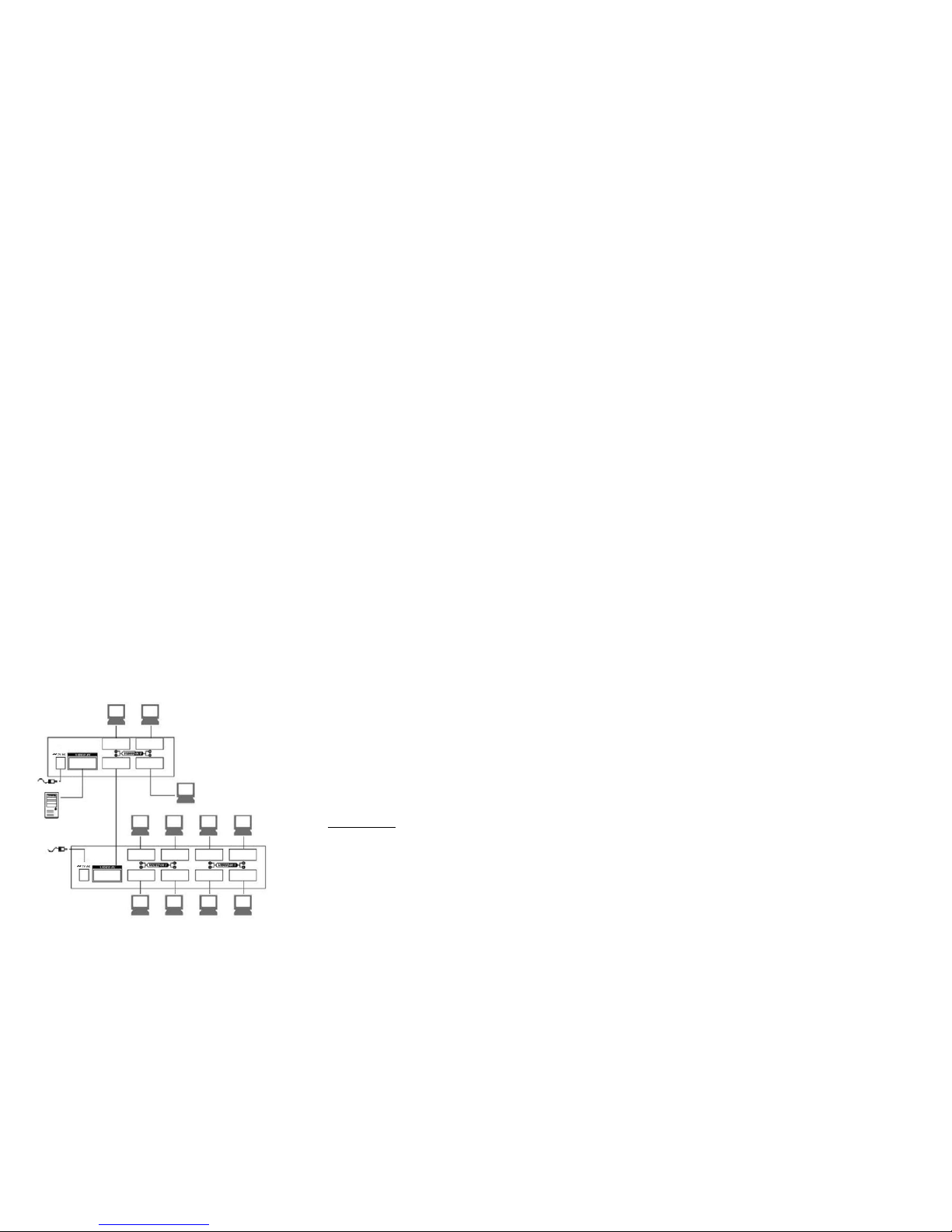

P.S.: The example cascades the 4 and 8 ports video
controllable splitters; however, you can cascade the video
controllable splitter with demanded port.
© C&C TECHNIC TAIWAN CO., LTD. All rights reserved.
Trademarks:
All the companies, brand names, and product names
referred to this manual are the trademarks or registered
trademarks belonging to their respective companies.
-4-
