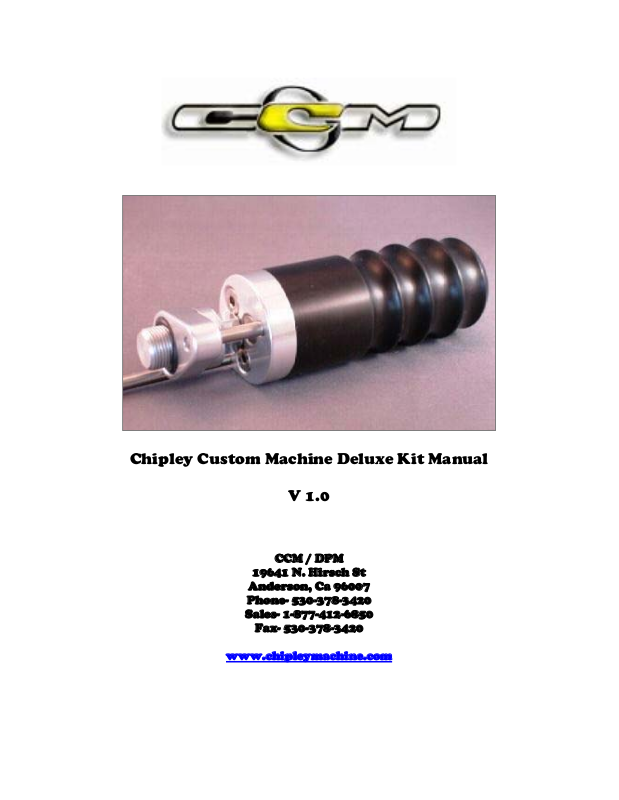

Chipley Custom Machine Deluxe Kit Manual
V 1.0
CCM / DPM
19641 N. Hirsch St
Anderson, Ca 96007
Phone- 530-378-3420
Sales- 1-877-412-6850
Fax- 530-378-3420
www.chipleymachine.com
I. Table of Contents:
I. Liability Page 3
II. Safety and Handling Page 4
III. Specifications Page 5
IV. Preparation Page 6
V. Installation Page 10
II. Liability:
Chipley Custom Machine and Datum Precision Machining (CCM / DPM) does not
accept any liability for the handling of these markers, tools, air tanks, or any other
item mentioned in this manual. You, the user accept this sole liability when
purchasing and using any paintball marker or paintball accessories. We, CCM /
DPM, disclaim any implied warranties or any responsibility for any errors that
may appear in this manual.
If, as the user of a paintball marker or any of the accessories that CCM / DPM
sells, you do not accept total liability for performing any of the maintenance,
assembly, or work performed in this unofficial manual, CCM / DPM requests that
you do not do anything described in this manual. You are not to use this manual
unless you accept all liability and release CCM / DPM and all of its current and
previous members of all liability through any use or misuse thereof.
Simply by using this manual or using the marker in general you release CCM /
DPM of any and all liability associated with its use. When using a paintball
marker please adhere to all local, state and federal laws.
III. Safety and Handling:
A Paintball Marker is not a toy. Any of the tools in this manual are not toys.
Tools and paintball markers should be used only by adults or with adult
supervision. Respect other peoples’ property and when using any paintball
marker, obey all local, state and federal laws. When entering a paintball field,
become aware of their rules and regulations.
It is very important to have the proper paintball protection before going to the
paintball field for play. This includes and is not limited to eye, head, throat, and
body protection. All protection used should be designed for the sport of paintball,
e.g. eye gear designed specifically for paintball usage.
Always have a barrel plug in place and keep the safety ON when handling your
marker. When repairing or cleaning your marker first remove barrel and gas
cylinder, then depressurize your marker by pointing in safe direction and dry
firing. Always treat the paintball marker as if it were loaded.
When handling the marker, always keep your fingers or any other objects away
from the trigger assembly to avoid accidental discharges. Make sure, when
carrying or transporting the marker, to keep the muzzle pointed downward with a
barrel-blocking device in place.
Before transporting your marker through public areas, such as airports, or bus
and trains stations, call ahead for regulatory information regarding the carrying
and transporting of such an item.
Remember, any paintball marker should never be pointed or fired at anyone, and
should only be used at a supervised, licensed and insured paintball field.
IV. CCM Deluxe Pump Kit Specifications:
Materials:
Pump - Delrin
Pump Guide Rods - Stainless Steel
Guide Rod Housing - Aluminum
Pump Arm - Stainless Steel
Return Spring - None
Weight: 9.75 Ounces
Pump Handle Length: 5 Inches.
Pump Circumference: 5 Inches.
Pump Length with Rod: 14.5 Inches.
V. Preparation of a Standard Autococker® for
the CCM Deluxe Pump Kit:
Schematic of a 2004 WGP Prostock® Autococker®. Your ‘cocker might differ – but
the parts are essentially the same.
Step One:
Remove Bolt Pin and Slide Bolt from the Body of the marker and the Back Block.
Step Two:
Remove Cocking Rod from the marker.
Step Three:
The back of the marker as it looks after Step One and Two.
Unscrew the back block from the marker. You may need to flex the cocking /
pump arm a little - but this is okay. In my the case of the 2004 Prostock® it takes
about 10 full turns to get the back block off the marker.
Your marker will look like this once the Bolt, Bolt Pin, Cocking Rod, and Back Block have been
removed.
Step Four:
Use a 3/16th Allen Key to remove the Front Block and Pneumatics. The 3/16th
Allen Key inserts into the flat headed ‘Banjo’ bolt in the front of the front block
and with a bit of muscle comes off the marker. In the case of the 2004 Prostock®
it took 8 turns to take the banjo bolt off the marker enough to take the front block
off.
Note that you will not remove the banjo bolt from the front block. The front block will move away
from the marker as you remove the banjo bolt and allow you to remove it.
This is what your front block and pneumatics will look like when removed from the marker. Note
that the 4-way actuating rod, coupler, and spool did not come with the pneumatics. This is okay.
Step Five:
Using a .50 Allen Key remove the grub screw that retains the Actuating Rod
Coupler to the Actuating Rod. Unscrew the Coupler. In my case it took 9.5 turns
to remove the coupler from the Actuating Rod.
Step Six:
Using a 1/8th Allen Key remove the two screws that hold the grip frame on the
marker. Slide the Actuating Rod through the Vertical Regulator Adapter and
remove it. Screw the Actuating Rod back on the coupler of the pneumatics and
set them aside.
Step Seven:
Replace the grip frame.
Your marker will now look like this and is ready for any pump kit to be placed on it.
Note - I would jot down the turns to remove all of your parts for your pneumatics so that you can
reset them more easily if you ever turn your ’sniper’ back into a ‘cocker’.
VI. Installation of the CCM Deluxe Kit:
Step One:
Insert the Guide Rod and Guide Ring (being sure the o-ring is slightly lubricated)
into the threaded portion where you removed the Banjo Bolt.
Step Two:
Tighten down the guide rod with a ½ inch box wrench or adjustable wrench.
Step Three:
Optional: Slide a return spring (not supplied – but can be purchased from CCM)
over the top (larger) guide rod.
Step Four:
Slide the pump over the guide rods being sure to line up these rods with the
proper holes on the pump.
Step Five:
Screw the Back Block on to the Pump Rod until it is tight on the Pump Rod. It
might not tighten down on the Pump Rod and this is not essential. Just get it
close to the end of the threads.
Step Five:
Reinsert the Bolt, Bolt Pin, and Cocking Rod into the rear of the marker.
Step Six:
Adjust your Cocking Rod to ensure that the bolt clears the breech as you hear
the marker recock. This is all there is to it. Good luck – and play safe!
