CCI Thermal Technologies XPA User Manual

1.0 SPECIAL NOTICES

C US

ISO 9001

1.1 The following special notices highlight important
information in the installation and maintenance
sections. Each serves a special purpose and is
displayed in the format shown:

This symbol indicates a potentially hazardous
situation, which, if not avoided, can result in

CAUTION

personal injury or damage to the equipment.

This symbol indicates a potentially hazardous
situation, which, if not avoided, may be a

CAUTION

shock hazard.

This symbol indicates an imminently hazardous
situation, which, if not avoided, could result in

WARNING

death or serious injury.

TYPE XPA EXPLOSION-PROOF

PANEL HEATER

INSTALLATION, OPERATION &

MAINTENANCE INSTRUCTIONS

FIGURE 1 - MODEL XPAL/XPAS CONVECTION HEATER

2.0 PRE-INSTALLATION

2.1 Initially, inspect the heater for possible damage
due to shipping and handling. Claims for shipping
damages shall be placed with the carrier.

2.2 Check the heater nameplate to ensure that

the heater area classication and temperature

code are suitable for the hazardous area

classication. For details of hazardous

locations with potential for explosion, refer
to the Canadian Electrical Code or National
Electrical Code.

2.3 Check to ensure that the heater voltage is the
same as the supply voltage.

2.4 The heater must be installed by qualied
personnel in strict compliance with national and
local electrical codes.

DO NOT CONNECT THE HEATER TO AN
ELECTRICAL SUPPLY VOLTAGE OTHER THAN

WARNING

THAT SHOWN ON THE PRODUCT NAMEPLATE.

FIGURE 2 - MODEL XPAL/XPAS CONVECTION HEATER

FIGURE 3 - MODEL XPAR CONVECTION HEATER

E-mail: [e-mail] www.ccithermal.com

Printed In Canada

®

Date of Issue: March 2014

M11882.Rev.3.00

1

3.0 INSTALLATION - GENERAL REQUIREMENTS

3.1 The XPA heater is intended for industrial use
and is to be mounted in an enclosure. The
main function of this heater is to prevent the
damaging effects of moisture and condensation
on the components inside the enclosure. It is not
intended for comfort heating use.

3.2 XPAL and XPAS heaters are approved for
enclosure mounting either horizontally or side
mounted with the junction box at the side (refer

to Table 2). XPAR heaters are approved for

vertical mounting only with the junction box at the

bottom. Ensure that the enclosure is sufciently

strong to support the heater which, depending
on the model, could weigh up to 15 lbs (7 kg).

3.3 Do not recess the XPA heater into the wall. Use
the bracket supplied with the unit to ensure
that the minimum spacing from the wall of
1” (25 mm) is maintained.

3.4 If more than one heater is being installed,
maintain at least 3” (76 mm) between adjacent
heater extrusions.

3.5 The XPA heater relies on natural convection
and “black heat” radiation to transfer heat to
the surroundings. See TABLE 1 for minimum
clearances above heater.

TABLE 1 - MINIMUM CLEARANCE ABOVE HEATER

XPAS

T-Code

in mm in mm in mm in mm

XPAL Side

Mount

XPAL

Horizontal

XPAR

Vertical

4.0 MOUNTING BRACKET INSTALLATION

4.1 Install heater with the supplied hardware

in accordance with the Figures and
instructions below (Figure 14 and 15).

XPAL & XPAS Heaters

Step 1: Scribe lines into the mounting surface
signifying the top and side of the mounting
bracket, indicating where the mounting bracket

will be located after installation (Figure 4 and
Figure 5).

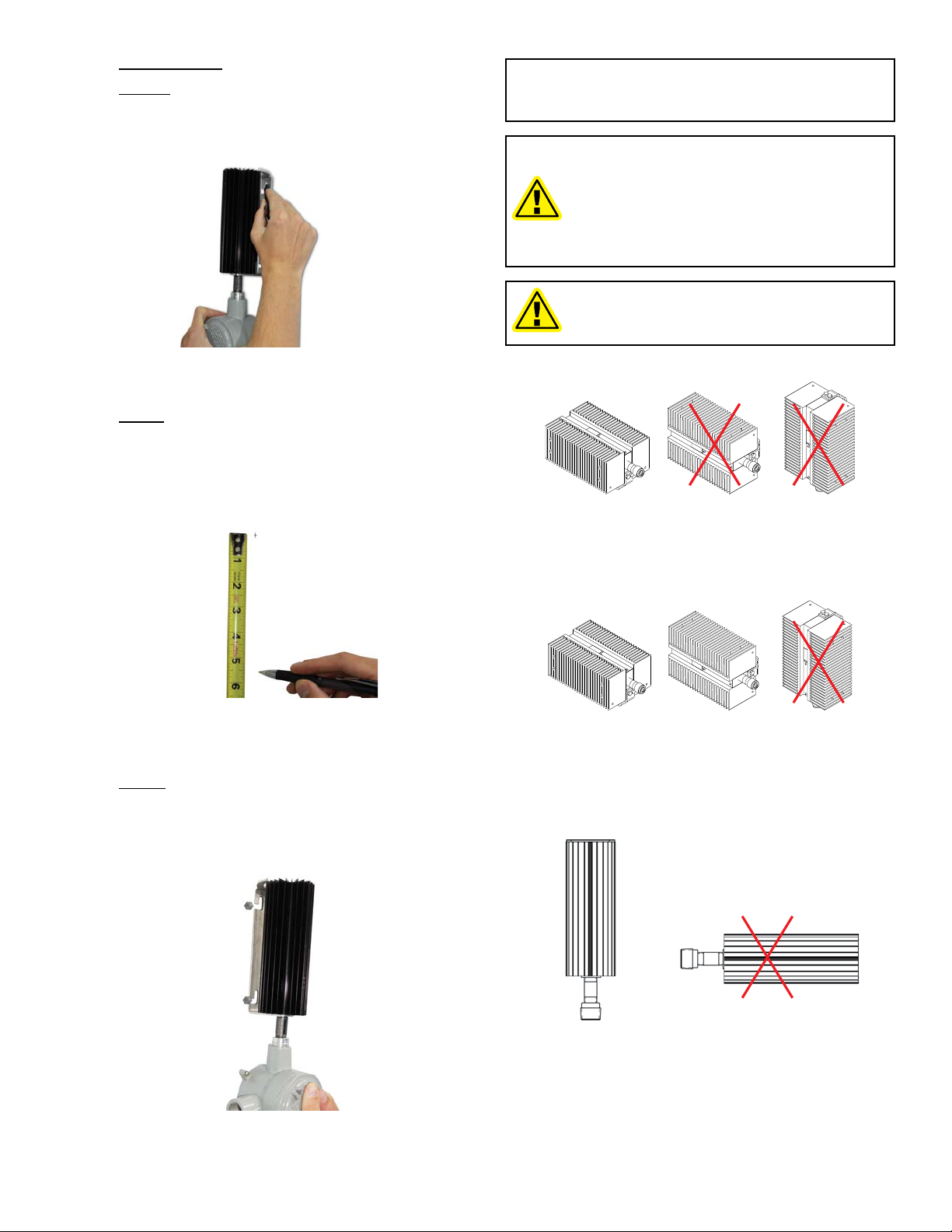

FIGURE 4 - SCRIBE THE TOP OF THE MOUNTING BRACKET

FIGURE 5 - SCRIBE THE SIDE OF THE MOUNTING BRACKET

T4 6 152 6 152 6 152 6 152

T3C/

T3B

T3 12 305 9 229 12 305 9 229

T2D 15 381 12 305 18 457 12 305

6 152 6 152 9 229 6 152

3.6 Maintain a 3” (76 mm) clearance and NEVER LESS
THAN 1” (25 mm) clearance in front of and at the
sides of the heater.

3.7 The XPAL and XPAS heater relies on vertical

convective ow through its ns to operate properly.

The unit must be mounted in the horizontal or

side mount orientation, as applicable. Under no

circumstance can the heater be mounted vertically
on its end with the junction box on the top or bottom

and the at n surfaces in a horizontal position. The
XPAR heater must be mounted vertically with the
junction box at the bottom. Refer to Figures 11, 12 &

13 for allowable mounting orientations.

THE HEATERS SURFACE IS HOT WHEN
THE HEATER IS ENERGIZED. KEEP ALL
COMBUSTIBLES AWAY FROM THE HEATER

CAUTION

AND MAINTAIN THE RECOMMENDED
INSTALLATION CLEARANCES AT ALL TIMES.

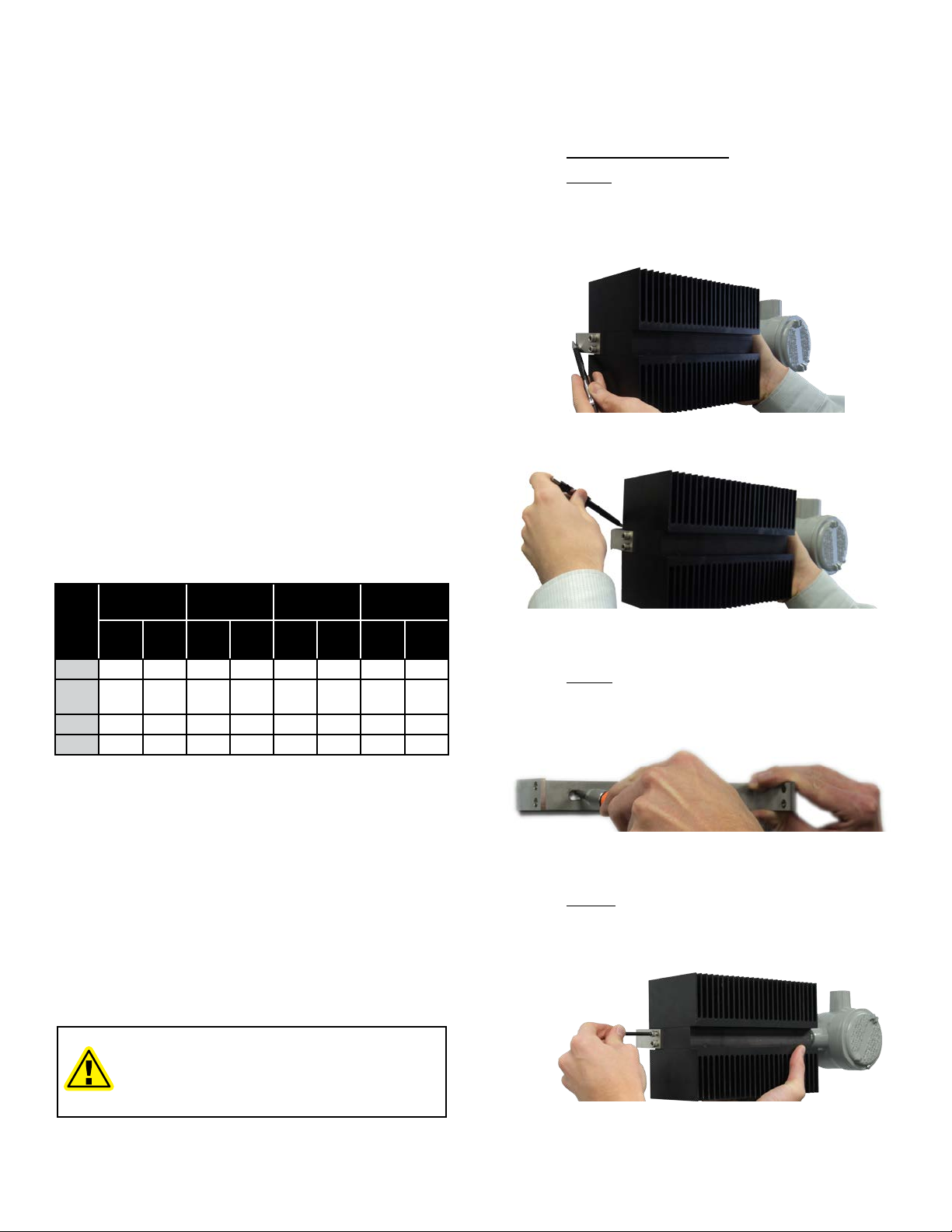

Step 2: Remove the mounting bracket from the
heater and install it to the mounting surface,
aligning the bracket with the scribe marks from

Step 1 (Figure 6).

FIGURE 6 - INSTALL THE MOUNTING BRACKET

Step 3: Secure the heater to the bracket by
tightening the provided Socket Head Cap
Screws into the threaded holes on each end of

the heater (Figure 7).

FIGURE 7 - ATTACH MOUNTING BRACKET TO HEATER ITSELF

2

XPAR Heaters

Step 1: Scribe a mark into the mounting
surface indicating where the top part of
the mounting bracket will be located after

installation (Figure 8).

FIGURE 8 - SCRIBE THE TOP OF THE MOUNTING BRACKET

Step 2: Measure down 0.625” (16 mm) from the
scribed mark and scribe a mark for the top bolt
location. Measure an additional 5.5” (140 mm)
from the top bolt location to indicate the bottom

bolt location (Figure 9). Drill holes at the marked

locations for the mounting bolts.

NOTE: Proper use of supplied mounting bracket will
ensure minimum distance of 1” (25 mm) from the
mounting surface.

NEVER INSTALL ONE HEATER ABOVE
THE OTHER.

TO ENSURE SAFE OPERATION, HEATER MUST

CAUTION

WARNING

BE INSTALLED, AS SHOWN IN FIGURES 11,
12 & 13. INSTALLATION WITH FINS IN THE
INCORRECT ORIENTATION MAY RESULT IN AN
UNSAFE CONDITION (REFER TO TABLE 2).

IMPROPER ORIENTATION OF THE HEATER
COULD AFFECT THE SAFE AND RELIABLE
OPERATION OF THE HEATER.

YES NO NO

FIGURE 11 - XPAL AND XPAS HEATER

MOUNTING ORIENTATIONS - HORIZONTAL ONLY

FIGURE 9 - MEASURE AND SCRIBE THE TOP AND BOTTOM HOLE

LOCATIONS AND DRILL HOLES

Step 3: Pre-install the mounting bolts onto the
mounting surface allowing enough clearance to
slide the mounting bracket under the head of
the supplied bolts. Position the heater onto the

mounting bolts and tighten securely (Figure 10).

FIGURE 10 - POSITION HEATER ONTO MOUNTING BOLTS

YES YES NO

FIGURE 12 - XPAL AND XPAS HEATER

MOUNTING ORIENTATIONS - HORIZONTAL AND SIDE MOUNT

NO

YES

FIGURE 13 - XPAR HEATER

MOUNTING ORIENTATION - VERTICAL ONLY

3

SOCKET HEAD CAP SCRE
1/4-20UNC

PROTECTION GRILL

(OPTIONAL)

O

3/4 NPT THREADED

CONN. (TYP.)

0.625”

(15.9 mm)

5.50”
(139.7 mm)

x 1/2"LG

HEX BOLTS (INCLUDED)
1/4-20UNC x 3/4"LG

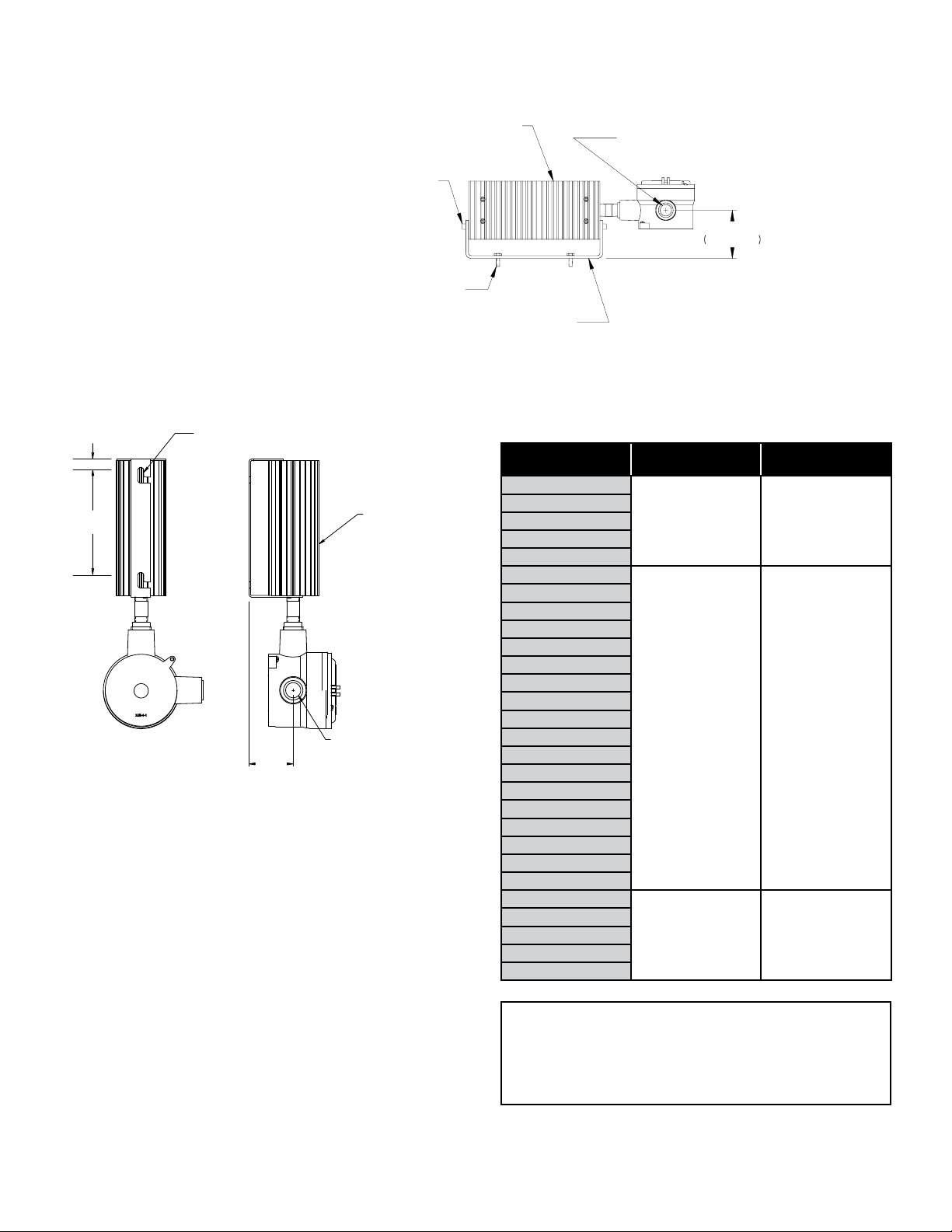

FIGURE 14 - XPAL AND XPAS HEATER BASIC MOUNTING DRAWING

MOUNTING BRACKET
SLIDE MOUNT ONTO
PANEL MOUNTED BOLTS

2.294"

(58.3 mm)

FIGURE 15 - XPAR HEATER

BASIC MOUNTING DRAWING

WS (INCLUDED)

PROTECTION GRILL
(OPTIONAL)

3/4" NPT THREADED
CONN. (TYP.)

MOUNTING BRACKET
(INCLUDED)

Model No.

XPAL-700T2D

XPAL-600T3
XPAL-400T3B
XPAL-400T3C

XPAL-250T4
XPAL-600T2D

XPAS-250T2D

XPAL-500T3

XPAL-400T3

XPAS-200T3

XPAS-150T3
XPAL-300T3B
XPAL-300T3C
XPAL-250T3B
XPAL-250T3C
XPAS-125T3B

XPAS-125T3C

XPAS-100T3B

XPAS-100T3C

XPAL-200T4

XPAL-150T4

XPAL-100T4

XPAS-075T4

XPAR-150T2D

XPAR-125T3

XPAR-080T3B
XPAR-080T3C

XPAR-050T4

NOTE: For heater dimensions, specic to your
heater conguration, please refer to the applicable

approval drawings available through the CCI
Thermal website at www.ccithermal.com or your
customer service representative.

3.31"

84.1mm

TABLE 2 -

MOUNTING ORIENTATION

Installation
Orientation

Horizontal Only 11

Horizontal or

Side Mount

Vertical Only 13

Figure No.

12

4

5.0 WIRING

5.1 Whenever hazardous materials are present,

ensure that the junction box covers are secure

before energizing the heater. Follow all applicable

national and local codes for hazardous location
installation. The XPA heater is available with
a terminal housing. A terminal housing may
be required by national and/or local codes for
hazardous locations.

5.2 Use supply wires suitable for 221°F (105°C).

5.3 Use approved conduit and conduit seals as

required by the national and local codes for
hazardous locations.

5.4 To provide maximum protection, each XPA
heater should be fused individually using

HRC fuses.

5.5 All heaters come factory prewired ready
for direct connection to power supply leads

(see Figure 16).

(i) Connect the power leads to terminals

marked L1 and N or L2.

(ii) Connect the ground wire to the ground

connection located in the heater junction
box cover.

5.6 Replace junction box cover securely. Do not

over-tighten.

6.0 WIRE GUARD (OPTIONAL)

6.1 Install wire guard by inserting wire arms into

holes on heater ns.

7.0 START-UP

7.1 If the unit contains a junction box ensure the
junction box lid is securely installed onto the
terminal housing.

7.2 Check to ensure that all plugs, screws, and
covers are securely in place.

7.3 Check associated electrical equipment.

7.4 Check that all wall mounting bracket connections
are tight.

7.5 Turn on supply power.

7.6 If the unit is equipped with an adjustable
thermostat, dial the temperature
required by twisting the thermostat knob.

TO PREVENT UNSAFE OPERATION OF THE
HEATER DO NOT EXCEED THE MAXIMUM

WARNING

ALLOWABLE AMBIENT OPERATING
TEMPERATURE OF 104°F (40°C).

8.0 MAINTENANCE

8.1 Check the following before every heating season:

WARNING

CAUTION

CAUTION

WARNING

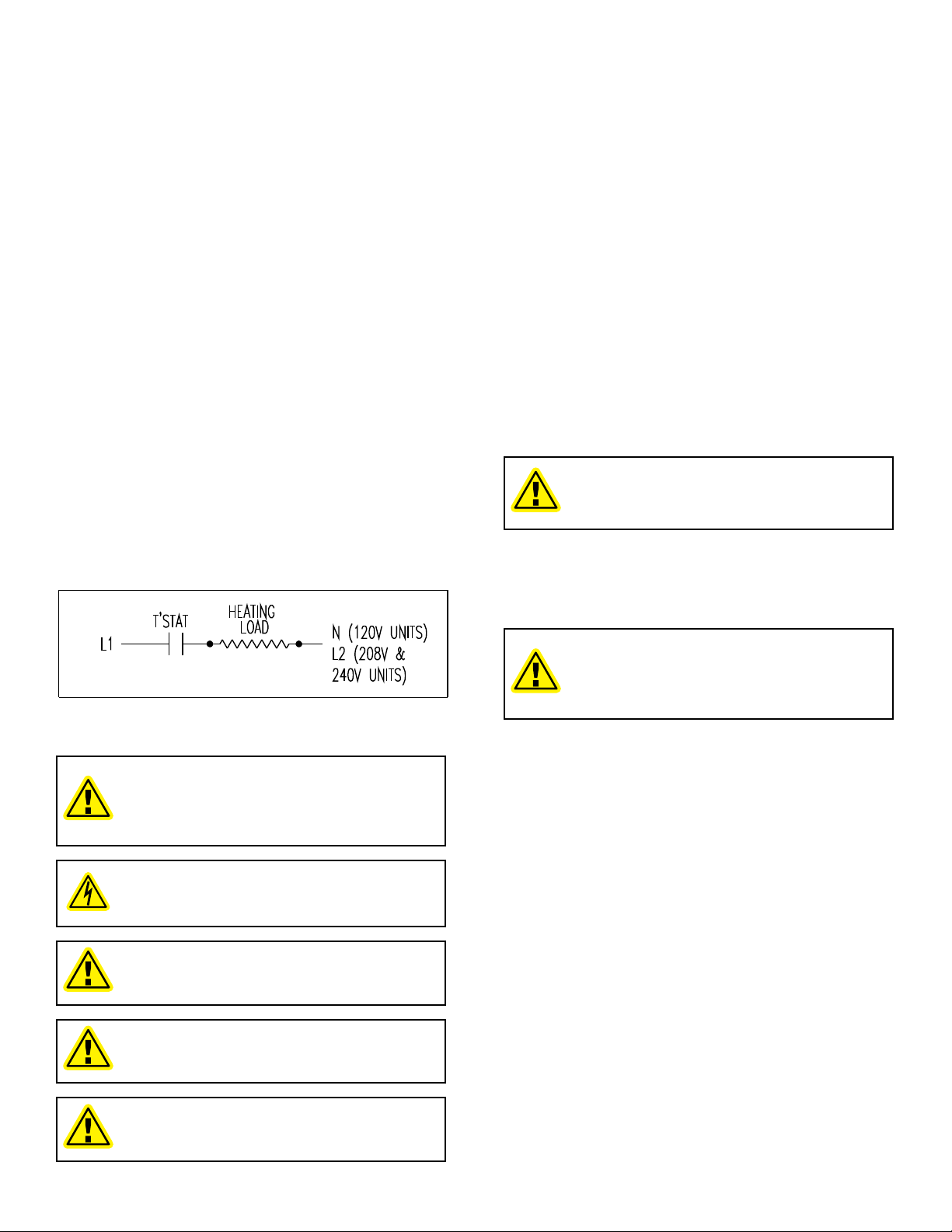

FIGURE 16 - WIRING DIAGRAM -

XPA CONVECTION HEATER

WHENEVER HAZARDOUS MATERIALS ARE
PRESENT, ENSURE THAT THE TERMINAL
HOUSING COVERS, PLUGS, ETC., ARE
SECURED (BUT NOT OVER-TIGHTENED)
BEFORE ENERGIZING THE HEATER.

ALL CIRCUITS MUST BE IN THE OPEN
POSITION BEFORE REMOVING JUNCTION OR
TERMINAL BOX COVERS.

USE SUPPLY WIRES SUITABLE FOR 221°F
(105°C). SUPPLY WIRES ARE TO BE FUSED
WITH APPROPRIATELY SIZED HRC FUSING.

USE APPROVED CONDUIT AND CONDUIT
SEALS AS REQUIRED BY HAZARDOUS
LOCATION STANDARDS.

WARNING

DISCONNECT POWER FROM THE
HEATER BEFORE PERFORMING ANY
MAINTENANCE. FAILURE TO DO SO CAN
RESULT IN PROPERTY DAMAGE, INJURY
OR DEATH.

(i) Remove junction box cover and inspect

the electrical connections. Ensure the
connections are tight and wires are not
burned or frayed.

(ii) Inspect the heater and its surroundings.

Make sure that heater clearances are
maintained and no debris is around the

heater or stuck in the ns.

(iii) Check all mounting hardware and ensure

fasteners are tight.

(iv) Replace the cover securely and turn on the

power supply.

CAUTION

ENSURE THAT NO POWER IS CONNECTED
TO THE EQUIPMENT PRIOR TO MAKING
ANY CONNECTIONS.

5

9.0 REPAIRS

9.1 If the heater malfunctions, and is no longer
operating, send the heater to the factory for
servicing. Do not attempt to service the unit.

9.2 When returning the heater you can ll out the
online repair form at http://www.ccithermal.com/

online-repair-form.php or include the following

information with the heater when shipping:

• Company name and address

• Contact name

• Telephone/fax number/email

• Product model and serial numbers

• Tagging codes

• Advise if an estimate is required prior to

starting the repair

• P.O. Number

• Description of problem(s) and/or

required repairs

• Special instructions (if applicable)

• Return shipping instructions

10.0 TROUBLESHOOTING

ONLY OPEN THE JUNCTION BOX IF IT IS SAFE

WARNING

TO DO SO!

10.1 These heaters contain a thermal fuse. If the
unit is not operating within proper constraints,
the unit may have overheated, causing the
thermal fuse to open. Check the thermal fuse by
disconnecting the power, opening the junction
box and measuring the resistance across the

terminals. If the resistance is innite, the fuse

has been triggered and the unit must be sent to
CCI Thermal Technologies Inc. for repair.

NOTE: If your circuit contains a thermostat and the
ambient temperature is high enough to turn off the

thermostat, the measured resistance will be innite,

this test will not check the thermal fuse.

6

NOTES

7

F 780-468-5904

5918 Roper Road, Edmonton, Alberta, Canada T6B 3E1

Phone: [phone] Fax: [phone]

PLEASE ADHERE TO INSTRUCTIONS PUBLISHED IN THIS MANUAL.

Failure to do so may be dangerous and may void certain provisions of your warranty.

For further assistance, please call:

24 Hr. Hotline: [phone]

(U.S.A. and Canada)

Please have model and serial numbers available before calling.

WARRANTY: Under normal use the Company
warrants to the purchaser that defects in material or
workmanship will be repaired or replaced
without charge for a period of 18 months from
date of shipment, or 12 months from the start date of

operation, whichever expires rst. Any claim for
warranty must be reported to the sales ofce where the

product was purchased for authorized repair or

replacement within the terms of this warranty.

Subject to State or Provincial law to the contrary, the
Company will not be responsible for any expense for
installation, removal from service, transportation, or
damages of any type whatsoever, including damages
arising from lack of use, business interruptions, or

incidental or consequential damages.

The Company cannot anticipate or control the
conditions of product usage and therefore
accepts no responsibility for the safe application and
suitability of its products when used alone or in
combination with other products. Tests for the safe
application and suitability of the products are the sole

responsibility of the user.

This warranty will be void if, in the judgment of the
Company, the damage, failure or defect is the result of:

• vibration, radiation, erosion, corrosion, process
contamination, abnormal process conditions,
temperature and pressures, unusual surges or
pulsation, fouling, ordinary wear and tear, lack of
maintenance, incorrectly applied utilities such as
voltage, air, gas, water, and others or any
combination of the aforementioned causes not

specically allowed for in the design conditions or

• any act or omission by the Purchaser, its agents,
servants or independent contractors which for
greater certainty, but not so as to limit the generality
of the foregoing, includes physical, chemical or
mechanical abuse, accident, improper
installation of the product, improper storage and
handling of the product, improper application or the

misalignment of parts.

No warranty applies to paint nishes except for

manufacturing defects apparent within 30 days from

the date of installation.

The Company neither assumes nor
authorizes any person to assume for it any other

obligation or liability in connection with the product(s).

The Purchaser agrees that all warranty work required
after the initial commissioning of the product will be
provided only if the Company has been paid by the
Purchaser in full accordance with the terms and

conditions of the contract.

The Purchaser agrees that the Company makes
no warranty or guarantee, express, implied or
statutory, (INCLUDING ANY WARRANTY OF

MERCHANTABILITY OR WARRANTY OF FITNESS
FOR A PARTICULAR PURPOSE) written or oral, of

the Article or incidental labour, except as is expressed
or contained in the agreement herein.

LIABILITY: Technical data contained in the catalog or

on the website is subject to change without notice. The
Company reserves the right to make dimensional and
other design changes as required. The Purchaser
acknowledges the Company shall not be obligated
to modify those articles manufactured before the
formulation of the changes in design or improvements

of the products by the Company.

The Company shall not be liable to compensate or
indemnify the Purchaser, end user or any other party
against any actions, claims, liabilities, injury, loss, loss
of use, loss of business, damages, indirect or conse­quential damages, demands, penalties, nes, expens­es (including legal expenses), costs, obligations and
causes of action of any kind arising wholly or partly
from negligence or omission of the user or the mis­use, incorrect application, unsafe application, incor­rect storage and handling, incorrect installation, lack
of maintenance, improper maintenance or improper

operation of products furnished by the Company.

Edmonton

Head Ofce

1-800-661-8529
[phone]

Oakville

1-800-410-3131
[phone]
F 905-829-4430

Orillia

1-877-325-3473
[phone]
F 705-325-2106

Houston

1-855-219-2101
[phone]
F 281-506-2316

Denver

[phone]
F 303-979-7350
