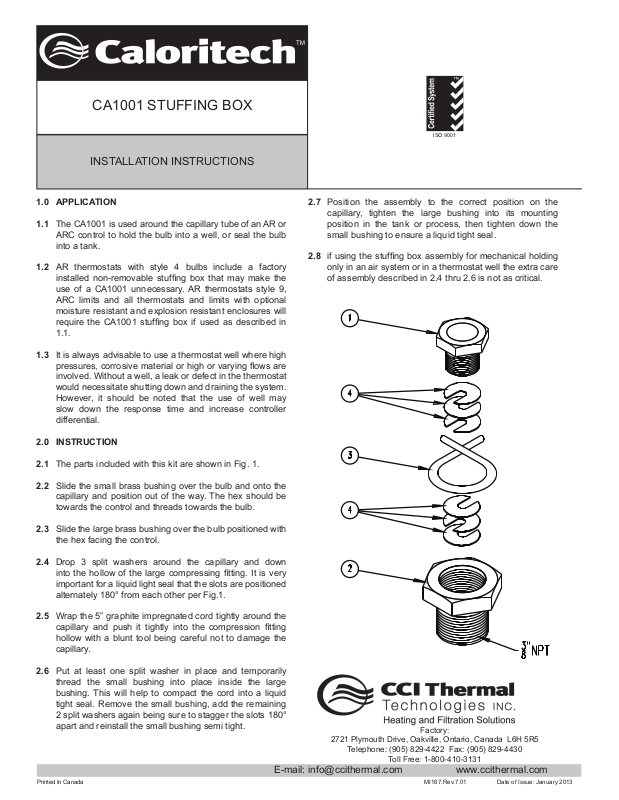

CCI Thermal Technologies CA User Manual

CA1001 STUFFING BOX
2.7 Position the assembly to the correct position on the capillary, tighten the large bushing into its mounting position in the tank or process, then tighten down the small bushing to ensure a liquid tight seal.
2.8 If using the stuffing box assembly for mechanical holding only in an air system or in a thermostat well the extra care of assembly described in 2.4 thru 2.6 is not as critical.
INSTALLATION INSTRUCTIONS
1.0 APPLICATION
1.1 The CA1001 is used around the capillary tube of an AR or
ARC control to hold the bulb into a well, or seal the bulb into a tank.
1.2 AR thermostats with style 4 bulbs include a factory
installed non-removable stufng box that may make the
use of a CA1001 unnecessary. AR thermostats style 9, ARC limits and all thermostats and limits with optional moisture resistant and explosion resistant enclosures will
require the CA1001 stufng box if used as described in
1.1.
1.3 It is always advisable to use a thermostat well where high pressures, corrosive material or high or varying ows are
involved. Without a well, a leak or defect in the thermostat
would necessitate shutting down and draining the system.
However, it should be noted that the use of well may slow down the response time and increase controller differential.
2.0 INSTRUCTION
2.1 The parts included with this kit are shown in Fig. 1.
2.2 Slide the small brass bushing over the bulb and onto the
capillary and position out of the way. The hex should be towards the control and threads towards the bulb.
2.7 Position the assembly to the correct position on the
capillary, tighten the large bushing into its mounting position in the tank or process, then tighten down the small bushing to ensure a liquid tight seal.
2.8 if using the stufng box assembly for mechanical holding
only in an air system or in a thermostat well the extra care of assembly described in 2.4 thru 2.6 is not as critical.
2.3 Slide the large brass bushing over the bulb positioned with the hex facing the control.
2.4 Drop 3 split washers around the capillary and down
into the hollow of the large compressing tting. It is very important for a liquid light seal that the slots are positioned alternately 180° from each other per Fig.1.
2.5 Wrap the 5” graphite impregnated cord tightly around the capillary and push it tightly into the compression tting hollow with a blunt tool being careful not to damage the
capillary.
2.6 Put at least one split washer in place and temporarily
thread the small bushing into place inside the large bushing. This will help to compact the cord into a liquid tight seal. Remove the small bushing, add the remaining 2 split washers again being sure to stagger the slots 180° apart and reinstall the small bushing semi tight.
