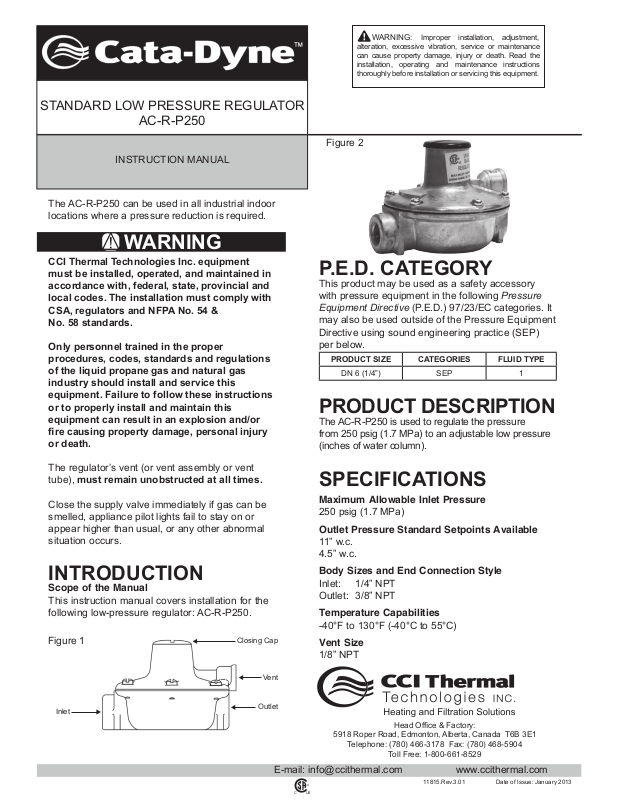

CCI Thermal Technologies AC-R User Manual

STANDARD LOW PRESSURE REGULATOR

Closing Cap

AC-R-P250

INSTRUCTION MANUAL

The AC-R-P250 can be used in all industrial indoor
locations where a pressure reduction is required.

WARNING

CCI Thermal Technologies Inc. equipment
must be installed, operated, and maintained in
accordance with, federal, state, provincial and
local codes. The installation must comply with
CSA, regulators and NFPA No. 54 &
No. 58 standards.

Only personnel trained in the proper
procedures, codes, standards and regulations
of the liquid propane gas and natural gas
industry should install and service this
equipment. Failure to follow these instructions
or to properly install and maintain this
equipment can result in an explosion and/or
re causing property damage, personal injury
or death.

WARNING: Improper installation, adjustment,

alteration, excessive vibration, service or maintenance
can cause property damage, injury or death. Read the
installation, operating and maintenance instructions
thoroughly before installation or servicing this equipment.

Figure 2

P.E.D. CATEGORY

This product may be used as a safety accessory
with pressure equipment in the following Pressure
Equipment Directive (P.E.D.) 97/23/EC categories. It
may also be used outside of the Pressure Equipment
Directive using sound engineering practice (SEP)
per below.

PRODUCT SIZE CATEGORIES FLUID TYPE

DN 6 (1/4”) SEP 1

PRODUCT DESCRIPTION

The AC-R-P250 is used to regulate the pressure
from 250 psig (1.7 MPa) to an adjustable low pressure
(inches of water column).

The regulator’s vent (or vent assembly or vent
tube), must remain unobstructed at all times.

Close the supply valve immediately if gas can be
smelled, appliance pilot lights fail to stay on or
appear higher than usual, or any other abnormal
situation occurs.

INTRODUCTION

Scope of the Manual

This instruction manual covers installation for the
following low-pressure regulator: AC-R-P250.

Figure 1

Vent

Inlet

Outlet

SPECIFICATIONS

Maximum Allowable Inlet Pressure

250 psig (1.7 MPa)

Outlet Pressure Standard Setpoints Available

11” w.c.

4.5” w.c.

Body Sizes and End Connection Style

Inlet: 1/4” NPT
Outlet: 3/8” NPT

Temperature Capabilities

-40°F to 130°F (-40°C to 55°C)

Vent Size

1/8” NPT

5918 Roper Road, Edmonton, Alberta, Canada T6B 3E1

Telephone: [phone] Fax: [phone]

E-mail: [e-mail] www.ccithermal.com

®

C US

Head Ofce & Factory:

Toll Free: 1-800-661-8529

11815.Rev.3.01 Date of Issue: January 2013

WARNING

INSTALLATION

Only qualied personnel should install a regulator.
Regulators should be installed, operated, and
maintained in accordance with applicable codes
and regulations, and CCI Thermal Technologies
instructions.

ADJUSTMENT

Each regulator’s outlet pressure is factory-set. If it
becomes necessary to increase outlet pressure, remove
the closing cap, Figure 1, and turn the adjusting screw
clockwise. Turn the adjusting screw counterclockwise
to decrease the outlet pressure. A pressure gauge is
needed to determine the regulator’s outlet setting after
adjustment. Always replace the closing cap
after adjustment.

If the regulator vents uid or a leak develops
in the system, it indicates that replacement is
required. Failure to take the regulator out of service
immediately may create a hazardous condition.

Personal injury, equipment damage, or leakage due
to escaping uid or bursting of pressure-containing
parts may result if this regulator is overpressured or
is installed where service conditions could exceed
the limits given in the Specications section, or
where conditions exceed any ratings or the adjacent
piping or piping connections.

To avoid such injury or damage, provide pressure­relieving or pressure-limiting devices (as required
by the appropriate code, regulation, or standard) to
prevent service conditions from exceeding limits.

Additionally, physical damage to the regulator could
result in personal injury and property damage due
to escaping uid. To avoid such injury and damage,
install the regulator in a safe location.

Clean out all pipelines before installation of the regulator
and check to be sure the regulator has not been
damaged or has collected foreign material during
shipping. For NPT bodies, apply pipe compound to the
male pipe threads. Install the regulator in any position

desired, unless otherwise specied, but be sure ow

through the body is in the direction indicated by the arrow
on the body.

OVERPRESSURE

PROTECTION

The recommended pressure limitations are stamped on
the regulator nameplate. Some type of overpressure
protection is needed if the actual inlet pressure
exceeds the maximum operating outlet pressure rating.
Overpressure protection should also be provided if the
regulator inlet pressure is greater than the safe working
pressure of the downstream equipment.

Regulator operation below the maximum pressure
limitations does not preclude the possibility of damage
from external sources or debris in the line. The regulator
should be inspected for damage after any
overpressure condition.

STARTUP

The regulator is factory set at approximately the midpoint
of the spring range or the pressure requested, so an
initial adjustment may be required to give the desired
results. With proper installation completed and relief
valves properly adjusted, slowly open the upstream and
downstream shutoff valves.

Note

It is important that the regulator be installed so

that the vent hold in the spring case is

unobstructed at all times.

Printed In Canada

NOTES

5918 Roper Road, Edmonton, Alberta, Canada T6B 3E1

Phone: [phone] Fax: [phone]

PLEASE ADHERE TO INSTRUCTIONS PUBLISHED IN THIS MANUAL.

Failure to do so may be dangerous and may void certain provisions of your warranty.

For further assistance, please call:

24 Hr. Hotline: [phone]

(U.S.A. and Canada)

Please have model and serial numbers available before calling.
