CCEA TRACKALPHA Series, TRACKALPHA.8.50.230, TRACKALPHA.3.50.230, TRACKALPHA.5.50.230 User Manual
Page 1
User Manual
ENGLISH
230V versions
1
Page 2
ENGLISH
1. Product description …………………….………………………………………… 3
2. Safety Warnings ……….…............................................................ 4
2.1 Proper use …………………………...…………………..………………….. 4
2.2 Product Safety …..…………………………………………………………. 4
2.3 Levels of risk ………………………………………………………………….. 6
3. Versions …………..………………………………………………………………… 7
4. Guide to installation ……………………………………………………………. 7
4.1 product Sizes …………………………………………………………………. 8
4.2 Clip fixing ALPHA.FX01 ……………………….…………………………. 8
4.3 Installation…………………………………..………………………………. 9
5. Plug-in …………………………..…………………………………………………….. 11
5.1 plug-in 230V with M12 …………………………………….…..…….. 11
5.3 Option for connection ………………….…………………………….. 12
6. Switch on- Switch off …………..…………………………………………….. 13
7. Solving Product troubles …………………………………………………….. 13
8. Light Source Replacement ………………………………………………… .. 13
9. Product Maintenance and Cleaning ……………………………………… 13
10. Repairing……………………………………………………………………………… 14
11. Warranty …………………………………………………………………………….. 14
12. Product Disposal …………………………………………………………………. 14
13. Technical features ……………………………………………………………… 15
14. Symbols meaning …………..…………………………………………………... 15
15. Declaration of Compliance …….……………………………………………. 16
Table of contents
Table of contents
2
Page 3
ENGLISH
Product Description
1. Product Description
Led Lighting Equipment suitable
for medium and large industrial
machine tools.
Anodized Aluminium Structure
and aluminium colour Varnished
side plates.
5 mm Tempered Glass Protection
High power Led light Source
White 5000K Light colour
Uniform and diffused flow
illumination
Shock-proof against small and
medium metal chips
Resistant to vibrations
IP 67 degree of Protection Lamp
Viton Seal against many cooling
emulsions.
Plug-in to 220-240V 50/60Hz
3 variants with different lengths
ALPHA system fastening
3
Page 4
ENGLISH
Safety Warnings
2. Safety Warnings
Each lighting device TRACKALPHA
Series has been projected and
manufactured according to the
state of the art technique. It is
made of well-selected quality
materials. It is carefully tested
beginning from row materials
throughout the production
process as far as packaging
according to a manufacturing
schedule in order to guarantee a
safe and reliable product.
Nevertheless, it might cause
material damages as well as
injuries to people while it is used.
This manual must be well-
maintained close to the
apparatus. it is integral part
of it.
Read All the instructions and
information contents by the
manual.
Warning indicated by the
instructions and on the
product itself must Strictly be
followed.
Considering warnings and
safety risks, Install and use
the product only if in perfect
conditions.
CCEA refuses any
responsibility in case of
tampering or wrong use of
the product itself .
2.1 Proper use for employment
All TRACKALPHA Lighting properly fit
for being installed inside machine
tools as well as in existing humid
environment.
2.2 Product Safety
Electrical Risks
If the product is incorrectly used, it
might cause injuries to people and
material damages to objects.
Connection procedure must be
Switch off power supply before
24VDC version: Connect only to
Pay attention that power supply
Maintenance and reparations
Risk of explosion
Risk of explosion might occur if this
product is installed and use into
applications with high risk of
explosion. It might cause heavy
individual injuries.
carried out by a qualified
electrician.
installation, maintenance or
reparation.
safety SELV. low tension. Follow
cable polarity (see paragraph
5.3).
rated tension and frequency
answer to requirements shown
by the label stuck on the
product.
must only be carried out by
qualified electrician.
4
Page 5
ENGLISH
Safety Warnings
Do not install and use this
product where can be risk of
explosion.
Installation and safety
Handle with care and Avoid that
the lamp can Drop even it is still
packed. Avoid the lamp can
roughly be hit. It might cause
injuries to People as well as
material damages.
Use only original fixing
accessories available from the
producer.
Set up properly the Fixing
accessories.
The apparatus must be correctly
fasten using proper screws
according to the application,
place and surface where the
product is mounted.
Periodically Check that fastening
hook have securely blocked.
Danger of dazzling by white light
source.
Avoid to stare directly at the light
source. May temporarily cause
sightless effect. This could cause
irritation, aches, damages or
accidents.
Do not Stare directly at the light
source.
The Device must be adjusted so
that the flow light cannot point
towards the eyes.
Danger caused by no-appropriate
Spare parts.
Non appropriate spare parts may
cause personal injuries and damages
to objects.
Do not use spare parts that have
not approved by the
manufacturer.
Damage caused by the presence of
laser beam
The TRACKALPHA lighting is not
allowed where high power laser such
us laser cutting is operating, it may
damage the led source.
Damage because of high
temperature
To install and use this device into
environments where an existing high
working temperature exceeds the
device operating temperature, it
drastically reduces the Led lifetime as
well as cause damage to built-in
electronic components.
Do not use this Device into
environments where the Device
operating temperature is
exceeding.
Avoid direct solar radiation.
Danger due to reparations
To repair or take apart without
appropriate technical and electrical
knowledge of the product itself, can
cause personal injuries and damages
to objects.
5
Page 6
ENGLISH
Levels of risk
DANGER
ATTENTION
WARNING
ADVICE
Do not try to repair or take the
device apart. Turn to qualified
personnel as for technical fault.
Product tampering or
modification that have not
approved by the manufacturer
will let warranty decline .
2.3 Levels of risk
Danger that in case of noncompliance immediately cause acute
injuries or death at last.
Dangers that in case of noncompliance may cause acute injuries
or death at last.
Dangers that in case of noncompliance may cause acute injuries.
Dangers that in case of noncompliance may cause damages to
objects.
6
Page 7
ENGLISH
In order to install and use the lighting system correctly and efficiently, look at the
table below so as to clearly identify the right chosen item and verify its features.
Note: Product code is found on the label be stuck to the device.
Find the product code printed on the label be stuck to the device;
find out the right item comparing product code printed on the label with
one shown by the table below;
The bare code printed on the label shows week an year of production
N.B. conservare le etichette della lampada per la gestione in caso di reclamo
Item
Tension
LED Nr.
Power
Current
Connection
Weight
220/240V 50/60Hz Versions
TRACKALPHA.3.50.230
240 V
54
19,5 W
0,9 A
M12 4P (M) connector
1,85 Kg ~
TRACKALPHA.5.50.230
240 V
90
34 W
1,5 A
M12 4P (M) connector
2,40 Kg ~
TRACKALPHA.8.50.230
240 V
144
53,5 W
2,4 A
M12 4P (M) connector
4,00 Kg ~
Versions
3. Versions
4. Versioni disponibili
7
Page 8
ENGLISH
ALPHA.CLIP Clip Fastening for rear
adjustment 30° rotation
19,5W
34W
53,5W
Guide to installation
ALPHA.ADP daptor for side to side
adjustment 100° rotation
5. Guide to Installation

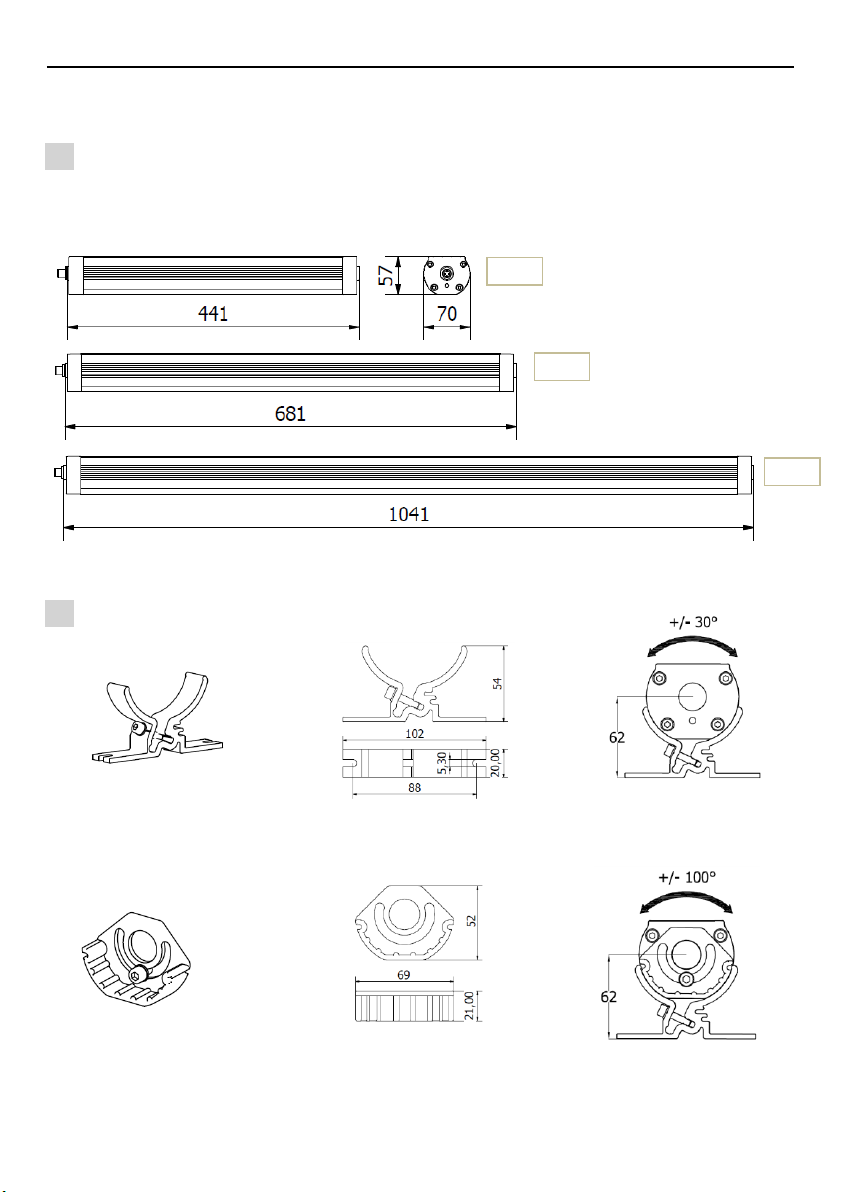

4.1 Product sizes and accessories
24VDC Versions
4.2 Fixing
8
Page 9
ENGLISH
ATTENTION
WARNING

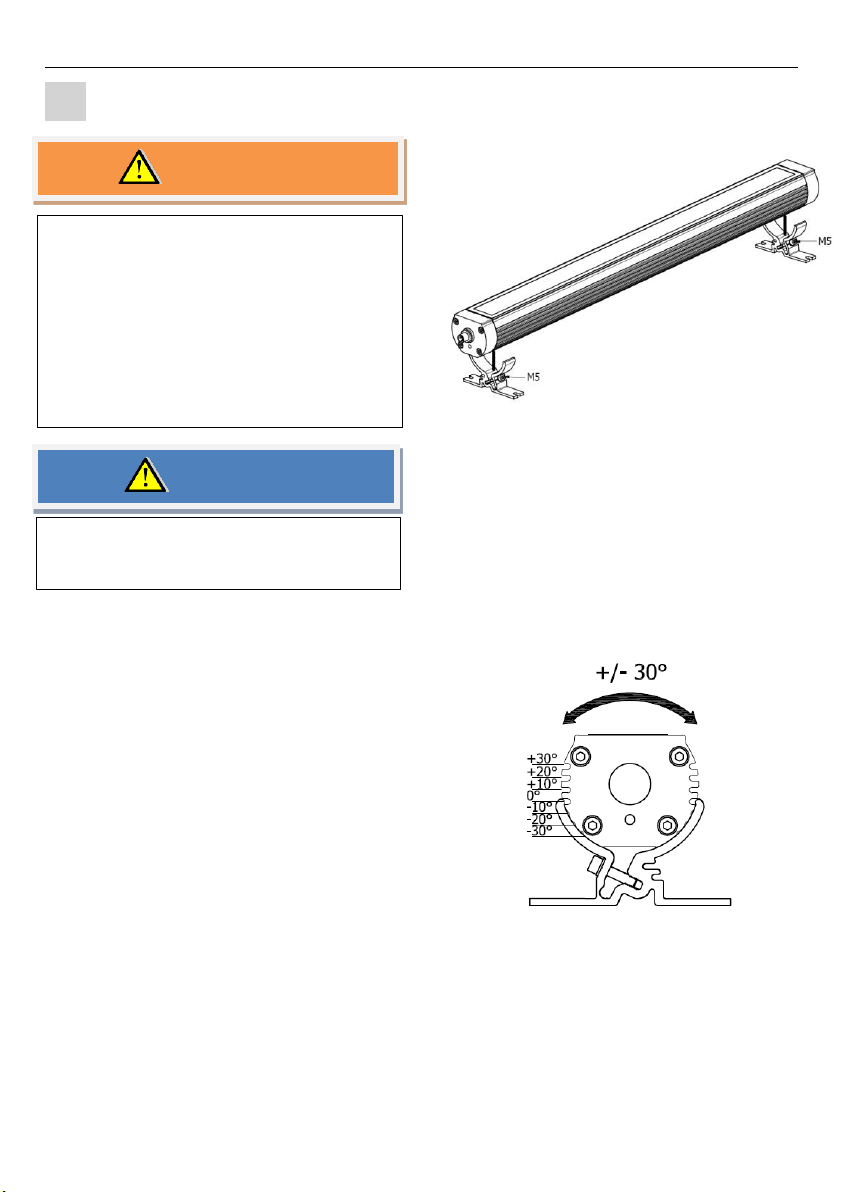

Installation
Picture 4.1
4.3 Installation
The lamp fall-down may cause
injuries and damages to objects
In order to install the lamp use
only original fastening parts
purchasable from the supplier.
Install accurately the fastening
parts
Turn off the power before
proceeding to installation.
Correct installation using only
ALPHA.CLIP:
Note: The item ALPHA.CLIP is made
up of aluminum clip along with an M5
screw that allow to fix the fastener to
the lamp.
Rear fixing exploiting slots alongside
aluminum profile.
1.1 According to the hole distance
given by the machine tool
drawing fix the two clips to the
machine surface using two M6
screws for each fastener. Make
sure that both fasteners have
securely fasten.
2.1 Hook up the lamp to both clips
already fixed to the machine
making sure that it is perfectly
balanced (see 4.1)
3.1 Adjust lamp Flow light position up
to 30° rotating the lamp on its
lengthwise axis exploiting the
groves along the aluminum
structure (see 4.2).
4.1 Once the right position is found,
tighten both M5 screws as much
as needed to guarantee that both
clips have securely fasten to the
lamp.
9
Page 10
ENGLISH
Installation

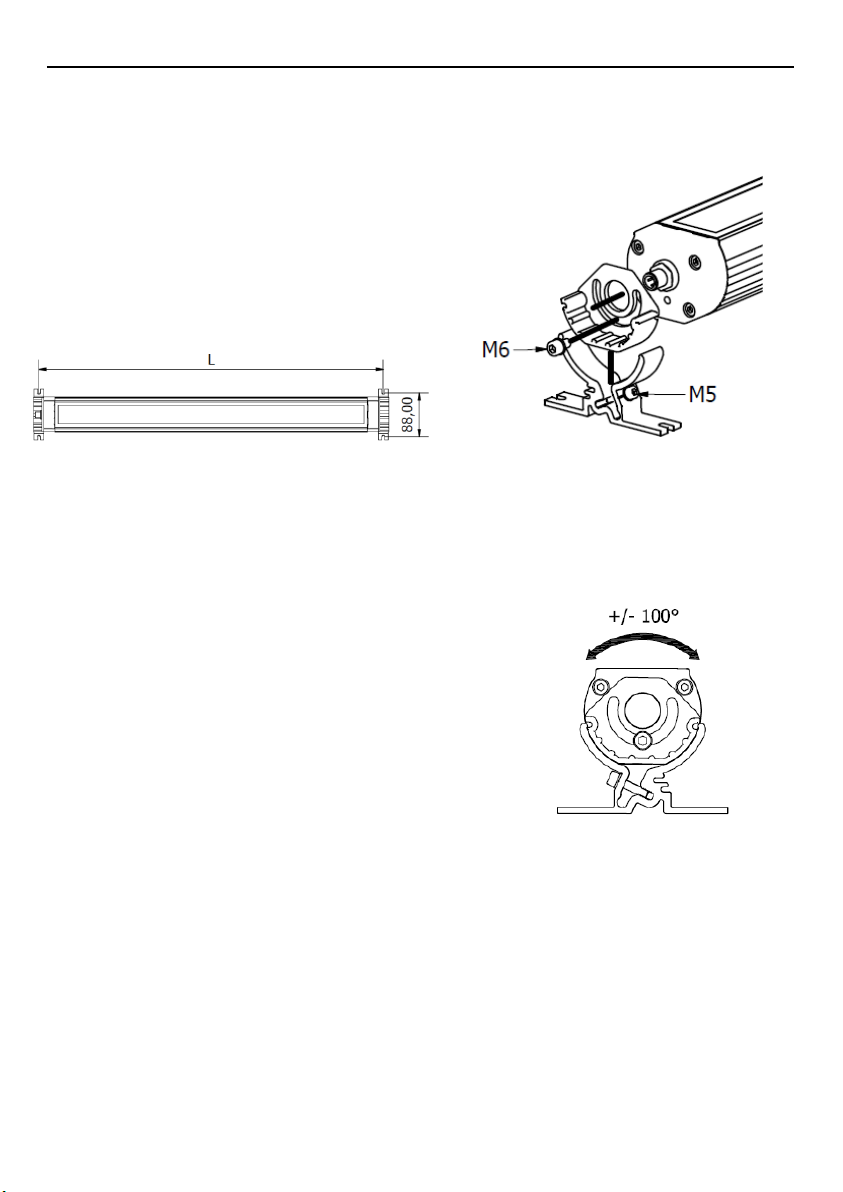

Side Fastening
Correct installation is using
ALPHA.CLIP along with ALPHA.ADP
ALPHA.ADP is an aluminium Adaptor
for side adjustment 100° lamp
rotation tighten by an M6 screw.
1.1 Bore the machine surface
according to drawing 4.3
Item L (mm)
TRACKALPHA3.50 455
TRACKALPHA5.50 695
TRACKALPHA8.50 1055
2.1 Fix the two clips to the machine
surface using two M6 screws for
each fastener. Make sure that
both fasteners have securely
fasten
3.1 Joint the two adaptors to both
lamp sides (see picture 4.4) and
tighten M6 screws making sure
the adaptors can freely rotate on
their axis.
4.1 hook up the two adaptors already
joined to the lamp to both clips
already fixed to the machine
5.1 Tighten both M5 screws as much
as needed to guarantee that both
clips have securely fasten to the
adaptors.
6.1 Adjust lamp Flow light position up
to 100° rotating the lamp on its
lengthwise axis.
7.1 Once the right position is found,
tighten both M6 screws as much
as needed to guarantee that both
the adaptors have securely
fasten.
Replacement of old lamp
Remove the old fitting. According to
the existing holes, choose rear
fastening or side fastening procedure.
10
Page 11
ENGLISH
ADVICE
Collegamento elettrico
Plug-in
ADVICE
ADVICE
Picture 5.1.1
Damaging or broken lighting.
The product be damaged or be
broken because of fall.
During maintenance, operations
do not completely untighten M6
screws. The lamp may fall down.
Fasteners must be timely
Checked as well as check that M5
screws have securely tighten to
the machine.

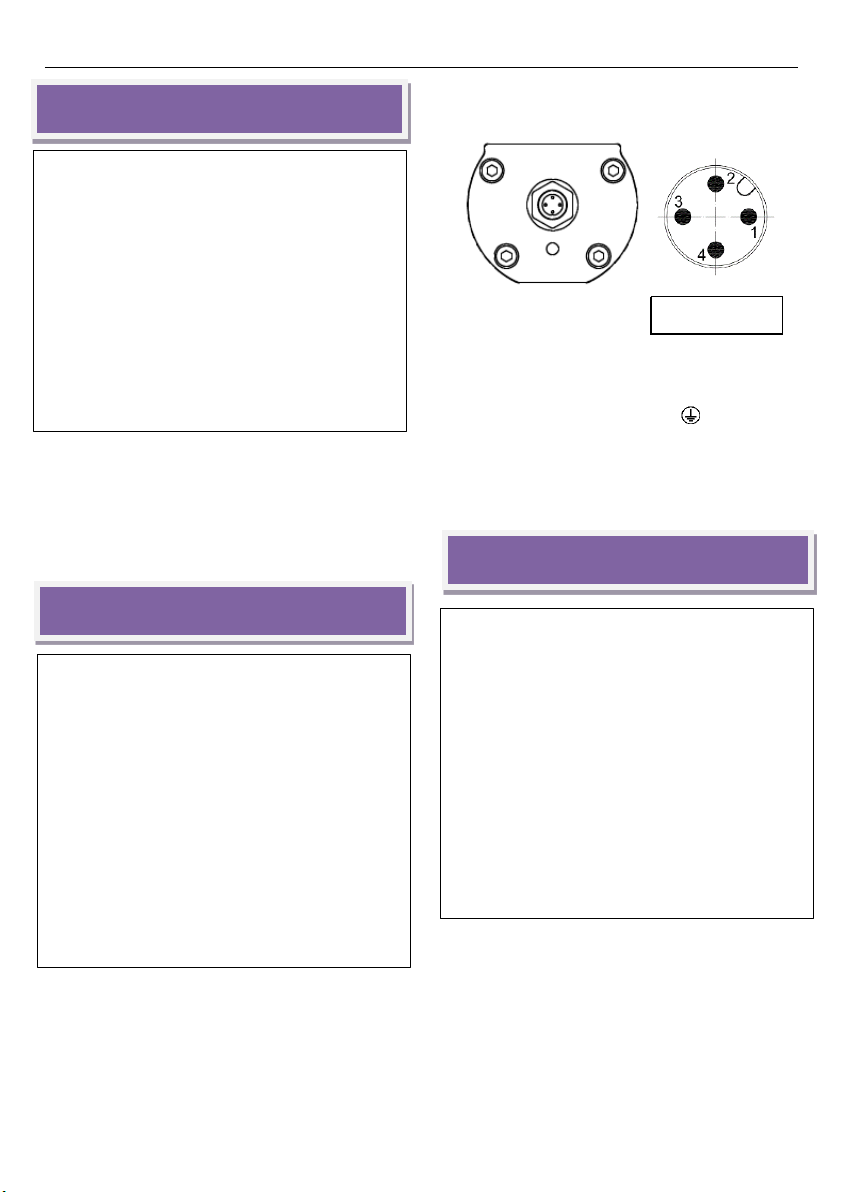

5. PLUG-IN
5.1 230V connection with M12
female connector
5.2
A wrong wiring cause lamp breakout
and Damages to things and people.
Trained personnel must execute
the electric connection.
Strictly Follow the indications
shown by the picture 5.1.1 in
order to correctly wire polarity
for female M12 connector
Use a minimum section of 0,75
mm2 wire for a single lamp plug-
in
Lamp connector Male M12 4 Poles
PIN Wiring
1 L 230V)
2 GND
3 N 230V
4 Non connesso
Ingress of liquid into the lamp cause
damages to things and lamp
breakout
Use a female connector IP 67 at
least. It guarantees the same
degree of protection of the lamp
itself.
Pay attention to correctly wire
the M12 female according to
picture 5.1.1
11
Page 12
ENGLISH

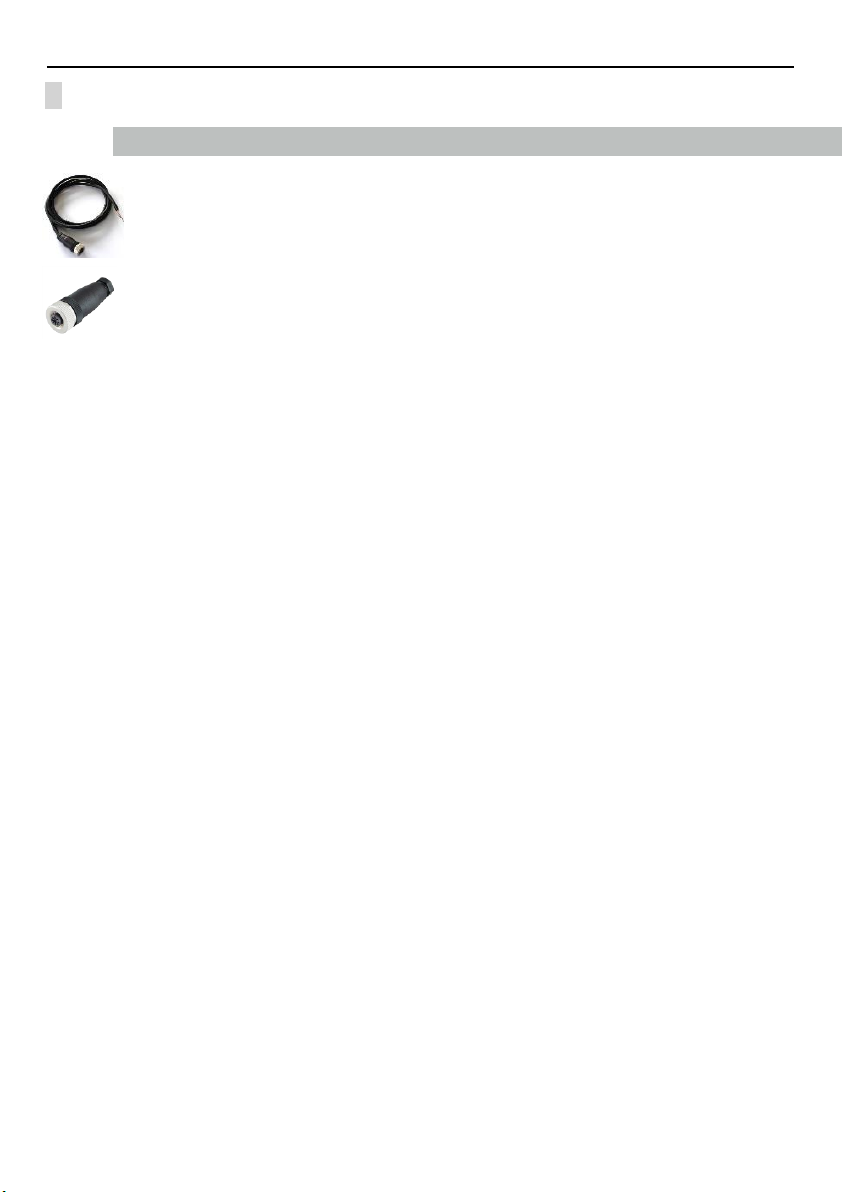

Plug-in
CODICE
DESCRIZIONE
M12V.F.C1,5
M12 Connector 4P (F) Cable H05RNF 2x0,75 - 1,5mt in length
M12V.F.C3
M12 Connector 4P (F) Cable H05RNF 2x0,75 - L=3m in length
M12V.F.C5
M12 Connector 4P (F) Cable H05RNF 2x0,75 - L=5mt in length
M12V.F.C10
M12 Connector 4P (F) Cable H05RNF 2x0,75 L=10mt in length
N11810001040302
M12 Connector 4P (F) Female cable connector 6-8mm
5.2 Option for Connection
12
Page 13
ENGLISH
WARNING
ADVICE
Maintenance
6. Switching On and Off
The lamp is not equipped with
self-switching on and off.
The lamp Turn on when receives
tension and Turn off with the
power off.
7. Solving product Troubles
If the lamp does not turn on:
Check that the lamp is properly
wired to the supply voltage.
Check that polarity junction have
correctly carried out.
If the lamp is faulty Contact CCEA TECHNICAL
SUPPORT
CCEA Technical Support
Tel. +39 0444 572083
www.ccealights.com
8. Replacement of the Led
light source
Thanks to the long-lasting life of the
LED light source, more than 50.000
hours, to replace the PCB LED is not
necessary if the lamp is properly
installed and used according to this
manual. Contact CCEA Technical
Support or your Seller, in case of
replacement of the PCB LED for
failure not covered by the warranty.
9. Product Maintenance and
Cleaning
Turn Power Supply off before
proceeding to Maintenance.
This product does not need special
maintenance.
Cleaning operations must be
done only after the power supply
has been turned off and the
surfaces have been cooled down.
Afterwards the surfaces of the
lamp shall be carefully rinsed
with not aggressive cleanser and
then wiped off with a soft cloth
Leakage of liquid cause Damages to
the lamp.
Cleaning operations must be
done at the end of any Working
cycle when the lamp is installed
in a wet environment or
presence of lubricants.
13
Page 14
ENGLISH
Reparation and Warranty
ADVICE
10. Repairing
Material Damages by wrong repairing
can cause damages to the lamp.
Repair must be performed by
the producer or trained staff.
Use only replacement parts
authorized by the producer.
11. Warranty
TERMS OF WARRANTY
During the Product lifetime, the CCEA
Warranty of the purchased product
applies to checking and repair of the
equipment to be performed exclusively
at the CCEA Technical service
Department or at one authorized official
dealer service, therefore:
Taking custody of the equipment
presented for repair;
Cost of components parts, including
labour, on defective equipment.
The warranty does not cover:
Transport, packing and shipping
expenses;
Deterioration or damage caused by:
- Installation and/or operation
according to methods other than
those given in the user manual;
- Repair or attempted repair by
personnel not authorized by CCEA
Srl;
- Operation of the equipment under
environmental conditions other than
those specified in the user manual;
- Failure to observe due precautions
during transport and shipping
disregarding use of suitable packing
(original packing is recommended to
use).
WARRANTY PERIOD
The warranty period is 24 months;
starting from the date of purchase. Once
this period has expired, reparation
service will be performing with the cost
of replaced spare parts and labour
charged according with CCEA Srl rates.
12. Waste Disposal
Disposal of obsolete electrical and
electronic devices (directive
2002/96/EC-WEEE):
The crossed-out rubbish bin logo means
that used electrical and electronic
products shall not be mixed with
unsorted municipal waste. For more
detailed information about recycling of
this product, refer to the instructions of
your country for the disposal of the
products.
Do not dispose of this equipment as
miscellaneous solid municipal waste, but
arrange to have it collected separately.
The re-use or correct recycling of the
electronic and electrical equipment (EEE)
is important in order to protect the
environment and the wellbeing of
humans.
In accordance with European Directive
WEEE 2002/96/EC, special collection
areas are available to which to deliver
waste electrical and electronic
equipment. The equipment can also be
14
Page 15
ENGLISH

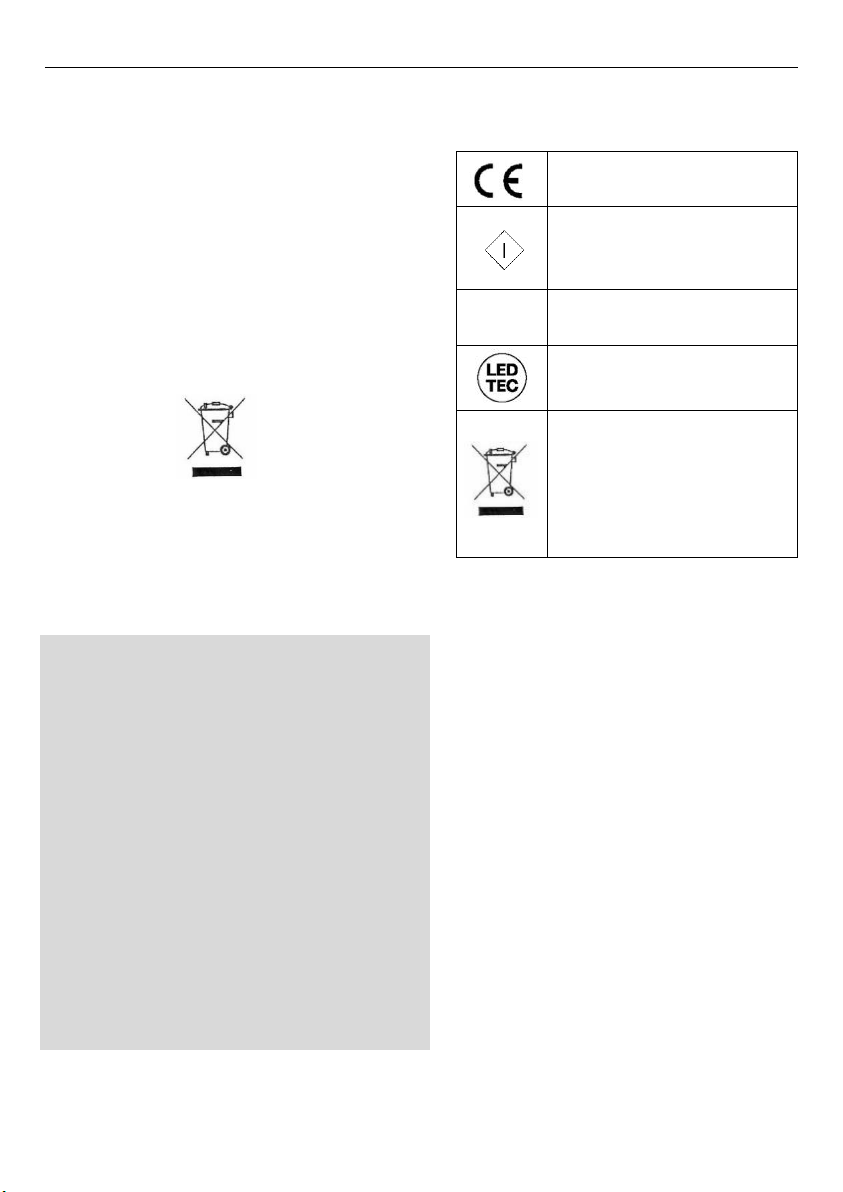

CE Statement
CLASS I DEVICE
Device working with
extra-low voltages.
IP67 degree of
protection
LED Technology
Directive 2002/96/EC of the
European Parliament and
of the Council of 27 January
2003 on waste electrical
and electronic equipment
(WEEE) (OJ L 37, 13.2.2003
Technical Data and symbols
Power Supply 220-240V
50/60Hz
Power 19,5-34-53,5W
(See Label)
IEC Class I
Degree of protection IP67
LED Driver CCEA IDS
Integrated
Driver System
Light Colour 5000K
CRI 75
Operating Temperature -20 + 55 °C
See Table page 7 for Further Technical data
IP67
handed over to a distributor now of
purchasing a new equivalent item.
The public administration and producers
of electrical and electronic equipment
are involved in facilitating all processes of
the re-use and recovery of waste electrical
and electronic equipment through the
organization of collection activities and the
use of appropriate planning arrangements.
Unauthorized disposal of waste electrical
and electronic equipment is punishable
by law with the appropriate penalties.
14. Symbols
13. Technical Data
NOTE: See features printed on the
label stuck to the lamp.
15
Page 16
ENGLISH
Declaration of compliance
CE CONFORMITY DECLARATION
C.C.E.A. SRL, via Piave, 2 - 36077 Altavilla Vicentina (VI) - P.I. e C.F. 02374040240 hereby
declares that the light equipment item TRACKALPHA it has been manufactured by CCEA SRL to
which this declaration relates is in accordance with the following Directives: 2006/95/EC on Low
Voltage Equipment Safety and the Directive of Electromagnetic Compatibility 89/336/CEE (EMC)
2004/108/EC. The unit complies with all applicable Essential Requirements of the following
harmonized Standards:
• CEI EN 60598-1 “Lighting equipment. Part 1: General instructions and tests”
• CEI EN 60598-2-4 “Lighting equipment part 2: particular requirements – part 4 Portable
general purpose luminaries”.
• CEI EN 62031 “LED modules for general lighting. Safety specifications”.
• CEI EN 61347-2-13 “Part 2 Lamp control gear. Part 2-13 Particular requirements for DC or
AC. Supplied electronic control gear for LED modules”.
• CEI EN 62384 “DC or AC supplied electronic control gear for LED modules. Performance
requirements”.
This is a standard product, built in according to a constructor’s manufacturing schedule, which
guarantee testing and crush tests procedures in order to make sure that the product is safe, efficient
and long lasting.
C.C.E.A. SRL disclaim any responsibility resulting from tampering and/or wrong use of the device.
C . C . E . A . s r l
Via Piave, 2
36077 Altavilla Vicentina (VI) - Italy
Tel. ++39 0444 572083
Fax. ++39 0444 572337
E-mail: [email protected]
www.ccealights.com
15. Declaration of Conformity
Agg.to TRACK_ALPHA_manuale_uso_23-12-15
16
Loading...
