CC and C Technologies WL6201V1 User Manual

IEEE

802.11

b/g/n

WLAN

This manual may not be copied in any media or form without the written consent of original maker.

11n Micro USB Adapter, 1T1R

WL-6201-V1

USER’S GUIDE

VERSION 1.2
2009/04/16

© All rights reserved.

All trade names are registered trademarks of respective manufacturers listed.

Information To User ..................................................…….. I

1. Introduction .........................................................…… 1

2. Wireless LAN Basics ................................................……. 3

3. IP ADDRESS ..........................................................……. 4

4. Install Driver/Utility ...............................................……. 5

4.1 Windows XP/2K.................................................... 5

4.2 Windows Vista...................................................... 6

5. Wireless Network Configuration ....................................... 7

5.1 Utility Icon ........................................................ 7

5.2 Client Mode (Default Setting)................................... 7

6. Technical Specifications ............................................... 15

7. Troubleshooting ......................................................... 16

8. Glossary ................................................................... 17

INFORMATION TO USER

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

* Consult the dealer or an experienced radio/TV technician for help.
REGULATION INFORMATION

The WLAN 11n Micro USB Adapter must be installed and used in strict accordance with the
manufacturer’s instructions. This device complies with the following radio frequency and safety
standards.

FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF exposure
compliance.
To comply with the FCC RF exposure compliance requirements, this transmitter must not be co­located or operating in conjunction with any other antenna or transmitter.

Your device contains a low power transmitter. When device is transmitted it sends out Radio
Frequency (RF) signal. Use only with supplied antenna. Unauthorized antenna, modification, or
attachments could damage the transmitter and may violate FCC regulations.

You are cautioned that changes or modifications not expressly approved by the part responsible
for compliance could void the user’s authority to operate the equipment.

Europe- R&TTE Compliance Statement

Hereby, CC&C Technologies, Inc., declares that this equipment complies with the essential
requirements and other relevant provisions of DIRECTIVE 1999/5/CE OF THE EUROPEAN
PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication
terminal Equipment and the mutual recognition of their conformity (R&TTE).

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including

interference that may cause undesired operation.

CE Declaration of Conformity

For the following equipment:

WLAN 11n Micro USB Adapter

(Product Name)
WL-6201-V1
(Model Designation)

is herewith confirmed to comply with the requirements set out in the Council (European
parliament) Directive on the A pproximation of the Laws of the Member States relating to
Electromagnetic Compatibility of Radio and Telecom device (1999/5/EC). For the
evaluation regarding this Directive, the following standards were applied:

EN 300 328 V1.7.1

EN 301 489-1 V1.8.1 ; EN 301 489-17 V1.3.2

EN 60950-1:2006

, 1T1R

Marking by the symbol
France - 2.4GHz for Metropolitan France:

In all Metropolitan départements, wireless LAN frequencies can be used under the following
conditions, either for public or private use:

· Indoor use: maximum power (EIRP*) of 100 mW for the entire 2400-2483.5 MHz frequency
band

· Outdoor use: maximum power (EIRP*) of 100 mW for the 2400-2454 MHz band and with
maximum power (EIRP*) of 10 mW for the 2454-2483 MHz band

Caution: Exposure to Radio Frequency Radiation.
To comply with RF exposure compliance requirements, for mobile configurations, a separation
distance of at least 20 cm must be maintained between the antenna of this device and all persons.

This device is intended for use as check in the following European Community countries:

Austria Belgium Czech Republic Cyprus
Denmark Estonia France Finland
Germany Greece Hungary Ireland
Italy Iceland Luxemburg Latvia
Lithuania Malta Norway Netherlands
Portugal Poland Spain Sweden
Slovakia Slovenia United Kingdom

indicates that usage restrictions apply.

The channel identifiers, channel center frequencies, and regulatory domains of
each 22-MHz-wide channel are shown in following Table.

France

Outdoor

ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ

Israel

ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ

ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ

Channel

Identifier

1
2
3
4
5
6
7
8

9
10
11
12
13
14

Frequency

(MHZ)

2412
2417
2422
2427
2432
2437
2442
2447
2452
2457
2462
2467
2472
2484

Regulatory Domains

Japan

ETSI

ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ

ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ

North

America

Mexico

ˇ
ˇ

Thank you for your purchase of the WLAN 11n Micro USB Adapter.
Featuring wireless technology, this wireless networking solution has been
designed for both large and small businesses, and it is scalable so that you
can easily add more users and new network features depending on your
business scale.

FEATURES

Support Microsoft XP, x64 and Vista.
Operating distance of up to 300 meters in free space.
150/120/90/60/54/48/36/30/24/22/18/12/11/6/5.5/2/1 Mbps selectable Data

Rate.
64/128-bit WEP , WPA (Wi-Fi Protected Access), WPA2

2.400GHz ~ 2.4835GHz unlicensed ISM Frequency Band.

Modulation Method :
IEEE 802.11b : DSSS (Direct Sequence Spread Spectrum).
IEEE 802.11g / 802.11n : OFDM (Orthogonal Frequency Division

Multiplexing). Easy operation and setting up.

SYSTEM REQUIREMENTS

Windows System : XP, x64, Vista.

PCs must have a device driver installed. It allows you to communicate
with WLAN 11n Micro USB Adapter.

1

BEFORE YOU START

1. Confirm Box Contents

◆

WLAN 11n Micro USB Adapter,1T1R

◆ Quick Start Guide

◆

Driver CD

CONNECTING YOUR WLAN 11n Micro US B Ada p t e r TO PC

Quick Start Guide

Connect your WLAN 11n Micro USB Adapter to your PC. Install driver.

GETTING TO KNOW WIRELESS LAN ADAPTER

LED

LED turns on when WLAN link to WLAN adaptor or AP.

LED is blinking when WLAN Adapter is active.

2

Wireless LAN network defined by IEEE 802.11b/g standard committee
could be configured as :

Ad Hoc wireless LAN.

Infrastructure wireless LAN.

Ad Hoc network is a group of PCs installed with wireless LAN cards, this

group of PCs is called a BSS (Basic Service Set). PCs in this group can use
their wireless LAN cards to communicate with each other, but can not
connect to the Internet.

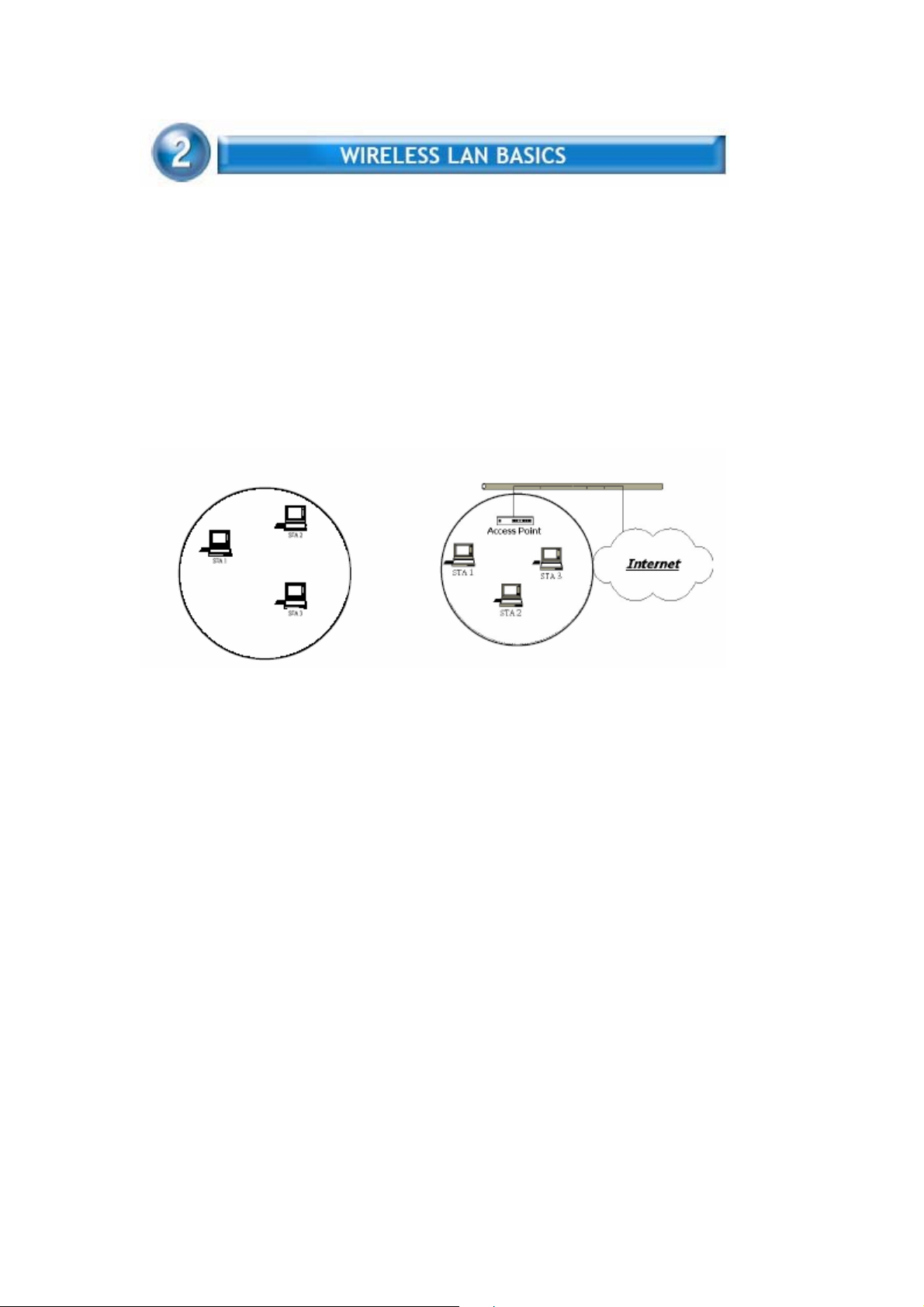

Ad Hoc Wireless Network Infrastructure Wireless Network

The most obvious difference between Infrastructure wireless network
and Ad Hoc wireless network is that the PCs in Infrastructure wireless
network can access the resource in the Internet through Access Point.

Depending on your requirement, you can easily set up your PC’s

network to be a “Ad Hoc” or “Infrastructure” wireless network. Generally
speaking, if in your network, there is an Access Point in it, we recommend
you to set your network as an “Infrastructure”, so it can connect to
the Internet.

3

To use the

WLAN 11n Micro USB Adapter

with a computing device, the WLAN
Adapter must be equipped with a proper Interface. All drivers and supporting
software for the WLAN Adapter must be installed and configured first.

Ask your system adMicrostrator for the following information,
which you may need to provide during driver installation

Your Wireless Client
Name. Your Wireless
SSID.
Your computer’s unique client name and workgroup
name. For your network account, your user name and
password.
Your

not using a DHCP client.

IP

address, gateway address, and subnet mask

:

if

you’re

Any computer on a network is identified by a unique network
address. There are two methods to assign a network address to a
computer on a TCP/IP network

Static

IP

Dynamic

addressing.

IP

addressing (DHCP Client).

:

In network with static IP addressing, the network adMicrostrator
manually assigns an IP address to each computer. Once a static
address is assigned, a computer uses the same
it

reboots and logs on to the network. You may manually change the

address in the

Network Properties dialog box. Network using static

IP

address every

IP

address is
easy to set up and do not require additional network management
software.

In network with dynamic
network dynamically assigns
they log on to the network. Network using dynamic
requires setting up and running a DHCP Server

IP

addressing, a DHCP server in the

IP

addresses to all clients every time

IP

.

4

address

IP

time

IP
