CC and C Technologies WL6200V3 User Manual
IEEE
802.11
b/g/n
Micro 11bgn 1x1 150Mbps
Wireless Client Dongle
Model: WL-6200-V3
USER’S GUIDE
All trade names are registered trademarks of respective manufacturers listed.
This manual may not be copied in any media or form without the written consent of original maker.
VERSION 1.2
© All rights reserved.
Information To User ..................................................…….. I
1. Introduction .........................................................…… 1
2. Wireless LAN Basics ................................................……. 3
3. IP ADDRESS ..........................................................……. 4
4. Install Driver/Utility ...............................................……. 5
4.1 Windows XP/Vista/Win7 / 8 / 8.1............................... 5

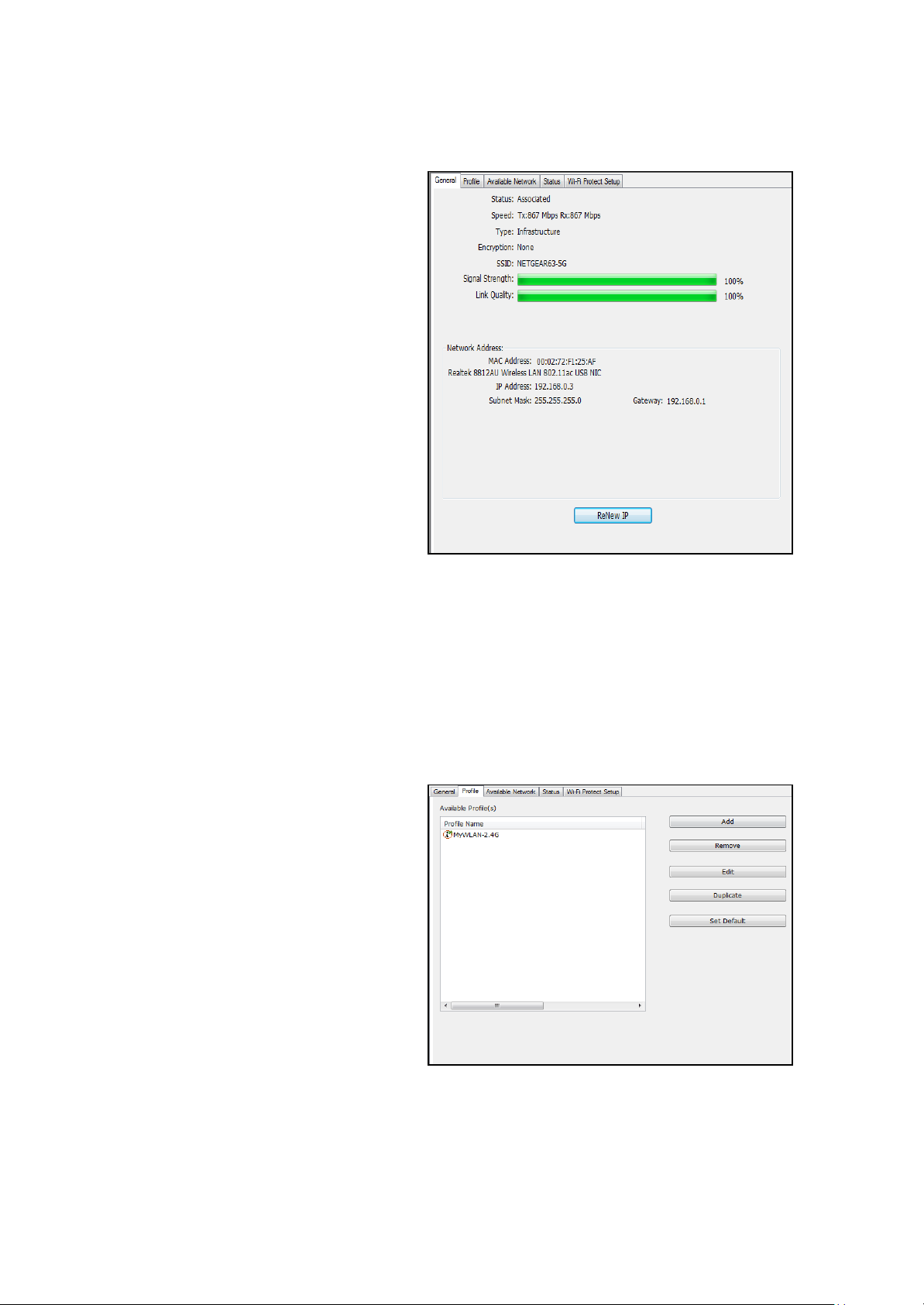

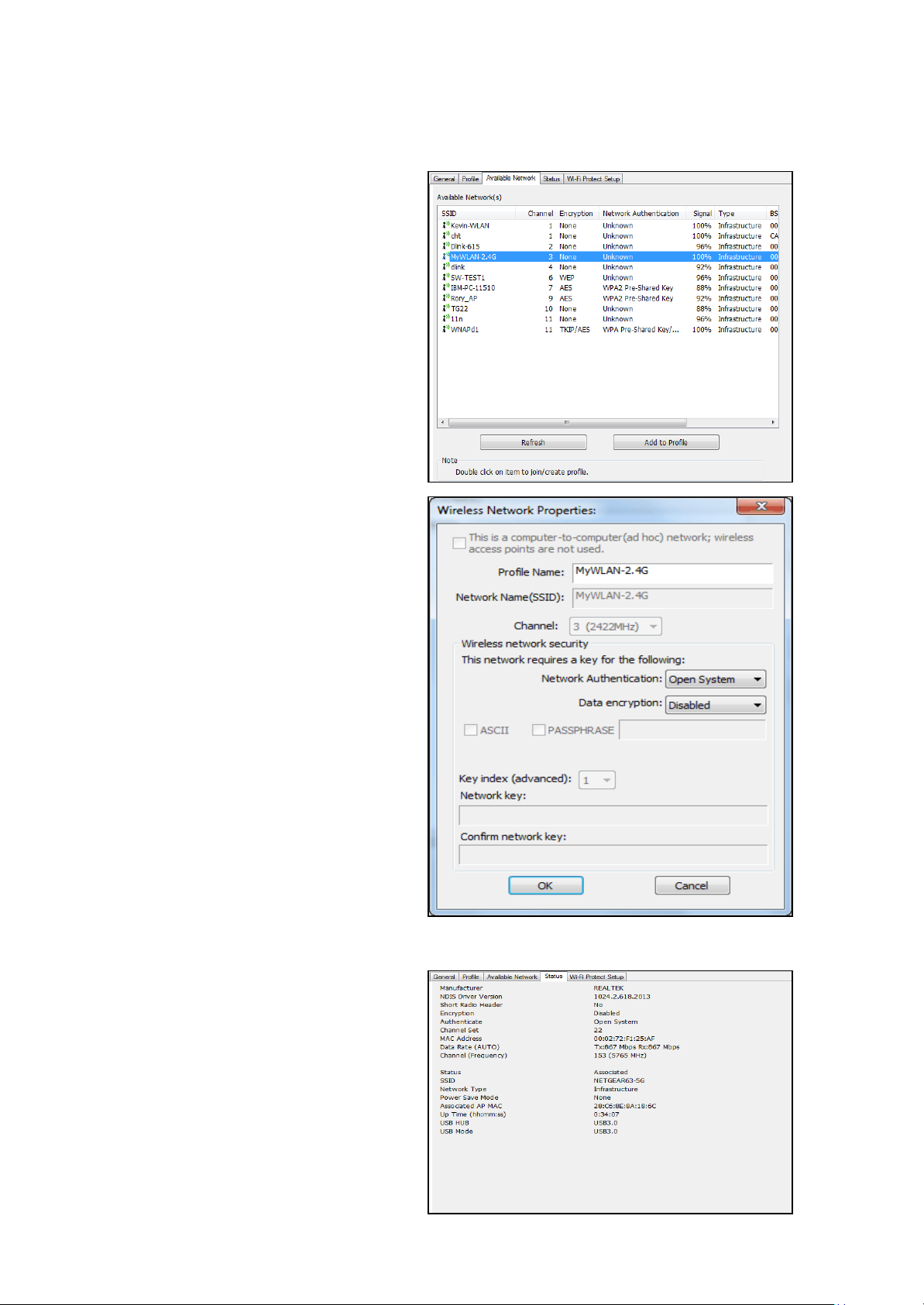

5. Wireless Network Configuration ....................................... 7
5.1 Utility Icon ........................................................ 7
5.2 Client Mode (Default Setting)................................... 7

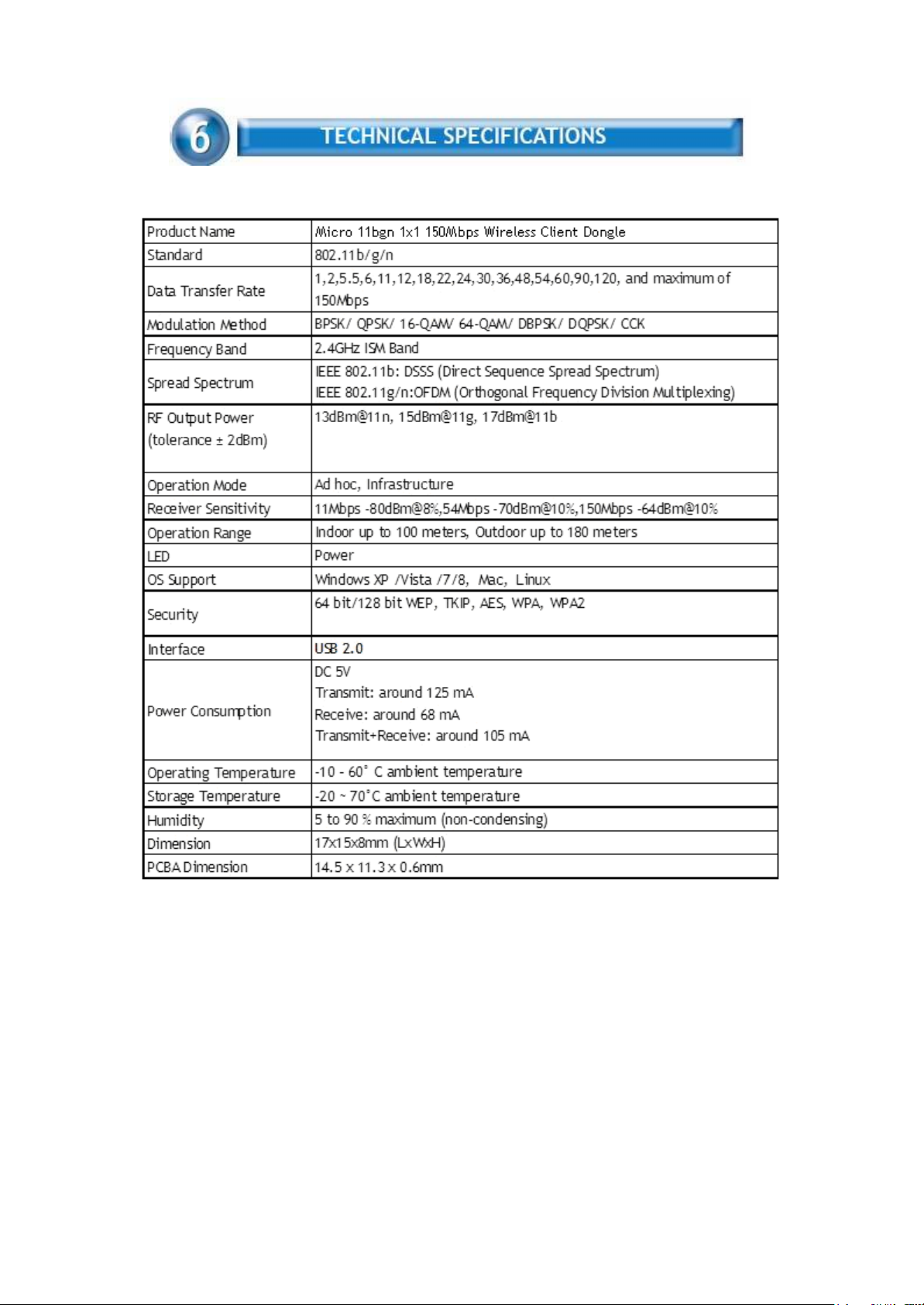

6. Technical Specifications ............................................... 15
7. Troubleshooting ......................................................... 16
8. Glossary ................................................................... 17
INFORMATION TO USER
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
* Consult the dealer or an experienced radio/TV technician for help.
REGULATION INFORMATION
The Micro 11bgn 1x1 150Mbps Wireless Client Dongle must be installed and used in strict
accordance with the manufacturer’s instructions. This device complies with the following radio
frequency and safety standards.
FCC RF Radiation Exposure Statement:
The product comply with the FCC portable RF exposure limit set forth for an uncontrolled
environment and are safe for intended operation as described in this manual. The further RF
exposure reduction can be achieved if the product can be kept as far as possible from the user
body or set the device to lower output power if such function is available.
Your device contains a low power transmitter. When device is transmitted it sends out Radio
Frequency (RF) signal. Use only with supplied antenna. Unauthorized antenna, modification, or
attachments could damage the transmitter and may violate FCC regulations.
You are cautioned that changes or modifications not expressly approved by the part responsible
for compliance could void the user’s authority to operate the equipment.
The use of the USB dongle with laptops/notebooks is prohibited.
For the following equipment:
Micro 11bgn 1x1 150Mbps Wireless Client Dongle
(Product Name) Micro 11bgn 1x1 150Mbps Wireless Client Dongle
(Model Designation)
is herewith confirmed to comply with the requirements set out in the Council (European
parliament) Directive on the Approximation of the Laws of the Member States relating to
Electromagnetic Compatibility of Radio and Telecom device (1999/5/EC). For the
evaluation regarding this Directive, the following standards were applied:
EN 300 328 V1.8.1
EN 301 489-1 V1.8.1 ; EN 301 489-17 V2.1.1
EN 60950-1:2006+A11:2009
Austria
Belgium
Czech Republic
Cyprus
Denmark
Estonia
France
Finland
Germany
Greece
Hungary
Ireland
Italy
Iceland
Luxemburg
Latvia
Lithuania
Malta
Norway
Netherlands
Portugal
Poland
Spain
Sweden
Slovakia
Slovenia
United Kingdom
Europe- R&TTE Compliance Statement
Hereby, the company who declares that this equipment complies with the essential requirements
and other relevant provisions of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND
THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment
and the mutual recognition of their conformity (R&TTE).
CE Declaration of Conformity
This equipment is marked with the symbol and can be used throughout the European
community.
Caution: Exposure to Radio Frequency Radiation.
To comply with RF exposure compliance requirements, for mobile configurations, a separation
distance of at least 20 cm must be maintained between the antenna of this device and all persons.
This device is intended for use as check in the following European Community countries:
Channel
Identifier
Frequency
(MHZ)
Regulatory Domains
Japan
ETSI
North
America
Israel
Mexico
1 2412
●
●
●
2 2417
● ● ●
3 2422
● ● ●
●
4 2427
● ● ●
●
5 2432
● ● ●
●
6 2437
● ● ●
●
7 2442
● ● ●
●
8 2447
● ● ●
●
9 2452
● ● ●
●
10 2457
● ● ● ●
11 2462
● ● ● ●
12 2467
●
●
13 2472
●
●
14 2484
●
The channel identifiers, channel center frequencies, and regulatory domains of
each 22-MHz-wide channel are shown in following Table.
1
Thank you for your purchase of the WLAN Adapter. Featuring wireless
technology, this wireless networking solution has been designed for both
large and small businesses, and it is scalable so that you can easily add
more users and new network features depending on your business scale.
FEATURES
Support Microsoft XP(32bit/64bit) / Vista(32bit/64bit) / Win7 / 8 /
8.1(32bit/64bit).
Operating distance of up to 150 meters in free space.
150/120/90/60/54/48/36/30/24/22/18/12/11/6/5.5/2/1 Mbps selectable Data
Rate.
64/128-bit WEP , WPA (Wi-Fi Protected Access), WPA2
2.400GHz ~ 2.4835GHz unlicensed ISM Frequency Band.
Modulation Method :
IEEE 802.11b : DSSS (Direct Sequence Spread Spectrum).
IEEE 802.11g / 802.11n : OFDM (Orthogonal Frequency Division
Multiplexing). Easy operation and setting up.
SYSTEM REQUIREMENTS
Windows System : XP(32bit/64bit) / Vista(32bit/64bit) / Win7 / 8 /
8.1(32bit/64bit).
System must have a device driver installed. It allows you to
communicate with Micro 11bgn 1x1 150Mbps Wireless Client Dongle.
2
BEFORE YOU START
1. Confirm Box Contents
◆ Micro 11bgn 1x1 150Mbps Wireless Client Dongle
◆ Quick Start Guide
◆
Driver CD
CONNECTING YOUR Micro 11bgn 1x1 150Mbps Wireless Client Dongle
Quick Start Guide
Connect your Micro 11bgn 1x1 150Mbps Wireless Client Dongle. Install
driver.
GETTING TO KNOW WIRELESS LAN ADAPTER
LED
LED turns on when WLAN link to WLAN adaptor or AP.
LED is blinking when WLAN Adapter is active.
3
Wireless LAN network defined by IEEE 802.11b/g standard committee
could be configured as :
Ad Hoc wireless LAN.
Infrastructure wireless LAN.
Ad Hoc network is a group of wireless LAN cards, this
group is called a BSS (Basic Service Set). This group can use their wireless
LAN cards to communicate with each other, but can not
connect to the Internet.
Ad Hoc Wireless Network Infrastructure Wireless Network
The most obvious difference between Infrastructure wireless network
and Ad Hoc wireless network in Infrastructure wireless network can
access the resource in the Internet through Access Point.
Depending on your requirement, you can easily set up your system
network to be a “Ad Hoc” or “Infrastructure” wireless network. Generally
speaking, if in your network, there is an Access Point in it, we recommend
you to set your network as an “Infrastructure”, so it can connect to
the Internet.
