Page 1
User Manual
™
CBTL
is an easy to use,
elegant, single serve beverage
system, based on the proprietary
Caffitaly System, that allows you
to enjoy all the pleasures of
an authentic The Coffee Bean
& Tea Leaf® café beverage at
home. One capsule is all you
need to create a single serving
to savor. One touch is all it
takes to brew fresh, fragrant
and flavorful espresso, brewed
coffee or tea. One taste is
enough to transport you to
a moment of comfort—the
comfort of one perfect cup.
One touch.
One perfect cup.
CBTL.com
Contata Model S03
11CBV_BB_ManualS03_USA.indd 1 12/21/10 1:42 PM
Page 2
Table of contents
Important Safeguards _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3
Your CBTL™ System contact _ _ _ _ _ _ _ _ _ _ _ _4
Contata overview _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Safety and indicator symbols _ _ _ _ _ _ _ _ _ _ _6
Priming machine before rst use _ _ _ _ _ _ _7
1
2
Preparing your beverage _ _ _ _ _ _ _ _ _ _ 8
Indicator light guidelines _ _ _ _ _ _ _ _ _ 10
3
Programming quantity of
4
beverage brewed _ _ _ _ _ _ _ _ _ _ _ _ _ 12
5
Resetting beverage settings _ _ _ _ _ _ _ _ 13
6
Programming energy saving function _ _ _ 14
Adjusting for dierent cup sizes _ _ _ _ _ _ 15
7
Daily maintenance _ _ _ _ _ _ _ _ _ _ _ _ 16
8
Descaling the machine _ _ _ _ _ _ _ _ _ _ 17
9
Draining the machine _ _ _ _ _ _ _ _ _ _ _ 21
10
11
Troubleshooting _ _ _ _ _ _ _ _ _ _ _ _ _ 22
Technical data _ _ _ _ _ _ _ _ _ _ _ _ _ _ 22
12
CBTL™ Limited Warranty _ _ _ _ _ _ _ _ _ _ 23
13
11CBV_BB_ManualS03_USA.indd 2 12/21/10 1:42 PM
Page 3
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should be always followed,
including the following:
1. Read all instructions
2. Do not touch hot surfaces. Use handles or knobs.
3. Do not use appliance for other than intended use. Appliance is for household use only (non commercial areas).
Appliance is intended to prepare beverages according to these instructions. Use only CBTL™/Cataly System
capsules. CBTL™ assumes no liability for damages from use that is not in accordance with the instructions.
4. The use of accessory attachments not recommended by the appliance manufacturer may result in re, electric
shock or injury to persons.
5. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been
damaged in any manner. Contact CBTL™ for examination, repair or adjustment.
6. To protect against re, electric shock and injury do not immerse cord, plugs, or appliance in water or other liquid.
7. Never touch cord with wet hands.
8. Do not overll water tank.
9. Never put the appliance or part of the appliance into dishwasher.
10. Make sure that the power supply voltage matches the rating shown on the data plate on the bottom of the
appliance.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Do not use outdoors.
13. Close supervision is necessary when any appliance is used by or near children. Brewer dispenses very hot water.
Keep appliance, capsules and accessories out of reach of children.
14. Do not let cord hang over the edge of the table or counter, or touch hot surfaces.
15. Unplug from outlet when not in use and before cleaning. Never touch the cable with wet hands. Allow to cool
before putting on, adding or removing parts, and before cleaning the appliance.
16. Scalding may occur if the lever is lifted during brewing cycles.
17. To disconnect, turn power switch to “o”, then remove plug from the power outlet.
18. This appliance is equipped with a power cord having a grounding wire with a grounding plug. The appliance must
be grounded using a 3-hole properly grounded outlet. In the event of an electrical short circuit, grounding reduces
the risk of electrical shock.
19. Do not, under any circumstances, cut or remove the third (ground) prong from the power cord or use an adapter.
20. To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with your
CBTL™ System.
3
11CBV_BB_ManualS03_USA.indd 3 12/21/10 1:42 PM
Page 4
IMPORTANT SAFEGUARDS
21. Do not dismantle appliance and do not put anything into openings. Never put your hand inside space for capsules.
22. Consult a qualied electrician if the grounding instructions are not completely understood, or if doubt exists as to
whether the appliance is properly grounded.
23. The CBTL™ System uses a short power-supply cord to prevent the cord from tangling and to reduce the risk of
tripping over a long cord.
24. If a longer cord is necessary, an approved extension cord may be used.
• The marked electrical rating of the extension cord must be equal to or greater than the rating of the appliance;
• The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be
pulled on by children or tripped over unintentionally;
• The extension cord should be a grounding type 3-wire cord.
25. WARNING TO PARENTS AND USERS:
• Keep all plastic bags away from children
• DO NOT permit children to use brewer unless there is adult supervision.
WARNING: To reduce the risk of re and electric shock, do not remove the side covers. No
user serviceable parts inside. Repair should be done by an authorized service person only.
DISPOSAL AND ENVIRONMENTAL PROTECTION
• Your appliance contains valuable materials that can be recovered or recycled. Separation of the remaining waste
materials into dierent types facilitates the recycling of valuable raw materials. Leave the appliance at the
collection point. You can obtain information on disposal from your local authorities.
• The appliance and the packaging materials are made of high quality materials that can be reused or recycled.
SAVE THESE INSTRUCTIONS.
Pass them on to any subsequent user
Your CBTL™ System contact
Country Contact Number Email
Visit CBTL.com for FAQs and instructional videos.
4
11CBV_BB_ManualS03_USA.indd 4 12/21/10 1:42 PM
Page 5

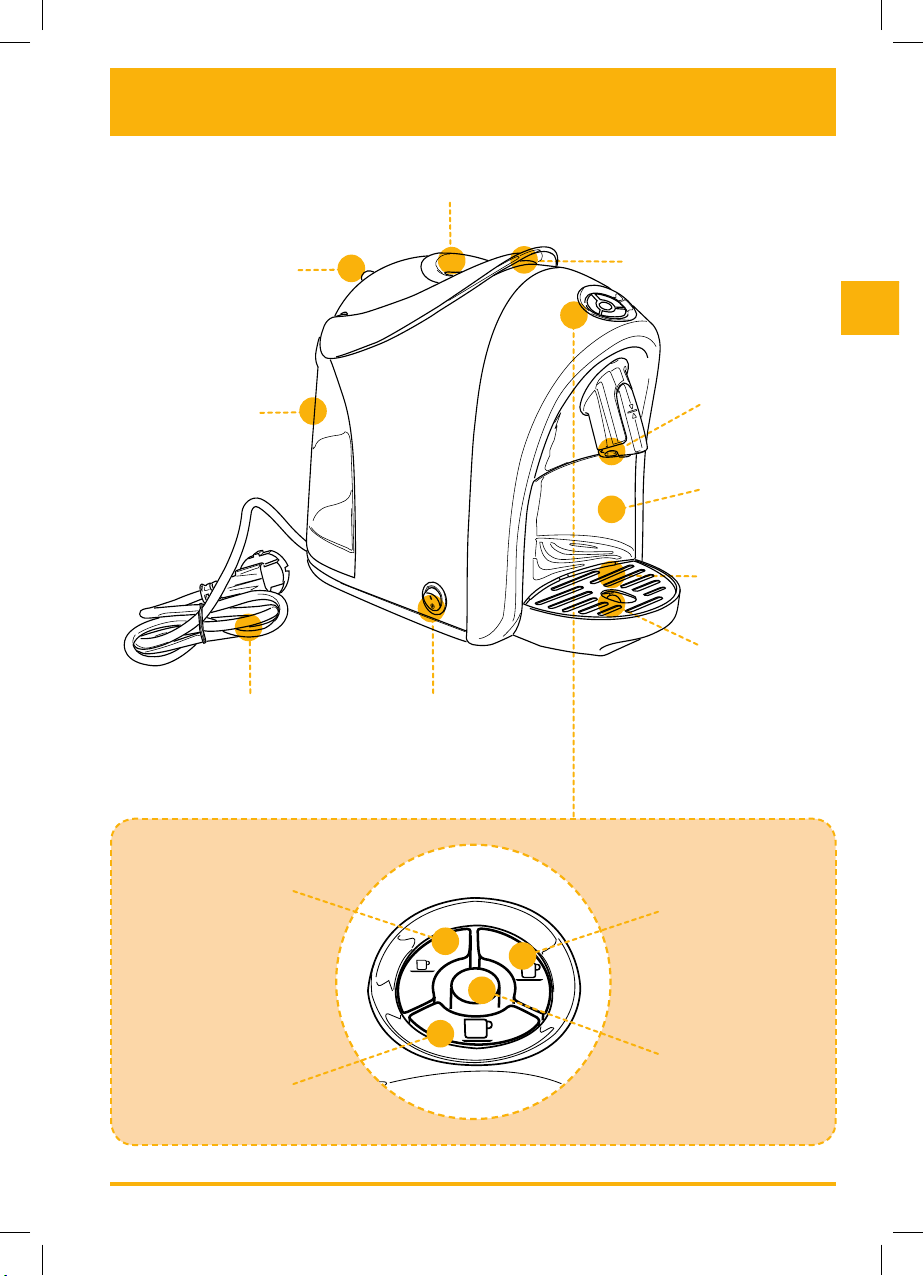

Contata Overview
Capsule compartment access
Water tank access
Water tank
Power cord
Lever for opening capsule compartment
Beverage dispensing
spout (adjustable)
Used capsule drawer
for 9-11 capsules
Drip tray
Tank oat
Power on/o switch
Espresso button
Long espresso &
tea latte button
Multifunction indicator light
Brewed coee/tea button
5
11CBV_BB_ManualS03_USA.indd 5 12/21/10 1:42 PM
Page 6

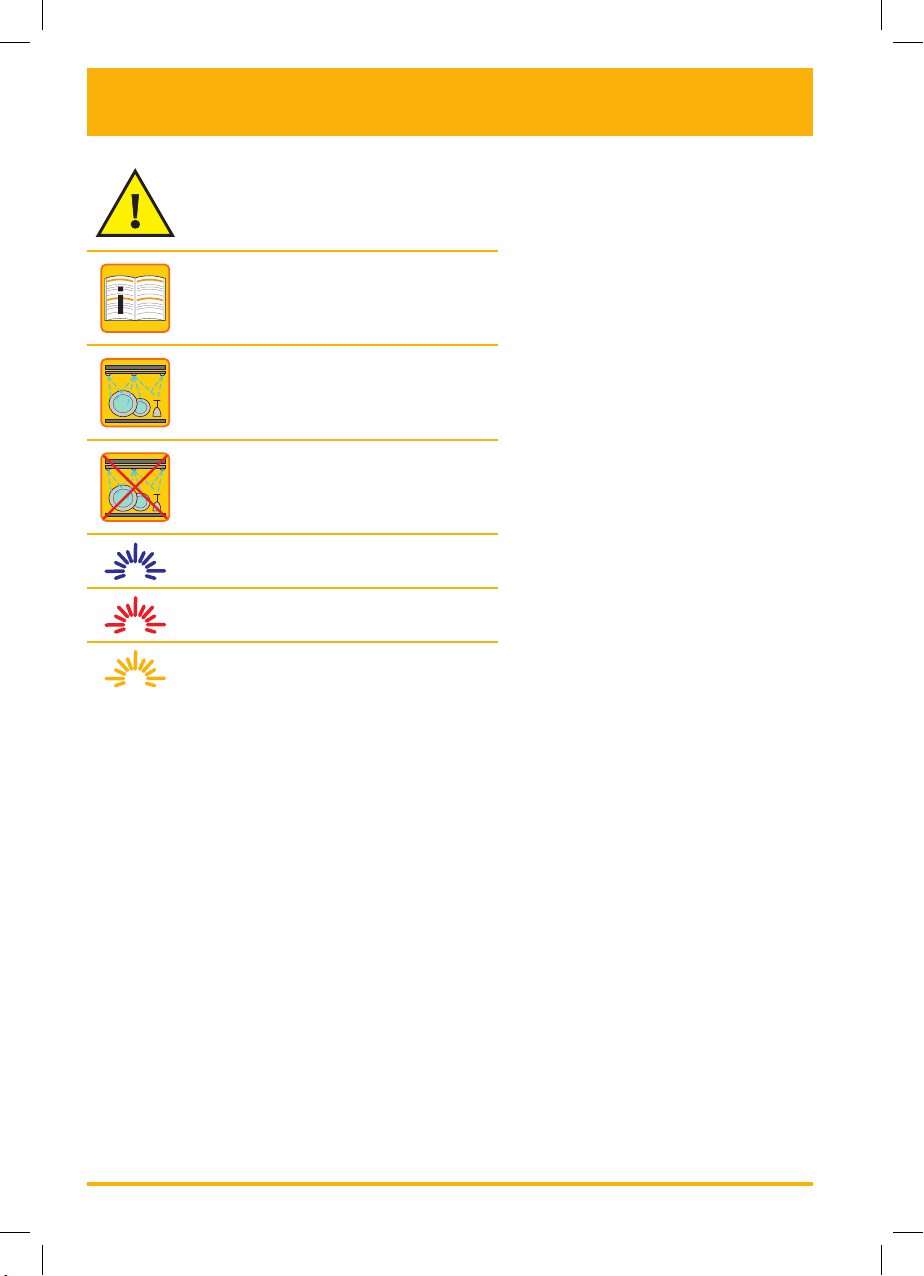

Safety and Indicator
Symbols
CAUTION
This is a safety warning symbol used to call your
attention to possible risks of personal injury.
NOTE
This symbol is used to highlight some actions that will
optimize use of the appliance.
Dishwasher safe.
Not dishwasher safe.
This symbol is used to indicate a WHITE light.
This symbol is used to indicate a RED light.
This symbol is used to indicate an ORANGE light.
6
11CBV_BB_ManualS03_USA.indd 6 12/21/10 1:42 PM

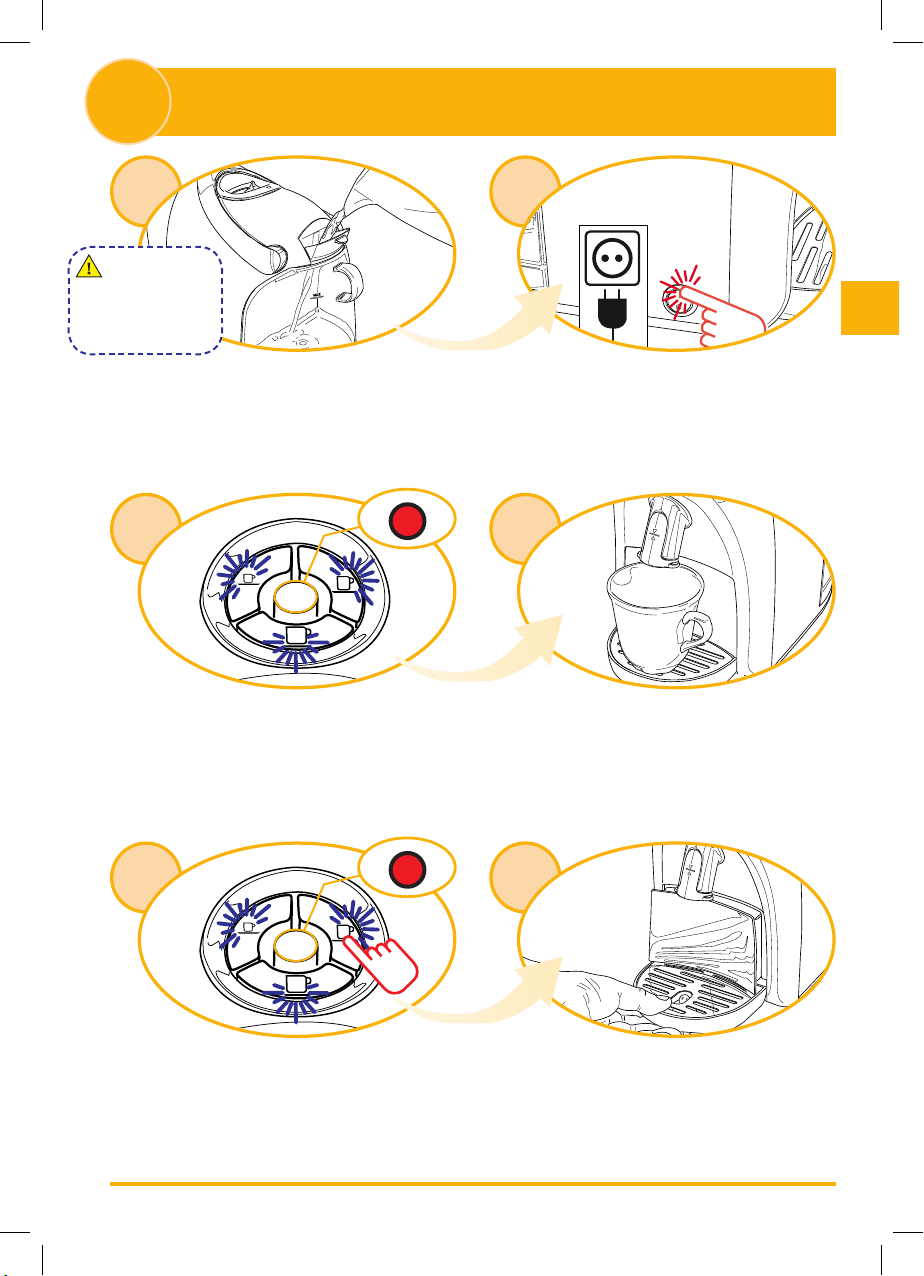

Page 7
1
Priming machine before rst use
1
Warning! Use only ltered/
bottled water in this
machine! Do not put any other liquid
or food in the water tank, except as
instructed in the descaling section of
this instruction book.
Fill the water tank with ltered/bottled water.
3
The beverage buttons and alarm indicator light will blink
simultaneously.
2
Plug into grounded outlet then turn power switch on.
4
Place an ample container under the dispensing spout.
5
Press the long espresso button once. Wait approximately 2 minutes
for the machine to complete the priming cycle. During this cycle, the
alarm indicater light will blink. The alarm light will go o and the 3
beverage buttons will blink to conrm the end of the priming cycle.
Repeat this step only if the alarm indicator light continues to blink.
6
If required, empty water from the used capsule drawer. Your machine
is now ready for use.
7
11CBV_BB_ManualS03_USA.indd 7 12/21/10 1:42 PM

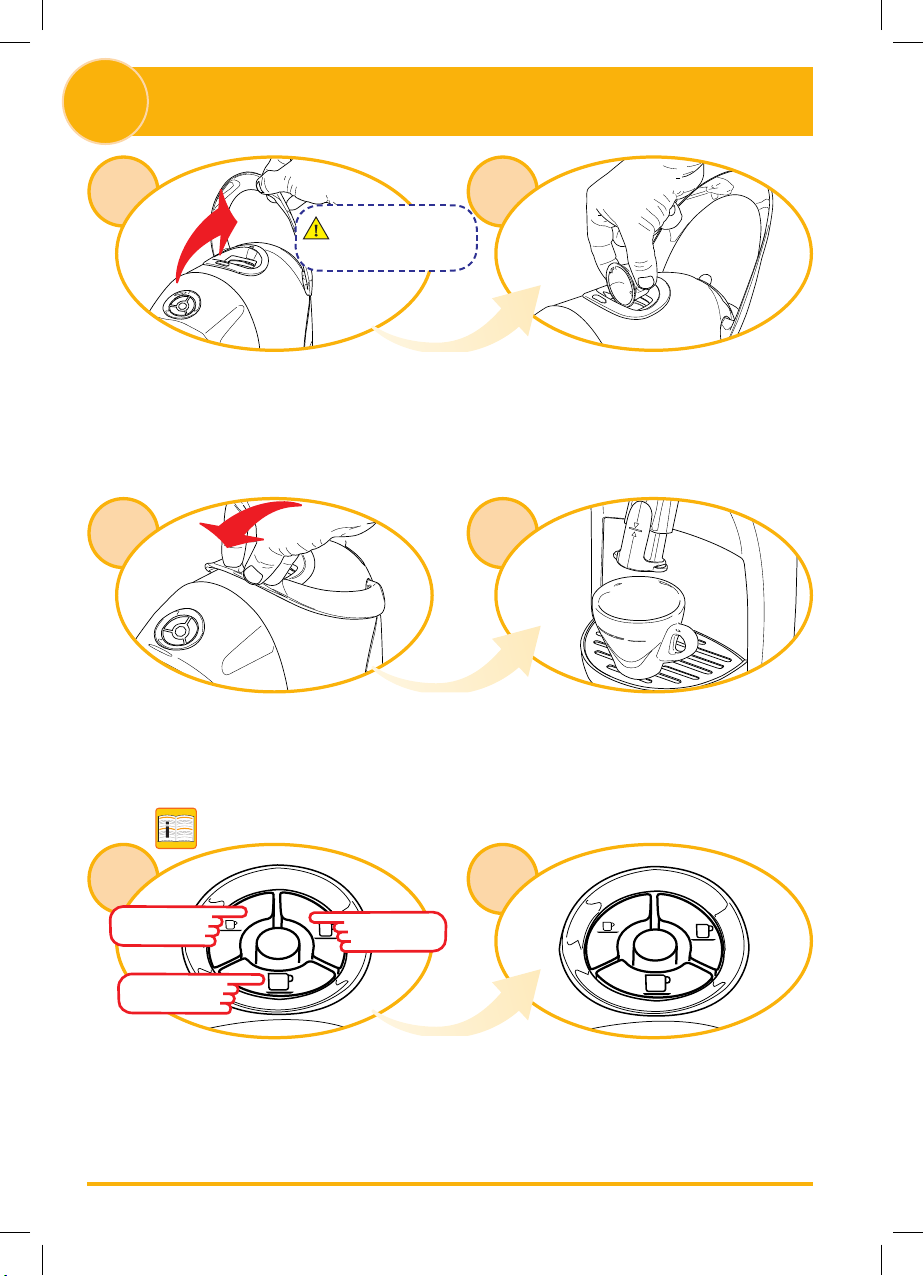

Page 8
2

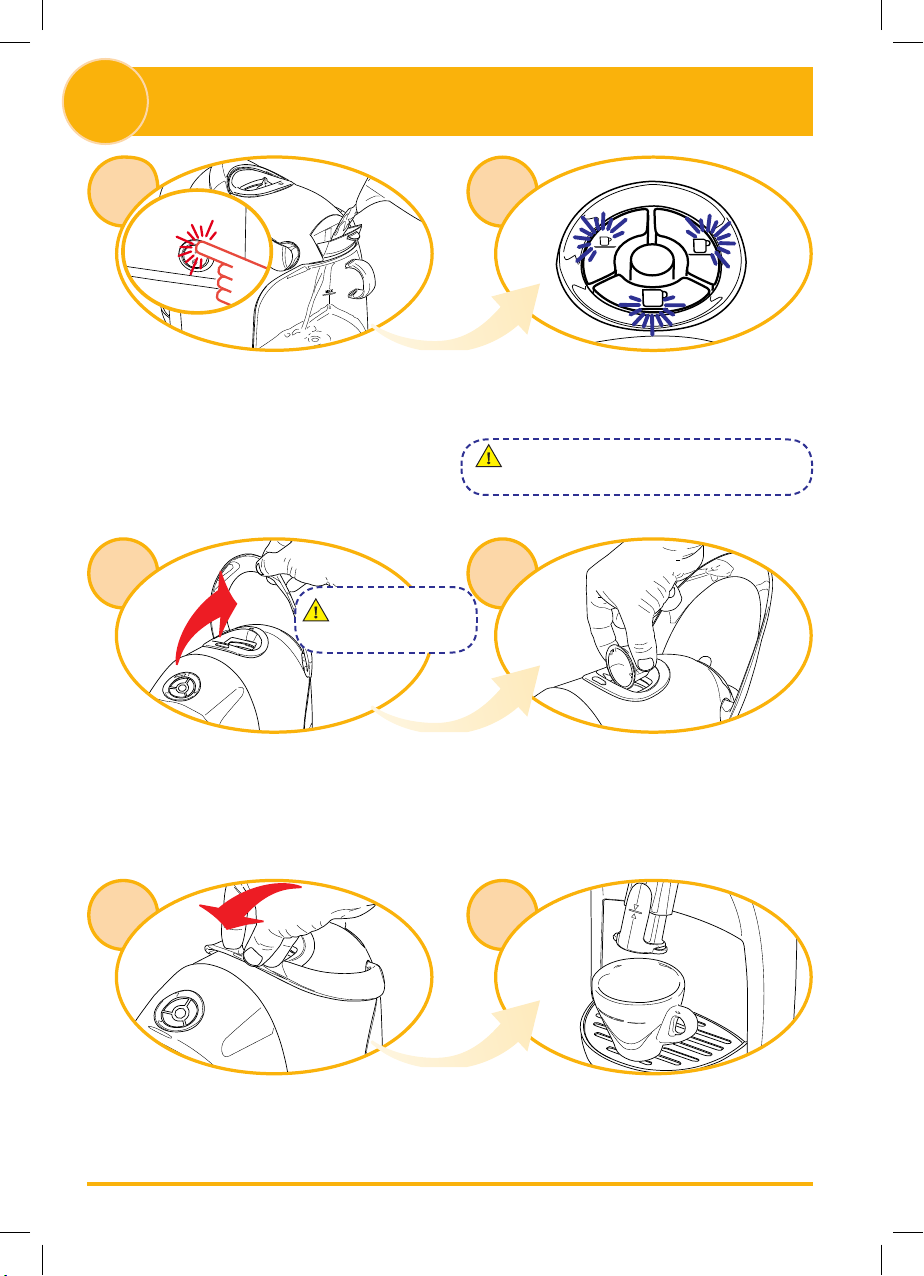

Preparing your beverage
1
Fill the water tank with ltered/bottled water. Turn the appliance on. The beverage buttons will blink simultaneously to indicate that the
2
machine is warming up. When the buttons remain steadily lit, the
machine is ready for use.
A frozen or extremely cold CBTL™ machine will not operate eciently when
exposed to temperature below freezing. Allow at least 2 hours to reach room
temperature before brewing.
3 4
Warning! Before you start brewing,
make sure the used capsule drawer
is not full.
Raise the lever to open the capsule compartment.
Insert the capsule, pressing it gently into place.
5 6
Close the lever rmly.
8
11CBV_BB_ManualS03_USA.indd 8 12/21/10 1:42 PM
Place a cup or mug under the beverage dispensing spout.
Page 9
2
Preparing your beverage
7 8
Espresso
Brewed coee/tea
Press your desired beverage button.
Long espresso
& tea latte
The selected beverage button will blink. The machine will stop
dispensing beverage on reaching the programmed quantity, and beep.
109
Raise the lever to eject the used capsule into the used capsule drawer. Close the lever.
NOTE:
The amount of beverage dispensed can be reprogrammed according to personal taste. Please refer to section 4
for reprogramming instructions.
When switching from one beverage to another, we suggest rinsing the machine by pressing a beverage button
without inserting a capsule.
9
11CBV_BB_ManualS03_USA.indd 9 12/21/10 1:42 PM
Page 10
3

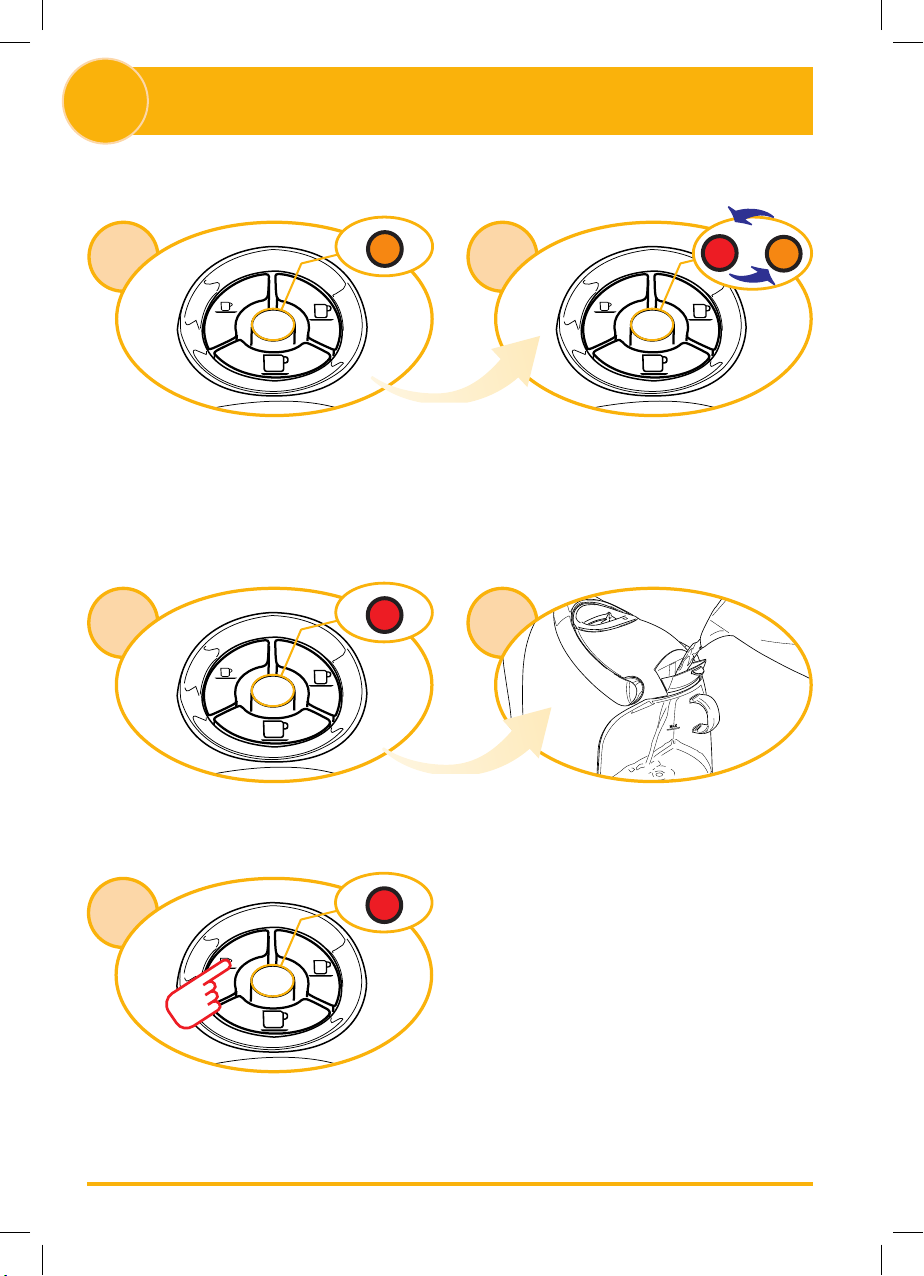

Indicator light guidelines
DESCALE INDICATOR
1 2
When the descale indicator light blinks and the machine beeps, it is
advisable to carry out a descaling cycle.
EMPTY WATER TANK INDICATOR
1
When the alarm indicator light blinks and the machine beeps,
the water tank is empty.
3
When the descale and alarm indicator lights blink alternately and the
machine beeps, it is necessary to carry out a descaling cycle.
2
Fill the tank with ltered/bottled water.
Press your desired beverage button to resume dispensing.
10
11CBV_BB_ManualS03_USA.indd 10 12/21/10 1:42 PM
Page 11
3
Indicator light guidelines

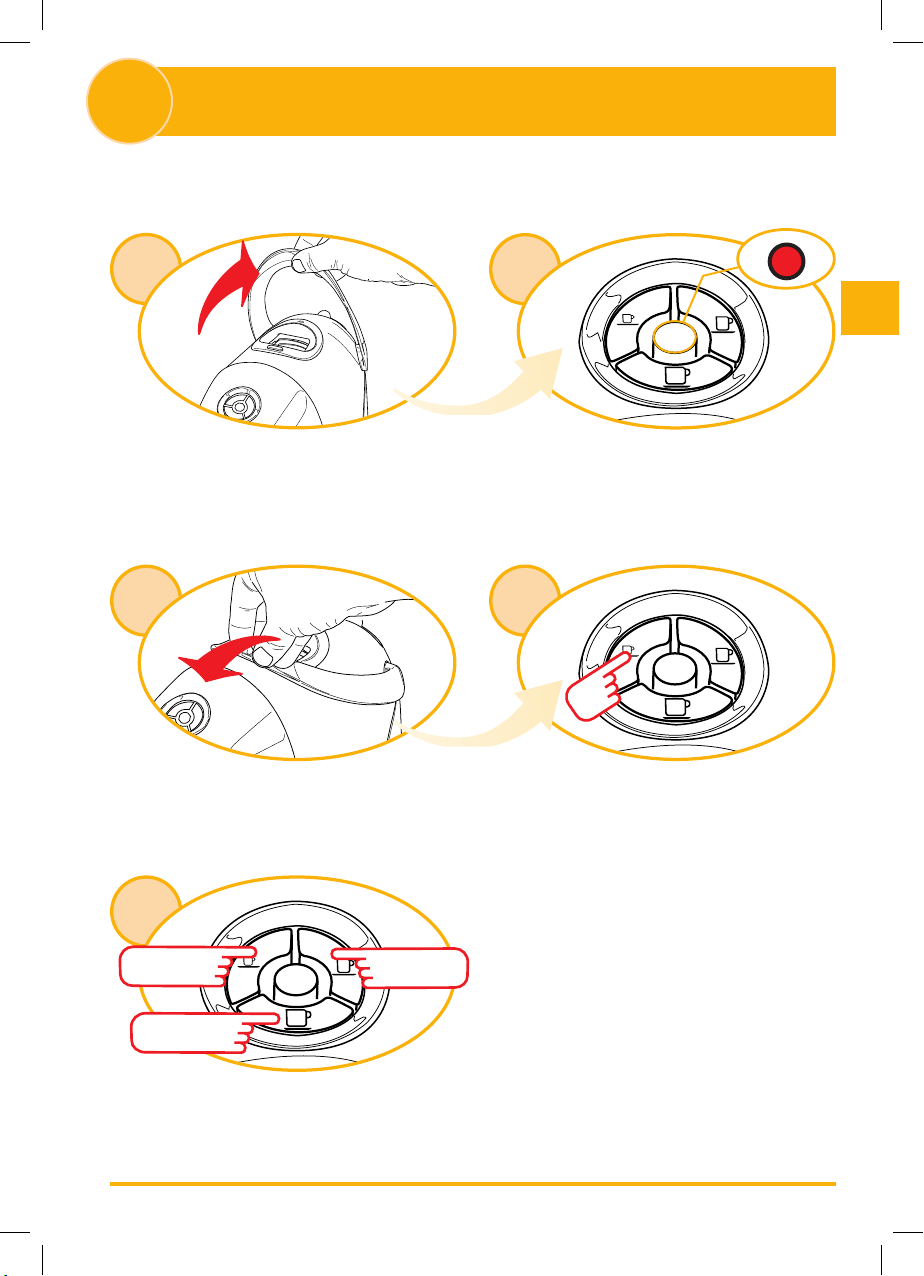

INTERRUPTED OPERATION INDICATOR
1
When the lever is raised while a beverage is being dispensed—
3
Close the lever.
2
The alarm indicator light will blink and beep. The machine will
immediately stop dispensing.
4
Press a beverage button to reset the alarm indicator light.
5
Espresso
Brewed coee/tea
Press your desired beverage button to brew a new cup.
11CBV_BB_ManualS03_USA.indd 11 12/21/10 1:42 PM
Long espresso
& tea latte
11
Page 12
4
Programming quantity of beverage brewed
1 2
Warning! Before you start brewing,
make sure the used capsule drawer
is not full.
Raise the lever to open the capsule compartment.
3 4
Close the lever rmly.
5 6
Espresso
Long espresso
& tea latte
Insert the capsule, pressing it gently into place.
Place a cup or mug under the beverage dispensing spout.
Brewed coee/tea
Keep your desired beverage button pressed down.
On reaching the desired amount of beverage, release the button. The
button is now programmed. To repro gram the button or program
another button, repeat the above steps.
12
11CBV_BB_ManualS03_USA.indd 12 12/21/10 1:42 PM
Page 13
5

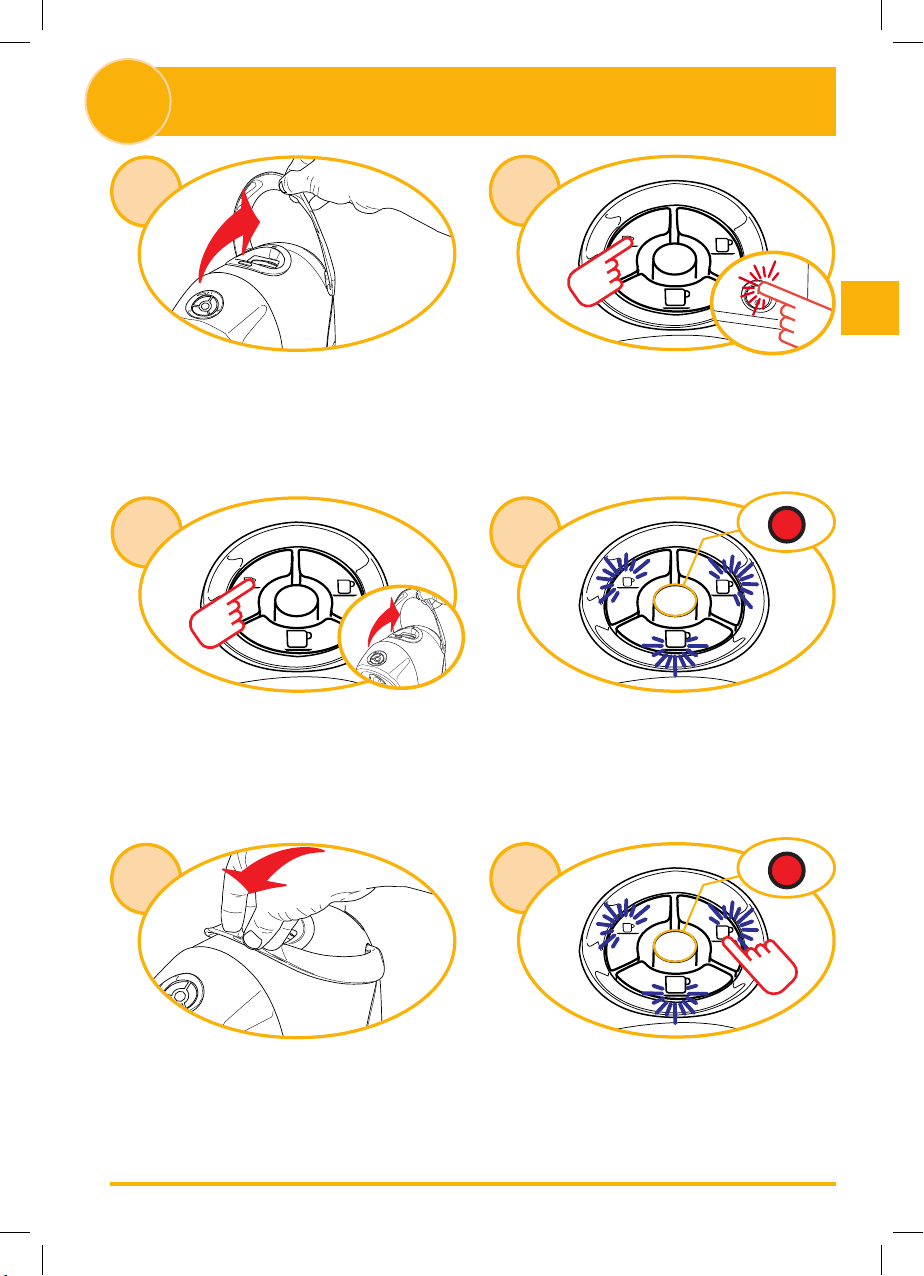

Resetting beverage settings
1
Turn the machine o. Raise the lever to open the capsule
compartment.
3
Keep the espresso button pressed and quickly close and open the
lever. The machine will beep 5 times.
2
Press and hold down the espresso button while simultaneously
switching the machine on.
4
Release the espresso button. After a few seconds, the beverage
buttons and alarm indicator light will blink.
5
Close the lever.
6
Place a cup on the drip tray. Press the long espresso button once. Wait
approximately 2 minutes. The cycle is complete when the 3 buttons are
steadily lit. Repeat this step only if alarm light continues to blink.
13
11CBV_BB_ManualS03_USA.indd 13 12/21/10 1:42 PM
Page 14
6

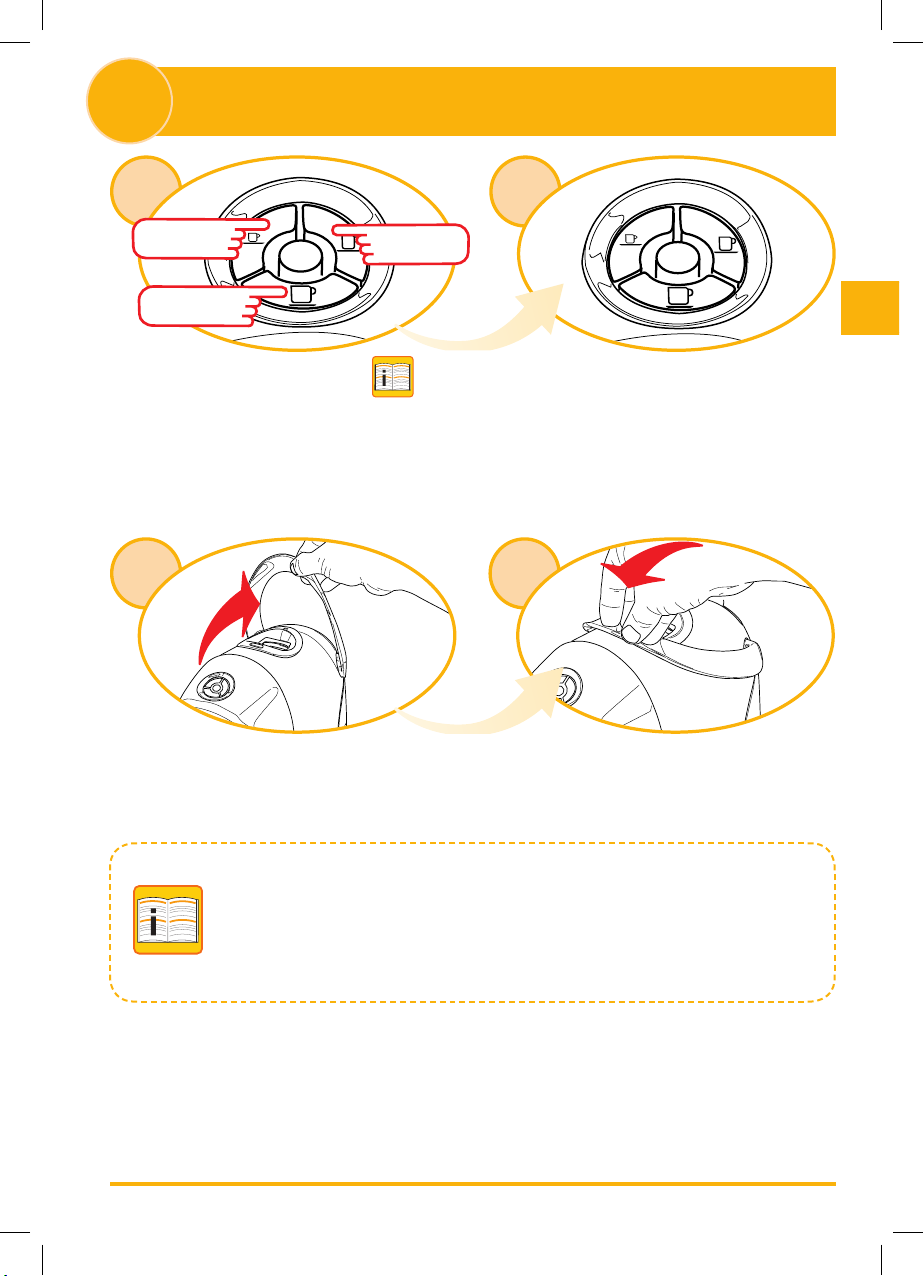

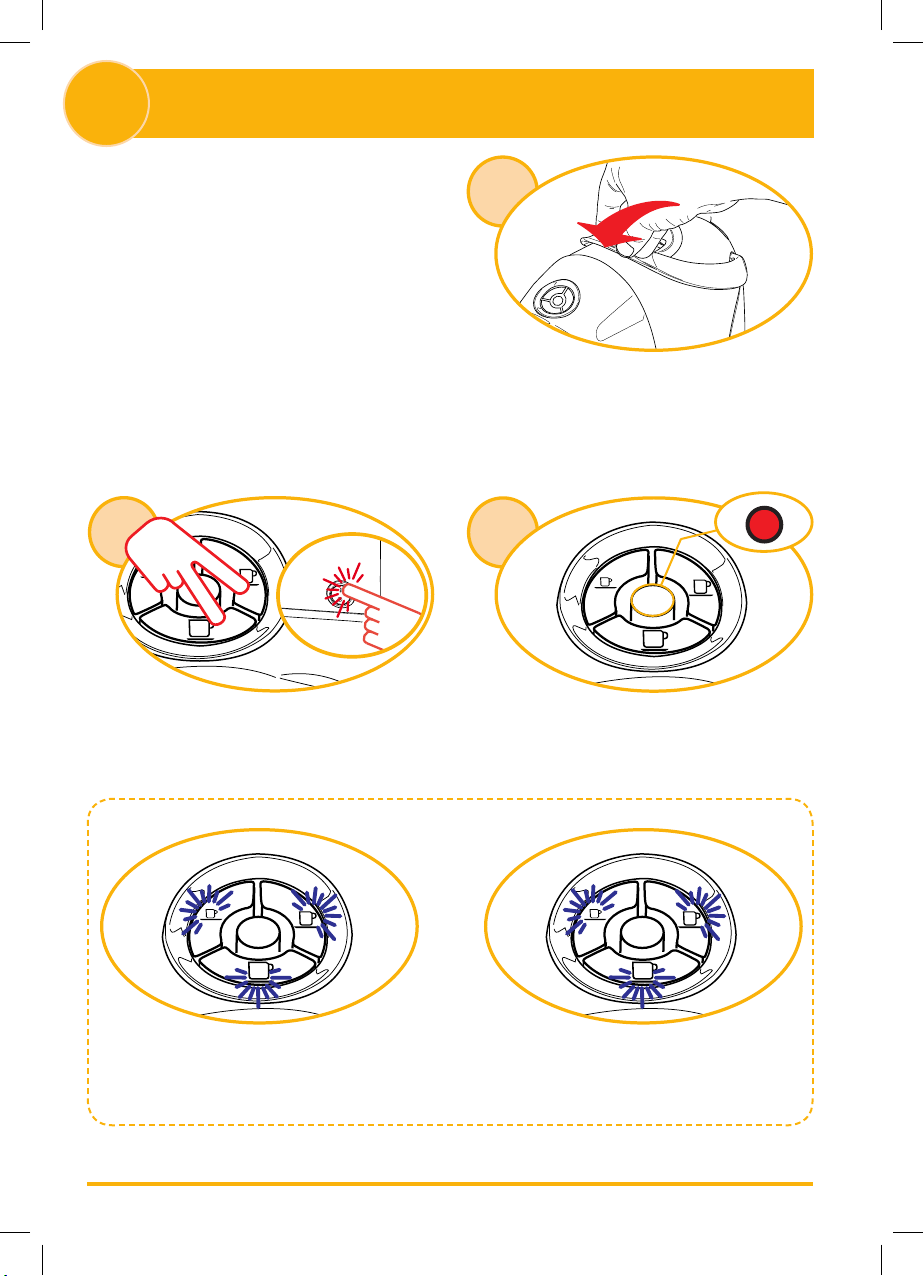

Programming energy saving function
The Contata features an energy saving function (normally
activated) which automatically reduces energy consumption by
approximately 98% one hour after last use. To deac tivate (or
reactivate) this function, proceed as follows:
1
Keep long espresso and brewed coee/tea buttons pressed down and
simultaneously switch machine on.
6
Make sure the lever is lowered.
2
The alarm indicator light will blink and beep three times to conrm
deactivation of the “Energy Saving” function. When the function is
reactivated, the alarm indicator light will blink and beep two times.
Once the “Energy Saving” function has been programmed, the
machine will automatically reduce consumption one hour after
the last use. The buttons will slowly blink with a WHITE light.
To restore normal operating conditions, press any button or
raise the lever. The appliance will start warming up. When the
appliance is ready for use, the buttons will be steadily lit.
14
11CBV_BB_ManualS03_USA.indd 14 12/21/10 1:42 PM
Page 15
7

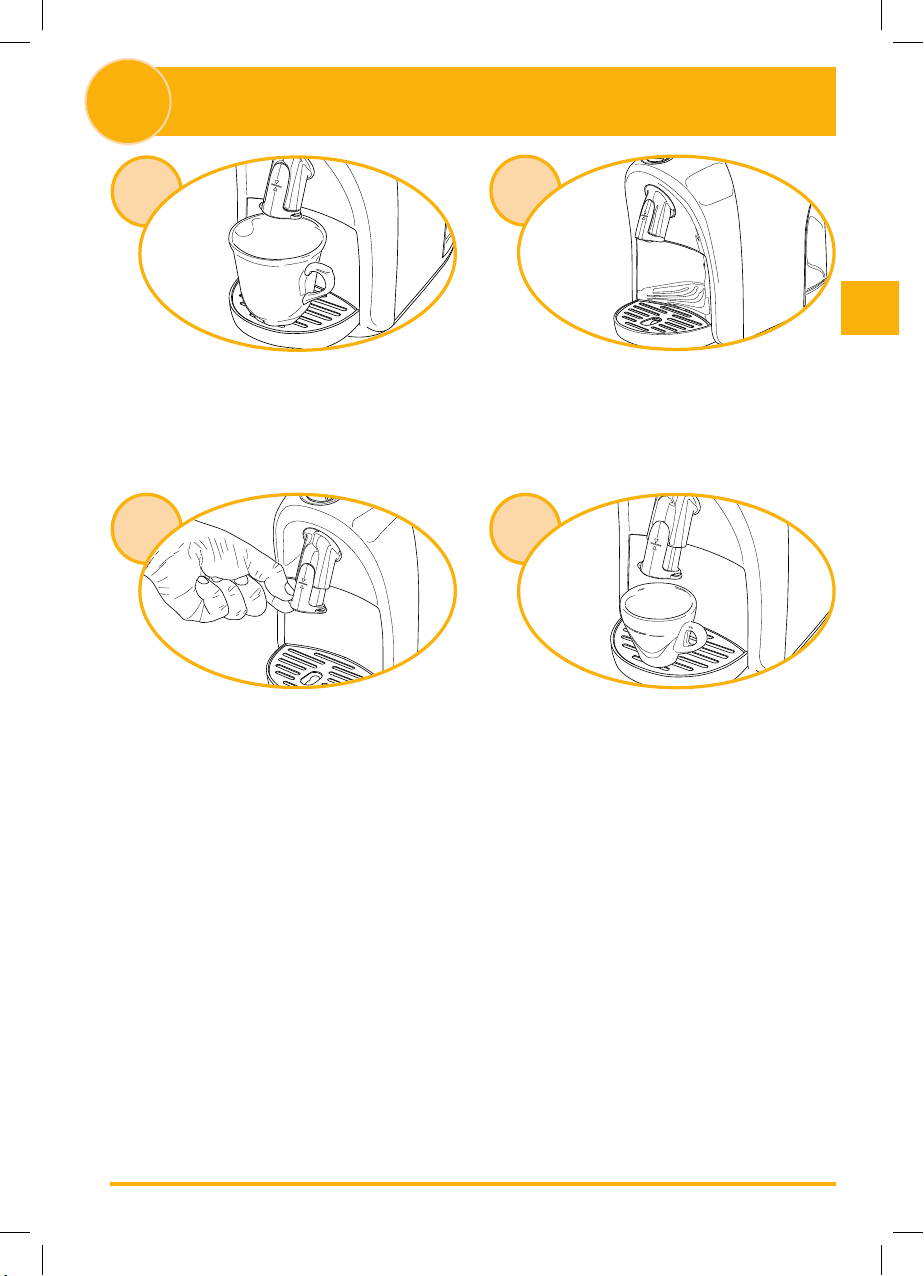

Adjusting for dierent cup sizes
1
The machine is initially set for use of 10 ounce cups/mugs.
3
In order to use espresso cups, you can manually move the tip of the
beverage dispensing spout.
2
The machine can be adjusted for the use of espresso cups.
4
Your machine is now set for use of espresso cups.
15
11CBV_BB_ManualS03_USA.indd 15 12/21/10 1:42 PM
Page 16
8

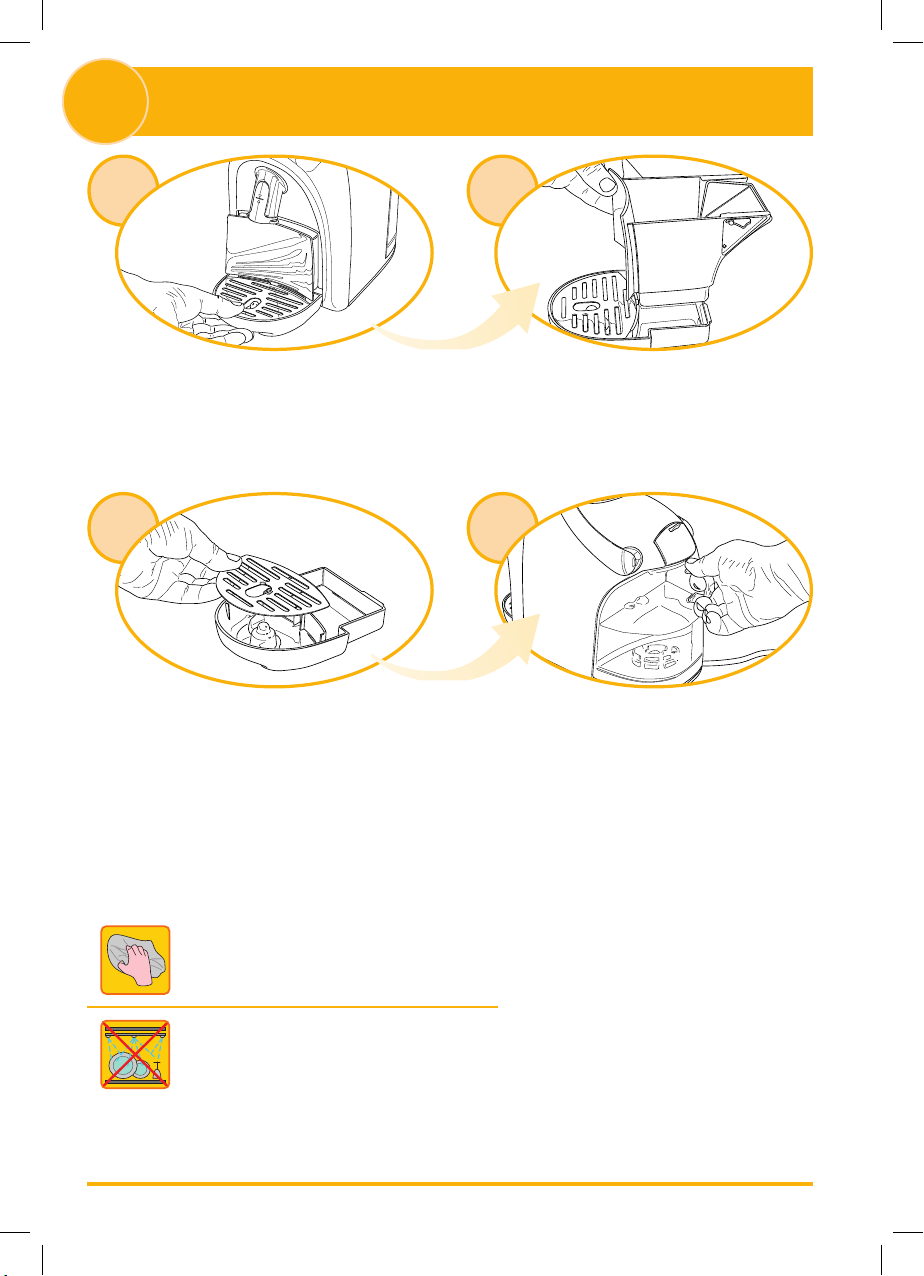

Daily maintenance
1
Remove the drip tray and the used capsule drawer.
3
Remove the grill. Empty the drip tray and rinse it with fresh water.
2
Lift the used capsule drawer, empt y and rinse.
4
Remove the water tank. Empty and rinse.
NOTE: The water tank is NOT dishwasher safe.
Use a soft, dampened cloth to clean the surfaces
of the machine.
The plastic parts of the machine are not
dishwasher safe.
16
11CBV_BB_ManualS03_USA.indd 16 12/21/10 1:42 PM
Page 17
9
CBTL™ recommends using the CBTL™ Descaler to descale your machine.

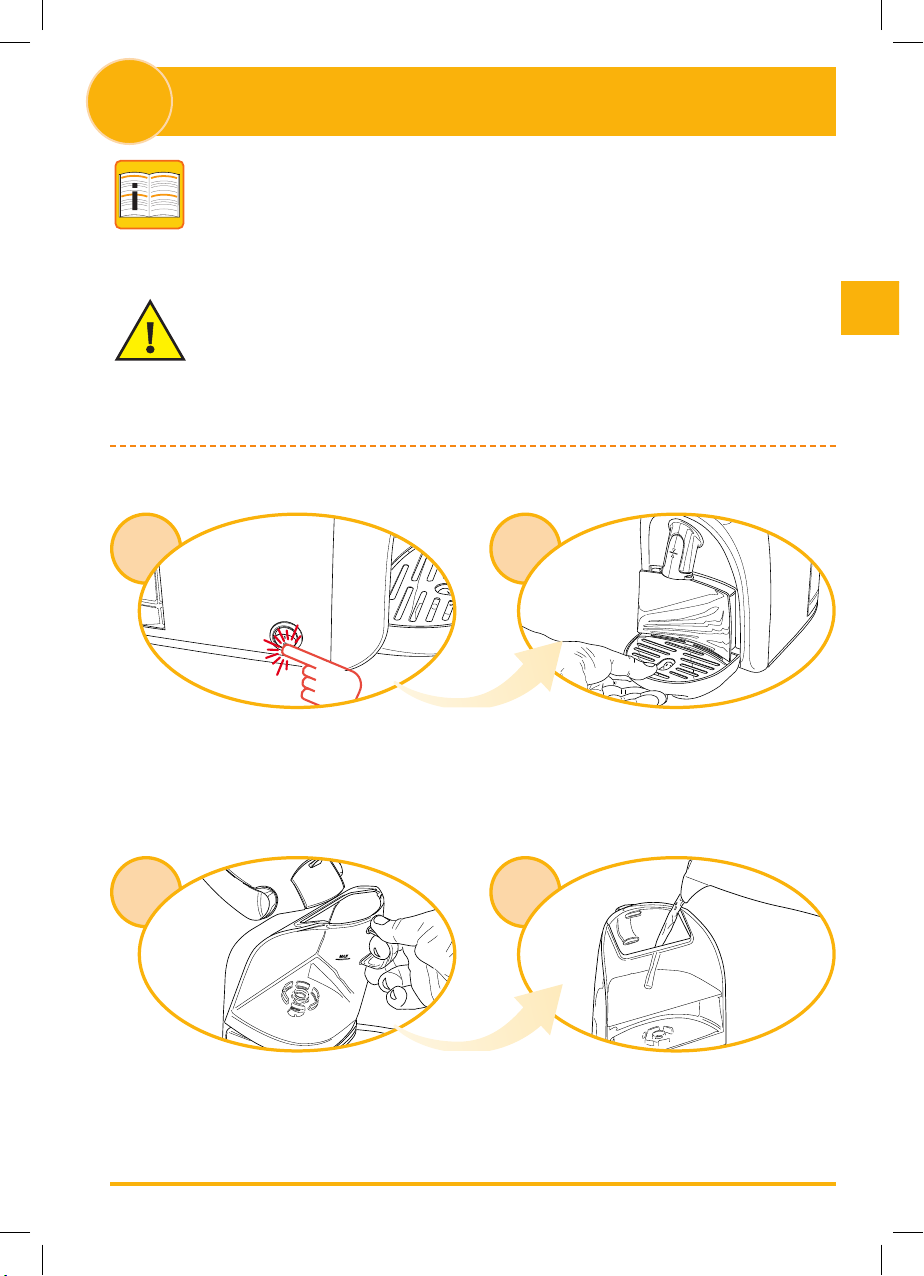

Descaling the machine
Mineral content present in most water sources causes calcium deposits or scale to build up in your machine. The Contata features
an advanced program that detects when it needs to be descaled. Refer to section 3 for descale indicator guidelines.
Carefully read the directions for use on the package of the descaling agent.
Avoid contact with eyes, skin and machine surfaces.
Do not use vinegar: it could damage your appliance!
During descaling, do not turn the machine o.
1
Turn the machine o.
3
Remove and empty the water tank.
2
Empty and rinse out the used capsule drawer and drip tray.
4
Prepare the descaling solution following the manufacturer’s
directions and pour a liter of solution into the tank.
17
11CBV_BB_ManualS03_USA.indd 17 12/21/10 1:43 PM
Page 18
9

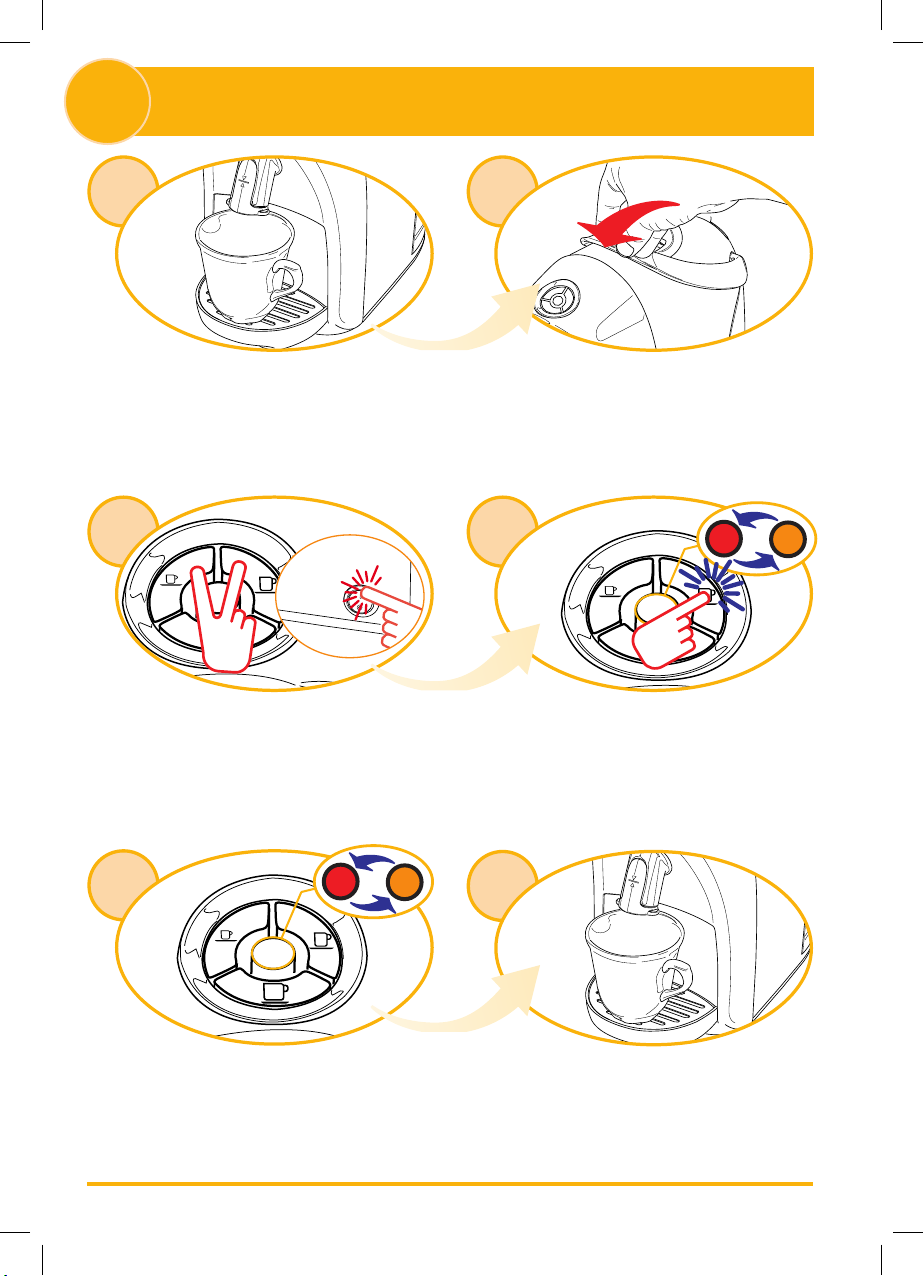

Descaling the machine
5
Place a container under the beverage dispensing spout.
7
Keep the espresso and long espresso buttons pressed down and
simultaneously switch the machine on.
6
Make sure the lever is lowered.
8
The long e spresso button and the descale and alarm indicator
lights b link alternately. Press t he long espresso button to star t the
descale c ycle.
9
The machine delivers descaling solution at intervals of approximately
10 minutes. During this cycle, the descale and alarm indicator lights
blink alternately.
10
If the container lls up, empty it out. The descale cycle lasts for
approximately 40 minutes.
18
11CBV_BB_ManualS03_USA.indd 18 12/21/10 1:43 PM
Page 19
9

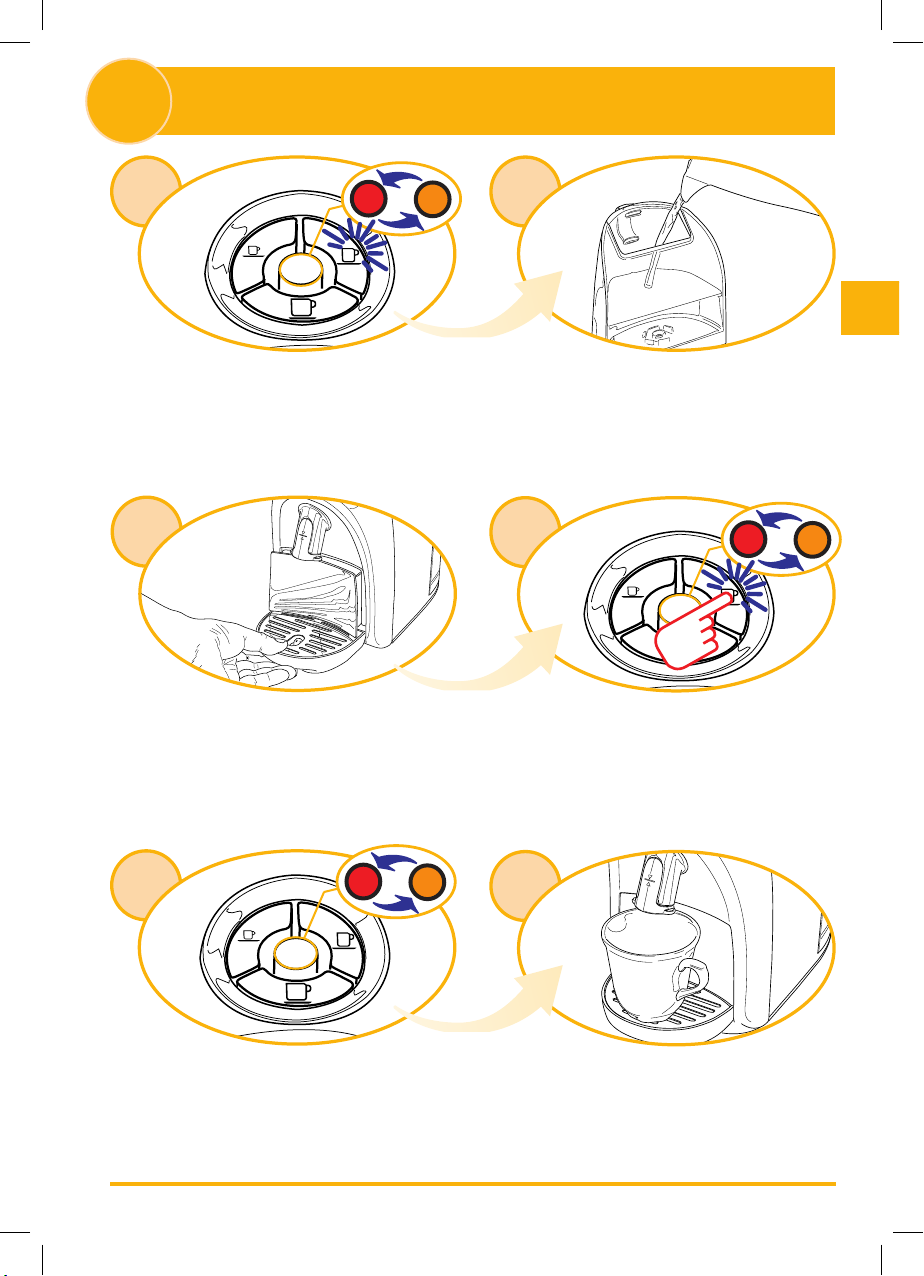

Descaling the machine
11 12
At the end of a descale cycle, the long espresso button and the
descale and alarm indicator lights blink alternately.
13
Empty and rinse out the used capsule container and drip tray.
15
Carefully rinse out the water tank and ll it with ltered/bottled water.
14
The long espresso button and the descale and alarm indicator lights
blink alternately. Press the long espresso button to start the prime/
rinse cycle.
16
Water will rinse through the machine. During this cycle the descale
and alarm indicator lights blink alternately.
If the container lls up, empty it out and replace until the prime/
rinse cycle is complete.
19
11CBV_BB_ManualS03_USA.indd 19 12/21/10 1:43 PM
Page 20
9

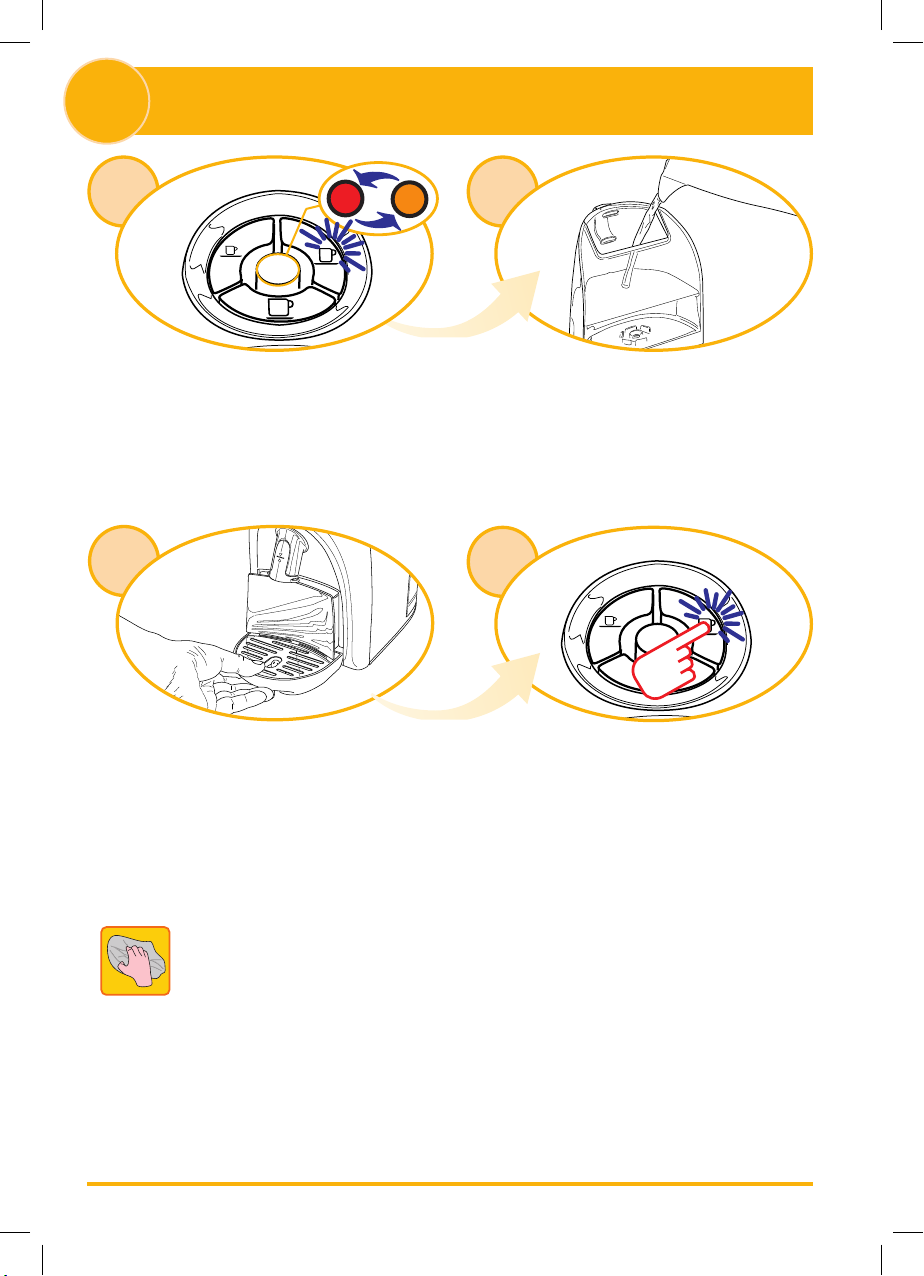

Descaling the machine
17
At the end of the prime/rinse cycle, the long espresso button and the
descale and alarm indicator lights blink alternately and the machine
beeps.
19
Empty and rinse out the used capsule drawer and drip tray.
18
Carefully rinse out the water tank and ll it with ltered/bottled water.
20
Press the long espresso button to exit the prime/rinse cycle.
Use a soft, dampened cloth to clean the surfaces
of the machine.
20
11CBV_BB_ManualS03_USA.indd 20 12/21/10 1:43 PM
Page 21
10

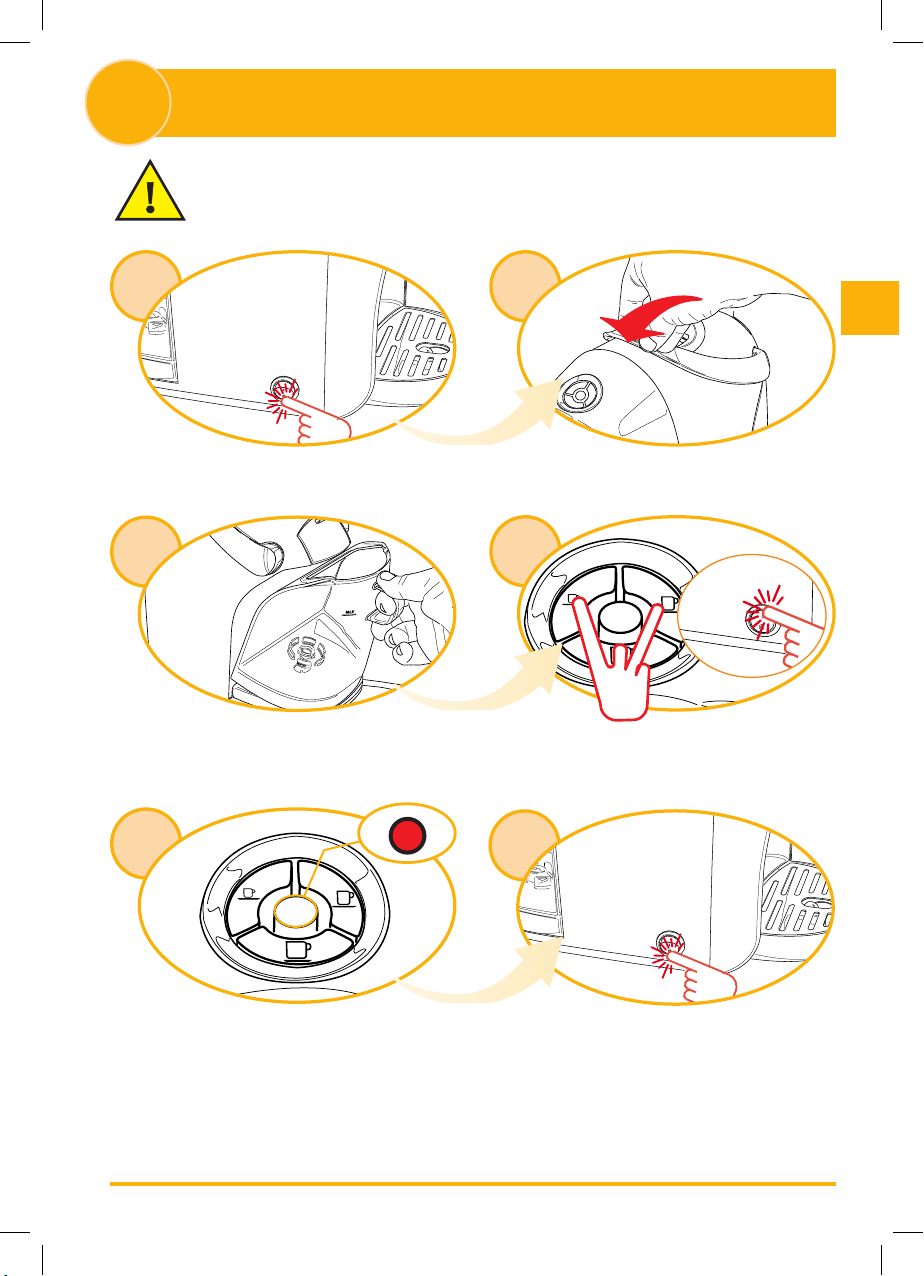

Draining the machine
CAUTION - When the machine is not used for a long time, it is necessary to drain the water lines. Liquids may freeze and
damage the machine.
1
Turn the machine o.
3
Remove and empty out the water tank. Keep the beverage buttons pressed down and simultaneously switch
5
2
Make sure the lever is lowered.
4
the machine on.
6
The alarm indicator light will blink and the machine will carry out a
drainage cycle. The machine will beep at the end of this cycle.
Turn the machine o. Before next use, follow instructions to prime
the machine as indicated in section 1.
21
11CBV_BB_ManualS03_USA.indd 21 12/21/10 1:43 PM
Page 22
11
Beyond the recommended cleaning and maintenance procedures, the CBTL™ machine is not
user serviceable. For additional options, please refer to the CBTL™ Limited Warranty.
Troubleshooting
Problem Cause / Solution
No beverage is brewed. The water tank is empty, the alarm
indicator light is on and red.
➤
Fill the tank with ltered/bottled water.
Press the desired beverage button.
The machine will resume brewing.
The coee is not hot enough. Cold cups / mugs.
Scale build-up in machine.
➤
Preheat the cup.
Descale the machine.
The lever cannot be lowered. The used capsule drawer is full.
Capsule stuck inside the machine.
➤
Empty out the used capsule drawer.
Remove the used capsule.
12
170 mm 296 mm 260 mm
Technical data
See the data plate on the bottom of the machine
Max . 15 bar
approx. 4 kg, 8.8 lb
1.2 liters, 40.6 oz
5 °C - 15 °C
5 °C - 15 °C
22
11CBV_BB_ManualS03_USA.indd 22 12/21/10 1:43 PM
Page 23
13
CBTL™ warrants this product against defects in materials and workmanship under normal home use for 1 year from
the date of purchase. The warranty period commences on the date of purchase and CBTL™ requires presentation of the
original receipt to ascertain this date.
During the warranty period, CBTL™ will either repair or replace, at its option, any defective product at no charge to the
owner provided that you return your product, at your sole cost and expense, in accordance with the CBTL™ Limited
Warranty Claims Process. Unless otherwise required under applicable law, replacement products will be warranted only
for the unexpired portion of the original warranty.
This limited warranty does not apply to cosmetic damage or any defect resulting from accident, negligence, misuse,
failure to follow the product instructions, calcium deposits, improper or inadequate maintenance or repair by anyone
other than CBTL™, normal wear and tear, use for commercial purposes, use on current or voltage other than as marked
on the product, product alteration, re, lightning, ood or other external causes.
To the extent permitted by applicable law, this limited warranty does not cover consequential or incidental damages
such as property damage.
This limited warranty is only valid in the country of purchase.
The terms of this limited warranty do not exclude, restrict or modify mandatory statutory rights, if any, applicable to
the sale of this product in your country of purchase.
If you believe your product is defective, contact CBTL™ support service based on your country of purchase or visit our
website at cbtl.com for contact details.
CBTL™ Limited Warranty
IMPORTANT INFORMATION:
IF YOUR MACHINE NEEDS TECHNICAL ATTENTION, PLEASE CONTACT CBTL™ SUPPORT SERVICE
FOR YOUR COUNTRY OF PURCHASE, SET FORTH BELOW.
DO NOT RETURN THIS MACHINE TO YOUR RETAILER
Register your machine online today at:
cbtl.com/Re gisterYour Machine. aspx
Visit our website to view our Limited Warranty Claims Process.
Country Contact Number Email
Singapore +65 6273-2221 CBTL@coeebean.com.sg
Malaysia (603) 92001833 CBTL@coeebean.com.my
Korea 82-2-548-0552 CBTL@coeebeankorea.com
UAE +971 4 3539500 CBTL@coeebean.ae
23
11CBV_BB_ManualS03_USA.indd 23 12/21/10 1:43 PM
Page 24
Order online at
CBTL.com
11CBV_BB_ManualS03_USA.indd 24 12/21/10 1:43 PM
Loading...
