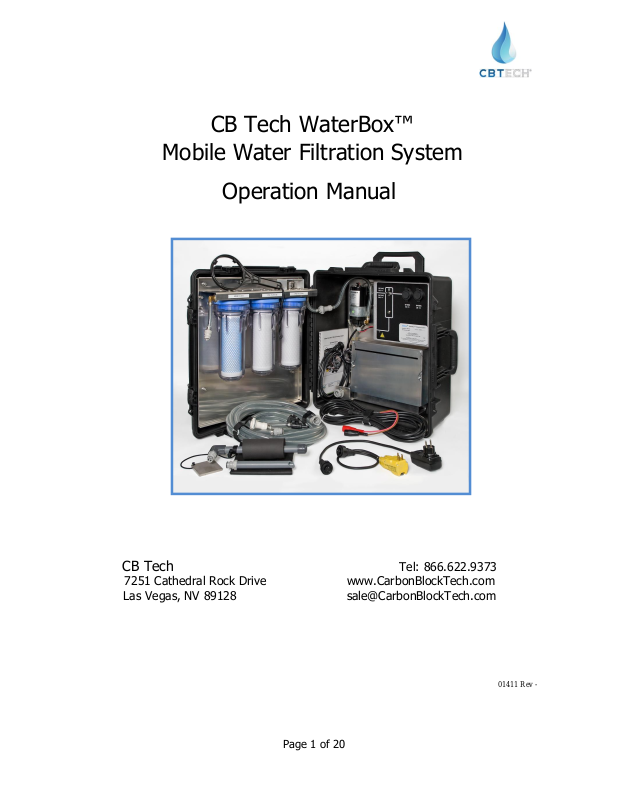

CB Tech WaterBox Operation Manual
CB Tech WaterBox™
Mobile Water Filtration System
Operation Manual
CB Tech Tel: 866.622.9373
7251 Cathedral Rock Drive www.CarbonBlockTech.com
Las Vegas, NV 89128 sale@CarbonBlockTech.com
Page 1 of 20
01411 Rev -
Page 2 of 20
1
2
3
1
2
3
2
3
1
2
3
DC Pow
er
AC Pow
er
1
QUICK START GUIDE
Hose Connections
REFER TO THE FOLLOWING PAGES FOR DETAILED INSTRUCTIONS

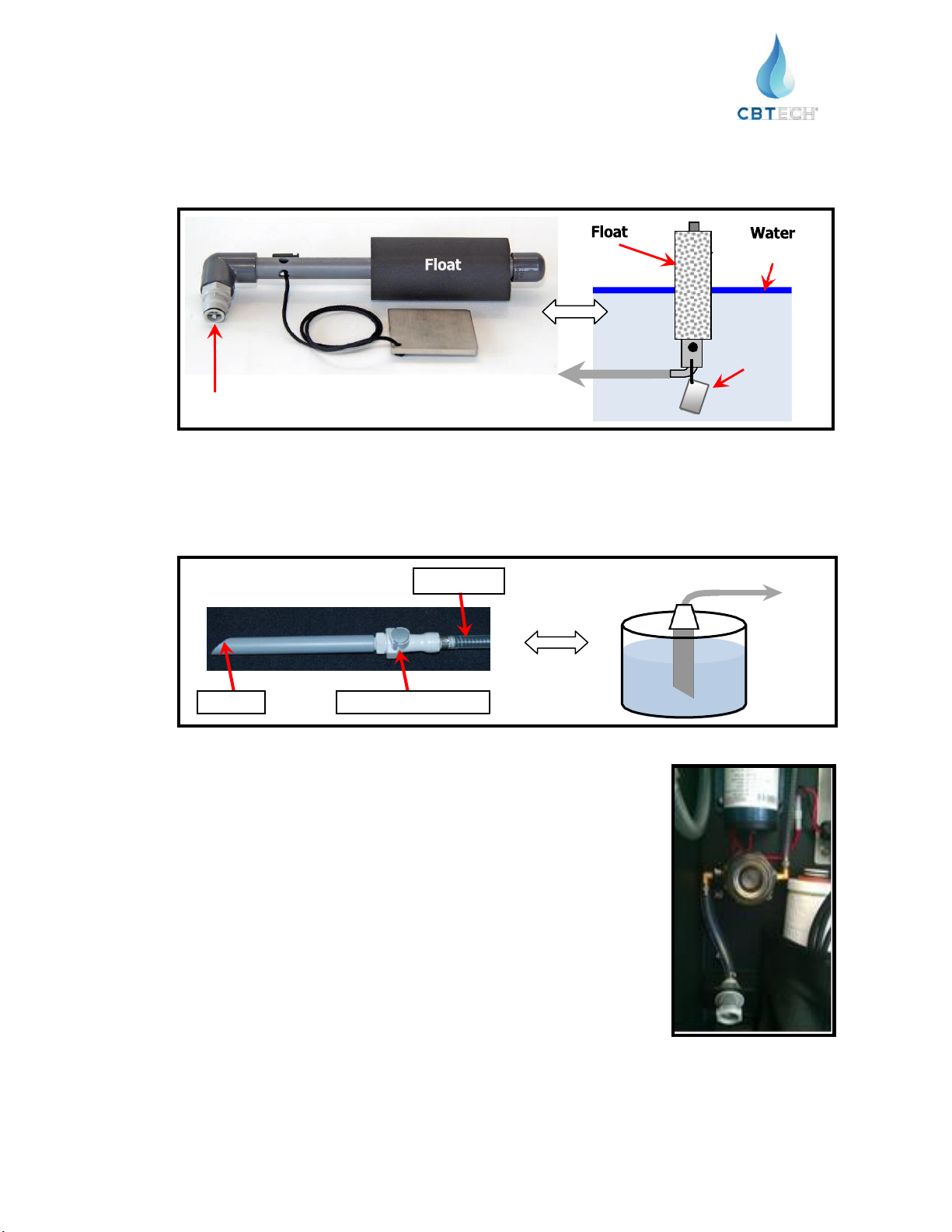

CONNECT 25’ (7.6 m) INLET HOSE CONNECT FLOAT AND PLACE

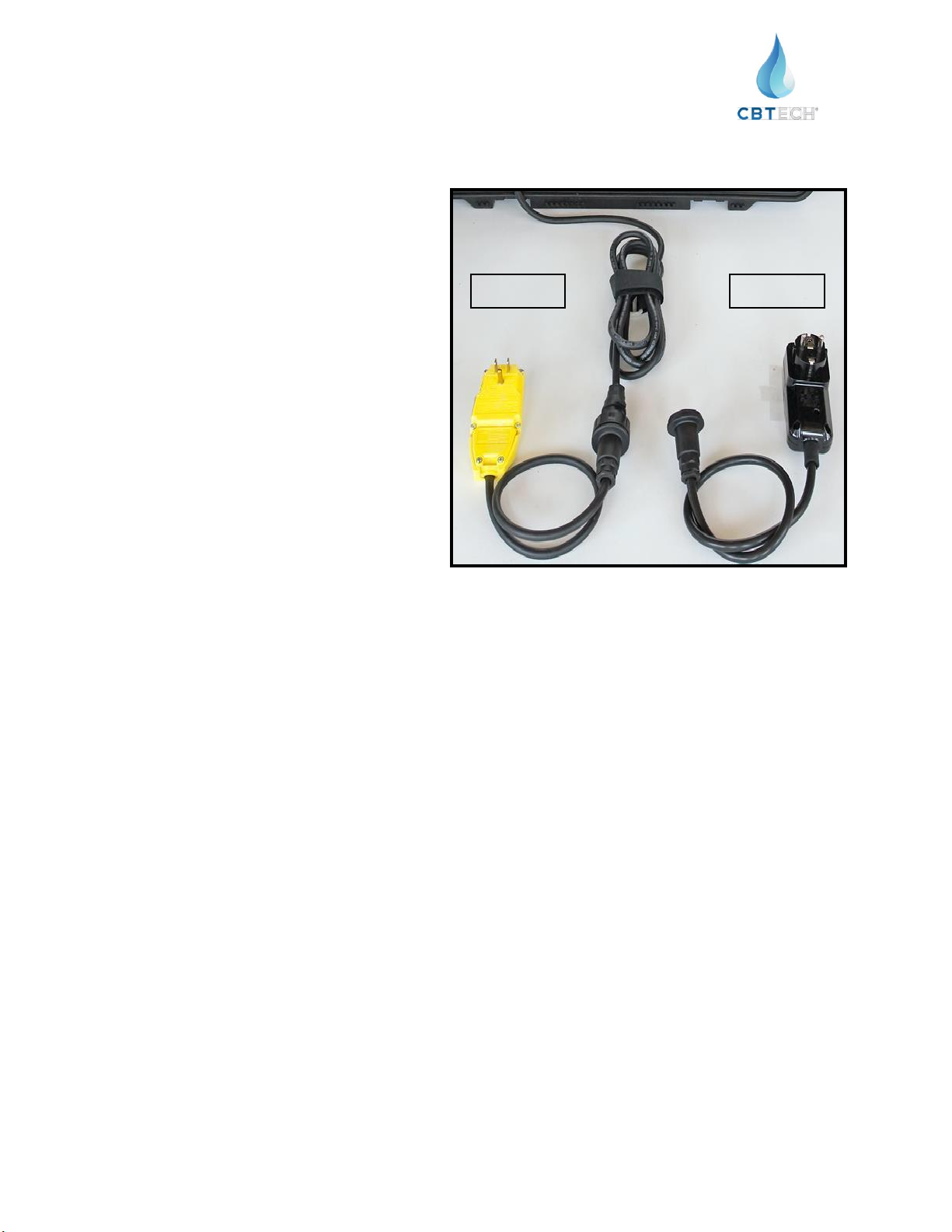

Power Connections
CONNECT 110V/230V GFI
PLUG TO AC POWER CABLE

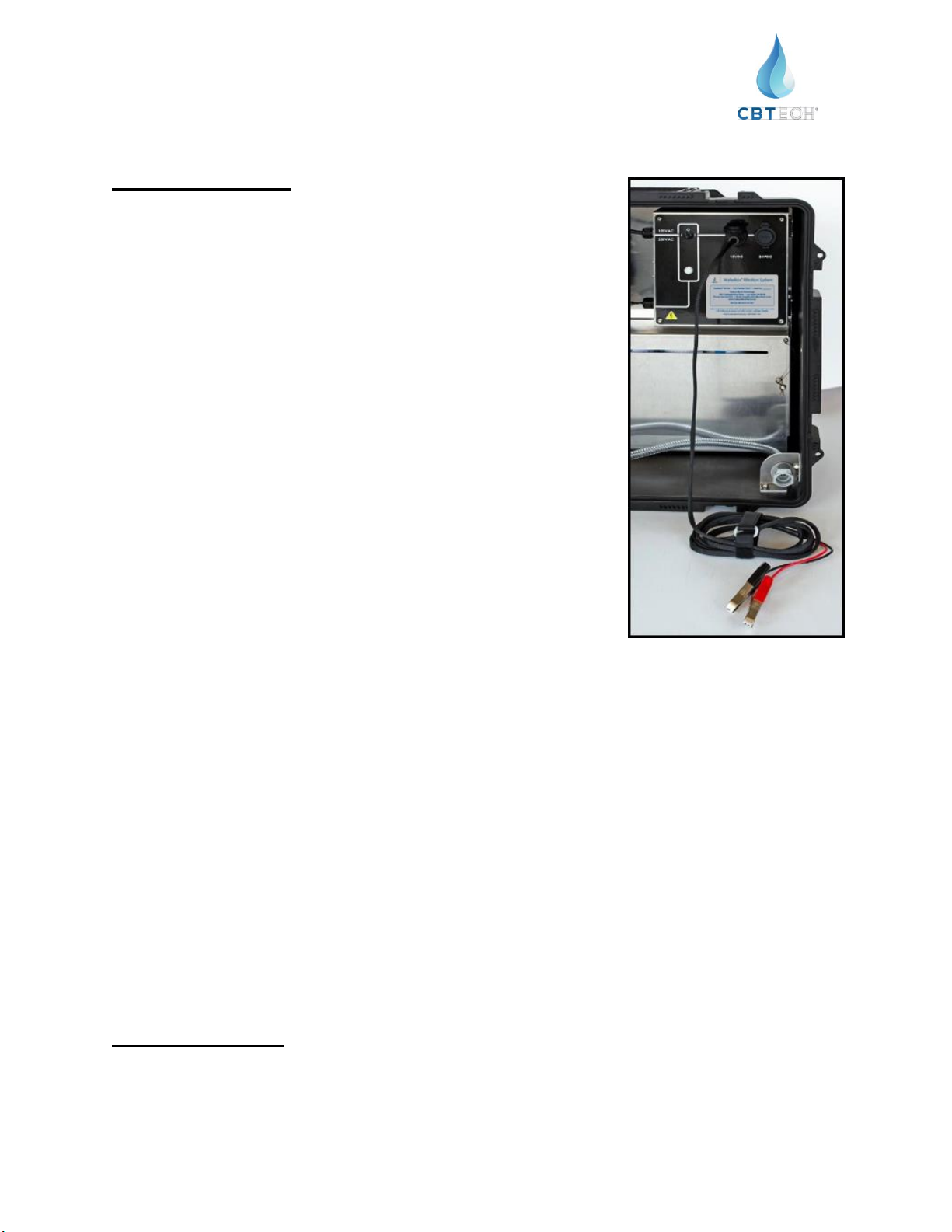

CONNECT 12V/24V DC POWER
CABLE
IN WATER SOURCE
CONNECT GFI PLUG TO
POWER SOURCE
ATTACH POWER CABLE TO
BATTERY
CONNECT 10’ (3m) OUTLET HOSE
PRESS “TEST” BUTTON TO VERIFY
GFI FUNCTION, THEN PRESS “RESET”
OR USE 12 VDC CIGARETTE LIGHTER
ADAPTER

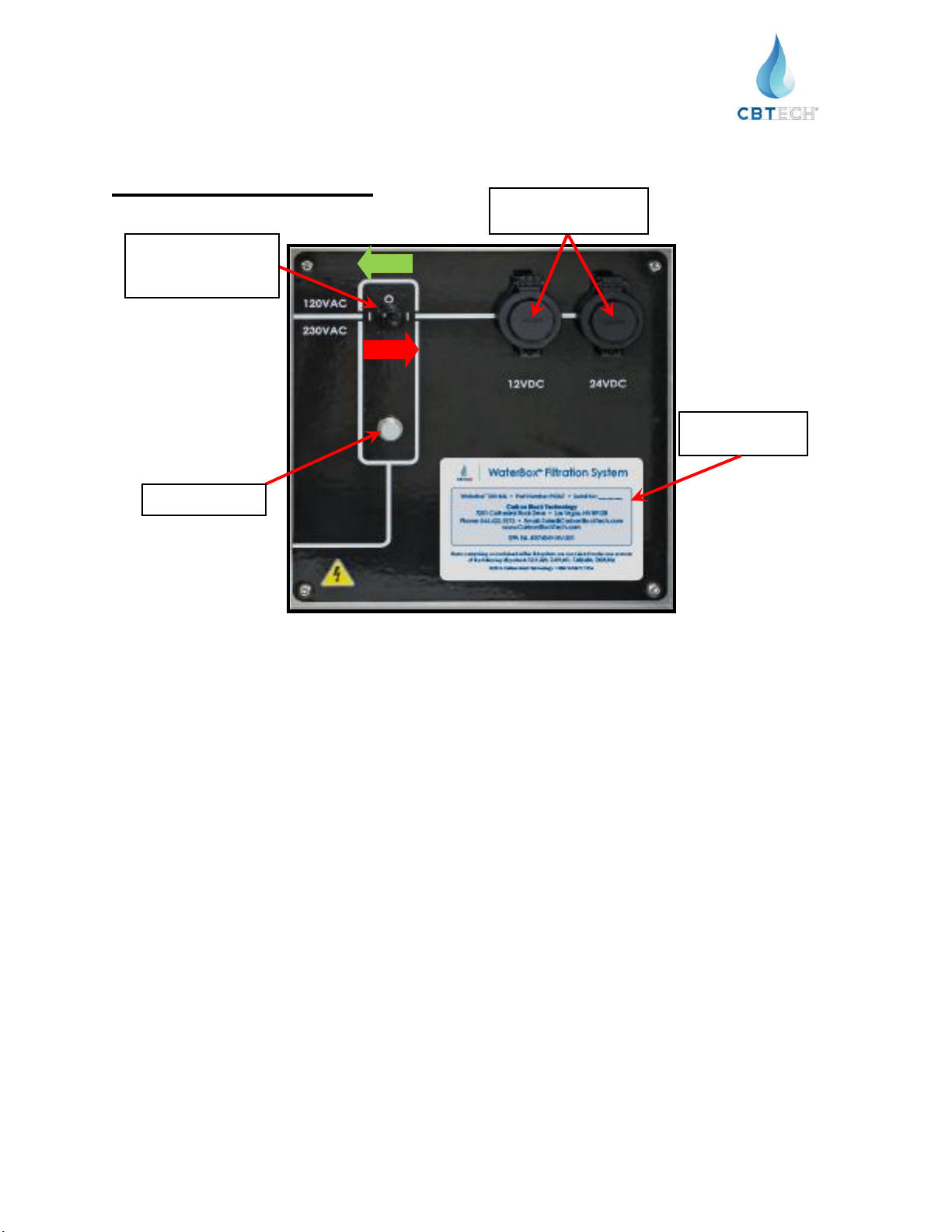

Operation
SWITCH TO LEFT FOR AC POWER
SWITCH TO RIGHT FOR DC POWER
SWITCH TO CENTER FOR OFF

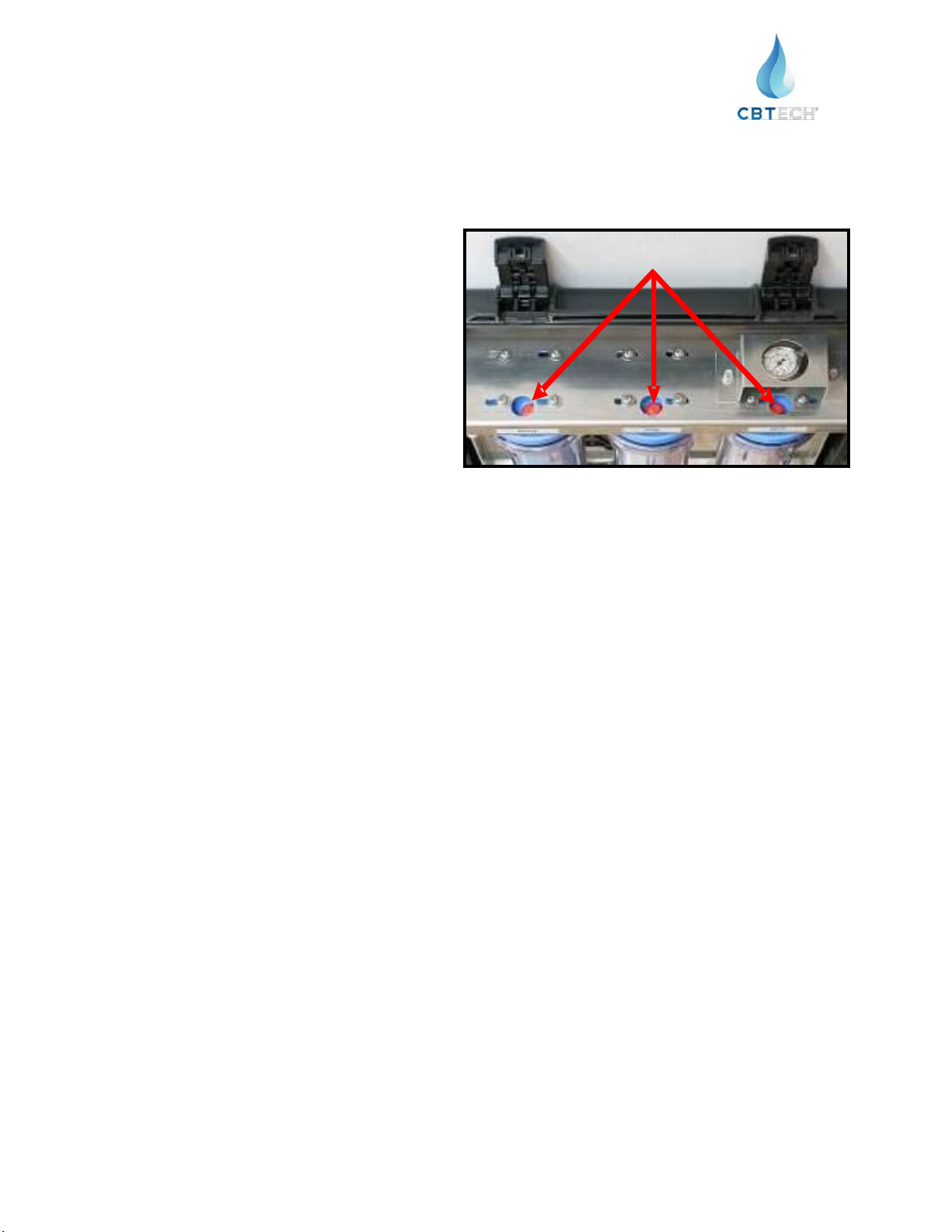

DEPRESS RED BUTTON TO PURGE
AIR FROM EACH HOUSING
USE OUTLET VALVE TO CONTROL
WATER FLOW
Page 3 of 20
TROUBLESHOOTING
SYSTEM DOES NOT RUN:
1. CHECK POSITION OF POWER SWITCH ON ELECTRICAL CONTROL PANEL
2. VERIFY POWER SOURCE VOLTAGE MATCHES SWITCH SETTING
3. FOR AC POWER (120 VAC/230 VAC) CYCLE THE GFI SWITCH (PRESS “TEST” BUTTON
THEN “RESET” BUTTON)
4. DISCONNECT POWER AND CHECK ALL WIRING CONNECTIONS (INCLUDING THAT
BETWEEN POWER SUPPLY CONTROL BOX AND PUMP)
5. IF PUMP IS HOT FROM PREVIOUS USAGE, ALLOW TO COOL (PUMP’S THERMAL
PROTECTION SWITCH WILL DISABLE POWER TO PREVENT DAMAGE)
SYSTEM DOES NOT PRIME (NO SUCTION):
1. CHECK HEIGHT OF PUMP ABOVE WATER SOURCE. IF HEIGHT IS MORE THAN 14’
(4.3M) PUMP MUST BE MANUALLY PRIMED
2. CONFIRM INLET HOSE, OUTLET HOSE AND BOTH WATER INTAKES ARE FREE FROM
OBSTRUCTION
3. CHECK ALL HOSE CONNECTIONS BETWEEN PUMP AND WATER SOURCE FOR LEAKS

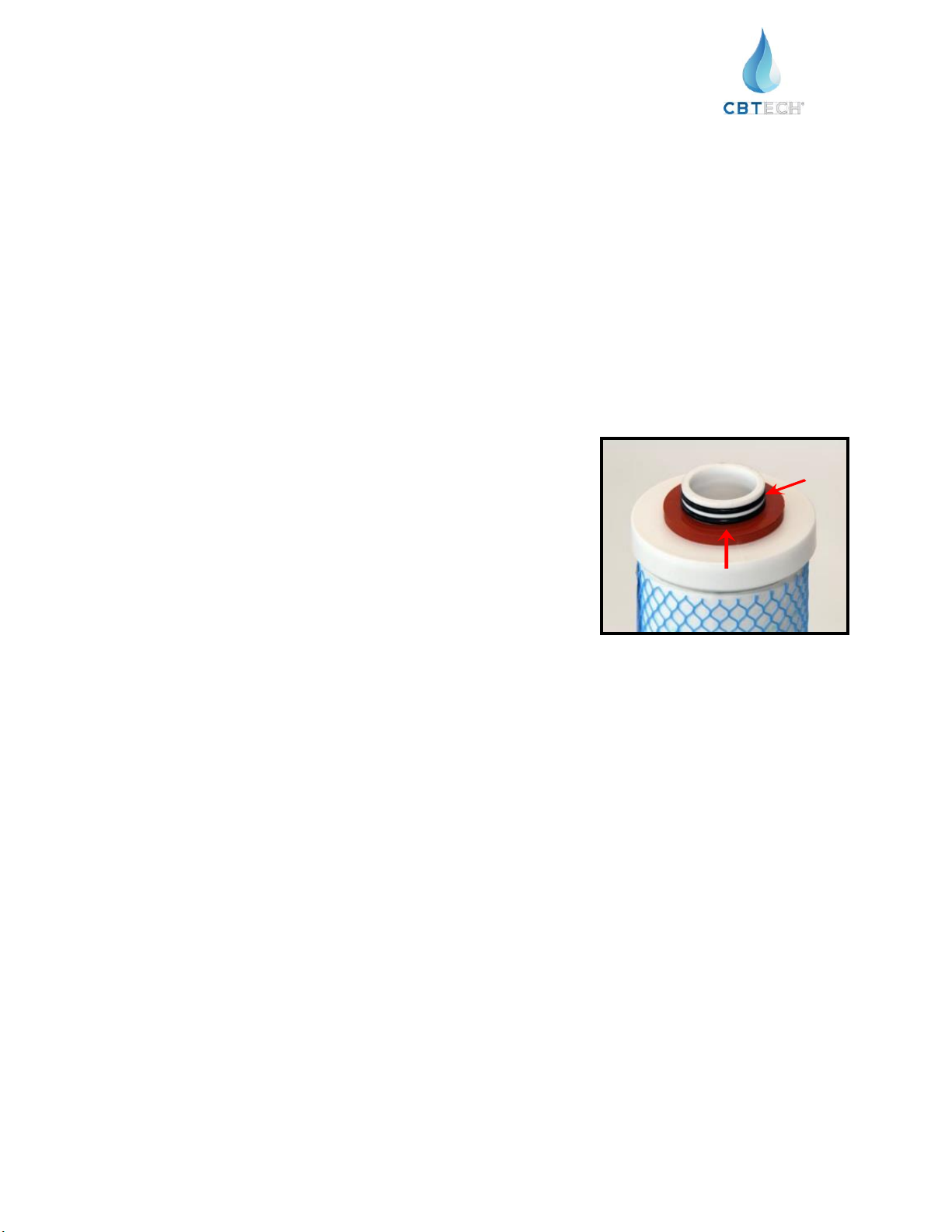

(APPLY PETROL-GEL TO O-RINGS IF NECESSARY)

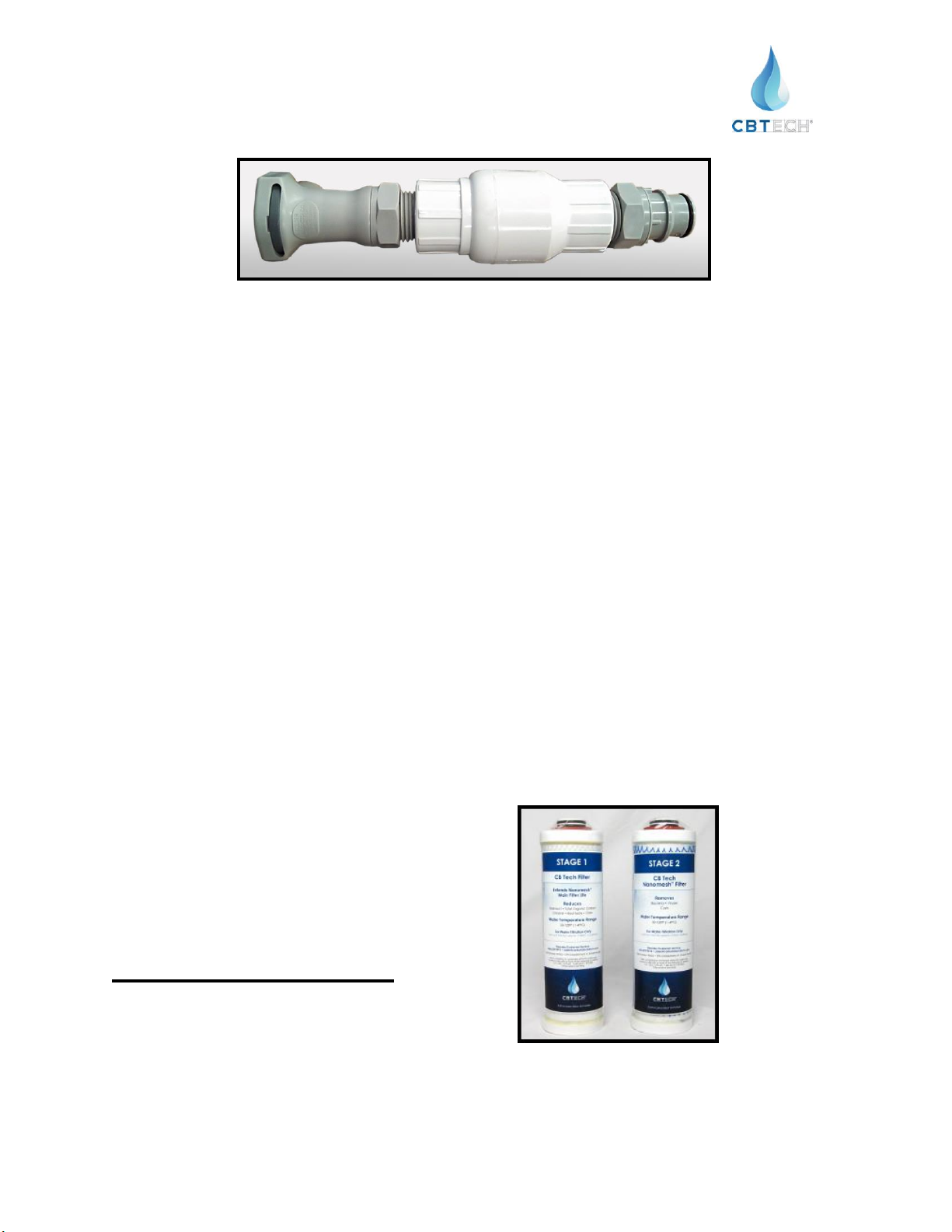

4. CONFIRM PUMP INLET STRAINER IS CLEAR OF DEBRIS (SEE Figure 6)
5. WITH THE PUMP TURNED ON, PRESS AND HOLD THE AIR PRESSURE RELIEF VALVE
ON THE FIRST STAGE I FILTER HOUSING UNTIL THE PUMP IS PRIMED (SEE Figure 7)
SYSTEM PRODUCES WEAK FLOW (< 0.50 GPM):
1. VERIFY (VIA PRESSURE DROP) THAT THE FILTERS HAVE NOT REACHED THEIR
USEFUL LIFE
2. CHECK ALL PLUMBING CONNECTIONS FOR LEAKS (APPLY PETROL-GEL TO O-RINGS
IF NECESSARY)
3. CONFIRM INLET HOSE, OUTLET HOSE AND WATER INTAKE ARE FREE FROM
OBSTRUCTION
4. CONFIRM THE STAGE I AND STAGE II FILTER HOUSINGS HAVE BEEN PURGED OF
TRAPPED AIR
5. CONFIRM PUMP INLET STRAINER IS CLEAR OF DEBRIS (SEE Figure 6)
6. USE CAUTION TO VERIFY PUMP IS NOT OVERHEATING, IF SO ALLOW PUMP TO
COOL
Page 4 of 20
Table of Contents
I. Scope ................................................................................................................... 5
II. Principle of Operation ........................................................................................... 5
III. List of Symbols and Abbreviations ........................................................................ 5
IV. Technical Specifications ........................................................................................ 6

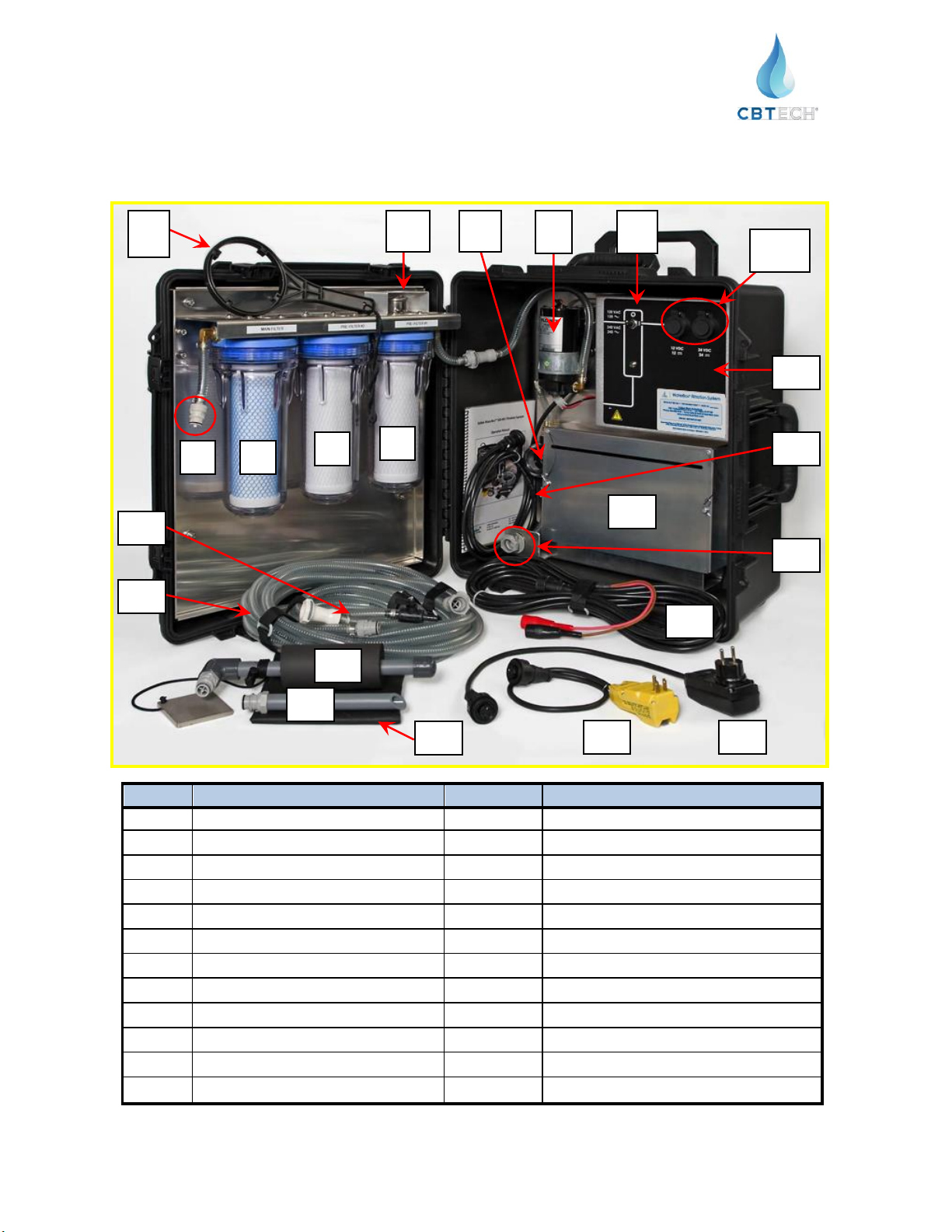

V. System Overview .................................................................................................. 7
VI. Using the CB Tech WaterBox™ Filtration System ................................................... 8
A. Unpacking ......................................................................................................... 8
B. Power Connections ............................................................................................ 9
C. Operating the CB Tech WaterBox™ .................................................................. 11
D. Maintaining the CB Tech WaterBox™ ................................................................ 14
E. System Shutdown and Storage ......................................................................... 17
F. Troubleshooting ............................................................................................... 18
VII. Appendix.......................................................................................................... 19
Product Warranty .................................................................................................... 20
Page 5 of 20
o
F – Degrees Fahrenheit
cm - Centimeter
o
C – Degrees Celsius
kg – Kilogram
gpm – Gallons per minute
GFI – Ground fault interrupter
lbs – Pounds
psi – Pounds per square inch
A – Amps
in – inch(es)
VDC – Voltage - direct current
VAC – Voltage - alternating current
ft – foot/feet
I. Scope
The CB Tech WaterBox™ is designed to remove bacteria, viruses, cysts and other
contaminants from natural water sources such as surface waters (lakes, rivers, etc.)
and groundwater. This manual describes how to install filter cartridges, start the
system, monitor and maintain the system and how to shut it down. It is important that
the user is familiar with the entire contents of this manual to ensure that the CB Tech
WaterBox™ is operated safely and properly.
II. Principle of Operation
The CB Tech WaterBox™ filtration system creates clean drinking water exceeding
potable water standards. The CB Tech Nanomesh™ filters employ a combination of
adsorption and size exclusion to remove microbial pathogens and reduce chemical
contaminants from the input water stream. Water is cleaned as it passes through the
filters; no chemicals, UV light, or heat are necessary.
The CB Tech WaterBox™ has been tested by NSF International and received a letter of
compliance from the United States Public Health Command certifying it has met the
straight requirements of protocol 248. The CB Tech Waterbox removes over 99.9999%
of bacteria, 99.99% of viruses, and 99.9% of cysts. Additionally, the CB Tech
Nanomesh™ filter media used in the CB Tech WaterBox™ has been shown to remove or
reduce a variety of other biological and chemical contaminants (see Appendix A).

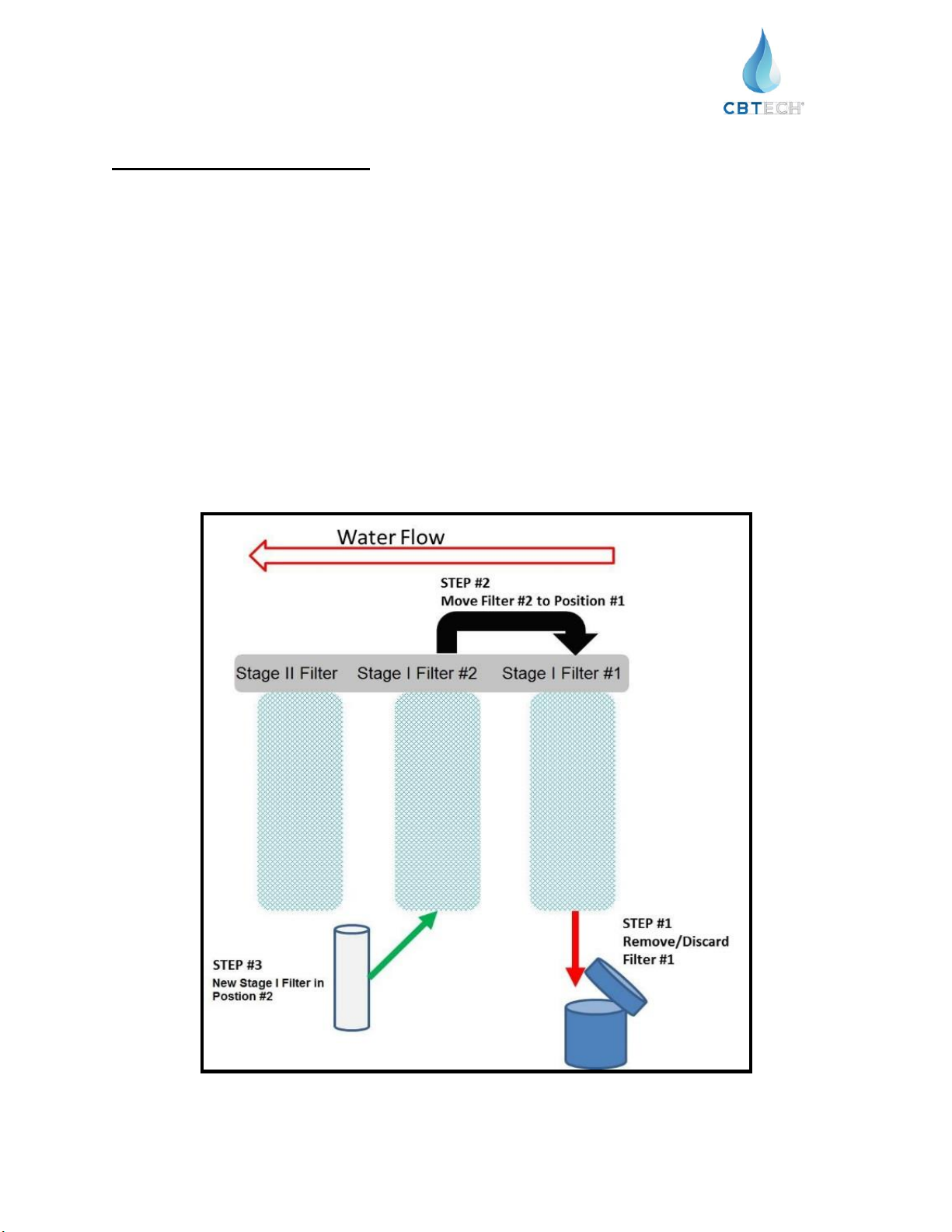

The CB Tech Nanomesh™ Stage I filters are specifically designed for removing organic
compounds and suspended solids from source water. When properly monitored and
maintained, they protect the CB Tech Nanomesh™ Stage II filter and extend its
operational life.
III. List of Symbols and Abbreviations
Page 6 of 20
System
System weight
Dry
76 lbs (30.4 kg)
Wet
83 lbs (33.6 kg)
Exterior dimensions (L x W x D)
24.9 in x 23.7 in x 13.1 in
(63.2 cm x 60.2 cm x 33.3 cm)
Electrical requirements
Voltage
12/24 VDC or 120/230 VAC
Maximum height above water
Priming
8 ft (2.4 m)
Operating
20 ft (6.1 m)
Safe to run pump dry?
Yes
Temperature range
Dry Storage
-40 - 140oF (-40 – 60oC)
Operating
33 – 115oF (0.5 – 46oC)
Nanomesh™
Contaminant removal ability
See Appendix A
Operating water source temperature range
40 – 104oF (4 – 40oC)
IV. Technical Specifications
