walnut NIGHTSTAND
hardware
Thank you for purchasing the Walnut Nightstand. This
page
lists all the contents included in the box. Please
take the time to identify the hardware as well as the
individual components
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
to this product. As you unpack
components
8 - screws 2 - large
bolts
8 - wood
dowels
Missing hardware?
Please call 800.606.6387 for replacements.
8 - flat
washers
8 - medium
bolts
8 - spring
washers
tools required
phillips head screwdriver
(We recommend the use of hand tools instead of power tools)
8 - small
bolts
1 - top panel 1 - bottom panel 1 - back panel
2 - side panels
(1 right, 1 left)
2 - drawer sides
(1 right, 1 left)
Made in Vietnam - r04 Page 1 of 4
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
1 - drawer front 1 - drawer back
4 - legs
1 - pull
1 - drawer bottom
Page 2
walnut NIGHTSTAND
A
B
A. Insert 4 wood dowels into top panel as
shown.
B. Insert 2 wood dowels into right and left side
1
panels as shown.
NOTE: Do not
over tighten
the bolts
Fit dowels of side panels into top panel as
shown. Make sure grooves on each panel are
assembled on the same side. Using a phillips
head screwdriver, secure side panels to top
panel with 4 medium bolts, 4 spring washers
2
and 4 flat washers. Do not over tighten the bolts.
Insert back panel into grooves of side and top
panels as shown.
3
Made in Vietnam - r04 Page 2 of 4
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
Fit dowels of side panels into bottom panel as
shown. Secure bottom panel with 4 medium
4
bolts, 4 spring washers and 4 flat washers.
Page 3
walnut NIGHTSTAND
A
NOTE: Do not
over tighten
the screws
B
Attach 4 legs to bottom panel with 2 small bolts
per leg as shown. Secure bolts with a
5
screwdriver.
B
A
A. Attach left drawer side to drawer front with 2
screws as shown. Secure, but do not over
tighten, screws with a screwdriver.
B. Insert drawer bottom into grooves of drawer
front and side as shown.
6
A. Attach left drawer side to drawer back with 2
screws as shown.
B. Attach right drawer side to drawer front and
7
back with 4 screws as shown.
Made in Vietnam - r04 Page 3 of 4
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
Attach 1 pull to drawer front with 2 large bolts as
8
shown, using a screwdriver.
Page 4
walnut NIGHTSTAND

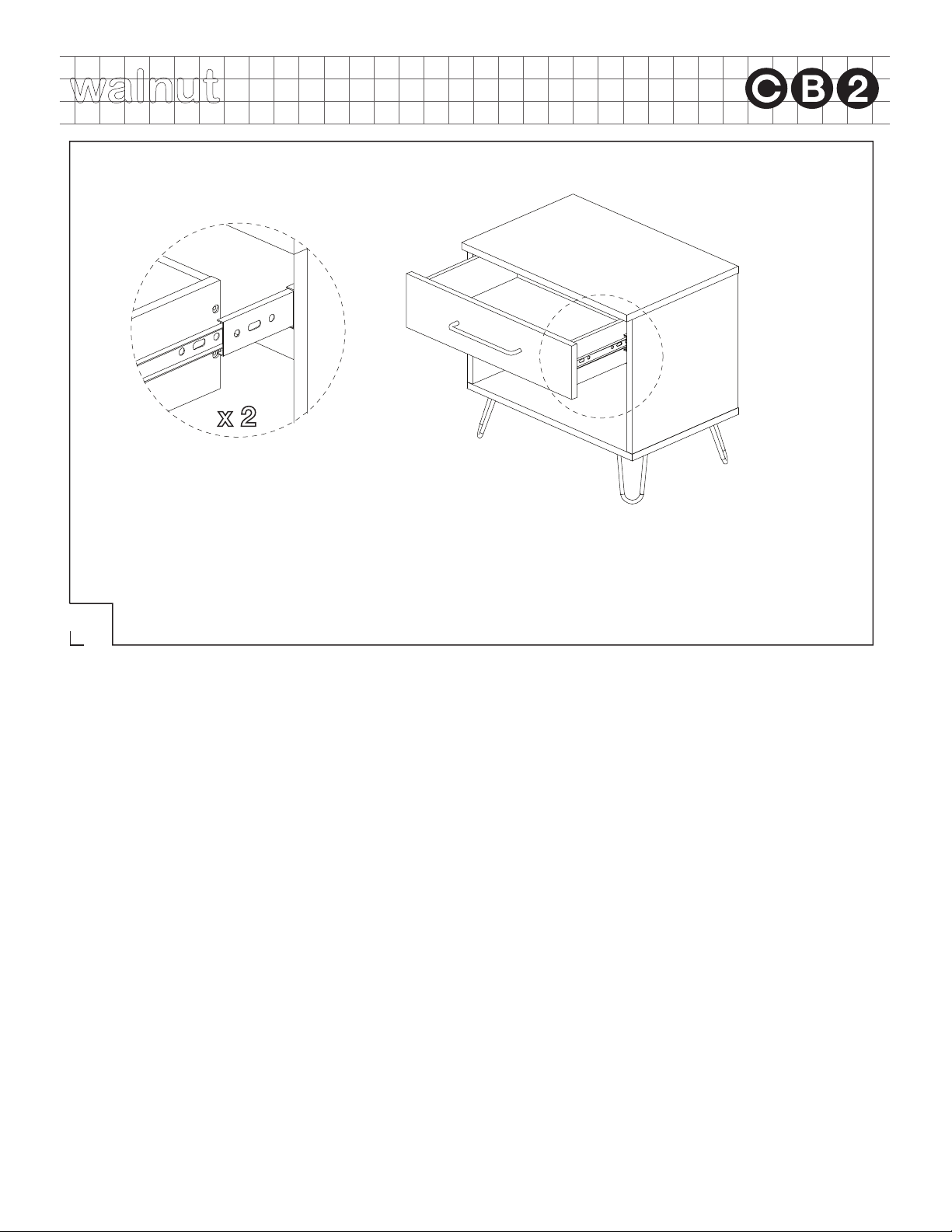

With the assistance of another adult, position unit upright. Fit drawer glides of drawer into corresponding
drawer glides of assembly as shown. Firmly push drawer into assembly until the glides are securely engaged.
Assembly is now complete.
9
cleaning & care
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as
the unit is finished with a protective clear lacquer. It is
recommended to use coasters to protect surface from
heat and water.
