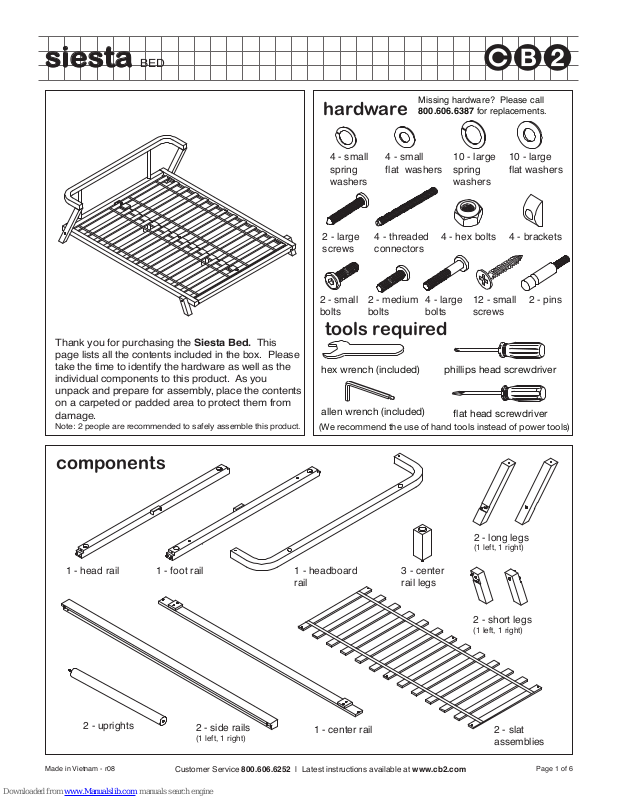

siesta
BED
hardware
Missing hardware? Please call
800.606.6387 for replacements.
Thank you for purchasing the Siesta Bed. This
page
lists all the contents included in the box. Please
take the time to identify the hardware as well as the
individual components
unpack and prepare for assembly, place the contents
on a carpeted or padded area to protect them from
damage.
Note: 2 people are recommended to safely assemble this product.
to this product. As you
4 - small
spring
washers
2 - large
screws
2 - small
bolts
4 - small
flat washers
4 - threaded
connectors
2 - medium
bolts
10 - large
spring
washers
4 - hex bolts 4 - brackets
4 - large
bolts
12 - small
screws
10 - large
flat washers
2 - pins
tools required
hex wrench (included)
allen wrench (included)
(We recommend the use of hand tools instead of power tools)
phillips head screwdriver
flat head screwdriver
components
1 - head rail 1 - foot rail
2 - uprights
2 - side rails
(1 left, 1 right)
1 - headboard
rail
1 - center rail
2 - long legs
(1 left, 1 right)
3 - center
rail legs
2 - short legs
(1 left, 1 right)
2 - slat
assemblies
Made in Vietnam - r08 Page 1 of 6
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
siesta
BED
Fit 2 threaded connectors into left and right
side rails as shown. Secure, but do not over
tighten, each threaded connector with a flat head
screwdriver.
left and right
side rail
threaded
connector
1
NOTE: Make sure
label “THIS SIDE
DOWN” is visible
during assembly
R
R
2.625”
NOTE: The end of the
side rail with 2.625” of
space from the end
attached to the head rail
NOTE: The end of the side
rail with 5” of space from the
end attached to the foot rail
2
N
W
O
D
E
D
I
S
S
I
H
T
head rail
right side rail
A. Fit threaded connector of right side
frame into corresponding holes of head and
foot rails.
B. Fit each threaded connector through 1
bracket, 1 large flat washer, 1 large spring
L
L
washer and 1 hex nut. Secure assembly
using a hex wrench.
Repeat for left side rail.
left side rail
L
threaded
connector
bracket
A
large spring washer
foot rail
L
large flat washer
hex nut
B
RR
5”
Made in Vietnam - r08 Page 2 of 6
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
siesta
BED
With the assistance of another adult, turn
assembly and fit pre-assembled dowels of left
and right short legs into corresponding holes
of left and right side rails. Secure each
short leg with 1 large flat washer, 1 large
spring washer and 1 large bolt, using an
allen wrench. Do not over tighten the bolts.
right
short leg
NOTE: Do not over
tighten the bolts
left
short leg
3
left
long leg
right
long leg
Fit pre-assembled dowels of left and right
long legs into corresponding holes of left
and right side rails. Secure each long leg
with 1 large flat washer, 1 large spring
washer and 1 large bolt, using an allen
wrench.
4
Made in Vietnam - r08 Page 3 of 6
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
siesta
A
B
pin
5
B
BED
A
upright
NOTE: Do not over
tighten the screws

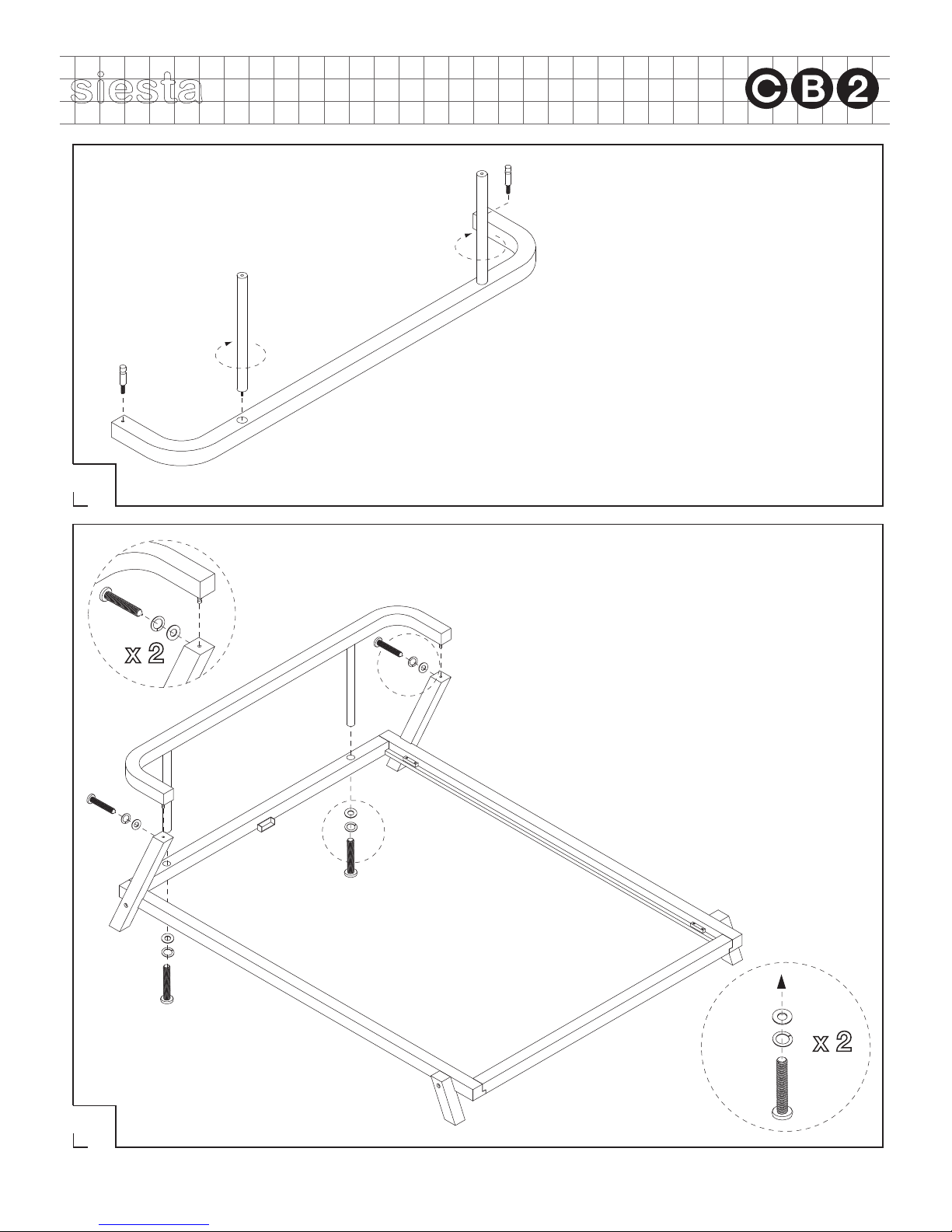

A. Attach 2 uprights to headboard rail by
turning each upright clockwise to secure.
B. Fit 2 pins into headboard rail as shown.
headboard
rail
A. With the assistance of another adult, fit
uprights and pins of headboard rail into
corresponding holes of assembled unit as
shown. Secure each upright with 1 large flat
washer, 1 large spring washer and 1
medium bolt, using an allen wrench.
6
A
B
B. Secure headboard rail to long legs with
1 small flat washer, 1 small spring washer
and 1 large screw per leg as shown, using a
phillips head screwdriver. Do not over
tighten the screws.
Made in Vietnam - r08 Page 4 of 6
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
siesta
BED
7
center rail
leg
Attach 3 center rail legs to center rail as
shown. Secure by turning each leg clockwise.
center rail
Fit center rail assembly into brackets of
head and foot rails as shown. Secure
center rail with 2 small flat washers, 2
small spring washers and 2 small bolts,
using an allen wrench.
bracket
8
Made in Vietnam - r08 Page 5 of 6
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
center rail
assembly
siesta
BED
Attach 2 slat assemblies to left/right side
frames and center rail with 12 small
screws as shown. Make sure each slat is
securely attached.
Assembly is now complete.
slat
assembly
9
slat
assembly
cleaning & care
Clean surfaces with a dry or damp soft cloth.
Do not use abrasive cleaners.
