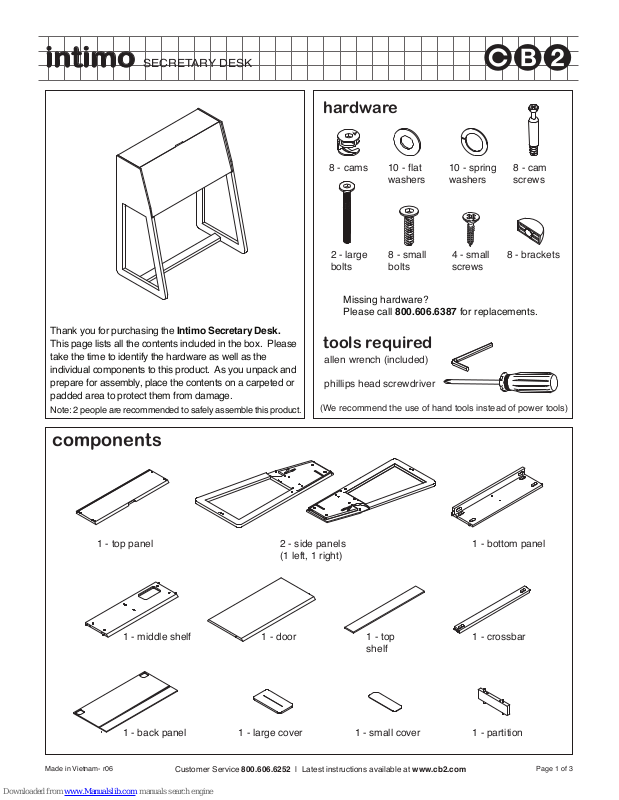

intimo
SECRETARY DESK
hardware
Thank you for purchasing the Intimo Secretary Desk.
This page lists all the contents included in the box. Please
take the time to identify the hardware as well as the
individual components to this product. As you unpack and
prepare for assembly, place the contents on a carpeted or
padded area to protect them from damage.
Note: 2 people are recommended to safely assemble this product.
components
8 - cams 8 - cam
2 - large
bolts
Missing hardware?
Please call 800.606.6387 for replacements.
10 - flat
washers
bolts
10 - spring
washers
4 - small
screws
screws
8 - brackets8 - small
tools required
allen wrench (included)
phillips head screwdriver
(We recommend the use of hand tools instead of power tools)
1 - top panel
1 - middle shelf 1 - door 1 - top
1 - back panel 1 - large cover 1 - small cover 1 - partition
Made in Vietnam- r06 Page 1 of 3
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
2 - side panels
(1 left, 1 right)
1 - bottom panel
1 - crossbar
shelf
intimo
SECRETARY
top panel
left and right
side panel
Insert 4 cam screws into top panel as shown,
using a flat head screwdriver. Do not over
1 2
tighten the cam screws.
B
bottom
panel
partition
A
middle
shelf
NOTE: Make sure arrow
on each cam points toward
nearest edge with holes
Insert 2 cam screws into left and right side
panel as shown.
A
desk assembly
B
door
left side panel
A. Fit 4 cams into middle shelf as shown.
B. Fit pre-assembled dowels of partition into
corresponding holes of bottom panel and
middle shelf as shown. Using an allen
wrench, secure assembly with 2 large bolts, 2
3
spring washers and 2 flat washers as shown.
Made in Vietnam - r06 Page 2 of 3
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
A. Fit dowels of desk assembly into corresponding holes of left side panel as shown. Using an
allen wrench, turn each cam clockwise until it
securely engages each cam screw.
B. Fit hole of door into corresponding peg of left
4
side panel.
intimo
NOTE: Do not
over tighten
the bolts
top
shelf
SECRETARY
back
panel
right side
panel
crossbar
door
C
door
A
A. Fit top shelf and back panel into corresponding
slots of left side panel.
B. Fit dowels of crossbar into left side panel.
C. Secure desk assembly and crossbar with 4
small bolts, 4 spring washers, 4 flat washers
and 4 brackets as shown. Secure, but do not over
5
tighten, bolts with an allen wrench.
NOTE: Do not
over tighten
the screws
B
C
Fit right side panel onto corresponding dowels
of assembly and hinge of door. Secure desk
assembly and crossbar with 4 small bolts, 4
spring washers, 4 flat washers and 4 brackets
6
as shown.
NOTE: Make sure arrow
on each cam points toward
nearest edge with holes
large
cover
B
small
cover
A
top
panel
Open door and secure hinges with 2 small
screws per hinge. Secure, but do not over
tighten, screws with a phillips head screwdriver.
7
Made in Vietnam - r06
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
A. Carefully position unit upright. Insert 4 cams
into left and right side panels. Fit top panel
onto corresponding dowels of assembly and
secure cams.
B. Place small and large covers into assembly as
8
shown. Assembly is now complete.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners.
Page 3 of 3
