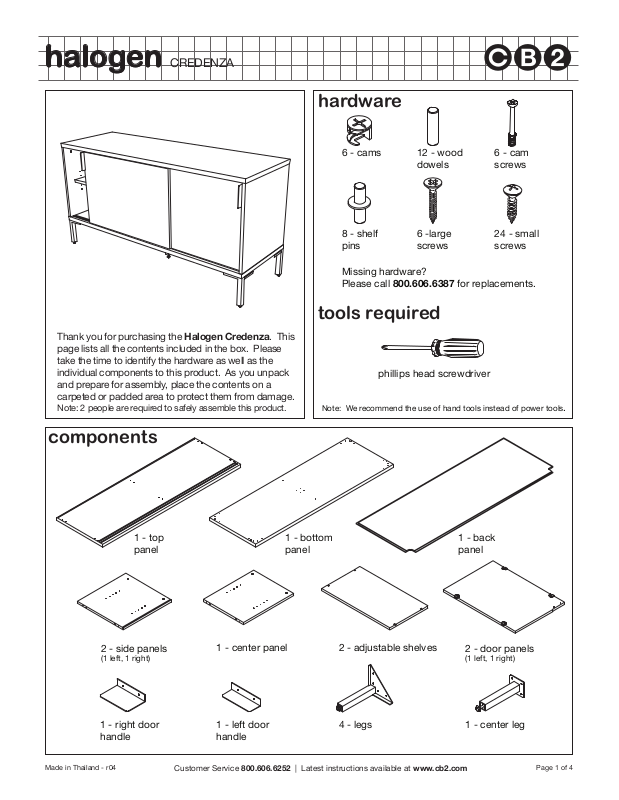

Page 1
halogen CREDENZA
hardware
Thank you for purchasing the Halogen Credenza. This
page
lists all the contents included in the box. Please
take the time to identify the hardware as well as the
individual components
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
to this product. As you unpack
components
6 - cams
8 - shelf
pins
Missing hardware?
Please call 800.606.6387 for replacements.
12 - wood
dowels
6 -large
screws
6 - cam
screws
24 - small
screws
tools required
phillips head screwdriver
Note: We recommend the use of hand tools instead of power tools.
1 - top
panel
2 - side panels
(1 left, 1 right)
handle
Made in Thailand - r04 Page 1 of 4
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
1 - center panel
1 - left door
handle
1 - bottom
panel
2 - adjustable shelves
4 - legs
1 - back
panel
2 - door panels
(1 left, 1 right)
1 - center leg1 - right door
Page 2
halogen CREDENZA
large
screws
bottom panel
leg
center
leg
With the assistance of another adult, fit dowels of
assembled unit into corresponding holes of
bottom panel as shown. Attach bottom panel
5
with 6 large screws using a screwdriver.
shelf
pins
adjustable panels
6
Attach each leg and center leg with 4 small
screws using a screwdriver as shown.
right
door panel
left
door panel
Insert bottom edge of right door panel into rear
groove on bottom panel as shown. Tilt door
panel up into a vertical position and hold both
Insert 8 shelf pins into holes at desired shelf height.
Place adjustable shelves onto assembled unit.
7
Make sure shelf is securely supported by shelf pins.
Made in Thailand - r04 Page 3 of 4
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
levers at top of door down. Align top of door with
rear groove in underside of shelf and release levers.
8
Repeat for left door panel into front groove.
Page 3
halogen CREDENZA
cam screws
top panel
NOTE: Make sure arrows
on each cam points towards
nearest edge with holes
left and right
side panels
NOTE: Do not
over tighten cam screws
Insert 6 cam screws into top panel as shown.
Secure, but do not over tighten, using a phillips
1
head screwdriver.
NOTE: Make sure
unfinished edge of center
panel is facing the back
during assembly
center panel
left
side
panel
right
side
panel
top panel
center panel
A. Insert 2 cams and 4 wood dowels into left and
right side panels and center panel as shown.
Make sure arrows on each cam points toward
2
nearest edge with holes as shown.
back panel
NOTE: Make sure grooves
on the side panels are on
the same side as the top panel
Fit dowels of center, left and right side panels into
corresponding holes of top panel as shown. Make
sure grooves on the side panels are on the same
side as the top panel. With a screwdriver, turn each
cam clockwise until it securely engages each cam
3
screw.
Made in Thailand - r04 Page 2 of 4
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
With the assistance of another adult, slide back
panel down into grooves of top and side panels as
4
shown.
NOTE: Make sure
sticker on back panel
is facing outwards
during assembly
Page 4
halogen CREDENZA
Attach right and left door handles with
2 small screws using a screwdriver as
shown.
Assembly is now complete.
right
door
handle
cleaning & care
9
left
door
handle
Clean surfaces with a dry or damp soft
cloth. Do not use abrasive cleaners. Do not
use furniture wax or polish as the unit is
finished with a protective clear lacquer. It is
recommended to use coasters to protect
surface from heat and water.
