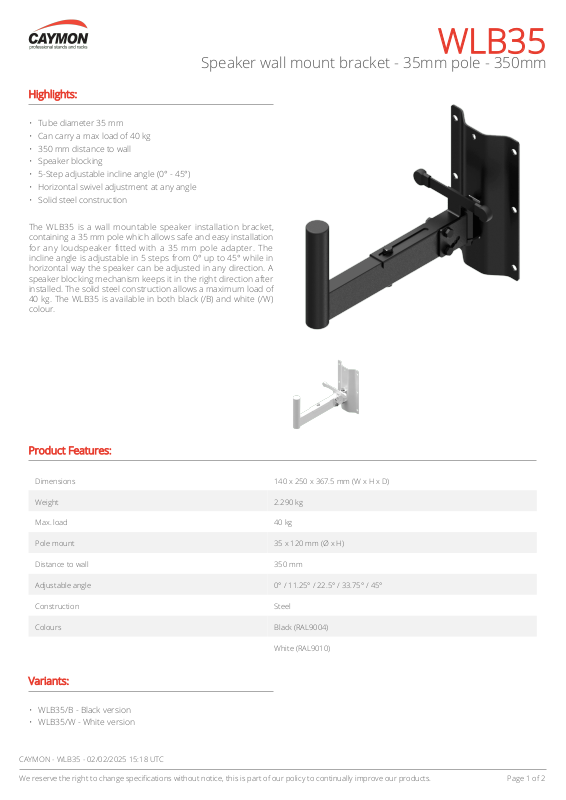

Page 1
Speaker wall mount bracket - 35mm pole - 350mm
2
Highlights:
Tube diameter 35 mm•
Can carry a max load of 40 kg•
350 mm distance to wall•
Speaker blocking•
5-Step adjustable incline angle (0° - 45°)•
Horizontal swivel adjustment at any angle•
Solid steel construction•
The WLB35 is a wall mountable speaker installation bracket,
containing a 35 mm pole which allows safe and easy installation
for any loudspeaker fitted with a 35 mm pole adapter. The
incline angle is adjustable in 5 steps from 0° up to 45° while in
horizontal way the speaker can be adjusted in any direction. A
speaker blocking mechanism keeps it in the right direction after
installed. The solid steel construction allows a maximum load of
40 kg. The WLB35 is available in both black (/B) and white (/W)
colour.
WLB35
Product Features:
Dimensions 140 x 250 x 367.5 mm (W x H x D)
Weight 2.290 kg
Max. load 40 kg
Pole mount 35 x 120 mm (Ø x H)
Distance to wall 350 mm
Adjustable angle 0° / 11.25° / 22.5° / 33.75° / 45°
Construction Steel
Colours Black (RAL9004)
White (RAL9010)
Variants:
WLB35/B - Black version•
WLB35/W - White version•
CAYMON - WLB35 - 02/02/2025 15:18 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 1 of
Page 2
Technical drawings:
250
122
140
104 104
350
52
143
45°
299
164
Ø10 (6x)
3
Product description:
Weight: Outer dimensions: Unit height:
(w x h x d)
WLB35
2,24 kg 164 x 299 x 368 N/A
SPEAKER WALL MOUNT BRACKET - 35 MM
POLE - 350 MM
2
CAYMON - WLB35 - 02/02/2025 15:18 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
