N6 Quick Guide and User Manual can be downloaded from Cayin website: http://en.cayin.cn/
Portable Lossless Music Player
User Manual
Portable
Lossless Music
PLAYER
Salute to Hi-Fi Burn your music
Contents
Attention
Main Control Components
Control Functions
Output Interface Description
Introducing N6
Prepare to Use
Playing music
Display and Menu
System Upgrade
Technical Information
FAQ
Safety Information
Disclaimer
Trademark Notice
Handling and Disposal of Electronic Waste
Symbolic Instructions

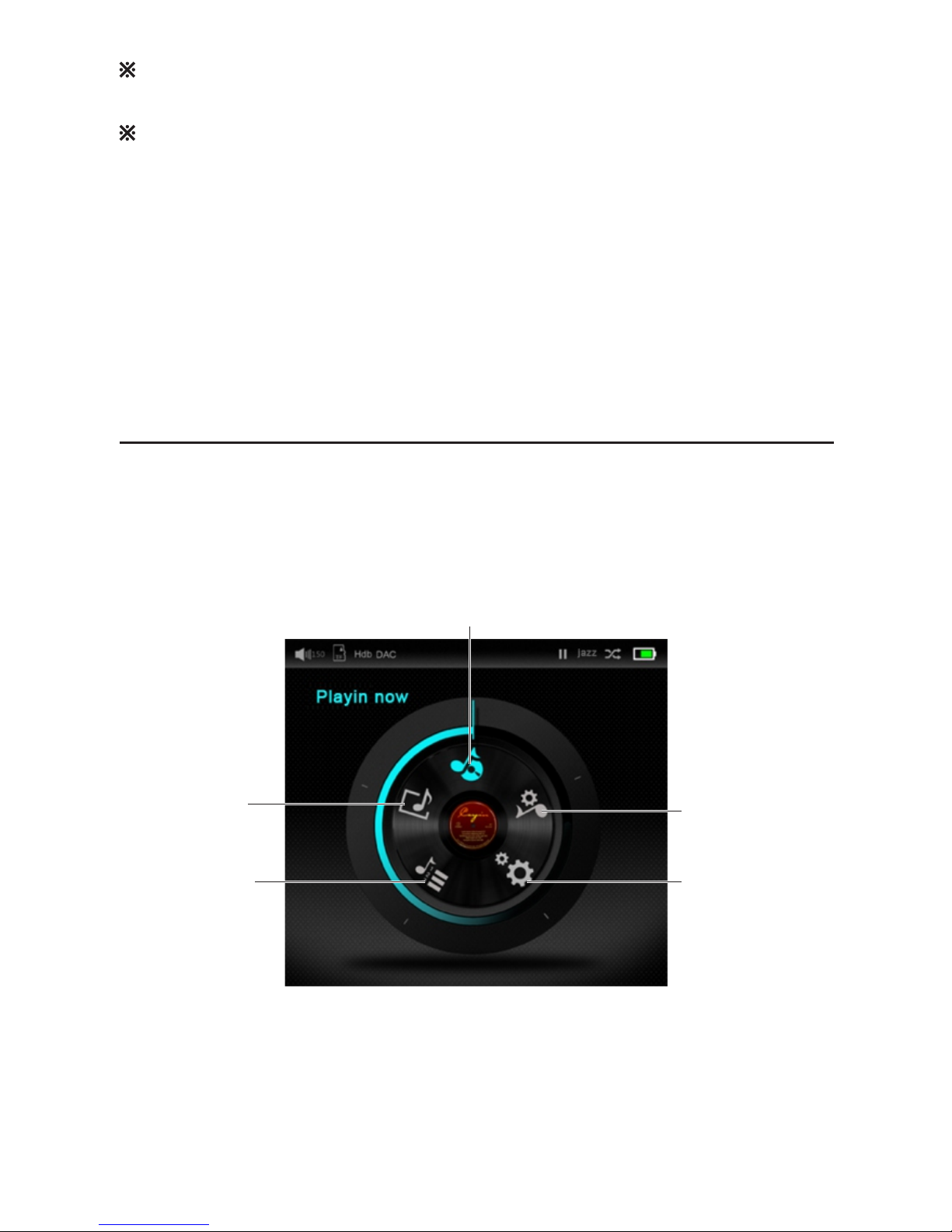

The Home Screen

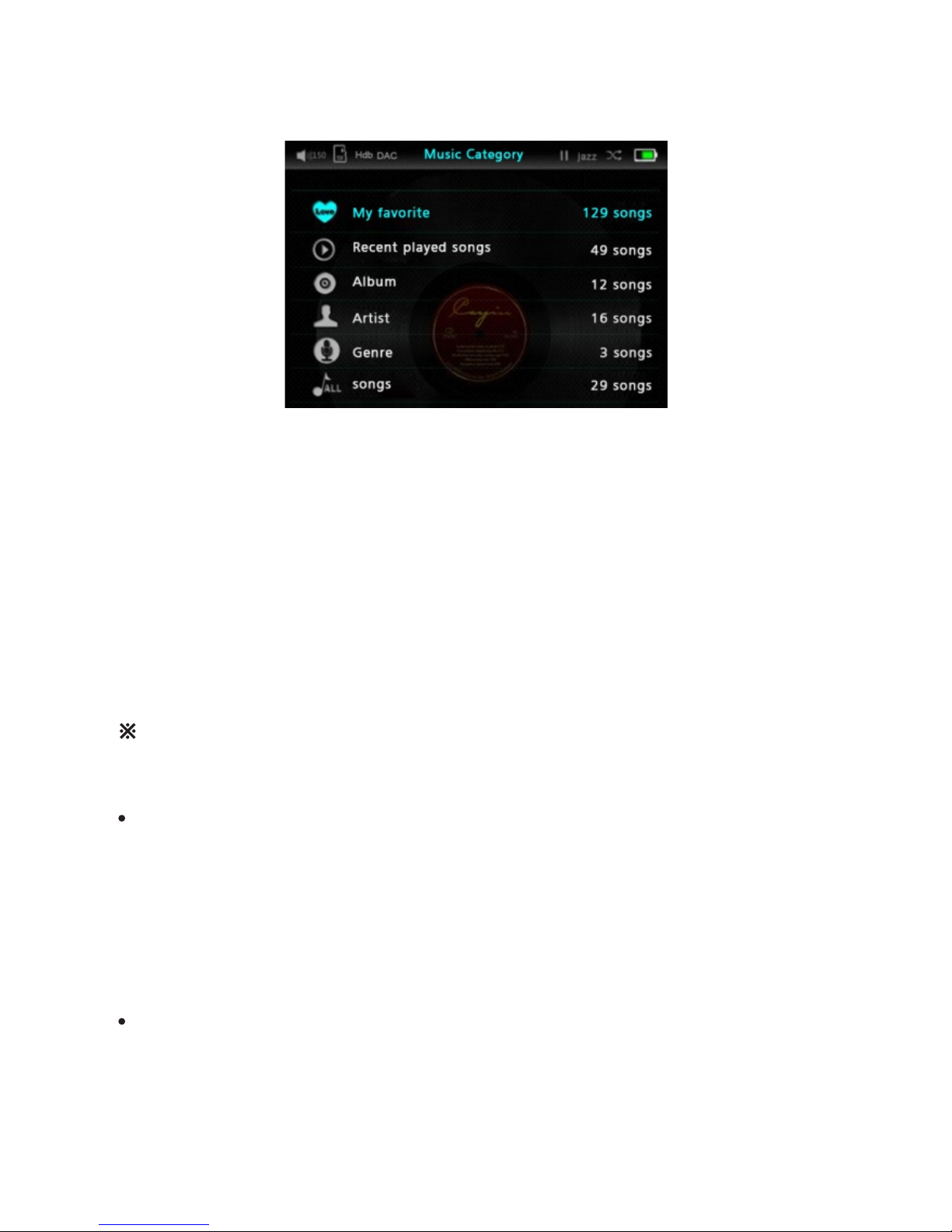

Music classification Menu

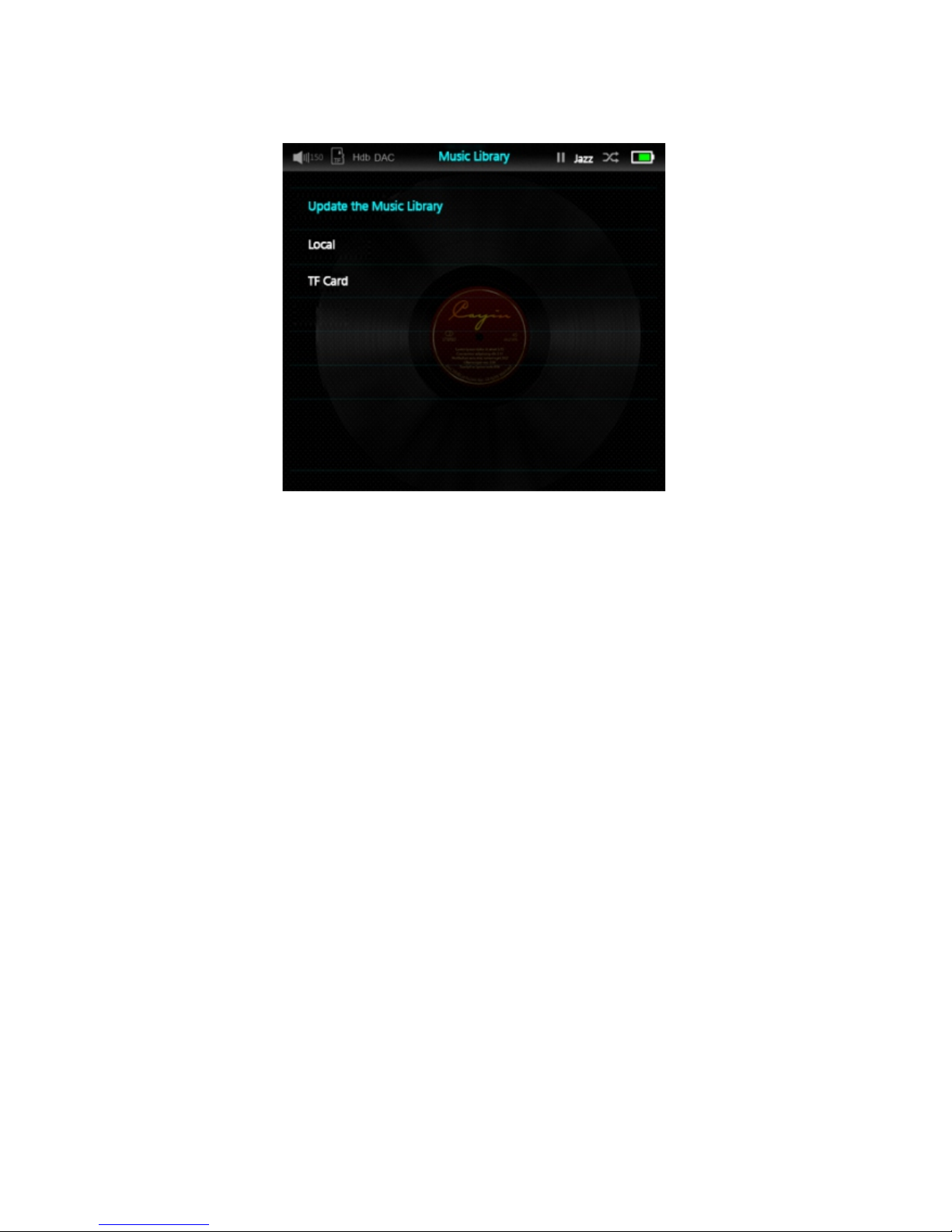

Music library Menu

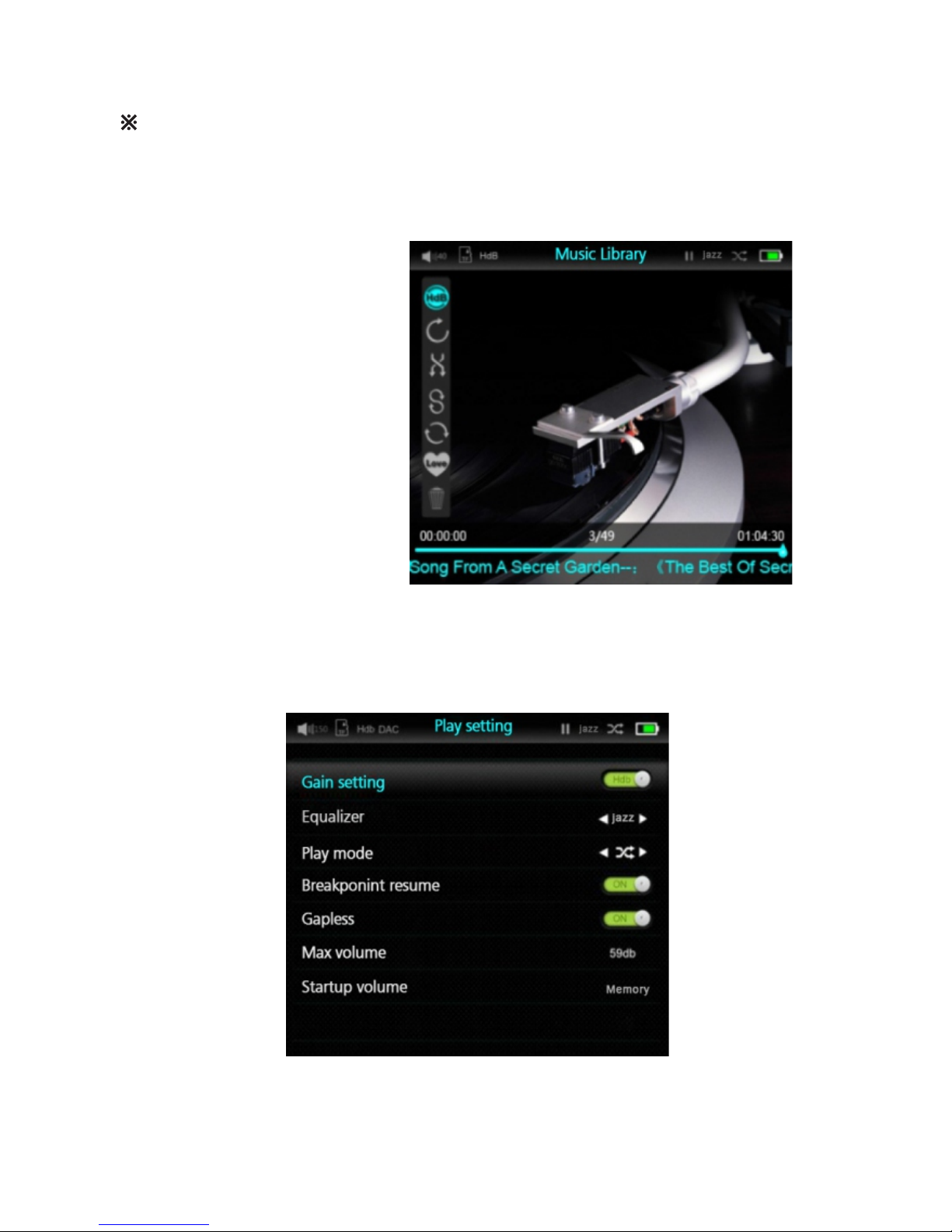

Music player Menu
Music settings Menu

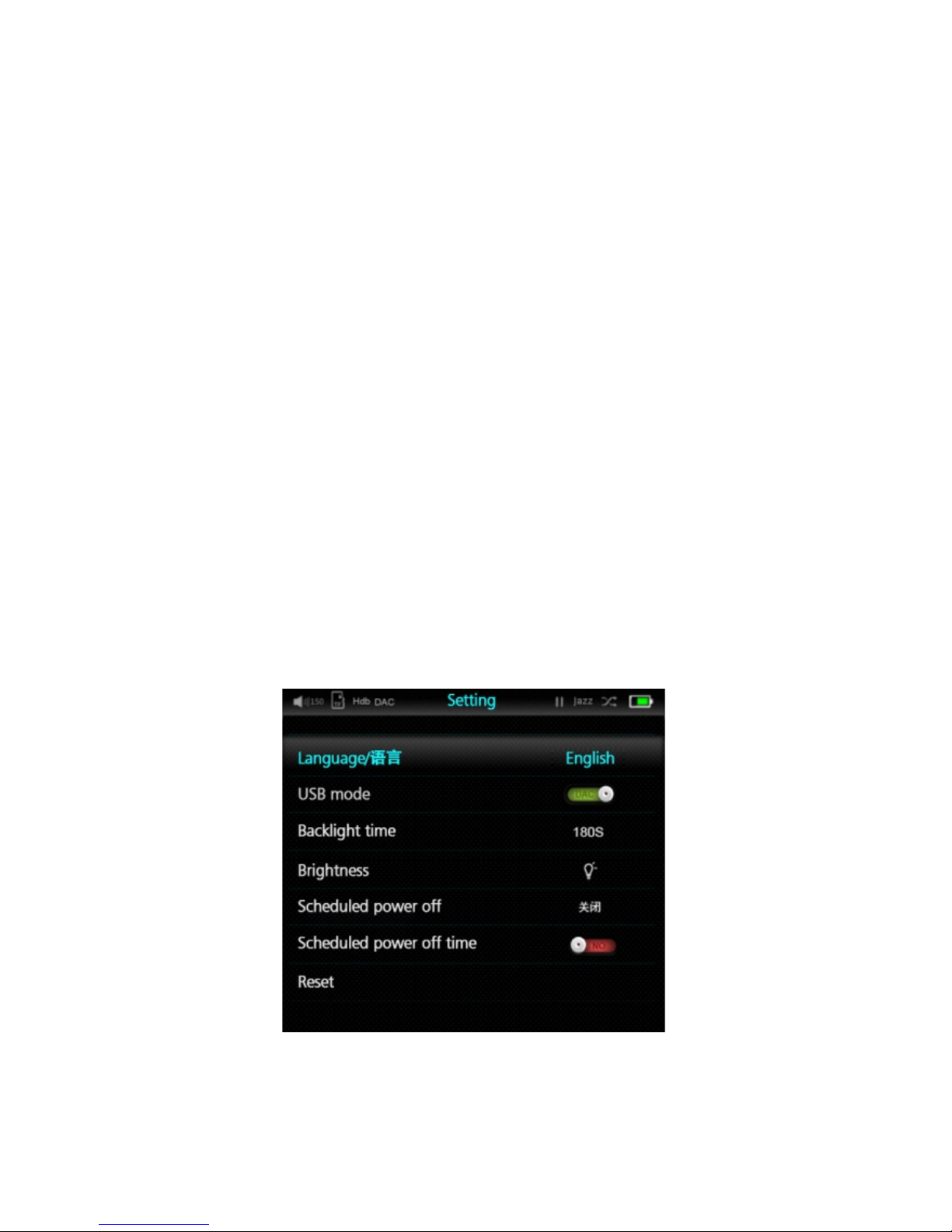

System Settings Menu
Playback Controls
Browse and Play
Product Safety
Battery Safety
System Upgrade
Package Content
Power On/Off
Charging
Using TF (MicroSD) Card
Using Headphones
Transfer files
FAQ
1
2
3
5
7
8
16
17
18
18
Thank you for purchasing Cayin N6, our lossless Digital Audio Player (DAP). We have prepared
this user manual with FAQ to help you understand the features and get familiar with the
operation of the DAP.
We suggest all customers read through this manual before they start to use the DAP.
Supported Audio Formats
Specification
Attention
Disclaimer
Trademark Notice
Cayin is a registered trademark of Zhuhai Spark Electronic Equipment Limited.
IBM and PC / AT are registered trademarks of International Business Machines Corporation.
Microsoft and Windows are registered trademarks of Micro Corporation in the US and other
countries.
Apple and Macintosh are registered trademarks of Micro Corporation in the US and other
countries.
Pentium is a registered trademark of Apple Computer .
Trademarks and registered trademarks are the property of the original owners.
Handling and Disposal of Electronic Waste
This product contains electrical and electronic components, please do not dispose the
product as of general household waste.
This product should be handled by Trash and Recycling Collection Center as organized by
your local government.
This product uses lithium battery. Please dispose Lithium battery according to relate lawful
procedure from your local government.
For detail instruction, please refer to the Environmental protection and/or Disposal Control
department in your local government.
Symbolic Instructions
Notification Icon:
Will inform important issues that require special attention during operation
Alert Icon:
Will alert critical issues and/or sever danger that might result in serious damage during
operation if fail to operate according to the warning
All rights reserved.
Reproduction, translation or adoption of N6 documentations and/or system firmware is
prohibited without written approval from Cayin.
The user manual is a documentation of the product based on the specification at the time of
print. Cayin reserved the right to change product specification without prior notice.
2
Introducing N6
3
2 Volume(+)
3 Volume( )
6 Left
8 Down
15 TF Card slot
9 Reset
13 Micro usb
1 Power/Ulock
5 Up
12 Coaxial out
10 Headphone out
11 Line out
4 Control dial
14 Power/Charging LED
7 Right
Main control components
Control Functions
1 Power /Unlock: Turn on or off Player when pressed for 2 second, will light up screen or
turn off screen (Lockup) when clicked
2 Volume (+): Increase volume when pressed
3 Volume (- ): Decrease volume when pressed
4 Control Dial
At Menu screen: roll up or down to go through menu item, click to confirm a menu item, or
play a song in a folder
At “Playing Now” screen: roll up or down to activate title list in folder view, click to display
hidden menu at top status bar, or confirm a menu item.
5 Up
At Menu screen: Click to move up one menu item, hold to scroll through menu selections
quickly
At “Playing Now” screen: Click to select previous track, or beginning of current track.
The player will start “Rewind” searching when hold on the Up button, and will start to play
at selected time location when released.
6 Left: Move backward to one previous menu level, or go to “Playing Now” screen
7 Right
At Menu screen, Enter to confirm OK or move into next menu level
At “Playing Now” screen: Play or Pause
8 Next
At Menu screen, click to move down one menu item, hold to scroll through menu selection
quickly
At “Playing Now” screen: Click to select Next track,
The player will start Fast Forward (FF) searching when hold on the Up button, and will start
to play at selected time location when released.
9 Reset: If the Player fails to operate or freeze unexpectedly, you can reset the player by
inserting a non-metal pin (e.g., toothpick) into the small hole at the bottom of the player,
you can feel the click contact and the player will restart and resume to normal operation.
Output Interface Description
10 Line Out : the analog audio signal is output for external amplification devices ; output level
will bypass volume control of the player
11 Headphone Out: output audio signal to headphone with impedance ranged from 8ohm to
600ohm
12 Coaxial Out: output digital audio signal to outboard decoder devices
When the player is in lock screen mode, selected buttons can offer the following function.
Volume (+): Increase volume when pressed, skip to Previous track when hold
Volume (- ): Decrease volume when pressed, skip to Next track when hold
Control Dial: Click to pause or resume playback
4
Prepare to Use
Please read through the following to gain basic understanding before you start to use
the player
Package Content
The N6 product package contain the following accessories, please check against the list when
you open the package. We suggest you contact your retailer if anything is absent.
1. N6 Digital Audio Player
2. USB cable
3. Coaxial cable (3.5mm to RCA)
4. Silicone Case
5. User Manual
6. Warranty Card
Power On/Off
Turn On: when the player is currently powered off, press and hold (1) Power On/Off button to
turn on the player
Turn Off: When the player is currently powered on, press and hold (1) Power On/Off button to
turn off the player
Charging
Charge Up the Battery
1. The player will start to charge up the battery when you connect the player to a USB charger
or the USB port of a computer via a micro to standard USB cable (as supplied).
2. The battery installed in the player is rated at 5600 mAH (3.7V), it will take around 4 hours to
completely charge up the battery by a 2.0A USB charger.
N6 does not come with a charger, we recommend our customer to use high quality charger
with N6 because inferior charger might introduced high risk in the long run.
Please charge up the battery at room temperature. Charging at very high or low
temperature might cause battery failure during the charging process.
Charging while playing: when N6 is connected to a USB charger, it can play music while
charging is in progress. If N6 is connected to an USB port of a computer and charging, the
player will stop playing music.
Charging recommendations:
Good usage habits can extend battery and player product life. If the player has been partially
charged several times, we recommend you to perform a full recharge of the battery.
Due to the special characteristic of lithium battery, the battery reading might not be
accurate if the player has not been fully discharged for a long time.
5
