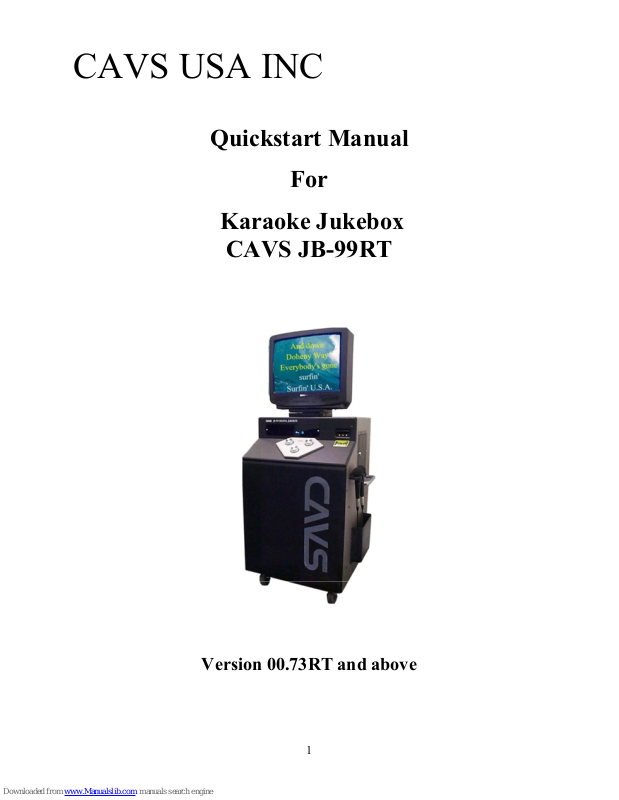

CAVS JB-99RT Quick Start Manual

CAVS USA INC

Quickstart Manual

For

Karaoke Jukebox

CAVS JB-99RT

Version 00.73RT and above

1

CAVS USA INC

Contents Page

1. Unpacking 3

2. Installation 4

2.1 TV monitor 4

2.2 Mixer-Amplifier 5

2.3 Microphone 5

2.4 Remote control 6

2.5 Instruction sticker 6

3. Booting up 6

4. Operating JB-99RT 7

4.1 Quickstart operation 7

4.2 Basic functions 8

4.3 Password 9

5. Setting the button controls 10

6. Programming bill acceptor 11

6.1 Setting the bill acceptor on or off 11

6.2 Setting prices 12

6.3 Operating with bill acceptor 12

7. Setting karaoke play / jukebox play 13

8. Setting score function 14

9. Setting initial welcome screen 14

10. Setting song count 15

11. Collecting bills 15

12. Loading song updates 16

13. Upgrading operating system 17

14. Internal background video 19

15. External background video 21

16. Mixer-amplifier 22

16.1 Master volume control 22

16.2 Vocal volume control 23

16.3 Base (LO) level control 23

16.4 Echo level control 23

17. Cassette recorder 23

18. Frequently Asked Questions (FAQ) 24

19. Technical Support 25

2

CAVS USA INC

1. Unpacking

The unit will come in two pieces, one carton box and one wooden crate.

The carton box includes:

TV monitor
with a steel plate attached at the bottom

The wooden crate includes:

JB-99RT
In the side pockets of JB-99RT:
Quickstart Manual

Power cable
2 Keys
4 Bolts for TV attachment
2 Microphone hangers with 4 bolts

In the back bottom compartment:

Songbooks
Program CD-ROM, Songlist CD-ROM, BGV CD-ROM
Instruction sticker
2 Microphones
Remote Control
Manager’s kit: User’s Manual, Remote control, and AV cable
FX cable
Swivel joint with 4 bolts
Mixer-amplifier cover

Together they weigh 375lbs with dimensions 22” x 22” x 21” for the carton box
and 45” x 35” x 35” for the wooden crate. You are advised to have a forklift in the
receiving location to unload them from a truck.

1.1 To dismantle the wooden crate, use a screwdriver to take out the screws
from each side of the crate. Then using a crowbar, gently pry open the top
cover followed by four sidewalls. Next using the steel handles located on
three sides of JB-99RT, lift the unit out of the bottom holder and gently

3

CAVS USA INC

place it on the floor. Unlock the wheels on the bottom of JB-99RT and roll
the unit into its place.

1.2 When transporting the unit without its wooden crate, it is best to do so in its
upright position. If a height restriction does not allow the upright
positioning, then lay down the unit on its backside, preferably on top of a
soft carpet for easy sliding and protection. Then use cushions on both ends
of the unit to balance with the steel handle on the backside.

2. Installation

2.1 TV monitor

o Attach the swivel joint found in the back bottom compartment of JB-99RT

onto the steel plate on the top of JB-99RT. Use the four bolts that came with
the swivel joint for the attachment.

o Place the TV monitor on top of the swivel joint and attach it with the four

bolts that came in the side pocket of JB-99RT.

NOTE: If you wish not to install the swivel joint, simply attach the TV monitor
onto the steel plate on the top of JB-99RT.

o Insert the power cord of the TV into the circular hole on the top of the JB-

99RT and down to the bottom compartment. Plug the power cord of the TV
monitor into the multi-outlet inside the bottom compartment.

NOTE: The multi-outlet may have come loose from its holders in the bottom
compartment while being transported. If so, place the multi-outlet into its position
on the floor of the bottom compartment and lock it into position by sliding it
against its holders.

o Connect the video RC cable on the top of JB-99RT to the TV monitor Video

In.

4

CAVS USA INC

o Connect the RS232 connector from the TV monitor to the RS232 connector

from the JB-99RT case.

o Connect the DC power plug from the JB-99RT case to the back of the

RS232 connector from the TV monitor.

2.2 Mixer-Amplifier

o Set all round knobs of the mixer-amplifier at the 12 o’clock (center) position

except for the master volume (the largest round knob) that is to be set at 9
o’clock position.

o Set all 4 white push buttons so that they are pressed out (not pressed in).

Also set the power button on.

WARNING: To avoid any damage to the mixer-amplifier and the speakers, please
consult with CAVS Tech Support before attaching any additional speakers to the
mixer-amplifier.

o There is a steel cover for the mixer-amplifier in the back bottom

compartment of JB-99RT. When the settings for the mixer-amplifier have
been made to your satisfaction, place the cover on the mixer-amplifier using
the 4 bolts that are holding the mixer-amplifier to the JB-99RT case.

2.3 Microphones

o Attach the 2 microphone hangers onto the right side (the same side as the

bill acceptor) of JB-99RT using the 4 bolts that came together in a side
pocket of JB-99RT.

o Locate the microphones from their boxes and connect the headpieces to the

cords.

5

CAVS USA INC

o Insert the microphone jacks into the Mic1 and Mic2 Inputs of the mixer-

amplifier on the back of JB-99RT.

o Place the microphones in the microphone hangers with the switches (located

on the headpieces of the microphones) turned off.

WARNING: To prevent a possible damage to the mixer-amplifier from sudden
pull on the microphones, tie the cords of the microphones to the steel handle on the
back of JB-99RT before connecting to the mixer-amplifier.

2.4 Remote Control

o Locate the remote control and batteries from its box. Insert the batteries into

the remote control.

WARNING: The remote control has access to many features and settings of the
JB-99RT. It should be considered as a managerial tool that stays in the hands of
the location rather the patrons. To find out about how to restrict the access, see the
Step. 5 Setting Button Controls.

2.5 Instruction Sticker

Locate the Instruction sticker from the bottom compartment of JB-99RT. Peel off
the back cover off the sticker and place it on the front panel of the JB-99RT. An
exact location of the sticker can vary with personal preference.

3. Booting up

3.1 Locate a power cord in a side pocket of JB-99RT and connect it to the AC

power socket on the back (bottom) of the JB-99RT. Plug the power cord into
a wall power outlet of 110V.

o Confirm that the red power light of the mixed-amplifier becomes lit on

the back of the JB-99RT.

6

CAVS USA INC

o Confirm that the red power light of the cassette recorder becomes lit on a

side of the JB-99RT.

o Confirm that the bill acceptor begins to flash green lights on the front of

the JB-99RT.

o Confirm that the green power light of the TV monitor becomes lit.

3.2 Press the Power button on the TV monitor to turn it on. Change the channel
to 1 for Video.

3.3 Press the Power button on the Remote Control of JB-99RT to begin the boot
up process.

Boot up will take approximately 30 to 60 seconds.

o Confirm that the TV monitor shows the welcome screen “Welcome to

CAVS Sing Along”.

NOTE: Once the JB-99RT unit is turned on, the Power button along with other
selected buttons will be automatically disabled. To power off the unit, unplug the
power cord, and to reboot, repeat the steps above. To turn off this automatic
disable function, please go to Step 5. Setting Button Controls.

4. Operating JB-99RT

4.1 Quickstart operation

o Select a song using the touch screen TV.

o Press the Play button to begin playing.

7

CAVS USA INC

o Turn on the microphones and adjust the volume and echo levels by turning

Mic1, Mic2, and Echo control knobs on the front panel.

o To stop the song in play, press the Stop button on the remote control.

4.2 Basic Functions

Touch Screen Songlist – Using the touch screen TV, select from the

Welcome windows one of the following categories, Karaoke by Title /
Karaoke by Artist / Jukebox by Title / Jukebox by Artist / Code.

o Search by title (Karaoke by Title / Jukebox by Title) - Type in the first

few letters of the song title. A list of matching titles will be displayed
in the window below. Search the displayed list using the up/down
(,) buttons and press the song you wish to select.

o Search by artist (Karaoke by Artist / Jukebox by Artist) - Type in the

first few letters of the artist name (first name first). A list of matching
names will be displayed in the window below. Search the displayed
list using the up/down (,) buttons and press the artist you wish to
select. Next, the songs of the artist will be displayed on the window.
Search the displayed list using the up/down (,) buttons and press
the song you wish to play.

o Search by code (Code) - Type in the song code that can be found in

the songbook for the song you wish to select. The song title will be
displayed in the window below. Press the song title.

o Press Play to begin playing the selected song, or press Program to

reserve the song in queue. You may program as many songs as your
credit allows. Also press the Back to Menu button to go back to the
song list for another selection or press Cancel to delete a song from
the reservation queue.

8

CAVS USA INC

Volume Control - Adjust the master volume level by pressing the Volume
button (,) on the Remote Control.

Mic1, Mic2, Echo Control - Adjust the microphone volume and echo levels
with Mic1, Mic2, and Echo control knobs on the front panel.

NOTE: For more detailed instructions on music and vocal volume controls,
go to 16. Mixer-Amplifier.

Voice Cancel - Turn on or off the vocal track by pressing the Vocal button
on the remote control. This feature is only available for the multiplex
karaoke songs.

Key Control - Adjust the key (pitch) level by pressing the Key button on the
top of the screen and then pressing the (-,+) buttons.

Program – Program a song into the reservation queue by pressing the
Program button after selecting a song. You can program up to 99 songs.

Cancel – Cancel the programmed songs by pressing the Cancel button.

NOTE: For more detailed instructions on how to operate the JB-99RT,

please refer to the Section 7. How To Operate in the User’s Manual for JB-

99.

4.3 Password

o To set or change many features available in JB-99RT, you first need to enter

and register your own password. The factory default password is Pause ­Pause - 7. Enter this password by pressing Pause, Pause, 7 at the welcome
screen using the remote control.

o A new screen <<SYSTEM CONTROL>> should appear on the TV Monitor.

Press 5 and follow the instruction to register a new 4-digit password using
the remote control . After completing the registration of the new password,

9

CAVS USA INC

press the Stop button using the remote control to return back to the Welcome
screen.

o To re-enter the <<SYSTEM CONTROL>> screen, you must now press

Pause, Pause, and your new 4-digit password using the remote control. Go
ahead to enter the new password and display the screen <<SYSTEM
CONTROL>>.

WARNING: Keep a copy of the password in safe place. Lost or forgotten
passwords cannot be bypassed and may result in costly servicing of your JB­99RT unit.

5. Setting Button Controls

Button on the remote control of JB-99RT can access many features and settings of
the jukebox. This however may not be desirable at all times especially when the
unit is out operating in actual locations. To limit such access, you can impose a
variety of restrictions on the buttons as shown below.

Using the remote control, enter the <<SYSTEM CONTROL>> screen with your
password. Press 6 to select “Button Control”. A new screen <<BUTTON
CONTROL>> will appear on the TV monitor.

5.1 Selection 1 sets the following buttons to “Enable” or “Disable”:

DISC CHANGE, POWER, OPEN/CLOSE

Press 1 and use the LineDn and LineUp buttons to select Enable / Disable.

WARNING: It is strongly recommended to set Selection 1 as “Disable” at
all times.

5.2 Selection 2 (Button set#01) sets the following buttons to “Enable” or
“Disable”:

10

CAVS USA INC

DISC1, DISC2, DISC3, JB/CD, INTRO, RESUM, MENU, SETUP, PBC,
PREV, NEXT, SLOW, RETURN, SELECT, PPGM, PAUSE, BGV,
RETURN, RANDOM, REPEAT, FANFARE, PPGM.

Press 2 and use the LineDn and LineUp buttons to select Enable / Disable.

WARNING: It is strongly recommended to set the Selection 2 as “Disable”
when operating with the bill acceptor.

5.3 Selection 4 (Button set#03) sets the following button to “Enable” or
“Disable”:

STOP (/RETURN)

Press 4 and use the LineDn and LineUp buttons to select Enable / Disable.

WARNING: It is strongly recommended to set the Selection 4 as “Disable”
at all times.

5.4 Press the Stop button twice to return to the welcome screen.

6. Programming Bill Acceptor

6.1 Setting the Bill Acceptor On or Off

Using the remote control, enter the <<SYSTEM CONTROL>> screen with your
password:

o Press 1 to choose “Select Acceptor”. Then use the LineDn and LineUp

buttons to choose Bill. Only Bill / Off options are viable in JB-99RT model.

o Press the Stop button to return to the Welcome screen.

11

(

)

CAVS USA INC

WARNING: To operate the JB-99RT with bill acceptor, you must check the
button control settings to be as instructed in the Step 5. Setting Button Controls:

Button Controls Remote Control
Selection 1 Disable
Selection 2 (Button set#01) Disable
Selection 4

6.2 Setting prices

Using the remote control, enter the <<SYSTEM CONTROL>> screen with your
password:

o Press 2 to select “Credits per $1”. Then use the LineDn and LineUp buttons

to select the amount you wish.

o Press 3 to select “Debits per Karaoke”. Then use the LineDn and LineUp

buttons to select the amount you wish for a Karaoke song.

o Press 4 to select “Debits per Music”. Then use the LineDn and LineUp

buttons to select the amount you wish for a Jukebox song.

o Press the Stop button to return to the Welcome screen.

Examples:

o If the “Credits per $1” is 2, the “Debits per Karaoke” is 1, and “Debit for

Music” is 1, then the price per Karaoke or Jukebox song is $0.50.

o If the “Credits per $1” is 1, the “Debits per Karaoke” is 2, and “Debits for

Music” is 1, then the price per Karaoke song is $2.00 and the price per
Jukebox song is $1.00.

Button set#03

Disable

6.3 Operating with Bill Acceptor

o Insert the money ($1, $5, $10, $20) into the bill acceptor.

12

g

y

g

y

g

g

CAVS USA INC

o Select a song using the touch screen TV.

o Press the Play button to begin playing the song or the Program button to

program the song into the reservation queue. You can program as many
songs as your credit allows and press Play to begin playing.

o Turn on the microphones and adjust the volume and echo levels by turning

Mic1, Mic2, and Echo control knobs on the front panel.

o To stop the song in play, you must press the Stop button on the remote

control.

7. Setting Karaoke Play / Jukebox Play

Using the remote control, enter the <<SYSTEM CONTROL>> screen with your
password. Press 6 to select “Button Control”.

7.1 Press 3 and use the LineDn and LineUp buttons to set the “Button set #02”
to Kar&Juk / Kar / Juk / C&Kar&Juk / C&Kar / C&Juk. Following table
describes each category.

Play Karaoke

s onl

son

Search by name Kar Juk Kar&Juk

Search by name and

code

son

C&Kar C&Juk C&Kar&Juk

7.2 Press the Stop button twice to return to the welcome screen.

NOTE: It is recommended to allow the song search by both name and song code.
Also providing songbooks to each table will bring more customer participation.

Play Jukebox

s onl

son

Play Karaoke &
Jukebox Son

s

13

CAVS USA INC

8. Setting Score Function

Using the remote control, enter the <<SYSTEM CONTROL>> screen with your
password. Press 6 to select “Button Control”.

8.1 Press 5 and use the LineDn and LineUp buttons to set the “Button set #04”
as Off / On High / On Med / On Low. When set as On High / On Med / On
Low, the JB-99RT will give numeric scores to users for their singing after
each song. The scores will average at 90, 80 or 70 points out of perfect 100
points depending on High, Med, or Low setting.

8.2 Press the Stop button twice to return to the welcome screen.

9. Setting Initial Welcome Screen

Using the remote control, enter the <<SYSTEM CONTROL>> screen with your
password.

9.1 Press 7 to select “Display Title”. Then use the LineDn and LineUp buttons
to select On / Off. Setting as Off will clear any message on the initial
welcome screen.

9.2 Press the Stop button twice to return to the welcome screen. And there will
be a blank initial screen.

NOTE: With the blank initial screen, pressing a category on the touch screen TV
will still function to go to the next search page. Other functions listed in Step.4
will also work as usual.

NOTE: To change the wording in the initial welcome screen, for example, to put
in your own company name and message, please inquire to CAVS Tech Support.

14

CAVS USA INC

10. Setting Song Count

Using the remote control, enter the <<SYSTEM CONTROL>> screen with your
password.

10.1 Press 8 to select “Song Count”. A new screen <<SONG COUNT>> will
appear on the TV monitor.

10.2 Master count will show the total number of songs played in the machine.

10.3 Current count will show the total number of songs played since the last
Count Reset. Press 1 to reset the Current count, and the number of songs
played in the Current count will be automatically added to the Master count
before resetting to zero.

10.4 Press the Stop button twice to return to the welcome screen.

11. Collecting bills

11.1 Open the steel case door on the right side of the JB-99RT using a key

provided with JB-99RT. Inside, there is a gray plastic box held attached to
the bill acceptor. This plastic box holds maximum of 600 bills (of $1, $5,
$10, $20).

11.2 Slip a hand into the bottom side of the plastic box. There is a latch that holds

up the box and is located between the bill acceptor and the plastic box. Slide
the latch towards the bill acceptor and it will free the plastic box to drop
slightly. Remove the plastic box from the bill acceptor.

11.3 The bottom of the plastic box (as it is positioned inside the JB-99RT) opens

up to show the bills inside the box. Slide the bills out and reattach the box to
the bill acceptor.

15

CAVS USA INC

12. Loading Song Updates

Monthly song updates will arrive in a Data CD (of CD-ROM format) from CAVS.
To download the songs into JB-99RT:

12.1 Enter the password to open <<SYSTEM CONTROL>> screen using the

remote control.

12.2 Select 6.Button Control to display the <<BUTTON CONTROL>> screen.

Select 2 and use the LineDn and LineUp buttons to set the Button set #01 as
“Enable”.

12.3 Press the Stop button twice to return to the welcome screen. Then press the

Menu button to enter into <<<FUNCTION>>> screen.

12.4 Select 4.System Setup to display <<SYSTEM SETUP>> screen. Select

1.Download from CD-ROM to display the following <<<DOWNLOAD>>>
screen.

<<<DOWNLOAD>>
Insert the SONG DATA CD-ROM
into Tray 1.
Then Close the Tray
and press PLAY

NOTE: To understand the use of other available functions in the
<<<FUNCTION>>> screen and <<SYSTEM SETUP>> screen, please refer to the
User’s Manual of JB-99.

12.5 Insert the Data CD into the CD-ROM drive located in the back of the JB­99RT and close the tray.

12.6 Press the Play button to display the following menu:

1. To begin download, press ‘PLAY’

16

CAVS USA INC

Starting song number xxxxxx

2. To change setting, press ‘2’

WARNING: Pressing the Play button in Step 12.6 may at times fail to display the
new menu and instead display a sign ‘NO DISC’ on the top right corner of the TV
monitor. Press the Play button once more to display the new screen.

12.7 Refer to the instruction note that comes with the song update Data CD and
follow the instruction for changing the setting.

WARNING: Each JB-99RT unit has customized set of songs. Loading the song
updates must follow the instruction given with the song update Data CD to avoid
any unwanted overwriting of songs. If the instruction given with the song update
Data CD is not clear, contact CAVS Tech Support for assistance.

12.8 Having changed the settings as instructed, press Play button to begin
downloading. One song will take approximately 25 seconds to download.

12.9 When the downloading is completed, press the Stop button until the welcome
screen is displayed.

12.10 Enter the password to return to <<SYSTEM CONTROL>>.

12.11 Select 6.Button Control. Then select 2 and set the Button set #01 as
“Disable”.

12.12 Press the Stop button twice to get back to the welcome screen.

13. Upgrading Operating System

Operating system (OS) upgrade will arrive in a Data CD (of CD-ROM format)
from CAVS. To install the OS upgrade into the JB-99RT:

17

CAVS USA INC

13.1 Enter the password to open <<SYSTEM CONTROL>> screen using the
remote control.

13.2 Select 6.Button Control to display the <<BUTTON CONTROL>> screen.
Select 2 and use the LineDn and LineUp buttons to set the Button set #01 as
“Enable”.

13.3 Press the Stop button twice to return to the welcome screen. Then press the
Menu button to enter into <<<FUNCTION>>> screen.

13.4 Select 4.System Setup to display <<SYSTEM SETUP>> screen. Select

1.Download from CD-ROM to display the following <<<DOWNLOAD>>>
screen.

<<<DOWNLOAD>>
Insert the SONG DATA CD-ROM
into Tray 1.
Then Close the Tray
and press PLAY

NOTE: To understand the use of other available functions in the
<<<FUNCTION>>> screen and <<SYSTEM SETUP>> screen, please read the
User’s Manual of JB-99.

13.5 Insert the Upgrade Data CD into the CD-ROM drive located in the back of the
JB-99RT and close the tray.

13.6 Press the Play button and the new operating system will begin loading into the
JB-99RT system. When the loading is completed, the following message will
appear at the bottom of the screen:

System program update
booting.. POWER OFF

18

CAVS USA INC

WARNING: Pressing the Play button in Step 13.6 may at times fail to update the
operating system and instead display a sign ‘NO DISC’ on the top right corner of
the TV monitor. Press the Play button once more to proceed.

13.7 Turn off the JB-99RT by pressing the Power button on the Remote Control.
After waiting for a few seconds, restart the JB-99RT by pressing the Power
button. Wait for the blue initial screen and display of the version number for
the upgraded operating system. The system will then continue to boot itself to
the Welcome screen.

13.8 Enter the password to return to <<SYSTEM CONTROL>> screen.

13.9 Select 6.Button Control. Then select 2 and set the Button set #01 as
“Disable”.

13.10 Press the Stop button twice to get back to the welcome screen is.

14. Internal Background Video

A background picture to play behind the lyrics on the TV monitor can be sourced
from a Video CD (VCD) placed in the disc tray #1 of JB-99. One such VCD
marked as BGV Background is included in the JB-99RT unit.

14.1 Remove the front panel (with the dark glass window) of the JB-99RT by
unscrewing the two white bolts at each end. Gently pull out the front panel
from the topside.

WARNING: The front panel is attached to the case of JB-99RT by a remote
sensor wire from inside. Do not pull out the panel completely. Only displace
the panel with enough space for the disc tray of JB-99 unit inside to slide
open.

19

CAVS USA INC

14.2 Enter the password to open <<SYSTEM CONTROL>> screen using the
remote control.

14.3 Select 6.Button Control to display the <<BUTTON CONTROL>> screen.
Select 2 and use the LineDn and LineUp buttons to set the Button set #01 as
“Enable”.

14.4 Press the Stop button twice to return to the welcome screen.

14.5 Press the Open/Close button to open the disc tray. Then press the Disc
Change button to bring out the disc tray #1 to the front and place the Video
CD into the slot.

14.6 Press the Open/Close button to close the disc tray.

14.7 Press the Menu button to enter into <<<FUNCTION>>>. Select 4.System
Setup to enter into <<SYSTEM SETUP>>.

14.8 Select 3.Video Source to display “Internal”. The factory default setting is
“Internal”.

14.9 Select 4.Disc 1 Type to display “VCD”. Press Stop button twice to return to
the welcome screen.

14.10 Attach the front panel back to the case of JB-99RT and screw the two white
bolts at each end.

14.11 Enter the password to return to <<SYSTEM CONTROL>> screen using the
remote control.

14.12 Select 6.Button Control. Then select 2 and set the Button set #01 as
“Disable”.

14.13 Press the Stop button twice for the welcome screen.

20

CAVS USA INC

14.14 Next time when a song is in play, the TV screen will display the picture
from the Video CD as the background to the lyrics.

NOTE: Having inserted the Vide CD and set the Video Source as Internal as
above, you may turn on or off the background video simply by pressing the BGV
button for BGV ON / BGV OFF using the remote control.

15. External Background Video

A background picture playing behind the lyrics on the TV monitor can be imported
from an external source such a DVD player or a camcorder.

15.1 Remove the top back panel on the back of the JB-99RT by unscrewing 6
bolts.

15.2 Insert a video RC cable through the circular hole on the top of the JB-99RT
and connect the end below the hole to the Video In of the JB-99. Connect the
other end outside the hole to the Video Out of an external video source. Close
the top back panel with the 6 bolts.

15.3 Enter the password into the JB-99RT to open <<SYSTEM CONTROL>>
screen using the remote control.

15.4 Select 6.Button Control to display the <<BUTTON CONTROL>> screen.
Select 2 and use the LineDn and LineUp buttons to set the Button set #01 as
“Enable”.

15.5 Press the Stop button twice to return to the welcome screen. Then press the
Menu button to enter into <<<FUNCTION>>> screen.

15.6 Select 4.System Setup to display <<SYSTEM SETUP>> screen. Select

3.Video source to display “External”.

WARNING: Be sure to have the external video source such as a DVD player or a
camcorder turned on and playing before proceeding further.

21

CAVS USA INC

15.7 Press the Stop button to return to the welcome screen. You should now see
the text of the welcome screen superimposed on the background video of the
external source.

15.8 Enter the password to display <<SYSTEM CONTROL>> screen.

15.9 Select 6.Button Control. Then select 2 and set the Button set #01 as
“Disable”.

15.10 Press the Stop button until the welcome screen is displayed.

NOTE: Having connected an external video source to JB-99RT and set the Video
Source as External as above, you may turn on or off the background picture simply
by pressing the BGV button for BGV ON / BGV OFF.

16. Mixer-Amplifier

CAVS CA-242RA mixer-amplifier located in the back of the JB-99RT comes with
many individual controls for Mic1, Mic2, Echo, Music, and Master.

CONTROLS
MIC 1 FRONT BALANCE ECHO LO MID HI x x
MIC 2 FRONT BALANCE ECHO LO MID HI x x
ECHO FRONT x x LO x HI REPEAT DELAY
MUSIC VOLUME BALANCE x LO MID HI x x
MASTER VOLUME x x LO MID HI x x

Before making any adjustment, it is recommended to begin with all control knobs
at the 12 o’clock (center) position except for the master volume (large round knob)
that is to be set at 9 o’clock position.

16.1 Master Volume Control

22

CAVS USA INC

Using the Volume button on the remote control of JB-99RT, increase the volume
level by pressing the up () button and decrease by pressing the down () button.
You may also go directly to the back of the JB-99RT and turn the master volume
control knob of the mixer-amplifier.

16.2 Vocal Volume Control

Increase or decrease the microphone volume level by adjusting the volume control
knobs of Mic1 and Mic 2 located on the front panel of JB-99RT.

NOTE:

reset themselves for each song. If more microphone volume is needed than the
maximum provided by the control knobs on the front panel, it is recommended to
decrease the music volume level and at the same time increase the master volume
level of the mixer-amplifier from the back of JB-99RT.

Volume control knobs are designed to rotate without physical limits and

16.3 Base (LO) Level Control

If you are finding too much Base (LO) in the music, you can decrease the LO level
by turning the LO control knob of the master or the LO control knob of the music.

16.4 Echo Level Control

Depending on the individual singer, he/she may prefer to increase or decrease the
Echo volume level. Adjust the Echo volume level with Echo control knob on the
front panel of JB-99RT.

NOTE:

itself for each song.

Echo control knob is designed to rotate without physical limits and reset

17. Cassette Recorder

23

CAVS USA INC

The cassette recorder of JB-99RT comes with the standard functions of Play,
Rewind, F.Forward, Stop/Eject, and Record. And it is ready at any time to record
all master audio output of JB-99RT onto a cassette tape.

o Insert a standard cassette tape into the cassette recorder.

o Press the Rec button to begin recording.

o The recording will continue for the time length of the cassette tape (for

example 30 min, 60 min, etc.)

o When finished recording, press the Eject button and remove the cassette

tape.

18. Frequently Asked Questions

18.1 Can the JB-99RT unit be connected to more than one TV monitor?

Answer: Yes, using a video distributor, the video cable coming out from the top of
the JB-99RT can be connected to 2 or more TV monitors simultaneously.

A video distributor can be purchased from CAVS or any electronic stores such as
Radio Shack.

18.2 Can the JB-99RT unit be connected to external speakers or external audio
system?

Answer: Although the mixer-amplifier of the JB-99RT has additional speaker
connectors, it is strongly recommended not to connect any external speakers
directly to the mixer-amplifier as it may cause serious damage to the mixer­amplifier and the speakers. A safer and better way is to connect from the Line Out
of the mixer-amplifier using an audio RC cable to an external amplifier, and then
connect the external speakers to the external amplifier.

24

CAVS USA INC

To connect an audio RC cable to the Line Out of the mixer-amplifier, you will
need to open the front panel of the JB-99RT. Please contact the CAVS technical
support department before proceeding.

18.3 How can one learn more about the available features of the JB-99RT?

Answer: The main engine of the JB-99RT karaoke jukebox is the JB-99 digital
jukebox designed and manufactured by CAVS. To understand all features of the
JB-99 jukebox, please refer to the User’s Manual of JB-99 Digital Jukebox
enclosed in your JB-99RT unit.

18.4 How can the previous credits in the bill acceptor be erased?

Answer: To erase the credit remaining in the JB-99RT, turn off and on the bill
acceptor from the <<SYSTEM CONTROL>> window. Please note that turning
off and on the JB-99RT unit will not erase the credit remaining.

19. Tech Support

For technical support on the JB-99RT, please contact:

Tel: 888-340-CAVS, 562-801-1607
Email: [email protected]
Web: www.cavsusa.com

25
