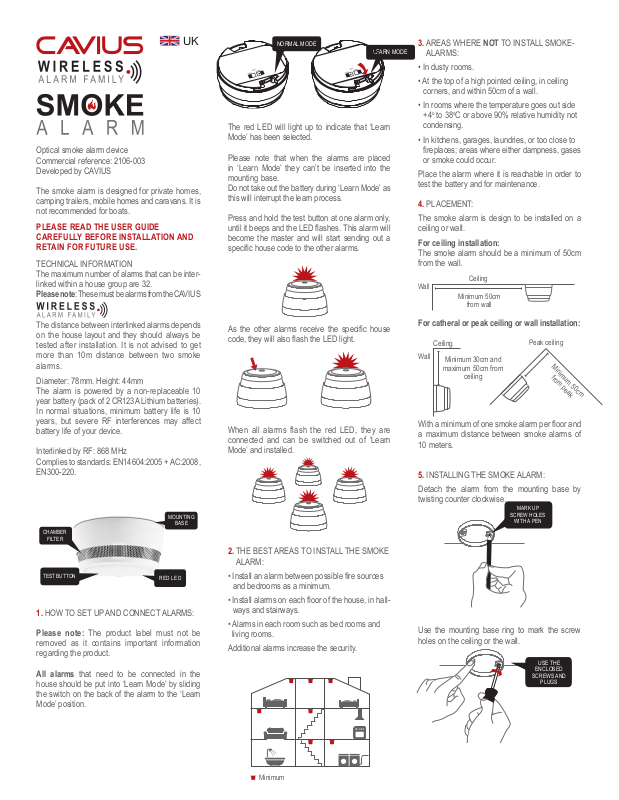

Cavius 2106-003 User Manual

Page 1

Optical smoke alarm device

Commercial reference: 2106-003

Developed by CAVIUS

The smoke alarm is designed for private homes, camping trailers, mobile homes and caravans. It is not recommended for boats.

PLEASE READ THE USER GUIDE CAREFULLY BEFORE INSTALLATION AND RETAIN FOR FUTURE USE.

TECHNICAL INFORMATION The maximum number of alarms that can be interlinked within a house group are 32. Please note: These must be alarms from the CAVIUS

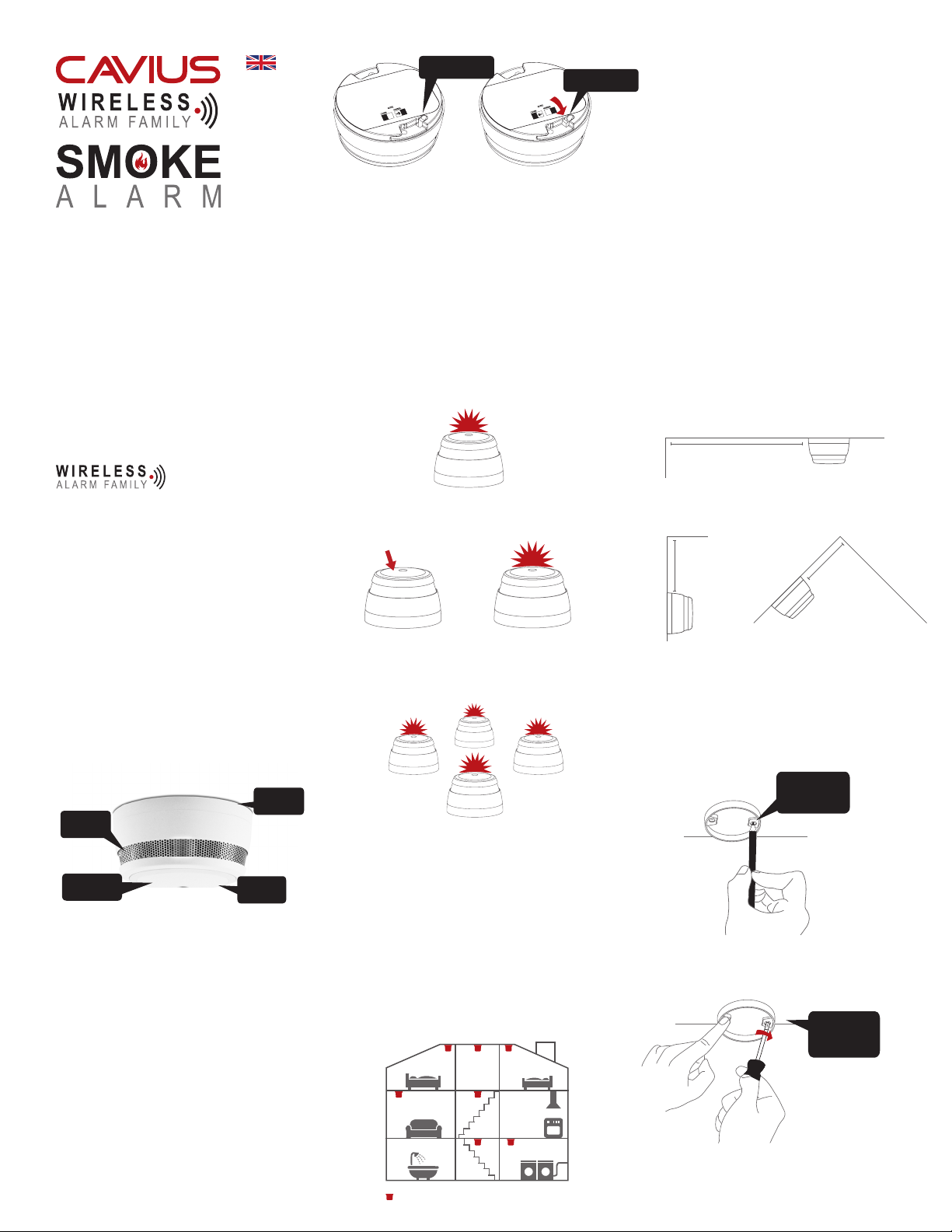

NORMAL MODE

LEARN MODE

The red LED will light up to indicate that ‘Learn Mode’ has been selected.

Please note that when the alarms are placed in ‘Learn Mode’ they can’t be inserted into the mounting base. Do not take out the battery during ‘Learn Mode’ as this will interrupt the learn process.

Press and hold the test button at one alarm only,

until it beeps and the LED ashes. This alarm will

become the master and will start sending out a

specic house code to the other alarms.

3. AREAS WHERE NOT TO INSTALL SMOKE-

ALARMS:

• In dusty rooms.

• At the top of a high pointed ceiling, in ceiling corners, and within 50cm of a wall.

• In rooms where the temperature goes out side +4o to 38oC or above 90% relative humidity not condensing.

• In kitchens, garages, laundries, or too close to

replaces; areas where either dampness, gases

or smoke could occur.

Place the alarm where it is reachable in order to test the battery and for maintenance.

4. PLACEMENT:

The smoke alarm is design to be installed on a ceiling or wall.

For ceiling installation:

The smoke alarm should be a minimum of 50cm from the wall.

Wall

Ceiling

Minimum 50cm

from wall

The distance between interlinked alarms depends on the house layout and they should always be tested after installation. It is not advised to get more than 10m distance between two smoke alarms.

Diameter: 78mm. Height: 44mm

The alarm is powered by a non-replaceable 10

year battery (pack of 2 CR123A Lithium batteries). In normal situations, minimum battery life is 10 years, but severe RF interferences may affect battery life of your device.

Interlinked by RF: 868 MHz Complies to standards: EN14604:2005 + AC:2008,

EN300-220.

MOUNTING

CHAMBER

FILTER

TEST BUTTON

BASE

RED LED

1. HOW TO SET UP AND CONNECT ALARMS:

Please note: The product label must not be

removed as it contains important information regarding the product.

All alarms that need to be connected in the house should be put into ‘Learn Mode’ by sliding the switch on the back of the alarm to the ‘Learn Mode’ position.

As the other alarms receive the specic house code, they will also ash the LED light.

When all alarms flash the red LED, they are connected and can be switched out of ‘Learn Mode’ and installed.

2. THE BEST AREAS TO INSTALL THE SMOKE

ALARM:

• Install an alarm between possible re sources

and bedrooms as a minimum.

• Install alarms on each oor of the house, in hall-

ways and stairways.

• Alarms in each room such as bed rooms and living rooms.

Additional alarms increase the security.

For catheral or peak ceiling or wall installation:

Ceiling

Wall

Minimum 30cm and

maximum 50cm from

ceiling

Peak ceiling

Minimum 50cm from peak

With a minimum of one smoke alarm per oor and

a maximum distance between smoke alarms of 10 meters.

5. INSTALLING THE SMOKE ALARM:

Detach the alarm from the mounting base by twisting counter clockwise.

MARK UP

SCREW HOLES

WITH A PEN

Use the mounting base ring to mark the screw holes on the ceiling or the wall.

USE THE

ENCLOSED

SCREWS AND

PLUGS

Minimum

Page 2

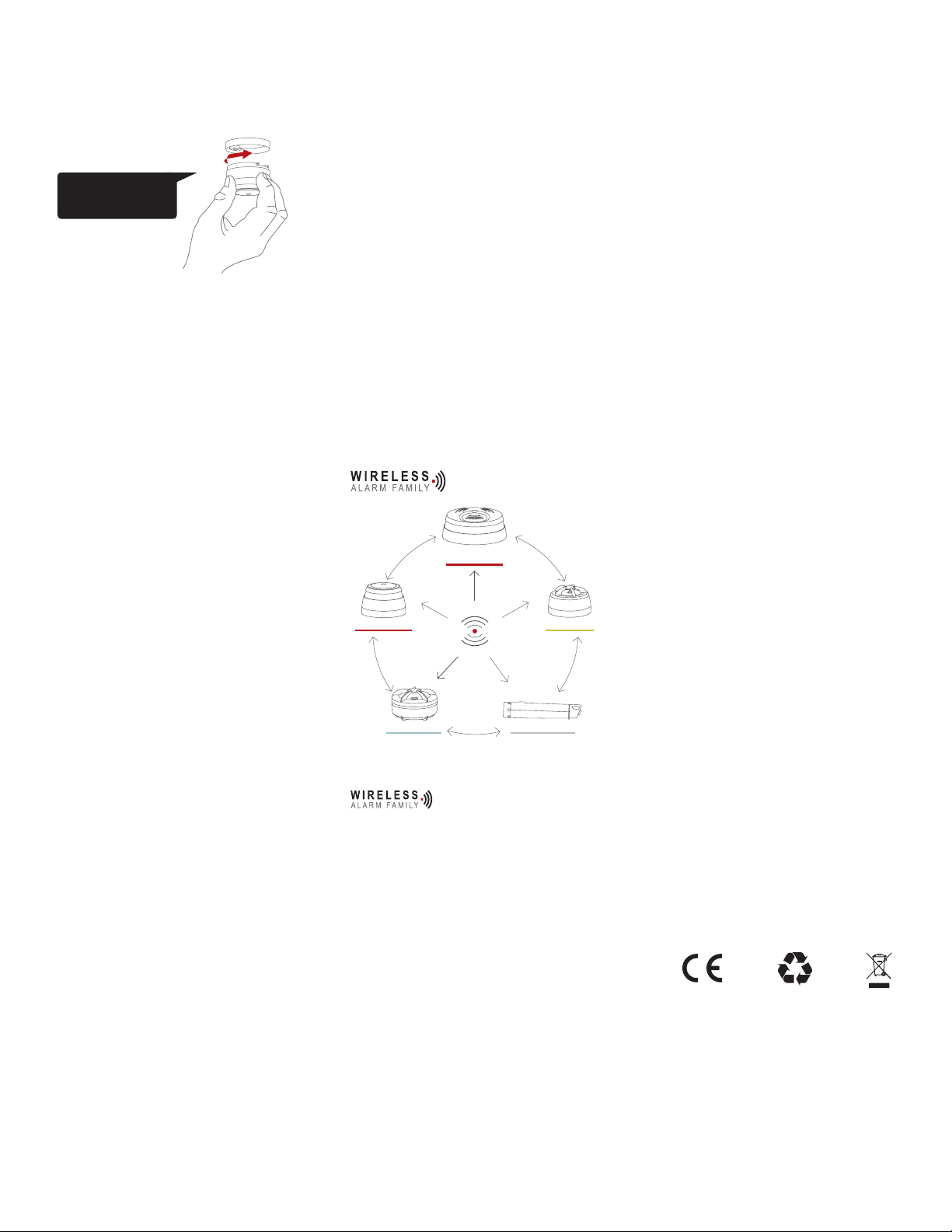

Once the mounting base is installed, attach the alarm by twisting clockwise until it clicks. If the battery is either missing or inserted incorrectly, or the switch is in ‘Learn Mode’, the smoke alarm will not be able to click into the mounting base.

CLICK THE SMOKE

ALARM FIRMLY INTO THE

BASE TO LOCK

6. TEST FUNCTION:

After installation, and at least once per quarter, test all of your alarms to ensure they are operating correctly and are within range of each other.

It is recommended to check visually every week if

the LED ashes correctly (every 48sec.)

Press the test button on any alarm for at least 10 seconds. This will send out a test signal from the alarm; all other connected alarms should receive the signal within a short time. The alarms will emit a short beep and the

LED will ash every 8 seconds for 2 minutes.

NOTE: Test function also allows to send a depleted RF signal to ensure an optimal operation in normal conditions.

When the test signal is sent out, the alarms will respond in two ways:

1. A single beep every 8 seconds indicates that the alarms are connected and functioning.

2. Three short beeps every 8 seconds indicates a smoke sensor fault. The alarm should be cleaned by running the vacuum (on a low setting) around the smoke alarm chamber and tested again.

If required this indication can be stopped early on each alarm by a short press of the test button.

Alarm signal 2 (- - -) is a non life threatening alarm, like a ooding alarm:

Smoke alarm signal: --- --- --Heat alarm signal: --- --- --Flood alarm signal: - - CO alarm low level signal: - - CO alarm high level signal: --- --- ---

Please note that only the originating alarm’s LED

will ash, so it can be identied.

9. PAUSE/HUSH FUNCTION:

If the smoke alarms are to set into a false alarm

by cooking, replace, etc. they can be paused for

10 minutes by pressing the test button on the originating smoke alarm only (indicated by the

ashing LED).

The reason of this is that it is necessary to locate the source of the alarm before using the hush function. This is to make sure that it is not a life threatening situation.

10. ADD EXTRA DEVICE:

MAINS POWERED

SMOKE ALARM

FLOOD ALARM

HEAT ALARM

SMART REMOTE

Always check the alarm after inserting in the mounting base (allow a few seconds before testing).

12. MAINTENANCE & TROUBLE SHOOTING:

• The smoke alarm should be vacuum cleaned once per quarter, to remove dust particles, and it can be wiped with a damp cloth. (Do not open the alarm).

• High humidity condensing which can be resolved by drying the smoke alarm.

If the smoke alarm does not work when the test button is pushed, the probable cause is a faulty battery. Check if the battery is worn out by pushing the test button

If the problem continues, please visit www.cavius. com for any trouble shooting.

13. OTHER INFORMATION:

Do not paint the alarm.

Note the local country regulations regarding installation.

Disposal: please dispose properly at the end of life. This is electronic waste which should be recycled.

Please note local regulations about information to your insurance company regarding installed smoke alarms.

The CE mark afxed to this product conrms its

compliance with the European Directives which apply to the product and, in particular, its compliance

with the harmonized specications of standard

EN 14604 relating to Construction Products Regulation 305/2011.

TIP: It is safe to cover the sound output hole with

your nger during the testing to minimize the

sound level emitted.

If the problem continues, please visit www.cavius. com for any trouble shooting.

7. NORMAL MODE:

In normal mode the LED will ash every 48 seconds

to show correct operation.

8. ALARM MODE:

When a concentration of smoke is detected, the smoke alarm will go into ‘Alarm Mode’. It will

sound the alarm signal and the LED will ash.

The smoke alarm will also transmit the alarm signal to the other connected alarms, which will also sound the alarm signal after a short delay.

The CAVIUS Wireless Family have two different alarm signals:

Alarm signal 1 (--- --- ---) is life threatening

alarms, like a smoke alarm.

All CAVIUS interconnected alarms within the

can be added to the system as

they run on the same frequency and use the same data protocol.This means that the wireless system

can consist of a combination of smoke, heat, ood

etc.

Place all alarms into ‘Learn Mode’ and repeat section 1.

Always test connection to all devices by repeating test function section 6 after adding devices.

11. LOW BATTERY SIGNAL:

Your product has a 10Y battery life. When the battery is starting its end of life, a short beep will sound out every 48 seconds for 30 days.

The alarm affected by the low battery will only beep, no other connected alarms will sound.

It is recommended to replace the smoke alarm after 10 years, or if the alarm has suffered any damage. The alarm is not active unless it is inserted in the mounting base.

specications detailed herein at any time without

notice, and CAVIUS Aps does not make any commitment to update the infor mation contained herein. All the trademarks listed herein are owned by their respective owners. Copy right © CAVIUS Aps.

0333

EN 14604:2005 + AC :2008

DoP no.: 2106-003

Download DoP document: www.cavius.com

Developed by CAVIUS Aps Julsøvej 16, DK-8600

Manufactured in P.R.C.

127462rev1
