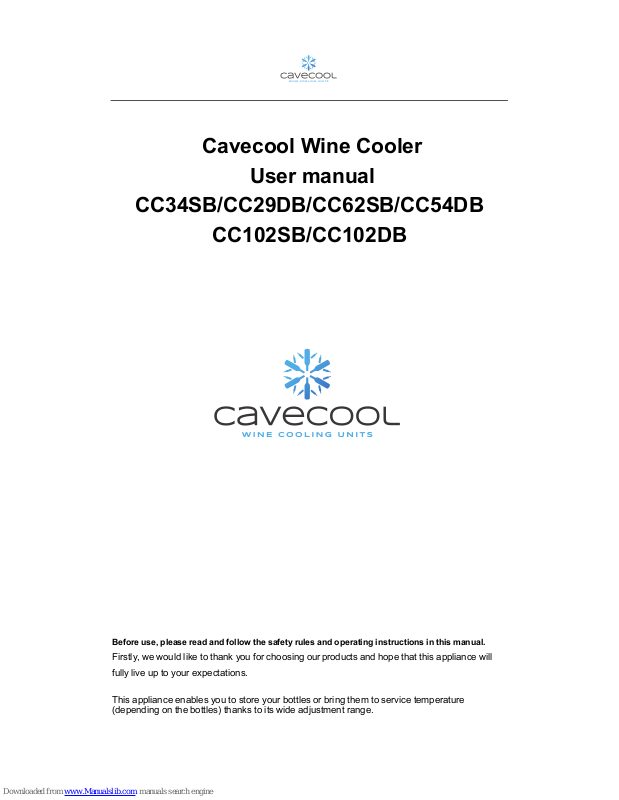

Cavecool Wine Cooler
User manual
CC34SB/CC29DB/CC62SB/CC54DB
CC102SB/CC102DB
Before use, please read and follow the safety rules and operating instructions in this manual.
Firstly, we would like to thank you for choosing our products and hope that this appliance will
fully live up to your expectations.
This appliance enables you to store your bottles or bring them to service temperature
(depending on the bottles)
thanks to its wide adjustment range.
1. GENERAL SAFETY INSTRUCTIONS
For your own safety and for the proper utilization of the appliance, read this manual carefully, including the
warnings and recommendations, before installing the appliance and using it for the first time. In order to avoid
damage to the appliance and/or personal injury, persons using the appliance should be fully familiar with its
operation and safety functions. Keep these recommendations close to the appliance, for future reference, and
ensure that the document is transferred with the appliance, if it is sold or in the case of moving. This will ensure
optimum operation of the appliance.
To avoid any risk of injury, keep this manual. The manufacturer declines any liability whatsoever in the
case of operating/handling errors concerning the appliance.
Safety of children and other vulnerable persons
- This appliance may be used by children aged 8 years and above, and
by persons who are physically, sensorially or mentally handicapped, or
who have not learned to use the appliance, providing they are supervised
by a person familiar with the appliance and who is aware of the risks
involved. Children should not be allowed to play with the appliance. User
cleaning and servicing operations should not be carried out by children,
unless they are more than 8 years old and are supervised.
- Keep all packaging out of the reach of children, as there is a risk
of suffocation.
- If you decide to scrap the appliance, disconnect it from the wall socket,
cut the connection cable (as close to the appliance as possible) and
remove the door, in order to prevent children playing with it, with the
resulting risk of electric shock or being trapped inside.
- If an appliance with a magnetic door seal is being replaced by
another appliance with a latch on the door or on the seal, ensure that
the latch is disabled before selling or scrapping the old appliance.
This will prevent the appliance from being transformed into a trap for
children.
- Keep the appliance and its power cable out of reach of children less
than 8 years old.
General safety
CAUTION — This appliance is designed for home use.
CAUTION — Never store inflammable substances, such as aerosols,
inside the appliance, as they could leak or release fluids.
CAUTION — A damaged power cable should be immediately replaced
by the manufacturer or by a qualified retailer, in order to avoid any risk
of electric shock.
CAUTION — Keep the ventilation openings well open and ensure that
air can circulate, especially if the appliance is recessed into a wall.
CAUTION — Do not damage the refrigerating circuit.
CAUTION — Do not use electrical appliances inside the compartment,
unless they are tolerated by the manufacturer.
CAUTION — The refrigerating and insulating systems contain
inflammable gases. When the appliance is scrapped, it should be
deposited at an accredited collection centre. Do not expose the
appliance to fire.
Refrigerating fluid
The refrigerating circuit in the appliance uses refrigerating isobutane
(R600a), which is a highly inflammable natural gas and is therefore
dangerous for the environment. When transporting or installing the
appliance, ensure that no element of the refrigerating circuit is
damaged. The refrigerating fluid (R600a) is inflammable.
Caution: Fire rise
If the refrigerating circuit is damaged:
-Avoid open flames or any source of combustion.
-Ensure that the room in which the appliance is installed is well
ventilated. It is dangerous to change the specification of the appliance
in any way whatsoever.
Damage to the power cable may cause a short circuit and/or electric
shock.
Electrical safety
- We decline any liability in respect of incidents caused by poor
electrical installation.
- Do not extend the power cable. Do not use an extension cable, or
adapter, or multi-way socket.
- Check that the wall socket is not damaged. A wall socket in poor
condition may cause the appliance to overheat and explode.
- Check that the wall socket used for the appliance is properly
accessible.
- Never pull on the main power cable.
- Ensure that the appliance is always electrically earthed.
- If the wall socket is loose, do not connect the cable, as there is a risk
of electric shock or fire.
- Do not use the appliance if the interior lighting cover is not installed.
- Disconnect the appliance before replacing the lighting bulb.
- The appliance operates on a single phase 220~240 V / 50 Hz power
supply.
The appliance must be connected to an earthed wall socket, in
accordance with applicable recommendations.
- Do not attempt to replace a damaged power cable, contact your
after-sales service.
- The power socket must be easily accessible but out of reach of
children.
In case of doubt, contact your installation technician.
Daily utilisation
- Do not store inflammable substances or fluids inside the appliance.
This would create a risk of explosion.
- Do not operate other electrical equipment inside the appliance
(mixers, whirling rotor for ice cream, etc.).
- When disconnecting the appliance, grip the plug firmly and do
not pull on the cable.
- Do not expose the appliance to direct sunlight.
- Keep the appliance away from candles, luminaries and open flames,in
order to avoid fire risk.
- This appliance is only designed to store wines and drinks.
- The appliance is heavy. Be careful when moving it.
- If your appliance is equipped with castors, remember that these are
only designed to facilitate minor movements. Do not move the
appliance over long distances.
- Do not lean or climb on the appliance or its elements.
- In order to avoid falling objects and to prevent damage to the
appliance,
do not overload the compartments of the appliance.
Caution! Cleaning and servicing
- Before carrying out servicing, switch off the power supply and
disconnect the appliance.
- When cleaning the appliance, do not use metal objects, steam
systems, volatile fluids, organic solvents or abrasive substances.
- Do not use sharp or pointed objects to remove ice. Use a plastic
Scraper.
Important information concerning installation!
- To ensure proper electrical connection, follow the recommendations
given in the present manual.
- Unpack the appliance and visually check that it is not damaged. Do
not connect a damaged appliance. Inform your retailer or point of sale
of any damage. In such a case, keep the packaging.
- It is recommended that the appliance be allowed to settle for at least 4
hours before connecting the electrical power supply, so that the
compressor fluid feed is correct.
- Proper air circulation is necessary to avoid overheating. To ensure
sufficient ventilation, observe the installation recommendations
Provided.
- In order to avoid fire risk, wherever possible, ensure that the appliance
is not in contact with walls or with any hot element (compressor,
condenser). Observe the installation recommendations.
- The appliance should not be placed close to radiators or cooking hot
plates or gas rings.
- Check that electrical sockets remain accessible when the appliance is
Installed.
Power saving
To limit the electricity consumption of your appliance:
- Install it in an appropriate place (see “Installing your appliance”).
- Leave the doors open as little time as possible.
- To ensure that the appliance operates properly, clean the
condenser regularly (see “Routine servicing of your appliance”).
- Regularly inspect the door seals and ensure that they are still
closing properly. If this is not the case, contact your after-sales
service.
Trouble shooting
- Any electrical work should be carried out by a qualified and skilled
technician.
- The appliance should be repaired by an accredited repair centre, using
only manufacturer’s original spare parts.
R600a
Safety instructions
The appliance is designed for home use only. The manufacturer declines any liability whatsoever in
cathe case of other utilisations
Caution: Do not obstruct the ventilation grills on the
appliance.
Caution: Do not store explosive substances, such as
aerosol cans containing an inflammable propellant,
in the appliance.
Caution: Do not damage the refrigerating circuit in
the appliance.
Caution: The refrigerating units use isobutane
(R600a), and should not be placed close to ignition
sources (for example, electrical contacts that are
exposed or open contacts that could be closed by
the refrigerating fluid in the event of a leak). The
refrigerating fluid type is specified on the power
cabinet identification plate.
Caution: Do not use electrical equipment in the
compartments of the appliance, unless they are of
the type recommended by the manufacturer.
This appliance meets the requirements of all applicable European directives and their
amendments, and notably complies with the following standards:
1907/2006 (REACH)
2011/65/EU (ROHS)
2006/95/EC relating to electrical safety
2004/108/EC relating to electro-magnetic compatibility
2008/48 relating to electro-magnetic fields
2010/30 and 1060/2010 relating to energy labels
2. DESCRIPTION OF APPLIANCE
Model CC34SB:
Model CC29DB:
1
Fan
2
Control panel and LED light
3
Shelf
4
Feet
5
Lower hinge
6
Door
7
Gasket
8
Upper hinge
Model CC62SB:
1
Fan
2
LED light
3
Shelf
4
Control panel
5
Feet
6
Lower hinge
7
Door
8
Gasket
9
Upper hinge
1
Fan
2
Control panel and LED light
3
Shelf
4
Feet
5
Lower hinge
6
Door
7
Gasket
8
Upper hinge
Model CC54DB:
Model CC102SB:
Model CC102DB:
1
Fan
2
LED light
3
Shelf
4
Control panel
5
Feet
6
Lower hinge
7
Door
8
Gasket
9
Upper hinge
1
Fan
2
Control panel and LED light
3
Shelf
4
Feet
5
Lower hinge
6
Door
7
Gasket
8
Upper hinge
Model CC102SB:
3. INSTALLATION INSTRUCTIONS
Before using your wine cooler:
•Remove inner and outer packaging.
•Before connecting the appliance to the electrical socket, leave it in position for 24 hours. This will
reduce the possibility of malfunction of the refrigeration circuit due to transport.
•Clean the inside using a soft cloth and lukewarm water.
Using your wine cooler:
Your wine cellar must be positioned in a room with an ambient temperature between 16 and
+38°C
If the ambient temperature is higher or lower, the performance of your appliance may be affected and it
may not be possible to obtain designed temperatures.
For model CC34SB/CC62SB/CC102SB, designed temperature is 5-20°C.
1
Fan
2
LED light
3
Shelf
4
Control panel
5
Feet
6
Lower hinge
7
Door
8
Gasket
9
Upper hinge
For model CC29DB/CC54DB/CC102DB, design temperature is 5-12°C for the upper zone and
12-18°C for the lower zone.
Installing your wine cooler:
•This wine cellar is designed for free-standing installation.
•Position it in a place with sufficient strength to support its weight when loaded. To ensure that it is
level,adjust the height of the feet underneath.
•To get the best from your appliance with the lowest energy consumption, do not place the appliance
close to a heat source (heater, cooker, etc.), do not expose it to direct sunlight, and do not place it in a
room which is too cold.
•Connect the appliance to a single socket, leaving a 50 mm gap between the back of the cellar and the
side wall. Be careful to support it, so that your wine cooler is perfectly level. This will prevent any
movement due to instability, generating noise and vibration, and will ensure that the door seals
perfectly.
Control panel:
Model CC34SB/CC62SB/CC102SB:
Temperature range is 5-20°C.
- Press ON/OFF button to turn on the appliance, and press ON/FF for 3 seconds to turn off the
appliance.
- Press temperature control button “UP” and “DOWN” together for 3 seconds to change the LED display
from Celsius to Fahrenheit
- You can set the desired temperature by pressing “UP” or “DOWN” button
The temperature selected will increase/decrease by 1°C with each press of the buttons.
- Press LIGHT button to turn on or turn off the light.
Model CC29DB/CC54DB/CC102DB:
These models have two zones, and the temperature range for upper zone is 5-12°C and lower
zone
is
12-18°C.
- Press power switch button for 3 seconds to turn on or turn off the appliance
- Press light button to turn on or turn off the light in both zones
- Press lower zone temperature contol button and together for 3 seconds to
change the LED display from Celsius to Fahrenheit.
- You can set the desired temperature by pressing or of each zone
The temperature selected will increase/decrease by 1°C with each press of the buttons.
Door Reverse:
This door of the appliance is reversible, the door is set to be hinged right at purchase, you can change it to
the left by following below instructions, please note the accessory of left upper hinge for reversing the door
is packed with the IM. Keep it in case you need to reverse the door.
(1) Close the door
(2 ) Unscrew① and remove the lower hinge ② ,then take down the door.
(3 )Unscrew ③ and remove the right side upper hinge ④.
(4) Remove hinge shaft hole cover ⑤,remove left upper hinge hole cover⑥
(5) Install the left side upper hinge ⑦.
(6 ) Install the door aligned with pivot.
(7 ) Install left side lower hinge⑧.
(8) Cover the right hinge hole ⑨, cover right door shaft hole ⑩ with black cap to finish the door reverse.
4. EQUIPMENT
The climate control system
According to advice from specialists, the ideal temperature for storing wine is around 12°C, within a
bracket of 10 to 14°C. Do not confuse this with service temperature, which varies between 5 and 20°C,
depending on the specific nature of the wine.
It is especially important to avoid sudden changes in temperature. Designed by specialists for oenophiles,
this appliance, unlike a simple refrigerator, takes into account the sensitivity of grand cru wines to sudden
variations in temperature by ensuring the close control of a constant average temperature.
The anti-vibration system:
The refrigeration compressor is equipped with special dampers (silent-blocks) and the inner space is
insulated from the body by a thick layer of polyurethane foam. These characteristics prevent the
transmission of vibration to your wines.
Defrosting:
Your appliance is equipped with an automatic defrost cycle. When a cooling cycle finishes, the appliance’s
refrigerated surfaces are defrosted automatically. The defrost water is channeled into a condensates
evaporation tray which is located in the back of the appliance near the compressor. The heat produced by
the compressor then evaporates the condensates collected in the tray.
5.LOADING
The maximum recommended loading quantities for bottles are given as guidelines and are indicative only;
they provide a quick estimate of the size of the appliance (similar to the capacity of a refrigerator
expressed in litres).
They correspond to tests conducted with a standard bottle: the standard “75 cl light Bordeaux” bottle -
standards apply the geographical origin of each bottle shape (Bordeaux, Burgundy, Provence, etc.) and a
type (traditional, heavy, light, flute, etc.), each with its own diameter and height.
In reality and in extreme cases, you could store more bottles by stacking the same type of bottle without
using shelves, but a varied cellar comprises a wide variety of bottles and the practical aspect of everyday
cellar management limits its capacity. You will therefore probably load the appliance a little less than the
recommended maximum.
6. MAINTENANCE
Before cleaning your appliance (something to be done regularly), disconnect it by removing the plug or by
pulling the fuse on the circuit.
Before using your appliance for the first time and regularly after that, we recommend that you clean the
inside and outside (front, sides and top) with warm water mixed with a gentle cleaning product. Rinse with
clean water and allow to dry before reconnecting. Do not use solvents or abrasives.
Wash the plastic coating on the steel shelves with a mild detergent solution and then dry with a soft cloth.
Wooden shelves require no particular maintenance.
When the appliance is switched on for the first time, there may be a residual odour. In that case, run the
appliance empty for a few hours at the coldest possible temperature. The cold will kills any odours.
7. STORING YOUR WINE COOLER
If you will not be using your appliance for short periods, leave the control panel with its usual settings.
During an extended shutdown:
•Remove all bottles from the appliance
•Unplug the appliance
•Thoroughly clean the inside and outside of the appliance
•Leave the door open to prevent condensation, unpleasant odours and mould.
8. WHAT TO DO IN THE EVENT OF A POWER CUT
Most power cuts are resolved within a short time. A power cut of 1 or 2 hours will not affect the temperature
in your cellar. To protect your wines during a power cut, avoid opening the door as much as possible.
During very long power cuts, take the necessary measures to protect your wine.
-If the appliance is disconnected or if there is a power cut, you must wait three to five minutes before re-
starting. If you try to re-start before this time, the compressor will only re-start after 3 to 5 minutes (if the
temperature requires).
-When switching on for the first time or following a prolonged shutdown, it is possible that when re-starting,
the temperatures selected and those displayed are not the same. This is normal. It will take a few hours
before they stabilise.
9. IF YOU NEED TO MOVE YOUR WINE COOLER
First, disconnect your appliance.
Remove all bottles and secure any loose parts.
To avoid damaging the levelling screws on the feet, screw them tightly into the base.
Move the appliance in an upright position (preferably) or note the direction in which the appliance may be
laid down by looking at its packaging.
10. IN THE EVENT OF A BREAKDOWN
Despite the care we take during production, a breakdown can never be totally ruled out. Before contacting
your retailer’s after-sales department, please check that:
1.the appliance is properly plugged in;
2.there is not a power cut in progress;
3.the breakdown is not one of those described in the table at the end of this manual.
IMPORTANT:
If the mains cable supplied is damaged, it must be replaced by the manufacturer, a centre approved by the
brand or by the retailer. In all cases, it must be replaced by qualified personnel, so as to avoid any risk of
injury.
IF THESE CHECKS REVEAL NOTHING, THEN CONTACT YOUR RETAILER’S AFTER-SALES
DEPARTMENT.
CAUTION!
Unplug the appliance before carrying out any maintenance or repair work.
11. PROBLEMS AND SOLUTIONS
You can solve many simple problems with your wine cooler yourself, thus avoiding having to contact your
after- sales department. Try the following suggestions.
12. ENVIRONMENT
PROBLEM
POSSIBLE CAUSES
Appliance is not running
Appliance is not plugged in
Appliance is not turned on
Check if voltage of the installation
Check the circuit breaker or if fuse has blown
Appliance is not cold enough
Check the temperature control setting
Check if ambient temperature is beyond appliance operating temperature
The door is opened too frequently
The door is not closed properly
The door is not sealing properly
Insufficient free space around the appliance
The compressor starts and
stops frequently
The external temperature is high.
A large quantity of bottles has been put into the cellar.
The appliance is opened frequently.
The door is not properly closed.
The cellar has not been correctly set.
LED lights do not operate
The appliance is not plugged in
The fuse has blown
LED lights are not broken
The light switch is off
Vibration
Check and ensure that the appliance is level
The appliance makes a lot of
noise
A noise resembling circulating water is produced by the coolant gas and
this is normal.
At the end of a cooling cycle, you can hear the noise of water circulating.
Expansion and contraction of the internal walls may cause a cracking
sound.
The appliance is not level
Check if fan is in good condition
The door does not close
properly
The appliance is not level.
The door seal is dirty or damaged.
The shelves are not positioned correctly.
A part of the contents is preventing the door from closing.
LED display is not working
properly
Control panel failed
Power PCB has broken
The appliance is not plugged in
The probe is not working
This product complies with EU WEEE Directive 2002/96/EC.
The crossed-out waste bin symbol on this appliance means that, at the end of its life, the appliance should
be recycled separately from other domestic waste.
It should therefore be disposed of at a selective collection centre for electrical and/or electronic appliances
or, if you are buying an equivalent product, by the retailer of the new product.
The user is responsible for taking the appliance to the appropriate collection centre at the end of its useful
life. Selective and appropriate collection for the recycling of no-longer-used appliances and their disposal
and destruction in an environmentally friendly manner helps to prevent potential negative effects on the
environment and health, and encourages the recycling of materials used to make the product.
For more detailed information about available collection systems, contact your local waste collection
organisation or the retail outlet where you bought the product.
13. WARNING
Since we make continuous improvements to our products, we reserve the right to modify technical characteristics without
notice.
Warranties for our brand products are offered exclusively by selected retailers. No part of these instructions may
be considered as a supplementary warranty.
We cannot be held liable for errors or technical or editorial omissions in this document.
Non-binding document.
APPENDIX 1
This appliance is intended exclusively for the storage of wine
Model
CC34SB
CC29DB
CC62SB
CC54DB
CC102SB
CC102DB
Supply
220-240V/50Hz
220-240V/50Hz
220-240V/50Hz
220-240V/50Hz
220-240V/50Hz
220-240V/50Hz
Product
Dimensions
(WXDXH)mm
480×430×508
480×430×850
480×565×850
550×565×850
550×565×1277
550×565×1277
Net Weight (kg)
28
30
34
36.5
53
55
Energy efficiency
class
A A A B B
B
Energy
consumption/24h
0.389kWh/24h
0.389kWh/24h
0.406kWh/24h
0.521kWh/24h
0.586kWh/24h
0.581kWh/24h
Energy
consumption/year
142
kWh/year
141
kWh/year
148
kWh/year
190
kWh/year
214
kWh/year
212
kWh/year
Defrosting
Automatic
Automatic
Automatic
Automatic
Automatic
Automatic
Climate class
ST ST T
ST
T
ST
Acoustic emissions
in air in dB(A) re
1pW
42 dB
40 dB
41 dB
44 dB
43 dB
42 dB
Installation type
Free standing
Free standing
Free standing
Free standing
Free standing
Free standing
Loading...
