Catskill Craftsmen 72265 User Manual

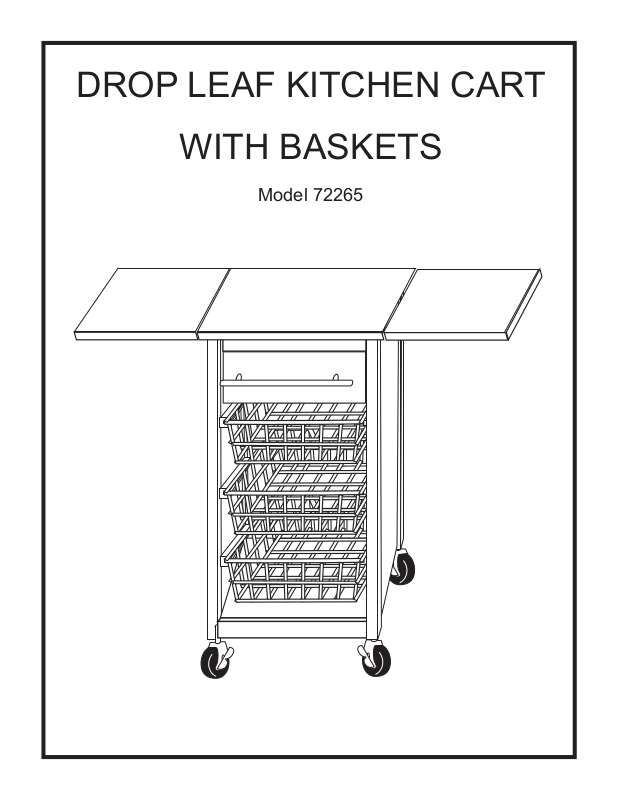

DROP LEAF KITCHEN CART

WITH BASKETS

Model 72265

Parts List

(6) BASKET GLIDES

(2) DRAWER SUPPORT STICK

(2) BOTTOM FRONT & BACK BRACES

(1) TOP BACK BRACE

(2) DROPLEAF SUPPORT

(1) BOTTOM SHELF

(1) DRAWER BOTTOM

(1) DRAWER FRONT

(1) DRAWER SIDE RIGHT

(1) DRAWER BACK

(1) DRAWER SIDE LEFT

HARDWARE PACKS

DRAWER PACK

A

(4) 1-1/4” (32mm) Phillips Head #8 Screws
(2) Bastion Posts
(2) Bastion Nuts
(2) Set Screws
(2) MSKRU M5/25
(4) 5/8 (16mm) #5 pre-pack
(4) 5/8 (16mm) #6 pre-pack

HINGE PACK

B

(4) 72265 Hinges
(16) 5/8” (16mm) Phillips Head #6 Screws

(1) TOP FRONT BRACE

(1) DRAWER HANDLE

(1) Set Left & Right Cabinet Glides

TABLE TOP PACK

C

(2) 1-3/4” (44mm) Phillips Head #8 Screws
(2) “Z” Brackets
(10) 5/8” (16mm) Phillips Head #8 Screws

BASE PACK

D

(8) 1-3/4” (44mm) 10-24 MSKRU
(8) 10-24 Nut
(6) 3/4” (19mm) Steel Pin
(4) 1” (25mm) Steel Pin
(12) 1-1/4” (32mm) Phillips Head #8 Screws
(4) 1“ (25mm) Phillips Head #8 Screws
(8) 5/8” (16mm) disks

(2) SIDE PANELS

(2) CASTERS (2) LOCKING

CASTERS

(3) WIRE BASKETS

(1) Set Left & Right Drawer Glides

(4) CASTER

SLEEVES

Exploded Base Illustration

Exploded Drawer Illustration

Illustration Bas. 3

Illustration Bas. 2

Illustration Bas. 1

Post needs to be screwed deeper.

Set screw secures post properly.

WRONG!

WRONG!

Post needs to be backed out.

CORRECT!
