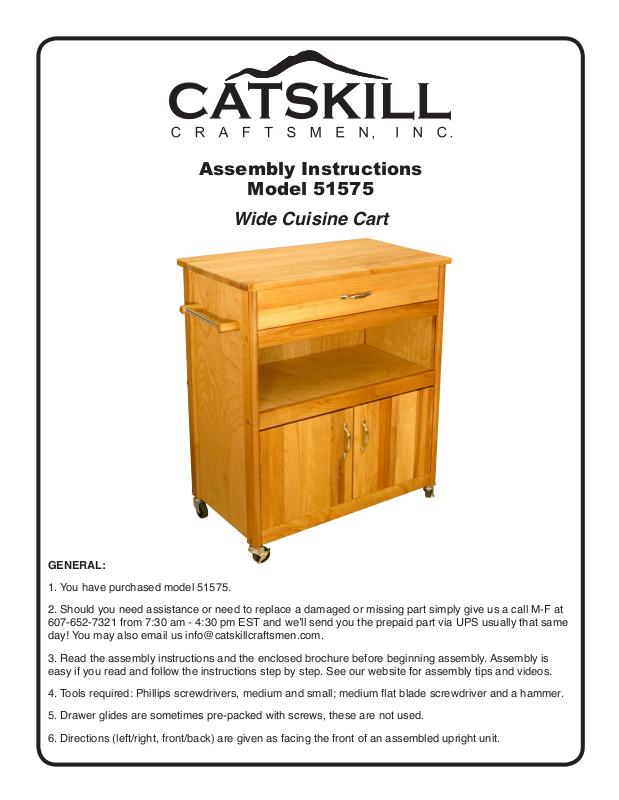

Catskill Craftsmen 51575 User Manual

Assembly Instructions

Model 51575

Wide Cuisine Cart

GENERAL:

1. You have purchased model 51575.

2. Should you need assistance or need to replace a damaged or missing part simply give us a call M-F at
607-652-7321 from 7:30 am - 4:30 pm EST and we’ll send you the prepaid part via UPS usually that same
day! You may also email us [e-mail].

3. Read the assembly instructions and the enclosed brochure before beginning assembly. Assembly is
easy if you read and follow the instructions step by step. See our website for assembly tips and videos.

4. Tools required: Phillips screwdrivers, medium and small; medium at blade screwdriver and a hammer.

5. Drawer glides are sometimes pre-packed with screws, these are not used.

6. Directions (left/right, front/back) are given as facing the front of an assembled upright unit.

TOPTOP

CABINET PARTS 51575

Handle Side Panel (1)

P/N: SP/HDL - 51575

Plain Side Panel (1)

P/N: SP/PL - 51575

Shelf (2)

P/N: S - 51575

TOP

Back Panel (1)

P/N: BP - 51575

Cabinet Top (1)

P/N: TT - 51575

Left Door (1)

P/N: DOR - 51575L

Not Used

Drawer Front (1)

P/N: DF - 51575

Drawer Back (1)

P/N: DBK - 51575

Right Door (1)

P/N: DOR - 51575R

Drawer Side Left (1)

P/N: DS- 51575L

Drawer Side Right (1)

P/N: DS- 51575R

Door Spacer (1)

P/N: DORS - 11 15/16 - 51575

Glide Support Sticks (2)

P/N: GLD SUP - 51575

Not Used

Drawer Bottom (1)

P/N: DBOT - 51575

Top/Bottom Braces (2)

P/N: B - 51575 T/B

Middle Front Brace (1)

P/N: B - 51575 MF

CABINET HARDWARE 51575

1 3/4” Phillips Flat Head Bolt (12)

(Used to attach
Drawer Front)

Cam Posts (2)

Towel Bar Post (2)

1 1/4” Phillips Flat Head #8 Screw (12)

(Used to attach
Drawer Handles)

7/8” Truss Head Machine Screw (6)

(Used to attach
Door Spacer)

5/8” Phillips Flat Head #8 Screw (2)

(Used to attach “L” bracket
and cabinet glides)

5/8” Phillips Flat Head #7 Screw (12)

(Used to attach drawer glides)

5/8” Phillips Flat Head #5 Screw (4)

(Door Pin)

1 1/2” Long 3/16” DIA. Steel Pin (4)

(Shelf Pin)

1” Long 3/16” DIA. Steel Pin (8)

3/16” Flat Washer (4)

10-24 Hex Nut (12)

Drawer

Cabinet

14” Drawer Glide (1 Set )

Nickel Handle (3)

Cam (2)

5/8 Wooden Disk (12)

“L” Bracket (4)

(Brace Pin)

3/4” Long 3/16” DIA. Steel Pin (6)

MAGNET PACK

Magnet (1)

Magnet Plate (1)

5/8” Pan Head Screw (2)

1/2” Phillips Flat
Head #4 Screw (1)

Locking Wheel Caster (2)

Caster Socket (4)

Non-Locking Wheel Caster (2)

Polished
Nickel Towel
Bar (1)

STEP 1

The “L” brackets are attached to the Glide Support using the large slot in the “L” bracket.

Glide Support Assembly

Decide at this point if you want the handle/towel bar on the right or the left side of the cabinet as
side panels are interchangeable. At this point the metal glides will determine left side/right side once
installed.

The Hole will be used to attach the table top.

Top of “L” Bracket should be even with the top of the glide support

Left Side

Front

1 1/4” #8

5/8” #7

Flush with back

5/8” #7

Right Side

Front

5/8” #7

Flush with back

Note: Glide holes sometimes change, just make

sure the cabinet glides are ush with the back

of the glide supports & pilot holes will line up ­only 2 holes are used!

The glides look almost alike;
however, they are stamped
CR for cabinet right and CL
for cabinet left.

STEP 2

PIN

PIN

PIN

PIN

1 3/4” Phillips Flat Head Bolt (8)

4 Used
in this step

A. Lay back panel at on a smooth surface with holes up.

B. We placed the handle/towel bar on the right for these instructions.

C. Attach side panels with 1 3/4” bolts and hex nuts. After inserting bolt(s) through the holes in the
side panels and through the holes in the long edges of the back panel, place a hex nut on the tip of

your nger, align nut with bolt and tighten.

D. Look ahead to step 3 which shows side panels
attached to back panel.

E. Attach towel bar with 1” Phillips Flat head screws/washer.
Use a washer to prevent the screw from pulling through the
side panel.

NOTE: Back panel is ush with bottom of side panels.

4 Used
in this step

10-24 Hex Nut (8)

1 3/4” Machine Screw

1” Screw

Nut

4 Used
in this step

1 3/4” Phillips Flat Head Bolt (8)

Towel Bar Post

Towel Bar

STEP 3

A. Turn the side/back assembly (from
step 2) upside down (invert) on top of the
inverted table top.

B. Align the “L” brackets
with the 4 inside pilot holes in the table top
and secure with 5/8” #7 screws.

C. Tap two 1” pins into each side panel.
These pins will hold the bottom shelf.

1” Long 3/16” DIA. Steel Pin

5/8” Phillips Head #7 Screw

4 Used in this step

4 Used in this step

STEP 4

A. Attach the drawer back to the drawer sides with four
1 1/4” #8 screws. Make sure parts are aligned as in
illustration 4A.

B. Insert drawer bottom into the slots in the drawer
sides, best side to inside of drawer. Slide down until
seated in the slot in the drawer back. See illustration
4B.

C. Screw the cam posts into the two outside holes on
the inside face of the drawer front until seated. Only
3/8” of the post goes into the wood, leaving the 4
larger guide rings/head exposed. See illustration 4C.

D. Insert the posts into holes in the drawer sides until
seated against the front end of the drawer sides. Insert

cams so that slot in the cam ts over the post and

turn with Phillips screwdriver until seated. Don’t over­torque! See illustration 4D.

E. Attach drawer handle with the two 7/8” Truss head
screws (no illustration).

F. Attach drawer glides to drawer sides using 5/8”
#5 screws. See illustration 4F

ILLUSTRATION 4A

ILLUSTRATION 4B

ILLUSTRATION 4C

Below line in wood

Cam Posts (2)

4 used

in this step

1 1/4” Phillips Flat Head #8 Screw

2 used

in this step

7/8” Truss Head Machine Screw

2 used

in this step

Cam

4 used

in this step

5/8” Phillips Flat Head #5 Screw

ILLUSTRATION 4D

ILLUSTRATION 4F

STEP 5

Door Assembly

1 1/2” Pin

Magnet Plate

7/8” Machine Screw

1/2” #4 Screw

Handle

5/8” #8 Screw

STEP 6

Brace Prep

3/4” Pin

Install 3/4” pins in brace ends

STEP 7

A. Take the top front brace (identical
to bottom front brace) holes in bottom
long edge up, insert the pins into the
slots on the inside of the front legs
and slide brace down until the holes in
the brace ends align with the holes in
the front legs. Secure brace with
1 3/4” bolts/hex nuts.

B. Take the middle front brace with
magnet block and slide brace into
place making sure magnet block
and holes for door pins are up as
illustrated. Secure with 1 3/4” bolts/
hex nuts.

Insert brace pins here

Nut

ILLUSTRATION 7

STEP 8

A. Insert the pins in the door tops
into the holes in the middle front
brace as in Illustration 7. Place a
washer over the pins in the door
bottoms.

B. Take the bottom front brace,
insert brace as in step 7, making
sure the pins in the doors align
with the holes in the brace as in
Illustration 8. Secure with 1 3/4”
bolts/hex nuts.

1 3/4” Bolts

Washer

Middle Front Brace

ILLUSTRATION 8

STEP 9

A. Stick magnet to magnet plate on right door.
B. With left door open, close the right door. The magnet should be positioned over the wooden block

on the bottom of the top front brace. Hold the magnet in place with your thumb, and open the right
door. The magnet will be in the correct position on the block. Mark your holes with a pencil.

C. Secure magnet with the two pan head screws in the magnet packet. Center screws in the slots in
the magnet . This will allow adjustment later, if needed.

NOTE: No pilot holes in block, as softwood!
D. Tap in the 12 wood disks into the side panels after making sure drawer and doors open/close

easily. Tighten all bolts.

2 Used
in this step

5/8” Pan Head Screw

5/8” Wooden disk

Magnet

STEP 10

Install Casters

A. Tap in caster sockets with a hammer until

teeth are in the wood. Don’t pound at or

wheels won’t enter. Locking casters usually
go on front - seat with sharp downward stroke
with hammer hitting the metal wheel frame.

STEP 11

A. Upright unit and insert drawer.
B. Insert pins for the middle shelf.
C. Place middle shelf on pins.
D. Place the back long edge of the

bottom shelf on the back pins. Lower
front of shelf. Close doors and shelf
will drop into place.
