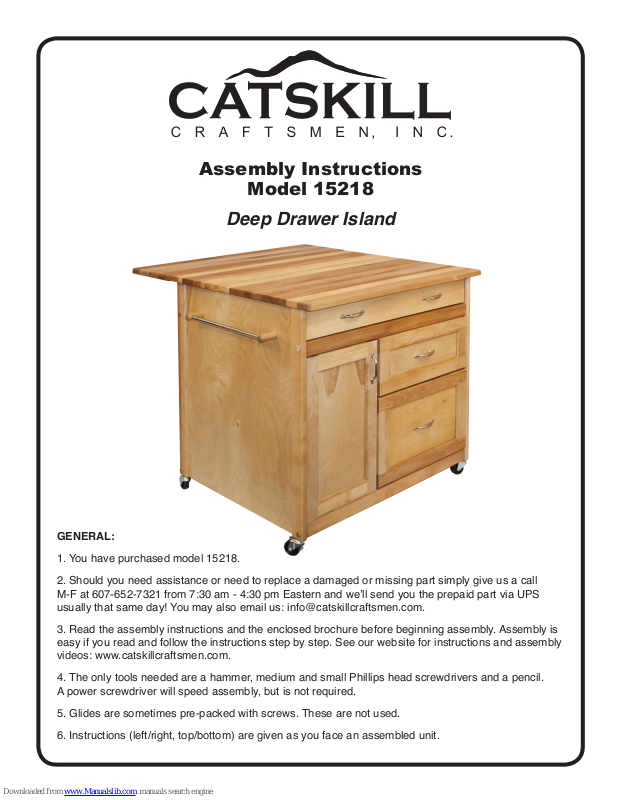

CATSKILL 15218 Assembly Instructions Manual
Assembly Instructions
Model 15218

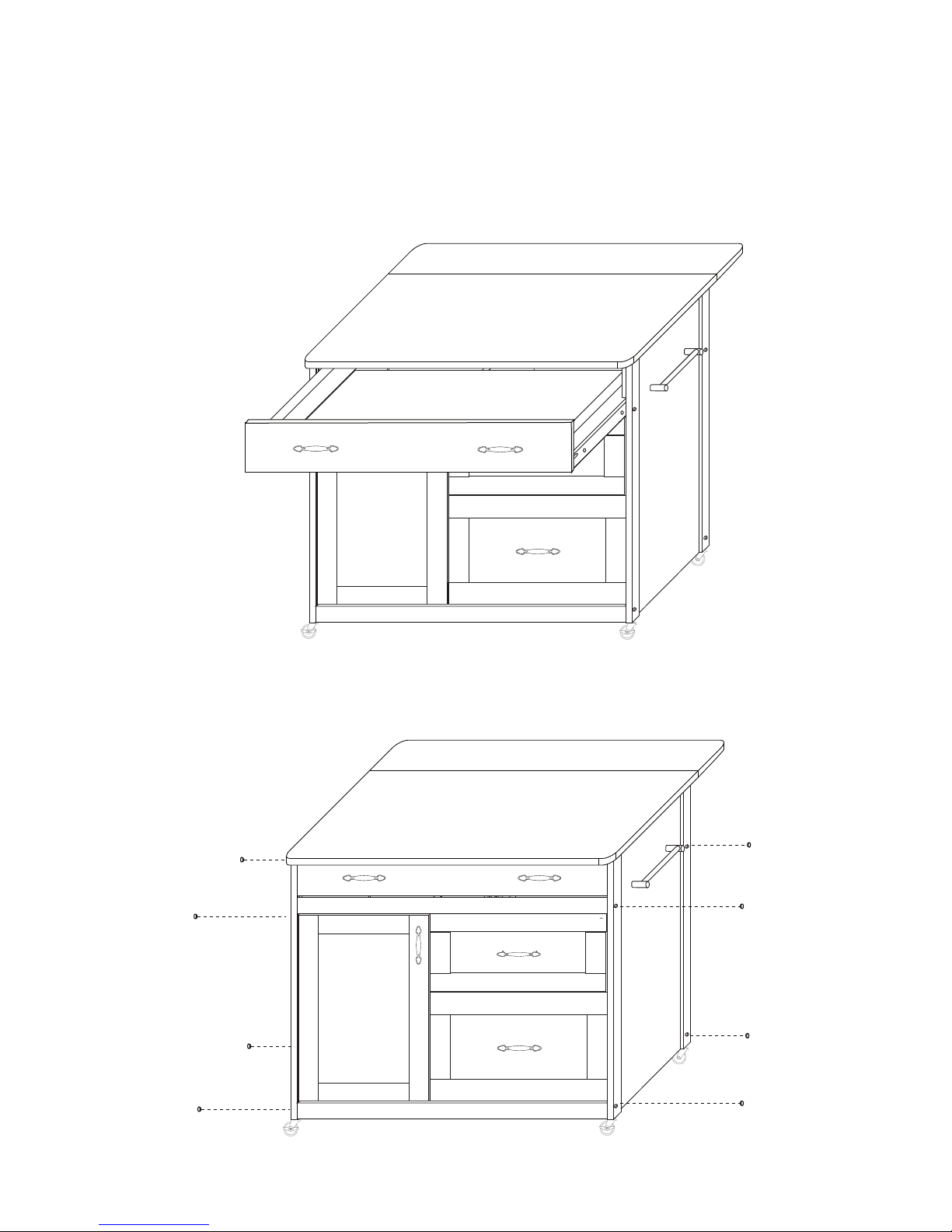

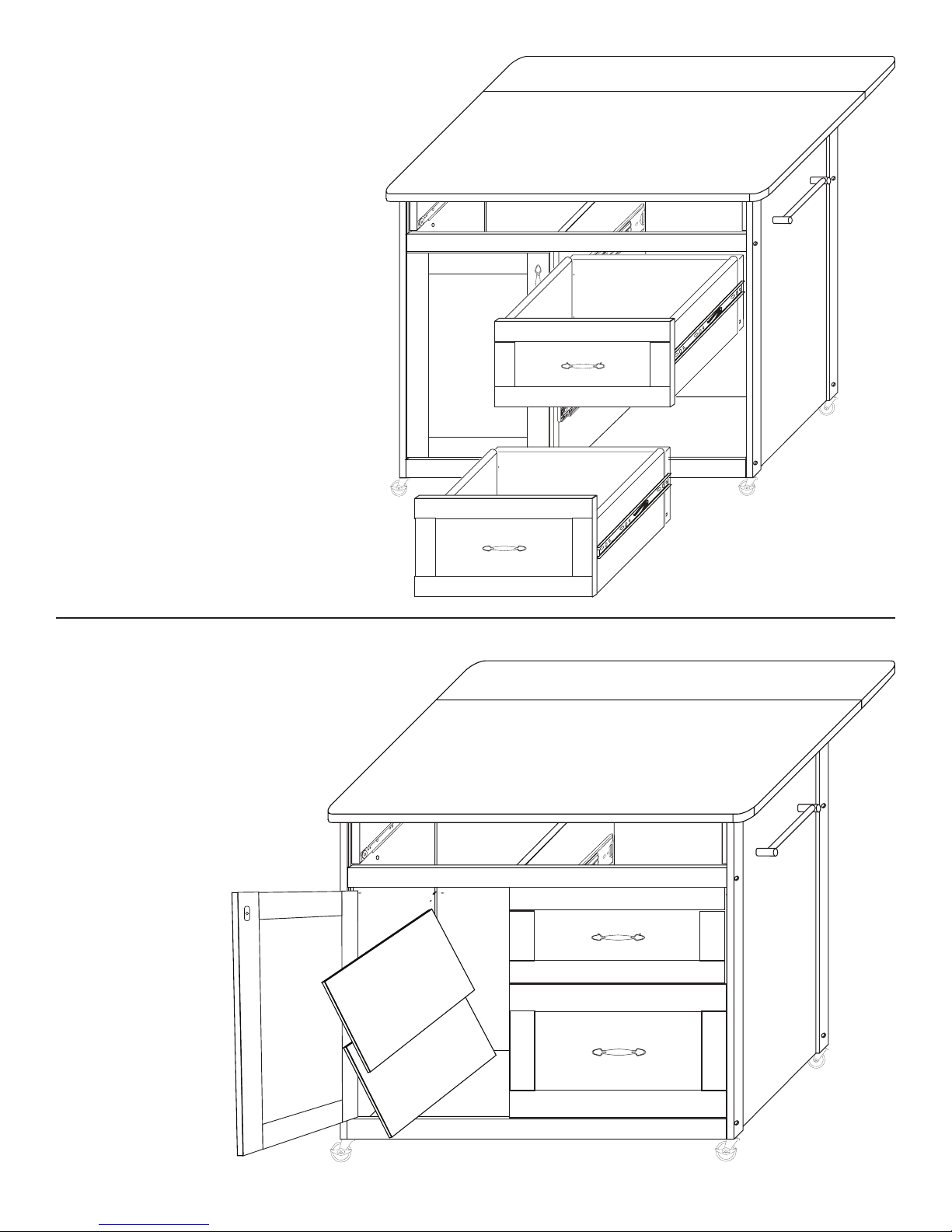

Deep Drawer Island
GENERAL:
1. You have purchased model 15218.
2. Should you need assistance or need to replace a damaged or missing part simply give us a call
M-F at 607-652-7321 from 7:30 am - 4:30 pm Eastern and we’ll send you the prepaid part via UPS
usually that same day! You may also email us: info@catskillcraftsmen.com.
3. Read the assembly instructions and the enclosed brochure before beginning assembly. Assembly is
easy if you read and follow the instructions step by step. See our website for instructions and assembly
videos: www.catskillcraftsmen.com.
4. The only tools needed are a hammer, medium and small Phillips head screwdrivers and a pencil.
A power screwdriver will speed assembly, but is not required.
5. Glides are sometimes pre-packed with screws. These are not used.
6. Instructions (left/right, top/bottom) are given as you face an assembled unit.
Parts List Model 15218
Not used on this model
Drop Leaf (1)
P/N DL-15218
Back Panel (1)
P/N BP-15218
Top & Bottom Front Braces (2)
P/N B34 1/4 / 2 1/2 /BOT-15218
Table Top (1)
P/N TT-15218
Left Side Panel (1)
P/N LFT/SP/HDL-15218/63037
Top Right Drawer Side (1)
P/N Top DS-15218/R
Top Left Drawer Side (1)
P/N Top DS-15218/L
Lower Left Drawer Side (2)
P/N Low DS-15218/L
Lower Right Drawer Side (2)
P/N Low DS-15218/R
Right Side Panel (1)
P/N RGHT/SP/HDL-15218/63037

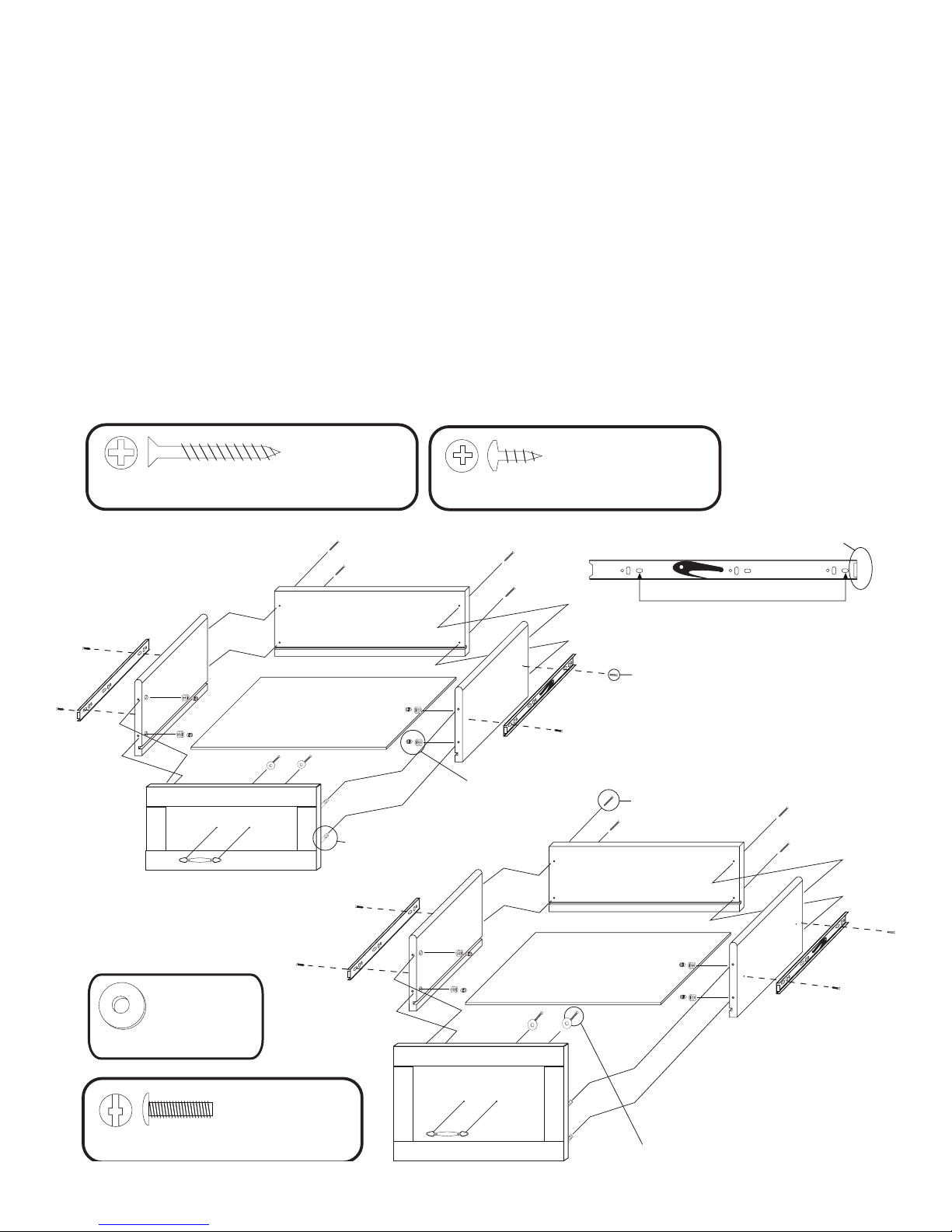

Top Drawer Front (1)
P/N DF-15218
Top Drawer Back (1)
P/N DBK-15218
Top Drawer Bottom (1)
P/N TDB-15218
Middle Drawer Front (1)
P/N Mid DF-15218
Center Divider (1)
P/N DIV-15218
Left Side View

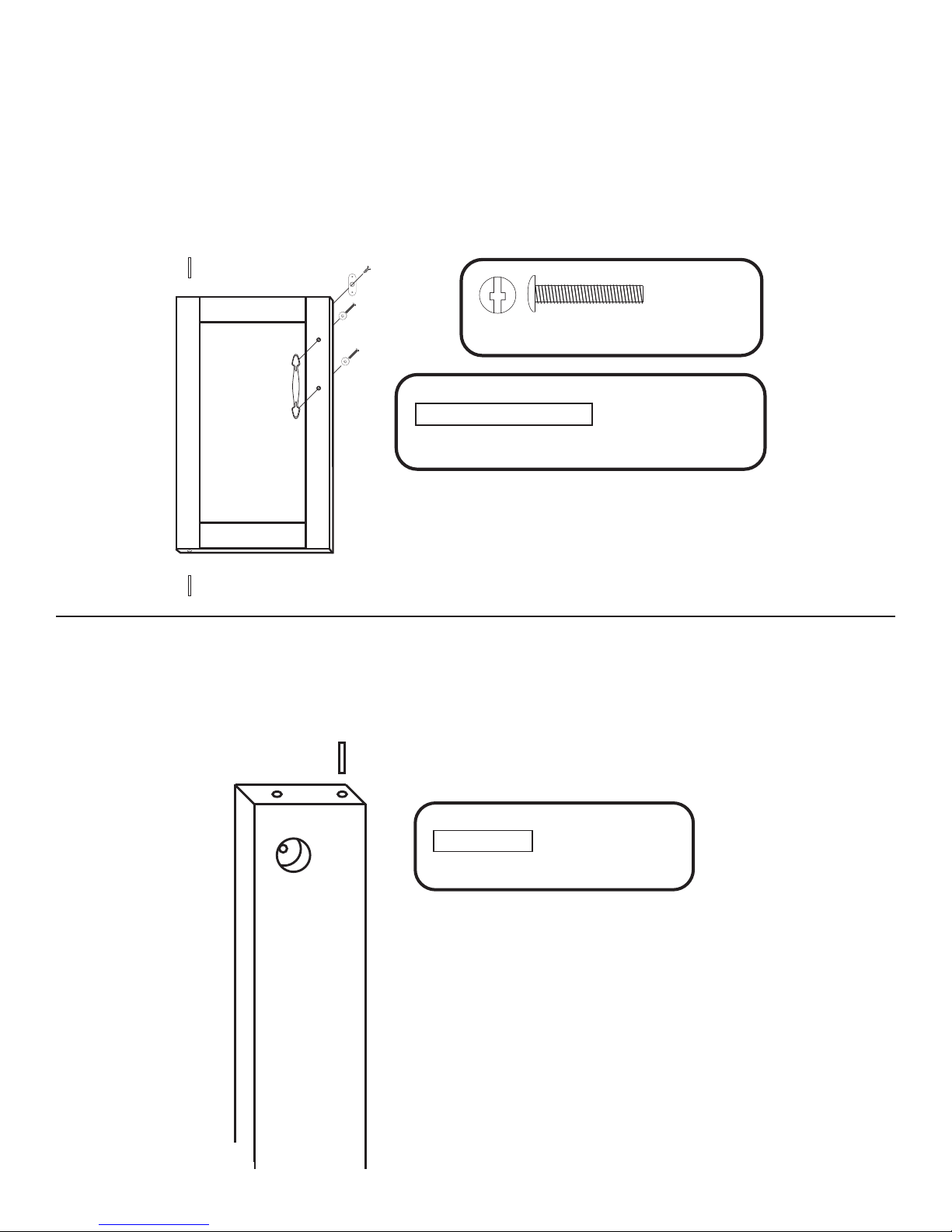

Door (1)
P/N Dr-15218

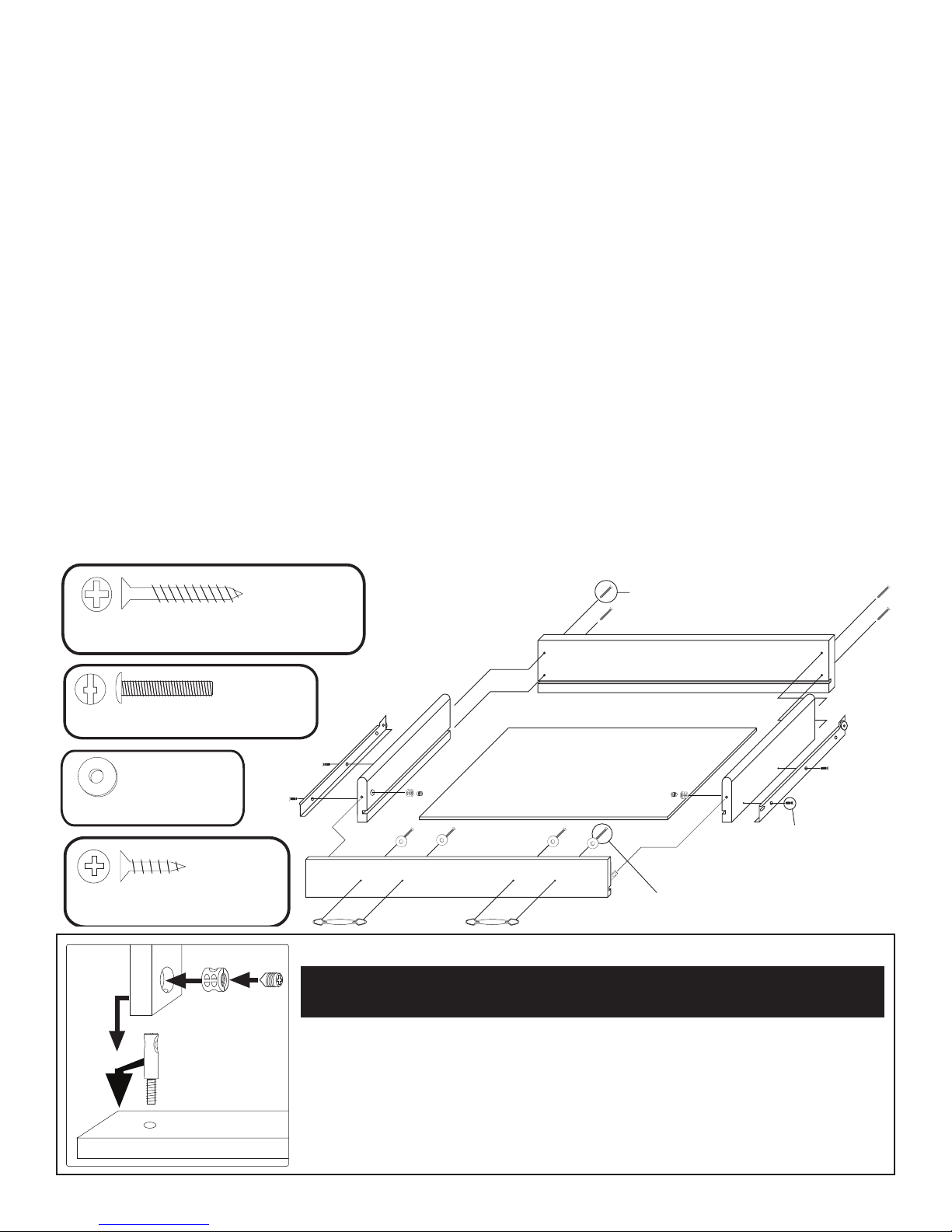

Lower Drawer Back (2)
P/N Low DBK-15218
Lower Drawer Bottom (2)
P/N LBS-15218
Glide Support (2)
P/N GLDSUP-15218
Bottom Drawer Front (1)
P/N Bot DF-15218

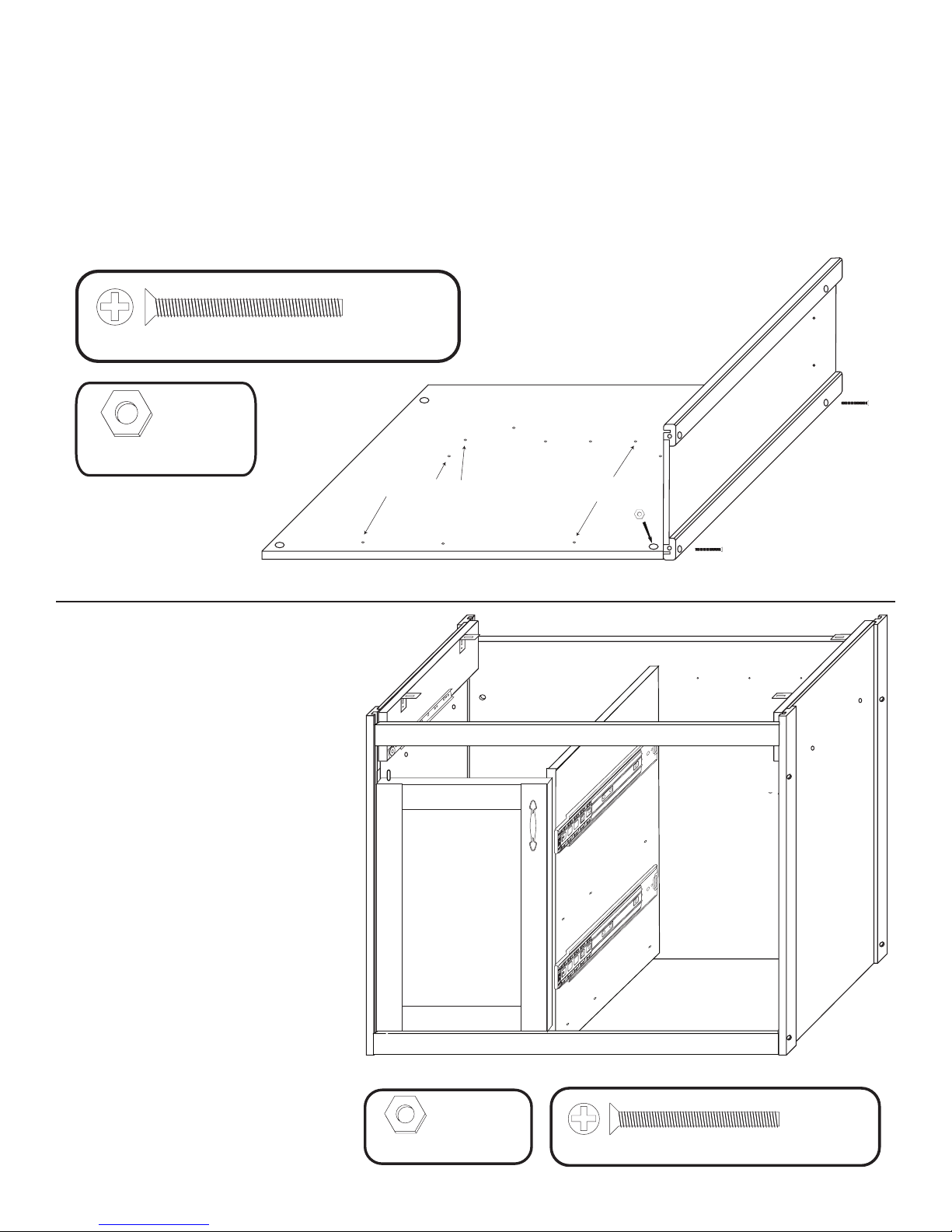

Bottom Shelf (1)
P/N BS-15218
Middle Shelf (1)
P/N MS-15218
3/4” Long 3/16” DIA. Steel Pin (8)
Hardware List Model 15218
To ease assembly, sort and count the hardware before getting started.
Nickel Handle (5)
(Cabinet Assembly)
1 3/4” Phillips Flat Head Bolt (8)
(Drawer Backs
Table Top Sticks)
1 1/4” Phillips Flat Head #8 Screw (20)
(Attaches Hinges
Drop Leaf Supports)
5/8” Phillips Flat Head #8 Screw (20)
(Top Drawer Glides That
Attach to Table Top Sticks)
5/8” Phillips Flat Head #7 Screw (4)
Bundled and labeled separately.
(Used to Attach L Brackets / Top
Drawer Glides to the Drawer Sides)
5/8” Phillips Flat Head #6 Screw (12)
10-24 Hex Nut (8)
5/8 Wooden Disk (8)
Drawer
Cabinet
Drawer Glide (1 Set )
3/16” Flat Washer (13)

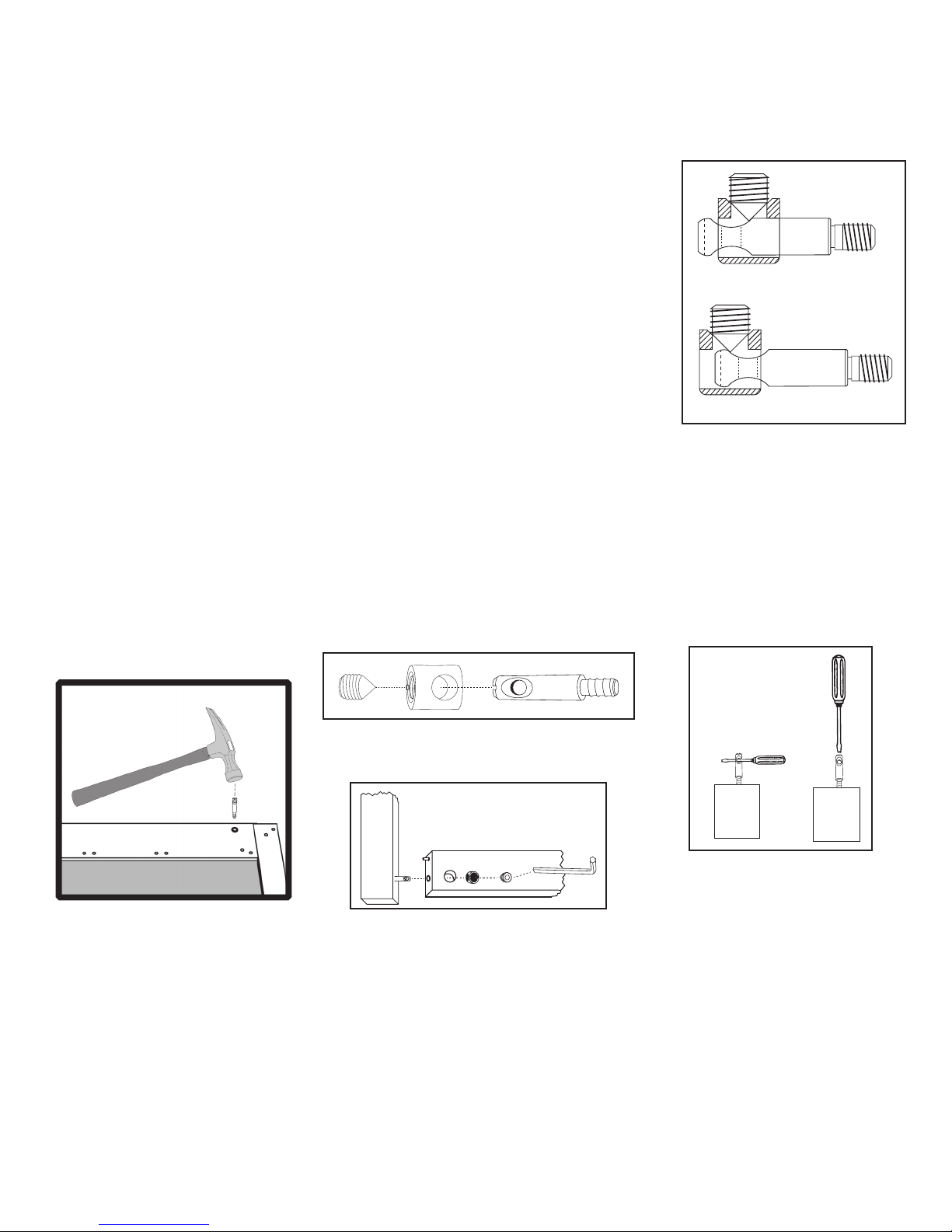

Bastion Post (10)
Bastion Set Screw (10)
Bastion Barrel Nut (10)
L-Bracket (4)
(used to attach
towel bars)
1” Phillips Flat Head #8 Screw (4)
(Full Extention Glide Screws)
3/8” Phillips Pan Head #8 Screw (20)
(Attaches Handles
to Door / Top Drawer)
1” Truss Head Machine Screw (6)
(Attaches Handles
to Large Drawers)
1/2” Truss Head M4x10 screw (4)
(Door Pin)
1 1/2” Long 3/16” DIA. Steel Pin (2)
(Shelf Pin)
Full Extention
Drawer Glide (2 Sets)

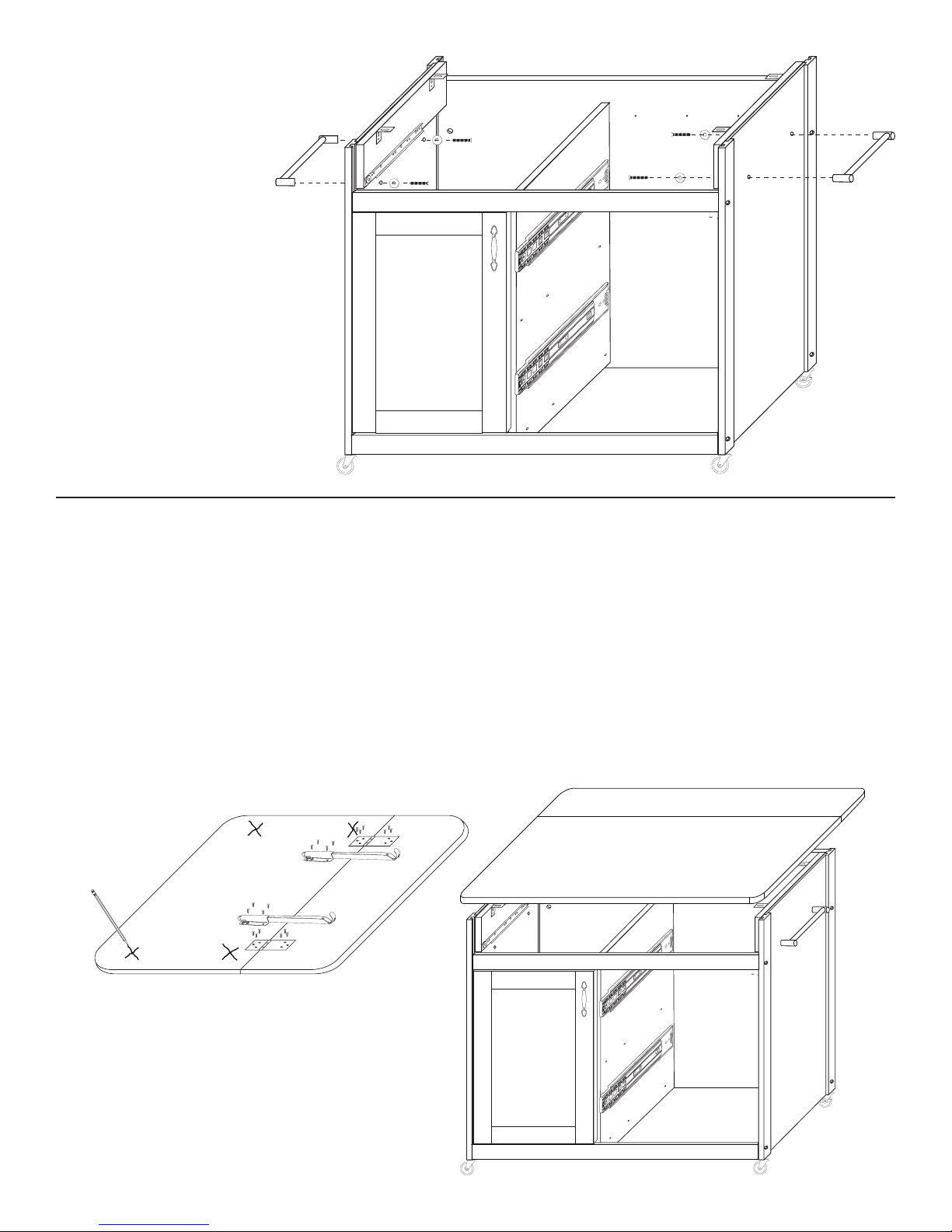

Polished Nickel Towel Bar (2)

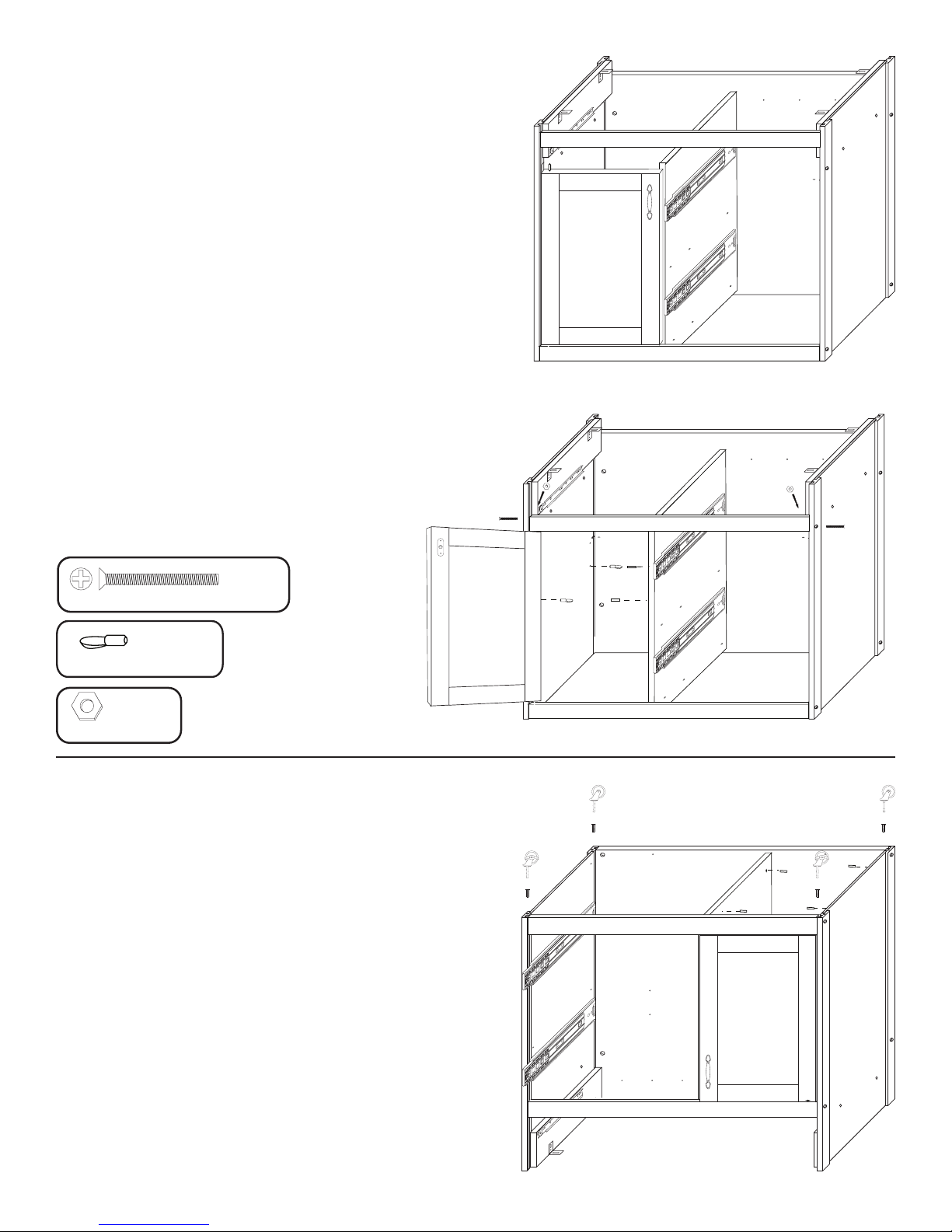

Hinge (2)
P/N Drop Leaf Support (2)
Magnet (1)
Metal Middle Shelf Pin (2)
Towel Bar Post (4)
Caster Socket (4)
1” Long 3/16” DIA. Steel Pin (8)
(Brace Pin)
Magnet Plate (1)
Bundled with screws used
for attaching to cart.
Locking Wheel
Casters (2)
Wheel
Casters (2)
STEP 1A -
Important - Please Read These Instructions Carefully!
Attach Glides to Side
Panels
1. Remove the drawer side
section of the glide by pushing
the black lever down and
sliding the steel inner glide
section all the way out of the
glide assembly. Set this inner
section aside as it will be used
later on the lower drawer
sides.
2. Next, identify the holes to be
used for attaching each glide
to the side panel. IMPORTANT
as shown below, the full
extention glides are only
attached to the right side panel
and to the center divider as
shown in Step 6.
Attach glides using 3/8” #6 pan
head screws. In step 9 you will
loosen these screws to slide
the glides ush with the back
panel once it is attached.
Push this lever down, then
slide the inner glide section
out of the glide assembly.
Face of
Glide
Use these three (3) holes to attach the glide to the side panel.
Backside
of Glide
FRONT OF CART
TOP
This edge will attach to back
panel in the next step.
Front

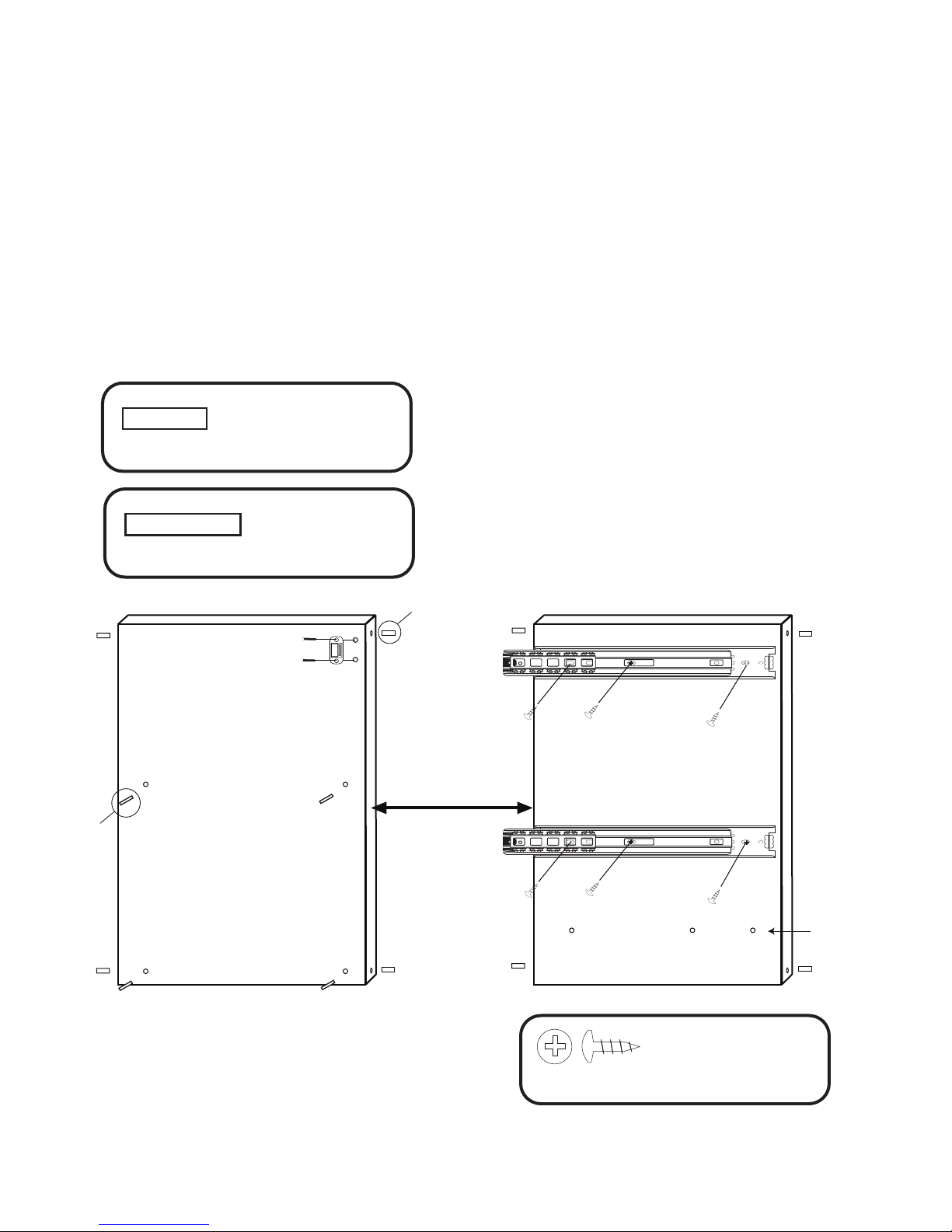

STEP 1B
IMPORTANT - There is a right and a left side panel. Lay them out as shown below. Pay close
attention to the glides so that they are properly positioned when attaching to the side panels. Review
Step 1A for specic instructions on the full extention glides.
Attach L Brackets with 5/8” #6 screws. Use the small round hole, not the slot.
8 Used
in this step
1-1/4” Phillips Flat Head #8 Screw
4 Used
in this step
5/8” Phillips Flat Head #7 Screw
5/8” #7 Screw
TOPTOP
1 1/4” #8 Screw
4 Used
in this step
5/8” Phillips Flat Head #6 Screw
6 Used
in this step
3/8” Phillips Pan Head #8 Screw
5/8” #6 Screw
Leg Slot
3/8” #8 Pan Head
Screw
When attached, this
edge will be flush
behind the leg slot.
This Set of Holes Not Used
This Set of Holes Not Used
3/8” #8 Pan Head
Screw
Left Side PanelRight Side Panel
PLEASE NOTE - Some pieces are interchangeable with other units we manufacture, and thus some
pilot holes may not be used. It is important to note the proper holes required for assembly in each step.
