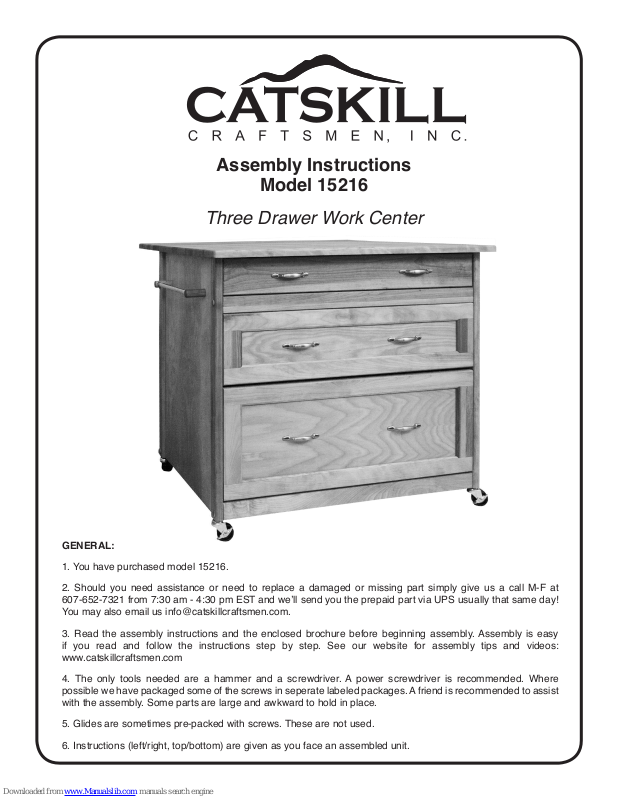

Page 1
Assembly Instructions
Model 15216
Three Drawer Work Center
GENERAL:
1. You have purchased model 15216.
2. Should you need assistance or need to replace a damaged or missing part simply give us a call M-F at
607-652-7321 from 7:30 am - 4:30 pm EST and we’ll send you the prepaid part via UPS usually that same day!
You may also email us [email protected].
3. Read the assembly instructions and the enclosed brochure before beginning assembly. Assembly is easy
if you read and follow the instructions step by step. See our website for assembly tips and videos:
www.catskillcraftsmen.com
4. The only tools needed are a hammer and a screwdriver. A power screwdriver is recommended. Where
possible we have packaged some of the screws in seperate labeled packages. A friend is recommended to assist
with the assembly. Some parts are large and awkward to hold in place.
5. Glides are sometimes pre-packed with screws. These are not used.
6. Instructions (left/right, top/bottom) are given as you face an assembled unit.
Page 2
Parts List Model 15216
Side Panels (2)
P/N SP/HDL-15216
Back Panel (1)
P/N BP-15216
Upper Drawer Bottom (1)
P/N TDB-15216
Glide Support (2)
P/N GLDSUP-15216
Drop Leaf (1)
P/N DL-15216
Table Top (1)
P/N TT-15216
Upper Drawer Front (1)
P/N DF-15216
Upper Drawer Back(1)
P/N UPPER DBK - 15216
Middle Drawer Front (1)
P/N Mid DF-15216
Lower Drawer Bottom (2)
P/N LDB-15216
Lower Left Drawer Side (2)
P/N Low DS-15216/L
Lower Right Drawer Side (2)
P/N Low DS-15216/R
Top Right Drawer Side (1)
P/N Top DS-15216/R
Top Left Drawer Side (1)
P/N Top DS-15216/L
Bottom Drawer Front (1)
P/N Bot DF-15216
Bottom Drawer Back (2)
P/N Low DBK-15216
Top & Bottom Front Braces (2)
P/N B34 1/4 / 2 1/2 / BOT
Page 3
Hardware List Model 15216
To ease assembly, sort and count the hardware before getting started.
(Cabinet Assembly)
1 3/4” Phillips Flat Head Bolt (8)
(Drawer Backs
Table Top Sticks)
3/16” Flat Washer (20)
1 1/4” Phillips Flat Head #8 Screw (20)
(Attaches Hinges
Drop Leaf Supports)
5/8” Phillips Flat Head #8 Screw (20)
(Top Drawer Glides That
Attach to Table Top Sticks)
5/8” Phillips Flat Head #7 Screw (4)
Bundled and labeled separately.
(Used to Attach L Brackets / Top
Drawer Glides to the Drawer Sides)
5/8” Phillips Flat Head #6 Screw (12)
(used to attach
towel bars)
1” Phillips Flat Head #8 Screw (4)
(Full Extention Glide Screws)
3/8” Phillips Pan Head #8 Screw (20)
5/8 Wooden Disk (8)
Drawer
Cabinet
Drawer Glide (1 Set )
Full Extention
Drawer Glide (2 Sets)
Polished Nickel Towel Bar (2)
Bastion Post (10)
Bastion Set Screw (10)
Bastion Barrel Nut (10)
L-Bracket (4)
(Attaches Handles
Top Drawer)
1” Truss Head Machine Screw (4)
(Attaches Handles
to Lower Drawers)
1/2” Truss Head Machine Screw (8)
(Brace Pin)
3/4” Long 3/16” DIA. Steel Pin (4)
Allen Wrench
Hinge (2)
P/N Drop Leaf Support (2)
10-24 Hex Nut (8)
Nickel Handle (6)
Caster Socket (4)
Locking Wheel
Casters (2)
Towel Bar Post (4)
Wheel
Casters (2)
Page 4
STEP 1
A. Attach a Glide Support Stick to the top of each Side Panel using 1 1/4” #8 screws. The
countersunk holes (reamed out) in the stick are positioned as in illustration below so that the glide
holes are toward the lower edge. Sticks should be ush with top of panel.
B. Attach the cabinet glide of the Drawer Glides to the Glide Support Stick using 5/8” #7 at head
screws. The glides look almost alike however, the right glide (as you face the cart) has a rolled lip at
the top of the glide that keeps the drawer glide wheel in place. The wheel on the glide goes toward
the front of the cart, determining your left and right sides. Line up the holes in the glides so that the
end with the wheel comes ush with the front edge of the Glide Support Stick. Only 2 pilot holes are
used in the glide support sticks.
C. Attach the “L” brackets to the top of the glide supports using 5/8” #6 screws. Use the hole rather
than the slot. The slot will be used to attach the table top. The “L” brackets should be ush with the
top of the glide support sticks.
Note: Cabinet drawer glides usually have an imprint “CL” or “CR” inside near the wheel. CR=Right /
CL=Left
1 1/4” #8 Screw
5/8” #7 Screw
TOP
5/8” #7 Screw
TOP
1 1/4” #8 Screw
Left Side Panel
Right Side Panel
Page 5
Push this lever down, then
TOP
TOP
slide the inner glide section
out of the glide assembly.
Face of
Glide
Use these three (3) holes to attach the glide to the side panel.

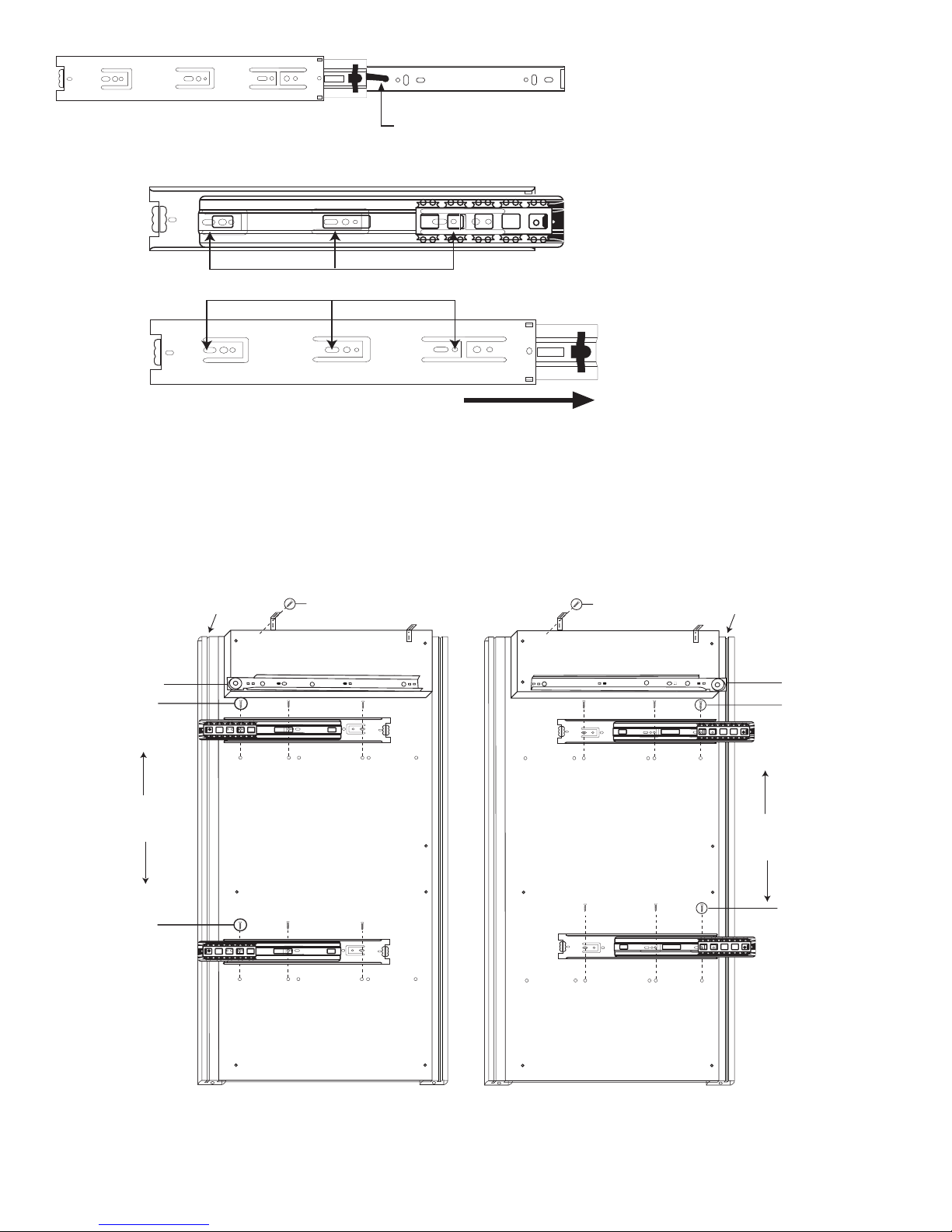

STEP 2
Attach Glides to Side Panels
1. Remove the drawer side
section of the glide by pushing
the black lever down and
sliding the steel inner glide
section all the way out of the
glide assembly. Set this
inner section aside as it will
be used later on the lower
drawer sides.
Backside
of Glide
Wheel Faces Left
3/8” #8 Pan Head
Screw
Leg Slot
FRONT OF CART
5/8” #6 Screw
2. Next, identify the holes to
be used for attaching each
glide to the side panel. Attach
glides using 3/8” #6 pan head
screws.
Note: Glides extend in same
direction as wheel in upper
glide.
5/8” #6 Screw
Leg Slot
Wheel Faces Right
3/8” #8 Pan Head
Screw
When attached, this
edge will be flush
behind the leg slot
3/8” #8 Pan Head
Screw
Left Side Panel
PLEASE NOTE - Some pieces are interchangeable with other units we manufacture, and thus some
pilot holes may not be used. It is important to note the proper holes required for assembly in each step.
When attached, this
edge will be flush
behind the leg slot
3/8” #8 Pan Head
Screw
Right Side Panel
Page 6

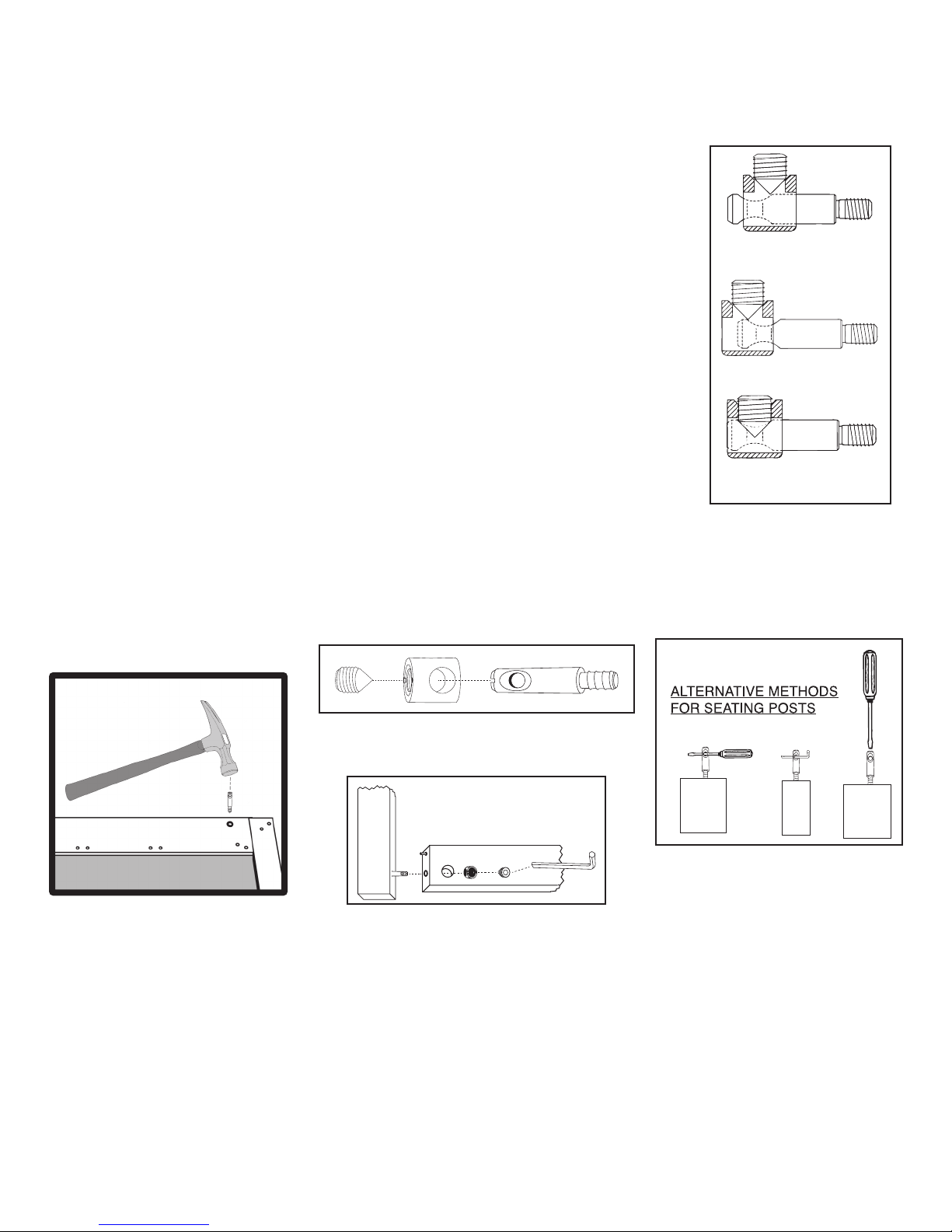

1. The Bastion fastening system consists of a steel post (threaded on one end with a hole
TIPS ON HOW THE BASTION FASTENING SYSTEM WORKS
through the shaft on the other end); a Barrel Nut (cylindrical barrel-shaped with threaded
open end & holes through the sides); and a Set Screw (Phillips slot on one end, pointed on
the other)
2. To attach Posts: A) Dip threads of Post in vegetable oil. B) Align threaded end of Post
with hole in wood, tap on slotted end with hard hammer until threads enter, then tighten
down using a flat head screw driver or the provided allen wrench (See the Illus. Bas. 3 for
alternate seating methods). DO NOT TRY TO HAMMER THE POST ALL THE WAY IN AS IT
WILL STRIP THE POST HOLE. C) When solid shaft of Post hits wood, back out
approximately ½ turn until the hole in the posts is properly aligned as per step by step
directions. For example: the holes in the posts on the inside of the drawer front will be
parallel with the long length of the drawer front when properly seated.
3. A) Place a Barrel Nut into the nut access hole, so that the threads in the nut face out.
The small notches on either side of the nut opening, indicate the location of the holes
through the sides of the nut. B) Insert the posts through the end of the braces (or drawer
sides); through the holes in the sides of the nut. When properly aligned, you will see the hole
in the post inside the barrel nut. Post hole should be slightly off-center toward the wood.
Illustration Bas. 1
WRONG!
Post needs to be screwed deeper.
WRONG!
Post needs to be backed out.
4. Insert the Set Screw into the threaded end of the nut and tighten down. The tip of the Set
Screw will seek the center of the hole in the Post as it is tightened down, forcing the Nut
toward the main shaft of the Post. This is what tightens the wooden parts together. Set
screws should thread easily – DON’T CROSS THREAD! If Set Screw doesn’t thread easily,
check position of the hole in Post.
5. If the wooden parts are not tight against each other, the Post needs to be screwed a half
turn at a time until wood joints are tight.
Illustration Bas. 2
Step 1
Step 2
Illustration Bas. 3
Set screw secures post properly.
CORRECT!
If you have any questions regarding assembly or missing or damage
parts, call our customer support number:
607-652-7321 or 888-732-7321.
Customer Support Hours are 8am-5pm Mon. - Fri. Eastern Time zone.
Allen Wrench Provided
See video on our website!
Page 7

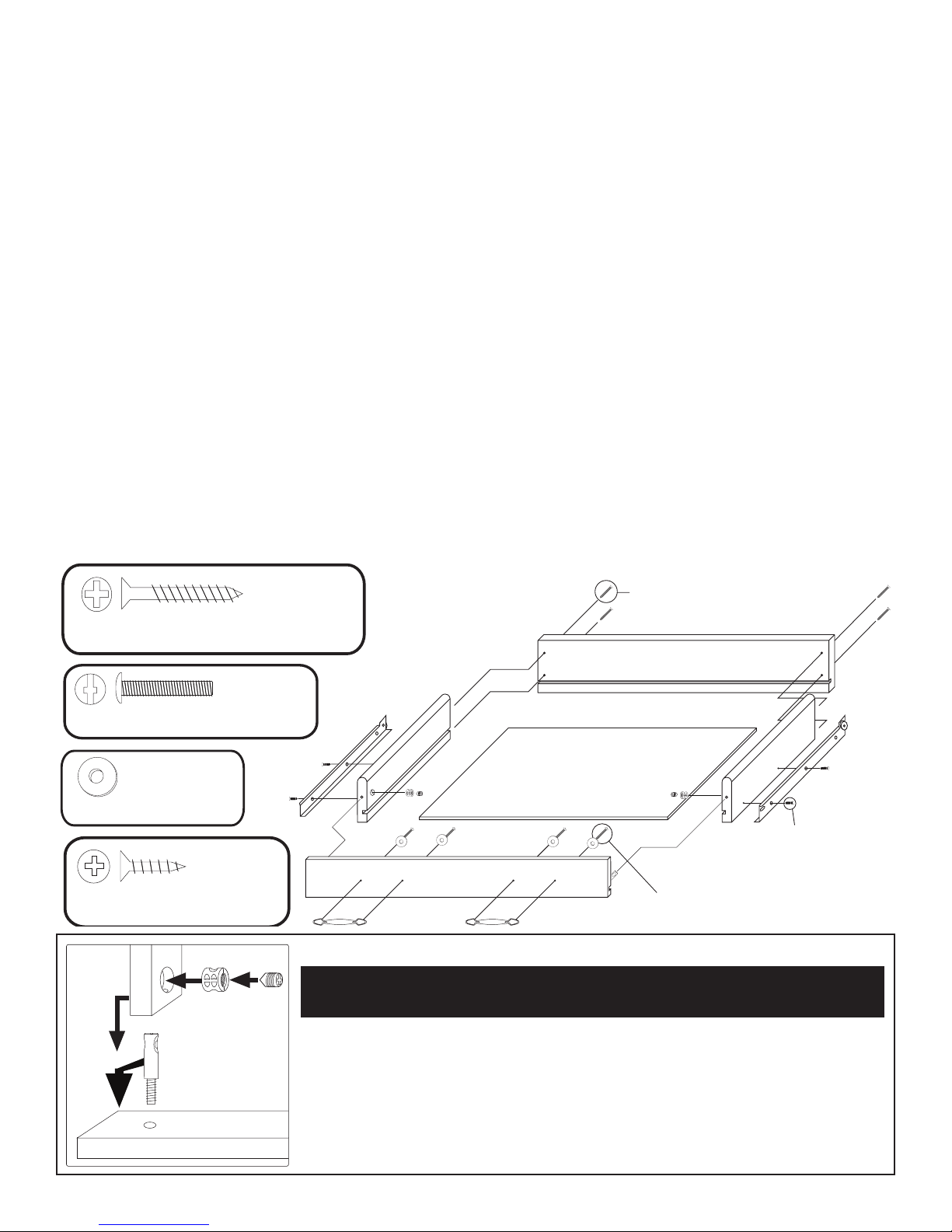

STEP 3
A. Attach the Top Drawer Back to the Drawer Sides with four 1 1/4” #8 screws. There are left and right
sides. Make sure the slots that run the length of the Sides are aligned with the slot in the Drawer Back
to accept the Drawer Bottom.
B. Slide in Drawer Bottom, best side up, to inside of drawer.
C. Take the 2 bastion posts, align the threaded end of the posts with the post holes located near the
ends of the inside of the Drawer Front. Tighten posts down until the solid shaft of the posts hits the
wood. Back post out one full turn until the hole/screwdriver slot in end of post is parallel and in direct
line with the long edges of the Drawer Front.
D. Insert the barrel nuts into the nut access holes on the inside of the Drawer Sides with the threaded
ends of the nuts facing out. Take the Drawer Front and carefully insert the posts into the ends of
the Drawer Sides, through the sides of the nuts until seated. Push nut snug up against the wood in
the nut access hole toward the inside of Drawer Front. Hole should be slightly off-center toward the
Drawer Front. Insert the set screw and tighten down. The ends of the sides should be tight against the
inside Drawer Front.
E. Attach the drawer handles with 1” Truss head machine screws.
F. Attach the drawer glides (left and right) to the Drawer Sides using two 5/8” #6 screws per side
(packaged seperately). Wheels go toward Drawer Back and are up. The end with no wheels should
touch the Drawer Front.
4 Used
in this step
1-1/4” Phillips Flat Head #8 Screw
4 Used
in this step
1” Truss Head Machine Screw
4 Used
in this step
3/16” Flat Washer
4 Used
in this step
5/8” Phillips Flat Head #5 Screw
BASTION ASSEMBLY INSTRUCTIONS
DO NOT USE POWER SCREW DRIVER FOR THIS STEP.
3
2
4
USE HAND SCREW DRIVER ONLY.
1. Screw Bastion post into drawer front. Screw until all threads are hidden, then back
out a full turn such that the hole in the post will face left to right.
1
2. Place the barrel nut into the side brace hole.
3. Slide the side brace onto the post such that the post also slides into the barrel nut.
4. Screw the set screw into place, tightening such that the side brace and drawer
front pull together tightly.
1-1/4” #8 Screw
5/8” #5 Screw
1” Truss Head Machine Screw
Use flat washers if necessary to tighten
Page 8

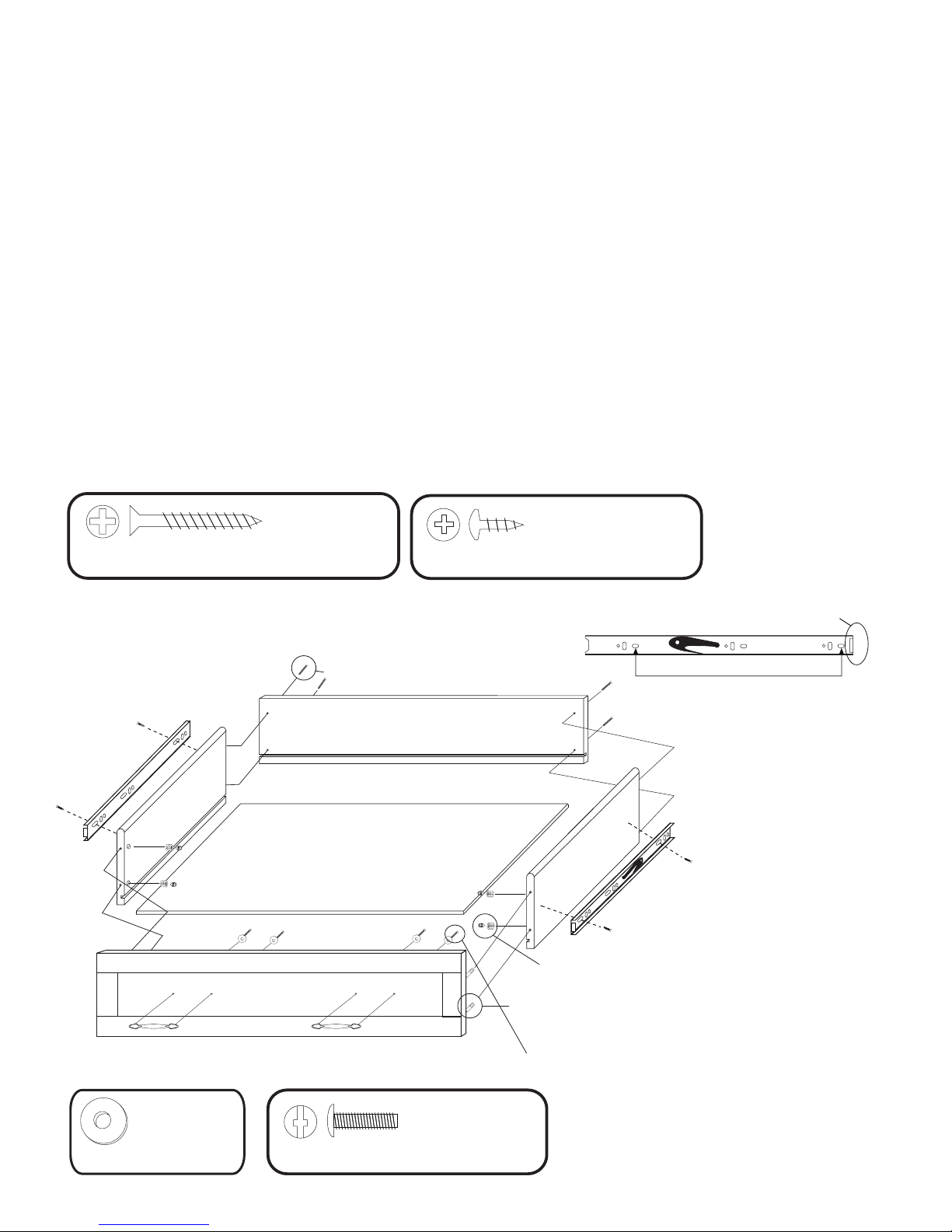

STEP 4
perform a similar drawer assembly as Step 3 for the lower drawers.
A. Using 1-1/4” #8 screws, attach the drawer back to the drawer sides as shown below
B. Slide the drawer bottom into the slots.
C. Insert Bastion Posts into the drawer front and tighten into position.
D. Insert Barrel Nuts into the holes on the drawer sides, and slide the drawer front into place. Tighten
with the set screws. Use hand screwdriver or hex wrench.
E. Attach the full extention glides to the drawer sides. See step 2 to locate the correct part of the glide
for this step.
F. Using 1/2” Truss head screws with two washers each, attach the handles to the drawer front.
FOR TIPS ON HOW THE BASTION SYSTEM WORKS SEE PREVIOUS PAGE!
8 Used
in this step
1-1/4” Phillips Flat Head #8 Screw
1 - 1/4” #8 Screw
8 Used
in this step
3/8” Phillips Pan Head #8 Screw
This end goes flush against
the drawer front.
Use these holes to attach to
the drawer side.
3/8” #8 Pan Head
Screw
Note: On one side the black lever is up and
on the other side the lever is down.
Barrel Nut
Set Screw
16 Used
in this step
3/16” Flat Washer
1/2” Truss Head Screw
Bastion Post
1/2” Truss Head Screw
8 Used
in this step
Page 9

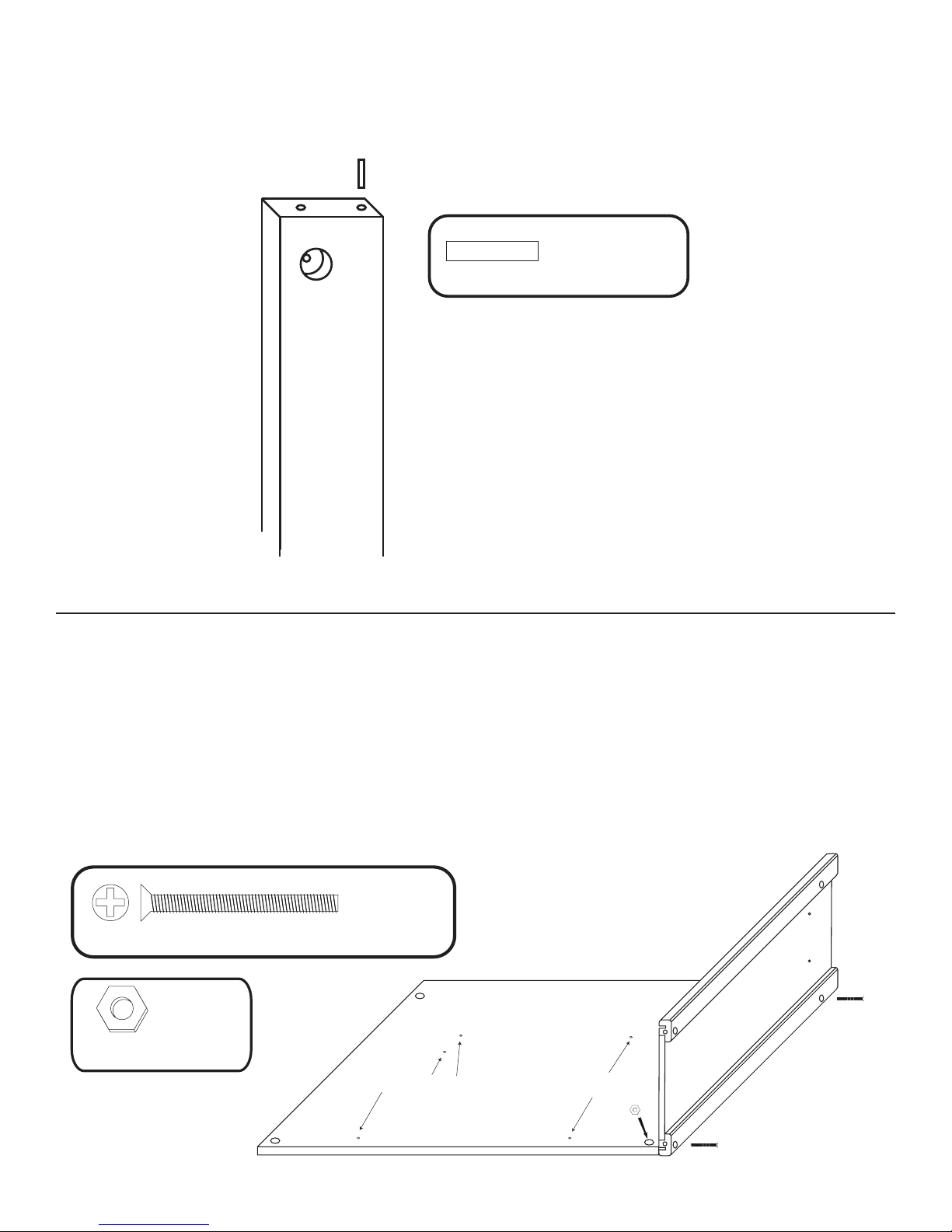

STEP 5
A. Take the 2 front braces and tap/insert one 3/4” steel pin into each end of both braces until seated.
About 3/8” will stick out when seated. OK if loose.
4 Used
in this step
3/4” Long 3/16” DIA. Steel Pin

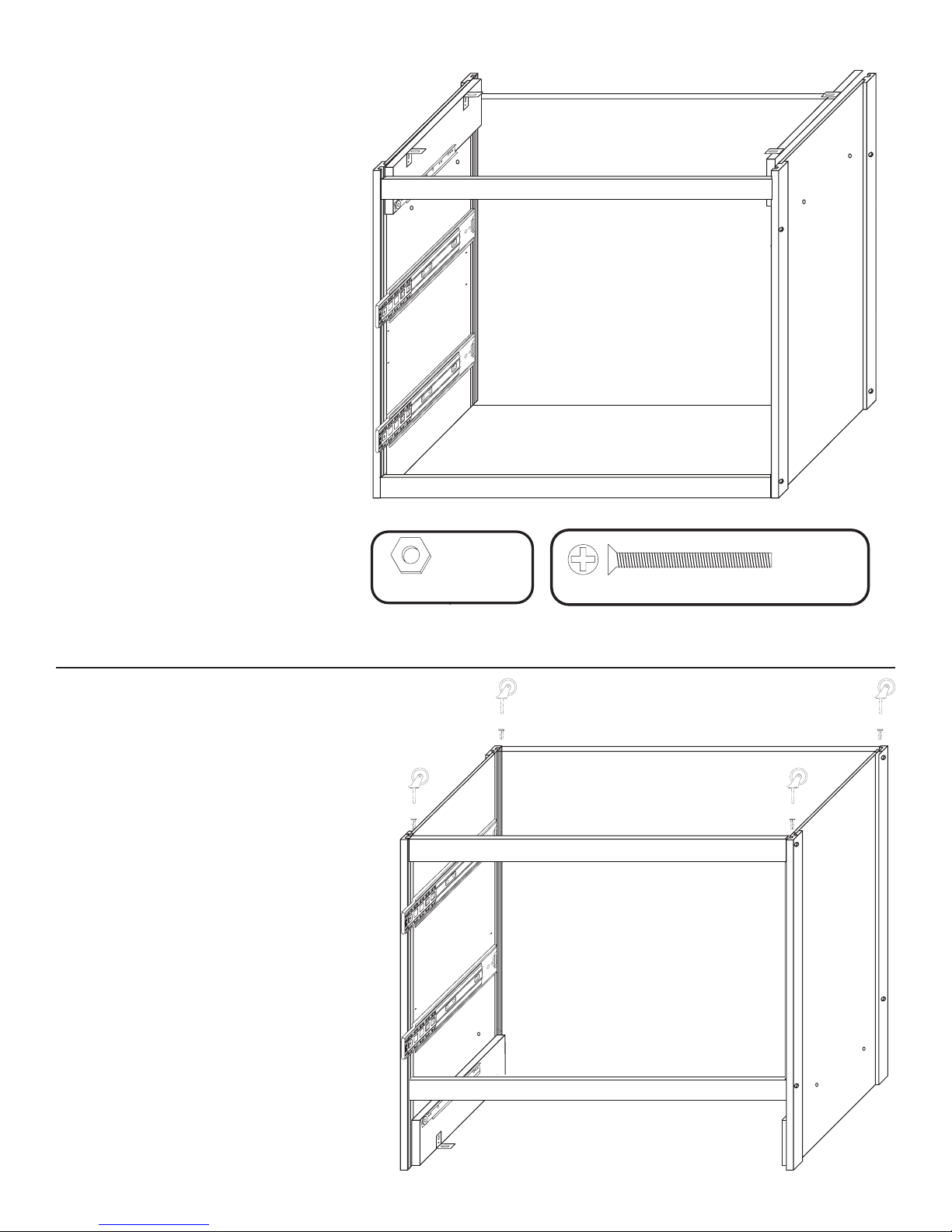

STEP 6
A. Lay Back Panel at on a smooth surface with holes up.
B. Attach Side Panels with 1 3/4” machine screws (bolts) and hex nuts. After inserting bolt(s) through
the holes in the Side Panels, through the holes in the long edges of the Back Panel, place a hex nut
on the tip of your nger, align nut with bolt and tighten.
C. Look ahead to step 8 which shows side panels attached to back panel.
4 Used
in this step
1 3/4” Phillips Flat Head Bolt
4 Used
in this step
10-24 Hex Nut
Not used if present
Not used if present
Page 10
STEP 7
A. Take the Bottom Front Brace
and insert the pin in the right end
of the brace into the slot in the
top of the right front leg and
slide down as in the illustration.
The pin in the left end of the
brace will be outside the slot at
this time. Loosely secure the
right side of the brace with 1 3/4
in. machine screw/ nut. Align the
bottom pin in the divider with
the hole (closest to the left side)
on the inside of the bottom front
brace. Spread the left side panel
until the pin in the left end of the
brace can enter the slot and
secure brace with 1 3/4 in.
machine screw/nut. Tighten
right side bolt/nut.
STEP 8
Invert unit, or lay the unit on its back
to insert the wheels. Have a friend
help with this step as the unit can be
heavy and awkward to move.
A. Insert and tap caster sockets with
hammer until the teeth grab the wood.
DON’T POUND SOCKET FLAT OR
CASTER SHAFT WILL NOT ENTER.
B. Insert casters and seat by pushing
straight downward with heel of
your hand, or tap into place with a
hammer. Don’t be afraid to give them
a good downward whack on the solid
metal part of the caster!
2 Used
in this step
10-24 Hex Nut
2 Used
in this step
1 3/4” Phillips Flat Head Bolt
C. Locking wheels usually go on front.
Page 11

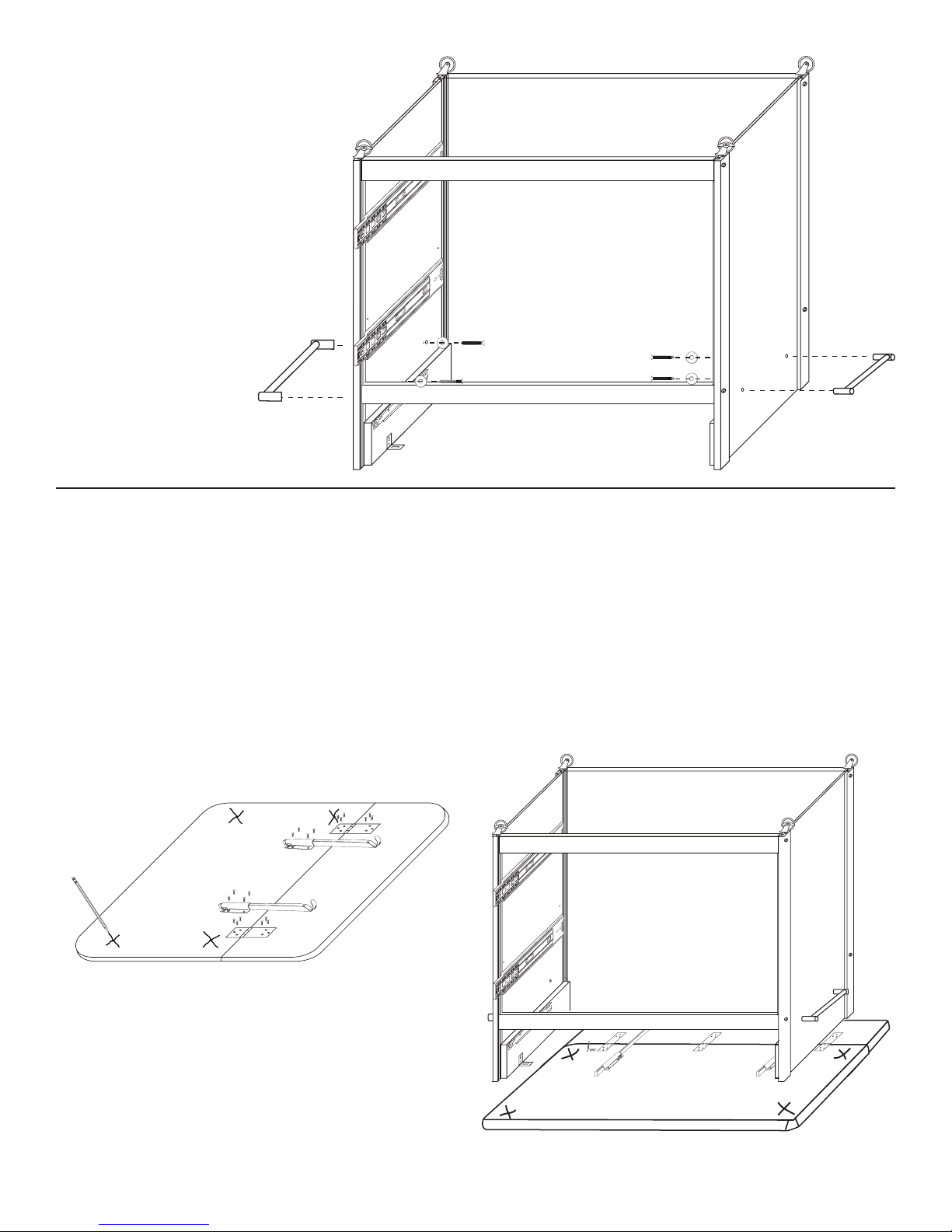

STEP 9
Attach Towel Bars to
the Side Panels with 1”
#8 screws from inside
each Side Panel. Place a
washer over the screws.
STEP 10
A. Assemble top by placing the top and the drop leaf upside down on a smooth at surface. Install
hinges using 5/8 #8 screws. The longer part of the hinge goes on the drop leaf with the short part on
the cart top. Fasten the drop leaf supports using 5/8 #8 screws. Attach Drop Leaf Supports with 5/8
inch #8 screws. See illustration 9A.
B. Make a large ( X ) mark over each of the 4 pilot holes in the bottom. Make marks about 1/2-1” long.
These marks will help you align the cabinet with the L Brackets.
C. Place the Cart Top on the cabinet. Maneuver the Cart Top so that the (X) marks/pilot holes in
the bottom of the Top align with the slots in the “L” brackets. Secure top to “L” brackets with 5/8” #6
screws.
Illustration 10A
Illustration 10B
Page 12

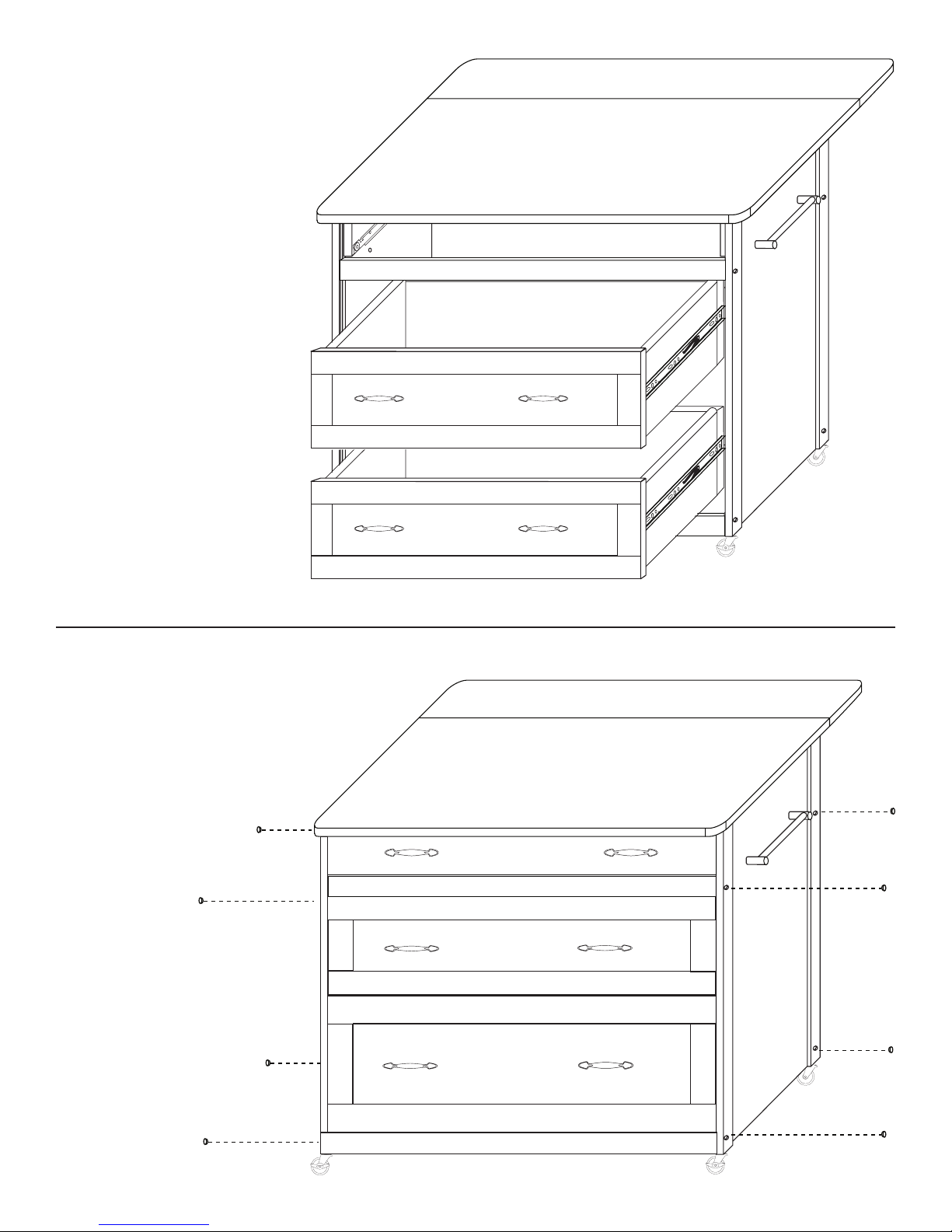

STEP 11
Upright the unit.
Slide the lower drawers into
place. In initially seating
the glides the drawer will
stop about 2/3 of the way
in when the glides hit the
plastic tabs. At this point
just shove the drawer in
with a little force. Once the
glides are properly seated,
the drawers should pull out
and slide in with ease.
STEP 12
A. Slide the top drawer into
the front of the cart.
B. Retighten all 1 3/4 in.
machine screws and nuts.
Tap in the 5/8 wooden
plugs into the holes
on the legs.
Page 13
For continued beauty and long life
of your Catskill Craftsmen cart, we
recommend Catskill Craftsmen’s
Butcher Block Oil. Our Butcher Block
Oil is available directly from Catskill
Craftsmen’s factory. For one eight
ounce (8 . oz.) bottle, which is
sufcient for two applications, simply
send $7.95 along with the completed
coupon to the address below. Visit
us online at www.catskillcraftsmen.
com to browse our assortment of
butcher block care products. Visa and
Mastercard are accepted online.
Catskill Craftsmen, Inc.
15 West End Ave.
Stamford, NY 12167-1296
BUTCHER BLOCK OIL COUPON
Please send me______ # of bottle(s) of the
Catskill Craftsmen Butcher Block Oil at $7.95
per bottle. My check or money order is
enclosed for a total of $_______________.
Item code: 15216
Name _______________________________
Address _____________________________
City ________________________________
State ________________ Zip ___________
Please make checks payable to Catskill Craftsmen Inc.
15 West End Ave., Stamford, NY 12167-1296
Loading...
