Page 1

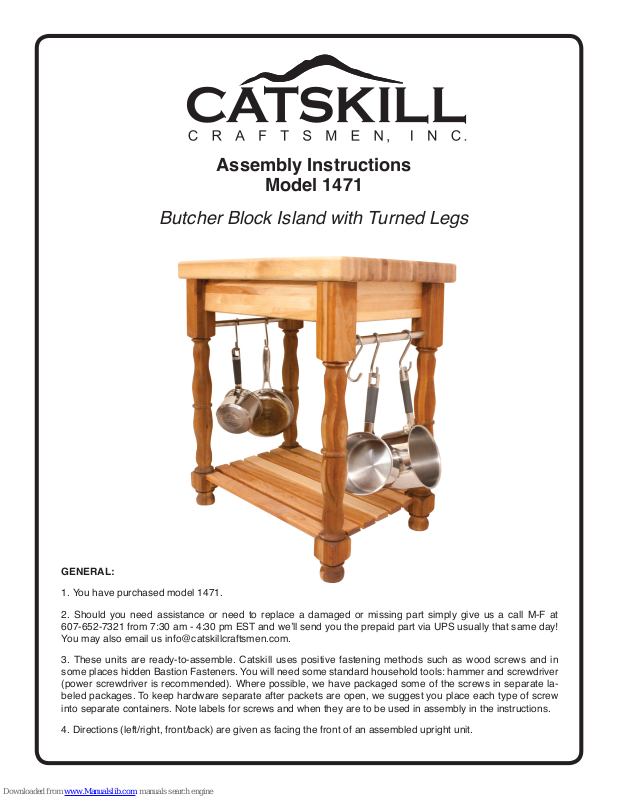

Assembly Instructions
Model 1471
Butcher Block Island with Turned Legs
GENERAL:
1. You have purchased model 1471.
2. Should you need assistance or need to replace a damaged or missing part simply give us a call M-F at
607-652-7321 from 7:30 am - 4:30 pm EST and we’ll send you the prepaid part via UPS usually that same day!
You may also email us [email protected].
3. These units are ready-to-assemble. Catskill uses positive fastening methods such as wood screws and in
some places hidden Bastion Fasteners. You will need some standard household tools: hammer and screwdriver
(power screwdriver is recommended). Where possible, we have packaged some of the screws in separate labeled packages. To keep hardware separate after packets are open, we suggest you place each type of screw
into separate containers. Note labels for screws and when they are to be used in assembly in the instructions.
4. Directions (left/right, front/back) are given as facing the front of an assembled upright unit.
Page 2
PARTS AND HARDWARE
1 1/4” Phillips Flat Head #8 Screw (4)
Slatted Shelf (1)
Page 3
STEP 1

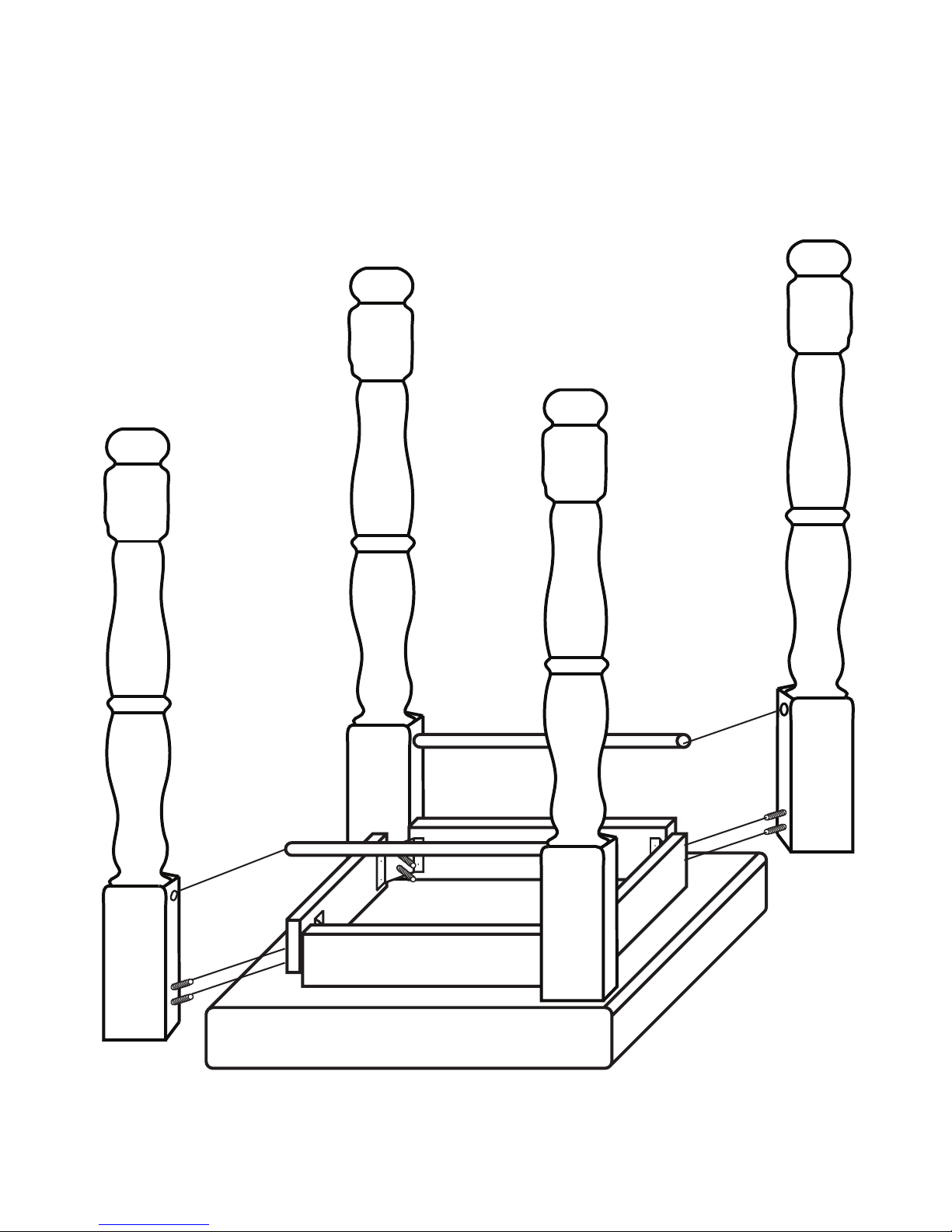

Fit legs into Table Top Assembly according to the diagram and also t
towel bars into the holes on the legs.
Page 4
STEP 2

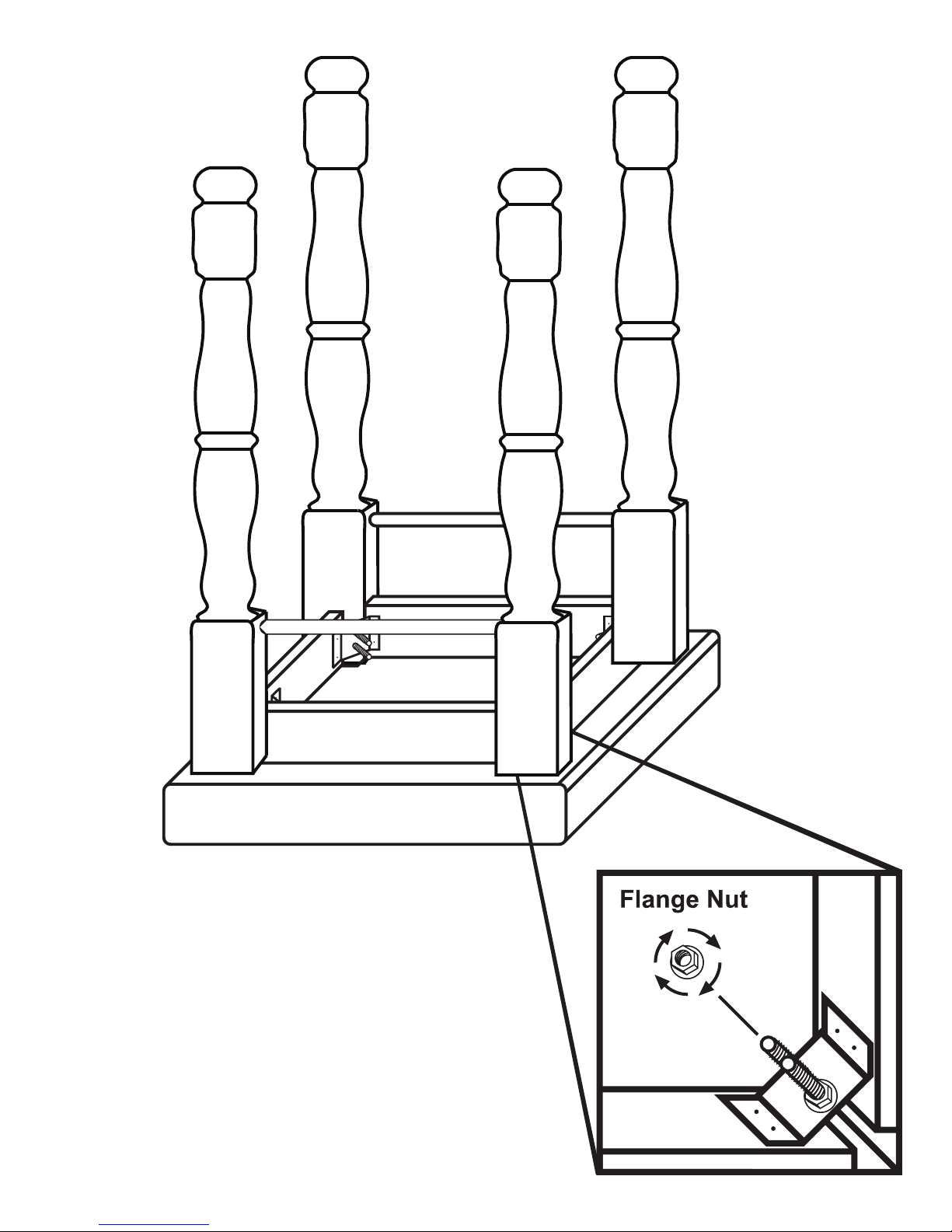

Secure legs to Table Top with ange nuts,
tighten with pliers or with a 7/16” wrench.
Page 5
STEP 3

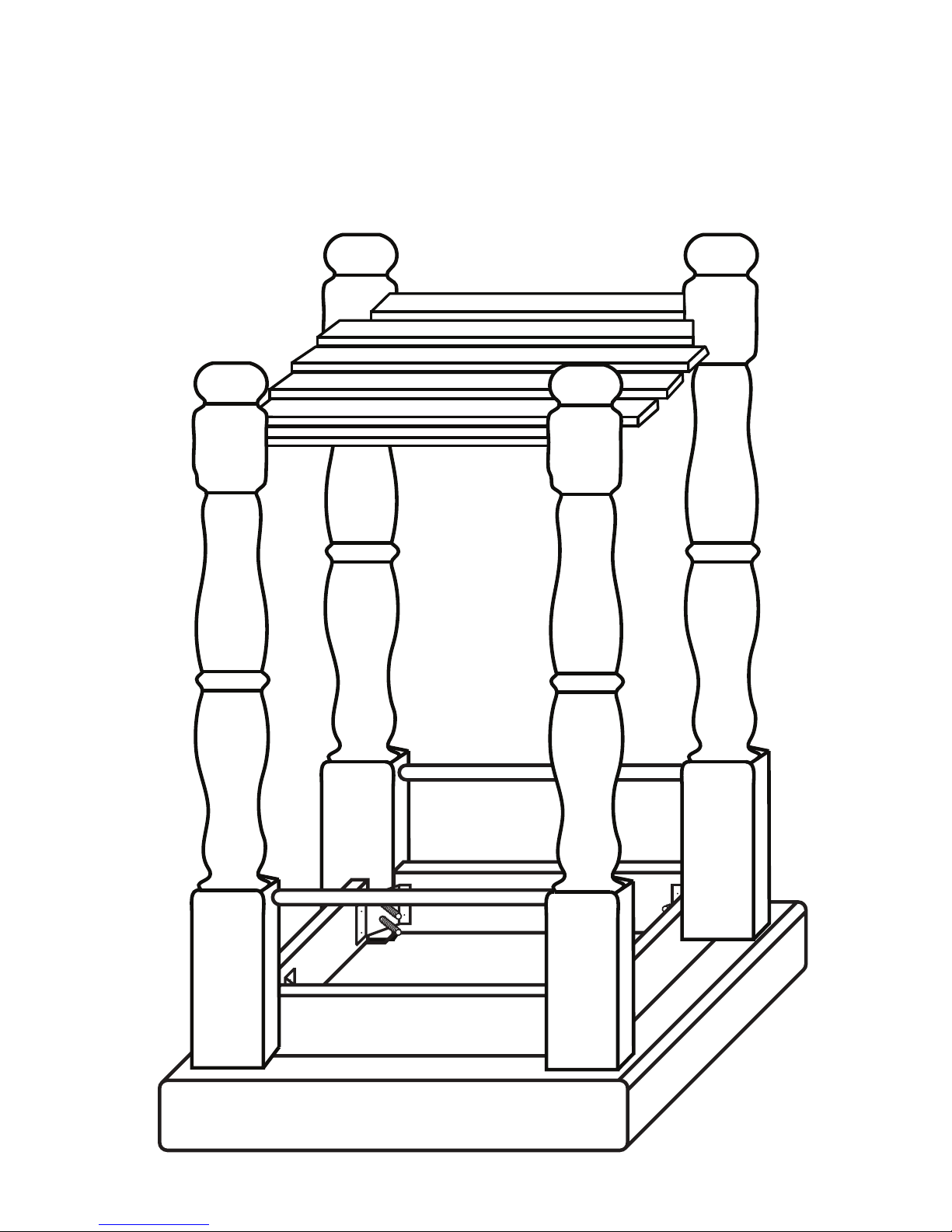

A. Attach the Slatted Shelf using 1 1/4” #8 screws. You may need
someone to help hold the shelf in place while you attach it.
B. Hang S Hooks on Towel Bar for Pots and Pans storage.
Page 6

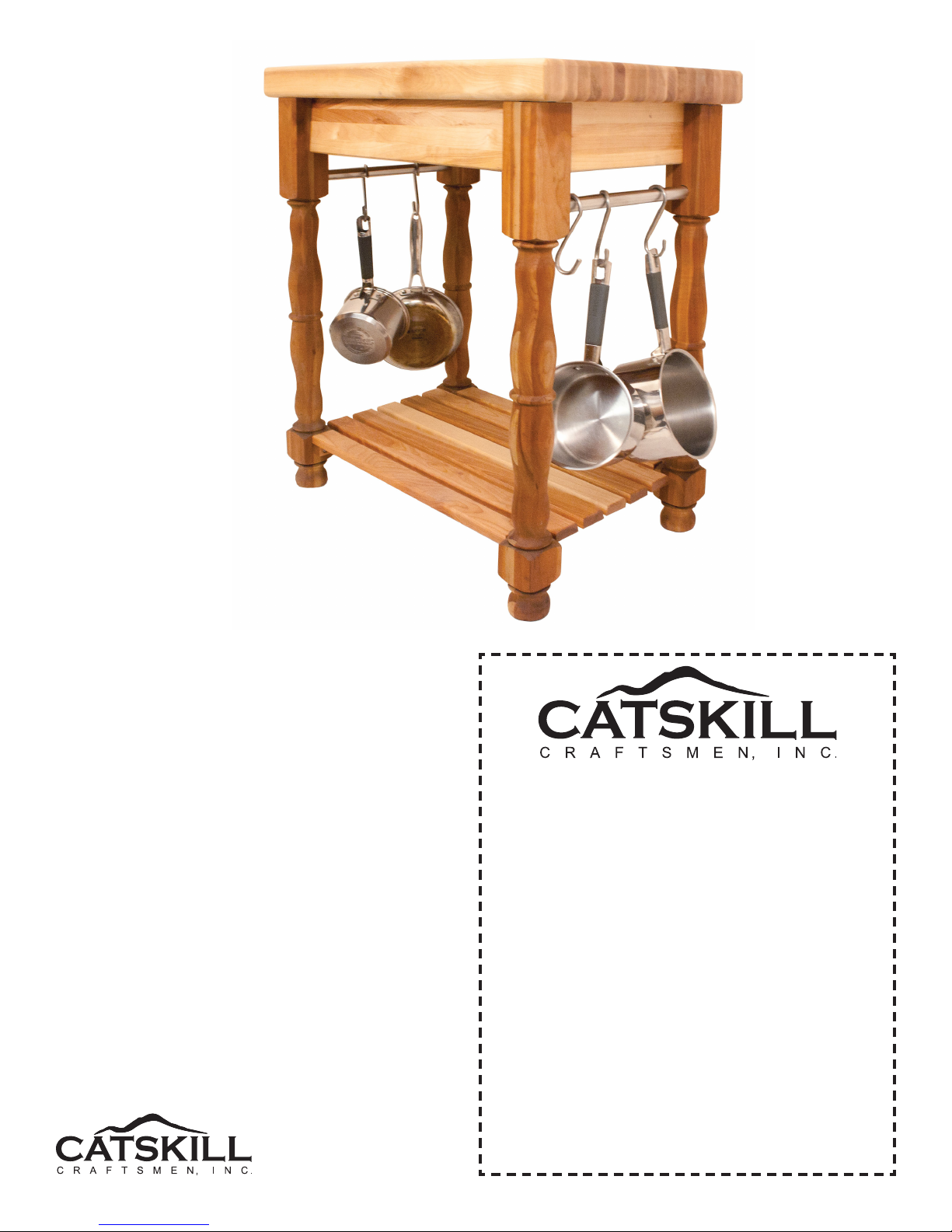

For continued beauty and long life
of your Catskill Craftsmen cart, we
recommend Catskill Craftsmen’s
Butcher Block Oil. Our Butcher Block
Oil is available directly from Catskill
Craftsmen’s factory. For one eight
ounce (8 . oz.) bottle, which is
sufcient for two applications, simply
send $7.95 along with the completed
coupon to the address below. Visit
us online at www.catskillcraftsmen.
com to browse our assortment of
butcher block care products. Visa and
Mastercard are accepted online.
Catskill Craftsmen, Inc.
15 West End Ave.
Stamford, NY 12167-1296
BUTCHER BLOCK OIL COUPON
Please send me______ # of bottle(s) of the
Catskill Craftsmen Butcher Block Oil at $7.95
per bottle. My check or money order is
enclosed for a total of $_______________.
Item code: 1471
Name _______________________________
Address _____________________________
City ________________________________
State ________________ Zip ___________
Please make checks payable to Catskill Craftsmen Inc.
15 West End Ave., Stamford, NY 12167-1296
